The common RJ45-style modular connector family has eight positions and eight contacts.
Also called RJ45 Ethernet plug 8P8C network connector
An RJ45-shaped port is not always an Ethernet port.
Look for the modular shell and latch. Use the port label and device manual to establish its function; a cable end alone cannot identify a network service.
Claim inspection dates: 2026-10-01, 2026-10-05, 2026-10-11, 2026-10-13, 2026-10-22 · Independent review pending

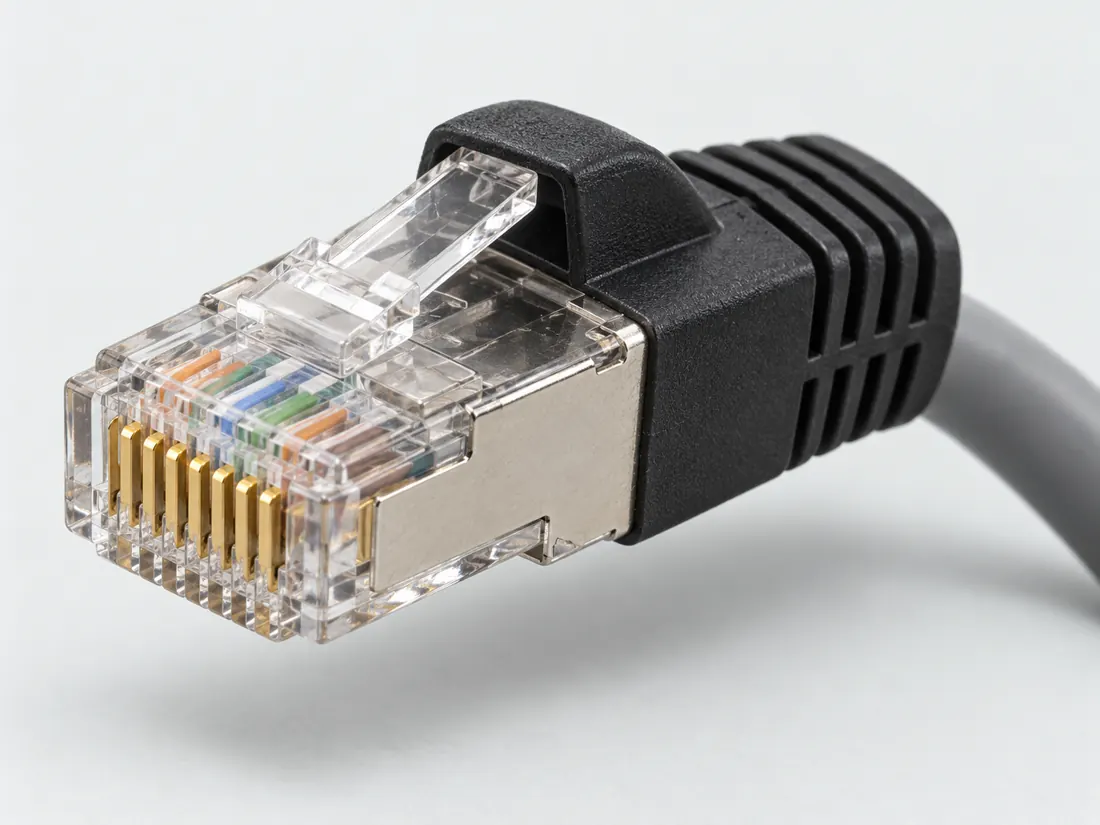

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

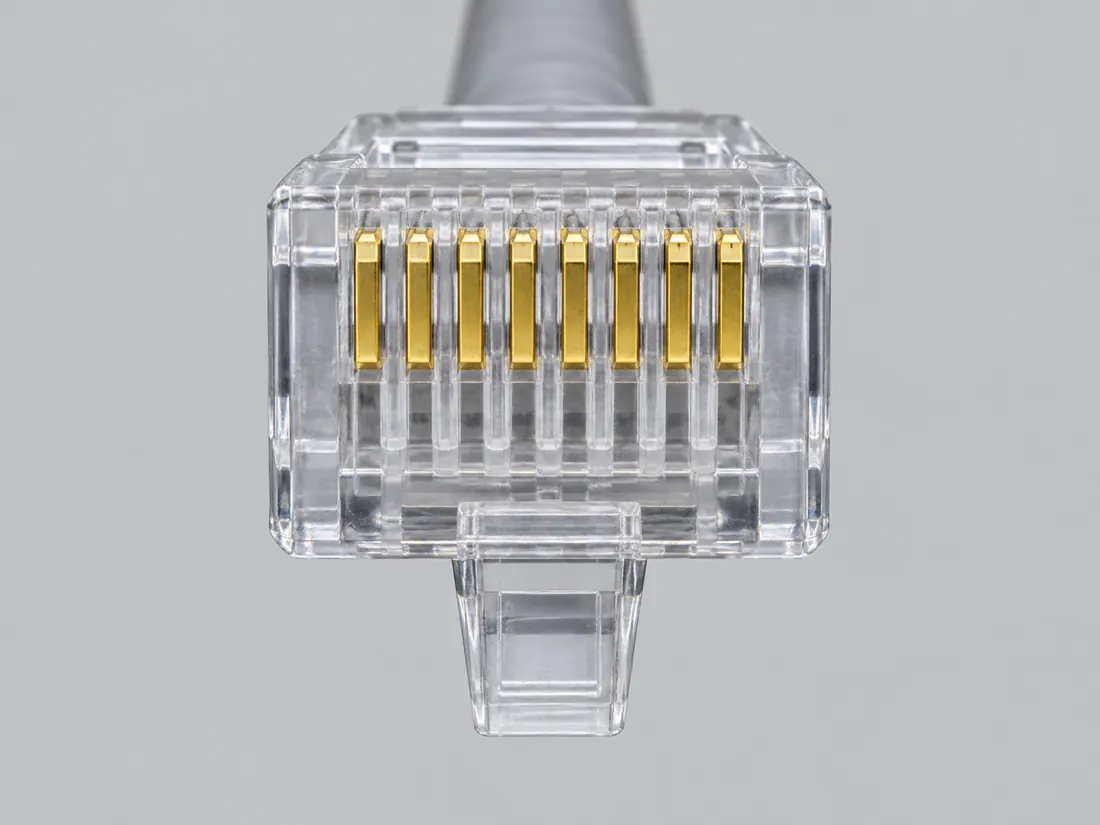

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

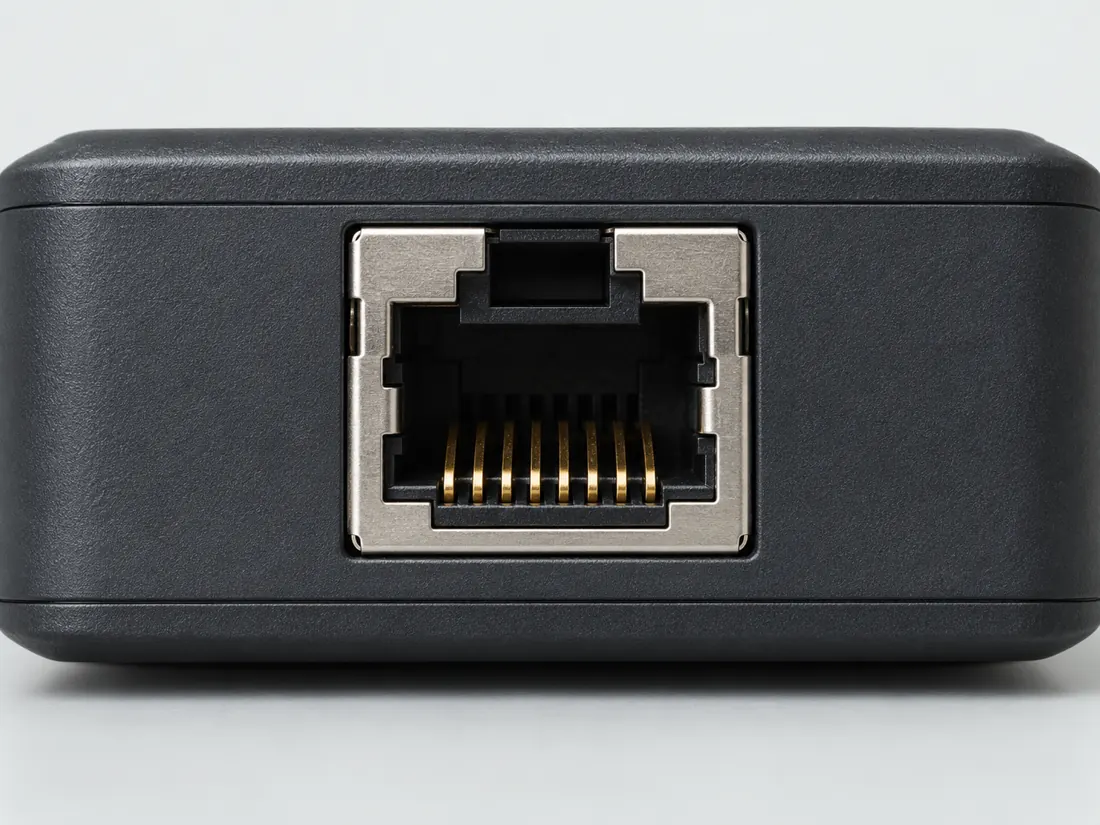

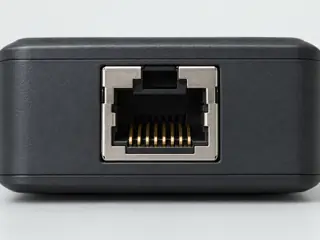

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Recognition drawing Original schematic, not to scale. Drawing review pending.
Field answer / P018 · Source-checked, human review pending
First answerThe common RJ45-style modular connector family has eight positions and eight contacts.
Next observation: Start with the equipment’s port label and interface documentation; then check the cable and endpoint requirements separately.
8P8C describes a modular contact form, not a guaranteed Ethernet, console or PoE role. Even weather protection documented at one end of a hybrid cable cannot be applied automatically to the other end.
These are the existing, individually scoped observations—not fresh source inspections, a universal pinout, approved geometry or a device-specific compatibility verdict.
C018A / canonical evidence anchor — The common RJ45-style modular connector family has eight positions and eight contacts.
Consumer identification / documented standard or product class only · source checked; independent sign-off pending.
C018B / canonical evidence anchor — A manufacturer’s RJ45 console cable is a concrete example of this shape being used for serial console, not Ethernet.
Narrowly stated supporting distinction; not an end-to-end device guarantee · source checked; independent sign-off pending.
C018D / canonical evidence anchor — For Phoenix Contact cable 1561797, the manufacturer lists IP65/IP67 under the M12 end and IP20 under the RJ45 end. The M12 end rating does not establish the same protection for the RJ45 end or a complete installation.
V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee. · source checked; independent sign-off pending.
Shape, plug/socket view, contact roles and exact model capability must be checked separately. Review source authority and publication status ↓
Image inspection / P018
2 registered views for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.
(private workspace)P018 / Source-observed physical study
CommScope 6-569278-3 / MP-5EU-1
Plug end / sheet-1 unshielded example · Cable plug / cable end
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)
(private workspace)P018 / Inherited recognition study
8P8C modular connector (commonly called RJ45)
Cable-end exterior front/underside concept; latch indicated, not a wiring view · Cable plug / cable end
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)Network notes / Copper / P018
Not by shape. Separate the modular component, cable wiring and equipment service: a documented RJ45-ended console cable is expressly not an Ethernet connection. C018B · C018E
| Check | Documented distinction | What this does not establish |
|---|---|---|
| Component | CommScope 6-569278-3 is an unshielded 8P8C plug kit. C018E | A plug kit is not a tested installed cable or evidence of PoE capability. |
| Service | Cable Matters 202065-6 is a USB-to-RJ45 serial-console cable, not an Ethernet adapter. C018B | Its counterexample does not identify every unlabeled modular port as console. |
| Termination scheme | The retained T568A/T568B reference distinguishes the green/orange pair arrangement. C018C | A termination code does not establish the port’s service, link rate or power role. |
Keep this limit: Read standards-based or other power behavior from the exact equipment and approved cable documentation; never trial an unknown powered lead. C018B · C018E
Explicit source exclusion · named example only
The manufacturer lists IP65/IP67 for the M12 end and IP20 for the RJ45 end.
Boundary. Explicit difference in the named listing; not an evaluation of an installed assembly.
Next check. Read the protection requirement and mating accessory for each exposed junction.
S500 · C018D (private workspace)
Source check · 14 October 2026. The kit, serial-console exclusion and wiring-code distinction were re-observed. No PoE allocation, installation rating or cable certification is inferred.
Source-qualified reference, not a wiring, optical-link or compatibility approval. Each linked claim and source carries its own recorded inspection date and review status. Selected source checks do not constitute independent technical or rights approval.
Existing source trail: S021 · S612 · S613 · S191.
Network, fiber and RF questions · etherCON ruggedized RJ45 connector system
C018A (private workspace) — The common RJ45-style modular connector family has eight positions and eight contacts.
Consumer identification / documented standard or product class only
C018B (private workspace) — A manufacturer’s RJ45 console cable is a concrete example of this shape being used for serial console, not Ethernet.
Narrowly stated supporting distinction; not an end-to-end device guarantee
C018D (private workspace) — For Phoenix Contact cable 1561797, the manufacturer lists IP65/IP67 under the M12 end and IP20 under the RJ45 end. The M12 end rating does not establish the same protection for the RJ45 end or a complete installation.
V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.
Source interpretation is not independent engineering review, hardware testing, wiring advice or a public-release approval.
No. 8P8C describes the connector shape; console and other signal uses may share it. Read the equipment port label and manual to establish the supported electrical interface.
Three checks and exact source trail ↗No. T568A and T568B define pair termination arrangements on 8P8C cabling, not an equipment speed guarantee. The installed channel category, link partners and testing matter separately.
Three checks and exact source trail ↗Editorial decision guidance only. A connector identity or nominal pitch does not establish approved mating, safe wiring or a supported device combination.
Flagship atlas NETWORK / PORT ROLE
An eight-contact modular opening is a physical connector form. It may be an Ethernet port, serial-management console, or another documented interface—never treat the shape as proof of Ethernet or PoE.
8P8C describes the eight-position, eight-contact modular connector used in familiar RJ45-style ports. Evidence: C018A
A manufacturer-documented RJ45-style console cable is an example of a serial interface using this familiar form. Evidence: C018B
The same-looking shell does not identify copper Ethernet link rate or configuration. Evidence: C018A
PoE power delivery is a separate equipment and port capability that must be checked against the device. Evidence: C018B
Do not attach an Ethernet switch—or assume PoE—to a console jack because the cable latch seems familiar.
This is an original editorial decision study tied to existing source-checked claims. The following source inspections have not been renewed by this new page presentation, and none is independent engineering or model-by-model qualification.
Unresolved: Actual device fit, required physical tolerances, pinouts, negotiations, electrical safety and hardware interoperability still require the identified manufacturer's documentation and any necessary independent review.
Signal-path fieldbook
Read the answer, keep mechanical fit separate from the signal path, and verify the named endpoint. These editorial studies reuse inherited source records; no compatibility has been laboratory confirmed.
Field answerThe 8P8C modular shape does not establish the port function. TE describes the eight-contact modular family; Cable Matters documents a USB-to-RJ45 serial console cable that explicitly does not provide Ethernet networking. PoE is a separate device-specific power capability to check, never a visual assumption.
| Evidence layer | What is established or still conditional |
|---|---|
| Physical connector | An eight-position / eight-contact modular plug or jack is a visible identification clue only. |
| Ethernet or serial function | Cable Matters part 202065-6 is a manufacturer-described serial console solution; its RJ45 end does not make it an Ethernet adapter. |
| Power mode / PoE | Before considering power, obtain the exact device port’s PoE role and published electrical requirements; this inherited evidence contains no rating for an unidentified port. |
| Manufacturer scope | S020 identifies a broad TE connector family. S021 demonstrates one named Cable Matters console product, not all consoles or pin arrangements. |
Not yet established The pictured connector alone cannot establish Ethernet PHY, console pin assignment, PoE sourcing or receiving capability, voltage, safe power or a live-network path.
Existing scoped claims: C018A (Consumer identification / documented standard or product class only); C018B (Narrowly stated supporting distinction; not an end-to-end device guarantee). No newly authored empirical specifications; manufacturer catalogue claims remain conditional on the actual part and host.
Existing inspection dates remain unchanged. This editorial synthesis is not a physical mating test, pinout, optical budget, manufacturer device approval or deployment authorization.
Visual atlas / P018 / 2026
What to look for
Wider eight-position modular body
The short interior strokes are position-count glyphs, not contact placement or wiring.
RJ-style trade names do not establish wiring or Ethernet service; examine the port label and documented pinout.
No fabrication dimensions, conductor routing, guaranteed fit or device approval. For electrical, power and optical interfaces, follow the original equipment instructions.
Uses previously recorded V112 manufacturer claim/source inspections; October 2026 supplementary public-source spot checks are documented separately, not treated as a refreshed approval.
Original Port & Cable interpretive vector, no third-party photo, copied CAD, logo or vendor drawing. Third-party product photos, logos and source drawings are not redistributed. pending independent expert assessment; publication approval remains closed.
Original claim identifiers: C018A (private workspace) · C018B (private workspace). Legacy evidence dates and rights assessments remain as recorded.
The useful distinction
The common RJ45-style modular connector family has eight positions and eight contacts. [C018A]
A manufacturer’s RJ45 console cable is a concrete example of this shape being used for serial console, not Ethernet. [C018B]
For Phoenix Contact cable 1561797, the manufacturer lists IP65/IP67 under the M12 end and IP20 under the RJ45 end. The M12 end rating does not establish the same protection for the RJ45 end or a complete installation. [C018D]
T568A and T568B use the same eight-position modular termination but swap the green and orange pairs: T568A places green on pins 1–2 and orange on 3 and 6; T568B places orange on 1–2 and green on 3 and 6. [C018C]
CommScope identifies 6-569278-3 / MP-5EU-1 as an unshielded 8P8C modular plug kit. Its linked drawing 2843004 lists that exact material number on the unshielded sheet, separately from shielded variants. [C018E]
Molex identifies 95501-2881 as a right-angle 8P8C modular jack. Its chart separates 1.02 mm mating-interface pitch from 1.27 mm termination-interface pitch. [C018W]
Name the modular form separately from Ethernet, console and power service.
| Nominal contacts | 8S020 · S021 · S1918-position modular jack termination reference; nominal engineering count, not automatically positions, population or a device wiring map. 8-position modular jack termination reference |
|---|---|
| Positions / cavity span | 8 (Claim C018A); 8 (Claim C018C); 8 (8P8C); 8 (6-569278-3 / MP-5EU-1)S020 · S191 · S869Separate exact examples; retain each value’s source, role, axis and part scope. Consumer identification / documented standard or product class only T568A/B pair-to-pin termination convention viewed from the front of the jack; not Ethernet-service, cable-category, link-rate or PoE proof Exact named example 6-569278-3 / MP-5EU-1: 8P8C modular plug kit. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Correction applies to this named plug example; preserve separate generic jack orientation and other role values. No T568 wiring map derived. |
| Populated contacts | 8 (8P8C convention); 8 (6-569278-3 / MP-5EU-1)S020 · S869Separate exact examples; retain each value’s source, role, axis and part scope. Consumer identification / documented standard or product class only Exact named example 6-569278-3 / MP-5EU-1: 8P8C modular plug kit. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Correction applies to this named plug example; preserve separate generic jack orientation and other role values. No T568 wiring map derived. |
| Connector role | socket; plug (6-569278-3 / MP-5EU-1)S020 · S021 · S191 · S869Separate exact examples; retain each value’s source, role, axis and part scope. 8-position modular jack termination reference Exact named example 6-569278-3 / MP-5EU-1: 8P8C modular plug kit. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Correction applies to this named plug example; preserve separate generic jack orientation and other role values. No T568 wiring map derived. |
| Contact rows | Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations. |
|---|---|
| Contact pitch | 1.02 mm Manufacturer Pitch-Mating Interface (Molex 955012881 board jack)S982Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 95501-2881 right-angle 8P8C board jack; manufacturer mating-interface pitch only, separate from plug geometry or all modular parts. |
| Dimensions / axis | Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations. |
| Coupling / latch | Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations. |
| Keying / polarization | Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations. |
| View convention | Front view of the jack, following the orientation described by the source. Contact numbers 1 through 8 are shown left-to-right in the V35 schematic.S020 · S021 · S191Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Existing engineering orientation text; source/part/view remains controlling. |
| Contact gender / arrangement | Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations. |
| Mounting | IDC termination (6-569278-3 / MP-5EU-1)S869Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 6-569278-3 / MP-5EU-1: 8P8C modular plug kit. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Correction applies to this named plug example; preserve separate generic jack orientation and other role values. No T568 wiring map derived. |
| Shell / form | Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations. |
| Manufacturer | CommScope (6-569278-3 / MP-5EU-1)S612 · S613Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Named plug kit, not a completed lead, installed-port function, cable-category test or PoE verdict. No equivalence to similarly numbered TE parts is asserted. |
| Series | 8P8C modular (6-569278-3 / MP-5EU-1)S612 · S613Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Named plug kit, not a completed lead, installed-port function, cable-category test or PoE verdict. No equivalence to similarly numbered TE parts is asserted. |
| Exact part / implementation | 6-569278-3 / MP-5EU-1 (6-569278-3 / MP-5EU-1)S612 · S613Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Named plug kit, not a completed lead, installed-port function, cable-category test or PoE verdict. No equivalence to similarly numbered TE parts is asserted. |
| Recorded markings | Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations. |
Keep this limit: T568A/T568B is a termination convention, not evidence of the port’s service or enabled power features. S191
Read the exact port service and any PoE role/class documentation, then inspect the cable’s own category and termination evidence.
Existing source inspection and AI review remain distinct from independent technical review. A matching form does not establish a safe connection.
Bounded facts, visible unknowns
| Formal physical descriptor | 8P8C modular [C018A] [C018B] |
|---|---|
| Data rate / PoE | Not established by shape [C018A] [C018B] |
| Source-scoped component distinction | CommScope identifies 6-569278-3 / MP-5EU-1 as an unshielded 8P8C modular plug kit. Its linked drawing 2843004 lists that exact material number on the unshielded sheet, separately from shielded variants. [C018E] |
| Mechanical dimensions | No independently reviewed mechanical drawing in this release; do not use this page for fabrication. |
| Engineering pinout | Source-checked engineering profile available; independent review pending. Open engineering profile → |
| Verified device list | Not included. Check exact device and accessory documentation. |
This record is an identification starting point. It does not provide measured mating tolerances, electrical approval, or a list of verified device models. Use the original device and accessory documentation to resolve the remaining requirements.
Before you connect
Pins & wiring
Choose the exact wiring. Pin numbers follow its stated view; a schematic does not establish physical positions. Check your exact device before wiring.
The CommScope item is a plug kit, not a tested cable assembly. Its drawing separates unshielded and shielded constructions. Port function, cable performance and PoE remain separate questions.
The source-linked wired-network reference separates component identity, coding, equipment service and protection conditions. Original qualitative studies are not exact mating drawings or independently approved wiring instructions. Evidence: C018E, C018B, C018D.
Your next step
The source trail
AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.
The common RJ45-style modular connector family has eight positions and eight contacts.
TE Connectivity · RJ45 connectors ↗S020: full source recordInspect review dependencies → (private workspace)A manufacturer’s RJ45 console cable is a concrete example of this shape being used for serial console, not Ethernet.
Cable Matters · USB to RJ45 FTDI console cable ↗S021: full source recordInspect review dependencies → (private workspace)For Phoenix Contact cable 1561797, the manufacturer lists IP65/IP67 under the M12 end and IP20 under the RJ45 end. The M12 end rating does not establish the same protection for the RJ45 end or a complete installation.
Phoenix Contact · Phoenix Contact 1561797 — end-specific network and protection scope ↗S500: full source recordInspect review dependencies → (private workspace)T568A and T568B use the same eight-position modular termination but swap the green and orange pairs: T568A places green on pins 1–2 and orange on 3 and 6; T568B places orange on 1–2 and green on 3 and 6.
Fluke Networks · Differences Between Wiring Codes T568A vs T568B ↗S191: full source recordInspect review dependencies → (private workspace)CommScope identifies 6-569278-3 / MP-5EU-1 as an unshielded 8P8C modular plug kit. Its linked drawing 2843004 lists that exact material number on the unshielded sheet, separately from shielded variants.
CommScope · 6-569278-3 / MP-5EU-1 modular plug kit ↗S612: full source recordCommScope · 2843004 — MP-5ES/5EU modular plug customer drawing ↗S613: full source recordInspect review dependencies → (private workspace)Molex identifies 95501-2881 as a right-angle 8P8C modular jack. Its chart separates 1.02 mm mating-interface pitch from 1.27 mm termination-interface pitch.
Molex · Molex 95501 modular-jack series chart, exact4/4,6/4,6/6,8/8 variants ↗S982: full source recordInspect review dependencies → (private workspace)Follow the connection
Use shape to narrow the candidates, then use documentation to establish function.
Open field note
A familiar rectangle does not tell you its data rate.
Open field note
A data connector is not a power connector.
Open field noteCommon questions
Compare exact Ethernet interfaces and power roles, or build an explicit source-side af/at reservation scenario.
Compare look-alikes: Telephone modular versus 8P8C · etherCON versus ordinary 8P8C modular
Candidate selection does not confirm the identity or capabilities of your physical item.
