Side by side

etherCON versus ordinary 8P8C modular

Is the interface a ruggedized locking etherCON system or a conventional 8P8C modular port?

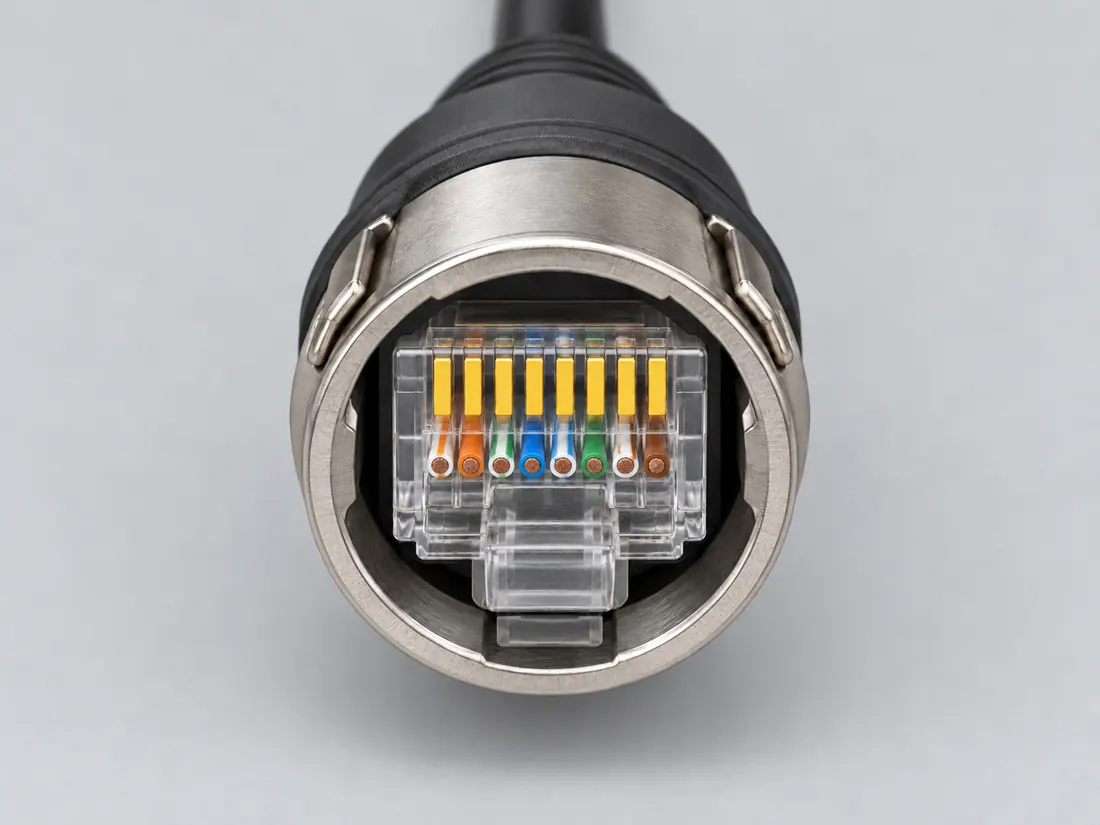

Computer-generated illustration, not a photograph.
P255 · ConnectoretherCON ruggedized RJ45 connector system
Computer-generated illustration, not a photograph.
P018 · Connector8P8C modular connector (commonly called RJ45)

How they differ

  • etherCON ruggedized RJ45 connector system Look for the locking etherCON shell around an RJ45 interface and verify the exact Neutrik series because not every etherCON generation intermates.
  • 8P8C modular connector (commonly called RJ45) Look for the modular shell and latch. Use the port label and device manual to establish its function; a cable end alone cannot identify a network service.

Then askIs the interface a ruggedized locking etherCON system or a conventional 8P8C modular port?

At a glance

Source-scoped form facts; counts, variants and unknowns are distinct
FieldetherCON ruggedized RJ45 connector system8P8C modular connector (commonly called RJ45)
TypeConnectorConnector
FamilyNetworkNetwork
Shapemodularmodular
Nominal contactsNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.8S020 · S021 · S1918-position modular jack termination reference; nominal engineering count, not automatically positions, population or a device wiring map. 8-position modular jack termination reference
Positions / cavity spanNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.8 (Claim C018A); 8 (Claim C018C); 8 (8P8C); 8 (6-569278-3 / MP-5EU-1)S020 · S191 · S869Separate exact examples; retain each value’s source, role, axis and part scope. Consumer identification / documented standard or product class only T568A/B pair-to-pin termination convention viewed from the front of the jack; not Ethernet-service, cable-category, link-rate or PoE proof Exact named example 6-569278-3 / MP-5EU-1: 8P8C modular plug kit. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Correction applies to this named plug example; preserve separate generic jack orientation and other role values. No T568 wiring map derived.
Contact rowsNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector rolesocket (NE8FDY-C6)S321Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. NE8FDY-C6. Documented role: socket. Specific compatibility exclusion preserved. No generic etherCON capability or all-variant mating claim.socket; plug (6-569278-3 / MP-5EU-1)S020 · S021 · S191 · S869Separate exact examples; retain each value’s source, role, axis and part scope. 8-position modular jack termination reference Exact named example 6-569278-3 / MP-5EU-1: 8P8C modular plug kit. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Correction applies to this named plug example; preserve separate generic jack orientation and other role values. No T568 wiring map derived.
Key distinctionThe rugged carrier or chassis system does not change the need to verify Ethernet category, pinning, PoE and device support for the actual installation.An RJ45-shaped port is not always an Ethernet port.

Full evidence ledger and sources ↓

Illustrations are computer-generated with prior AI visual review; independent technical and rights review pending. A comparison is not a compatibility verdict.

This comparison stays within one evidence layer.

All selected records are Connector records. Similar layer does not mean compatible, interchangeable or safe to mate.

Families represented: Network

The reference ledger

Read the same question across.

2 selected records · 16 fields
No score. No compatibility verdict.

On a narrow screen, scroll the table sideways or open the field-by-field reading view below. Illustrations are not a size comparison.

Comparison of selected field notes; source links accompany each documented specification
What you are comparing
etherCON ruggedized RJ45 connector system — original, not-to-scale identification schematic; drawing review pending
P255 / ConnectoretherCON ruggedized RJ45 connector system

Identification schematic · not to scale · drawing review pending

8P8C modular connector (commonly called RJ45): Wider eight-position modular body. Cable-end exterior front/underside concept; latch indicated, not a wiring view. Qualitative source-linked recognition study, not a pinout or a dimensional guide.
P018 / Connector8P8C modular connector (commonly called RJ45)

Identification schematic · not to scale · drawing review pending

LayerConnectorConnector
Key distinctionThe rugged carrier or chassis system does not change the need to verify Ethernet category, pinning, PoE and device support for the actual installation.An RJ45-shaped port is not always an Ethernet port.
Nominal contactsNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.8S020 · S021 · S1918-position modular jack termination reference; nominal engineering count, not automatically positions, population or a device wiring map. 8-position modular jack termination reference
Positions / cavity spanNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.8 (Claim C018A); 8 (Claim C018C); 8 (8P8C); 8 (6-569278-3 / MP-5EU-1)S020 · S191 · S869Separate exact examples; retain each value’s source, role, axis and part scope. Consumer identification / documented standard or product class only T568A/B pair-to-pin termination convention viewed from the front of the jack; not Ethernet-service, cable-category, link-rate or PoE proof Exact named example 6-569278-3 / MP-5EU-1: 8P8C modular plug kit. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Correction applies to this named plug example; preserve separate generic jack orientation and other role values. No T568 wiring map derived.
Populated contactsNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.8 (8P8C convention); 8 (6-569278-3 / MP-5EU-1)S020 · S869Separate exact examples; retain each value’s source, role, axis and part scope. Consumer identification / documented standard or product class only Exact named example 6-569278-3 / MP-5EU-1: 8P8C modular plug kit. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Correction applies to this named plug example; preserve separate generic jack orientation and other role values. No T568 wiring map derived.
Contact rowsNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact pitchNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.1.02 mm Manufacturer Pitch-Mating Interface (Molex 955012881 board jack)S982Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 95501-2881 right-angle 8P8C board jack; manufacturer mating-interface pitch only, separate from plug geometry or all modular parts.
Dimensions / axisNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector rolesocket (NE8FDY-C6)S321Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. NE8FDY-C6. Documented role: socket. Specific compatibility exclusion preserved. No generic etherCON capability or all-variant mating claim.socket; plug (6-569278-3 / MP-5EU-1)S020 · S021 · S191 · S869Separate exact examples; retain each value’s source, role, axis and part scope. 8-position modular jack termination reference Exact named example 6-569278-3 / MP-5EU-1: 8P8C modular plug kit. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Correction applies to this named plug example; preserve separate generic jack orientation and other role values. No T568 wiring map derived.
Coupling / latchpush-pull (Claim C255B); Push-pull locking in D-shape panel connector (NE8FDY-C6)S321 · S321Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. V48 exact-product mating-boundary example for the etherCON family; not a universal statement that all etherCON generations or RJ45 carriers intermate. NE8FDY-C6. Documented role: socket. Specific compatibility exclusion preserved. No generic etherCON capability or all-variant mating claim.Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Keying / polarizationNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Documented identificationConnector-family identity is source-backed; exact variant/count remains implementation-specific.C255ANot an equivalent field
Source-scoped component distinctionNeutrik’s NE8MX is an RJ45 cable-connector carrier supplied without an RJ45 plug. Neutrik explicitly excludes mating it with NE8FDY-C6 and NE8FDY-C6-B CAT6 chassis connectors.C255C · C255DCommScope identifies 6-569278-3 / MP-5EU-1 as an unshielded 8P8C modular plug kit. Its linked drawing 2843004 lists that exact material number on the unshielded sheet, separately from shielded variants.C018E
Formal physical descriptorNot an equivalent field8P8C modularC018A · C018B
Data rate / PoENot an equivalent fieldNot established by shapeC018A · C018B
EvidenceC255A,C255B,C255C,C255D →
Independent review pending		C018A,C018B,C018D,C018C,C018E,C018W →
Independent review pending
Read field by field — no sideways scrolling

The same selected records, fields, values and source links as the table. Missing fields remain non-equivalent; no values are merged.

Layer

Key distinction

etherCON ruggedized RJ45 connector systemP255 / Connector
The rugged carrier or chassis system does not change the need to verify Ethernet category, pinning, PoE and device support for the actual installation.
8P8C modular connector (commonly called RJ45)P018 / Connector
An RJ45-shaped port is not always an Ethernet port.

Nominal contacts

etherCON ruggedized RJ45 connector systemP255 / Connector
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
8P8C modular connector (commonly called RJ45)P018 / Connector
8S020 · S021 · S1918-position modular jack termination reference; nominal engineering count, not automatically positions, population or a device wiring map. 8-position modular jack termination reference

Positions / cavity span

etherCON ruggedized RJ45 connector systemP255 / Connector
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
8P8C modular connector (commonly called RJ45)P018 / Connector
8 (Claim C018A); 8 (Claim C018C); 8 (8P8C); 8 (6-569278-3 / MP-5EU-1)S020 · S191 · S869Separate exact examples; retain each value’s source, role, axis and part scope. Consumer identification / documented standard or product class only T568A/B pair-to-pin termination convention viewed from the front of the jack; not Ethernet-service, cable-category, link-rate or PoE proof Exact named example 6-569278-3 / MP-5EU-1: 8P8C modular plug kit. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Correction applies to this named plug example; preserve separate generic jack orientation and other role values. No T568 wiring map derived.

Populated contacts

etherCON ruggedized RJ45 connector systemP255 / Connector
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
8P8C modular connector (commonly called RJ45)P018 / Connector
8 (8P8C convention); 8 (6-569278-3 / MP-5EU-1)S020 · S869Separate exact examples; retain each value’s source, role, axis and part scope. Consumer identification / documented standard or product class only Exact named example 6-569278-3 / MP-5EU-1: 8P8C modular plug kit. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Correction applies to this named plug example; preserve separate generic jack orientation and other role values. No T568 wiring map derived.

Contact rows

etherCON ruggedized RJ45 connector systemP255 / Connector
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
8P8C modular connector (commonly called RJ45)P018 / Connector
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Contact pitch

etherCON ruggedized RJ45 connector systemP255 / Connector
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
8P8C modular connector (commonly called RJ45)P018 / Connector
1.02 mm Manufacturer Pitch-Mating Interface (Molex 955012881 board jack)S982Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 95501-2881 right-angle 8P8C board jack; manufacturer mating-interface pitch only, separate from plug geometry or all modular parts.

Dimensions / axis

etherCON ruggedized RJ45 connector systemP255 / Connector
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
8P8C modular connector (commonly called RJ45)P018 / Connector
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Connector role

etherCON ruggedized RJ45 connector systemP255 / Connector
socket (NE8FDY-C6)S321Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. NE8FDY-C6. Documented role: socket. Specific compatibility exclusion preserved. No generic etherCON capability or all-variant mating claim.
8P8C modular connector (commonly called RJ45)P018 / Connector
socket; plug (6-569278-3 / MP-5EU-1)S020 · S021 · S191 · S869Separate exact examples; retain each value’s source, role, axis and part scope. 8-position modular jack termination reference Exact named example 6-569278-3 / MP-5EU-1: 8P8C modular plug kit. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Correction applies to this named plug example; preserve separate generic jack orientation and other role values. No T568 wiring map derived.

Coupling / latch

etherCON ruggedized RJ45 connector systemP255 / Connector
push-pull (Claim C255B); Push-pull locking in D-shape panel connector (NE8FDY-C6)S321 · S321Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. V48 exact-product mating-boundary example for the etherCON family; not a universal statement that all etherCON generations or RJ45 carriers intermate. NE8FDY-C6. Documented role: socket. Specific compatibility exclusion preserved. No generic etherCON capability or all-variant mating claim.
8P8C modular connector (commonly called RJ45)P018 / Connector
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Keying / polarization

etherCON ruggedized RJ45 connector systemP255 / Connector
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
8P8C modular connector (commonly called RJ45)P018 / Connector
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Documented identification

etherCON ruggedized RJ45 connector systemP255 / Connector
Connector-family identity is source-backed; exact variant/count remains implementation-specific.C255A
8P8C modular connector (commonly called RJ45)P018 / Connector
Not an equivalent field

Source-scoped component distinction

etherCON ruggedized RJ45 connector systemP255 / Connector
Neutrik’s NE8MX is an RJ45 cable-connector carrier supplied without an RJ45 plug. Neutrik explicitly excludes mating it with NE8FDY-C6 and NE8FDY-C6-B CAT6 chassis connectors.C255C · C255D
8P8C modular connector (commonly called RJ45)P018 / Connector
CommScope identifies 6-569278-3 / MP-5EU-1 as an unshielded 8P8C modular plug kit. Its linked drawing 2843004 lists that exact material number on the unshielded sheet, separately from shielded variants.C018E

Formal physical descriptor

etherCON ruggedized RJ45 connector systemP255 / Connector
Not an equivalent field

Data rate / PoE

etherCON ruggedized RJ45 connector systemP255 / Connector
Not an equivalent field
8P8C modular connector (commonly called RJ45)P018 / Connector
Not established by shapeC018A · C018B

Evidence

Your next step

Use the distinction in context.

Open the field notes Read source-linked facts and limitations.Compare another pair Start from a common confusion.Check a connection A comparison is not a compatibility verdict.

Continue the distinction

Compare next

Browse every comparison →
Telephone modular versus 8P8CIdentify the housing without inferring a network or telephone function.M12 A-coded versus B-coded versus L-codedWhich M12 coding and intended domain does the equipment documentation specify? Connector-family identity is only the first layer; implementation-specific electrical and protocol requirements still need exact documentation.M12 D-, X- and Y-coded data/hybrid formsDoes the exact interface require D-coded, X-coded or Y-coded M12 rather than merely an M12 shell? Connector identity and manufacturer ratings are only reference layers; exact circuit, wiring, installation and equipment requirements still need qualified documentation.M12 D-coded versus X-coded EthernetWhich M12 coding and position pattern is documented for the Ethernet port? Connector-family identity is only the first layer; implementation-specific electrical and protocol requirements still need exact documentation.M8 A-coded versus D-codedWhich M8 coding is documented: A-coded signal/sensor or D-coded data? Connector-family identity is only the first layer; implementation-specific electrical and protocol requirements still need exact documentation.M8 D-coded versus M12 D-codedIs the D-coded industrial Ethernet connector M8 or M12? Connector-family identity is only the first layer; implementation-specific electrical and protocol requirements still need exact documentation.

Adjust this comparison

Evidence behind this page

Scope first. Source second. Approval separate.

12 linked sources · 10 scoped claims · 0 sources with inspection/access flags.

Page scope: Evidence behind the compared records; the editorial comparison still needs separate review.

Assessment 2026-10-22 · earliest scheduled source review 2026-12-30. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 12 source scopes, access limits and dates

S020 · RJ45 connectors

TE Connectivity · Manufacturer / product-owner domain · inspected 2026-10-01 · due 2026-12-30

Within inspection window

Scoped support: 8P8C physical family; exact implementation remains product-specific.

Not established / limitations:

Locator: RJ45 / 8-position modular product family

S021 · USB to RJ45 FTDI console cable

Cable Matters · Manufacturer / product-owner domain · inspected 2026-10-01 · due 2026-12-30

Within inspection window

Scoped support: Scoped counterexample: an RJ45-shaped connection can be serial console rather than Ethernet.

Not established / limitations:

Locator: Console cable description

S191 · Differences Between Wiring Codes T568A vs T568B

Fluke Networks · Manufacturer / product-owner domain · inspected 2026-10-05 · due 2027-01-03

Within inspection window

Scoped support: Eight-position modular termination convention: green/orange pair swap between T568A and T568B, with diagrams described from the front of the jack.

Not established / limitations: Termination convention only. It does not establish that an 8P8C-shaped port is Ethernet, its link rate, PoE support or cable-category performance.

Locator: T568A versus T568B pair-to-pin differences and diagram orientation note

S275 · etherCON RJ45 connector system

Neutrik · Manufacturer / product-owner domain · inspected 2026-10-06 · due 2027-01-04

Within inspection window

Scoped support: Identifies etherCON as a ruggedized and lockable RJ45 connector system for professional network applications.

Not established / limitations: Identification/reference scope only. V43 does not convert this source into a universal pinout, fabrication drawing, electrical approval, protocol guarantee or end-to-end compatibility verdict.

Locator: etherCON overview

S321 · NE8FDY-C6 etherCON CAT6 D-shape panel connector

Neutrik · Manufacturer / product-owner domain · inspected 2026-10-06 · due 2027-01-04

Within inspection window

Scoped support: Engineering-scoped inspection of the NE8FDY-C6 CAT6 D-shape etherCON panel connector: push-pull locking and explicit mating-family restrictions.

Not established / limitations: Variant-specific mating restrictions are not generalized to every etherCON generation, carrier, cable assembly or generic RJ45 installation.

Locator: Product description, mating warning and technical information

S500 · Phoenix Contact 1561797 — end-specific network and protection scope

Phoenix Contact · Manufacturer / product-owner domain · inspected 2026-10-11 · due 2027-01-09

Within inspection window

Scoped support: Named 1561797 M12 D-coded to RJ45 cable only; separate end ratings must not be projected onto the complete installation.

Not established / limitations: Named 1561797 M12 D-coded to RJ45 cable only; separate end ratings must not be projected onto the complete installation. No raw HTML or manufacturer image archive is represented as retained.

Locator: Product description; Interfaces; Connector / Connection 1 and Connection 2; linked product photograph 244868 and male-side drawing 144634

S612 · 6-569278-3 / MP-5EU-1 modular plug kit

CommScope · Manufacturer / product-owner domain · inspected 2026-10-13 · due 2027-01-11

Within inspection window

Scoped support: Exact kit identity; not a completed cable or a compatibility claim with TE 5-569278-3.

Not established / limitations: Exact kit identity; not a completed cable or a compatibility claim with TE 5-569278-3. No engineering dimensions or universal wiring assignments added.

Locator: Product heading, 8P/8C unshielded kit description, and linked customer drawing 2843004.

S613 · 2843004 — MP-5ES/5EU modular plug customer drawing

CommScope · Manufacturer / product-owner domain · inspected 2026-10-13 · due 2027-01-11

Within inspection window

Scoped support: Unshielded sheet-1 example only; no shield, strain-relief boot or fitted cable inferred.

Not established / limitations: Unshielded sheet-1 example only; no shield, strain-relief boot or fitted cable inferred. No engineering dimensions or universal wiring assignments added.

Locator: Both sheets visually inspected. Sheet 1 lists 6-569278-3 / MP-5EU-1 and the unshielded eight-contact plug; sheet 2 is shielded. Title block shows revision F, despite URL filename suffix c.

S614 · NE8MX etherCON cable connector carrier

Neutrik · Manufacturer / product-owner domain · inspected 2026-10-13 · due 2027-01-11

Within inspection window

Scoped support: NE8MX carrier only; accepted RJ45 parts and assembly details are separate manufacturer checks.

Not established / limitations: NE8MX carrier only; accepted RJ45 parts and assembly details are separate manufacturer checks. No engineering dimensions or universal wiring assignments added.

Locator: Description, explicit absence of supplied RJ45 plug, and incompatibility with NE8FDY-C6 / NE8FDY-C6-B.

S615 · NE8MX carrier drawing 20001842

Neutrik · Manufacturer / product-owner domain · inspected 2026-10-13 · due 2027-01-11

Within inspection window

Scoped support: A carrier exterior, not an eight-contact plug or complete terminated cable.

Not established / limitations: A carrier exterior, not an eight-contact plug or complete terminated cable. No engineering dimensions or universal wiring assignments added.

Locator: Sheet 1/1; drawing 20001842, approval field 14 October 2022. Type-1 side view selected; type-2 alternate also inspected.

S616 · NE8FDY-C6 CAT6 panel connector drawing

Neutrik · Manufacturer / product-owner domain · inspected 2026-10-13 · due 2027-01-11

Within inspection window

Scoped support: Front of named panel component only; not a current production dimensional certification.

Not established / limitations: Front of named panel component only; not a current production dimensional certification. No engineering dimensions or universal wiring assignments added.

Locator: Single sheet ST-NE8FDY-C6, front, side, rear and separately labelled rear-side panel cut-out; drawn-date field 24 February 2006.

S982 · Molex 95501 modular-jack series chart, exact4/4,6/4,6/6,8/8 variants

Molex · Manufacturer / product-owner domain · inspected 2026-10-22 · due 2027-01-20

Within inspection window

Scoped support: Exact named right-angle board-jack rows only; no plug-role geometry transfer.

Not established / limitations: P111/P112 are plug records, so jack values are counterpart context only and excluded from their pitch numerator. Port Configuration1x1 is not contact-row count. No Number of Rows field or inspected face drawing on this chart.

Locator: Full Export Spreadsheet table: exact955012441,955012641,955012661,955012881 rows. Web Description identifies modular JACK; Pitch-Mating Interface1.02 mm differs from Pitch-Termination Interface1.27 mm; Positions/Loaded Contacts4/4,6/4,6/6,8/8.

Trace 10 claims to their source records

C018A · P018

The common RJ45-style modular connector family has eight positions and eight contacts.

Claim scope: Consumer identification / documented standard or product class only

Source links: S020 · Evidence trail → (private workspace)

C018B · P018

A manufacturer’s RJ45 console cable is a concrete example of this shape being used for serial console, not Ethernet.

Claim scope: Narrowly stated supporting distinction; not an end-to-end device guarantee

Source links: S021 · Evidence trail → (private workspace)

C018C · P018

T568A and T568B use the same eight-position modular termination but swap the green and orange pairs: T568A places green on pins 1–2 and orange on 3 and 6; T568B places orange on 1–2 and green on 3 and 6.

Claim scope: T568A/B pair-to-pin termination convention viewed from the front of the jack; not Ethernet-service, cable-category, link-rate or PoE proof

Source links: S191 · Evidence trail → (private workspace)

C018D · P018

For Phoenix Contact cable 1561797, the manufacturer lists IP65/IP67 under the M12 end and IP20 under the RJ45 end. The M12 end rating does not establish the same protection for the RJ45 end or a complete installation.

Claim scope: V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.

Source links: S500 · Evidence trail → (private workspace)

C018E · P018

CommScope identifies 6-569278-3 / MP-5EU-1 as an unshielded 8P8C modular plug kit. Its linked drawing 2843004 lists that exact material number on the unshielded sheet, separately from shielded variants.

Claim scope: Named plug kit, not a completed lead, installed-port function, cable-category test or PoE verdict. No equivalence to similarly numbered TE parts is asserted.

Source links: S612 · S613 · Evidence trail → (private workspace)

C018W · P018

Molex identifies 95501-2881 as a right-angle 8P8C modular jack. Its chart separates 1.02 mm mating-interface pitch from 1.27 mm termination-interface pitch.

Claim scope: Exact Molex 95501-2881 right-angle 8P8C board jack; manufacturer mating-interface pitch only, separate from plug geometry or all modular parts.

Source links: S982 · Evidence trail → (private workspace)

C255A · P255

Neutrik describes etherCON as a ruggedized and lockable RJ45 connector system optimized for professional audio, video and lighting network applications.

Claim scope: V43 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof.

Source links: S275 · Evidence trail → (private workspace)

C255B · P255

Neutrik specifies the NE8FDY-C6 CAT6 etherCON D-shape panel connector with push-pull locking and warns that its mating set is variant-specific rather than interchangeable with older etherCON carriers.

Claim scope: V48 exact-product mating-boundary example for the etherCON family; not a universal statement that all etherCON generations or RJ45 carriers intermate.

Source links: S321 · Evidence trail → (private workspace)

C255C · P255

Neutrik’s NE8MX is an RJ45 cable-connector carrier supplied without an RJ45 plug. Neutrik explicitly excludes mating it with NE8FDY-C6 and NE8FDY-C6-B CAT6 chassis connectors.

Claim scope: Named carrier and named exclusions only. A generic RJ45 plug, a carrier and an assembled cable are different objects; no alternative part is approved here.

Source links: S614 · S615 · Evidence trail → (private workspace)

C255D · P255

Neutrik states IP65 protection for its NE8FDY-C6 panel connector in the mated condition. That condition does not establish protection for an open connector or every etherCON variant.

Claim scope: Manufacturer-stated named-product protection condition only; not ingress testing, an installation approval or proof of a compatible counterpart.

Source links: S321 · S616 · Evidence trail → (private workspace)

Prepare this page for review → (private workspace)Read the evidence method →

Recorded evidence only. An inspection date, publisher label, source link or generated packet is not independent technical review, hardware testing, fabrication approval or a compatibility verdict.
