DVI-I dual-link connector

DVI-I distinguishes an integrated analog/digital interface from digital-only DVI-D.

Also called DVI-I DVI integrated 24+5 DVI

Extra contacts are a clue, not a promise of analog output from every device.

Look for

Compare the contacts around the flat blade with a DVI-D connector. Some mechanical combinations do not fit; never remove pins to force a match.

Claim inspection dates: 2026-10-07, 2026-10-11, 2026-10-21 · Independent review pending

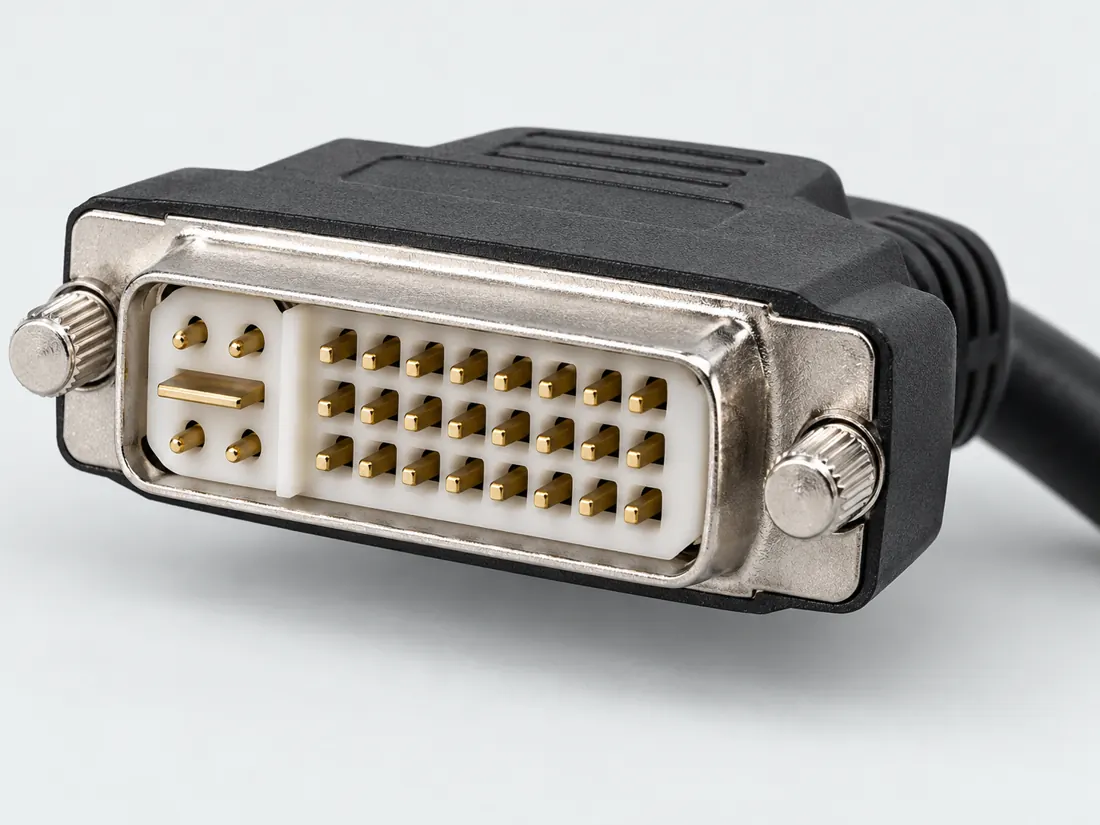

DVI-I dual-link connector: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

DVI-I dual-link connector: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

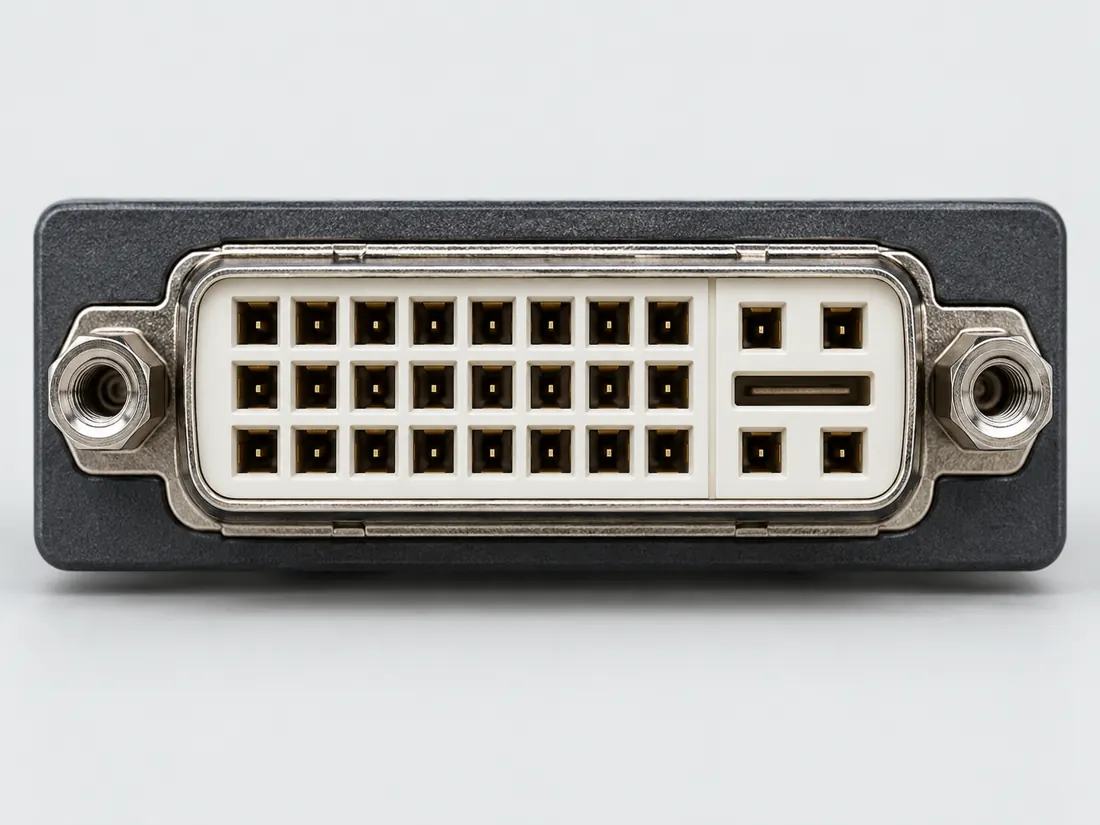

DVI-I dual-link connector: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

DVI-I dual-link connector: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Image inspection / P015

See the view. Check its scope.

1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.

DVI-I / receptacle front. Three rows in the main contact field. Four positions around the cross-shaped blade opening. Receptacle front is not a cable-plug pin map. Historical qualitative face study; no dimensional fit or terminal assignments. Not to scale. (private workspace)

P015 / Source-observed physical study

DVI-I / receptacle front

Molex MicroCross DVI / historical family diagram

Receptacle front, as labelled by Molex · Device receptacle

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

Application notes / Legacy video / P015

What makes the passive VGA path a bounded example?

FIELD NOTES 04

DVIVGAMF is a named passive DVI-I-to-VGA adapter. Its pictured dual-link-shaped DVI-I plug is not proof of a digital dual-link mode or compatibility with every DVI-I output.

Identify first

Read the part and the device.

Keep analog signal availability separate from the number of visible contact positions.

Still unresolved

Keep this requirement open.

The equipment’s supported analog output modes and the display’s timing support remain unresolved.

Explicit source exclusion · named example only

Is DVIVGAMF documented for the DVI-D-to-VGA job?

No: this passive model is specified for DVI-I; its note directs DVI-D users to a converter.

Boundary. An active conversion path is a different product and still needs equipment checks.

Next check. Check input signal, converter direction and display timing.

S494 · S493 · C015E (private workspace) · C014E (private workspace)

Before choosing an adapter or reader

  1. Confirm analog output in the source documentation.
  2. Check the exact adapter’s role and direction.
  3. Match the display mode without reading a resolution guarantee from the shell.
Read the evidence and its scope · 2 observations

C015A (private workspace) — DVI-I distinguishes an integrated analog/digital interface from digital-only DVI-D.

Consumer identification / documented standard or product class only

S843

C015E (private workspace) — StarTech DVIVGAMF is a passive DVI-I-to-VGA adapter; its instructions refer DVI-D users to a separate converter.

Named adapter for a DVI-I output and VGA display. The source does not approve arbitrary DVI-I devices, modes or mechanical pairings.

S494

Source interpretation is not independent engineering review, hardware testing, wiring advice or a public-release approval.

Inspect the illustrationContact-pattern sketch · larger view & look-alikes
DVI-I dual-link connector — contact-pattern sketch; role not specified; original, not-to-scale identification schematic; drawing review pending
View Contact-pattern sketchDepiction Role not specifiedNot to scale · independent drawing review pending

Read the view

Extra contact positions around the blade

Read the grid and blade-area features together; this unnumbered sketch is not a wiring diagram.

What it cannot establish: Compare DVI-I with DVI-D; never remove contacts to force a match.

Enlargement changes display size only. It does not reveal measured geometry, a pin assignment or an approved mating combination.

Compare a likely look-alike

DVI-D single-link connector →DVI-D dual-link connector →

Read the underlying references: S019 (historical extract record held in the private workspace; use the current claim evidence) · S411 · S412 · S414. Artwork interpretation remains review-pending.

How to read connector illustrations →

The useful distinction

Recognize it. Then verify it.

DVI-I distinguishes an integrated analog/digital interface from digital-only DVI-D. [C015A]

DDWG Table 5-2 defines the combined interface as 24 numbered positions plus C1–C5. Pin 8 carries analog vertical sync, C1/C2/C3 carry analog color channels, C4 horizontal sync and C5 their analog return. [C015B]

Molex labels its numbered illustration as a DVI-I receptacle front view: the 1–8 row is above 9–16 and 17–24, with the analog group on the right. The DDWG plug and receptacle drawings use opposing views. [C015C]

DDWG distinguishes a digital-only interface from a combined analog/digital interface; the digital-only receptacle lacks sockets for the analog pins. Dell distinguishes active conversion circuitry from passive adapters. [C015D]

StarTech DVIVGAMF is a passive DVI-I-to-VGA adapter; its instructions refer DVI-D users to a separate converter. [C015E]

Source-scoped identification facts

Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.

Documented examples; not a mating drawing or compatibility approval
Nominal contacts29S411 · S412 · S411 · S411 · S41424 numbered positions plus C1–C5, including the analog return contact.; nominal engineering count, not automatically positions, population or a device wiring map. 24 numbered positions plus C1–C5, including the analog return contact.
Contact rows3 (74320-1000)S932Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 74320-1000. Documented role: socket. Primary part identity linked to DVI-I in existing Molex-authored MicroCross brochureS412; current official exact-part specification independently read.; Limited-online-catalog notice preserved. Historical brochure pin sequencing and current exact component attributes remain separate. No universal DVI signal/capability inferred.
Contact pitch1.9 mm published contact centerline (74320-1000)S932Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 74320-1000. Documented role: socket. Primary part identity linked to DVI-I in existing Molex-authored MicroCross brochureS412; current official exact-part specification independently read.; Limited-online-catalog notice preserved. Historical brochure pin sequencing and current exact component attributes remain separate. No universal DVI signal/capability inferred.
Dimensions / axis2.34 mm termination tail length (74320-1000)S932Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 74320-1000. Documented role: socket. Primary part identity linked to DVI-I in existing Molex-authored MicroCross brochureS412; current official exact-part specification independently read.; Limited-online-catalog notice preserved. Historical brochure pin sequencing and current exact component attributes remain separate. No universal DVI signal/capability inferred.
Connector rolesocket (74320-1000)S932Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 74320-1000. Documented role: socket. Primary part identity linked to DVI-I in existing Molex-authored MicroCross brochureS412; current official exact-part specification independently read.; Limited-online-catalog notice preserved. Historical brochure pin sequencing and current exact component attributes remain separate. No universal DVI signal/capability inferred.
Coupling / latchMating lock; manufacturer also specifies keyed and polarized to mate/PCB (74320-1000)S932Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 74320-1000. Documented role: socket. Primary part identity linked to DVI-I in existing Molex-authored MicroCross brochureS412; current official exact-part specification independently read.; Limited-online-catalog notice preserved. Historical brochure pin sequencing and current exact component attributes remain separate. No universal DVI signal/capability inferred.
ManufacturerMolex (74320-1000)S932Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 74320-1000. Documented role: socket. Primary part identity linked to DVI-I in existing Molex-authored MicroCross brochureS412; current official exact-part specification independently read.; Limited-online-catalog notice preserved. Historical brochure pin sequencing and current exact component attributes remain separate. No universal DVI signal/capability inferred.
SeriesMicroCross DVI (74320-1000)S932Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 74320-1000. Documented role: socket. Primary part identity linked to DVI-I in existing Molex-authored MicroCross brochureS412; current official exact-part specification independently read.; Limited-online-catalog notice preserved. Historical brochure pin sequencing and current exact component attributes remain separate. No universal DVI signal/capability inferred.
Exact part / implementation74320-1000 (74320-1000)S932Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 74320-1000. Documented role: socket. Primary part identity linked to DVI-I in existing Molex-authored MicroCross brochureS412; current official exact-part specification independently read.; Limited-online-catalog notice preserved. Historical brochure pin sequencing and current exact component attributes remain separate. No universal DVI signal/capability inferred.
View conventionDDWG Rev. 1.0 Tables 5-1/5-2 and Figures 5-1/5-3; receptacle viewed from its mating front, numbered grid on the left, position 1 upper-left and position 24 lower-right. The plug front is mirrored (Figure 5-5). Molex explicitly labels its combined diagram as a receptacle front view. Not a solder-side or PCB map.S411 · S412 · S411 · S411 · S414Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Existing engineering orientation text; source/part/view remains controlling.

Not recorded: Positions / cavity span, Populated contacts, Contact gender / arrangement, Mounting, Keying / polarization, Shell / form, Recorded markings. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.

Recorded variant and source limits
  • The flat digital blade is not an invented numbered signal 25. Different vendor counts can include or exclude it.
  • No housing dimensions, tolerances, insertion depth, PCB layout or fabrication approval is established.
  • Full receptacle contact presence is not evidence that a source, cable or receiver operates both links.
  • Do not apply voltage or modify connector pins based on a reference table. Exact device wiring and operating requirements remain separate.
  • DVI 1.0 combined analog and digital connector, all 29 contacts: Receptacle mating face, pin 1 upper left (Figure 5-3).
  • DDWG DVI 1.0 combined analog and digital connector (Table 5-2): Receptacle face per DDWG Fig. 5-3 (p. 46); numbering by contact number.
  • Apple Xserve (slot-load) graphics option DVI-I output (source device): Apple Figure 3-6 shows the DVI-I contact configuration. Rows are recorded by contact number only.
  • Euresys Picolo HD DVI-I input (capture/sink device): DVI-I socket (female) on the board. The page has no view statement.
Report a correction to these facts →

Bounded facts, visible unknowns

Specifications and limits

DVI-I dual-link connector facts and limitations
CategoryIntegrated DVI variant [C015A]
Analog availabilityCheck source implementation [C015A]
Engineering evidenceNamed-source DVI reference; exact device and cable support remain separate [C015B] [C015C] [C015D]
Mechanical dimensionsNo independently reviewed mechanical drawing in this release; do not use this page for fabrication.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
A boundary, not an omission to guess around.

This record is an identification starting point. It does not provide measured mating tolerances, electrical approval, or a list of verified device models. Use the original device and accessory documentation to resolve the remaining requirements.

Before you connect

What to check

  1. Look up the exact connector variant on the source.
  2. For VGA conversion, confirm actual analog output rather than housing fit.
  3. Use a documented converter when the source and display require different signal types.
Trace a supported connection class →

Can I connect…

Common connections for this connector

All connection questions →

Pins & wiring

Pinout

Choose the exact wiring. Pin numbers follow its stated view; a schematic does not establish physical positions. Check your exact device before wiring.

What the status labels mean
Confirmed
Recorded research passes agree within this variant; this is not independent human review or hardware validation.
Single source
Only one underlying document, or one pass, supports this assignment.
Device-specific
Supported for the named equipment or wiring only. Check your device’s manual.
Unverified
Missing or conflicting evidence. Do not wire from this row.
Not connected
The source explicitly says NC, no contact or no pin for this wiring.
Wiring variant

DVI 1.0 combined analog and digital connector, all 29 contacts

View and evidence limits

Receptacle mating face, pin 1 upper left (Figure 5-3).

  • P015 DVI-I dual-link — **Agree** on all 24 contacts plus C1–C5 (red, green, blue, H-sync, analog ground; 8 = V-sync) — B corroborates with Apple Xserve and Euresys Picolo HD; Euresys pin 14 is blank ("-"), so that row stays unverified.
  • The Apple Xserve developer note lists the full 29-signal DVI-I table but does not say whether the Xserve drives link #1. It corroborates the connector assignment only.
DVI-I dual-link connector — scoped DVI referenceReceptacle mating face, pin 1 upper left (Figure 5-3).SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: T.M.D.S. Data2- (confirmed)12: T.M.D.S. Data2+ (confirmed)23: T.M.D.S. Data2/4 Shield (confirmed)34: T.M.D.S. Data4- (confirmed)45: T.M.D.S. Data4+ (confirmed)56: DDC Clock (confirmed)67: DDC Data (confirmed)78: Analog Vertical Sync (confirmed)89: T.M.D.S. Data1- (confirmed)910: T.M.D.S. Data1+ (confirmed)1011: T.M.D.S. Data1/3 Shield (confirmed)1112: T.M.D.S. Data3- (confirmed)1213: T.M.D.S. Data3+ (confirmed)1314: +5V Power (confirmed)1415: Ground (return for +5V, HSync, and VSync) (single_source)1516: Hot Plug Detect (confirmed)1617: T.M.D.S. Data0- (confirmed)1718: T.M.D.S. Data0+ (confirmed)1819: T.M.D.S. Data0/5 Shield (confirmed)1920: T.M.D.S. Data5- (confirmed)2021: T.M.D.S. Data5+ (confirmed)2122: T.M.D.S. Clock Shield (confirmed)2223: T.M.D.S. Clock+ (confirmed)2324: T.M.D.S. Clock- (confirmed)24C1: Analog Red (confirmed)C1C2: Analog Green (confirmed)C2C3: Analog Blue (confirmed)C3C4: Analog Horizontal Sync (confirmed)C4C5: Analog Ground (confirmed)C5powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
DVI 1.0 combined analog and digital connector, all 29 contacts — source-scoped contact map
PinSignalWhat it doesStatus
