A common SAS drive-side connector combines signal and power sections in a 29-circuit interface.
Also called SFF-8482 SAS drive connector 29 pin SAS
SAS drive connector shape should not be treated as proof that a SATA-only host or cable supports SAS.
Confirm the controller/backplane interface and the drive type; do not infer protocol support from a similar drive-edge outline.
Claim inspection dates: 2026-10-05, 2026-10-13, 2026-10-22 · Independent review pending

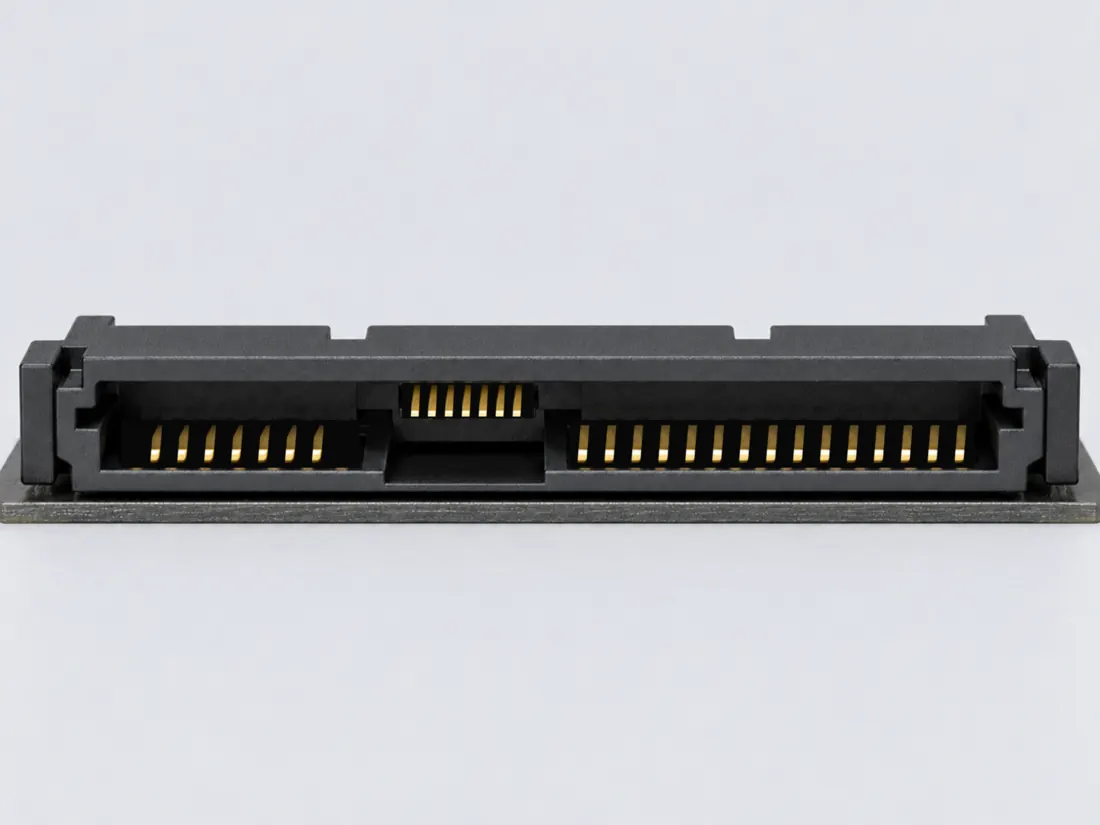

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Recognition drawing Original schematic, not to scale. Drawing review pending.
Image inspection / P196
1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.
(private workspace)P196 / Source-observed physical study
SFF-8482 revision 2.5 device free plug
Two contact-bearing faces of the specification device plug · Other declared component
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)Application notes / Storage / P196
No compatibility conclusion follows from the outline alone. Molex’s 78717-0002 is a named SAS/SATA receptacle example; it does not certify an unknown drive and USB adapter together.
Identify first
Record the drive’s SAS/SATA label and the controller or backplane model, not just the edge shape.
Still unresolved
The selected adapter’s SAS support and the exact controller-to-drive path are not established.
Not established · named example only
Unknown from these sources: the named SATA adapter does not establish a SAS-capable path.
Boundary. Missing support is not relabelled as a tested failure.
Next check. Obtain explicit controller/adapter support for the exact SAS disk.
S201 · S492 · C196A (private workspace) · C029D (private workspace)
C196A (private workspace) — Molex documents a 29-circuit SAS/SATA receptacle example with fourteen signal circuits, fifteen power circuits and SFF-8482/SFF-8680 mating references.
V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof.
C029D (private workspace) — StarTech USB3S2SAT3CB supports 2.5-inch SATA SSD/HDD use and explicitly excludes 3.5-inch hard drives.
Named USB-to-SATA adapter. Do not generalize this product limitation to every powered SATA dock or infer SAS support.
Source interpretation is not independent engineering review, hardware testing, wiring advice or a public-release approval.
No. The preserved Molex product reference describes a SAS/SATA drive-side connector example but not a universal controller conversion. A SATA-only motherboard connection does not become a SAS initiator by a cable or bay shape. Host protocol, backplane interposers and exact drive support are distinct.
Concluding that a SATA host runs a SAS drive because parts of the physical receptacle look familiar.
Full technical reading, sources and related identities →Claim-specific evidence remains in the canonical record. Concept diagrams do not show any safe wiring or mechanical mating geometry.
Read the view
No physical mating-face or rear view is depicted; check the exact controller, drive and backplane documentation.
Label-led symbol — not interface geometry. Read the exact designation and written reference; do not identify a physical connector by this generic shape.
About the marks: The dots do not represent the actual number or placement of contacts.
What it cannot establish: The dot array is not the documented twenty-nine-circuit interface. Similarity to a SATA label symbol is not SAS support.
Enlargement changes display size only. It does not reveal measured geometry, a pin assignment or an approved mating combination.
Read the underlying references: S201. Artwork interpretation remains review-pending.
How to read connector illustrations →The useful distinction
A common SAS drive-side connector combines signal and power sections in a 29-circuit interface. [C196A]
Molex part 787170002 is a documented SAS/SATA receptacle example in the existing primary-source record; its connector description alone cannot establish whether a given host controller supports SAS. [C196B]
SFF-8482 revision 2.5 distinguishes the device free plug from fixed backplane and fixed cable receptacles; their roles and retention context are not interchangeable labels. [C196C]
SFF-8482 describes two seven-contact signal sets and a fifteen-contact power set; the second signal set is on the opposite side of the device plug. [C196D]
SFF-8482 revision 2.5 section 5.3 describes backplane insertion sequencing but states that cable hot plugging is not supported by that interface; a familiar plug outline is not a live-cable permission. [C196E]
Exact source example 787170002: contacts: 29 loaded:14signal plus15power. construction: Right-angle female SMT connector; PCB locator and retention. recommended pcb mm: 2.36. Molex marks part as not formally published and limited information. Both pitches are listed without per-contact axis mapping; do not assign one to signal or power without drawing. No physical compatibility, pin map or hardware validation is established. [C196F]
PC internals · a documented check
No. A connector description establishes a physical interface, not the controller’s supported protocol. Keep the drive plug, cable receptacle and backplane receptacle distinct, then obtain the exact controller and drive documentation. C196B · C196C
| Check | Documented distinction | Boundary |
|---|---|---|
| Drive-side plug | SFF-8482 describes two seven-contact signal sets and a fifteen-contact power set. C196D | The second signal set is on the other side of the plug; one visible face is not the whole inventory. |
| Cable or backplane | The specification distinguishes a device free plug from fixed cable and backplane receptacles. C196C | Do not label every view as the same component or assume the same retention context. |
| Host support | The Molex 787170002 description is not controller-support evidence. C196B | A passive change in connector shape does not supply the missing controller documentation. |
| Live connection | SFF-8482 revision 2.5 separates backplane sequencing from cable hot plugging. C196E | That interface does not support cable hot plugging. |
Keep this limit: A backplane hot-plug description is not permission to hot-plug a cable. No SAS-to-SATA support verdict is made here. C196E
