Mini-SAS internal SFF-8087 connector

SFF-8087 is an internal Mini-SAS connector form within the documented Mini-SAS interconnect family.

Also called SFF-8087 Mini-SAS internal Mini SAS 8087

Mini-SAS internal and external forms are not interchangeable merely because they carry the same protocol family.

Look for

Identify the internal board/cable form and verify the SFF-8087 designation on the controller or cable documentation.

Claim inspection dates: 2026-10-05, 2026-10-14, 2026-10-22 · Independent review pending

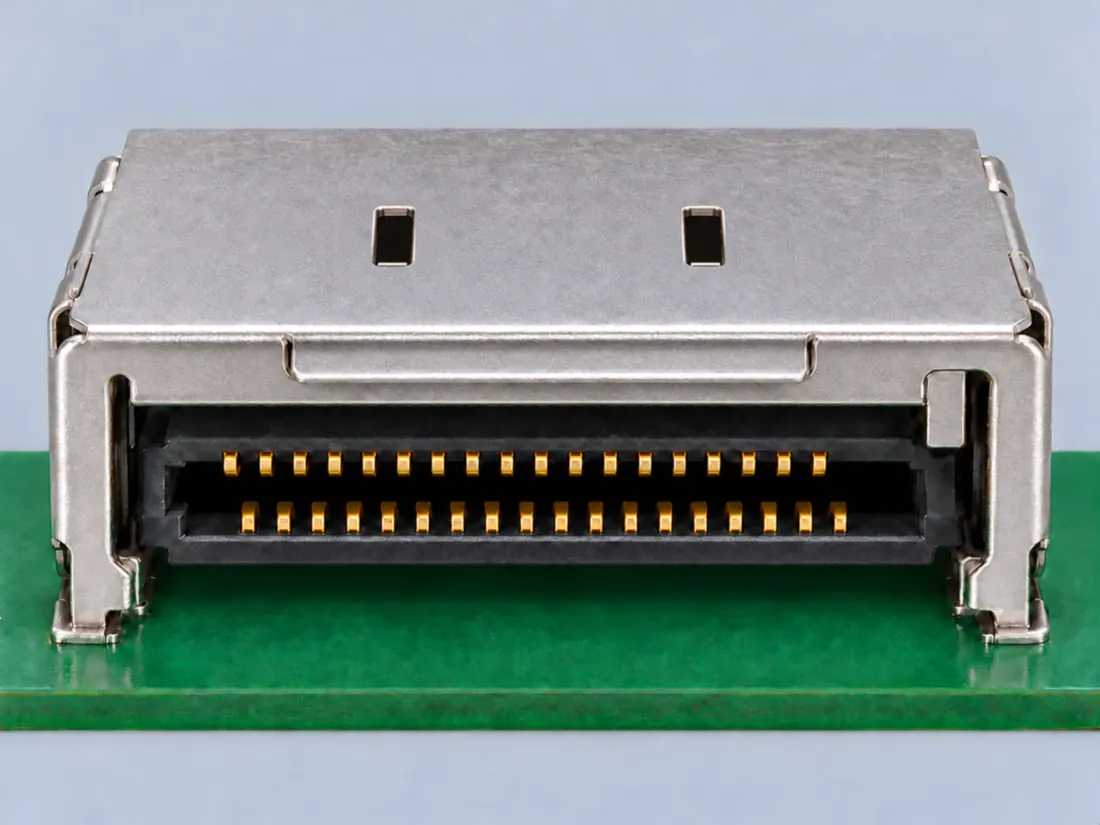

Mini-SAS internal SFF-8087 connector: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

Mini-SAS internal SFF-8087 connector: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

INTERNAL SYSTEMS / FABRIC

Mini-SAS SFF-8087 is an internal cable interface, not an SSD protocol

No. TE and Amphenol reference a documented internal Mini-SAS connector family, but breakout direction, HBA/controller role, lane allocation and supported SAS versus SATA paths must come from the exact card and cable-assembly documentation. The keyed shell alone cannot establish active controller functions.

Conceptual role comparison: Mini-SAS HD / SFF-8643 versus MCIO / SFF-TA-1016. Connector label alone never guarantees a storage protocol or cable breakout. Not to scale, no pinout or mechanical mating dimensions.
Internal high-density cabling. Original qualitative role diagram; not mechanical artwork, not to scale or a wiring map. Source context S258 · S325.

Three checks before proceeding

  1. Record the HBA/controller model and whether its socket is internal SFF-8087.
  2. Find the precise cable assembly’s direction, drive-side ends and sidebands.
  3. Confirm supported drive protocols and backplane wiring in the product manual.

One mistake to avoid

Buying any “4 SATA” breakout cable based only on the Mini-SAS end, without checking the required wiring direction.

Full technical reading, sources and related identities →

Claim-specific evidence remains in the canonical record. Concept diagrams do not show any safe wiring or mechanical mating geometry.

Signal-path fieldbook

Before a cable or module is ordered.

Read the answer, keep mechanical fit separate from the signal path, and verify the named endpoint. These editorial studies reuse inherited source records; no compatibility has been laboratory confirmed.

V106N06 / host storageDevice qualification required

Both say Mini-SAS: can an internal SFF-8087 harness replace an external SFF-8088 cable?

Field answerNot by family name alone. TE identifies separate internal SFF-8087 and external SFF-8088 connection forms in its Mini-SAS family. A usable path also needs the exact HBA or expander port, cable-end orientation, device-side connection and supported transport.

Conceptual storage path: host board and controller, exact connector or cable ends, transport support, and storage endpoint must each be checked independently.
Interpretation study, not a wiring or mating diagram. In order: Identify the board/controller and the specific socket label. / Trace the documented cable ends and the intended interface or lanes. / Confirm the device, power and mode; physical fit is not qualification. This is not evidence of a working connection.

Four checks that must stay separate

Evidence layerWhat is established or still conditional
Physical endpointThe inherited TE reference distinguishes SFF-8087 internal from SFF-8088 external Mini-SAS forms.
Controller protocolA shared Mini-SAS name is not evidence that a specific controller supports a requested SAS, SATA or other mode.
Cable and device chainAn internal backplane cable, external enclosure cable or breakout harness can have different destinations and sideband requirements.
Manufacturer scopeS240 covers a TE family spanning SFF-8087 and SFF-8088; it is not a pin-level authorization for an unspecified cable or adapter.

Check next, in this order

  1. Read the exact HBA, RAID adapter, backplane or chassis port designation and identify internal versus external.
  2. Obtain the complete specified cable or harness assembly part number and both endpoint descriptions.
  3. Verify the controller, expander/backplane, storage device and operating mode in the respective vendor documents.

Not yet established No host-to-device harness map, pin-level assignment, LED/sideband wiring, active protocol or real mating check for the user’s equipment has been established.

Read the claim and manufacturer source boundaries

Existing scoped claims: C236A (V39 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof.); C237A (V39 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof.). No newly authored empirical specifications; manufacturer catalogue claims remain conditional on the actual part and host.

  • S240 · TE ConnectivityMini-SAS overview; inherited review 2026-10-05. Identification/reference scope only. V39 does not convert this source into a universal pinout, fabrication drawing, electrical approval, protocol guarantee or end-to-end compatibility verdict.

Existing inspection dates remain unchanged. This editorial synthesis is not a physical mating test, pinout, optical budget, manufacturer device approval or deployment authorization.

The useful distinction

Which end belongs at the controller, and which at the drives?

Identify the exact cable and the role at each end. Two assemblies can have the same end counts while documenting different uses. A board connector is a separate component. C236E · C236F · C236C

Cable or component: documented role and remaining check
CheckDocumented distinctionWhat this does not establish
Controller to drivesSAS8087S450 documents SFF-8087 to four SATA drive connections. C236EThis identifies the named assembly, not arbitrary reverse use or SAS-drive support.
Backplane to controllerSAS8087S4R50 describes a Mini-SAS backplane-to-controller/motherboard application. C236FIts drive-oriented feature bullet conflicts with that role. Resolve the exact assembly before choosing it.
Board versus cable partG40MR36B22BCEU is a right-angle board component; its cage and electrical terminations are distinct. C236C · C236DDo not order a board receptacle as a cable end or infer a footprint from the cable name.

Before choosing the cable or component

  1. Write down controller, backplane and drive model names and their documented connector roles.
  2. Match the complete cable part number and its host/backplane/drive mapping; resolve conflicting vendor wording.
  3. Verify protocol, separate drive power and equipment instructions without guessing a pinout.
Original source statements and citation return points

SFF-8087 is an internal Mini-SAS connector form within the documented Mini-SAS interconnect family. [C236A]

Amphenol product G40MR36B22BCEU identifies a 36-contact Mini-SAS internal connector compliant with SFF-8087. [C236B]

Amphenol describes G40MR36B22BCEU as an internal right-angle board connector with a stainless right-key shell; its product description specifies a DIP cage and cap. [C236C]

The G40MR C2 family drawing table distinguishes SMT connector contacts from DIP cage mounting and separately lists keying options. [C236D]

StarTech specifies SAS8087S450 with one 36-pin SFF-8087 end and four 7-pin SATA ends for connecting up to four SATA drives to a SAS controller or backplane. [C236E]

The SAS8087S4R50 description and Applications identify a reverse cable from a Mini-SAS backplane to a SAS/SATA controller or motherboard. [C236F]

Molex 75783-0140 specifies two rows and 0.80 mm mating-interface pitch. The application specification identifies 75783 as internal iPass, and the manufacturer SFF-8087 cable drawing names 75783 as its right-angle mating family. [C236W]

Source scope · 14 October 2026. Two new datasheets inspected. The reverse-cable wording conflict remains unresolved. Existing board-source dates and exact-face acquisition holds remain unchanged.

Source-qualified reference, not a pinout, compatibility verdict or installation approval. New claims have separate dates; inherited claim dates and review status remain unchanged. No independent technical or rights approval is implied.

Source trail: S639 · S640 · S257 · S638.

Mini-SAS HD internal SFF-8643 connector · Mini-SAS HD external SFF-8644 connector · Mini-SAS external SFF-8088 connector · SAS SFF-8482 drive connector

Source-scoped identification facts

Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.

Documented examples; not a mating drawing or compatibility approval
Nominal contacts36S257Mini-SAS SFF-8087 internal host connector example; nominal engineering count, not automatically positions, population or a device wiring map. Mini-SAS SFF-8087 internal host connector example
Contact rows2 (Molex 75783-0140)S986 · S987 · S988Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 75783-0140 female right-angle 36-circuit board receptacle; internal iPass and SFF-8087 cable mating relationships separately documented. Quantity context: Manufacturer Number of Rows.
Contact pitch0.8 mm Manufacturer Pitch Mating Interface (Molex 75783-0140)S986 · S987 · S988Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 75783-0140 female right-angle 36-circuit board receptacle; internal iPass and SFF-8087 cable mating relationships separately documented.
Connector rolesocket (G40MR36B22BCEU)S257Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. G40MR36B22BCEU. Documented role: socket. Source describesstainless right-key shell. Ambiguous3.4mm cage-length label is not promoted to external geometry; drawing direct403.
Mountingsurface-mount (Claim C236D)S638Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Sheets 1–2 of the 2015-04-09 family drawing. The DIP cage does not make every electrical contact a through-hole pin. Exact full-suffix face geometry and current revision remain unverified.
Keying / polarizationRight-key shell; right-angle board connector (G40MR36B22BCEU)S257Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. G40MR36B22BCEU. Documented role: socket. Source describesstainless right-key shell. Ambiguous3.4mm cage-length label is not promoted to external geometry; drawing direct403.
ManufacturerAmphenol Communications Solutions (G40MR36B22BCEU)S257Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. G40MR36B22BCEU. Documented role: socket. Source describesstainless right-key shell. Ambiguous3.4mm cage-length label is not promoted to external geometry; drawing direct403.
SeriesMini SAS (G40MR36B22BCEU)S257Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. G40MR36B22BCEU. Documented role: socket. Source describesstainless right-key shell. Ambiguous3.4mm cage-length label is not promoted to external geometry; drawing direct403.
Exact part / implementationG40MR36B22BCEU (G40MR36B22BCEU)S257Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. G40MR36B22BCEU. Documented role: socket. Source describesstainless right-key shell. Ambiguous3.4mm cage-length label is not promoted to external geometry; drawing direct403.

Not recorded: Positions / cavity span, Populated contacts, Dimensions / axis, Contact gender / arrangement, Coupling / latch, Shell / form, Recorded markings, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.

Recorded variant and source limits
  • Position/contact count and any example-component pitch do not establish a universal pinout, cable construction or protocol capability.
  • No fabrication dimensions or face-view pin locator is published unless explicitly stated.
Report a correction to these facts →

Bounded facts, visible unknowns

Specifications and limits

Mini-SAS internal SFF-8087 connector facts and limitations
Documented identificationInternal Mini-SAS SFF-8087 connector family. [C236A]
Named V153 component roleAmphenol G40MR36B22BCEU — Internal board receptacle. Family drawing and named product kept separate; exact face study deferred. [C236B] [C236C] [C236D]
Mechanical dimensionsNo independently reviewed mechanical drawing in V39; do not use this page for fabrication, fit testing or tolerance work.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
A boundary, not an omission to guess around.

Use the source-backed form or position count only for identification. Resolve ratings, protocol, direction, wiring, cable construction and exact device support from the relevant equipment and component documentation.

Before you connect

What to check

  1. Identify the exact connector family and variant from the equipment or cable documentation.
  2. Keep shape, contact count, protocol, electrical rating and device support as separate facts.
  3. Do not force, rewire or adapt a connector from this recognition record; resolve the remaining requirements first.
Trace a supported connection class →

What is not established

This field note does not approve a connection, adapter, cable assembly, rewiring scheme or fabricated part. It intentionally omits unsupported pin assignments and mechanical tolerances.

G40MR: a board connector with a separate cage.
