SC fiber connector

Corning lists SC fiber connections in both UPC and APC variants. Connector family and end-face polish are separate identification requirements.

Also called SC SC UPC SC APC

Confirm the connector family and the optical end-face variant.

Look for

Use the manufacturer product reference to confirm the housing. The stylized side/front sketch is an identification aid pending specialist diagram review; color is not enough.

Claim inspection dates: 2026-10-01, 2026-10-11, 2026-10-22 · Independent review pending

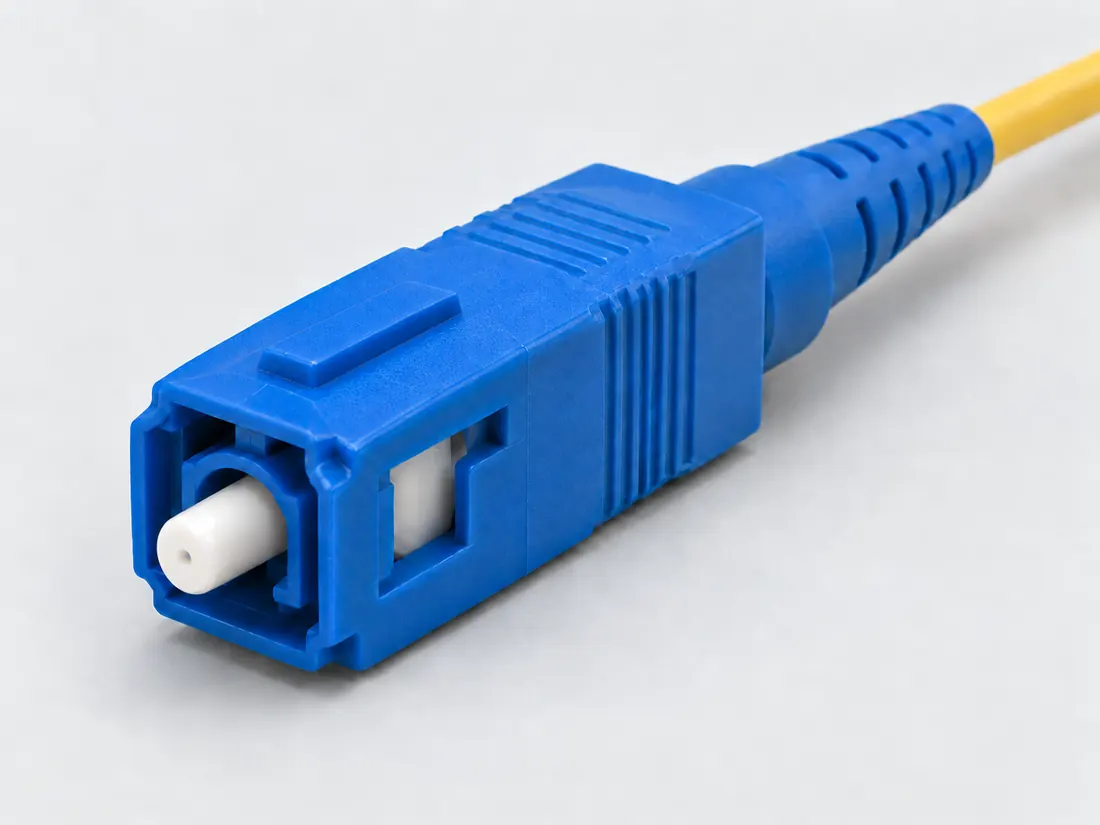

SC fiber connector: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

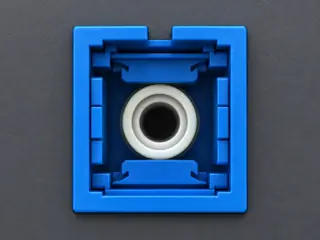

SC fiber connector: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

SC fiber connector: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

SC fiber connector: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Image inspection / P067

See the view. Check its scope.

3 registered views for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.

UPC / APC / direct-mating boundary. Abstract cutaway-style endface concept, deliberately exaggerated. Two separated endfaces; no direct-mating assembly is depicted. No dimensional, wiring or compatibility approval. (private workspace)

P067 / Concept — not physical geometry

UPC / APC / direct-mating boundary

Concept / endface boundary, not a connector view

Abstract cutaway-style endface concept, deliberately exaggerated. · Concept only

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)
SC / shared UniCam family example. Oblique exterior of the SC example in the shared UniCam photograph, not the exact product code beside it. Projecting ferrule to the left; rear boot to the right. No dimensional, wiring or compatibility approval. (private workspace)

P067 / Source-observed physical study

SC / shared UniCam family example

Corning UniCam / SC family photo

Oblique exterior of the SC example in the shared UniCam photograph, not the exact product code beside it. · Cable plug / cable end

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)
SC fiber connector: Wider square SC housing; push-pull product family. Cable-connector exterior side; ferrule omitted. Qualitative source-linked recognition study, not a pinout or a dimensional guide. (private workspace)

P067 / Inherited recognition study

SC fiber connector

SC fiber connector

Cable-connector exterior side; ferrule omitted · Cable plug / cable end

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

Network notes / Fiber / P067

Will any SC patch lead be suitable for an SC port?

FIELD NOTES 05

The body name alone does not settle that. The retained Corning/Fluke evidence separates connector family from endface finish. Check the polish at each mating interface as well as the fiber and optic requirements.

Identify first

Read the part and the device.

Read the SC designation and APC/UPC requirement from the exact port and cable documents; do not use a matching color or outer shape as the final decision.

Still unresolved

Keep this requirement open.

Optical medium, strand configuration, endface compatibility and performance of an unidentified cable/port pair remain unverified.

Explicit source exclusion · named example only

Is direct APC-to-UPC contact mating supported?

The Fluke source warns against directly mating the unlike endfaces.

Boundary. A hybrid cord separately matching an APC port at one end and a UPC port at the other is not the same direct mismatch.

Next check. Match polish at each individual mating interface.

S504 · C066C (private workspace)

Before choosing the cable or component

  1. Record the SC and polish specification of each port.
  2. Check both cable ends independently against their intended ports.
  3. Confirm the required fiber and optic; do not inspect an active endface directly.
Read the evidence and its scope · 3 observations

C067A (private workspace) — Corning lists SC fiber connections in both UPC and APC variants. Connector family and end-face polish are separate identification requirements.

Named standard or manufacturer description only; procedural checks are editorial recommendations, not hardware tests.

S049 · S050

C066C (private workspace) — Fluke Networks distinguishes APC and UPC endfaces and warns against directly mating the two polishes because the ferrules do not align properly and damage can result. A hybrid cord whose two ends each match their respective ports is a different question.

V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.

S504

C124B (private workspace) — Cisco warns against looking into energized fiber and using unfiltered magnifiers for optical inspection.

Identification and explicitly scoped documentation only; not an end-to-end connection approval

S104

Source interpretation is not independent engineering review, hardware testing, wiring advice or a public-release approval.

V117 / READER FIELD GUIDE / FIBER IDENTITIES

Before you connect or replace

UPC and APC are not cosmetic colors

Connector family and optical end-face polish must both be specified. Corning lists UPC/APC variants, but face color by itself cannot verify the equipment’s accepted termination.

Three checks and exact source trail ↗

Editorial decision guidance only. A connector identity or nominal pitch does not establish approved mating, safe wiring or a supported device combination.

Visual atlas / P067 / 2026

Recognize the right physical clue.

FIGURE · REVIEW PENDING
SC fiber connector: Wider square SC housing; push-pull product family. Cable-connector exterior side; ferrule omitted. Qualitative source-linked recognition study, not a pinout or a dimensional guide.
Cable-end plug. Cable-connector exterior side; ferrule omitted.

What to look for

Wider square SC housing; push-pull product family

What the drawing does not prove

The illustrations show qualitative body styles only; no ferrule or end-face geometry is shown.

Polish, single/multimode, simplex/duplex and termination type are separate. Never look into a live optical end.

No fabrication dimensions, conductor routing, guaranteed fit or device approval. For electrical, power and optical interfaces, follow the original equipment instructions.

Figure evidence, orientation & usage rights

Uses previously recorded V112 manufacturer claim/source inspections; October 2026 supplementary public-source spot checks are documented separately, not treated as a refreshed approval.

Original Port & Cable interpretive vector, no third-party photo, copied CAD, logo or vendor drawing. Third-party product photos, logos and source drawings are not redistributed. No independent technical or rights certification is claimed.

Original claim identifiers: C067A (private workspace). Legacy evidence dates and rights assessments remain as recorded.

The useful distinction

Recognize it. Then verify it.

Corning lists SC fiber connections in both UPC and APC variants. Connector family and end-face polish are separate identification requirements. [C067A]

Corning’s 2018 UniCam SC table lists 95-200-41 for single-mode OS2 and a separate SC APC single-mode OS2 entry, 95-200-44. [C067C]

Belden distinguishes the slightly curved, non-angled UPC endface from the angled APC endface and warns against directly mating the unlike endfaces. [C067D]

Corning lists a shroud, crimp band and two boot options in the package contents for UniCam SC kit 95-200-41. [C067E]

AFL lists a nominal 2.5 mm ferrule for its SC connector overview. AFL describes simplex/duplex SC with push/pull coupling and zirconia ceramic ferrule. [C067F]

Corning OEM-064-AEN lists 728-81A0-3330B as: Simplex SC, APC; green housing/boot/dust cap. [C067G]

Source-scoped identification facts

Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.

Documented examples; not a mating drawing or compatibility approval
Connector roleoptical cable connector (ExactCorning 728-81A0-3330B)S951Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. ExactCorning 728-81A0-3330B
Coupling / latchpush/pull (Named series/reference only, not every family part. AFL SC marketedconnector overview;not universalfamily mechanicaltolerance)S954Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Named series/reference only, not every family part. AFL SC marketedconnector overview;not universalfamily mechanicaltolerance
ManufacturerCorning (ExactCorning 728-81A0-3330B)S951Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. ExactCorning 728-81A0-3330B
Exact part / implementation728-81A0-3330B (ExactCorning 728-81A0-3330B)S951Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. ExactCorning 728-81A0-3330B
View conventionActualAFL linked SC exterioroblique illustration inspected;not scaled andnoexactSKUassigned (Named series/reference only, not every family part. AFL SC marketedconnector overview;not universalfamily mechanicaltolerance)S954Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Named series/reference only, not every family part. AFL SC marketedconnector overview;not universalfamily mechanicaltolerance

Not recorded: Dimensions / axis, Mounting, Keying / polarization, Shell / form, Series, Recorded markings. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.

Recorded variant and source limits
  • UPC/APC polish, fiber type, simplex/duplex format, wavelength and loss budget must be resolved separately.
  • Never infer that a fiber is dark or safe to view from connector appearance.
Report a correction to these facts →

Bounded facts, visible unknowns

Specifications and limits

SC fiber connector facts and limitations
Record layerOptical connector family [C067A]
Polish variantsUPC and APC need exact identification [C067A]
Mechanical dimensionsNo independently reviewed mechanical drawing; fabrication dimensions unavailable.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
A boundary, not an omission to guess around.

No fiber handling procedure, optical power limit, network reach calculation or transceiver pairing is approved. Do not inspect a live optical path by eye.

Before you connect

What to check

  1. Read the exact connector family and UPC/APC marking.
  2. Verify the fiber type and equipment documentation as separate fields.
  3. Do not look into a fiber end or optical port to identify it.
  4. Do not mate unknown end-face types or use this sketch as a cleaning or installation procedure.
Trace a supported connection class →

Can I connect…

Common connections for this connector

All connection questions →

A cautious identification record

The source supports the named family and its polish variants. The original illustration remains independently unreviewed and is not a drawing from a standards body.

Your next step

Move from the form to the requirement.

Read the engineering reference Source-scoped details, orientation and explicit unknowns.Work through a connection Choose your task before deciding on a cable.Explore this evidence trail Inspect the claims and their dependencies. (private workspace)

The source trail

Evidence for this page

AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.

Back to first citation ↑
C067ASource checked · pending review

Corning lists SC fiber connections in both UPC and APC variants. Connector family and end-face polish are separate identification requirements.

Corning · Fiber Optic Cable Assembly Portfolio ↗

Locator: Versatile Connector Options
Access: public page. Availability of LC/SC and UPC/APC variants only; original schematic geometry is pending diagram review.

S049: full source recordFluke Networks · What is an APC Connector and How Do I Test It? ↗

Locator: UPC and APC end-face discussion
Access: public page. Polish distinction, not a field testing or installation certification.

S050: full source recordInspect review dependencies → (private workspace)

Claim scope: Named standard or manufacturer description only; procedural checks are editorial recommendations, not hardware tests.. Next review due 2026-12-30.

Back to first citation ↑
C067CSource checked · pending review

Corning’s 2018 UniCam SC table lists 95-200-41 for single-mode OS2 and a separate SC APC single-mode OS2 entry, 95-200-44.

Corning · UniCam high-performance connectors — family sheet 0250 EMEA ↗

Locator: Revision 2018-01-22; printed pp.1, 3–4: photograph CRR1245, single-mode table, LC/SC/ST ordering rows.
Access: public pdf text. Dated family and selected order-code observations, not a current-availability claim. Physical study is the photographed multimode ST-compatible family example, not an exact order-code assignment.

S529: full source recordInspect review dependencies → (private workspace)

Claim scope: Exact dated ordering entries. No inference about an unidentified SC end, stock availability, cable transmission or mating fit.. Next review due 2027-01-09.

Back to first citation ↑
C067DSource checked · pending review

Belden distinguishes the slightly curved, non-angled UPC endface from the angled APC endface and warns against directly mating the unlike endfaces.

Belden · UPC or APC? — endface polish comparison ↗

Locator: Published 2014-08-14; endface geometry and direct-mating warning paragraphs.
Access: public page. Endface geometry and direct physical mating only. No general return-loss values, color-based classification, or rule for non-contact optical-instrument inputs.

S532: full source recordInspect review dependencies → (private workspace)

Claim scope: Direct physical UPC/APC mating boundary, applicable when checking an SC connection; not a claim that a documented unlike-ended cable or a non-contact instrument input is itself invalid.. Next review due 2027-01-09.

Back to first citation ↑
C067ESource checked · pending review

Corning lists a shroud, crimp band and two boot options in the package contents for UniCam SC kit 95-200-41.

Corning · UniCam SC connector kit — 95-200-41 ↗

Locator: Product heading and Package Contents; linked UniCam family photo, middle SC example, visually inspected.
Access: public page. Exact product record and kit contents are separate from the shared family photograph. The illustrated SC family example is not labelled 95-200-41 or assigned a polish.

S535: full source recordInspect review dependencies → (private workspace)

Claim scope: Exact product text; the linked shared photograph remains a named UniCam family illustration, not proof of this ordered part or its polish.. Next review due 2027-01-09.

Back to first citation ↑
C067FSource checked · pending review

AFL lists a nominal 2.5 mm ferrule for its SC connector overview. AFL describes simplex/duplex SC with push/pull coupling and zirconia ceramic ferrule.

AFL Hyperscale · Adapters and Connectors:Connectors ↗

Locator: Full manufacturer page: LC,SC,ST,FCsections and each directlylinked connector image; all4actual JPEGs downloaded/viewed.
Access: public page. Ferrule dimensions refer to AFL overview context, not universal housing/mating tolerances. Image-only latch/body observations remain labelled manufacturer illustrations; no measurements,partmarkings or performance from pixels.

S954: full source recordInspect review dependencies → (private workspace)

Claim scope: AFL SC marketedconnector overview;not universalfamily mechanicaltolerance;ferrulesize is not outerhousingdimension,contactpitch or sourceimage measurement.. Next review due 2027-01-20.

Back to first citation ↑
C067GSource checked · pending review

Corning OEM-064-AEN lists 728-81A0-3330B as: Simplex SC, APC; green housing/boot/dust cap.

Corning · AFOP FastShip Connector and Adapter Ordering Guide OEM-064-AEN ↗

Locator: Full18-page PDF text: p.5ST/FC/SC,p.6LCno-logo variants,p.9MT-RJ,p.11ST/FCsubassemblies,p.18revision.
Access: public pdf text. Direct download403 and drawing/photo pixels unavailable. Table126/127micrometre ferrule-size values are not imported as outer ferrule diameters; unspecified SCboot3micrometre transcription is excluded. Table colors are exact-part descriptors, not general family marks.

S951: full source recordInspect review dependencies → (private workspace)

Claim scope: Exact named Corningpart/subassembly inMay2020catalog;no universalfinish,matingdimension or assemblyapproval.. Next review due 2027-01-20.

Suggest a correction to this field note →

Common questions

Questions this record can help resolve

Can LC and SC fiber connect just because an adapter or jumper fits?Separate connector-form mating from fiber type, polish, wavelength, transceiver and optical-budget requirements.Can I connect UPC and APC fiber connectors together?Do not confuse a hybrid patch cord or a non-contact test port with direct mating of unlike polished endfaces.How do I read a fiber patch-cable label?Separate connector ends, each end’s polish, fiber category, fiber count and path mapping before checking the equipment.What does A–B mean on a one-fiber simplex cable listing?Do not turn generic marketing wording into a documented two-fiber mapping.

Put this field note to work.

Add to discovery trayRecord an unsaved candidate (private workspace)

Compare look-alikes: LC versus SC · ST, SC and LC fiber forms

Candidate selection does not confirm the identity or capabilities of your physical item.

SOURCE-QUALIFIED FIBER REFERENCE

Identify the end. Keep the path unresolved.

95-200-41 / 95-200-44

Source / component role
Named Corning UniCam order-code rows
Documented distinction
OS2 SC and a distinct OS2 SC APC entry.
What this establishes
The source distinguishes these two order codes without making every SC connector equivalent.
Not established
The endface on an unidentified connector and the receiving adapter or device.
Next check
Verify each end’s polish before considering a direct mate.

No source-observed physical view is selected for this row.

Evidence, observation & limits

Inspected . C067C

UniCam high-performance connectors — family sheet 0250 EMEA ↗
V130 observation: Revision 2018-01-22; printed pp.1, 3–4: photograph CRR1245, single-mode table, LC/SC/ST ordering rows.
Canonical source record S529 dated 2026-10-11. The V130 visit is recorded separately; inherited source dates are unchanged.

No hardware test, independent technical approval or rights clearance is asserted.

UPC / APC concept; no hardware model

Source / component role
Endface geometry boundary
Documented distinction
UPC is slightly curved; APC has an angled endface.
What this establishes
The direct-mating warning is about unlike endfaces touching. An intentionally unlike-ended cord is a different question.
Not established
A specific device’s interface, including any documented non-contact instrument input.
Next check
Check the exact component documentation; the diagram is not a universal test-instrument rule.
Inspect the declared view → (private workspace)
Evidence, observation & limits

Inspected . C067D

UPC or APC? — endface polish comparison ↗
V130 observation: Published 2014-08-14; endface geometry and direct-mating warning paragraphs.
Canonical source record S532 dated 2026-10-11. The V130 visit is recorded separately; inherited source dates are unchanged.

No hardware test, independent technical approval or rights clearance is asserted.

Read the illustrated fiber chart and field guide →

SOURCE-QUALIFIED OPTICAL REFERENCE

Identify the item. Keep its role explicit.

Corning 95-200-41 kit; separate UniCam family view

Source / component role
Kit record and family photograph, kept distinct
Documented distinction
Package text includes a shroud, crimp band and two boot options.
What this establishes
The nearby code identifies the text record. The shared photograph is not proof of that code or polish.
Not established
Exact ordered-part appearance and the completeness of a loose kit.
Next check
Use the kit label for identity; do not assign the illustration a part code or polish.
Inspect the declared view → (private workspace)
Evidence, observation & limits

Inspected . C067E

UniCam SC connector kit — 95-200-41 ↗
V131 observation: Product heading and Package Contents; linked UniCam family photo, middle SC example, visually inspected.
Canonical source record S535 dated 2026-10-11. The V131 visit is recorded separately; inherited source dates are unchanged.

No hardware test, independent technical approval or rights clearance is asserted.

Read the optical role chart and field guide →

Evidence behind this page

Scope first. Source second. Approval separate.

7 linked sources · 6 scoped claims · 0 sources with inspection/access flags.

Page scope: consumer_pilot

Assessment 2026-10-22 · earliest scheduled source review 2026-12-30. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 7 source scopes, access limits and dates

S049 · Fiber Optic Cable Assembly Portfolio

Corning · Manufacturer / product-owner domain · inspected 2026-10-01 · due 2026-12-30

Within inspection window

Scoped support: Availability of LC/SC and UPC/APC variants only; original schematic geometry is pending diagram review.

Not established / limitations: Availability of LC/SC and UPC/APC variants only; original schematic geometry is pending diagram review.

Locator: Versatile Connector Options

S050 · What is an APC Connector and How Do I Test It?

Fluke Networks · Manufacturer / product-owner domain · inspected 2026-10-01 · due 2026-12-30

Within inspection window

Scoped support: Polish distinction, not a field testing or installation certification.

Not established / limitations: Polish distinction, not a field testing or installation certification.

Locator: UPC and APC end-face discussion

S529 · UniCam high-performance connectors — family sheet 0250 EMEA

Corning · Manufacturer / product-owner domain · inspected 2026-10-11 · due 2027-01-09

Within inspection window

Scoped support: Dated family and selected order-code observations, not a current-availability claim. Physical study is the photographed multimode ST-compatible family example, not an exact order-code assignment.

Not established / limitations: Dated family and selected order-code observations, not a current-availability claim. Physical study is the photographed multimode ST-compatible family example, not an exact order-code assignment.

Locator: Revision 2018-01-22; printed pp.1, 3–4: photograph CRR1245, single-mode table, LC/SC/ST ordering rows.

S532 · UPC or APC? — endface polish comparison

Belden · Unclassified publisher domain · inspected 2026-10-11 · due 2027-01-09

Within inspection window

Scoped support: Endface geometry and direct physical mating only. No general return-loss values, color-based classification, or rule for non-contact optical-instrument inputs.

Not established / limitations: Endface geometry and direct physical mating only. No general return-loss values, color-based classification, or rule for non-contact optical-instrument inputs.

Locator: Published 2014-08-14; endface geometry and direct-mating warning paragraphs.

S535 · UniCam SC connector kit — 95-200-41

Corning · Manufacturer / product-owner domain · inspected 2026-10-11 · due 2027-01-09

Within inspection window

Scoped support: Exact product record and kit contents are separate from the shared family photograph. The illustrated SC family example is not labelled 95-200-41 or assigned a polish.

Not established / limitations: Exact product record and kit contents are separate from the shared family photograph. The illustrated SC family example is not labelled 95-200-41 or assigned a polish.

Locator: Product heading and Package Contents; linked UniCam family photo, middle SC example, visually inspected.

S951 · AFOP FastShip Connector and Adapter Ordering Guide OEM-064-AEN

Corning · Manufacturer / product-owner domain · inspected 2026-10-22 · due 2027-01-20

Within inspection window

Scoped support: Exact named connector/subassembly construction and named no-logo option; keep each role separate.

Not established / limitations: Direct download403 and drawing/photo pixels unavailable. Table126/127micrometre ferrule-size values are not imported as outer ferrule diameters; unspecified SCboot3micrometre transcription is excluded. Table colors are exact-part descriptors, not general family marks.

Locator: Full18-page PDF text: p.5ST/FC/SC,p.6LCno-logo variants,p.9MT-RJ,p.11ST/FCsubassemblies,p.18revision.

S954 · Adapters and Connectors:Connectors

AFL Hyperscale · Unclassified publisher domain · inspected 2026-10-22 · due 2027-01-20

Within inspection window

Scoped support: AFL marketed connector-series examples: stated ferrule nominal sizes and coupling mechanisms; no exact orderableSKU.

Not established / limitations: Ferrule dimensions refer to AFL overview context, not universal housing/mating tolerances. Image-only latch/body observations remain labelled manufacturer illustrations; no measurements,partmarkings or performance from pixels.

Locator: Full manufacturer page: LC,SC,ST,FCsections and each directlylinked connector image; all4actual JPEGs downloaded/viewed.

Trace 6 claims to their source records

C067A · P067

Corning lists SC fiber connections in both UPC and APC variants. Connector family and end-face polish are separate identification requirements.

Claim scope: Named standard or manufacturer description only; procedural checks are editorial recommendations, not hardware tests.

Source links: S049 · S050 · Evidence trail → (private workspace)

C067C · P067

Corning’s 2018 UniCam SC table lists 95-200-41 for single-mode OS2 and a separate SC APC single-mode OS2 entry, 95-200-44.

Claim scope: Exact dated ordering entries. No inference about an unidentified SC end, stock availability, cable transmission or mating fit.

Source links: S529 · Evidence trail → (private workspace)

C067D · P067

Belden distinguishes the slightly curved, non-angled UPC endface from the angled APC endface and warns against directly mating the unlike endfaces.

Claim scope: Direct physical UPC/APC mating boundary, applicable when checking an SC connection; not a claim that a documented unlike-ended cable or a non-contact instrument input is itself invalid.

Source links: S532 · Evidence trail → (private workspace)

C067E · P067

Corning lists a shroud, crimp band and two boot options in the package contents for UniCam SC kit 95-200-41.

Claim scope: Exact product text; the linked shared photograph remains a named UniCam family illustration, not proof of this ordered part or its polish.

Source links: S535 · Evidence trail → (private workspace)

C067F · P067

AFL lists a nominal 2.5 mm ferrule for its SC connector overview. AFL describes simplex/duplex SC with push/pull coupling and zirconia ceramic ferrule.

Claim scope: AFL SC marketedconnector overview;not universalfamily mechanicaltolerance;ferrulesize is not outerhousingdimension,contactpitch or sourceimage measurement.

Source links: S954 · Evidence trail → (private workspace)

C067G · P067

Corning OEM-064-AEN lists 728-81A0-3330B as: Simplex SC, APC; green housing/boot/dust cap.

Claim scope: Exact named Corningpart/subassembly inMay2020catalog;no universalfinish,matingdimension or assemblyapproval.

Source links: S951 · Evidence trail → (private workspace)

Prepare this page for review → (private workspace)Read the evidence method →

Recorded evidence only. An inspection date, publisher label, source link or generated packet is not independent technical review, hardware testing, fabrication approval or a compatibility verdict.
