RCA connector

RCA connectors are used in multiple audio and video applications.

Also called phono RCA plug cinch

A matching RCA plug does not identify analog versus digital signaling.

Look for

Look for the central pin and surrounding contact shell. Jacket color is a contextual hint, not a complete description of the signal.

Claim inspection dates: 2026-10-01, 2026-10-07 · Independent review pending

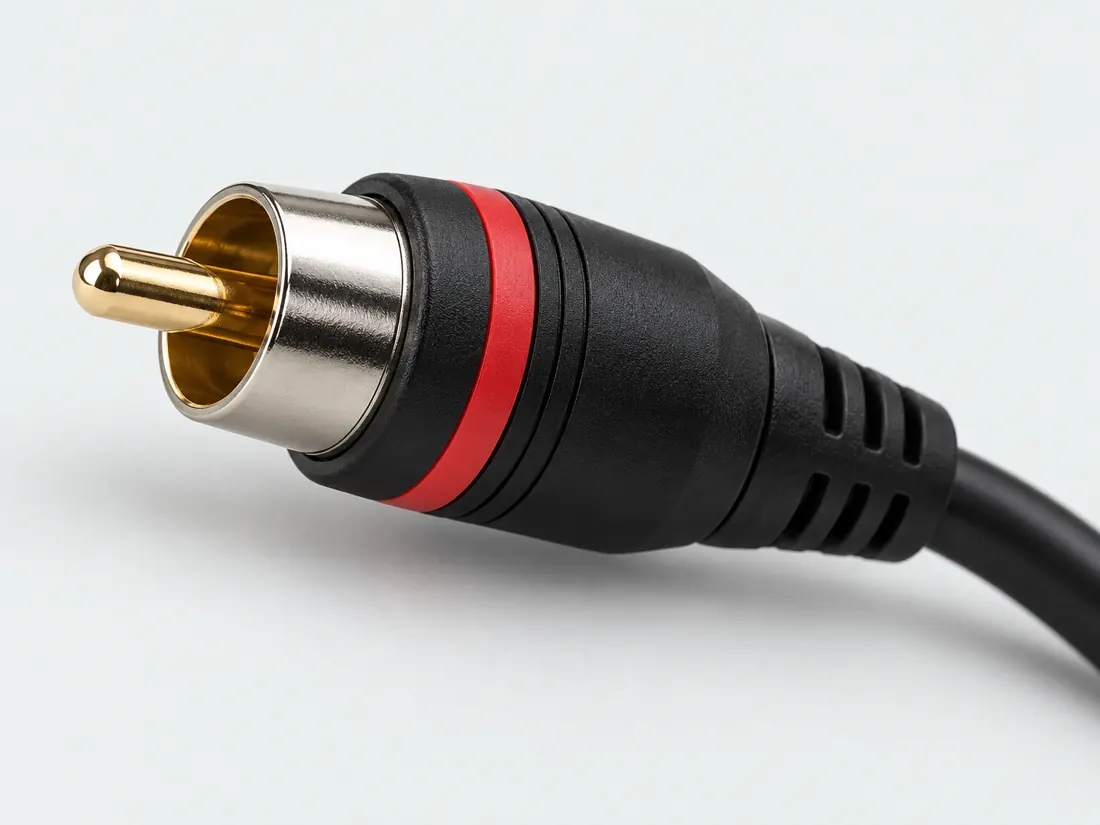

RCA connector: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

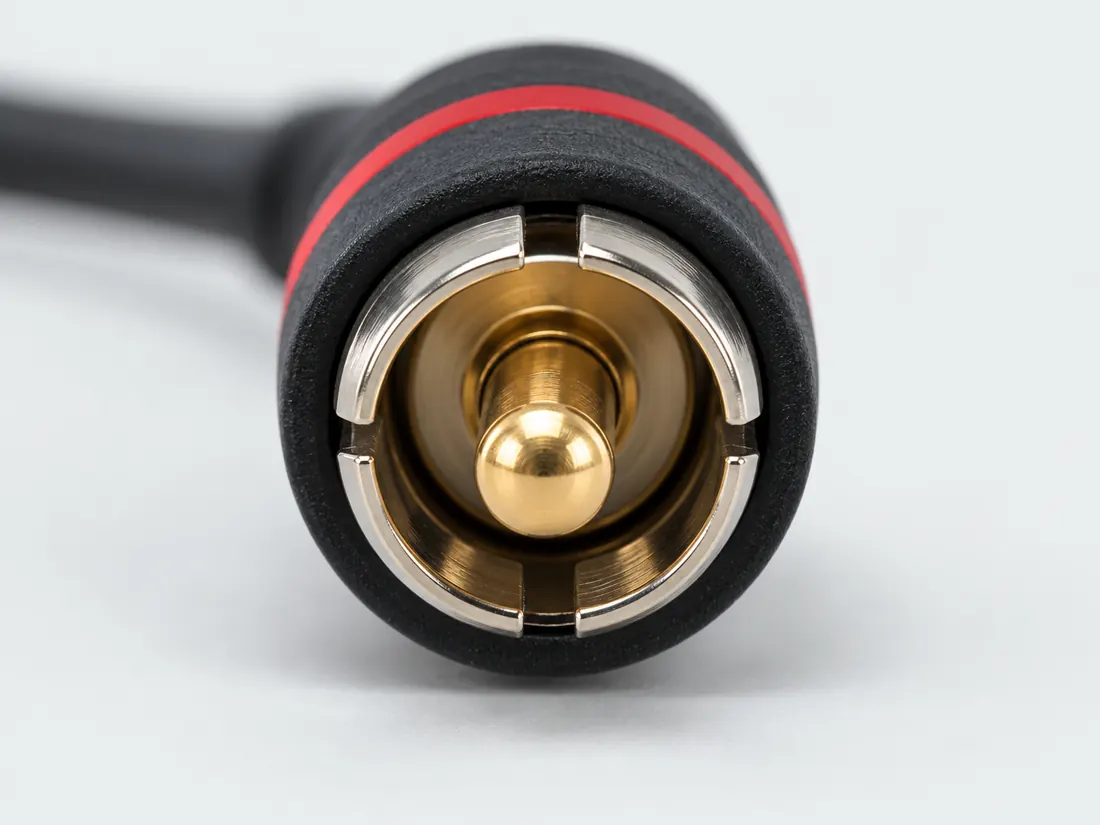

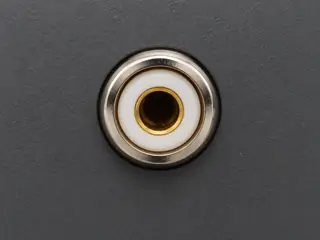

RCA connector: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

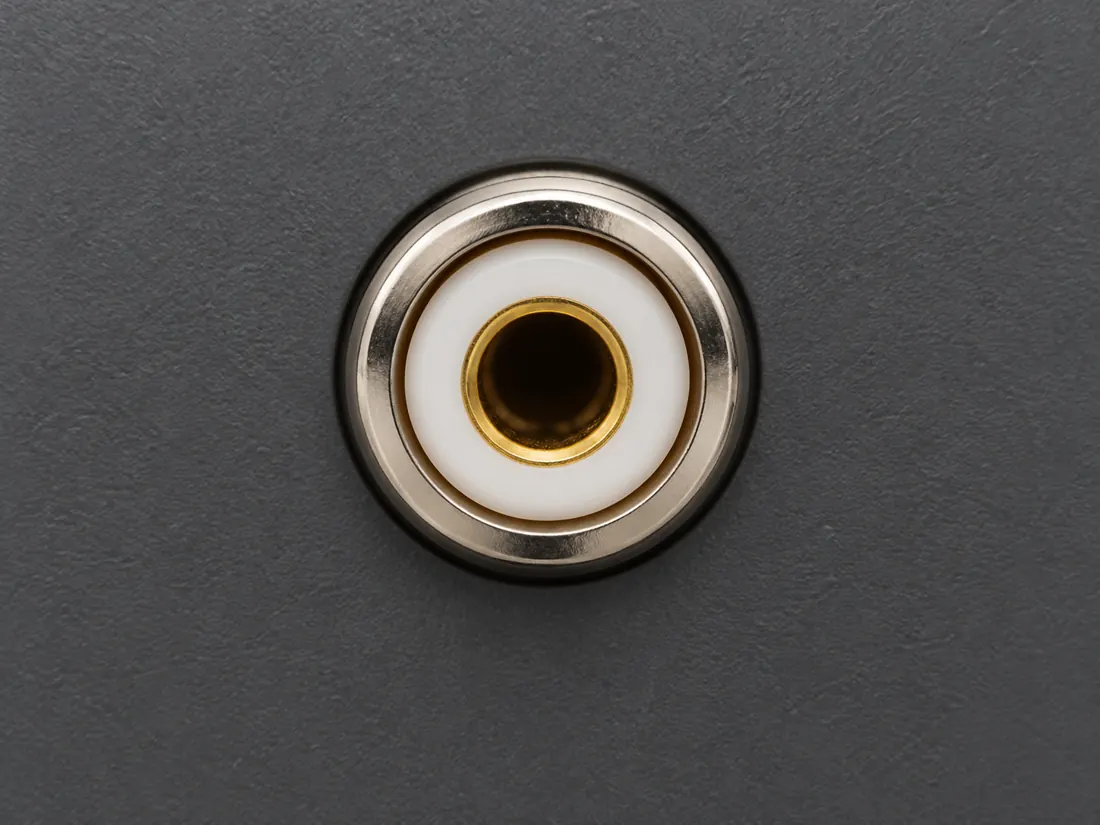

RCA connector: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

RCA connector: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Image inspection / P023

See the view. Check its scope.

2 registered views for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.

RCA / NF2C plug side view. Central contact within the outer contact structure. Plug body and cable entry are separate features. This is a named plug, not a universal socket drawing. No generic fit dimensions, polarity, impedance or assembly instructions. Not to scale. (private workspace)

P023 / Source-observed physical study

RCA / NF2C plug side view

Neutrik NF2C / ST-NF2C historical drawing

Side elevation with mating end to the left · Cable plug / cable end

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

Other scoped views

Keep their component sides and part examples separate.

RCA connector: Smooth concentric push-fit phono shell. Cable-end plug exterior; qualitative side profile. Qualitative source-linked recognition study, not a pinout or a dimensional guide. (private workspace)

P023 / Inherited recognition study

RCA connector

RCA connector

Cable-end plug exterior; qualitative side profile · Cable plug / cable end

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)
V117 / READER FIELD GUIDE / AV & LEGACY

Before you connect or replace

RCA color is a hint, not an interface specification

RCA-style connectors appear in multiple analog and digital audio/video roles. An equipment manual determines the port function; a red/white/yellow/orange color cue by itself does not.

Three checks and exact source trail ↗

Editorial decision guidance only. A connector identity or nominal pitch does not establish approved mating, safe wiring or a supported device combination.

Visual atlas / P023 / 2026

Recognize the right physical clue.

FIGURE · REVIEW PENDING
RCA connector: Smooth concentric push-fit phono shell. Cable-end plug exterior; qualitative side profile. Qualitative source-linked recognition study, not a pinout or a dimensional guide.
Cable-end plug. Cable-end plug exterior; qualitative side profile.

What to look for

Smooth concentric push-fit phono shell

What the drawing does not prove

Center conductors are simplified; no impedance, solder or insertion geometry is represented.

Similar coaxial construction does not establish impedance, signal type or fit.

No fabrication dimensions, conductor routing, guaranteed fit or device approval. For electrical, power and optical interfaces, follow the original equipment instructions.

Figure evidence, orientation & usage rights

Uses previously recorded V112 manufacturer claim/source inspections; October 2026 supplementary public-source spot checks are documented separately, not treated as a refreshed approval.

Original Port & Cable interpretive vector, no third-party photo, copied CAD, logo or vendor drawing. Third-party product photos, logos and source drawings are not redistributed. pending independent expert assessment; publication approval remains closed.

Original claim identifiers: C023A (private workspace) · C023B (private workspace) · C023C (private workspace) · C023D (private workspace) · C023E (private workspace). Legacy evidence dates and rights assessments remain as recorded.

The useful distinction

Recognize it. Then verify it.

RCA connectors are used in multiple audio and video applications. [C023A]

Neutrik NF2C-B/2 assembly instruction BDA 236 V3 shows a center-conductor path and a separate cable-shield path terminating in the concentric phono plug contacts. This reference counts two conducting paths, not component solder lugs or switched-socket terminals. [C023B]

Denon AVR-1507 page 10 distinguishes RCA-style pin-plug uses: white/left and red/right analog audio, a separate mono subwoofer connection, orange coaxial digital audio, yellow composite video, and green Y / blue PB-CB / red PR-CR component video. [C023C]

The Denon AVR-1507 cable table specifies 75-ohm pin-plug cables separately for coaxial digital audio and composite video. A shared impedance description and RCA form do not make their signals the same. [C023D]

Neutrik describes the NF2C-B/2 as making its ground contact before its signal contact, and breaking signal before ground. The manufacturer also uses phono, RCA and CINCH as names for this plug type. [C023E]

Source-scoped identification facts

Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.

Documented examples; not a mating drawing or compatibility approval
Nominal contacts2S395 · S396 · S396 · S397Center and surrounding contacts of a coaxial phono plug; NF2C-B/2 example; nominal engineering count, not automatically positions, population or a device wiring map. Center and surrounding contacts of a coaxial phono plug; NF2C-B/2 example
Connector roleplug; plug (NF2C-B/2)S395 · S396 · S396 · S397 · S397Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Center and surrounding contacts of a coaxial phono plug; NF2C-B/2 example NF2C-B/2. Documented role: plug. Marking colors identify this supplied pair and do not establish circuit function for everyRCAjack.; Sourcecontact resistance text>10GmOhm appears malformed; not adopted.
Coupling / latchGround makes before signal; signal breaks before ground (NF2C-B/2)S397Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. NF2C-B/2. Documented role: plug. Marking colors identify this supplied pair and do not establish circuit function for everyRCAjack.; Sourcecontact resistance text>10GmOhm appears malformed; not adopted.
ManufacturerNeutrik (NF2C-B/2)S397Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. NF2C-B/2. Documented role: plug. Marking colors identify this supplied pair and do not establish circuit function for everyRCAjack.; Sourcecontact resistance text>10GmOhm appears malformed; not adopted.
SeriesProfi (NF2C-B/2)S397Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. NF2C-B/2. Documented role: plug. Marking colors identify this supplied pair and do not establish circuit function for everyRCAjack.; Sourcecontact resistance text>10GmOhm appears malformed; not adopted.
Exact part / implementationNF2C-B/2 (NF2C-B/2)S397Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. NF2C-B/2. Documented role: plug. Marking colors identify this supplied pair and do not establish circuit function for everyRCAjack.; Sourcecontact resistance text>10GmOhm appears malformed; not adopted.
Recorded markingsManufacturer supplies pair marked red and black (NF2C-B/2)S397Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. NF2C-B/2. Documented role: plug. Marking colors identify this supplied pair and do not establish circuit function for everyRCAjack.; Sourcecontact resistance text>10GmOhm appears malformed; not adopted.

Not recorded: Positions / cavity span, Populated contacts, Contact rows, Contact pitch, Dimensions / axis, Contact gender / arrangement, Mounting, Keying / polarization, Shell / form, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.

Recorded variant and source limits
  • Color alone does not establish analog audio, coaxial digital audio, composite video or component video.
  • No impedance, supported frequency, cable length, signal voltage or connector tolerance is inferred for an unspecified cable or socket.
  • Switched sockets and multiway assemblies may have additional terminals not represented by the two interface paths.
  • Ground-before-signal contact sequencing belongs to the cited NF2C-B/2 design, not every RCA connector. No fabrication or live-connection approval.
Report a correction to these facts →
