P362 / FPC / FFC (TE) / Connector
TE identifies part 1-2492104-0 as a 0.5 mm pitch, 10-position, right-angle ZIF FPC connector with a bottom-contact mating location.
Also called TE 1-2492104-0 TE 2492104 bottom contact 0.5 mm FPC bottom contact bottom contact ZIF FPC 10 position
Bottom contact and right-angle entry are independent descriptions. Read the exact TE drawing and cable requirements.
Read the TE part number and check where the connector contacts the cable against the cable-end conductor face, position count and actuator.
Claim inspection dates: 2026-10-10, 2026-10-11, 2026-10-22 · Independent review pending

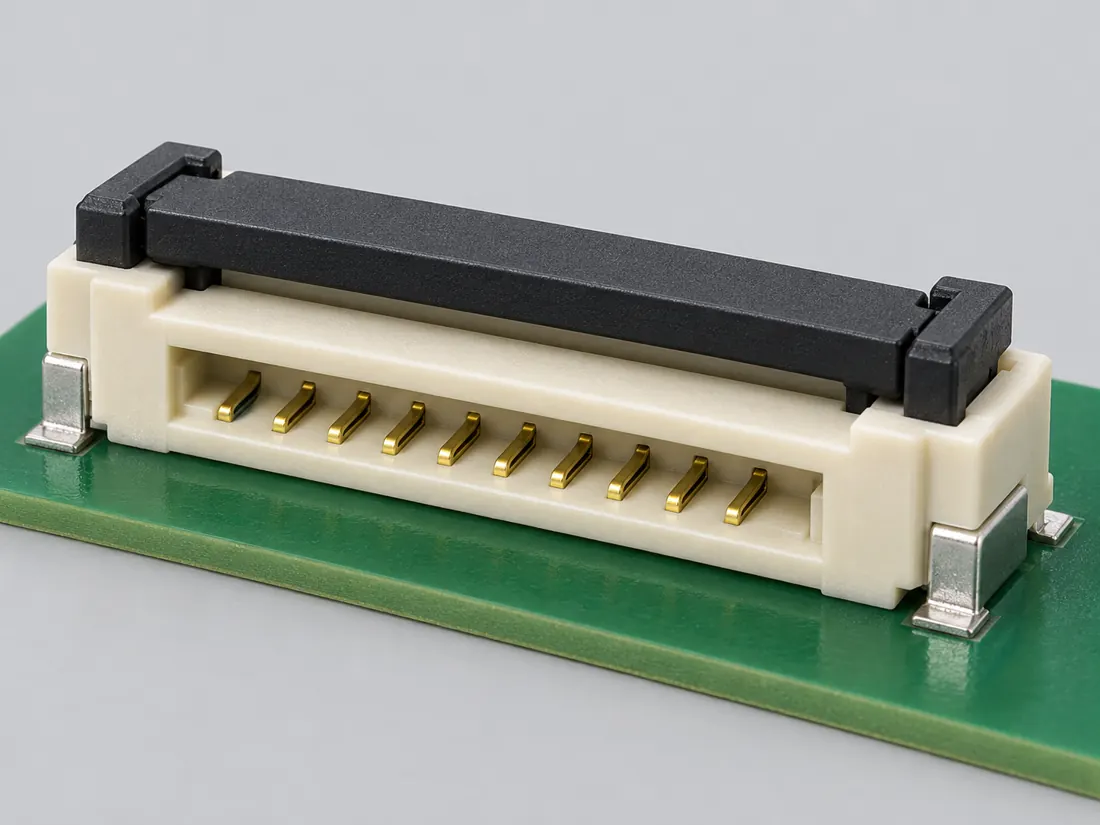

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

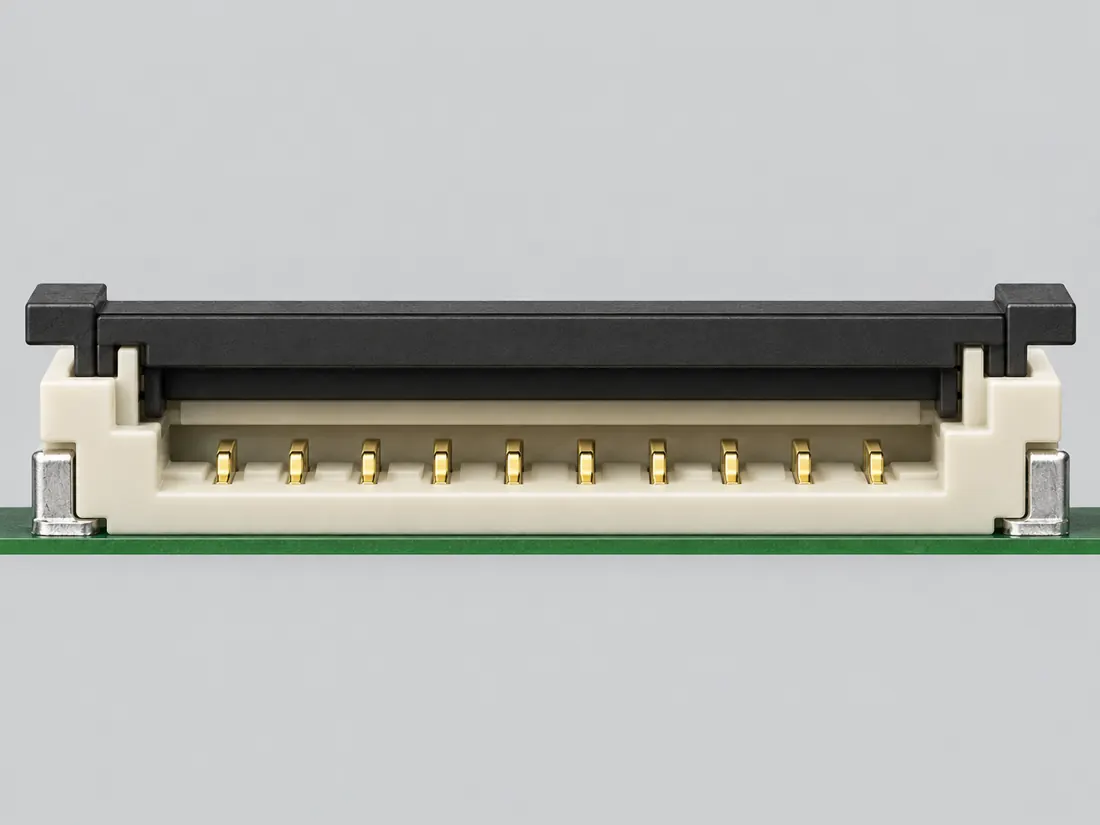

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

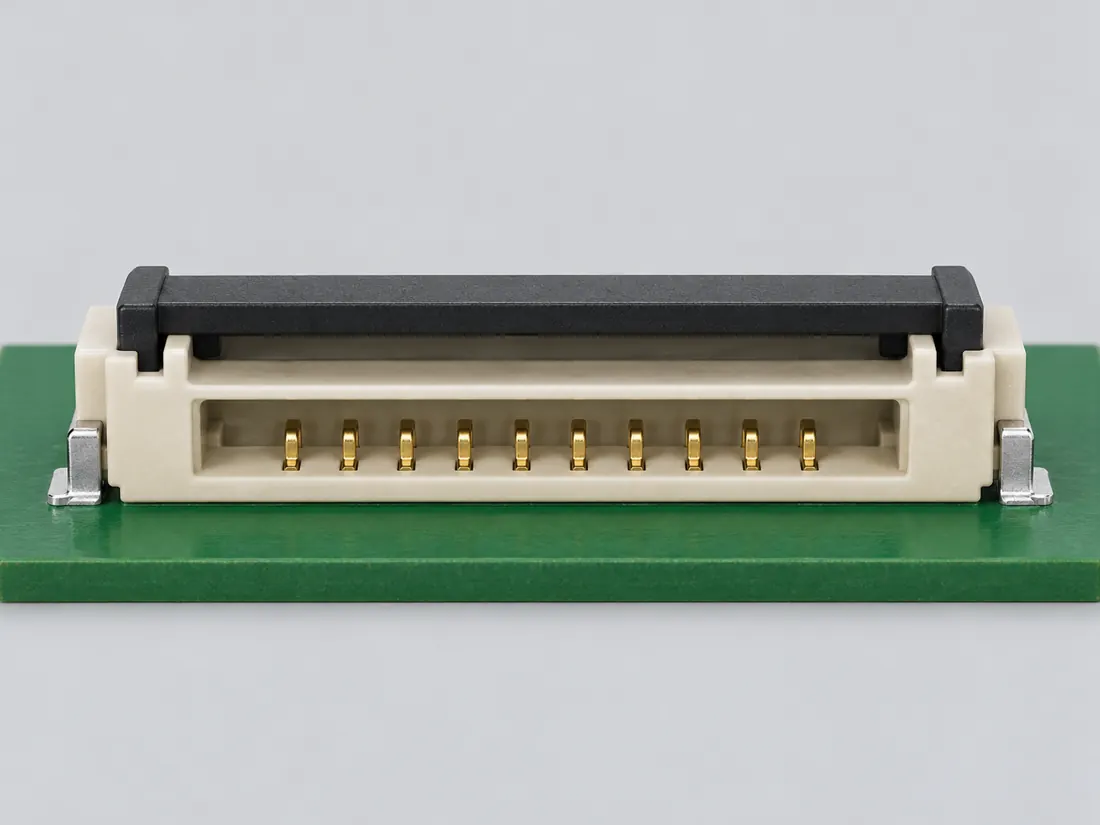

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Recognition drawing Original schematic, not to scale. Drawing review pending.
Image inspection / P362
3 registered views for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.
(private workspace)P362 / Source-observed physical study
TE 1-2492104-0 / 10 positions
Front elevation at the cable-entry edge · Board header
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)
(private workspace)P362 / Concept — not physical geometry
Repair observation checklist / abstract diagram
Four labelled evidence boxes, no physical component · Concept only
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)
(private workspace)P362 / Source-observed physical study
1-2492104-0 / 10 positions
Simplified top/exterior view · Board header
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)Matching notes / Ribbon cables / P362
No. The cited bottom-contact connector is still right-angle board mounted. Contact side and cable-entry direction are different properties.
TE 1-2492104-0 specifies 10 positions, bottom contact, 0.5 mm pitch and 0.3 mm cable thickness.
A top-contact example with the same pitch is not a proven replacement.
The exact cable construction and equipment pin assignment are not established by this drawing.
C362A (private workspace) — TE Connectivity specifies 1-2492104-0 as a 0.5 mm pitch, 10-position ZIF FPC connector with a bottom-contact mating location and right-angle board orientation.
Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. S472
C362B (private workspace) — The TE bottom-contact part is a separate product identity from the top-contact example; identical nominal pitch alone does not prove a compatible FPC or cable insertion orientation.
Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. S472
C362C (private workspace) — TE lists part 1-2492104-0 with a stuffer actuator and a specified mating FPC/FFC thickness of 0.3 mm.
C362D (private workspace) — Section A-A of TE drawing 2492104 depicts contact on the lower side of the inserted cable; the connector is still a right-angle board-mounted part.
Contact side and cable-entry direction are separate attributes. S479 · S472
C361A (private workspace) — TE Connectivity specifies 1-2492111-7 as a 0.5 mm pitch, 17-position ZIF FPC connector with a top contact mating location and right-angle board orientation.
Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. S471
Manufacturer evidence is not an independent review, wiring assignment or hardware test.
Visual atlas / Series 02 / P362
What this view supports
Independent display scaling is not a length comparison with the 17-position part. No contact positions or pinout are depicted.
The next useful check
Verify the exact 10-position part, cable conductor face, pitch, thickness and actuator instructions before insertion.
C362C TE lists part 1-2492104-0 with a stuffer actuator and a specified mating FPC/FFC thickness of 0.3 mm.
This exact bottom-contact TE product only. Source checked 2026-10-11; independent review pending. S472 · S479 · Evidence trail → (private workspace)
C362D Section A-A of TE drawing 2492104 depicts contact on the lower side of the inserted cable; the connector is still a right-angle board-mounted part.
Contact side and cable-entry direction are separate attributes. Source checked 2026-10-11; independent review pending. S479 · S472 · Evidence trail → (private workspace)
Visual inspection 2026-10-11. AI-assisted source inspection; independent drawing and rights reviews pending. These are original qualitative interpretations, not mechanical drawings, pinouts or approved connections.
Independent simplified vector interpretation and original factual paraphrase only. No manufacturer image, PDF, CAD, logo or traced path is redistributed. Independent technical and rights assessment remains pending.
Sheet 1: top/exterior, SECTION A-A and cable interface; product context 1-2492104-0.
Bottom-contact side; contact location is distinct from right-angle cable entry. Only the exact named source/example supports the observation. No universal mating, wiring, maximum rating or mechanical tolerance is inferred. Drawing 2492104 revision A, 03APR2025.
TE Internal #1-2492104-0; Centerline 0.5 mm; Contact Mating Location Bottom; 10 Position; ZIF; Right Angle
Only the described first-party series or precise example part; no dimensioned geometry, assembly mating certification or arbitrary equipment compatibility. Manufacturers describe the series or named example, not a complete compatible harness, exact pin assignment, or electrical approval. No independent hardware, manufacturing drawing, license or device-specific test was performed.
Canonical evidence is retained separately. Existing claim dates are unchanged; only new V118 claims have a new inspection date. No live electrical, energized probing, forced mating or optical-port inspection is recommended.
TE describes this 0.5 mm, ten-position right-angle ZIF board part as bottom-contact. It differs from the cited top-contact 17-position example in more than contact orientation.
Three checks and exact source trail ↗Editorial decision guidance only. A connector identity or nominal pitch does not establish approved mating, safe wiring or a supported device combination.
The useful distinction
TE identifies part 1-2492104-0 as a 0.5 mm pitch, 10-position, right-angle ZIF FPC connector with a bottom-contact mating location. [C362A]
The TE bottom-contact part is a separate product identity from the top-contact example; identical nominal pitch alone does not prove a compatible FPC or cable insertion orientation. [C362B]
TE lists part 1-2492104-0 with a stuffer actuator and a specified mating FPC/FFC thickness of 0.3 mm. [C362C]
Section A-A of TE drawing 2492104 depicts contact on the lower side of the inserted cable; the connector is still a right-angle board-mounted part. [C362D]
1-2492104-0: positions: 10; mounting: surface-mount; coupling: ZIF with stuffer actuator; dimensions: 10.6 mm (Manufacturer connector length); dimensions: 2 mm (Manufacturer connector height); dimensions: 5.2 mm (Manufacturer connector width); dimensions: 0.3 mm (Accepted flex-cable thickness (not connector body)). Only 1-2492104-0; no family-wide generalization. [C362E]
Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.
| Positions / cavity span | 10 (Claim C362A); 10 (1-2492104-0)S472 · S472Source-scoped examples are separate; select the exact variant and measured axis. Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. 1-2492104-0. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
|---|---|
| Contact pitch | 0.5 mm Source-described pitch / centerline (Claim C362A)S472Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. |
| Dimensions / axis | 10.6 mm Manufacturer connector length (1-2492104-0); 2 mm Manufacturer connector height (1-2492104-0); 5.2 mm Manufacturer connector width (1-2492104-0)S472Qualified exact source facts only; counterpart, mounting-acceptance, cable, port, termination and assembly context remains separately labelled in variant_notes. 1-2492104-0. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Connector role | Right-angle PCB-mount flex-cable receptacle (1-2492104-0)S472Source-scoped examples are separate; select the exact variant and measured axis. 1-2492104-0. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Contact gender / arrangement | Socket contacts; mating location bottom (1-2492104-0)S472Source-scoped examples are separate; select the exact variant and measured axis. 1-2492104-0. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Mounting | board (Claim C362D); surface-mount (1-2492104-0)S479 · S472 · S472Source-scoped examples are separate; select the exact variant and measured axis. Contact side and cable-entry direction are separate attributes. 1-2492104-0. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Coupling / latch | ZIF with stuffer actuator (1-2492104-0)S472Source-scoped examples are separate; select the exact variant and measured axis. 1-2492104-0. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Manufacturer | TE Connectivity (1-2492104-0)S472Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. |
| Series | FPC ZIF (1-2492104-0)S472Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. |
| Exact part / implementation | 1-2492104-0 (1-2492104-0)S472Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. |
Not recorded: Nominal contacts, Populated contacts, Contact rows, Keying / polarization, Shell / form, Recorded markings, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.
Bounded facts, visible unknowns
| Manufacturer-specific descriptor | 0.5 mm pitch; 10 positions; bottom contact; ZIF; right angle; example 1-2492104-0 [C362A] |
|---|---|
| Mechanical dimensions | Only the nominal series pitch/product descriptor in source text; no independent manufacturing or tolerance validation. |
| Engineering pinout | Source-checked engineering profile available; independent review pending. Open engineering profile → |
| Verified device list | Not included. Check exact device and accessory documentation. |
TE identifies part 1-2492104-0 as a 0.5 mm pitch, 10-position, right-angle ZIF FPC connector with a bottom-contact mating location. Bottom-contact is a defined part property, not a promise that any 0.5 mm ribbon fits safely.
Before you connect
Find the exact manufacturer designation on the physical part or device bill of materials. Confirm the complete mating part number, termination, orientation and cable construction using the current maker drawing. Verify signals, cable assignment and system ratings from the exact equipment manual; do not energize an unverified assembly.
Manufacturers describe the series or named example, not a complete compatible harness, exact pin assignment, or electrical approval. No independent hardware, manufacturing drawing, license or device-specific test was performed. A physically similar housing or cable can have different retention, terminal geometry, wiring or ratings. Never infer an electrically safe assembly from the series name or pitch.
Your next step
The source trail
AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.
TE Connectivity specifies 1-2492104-0 as a 0.5 mm pitch, 10-position ZIF FPC connector with a bottom-contact mating location and right-angle board orientation.
TE Connectivity · TE FPC bottom-contact connector part 1-2492104-0 ↗S472: full source recordInspect review dependencies → (private workspace)The TE bottom-contact part is a separate product identity from the top-contact example; identical nominal pitch alone does not prove a compatible FPC or cable insertion orientation.
TE Connectivity · TE FPC bottom-contact connector part 1-2492104-0 ↗S472: full source recordInspect review dependencies → (private workspace)TE lists part 1-2492104-0 with a stuffer actuator and a specified mating FPC/FFC thickness of 0.3 mm.
TE Connectivity · TE FPC bottom-contact connector part 1-2492104-0 ↗S472: full source recordTE Connectivity · 2492104 customer drawing — bottom-contact FPC ↗S479: full source recordInspect review dependencies → (private workspace)Section A-A of TE drawing 2492104 depicts contact on the lower side of the inserted cable; the connector is still a right-angle board-mounted part.
TE Connectivity · 2492104 customer drawing — bottom-contact FPC ↗S479: full source recordTE Connectivity · TE FPC bottom-contact connector part 1-2492104-0 ↗S472: full source recordInspect review dependencies → (private workspace)1-2492104-0: positions: 10; mounting: surface-mount; coupling: ZIF with stuffer actuator; dimensions: 10.6 mm (Manufacturer connector length); dimensions: 2 mm (Manufacturer connector height); dimensions: 5.2 mm (Manufacturer connector width); dimensions: 0.3 mm (Accepted flex-cable thickness (not connector body)). Only 1-2492104-0; no family-wide generalization.
TE Connectivity · TE FPC bottom-contact connector part 1-2492104-0 ↗S472: full source recordInspect review dependencies → (private workspace)Follow the connection
Top-contact and bottom-contact variants can look similar, but contact face and exact cable specification must match.
Open field note
A 1.25 mm pitch is only a family identifier: Hirose DF13 and JST GH are not an approved mating pair.
Open field note
Many miniature connectors look similar; a single 1.0 mm measurement does not establish the exact SH housing or mating header.
Open field noteCandidate selection does not confirm the identity or capabilities of your physical item.
Use this reference
Miniature repair / Several identities remain possible
Compare exact part numbers, visible contact side, position count and ribbon orientation using the source documents.
P361 reference · P362 reference · Inspect named view (private workspace)
The two named illustrations are different position counts, not interchangeable parts.
Miniature repair / No matching view identified
Return to broader identification and retain the unmatched image as a reference you have ruled out, not your connector identity.
P361 reference · P362 reference · Inspect named view (private workspace)
No closest-looking FPC example is silently substituted.
NAMED REFERENCE / FOUR SEPARATE FIELDS
New V128 observation. Observed .
TE 1-2492104-0 product fields ↗
Features: configuration, contact mating location, FPC actuator type, cable type and dimensions.
TE customer drawing 2492104, revision A ↗
PDF sheet 1 of 2: front elevation below upper main view, section A-A, 10-position row and actuator note. Sheet 2 inspected only to identify packaging scope. Revision A: 03-Apr-2025.
Not established: Not a substitute for the seventeen-position part; opposite-end contact exposure, footprint interchange and cable wiring are not established.
Next check: Check the ten-position identity independently of the top-contact example.
No hardware test, independent technical review or rights clearance is asserted.
