P360 / Hirose wire-to-board / Connector
Hirose describes DF13 as a 1.25 mm pitch miniature crimping connector series with header, socket and contact choices. It is not automatically a JST GH mate.
Also called Hirose DF13 DF13 1.25 mm SignalBee DF13 Hirose DF13 connector
A 1.25 mm pitch is only a family identifier: Hirose DF13 and JST GH are not an approved mating pair.
Identify the DF13 series and exact housing, contact and PCB header using Hirose ordering codes and the current series drawing.
Claim inspection dates: 2026-10-10, 2026-10-11, 2026-10-22 · Independent review pending

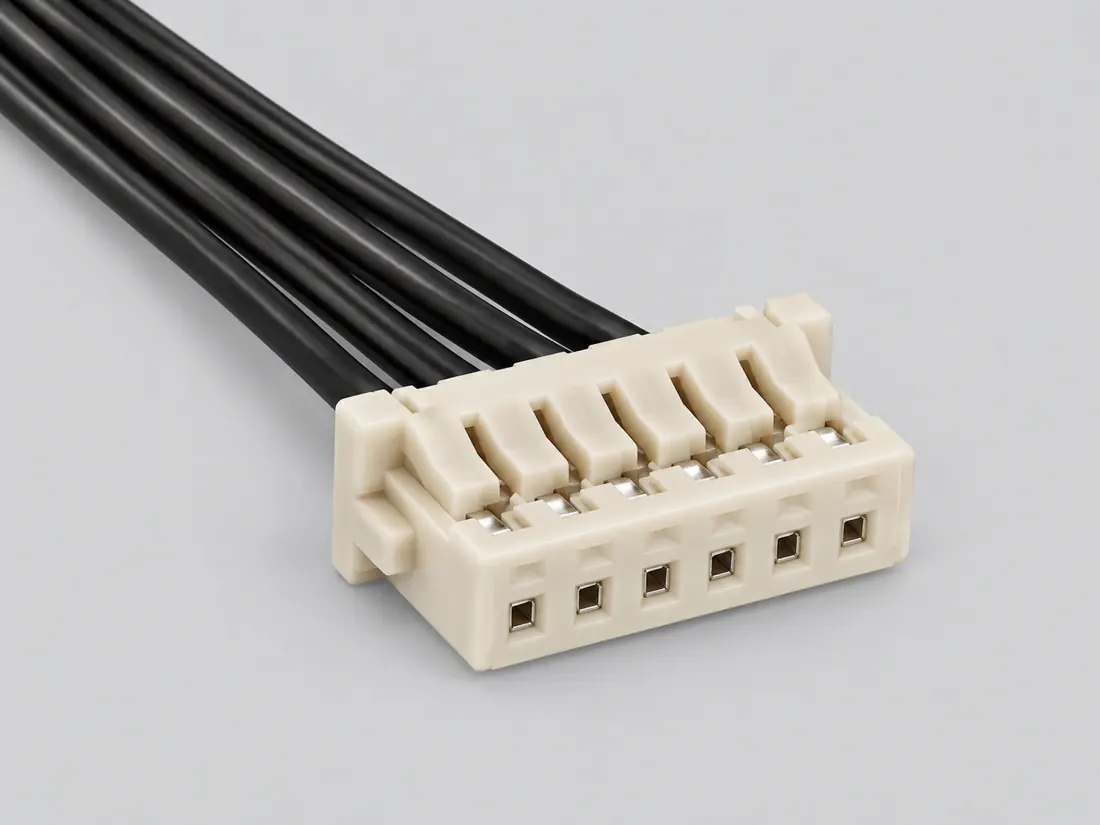

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

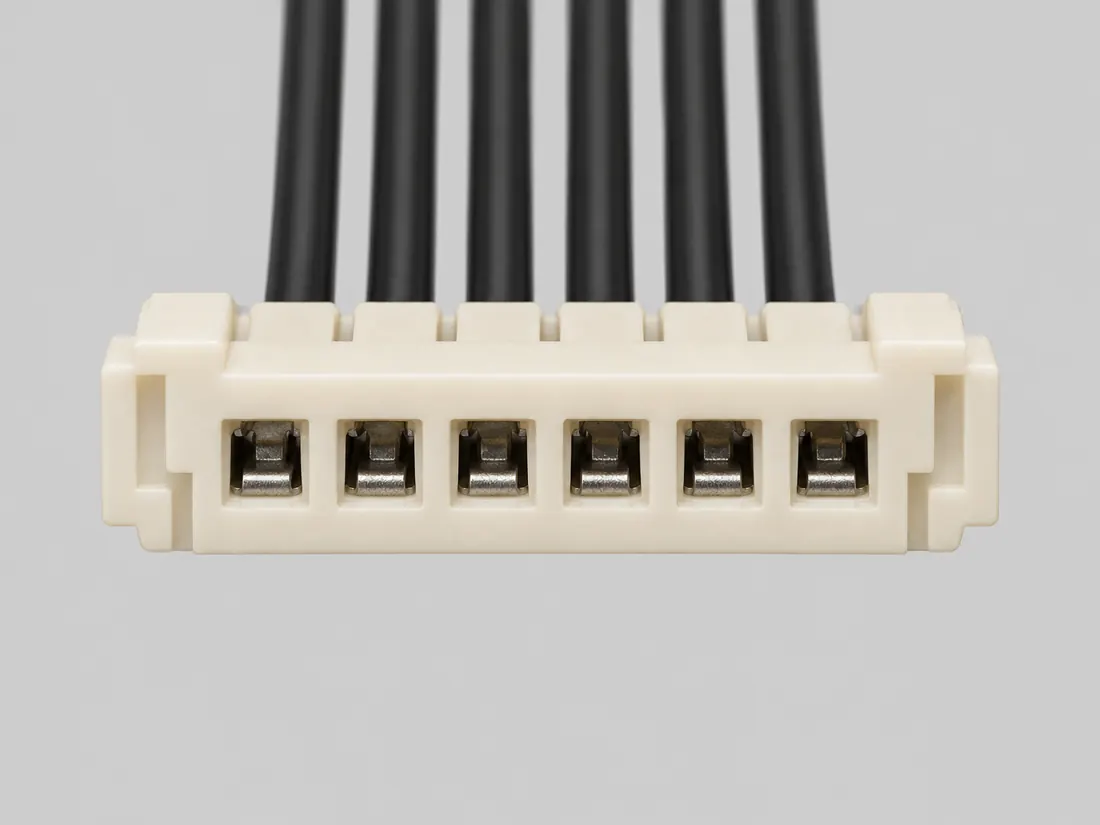

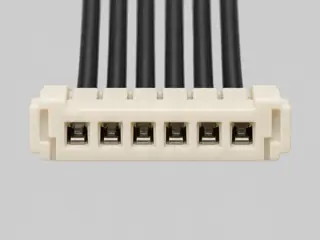

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

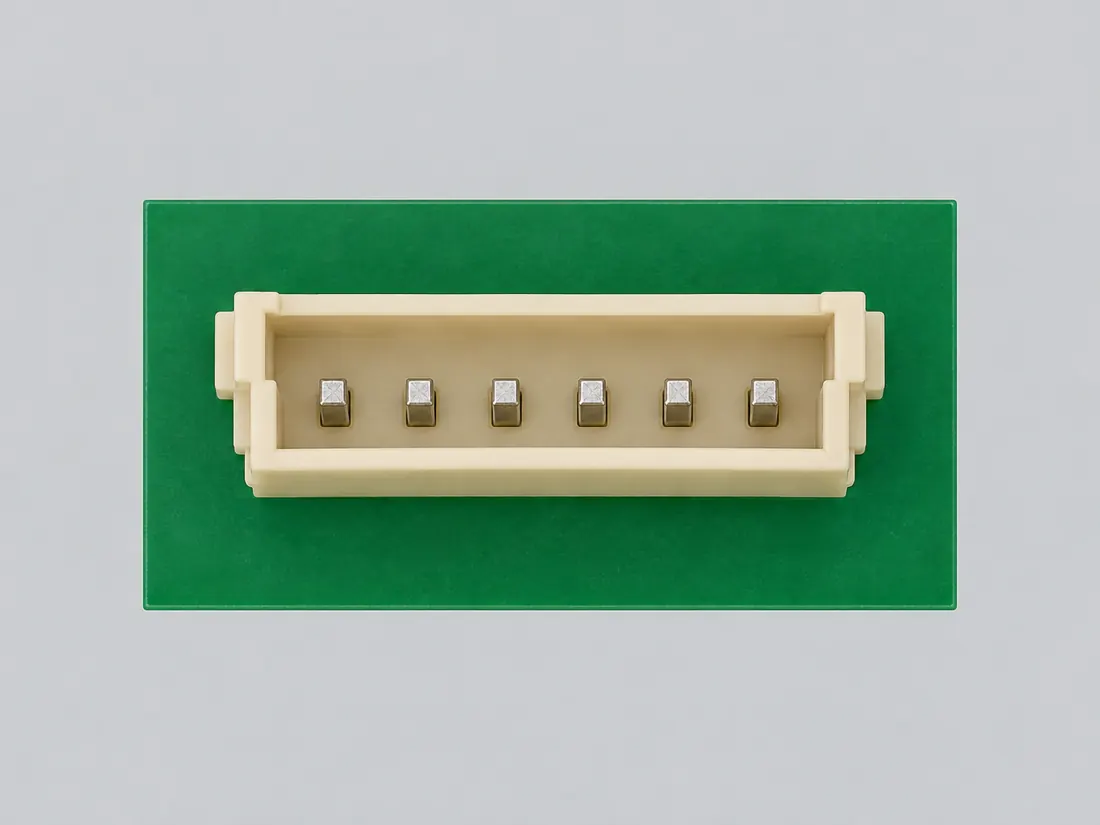

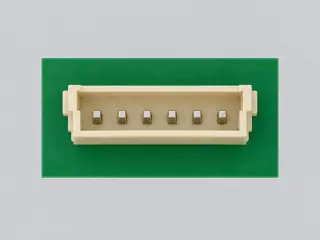

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Recognition drawing Original schematic, not to scale. Drawing review pending.
Image inspection / P360
1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.
(private workspace)P360 / Source-observed physical study
DF13-6S-1.25C
Front exterior; contact cavities simplified · Other declared component
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)Matching notes / Miniature repair / P360
No. Hirose lists distinct header, socket and contact types, and the catalog separately documents single- and double-row sockets. DF13-6S-1.25C is one six-contact single-row socket. Its A = 6.25 mm and B = 9.15 mm belong to the cited elevation—not to every DF13 component. C360A · C360C · C360D
| Check | Documented distinction | Boundary |
|---|---|---|
| Component role | The DF13 series includes headers, sockets and contacts. C360A | A housing designation is not a terminal, board header or PCB footprint. |
| Row arrangement | Single-row and double-row sockets are documented separately. C360C · C360B | “DF13” and “1.25 mm” alone do not select the row count or exact mating part. |
| Named socket dimensions | DF13-6S-1.25C: six contacts, single row, A = 6.25 mm and B = 9.15 mm in the page-3 elevation. C360D | Keep the full part, view and lettered arrows together. Do not transfer A/B meanings to another drawing. |
| Comparison with GH | DF13 and JST GH share a nominal 1.25 mm pitch description but not a common manufacturer identity. C360B · C352A | No GH–DF13 mating or electrical equivalence follows from that shared number. |
Keep this limit: The illustrated socket is not a board-header replacement or a wiring map. The matching header, contact, mounting arrangement and equipment requirements still need their own documentation. C360A · C360B · C360D
Named exterior study
Six-contact single-row socket. Front exterior; contact cavities simplified.
Page 3 single-row socket elevation and six-contact row
Independent simplified vector interpretation; no manufacturer pixels, CAD, logo or traced paths reused. Independent rights review pending.
Source recheck · 14 October 2026. The current catalog’s page-3 socket drawings and row were accessible and inspected. The older V128 note below still records its unsuccessful refresh at that time; this separate V161 observation does not rewrite that historical event.
Source-qualified reference, not a mating, wiring or repair approval. Each linked claim and source carries its own recorded inspection date and review status; selected reobservations are not independent technical or rights approval.
Source trail: S470 · S488 · S462.
Small wire-to-board desk · All eight mechanical checks · JST GH secure-lock wire-to-board connector family
C360A (private workspace) — Hirose describes its DF13 series as 1.25 mm pitch miniature crimping connectors and lists header, socket and contact product types.
Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. S470
C360B (private workspace) — The DF13 series includes different contact counts and mounting arrangements; a 1.25 mm pitch alone does not specify an exact DF13 part or establish mating to JST GH.
Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. S470
C360C (private workspace) — The Hirose DF13 catalog separately documents single-row and double-row socket families.
A family label and pitch alone do not specify row count or an exact mate. S488
C360D (private workspace) — Hirose lists DF13-6S-1.25C as a six-contact single-row socket, with A = 6.25 mm and B = 9.15 mm in the cited elevation.
The dimensions belong to this named socket and view, not every DF13 part. S488
Manufacturer evidence is not an independent review, wiring assignment or hardware test.
No interchangeability is established. Hirose DF13 and JST GH are separate manufacturers’ families. The 1.25 mm descriptor does not resolve shroud geometry, latch, terminal type or mated part numbers.
Three checks and exact source trail ↗Editorial decision guidance only. A connector identity or nominal pitch does not establish approved mating, safe wiring or a supported device combination.
Six-contact single-row socket; Front exterior; contact cavities simplified. Page 3 single-row socket elevation and six-contact row
Independent simplified vector interpretation; no manufacturer pixels, CAD, logo or traced paths reused. Independent rights review pending.
Source: S488. Read matching limits →
The useful distinction
Hirose describes DF13 as a 1.25 mm pitch miniature crimping connector series with header, socket and contact choices. It is not automatically a JST GH mate. [C360A]
The DF13 series includes different contact counts and mounting arrangements; a 1.25 mm pitch alone does not specify an exact DF13 part or establish mating to JST GH. [C360B]
The Hirose DF13 catalog separately documents single-row and double-row socket families. [C360C]
Hirose lists DF13-6S-1.25C as a six-contact single-row socket, with A = 6.25 mm and B = 9.15 mm in the cited elevation. [C360D]
Hirose DF13-6S-1.25C: positions: 6; dimensions: 6.25 mm (Drawing elevation dimension A); dimensions: 9.15 mm (Drawing elevation dimension B). Only Hirose DF13-6S-1.25C; no family-wide generalization. [C360E]
Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.
| Nominal contacts | 6 (Hirose DF13-6S-1.25C socket)S488Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. The dimensions belong to this named socket and view, not every DF13 part. |
|---|---|
| Positions / cavity span | 6 (Hirose DF13-6S-1.25C)S488Source-scoped examples are separate; select the exact variant and measured axis. Hirose DF13-6S-1.25C. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Contact rows | 1 (Hirose DF13 single-row socket family); 2 (Hirose DF13 double-row socket family); 1 (Hirose DF13-6S-1.25C single-row socket)S488 · S488Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. The Hirose DF13 catalog separately documents single-row and double-row socket families. | A family label and pitch alone do not specify row count or an exact mate. Hirose lists DF13-6S-1.25C as a six-contact single-row socket, with A = 6.25 mm and B = 9.15 mm in the cited elevation. | The dimensions belong to this named socket and view, not every DF13 part. |
| Contact pitch | 1.25 mm Source-described pitch / centerline (Claim C360A); 1.25 mm Source-described pitch / centerline (Claim C360B)S470 · S470Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. |
| Dimensions / axis | 6.25 mm Drawing elevation dimension A (Hirose DF13-6S-1.25C); 9.15 mm Drawing elevation dimension B (Hirose DF13-6S-1.25C)S488Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. The dimensions belong to this named socket and view, not every DF13 part. |
| Connector role | Single-row crimp socket housing (Hirose DF13-6S-1.25C)S488Source-scoped examples are separate; select the exact variant and measured axis. Hirose DF13-6S-1.25C. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Contact gender / arrangement | socket (Hirose DF13-6S-1.25C)S488Source-scoped examples are separate; select the exact variant and measured axis. Hirose DF13-6S-1.25C. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Manufacturer | Hirose (DF13-6S-1.25C)S488Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. The dimensions belong to this named socket and view, not every DF13 part. |
| Series | DF13 (DF13-6S-1.25C)S488Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. The dimensions belong to this named socket and view, not every DF13 part. |
| Exact part / implementation | DF13-6S-1.25C (DF13-6S-1.25C)S488Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. The dimensions belong to this named socket and view, not every DF13 part. |
Not recorded: Populated contacts, Mounting, Coupling / latch, Keying / polarization, Shell / form, Recorded markings, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.
Report a correction to these facts →Bounded facts, visible unknowns
| Manufacturer-specific descriptor | 1.25 mm nominal pitch; manufacturer series, not a particular mated pair [C360A] |
|---|---|
| Mechanical dimensions | Only the nominal series pitch/product descriptor in source text; no independent manufacturing or tolerance validation. |
| Engineering pinout | Source-checked engineering profile available; independent review pending. Open engineering profile → |
| Verified device list | Not included. Check exact device and accessory documentation. |
Hirose describes DF13 as a 1.25 mm pitch miniature crimping connector series with header, socket and contact choices. It is not automatically a JST GH mate. A 1.25 mm pitch is only a family identifier: Hirose DF13 and JST GH are not an approved mating pair.
Before you connect
Find the exact manufacturer designation on the physical part or device bill of materials. Confirm the complete mating part number, termination, orientation and cable construction using the current maker drawing. Verify signals, cable assignment and system ratings from the exact equipment manual; do not energize an unverified assembly.
Manufacturers describe the series or named example, not a complete compatible harness, exact pin assignment, or electrical approval. No independent hardware, manufacturing drawing, license or device-specific test was performed. A physically similar housing or cable can have different retention, terminal geometry, wiring or ratings. Never infer an electrically safe assembly from the series name or pitch.
Your next step
The source trail
AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.
Hirose describes its DF13 series as 1.25 mm pitch miniature crimping connectors and lists header, socket and contact product types.
Hirose Electric · DF13 Series — 1.25 mm pitch miniature crimping connectors ↗S470: full source recordInspect review dependencies → (private workspace)The DF13 series includes different contact counts and mounting arrangements; a 1.25 mm pitch alone does not specify an exact DF13 part or establish mating to JST GH.
Hirose Electric · DF13 Series — 1.25 mm pitch miniature crimping connectors ↗S470: full source recordInspect review dependencies → (private workspace)The Hirose DF13 catalog separately documents single-row and double-row socket families.
Hirose Electric · DF13 series catalog — single and double row sockets ↗S488: full source recordInspect review dependencies → (private workspace)Hirose lists DF13-6S-1.25C as a six-contact single-row socket, with A = 6.25 mm and B = 9.15 mm in the cited elevation.
Hirose Electric · DF13 series catalog — single and double row sockets ↗S488: full source recordInspect review dependencies → (private workspace)Hirose DF13-6S-1.25C: positions: 6; dimensions: 6.25 mm (Drawing elevation dimension A); dimensions: 9.15 mm (Drawing elevation dimension B). Only Hirose DF13-6S-1.25C; no family-wide generalization.
Hirose Electric · DF13 series catalog — single and double row sockets ↗S488: full source recordInspect review dependencies → (private workspace)Follow the connection
GH’s locking arrangement distinguishes its series conceptually from the smaller friction-lock SH, but physical mating still requires exact part codes.
Open field note
Many miniature connectors look similar; a single 1.0 mm measurement does not establish the exact SH housing or mating header.
Open field note
A measured 2.0 mm pitch or white housing alone cannot establish a genuine JST PH mating pair or wiring.
Open field note
Micro-Fit 3.0 is not Mini-Fit Jr.; similar-looking headers do not prove mating or a safe power harness.
Open field noteCandidate selection does not confirm the identity or capabilities of your physical item.
NAMED REFERENCE / FOUR SEPARATE FIELDS
Inherited V119 source observation; refresh unavailable. Observed .
DF13 series catalog — single and double row sockets ↗
Page 3: Single Row Socket and Double Row Socket; DF13-6S-1.25C row and front elevation. PDF screenshot inspected.
Not established: Source refresh could not be fetched in V128. Prior observation retained; no new DF13 dimensions, image inspection or mating approval.
Next check: Keep the socket identity separate from the board header and from all JST families.
No hardware test, independent technical review or rights clearance is asserted.
Compare the six entries, source conflicts and printable guide →
