P351 / JST wire-to-board / Connector
JST SH is a compact nominal 1.0 mm pitch wire-to-board family with a low-profile shrouded construction and friction-lock style.
Also called JST SH SHR housing SH series 1.0mm 1.0mm SH connector
Many miniature connectors look similar; a single 1.0 mm measurement does not establish the exact SH housing or mating header.
Check the full housing/header part numbers and latch style rather than guessing from size in a macro photograph.
Claim inspection dates: 2026-10-09, 2026-10-11, 2026-10-22 · Independent review pending

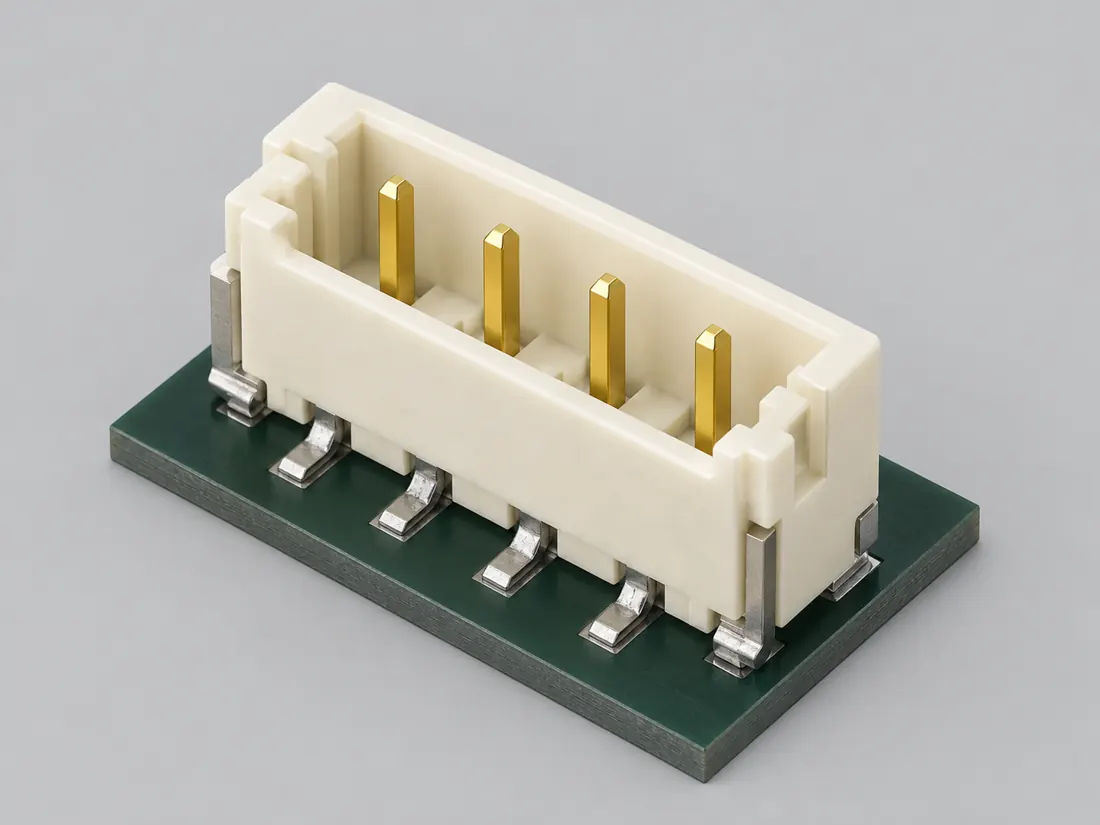

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

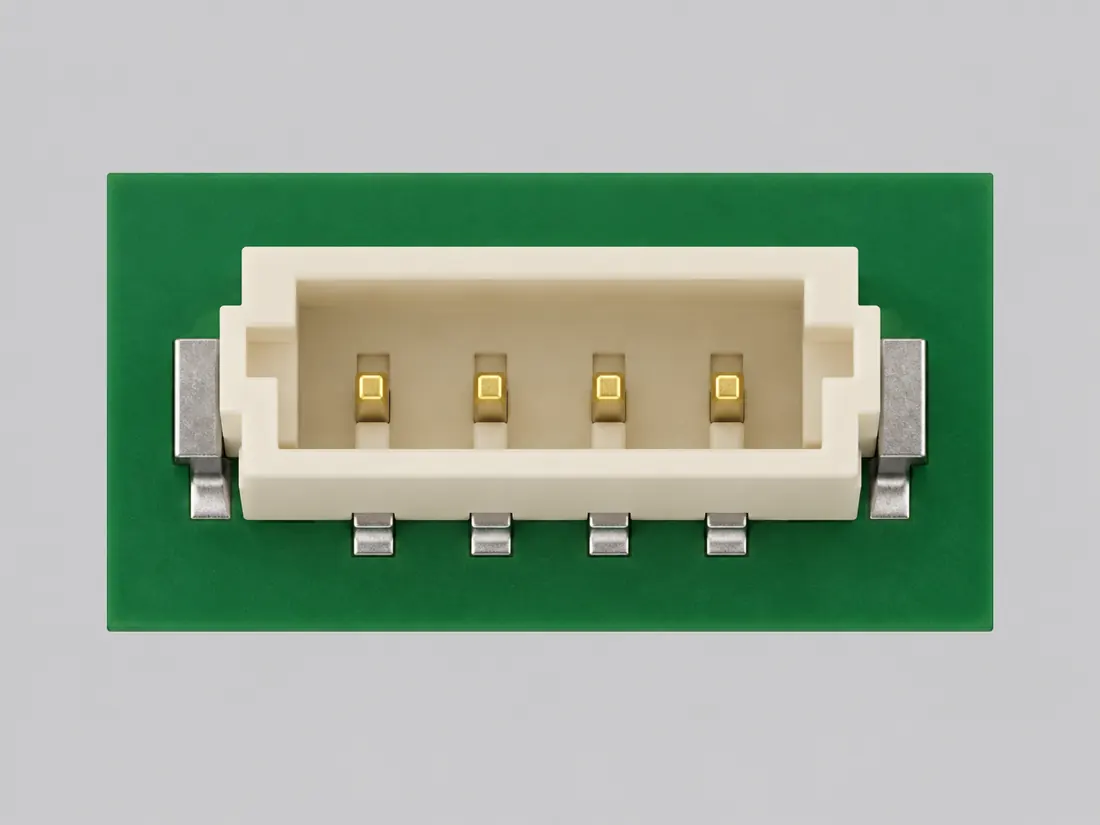

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

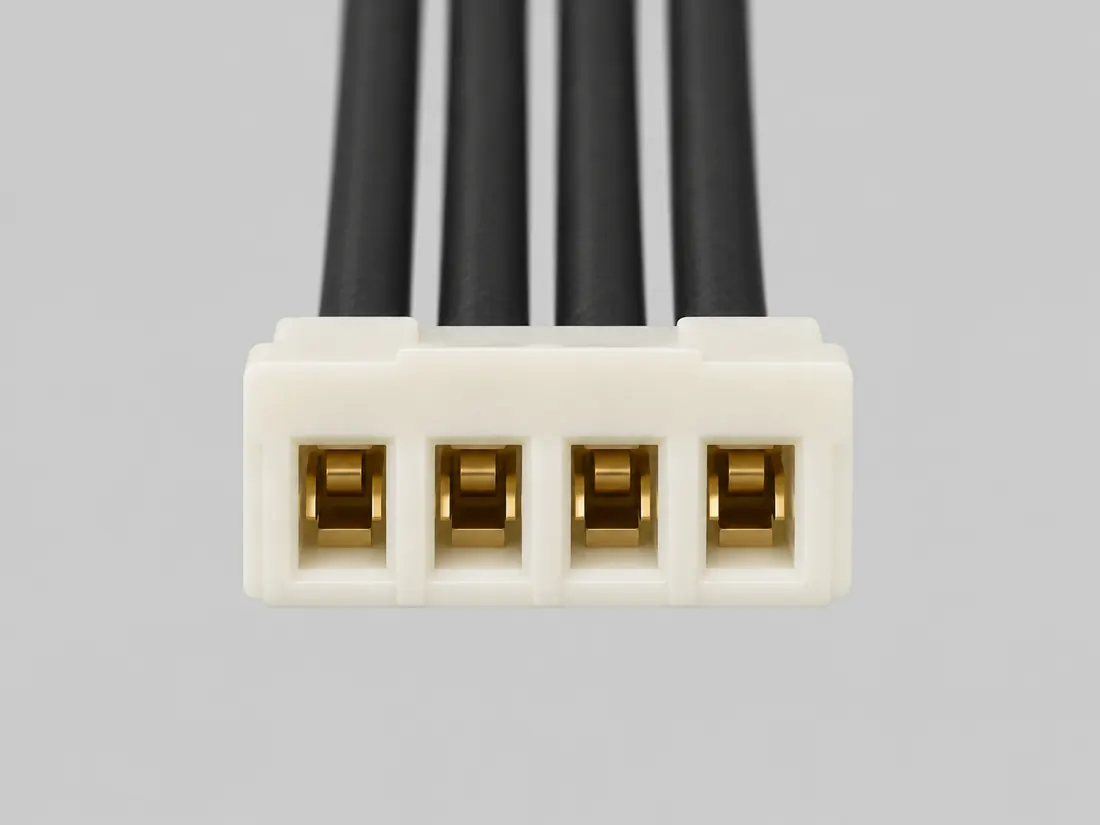

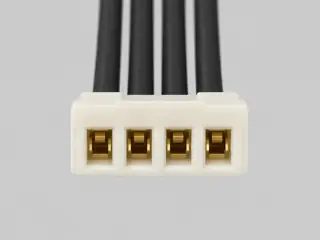

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Recognition drawing Original schematic, not to scale. Drawing review pending.
Image inspection / P351
3 registered views for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.
(private workspace)P351 / Source-observed physical study
JST BM06B-SRSS-TB
Side elevation of the top-entry header · Board header
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)
(private workspace)P351 / Source-observed physical study
JST SM06B-SRSS-TB
Side elevation of the side-entry header · Board header
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)
(private workspace)P351 / Source-observed physical study
SHR-06V-S-B
Housing exterior, protrusions emphasized · Cable housing
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)Matching notes / Miniature repair / P351
The complete suffix changes the exterior example. On the SH catalog’s page-2 housing drawings, SHR-06V-S-B has protrusions and B = 9.0 mm; SHR-06V-S has no protrusions and B = 7.0 mm. Both six-circuit examples use A = 5.0 mm. Neither A nor B should be read as the family pitch. C351C · C351D · C351A
| Check | Documented distinction | Boundary |
|---|---|---|
| Family pitch | SH is a nominal 1.0 mm, low-profile friction-lock wire-to-board family. C351A | The pitch does not define the complete shell, suffix or mate. |
| With protrusions | SHR-06V-S-B: six circuits, A = 5.0 mm and B = 9.0 mm in the page-2 housing elevation. C351D · C351C | Keep the “-B” and the drawing labels attached to these values. They are not dimensions for every SH part. |
| Without protrusions | SHR-06V-S: six circuits, A = 5.0 mm and B = 7.0 mm in the paired page-2 elevation. C351D · C351C | Equal pitch, circuit count and A dimension do not make the two exterior forms identical. |
| Related names | JST separately notes SR and SZ variants with different termination or mounting arrangements. C351B | An SH/SR/SZ nickname does not select a compatible housing, contact, header or assembly process. |
Keep this limit: These are exact catalog housing examples, not toleranced manufacturing drawings or a replacement approval. Identify the contact and board header independently of the shell suffix. C351B · C351C · C351D
Named exterior study
Six-circuit cable housing. Housing exterior, protrusions emphasized.
Page 2 housing with protrusions; six-circuit row
Independent simplified vector interpretation; no manufacturer pixels, CAD, logo or traced paths reused. Independent rights review pending.
Source recheck · 14 October 2026. Both page-2 elevations and their six-circuit rows were inspected together. Dimension letters are local to those drawings; no derived width, tolerance or universal suffix decoder was added.
Source-qualified reference, not a mating, wiring or repair approval. Each linked claim and source carries its own recorded inspection date and review status; selected reobservations are not independent technical or rights approval.
Small wire-to-board desk · All eight mechanical checks · JST GH secure-lock wire-to-board connector family · JST PH wire-to-board connector family
C351A (private workspace) — JST describes SH as a nominal 1.0 mm pitch, compact, low-profile wire-to-board series with friction locking.
Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval. S461
C351B (private workspace) — JST notes related IDC-type SR and through-hole SZ variants; mating and replacement depend on the exact parts, not a family nickname.
Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval. S461
C351C (private workspace) — The JST SH catalog distinguishes cable housings with protrusions from cable housings without protrusions.
Compare the full housing suffix and the exact circuit-count row. S487
C351D (private workspace) — For the six-circuit SH housing examples, the catalog lists A = 5.0 mm and B = 9.0 mm for SHR-06V-S-B, versus B = 7.0 mm for SHR-06V-S.
A and B refer to the page-2 drawing labels; neither is an inferred universal housing dimension. S487
Manufacturer evidence is not an independent review, wiring assignment or hardware test.
REPAIR FIELD NOTES / Small wire-to-board series
No. JST SH has a nominal 1.0 mm pitch and friction-lock family variants; GH is a distinct nominal 1.25 mm series with secure locking. At small sizes, the difference can be difficult to judge without a documented part number and a manufacturer drawing.
Avoid: Treating miniature housings as interchangeable because the same number of wires fits in both.
Full source-scoped reading and three practical checks ↗Not automatically. JST’s SH product profile notes related SR and SZ forms and different termination/mounting arrangements. A supplier product description that only says "1.0 mm JST" does not establish compatible housings, headers or assembly processes.
Avoid: Assuming a low pitch implies any IDC ribbon housing fits a crimp header.
Full source-scoped reading and three practical checks ↗
These notes add editorial context to the original canonical reference; they do not change its claim IDs or prove mating, wiring or polarity.
Six-circuit cable housing; Housing exterior, protrusions emphasized. Page 2 housing with protrusions; six-circuit row
Independent simplified vector interpretation; no manufacturer pixels, CAD, logo or traced paths reused. Independent rights review pending.
Source: S487. Read matching limits →
The useful distinction
JST SH is a compact nominal 1.0 mm pitch wire-to-board family with a low-profile shrouded construction and friction-lock style. [C351A]
JST notes related IDC-type SR and through-hole SZ variants; mating and replacement depend on the exact parts, not a family nickname. [C351B]
The JST SH catalog distinguishes cable housings with protrusions from cable housings without protrusions. [C351C]
For the six-circuit SH housing examples, the catalog lists A = 5.0 mm and B = 9.0 mm for SHR-06V-S-B, versus B = 7.0 mm for SHR-06V-S. [C351D]
SHR-06V-S-B: positions: 6; rows: 1; pitch: 1 mm (Contact mating centerline pitch); coupling: Friction lock; dimensions: 5 mm (Catalog housing dimension A); dimensions: 9 mm (Catalog housing dimension B (with protrusions)). Only SHR-06V-S-B; no family-wide generalization. [C351E]
Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.
| Positions / cavity span | 6 (Claim C351D); 6 (SHR-06V-S-B)S487 · S487Source-scoped examples are separate; select the exact variant and measured axis. A and B refer to the page-2 drawing labels; neither is an inferred universal housing dimension. SHR-06V-S-B. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
|---|---|
| Contact rows | 1 (SHR-06V-S-B)S461Source-scoped examples are separate; select the exact variant and measured axis. SHR-06V-S-B. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Contact pitch | 1 mm Source-described pitch / centerline (Claim C351A); 1 mm Contact mating centerline pitch (SHR-06V-S-B)S461 · S461Source-scoped examples are separate; select the exact variant and measured axis. Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval. SHR-06V-S-B. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Dimensions / axis | 5 mm Catalog housing dimension A (SHR-06V-S-B); 9 mm Catalog housing dimension B (with protrusions) (SHR-06V-S-B)S487Source-scoped examples are separate; select the exact variant and measured axis. SHR-06V-S-B. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Connector role | Crimp cable housing; counterpart is a separate PCB header (SHR-06V-S-B)S487Source-scoped examples are separate; select the exact variant and measured axis. SHR-06V-S-B. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Mounting | surface-mount (SH board-header variants)S461Source-scoped examples are separate; select the exact variant and measured axis. SH product profile lists SMT headers. The separately listed SZ DIP alternative is a related series, not an SH through-hole housing. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Coupling / latch | Friction lock (SHR-06V-S-B)S461Source-scoped examples are separate; select the exact variant and measured axis. SHR-06V-S-B. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Manufacturer | JST (SHR-06V-S-B)S461Source-scoped examples are separate; select the exact variant and measured axis. SHR-06V-S-B. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Series | SH (SHR-06V-S-B)S461Source-scoped examples are separate; select the exact variant and measured axis. SHR-06V-S-B. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Exact part / implementation | SHR-06V-S-B (SHR-06V-S-B)S461Source-scoped examples are separate; select the exact variant and measured axis. SHR-06V-S-B. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| View convention | PCB pattern explicitly viewed from connector mounting surface; not a mating-face pin map (JST SH catalog PCB-layout/header-counterpart view)S487Source-scoped examples are separate; select the exact variant and measured axis. Named JST SH catalog series only, not every family part. Connector-mounting-surface PCB-layout view for the separately selected header counterpart; not the loose cable housing mating face or a housing footprint. |
Not recorded: Nominal contacts, Populated contacts, Contact gender / arrangement, Keying / polarization, Shell / form, Recorded markings. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.
Report a correction to these facts →Bounded facts, visible unknowns
| JST series nominal pitch | 1.0 mm; manufacturer family descriptor, not a complete part-number selection [C351A] |
|---|---|
| Mechanical dimensions | Only manufacturer-described nominal family/footprint pitch is quoted in sourced text; no measured fabrication/tolerance drawing independently approved. |
| Engineering pinout | Source-checked engineering profile available; independent review pending. Open engineering profile → |
| Verified device list | Not included. Check exact device and accessory documentation. |
Disconnect the equipment battery or power safely before examining a miniature connector. Compare housing and header part numbers against JST’s SH series and top/side entry variants. Avoid trial-fitting, pulling on wires, or assuming a signal pinout from connector size.
Before you connect
This reference establishes only the specific manufacturer-documented family and example noted in the sources. It does not verify an arbitrary mating pair, cable orientation, electrical rating or device combination. Stop and consult original documents for the exact products.
Your next step
The source trail
AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.
JST describes SH as a nominal 1.0 mm pitch, compact, low-profile wire-to-board series with friction locking.
J.S.T. Mfg. Co., Ltd. · SH connector series product profile ↗S461: full source recordInspect review dependencies → (private workspace)JST notes related IDC-type SR and through-hole SZ variants; mating and replacement depend on the exact parts, not a family nickname.
J.S.T. Mfg. Co., Ltd. · SH connector series product profile ↗S461: full source recordInspect review dependencies → (private workspace)The JST SH catalog distinguishes cable housings with protrusions from cable housings without protrusions.
JST · SH connector catalog — housing variants ↗S487: full source recordInspect review dependencies → (private workspace)For the six-circuit SH housing examples, the catalog lists A = 5.0 mm and B = 9.0 mm for SHR-06V-S-B, versus B = 7.0 mm for SHR-06V-S.
JST · SH connector catalog — housing variants ↗S487: full source recordInspect review dependencies → (private workspace)SHR-06V-S-B: positions: 6; rows: 1; pitch: 1 mm (Contact mating centerline pitch); coupling: Friction lock; dimensions: 5 mm (Catalog housing dimension A); dimensions: 9 mm (Catalog housing dimension B (with protrusions)). Only SHR-06V-S-B; no family-wide generalization.
J.S.T. Mfg. Co., Ltd. · SH connector series product profile ↗S461: full source recordJST · SH connector catalog — housing variants ↗S487: full source recordInspect review dependencies → (private workspace)Follow the connection
GH’s locking arrangement distinguishes its series conceptually from the smaller friction-lock SH, but physical mating still requires exact part codes.
Open field note
A measured 2.0 mm pitch or white housing alone cannot establish a genuine JST PH mating pair or wiring.
Open field noteCandidate selection does not confirm the identity or capabilities of your physical item.
Use this reference
Miniature repair / Several identities remain possible
Use the explicit series, housing role and part-number scope; do not infer compatibility from apparent canvas size.
P352 reference · P351 reference · Inspect named view (private workspace)
Equal illustration canvases do not represent equal physical dimensions.
NAMED REFERENCE / FOUR SEPARATE FIELDS
New V128 observation. Observed .
JST SH catalogue: entry, housing and contact roles ↗
PDF pages 2–4: housing six-circuit row, page 3 top-entry/side-entry side elevations and six-circuit row, page 4 BM/SM naming. No revision date visible on inspected pages.
Not established: Header orientation does not establish cable-housing selection, wiring, tooling, entry force or replacement approval.
Next check: Match the full header and housing identities; keep circuit assignment as a separate equipment question.
No hardware test, independent technical review or rights clearance is asserted.
New V128 observation. Observed .
JST SH catalogue: entry, housing and contact roles ↗
PDF pages 2–4: housing six-circuit row, page 3 top-entry/side-entry side elevations and six-circuit row, page 4 BM/SM naming. No revision date visible on inspected pages.
Not established: No PCB drop-in replacement, full wire harness, FPC cable or mating approval is established.
Next check: Read SM as this catalogue’s side-entry header code, not a universal abbreviation.
No hardware test, independent technical review or rights clearance is asserted.
New V128 observation. Observed .
JST SH catalogue: entry, housing and contact roles ↗
PDF pages 2–4: housing six-circuit row, page 3 top-entry/side-entry side elevations and six-circuit row, page 4 BM/SM naming. No revision date visible on inspected pages.
Not established: Inherited exterior image is not reclassified as newly drawn; terminal assembly, wire polarity and device match remain unknown.
Next check: Distinguish housing, crimp contact and board header before recording a replacement.
No hardware test, independent technical review or rights clearance is asserted.
