P361 / FPC / FFC (TE) / Connector
TE identifies part 1-2492111-7 as a 0.5 mm pitch, 17-position, right-angle ZIF FPC connector with a top-contact mating location.
Also called TE 1-2492111-7 TE 2492111 top contact 0.5 mm FPC top contact top contact ZIF FPC 17 position
Top contact describes which side touches the cable conductors. It does not mean a reverse cable-entry direction.
Confirm the exact TE part designation and manufacturer drawing, then check exposed conductor face, actuation mechanism, position count, pitch and cable thickness.
Claim inspection dates: 2026-10-10, 2026-10-11, 2026-10-22 · Independent review pending

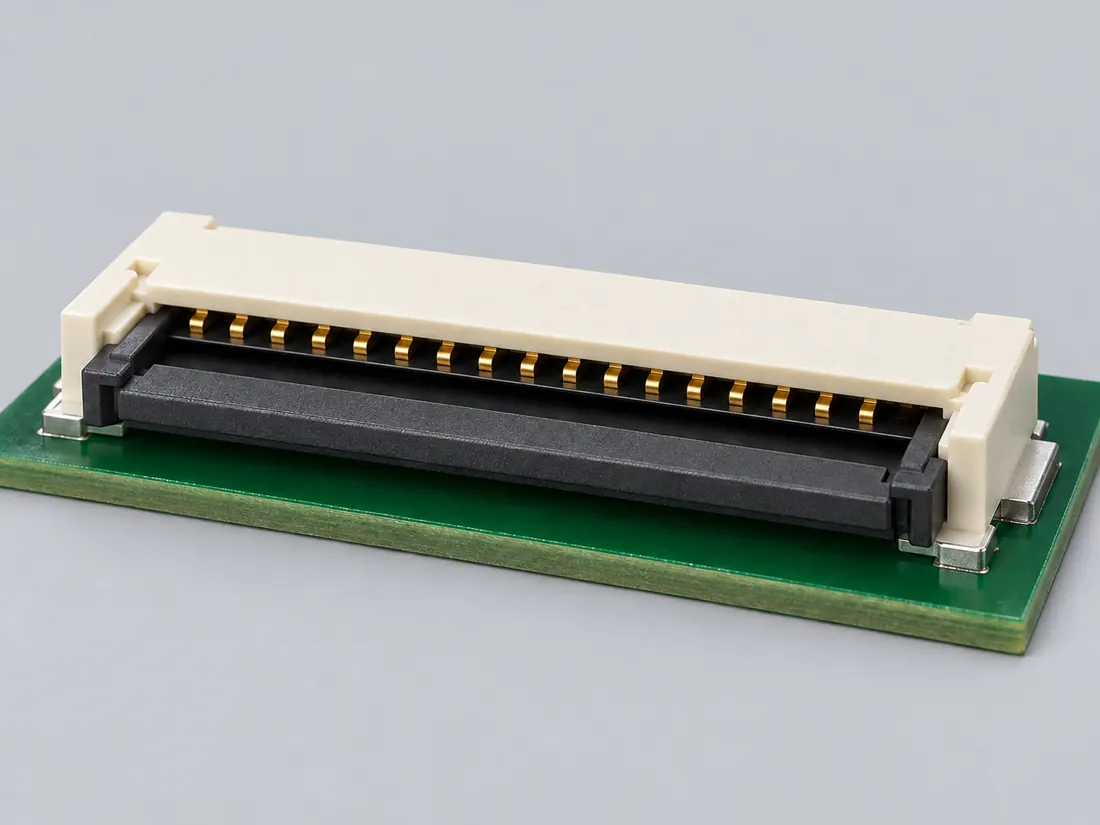

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

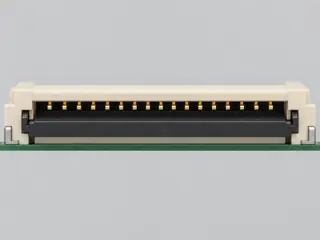

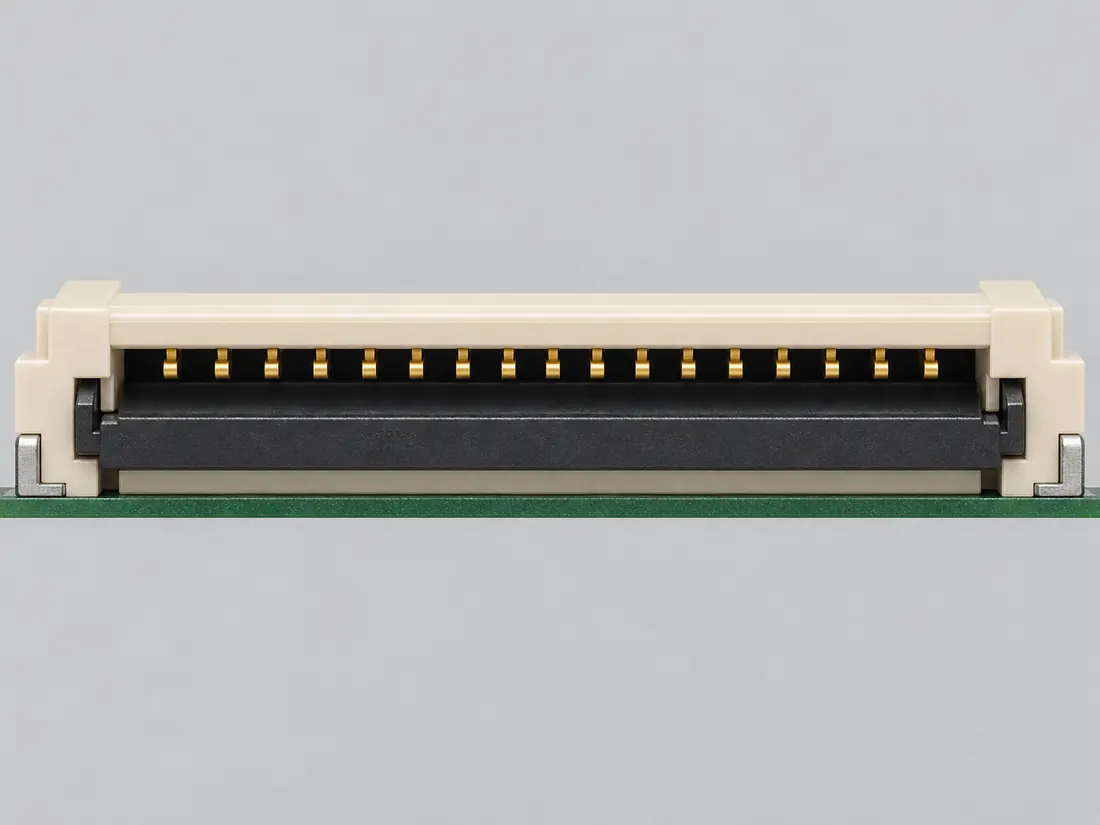

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

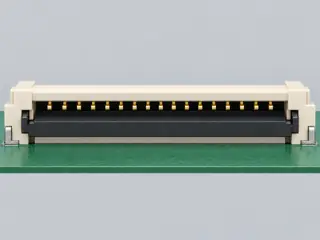

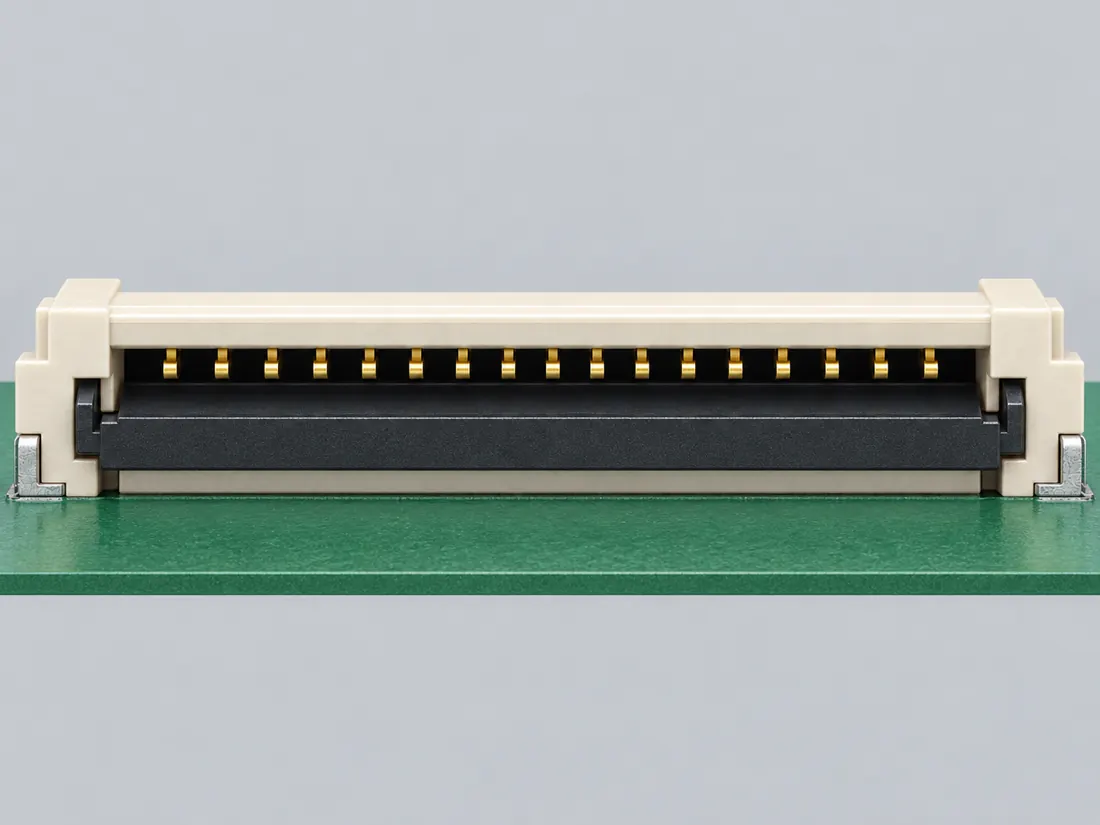

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Recognition drawing Original schematic, not to scale. Drawing review pending.
Image inspection / P361
3 registered views for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.
(private workspace)P361 / Source-observed physical study
TE 1-2492111-7 / 17 positions
Front elevation at the cable-entry edge · Board header
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)
(private workspace)P361 / Concept — not physical geometry
TE top and bottom contact logic / abstract section
Two abstract cross-sections, not exact hardware views · Concept only
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)
(private workspace)P361 / Source-observed physical study
1-2492111-7 / 17 positions
Simplified top/exterior view · Board header
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)Matching notes / Ribbon cables / P361
No. The named TE top-contact and bottom-contact parts are both right-angle board connectors. Top/bottom describes the cable contact side in the respective section A–A; it is separate from board orientation, position count and actuator type. The two examples are not established replacements for each other. C361A · C361D · C362A · C362D
| Check | Documented distinction | Boundary |
|---|---|---|
| Top-contact example | 1-2492111-7: 17 positions, 0.5 mm pitch, top contact and right-angle board orientation. C361A · C361D | Drawing 2492111, section A–A, locates the contact above the inserted cable. It does not specify a universal cable-flipping procedure. |
| Bottom-contact example | 1-2492104-0: 10 positions, 0.5 mm pitch, bottom contact and right-angle board orientation. C362A · C362D | Drawing 2492104, section A–A, locates the contact below the inserted cable. Same pitch does not remove the position-count difference. |
| Cable thickness | Both named product pages specify a 0.3 mm mating cable thickness. C361C · C362C · C361B · C362B | Matching thickness and pitch do not establish conductor exposure, cable construction, continuity or compatibility at the other end. |
| Actuator and operation | Both product pages describe a stuffer actuator. C361C · C362C | That label is not an instruction to lift, pull or force an unidentified latch. Follow the exact part’s handling documentation. |
Keep this limit: Check the connector at each end and the cable’s exposed-contact faces against the equipment documentation. Contact side, cable entry, actuator and termination are separate fields; no wiring or repair approval is implied. C361B · C361D · C362B · C362D
Source recheck · 14 October 2026. Both product pages and sheet-1 section views were inspected. The product-page actuator color and drawing material/color note disagree; color was excluded from identification. The drawing alone was not used as an actuator-operation guide.
Source-qualified reference, not a mating, wiring or repair approval. Each linked claim and source carries its own recorded inspection date and review status; selected reobservations are not independent technical or rights approval.
Source trail: S471 · S478 · S472 · S479.
Ribbon cable desk · All eight mechanical checks · TE 0.5 mm bottom-contact FPC ZIF connector — 1-2492104-0
C361A (private workspace) — TE Connectivity specifies 1-2492111-7 as a 0.5 mm pitch, 17-position ZIF FPC connector with a top contact mating location and right-angle board orientation.
Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. S471
C361B (private workspace) — The TE product page describes a specific top-contact board connector; the description alone does not endorse a different cable thickness, pitch, position count or bottom-contact insertion.
Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. S471
C361C (private workspace) — TE lists part 1-2492111-7 with a stuffer actuator and a specified mating FPC/FFC thickness of 0.3 mm.
This exact TE product; cable thickness does not establish wiring or interchangeability. S471 · S478
C361D (private workspace) — Section A-A of TE drawing 2492111 depicts the contact on the upper side of the inserted cable, with the board below; top-contact does not mean an opposite cable-entry direction.
Section-based orientation interpretation; no pinout or manufacturing geometry. S478
C362A (private workspace) — TE Connectivity specifies 1-2492104-0 as a 0.5 mm pitch, 10-position ZIF FPC connector with a bottom-contact mating location and right-angle board orientation.
Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. S472
C362C (private workspace) — TE lists part 1-2492104-0 with a stuffer actuator and a specified mating FPC/FFC thickness of 0.3 mm.
Manufacturer evidence is not an independent review, wiring assignment or hardware test.
Visual atlas / Series 02 / P361
What this view supports
The artwork omits contacts and pitch spacing. The 17-position top-contact part is not a replacement for the 10-position bottom-contact example.
The next useful check
Verify the exact 17-position part, cable conductor face, pitch, thickness and actuator instructions before insertion.
C361C TE lists part 1-2492111-7 with a stuffer actuator and a specified mating FPC/FFC thickness of 0.3 mm.
This exact TE product; cable thickness does not establish wiring or interchangeability. Source checked 2026-10-11; independent review pending. S471 · S478 · Evidence trail → (private workspace)
C361D Section A-A of TE drawing 2492111 depicts the contact on the upper side of the inserted cable, with the board below; top-contact does not mean an opposite cable-entry direction.
Section-based orientation interpretation; no pinout or manufacturing geometry. Source checked 2026-10-11; independent review pending. S478 · Evidence trail → (private workspace)
Visual inspection 2026-10-11. AI-assisted source inspection; independent drawing and rights reviews pending. These are original qualitative interpretations, not mechanical drawings, pinouts or approved connections.
Independent simplified vector interpretation and original factual paraphrase only. No manufacturer image, PDF, CAD, logo or traced path is redistributed. Independent technical and rights assessment remains pending.
Sheet 1: top/exterior, SECTION A-A and cable interface; product context 1-2492111-7.
Top-contact side and sliding/stuffer actuator interpretation; not a substitute mechanical drawing. Only the exact named source/example supports the observation. No universal mating, wiring, maximum rating or mechanical tolerance is inferred. Drawing 2492111 revision A, 03APR2025.
TE Internal #1-2492111-7; Centerline 0.5 mm; Contact Mating Location Top; 17 Position; ZIF; Right Angle
Only the described first-party series or precise example part; no dimensioned geometry, assembly mating certification or arbitrary equipment compatibility. Manufacturers describe the series or named example, not a complete compatible harness, exact pin assignment, or electrical approval. No independent hardware, manufacturing drawing, license or device-specific test was performed.
Canonical evidence is retained separately. Existing claim dates are unchanged; only new V118 claims have a new inspection date. No live electrical, energized probing, forced mating or optical-port inspection is recommended.
TE lists this named 0.5 mm, 17-position ZIF part as top-contact. It illustrates why contact side and the exact terminal orientation must be checked; “0.5 mm ribbon” is insufficient.
Three checks and exact source trail ↗Editorial decision guidance only. A connector identity or nominal pitch does not establish approved mating, safe wiring or a supported device combination.
The useful distinction
TE identifies part 1-2492111-7 as a 0.5 mm pitch, 17-position, right-angle ZIF FPC connector with a top-contact mating location. [C361A]
The TE product page describes a specific top-contact board connector; the description alone does not endorse a different cable thickness, pitch, position count or bottom-contact insertion. [C361B]
TE lists part 1-2492111-7 with a stuffer actuator and a specified mating FPC/FFC thickness of 0.3 mm. [C361C]
Section A-A of TE drawing 2492111 depicts the contact on the upper side of the inserted cable, with the board below; top-contact does not mean an opposite cable-entry direction. [C361D]
1-2492111-7: positions: 17; mounting: surface-mount; coupling: ZIF with stuffer actuator; dimensions: 14.1 mm (Manufacturer connector length); dimensions: 2 mm (Manufacturer connector height); dimensions: 5.2 mm (Manufacturer connector width); dimensions: 0.3 mm (Accepted flex-cable thickness (not connector body)). Only 1-2492111-7; no family-wide generalization. [C361E]
Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.
| Positions / cavity span | 17 (Claim C361A); 17 (1-2492111-7)S471 · S471Source-scoped examples are separate; select the exact variant and measured axis. Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. 1-2492111-7. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
|---|---|
| Contact pitch | 0.5 mm Source-described pitch / centerline (Claim C361A)S471Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. |
| Dimensions / axis | 14.1 mm Manufacturer connector length (1-2492111-7); 2 mm Manufacturer connector height (1-2492111-7); 5.2 mm Manufacturer connector width (1-2492111-7)S471Qualified exact source facts only; counterpart, mounting-acceptance, cable, port, termination and assembly context remains separately labelled in variant_notes. 1-2492111-7. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Connector role | Right-angle PCB-mount flex-cable receptacle (1-2492111-7)S471Source-scoped examples are separate; select the exact variant and measured axis. 1-2492111-7. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Contact gender / arrangement | Socket contacts; mating location top (1-2492111-7)S471Source-scoped examples are separate; select the exact variant and measured axis. 1-2492111-7. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Mounting | surface-mount (1-2492111-7)S471Source-scoped examples are separate; select the exact variant and measured axis. 1-2492111-7. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Coupling / latch | ZIF with stuffer actuator (1-2492111-7)S471Source-scoped examples are separate; select the exact variant and measured axis. 1-2492111-7. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Manufacturer | TE Connectivity (1-2492111-7)S471Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. |
| Series | FPC ZIF (1-2492111-7)S471Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. |
| Exact part / implementation | 1-2492111-7 (1-2492111-7)S471Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. |
Not recorded: Nominal contacts, Populated contacts, Contact rows, Keying / polarization, Shell / form, Recorded markings, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.
Bounded facts, visible unknowns
| Manufacturer-specific descriptor | 0.5 mm pitch; 17 positions; top contact; ZIF; right angle; example 1-2492111-7 [C361A] |
|---|---|
| Mechanical dimensions | Only the nominal series pitch/product descriptor in source text; no independent manufacturing or tolerance validation. |
| Engineering pinout | Source-checked engineering profile available; independent review pending. Open engineering profile → |
| Verified device list | Not included. Check exact device and accessory documentation. |
TE identifies part 1-2492111-7 as a 0.5 mm pitch, 17-position, right-angle ZIF FPC connector with a top-contact mating location. Top-contact and bottom-contact variants can look similar, but contact face and exact cable specification must match.
Before you connect
Find the exact manufacturer designation on the physical part or device bill of materials. Confirm the complete mating part number, termination, orientation and cable construction using the current maker drawing. Verify signals, cable assignment and system ratings from the exact equipment manual; do not energize an unverified assembly.
Manufacturers describe the series or named example, not a complete compatible harness, exact pin assignment, or electrical approval. No independent hardware, manufacturing drawing, license or device-specific test was performed. A physically similar housing or cable can have different retention, terminal geometry, wiring or ratings. Never infer an electrically safe assembly from the series name or pitch.
Your next step
The source trail
AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.
TE Connectivity specifies 1-2492111-7 as a 0.5 mm pitch, 17-position ZIF FPC connector with a top contact mating location and right-angle board orientation.
TE Connectivity · TE FPC top-contact connector part 1-2492111-7 ↗S471: full source recordInspect review dependencies → (private workspace)The TE product page describes a specific top-contact board connector; the description alone does not endorse a different cable thickness, pitch, position count or bottom-contact insertion.
TE Connectivity · TE FPC top-contact connector part 1-2492111-7 ↗S471: full source recordInspect review dependencies → (private workspace)TE lists part 1-2492111-7 with a stuffer actuator and a specified mating FPC/FFC thickness of 0.3 mm.
TE Connectivity · TE FPC top-contact connector part 1-2492111-7 ↗S471: full source recordTE Connectivity · 2492111 customer drawing — top-contact FPC ↗S478: full source recordInspect review dependencies → (private workspace)Section A-A of TE drawing 2492111 depicts the contact on the upper side of the inserted cable, with the board below; top-contact does not mean an opposite cable-entry direction.
TE Connectivity · 2492111 customer drawing — top-contact FPC ↗S478: full source recordInspect review dependencies → (private workspace)1-2492111-7: positions: 17; mounting: surface-mount; coupling: ZIF with stuffer actuator; dimensions: 14.1 mm (Manufacturer connector length); dimensions: 2 mm (Manufacturer connector height); dimensions: 5.2 mm (Manufacturer connector width); dimensions: 0.3 mm (Accepted flex-cable thickness (not connector body)). Only 1-2492111-7; no family-wide generalization.
TE Connectivity · TE FPC top-contact connector part 1-2492111-7 ↗S471: full source recordInspect review dependencies → (private workspace)Follow the connection
Bottom-contact is a defined part property, not a promise that any 0.5 mm ribbon fits safely.
Open field note
A 1.25 mm pitch is only a family identifier: Hirose DF13 and JST GH are not an approved mating pair.
Open field note
Many miniature connectors look similar; a single 1.0 mm measurement does not establish the exact SH housing or mating header.
Open field noteCandidate selection does not confirm the identity or capabilities of your physical item.
Use this reference
Miniature repair / Several identities remain possible
Compare exact part numbers, visible contact side, position count and ribbon orientation using the source documents.
P361 reference · P362 reference · Inspect named view (private workspace)
The two named illustrations are different position counts, not interchangeable parts.
Miniature repair / No matching view identified
Return to broader identification and retain the unmatched image as a reference you have ruled out, not your connector identity.
P361 reference · P362 reference · Inspect named view (private workspace)
No closest-looking FPC example is silently substituted.
NAMED REFERENCE / FOUR SEPARATE FIELDS
New V128 observation. Observed .
TE 1-2492111-7 product fields ↗
Features: configuration, contact mating location, FPC actuator type, cable type and dimensions.
TE customer drawing 2492111, revision A ↗
PDF sheet 1 of 2: front elevation below upper main view, section A-A, 17-position row, actuator material note; sheet 2 is packaging, not a cable insertion procedure. Revision A: 03-Apr-2025.
TE design objective 108-161738, revision 1 ↗
PDF page 1: title, section 1.1 Content and section 2 document precedence. Header dated 19-Jun-2025, Rev 1.
Not established: Cable continuity, opposite connector, finished cable compatibility and actuator colour remain unresolved.
Next check: Confirm exact cable construction and both end exposures against the equipment drawing.
No hardware test, independent technical review or rights clearance is asserted.
