JST GH
GHR-04V-S four-circuit housing
External locking-side elevation · Cable housing
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)P352 / JST wire-to-board / Connector
JST GH secure-lock wire-to-board connector family
JST GH is a nominal 1.25 mm pitch single-row wire-to-board family incorporating a positive secure-lock and manufacturer-described keying.
Also called JST GH GHR housing GH series 1.25mm 1.25mm GH connector
The GH latch and exact GHR code are better starting clues than a generic miniature-connector label.
Look for
Look for the housing’s latch structure and check the matching GH part numbers rather than relying on the pitch or cable color alone.
Claim inspection dates: 2026-10-09, 2026-10-11, 2026-10-22 · Independent review pending

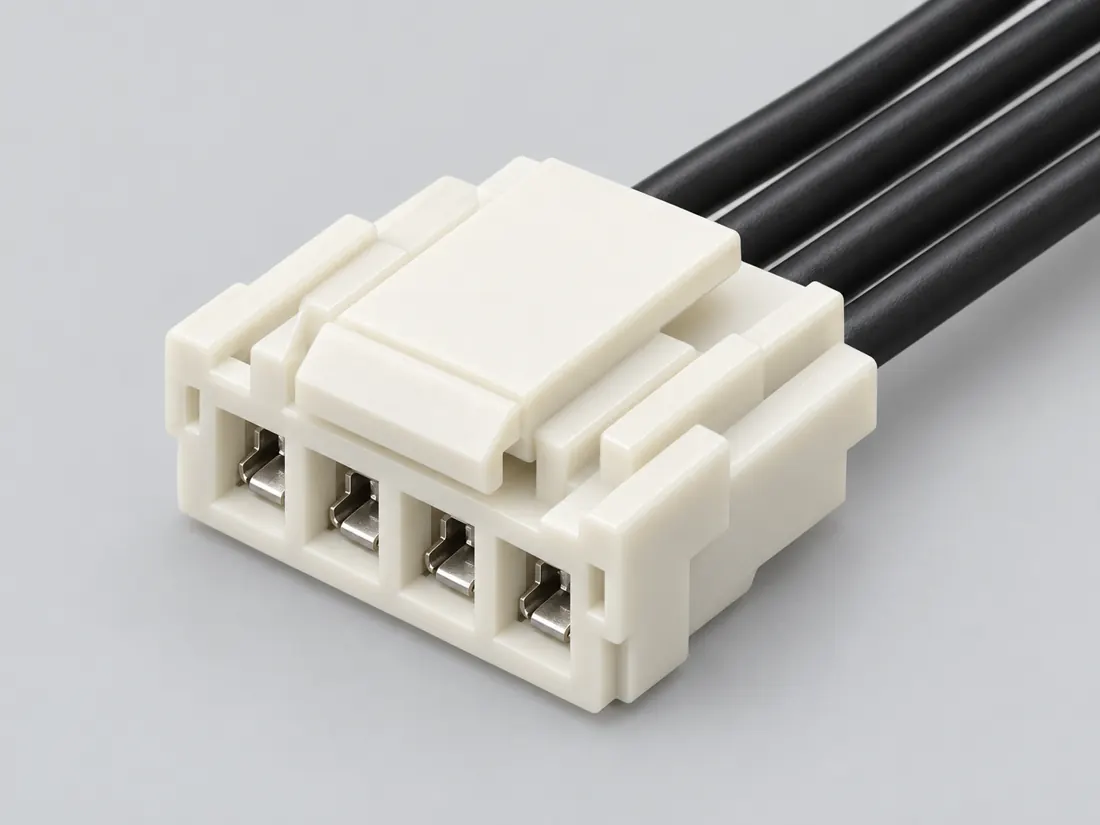

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

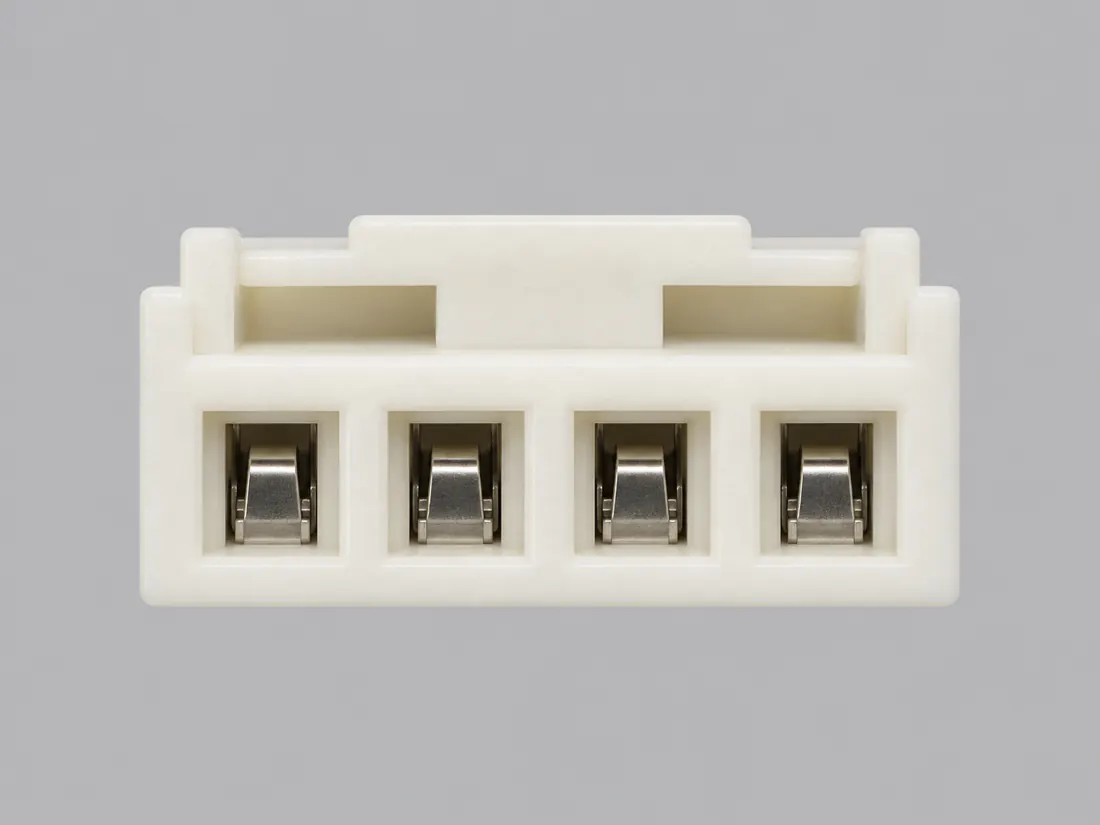

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

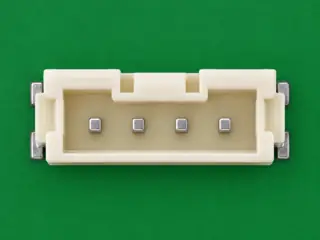

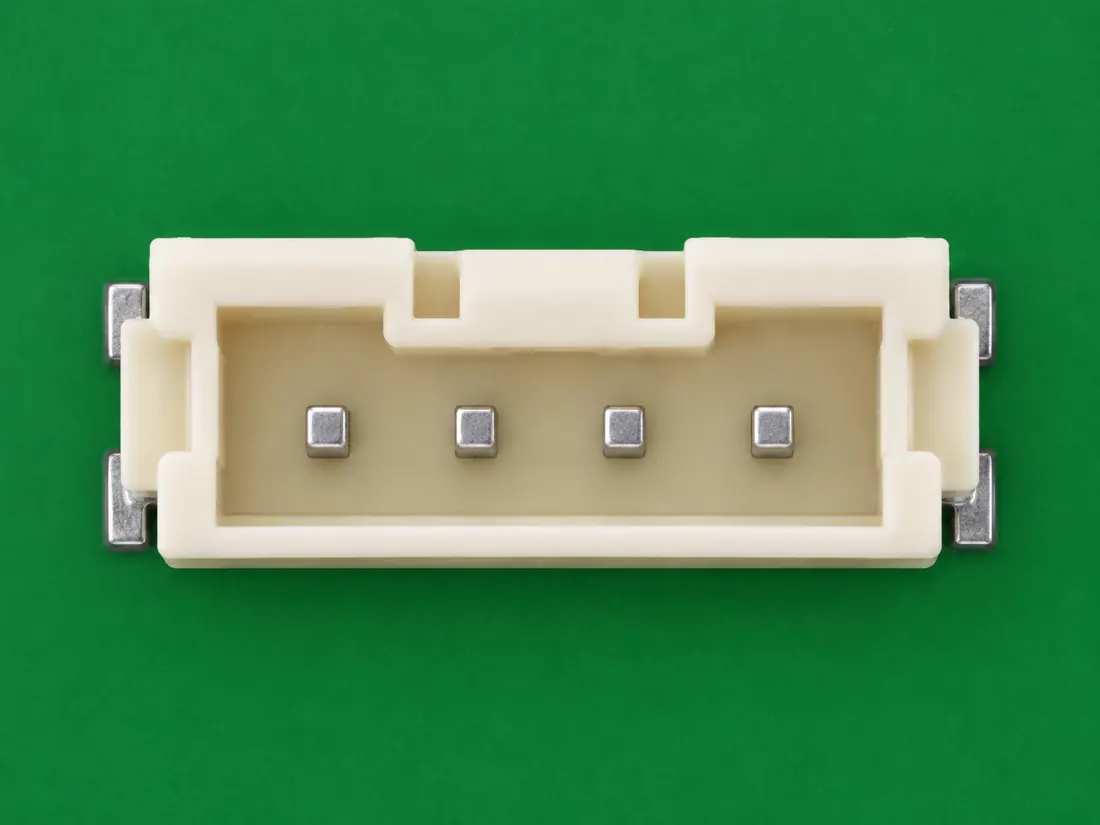

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Recognition drawing Original schematic, not to scale. Drawing review pending.
Image inspection / P352
See the view. Check its scope.
1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.
(private workspace)Matching notes / Miniature repair / P352
Does a GH-style latch identify the housing and contact?
No. GH is a distinct nominal 1.25 mm secure-lock family, and GHR-04V-S is a named four-circuit cable housing. The contact is a separate part: the catalog lists SSHL-002T-P0.2 and explicitly excludes SSHL-003( )-P0.2 from GH use. C352A · C352C · C352D
| Check | Documented distinction | Boundary |
|---|---|---|
| Family and latch | JST describes GH at nominal 1.25 mm with secure locking and manufacturer-specific keying. C352A · C352B | A visible latch is a clue, not proof of the family or its mating geometry. |
| Named housing | GHR-04V-S is the four-circuit housing example; its exterior latch belongs to the cable-side housing. C352C | The board header is separately specified. Do not apply housing dimensions as a board footprint. |
| Contact identity | SSHL-002T-P0.2 is listed; the catalog says SSHL-003( )-P0.2 cannot be used with GH. C352D | Do not treat a similar-looking terminal or a near-identical part code as an approved substitution. |
| Equal pitch, different family | Hirose DF13 is also nominal 1.25 mm, but it is a separate manufacturer family. C360A · C360B | Equal nominal pitch does not establish GH–DF13 mating, contact interchangeability or device wiring. |
- What the evidence supports
- Use the catalog’s exact GH housing and contact combination, including the documented locking arrangement.
- What not to conclude
- The manufacturer’s excluded SSHL-003 contact family is not an approved substitute.
- Keep this check open
- A 1.25 mm pitch match does not establish compatibility with Hirose DF13.
Keep this limit: Stop at the documented family and exact component roles. A latch, pitch or circuit count does not establish a crimp process, polarity, insertion force or safe repair. C352B · C352C · C352D
Before you choose a part
- Read the complete housing and contact designations.
- Check the manufacturer’s explicit exclusions.
- Resolve the exact header; never infer the device pinout from the housing.
Source recheck · 14 October 2026. The GH family profile and catalog contact/housing pages were observed. The bare PDF URL failed initially; the official product-page catalog link resolved successfully. That access limitation is recorded, not hidden.
Source-qualified reference, not a mating, wiring or repair approval. Each linked claim and source carries its own recorded inspection date and review status; selected reobservations are not independent technical or rights approval.
Source trail: S462 · S477 · S470.
Small wire-to-board desk · All eight mechanical checks · JST SH miniature wire-to-board connector family · Hirose DF13 miniature crimp connector family
Evidence for this decision · 5 source-scoped observations
C352A (private workspace) — JST specifies a nominal 1.25 mm pitch wire-to-board family for GH and describes positive secure locking.
Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval. S462
C352B (private workspace) — The GH manufacturer profile identifies keying and side- and top-entry mounting options that require exact mating-component identification.
Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval. S462
C352C (private workspace) — JST lists GHR-04V-S as a four-circuit GH housing and shows a prominent external locking feature.
Named housing exterior only; no inferred opposite mating face. S477
C352D (private workspace) — The GH catalog lists SSHL-002T-P0.2 contacts and expressly excludes the SSHL-003( )-P0.2 contact family from GH use.
Manufacturer contact note; not a full contact-selection or crimping instruction. S477
C360B (private workspace) — The DF13 series includes different contact counts and mounting arrangements; a 1.25 mm pitch alone does not specify an exact DF13 part or establish mating to JST GH.
Source-checked named manufacturer series or part number only; no unknown-cable compatibility or engineering signoff. S470
Manufacturer evidence is not an independent review, wiring assignment or hardware test.
Visual atlas / Series 02 / P352
Read the physical clue.
What this view supports
- A prominent external latch on the housing
- A similar terminal name is not enough: the catalog has an explicit contact restriction
What remains unknown
The latch is a qualitative recognition cue, not a force, crimping, mating or repair instruction.
The next useful check
Check the housing, header and terminal as a set; follow the manufacturer handling instructions for the latch.
2 added source-scoped observations
C352C JST lists GHR-04V-S as a four-circuit GH housing and shows a prominent external locking feature.
Named housing exterior only; no inferred opposite mating face. Source checked 2026-10-11; independent review pending. S477 · Evidence trail → (private workspace)
C352D The GH catalog lists SSHL-002T-P0.2 contacts and expressly excludes the SSHL-003( )-P0.2 contact family from GH use.
Manufacturer contact note; not a full contact-selection or crimping instruction. Source checked 2026-10-11; independent review pending. S477 · Evidence trail → (private workspace)
Exact source view, limits and rights
Visual inspection 2026-10-11. AI-assisted source inspection; independent drawing and rights reviews pending. These are original qualitative interpretations, not mechanical drawings, pinouts or approved connections.
Independent simplified vector interpretation and original factual paraphrase only. No manufacturer image, PDF, CAD, logo or traced path is redistributed. Independent technical and rights assessment remains pending.
- S477 · JST — GH connector catalog — housing and contact restriction
Page 2: contact table and note 2. Page 3: GHR-04V-S housing row, elevation and top-/side-entry header examples.
Exact housing role and contact-family restriction only. Only the exact named source/example supports the observation. No universal mating, wiring, maximum rating or mechanical tolerance is inferred. Not identified; retrieval is not a revision date.
- S462 · J.S.T. Mfg. Co., Ltd. — GH connector series product profile
Product Profile; Pitch 1.25 mm; secure locking and keying; top/side entry
JST GH wire-to-board family identification only; nominal pitch is a series descriptor. Lock style depends on exact mating part; not interchangeable with SH or other 1.25 mm systems.
Canonical evidence is retained separately. Existing claim dates are unchanged; only new V118 claims have a new inspection date. No live electrical, energized probing, forced mating or optical-port inspection is recommended.
REPAIR FIELD NOTES / Small wire-to-board series
First verify the exact manufacturer series
GH secure locking is a series-specific feature
No. JST GH is a keyed, secure-lock wire-to-board family nominally 1.25 mm pitch. The lock and key arrangement—and its specified mating parts—are decisive. Another vendor may publish the same nominal pitch with a wholly different interface.
Avoid: Assuming equal pitch makes Hirose DF13, JST GH and unlabeled clones mechanically interchangeable.
Full source-scoped reading and three practical checks ↗GH side-entry and top-entry are different selections
No. The GH manufacturer profile includes both side-entry and top-entry board configurations. That detail affects clearance, harness strain and replacement choice even when the number of positions matches; confirm the exact part drawing.
Avoid: Believing any GH-labeled board header of the same contact count is a drop-in physical repair part.
Full source-scoped reading and three practical checks ↗
These notes add editorial context to the original canonical reference; they do not change its claim IDs or prove mating, wiring or polarity.
The useful distinction
Recognize it. Then verify it.
JST GH is a nominal 1.25 mm pitch single-row wire-to-board family incorporating a positive secure-lock and manufacturer-described keying. [C352A]
The GH manufacturer profile identifies keying and side- and top-entry mounting options that require exact mating-component identification. [C352B]
JST lists GHR-04V-S as a four-circuit GH housing and shows a prominent external locking feature. [C352C]
The GH catalog lists SSHL-002T-P0.2 contacts and expressly excludes the SSHL-003( )-P0.2 contact family from GH use. [C352D]
GHR-04V-S: positions: 4; rows: 1; pitch: 1.25 mm (Contact mating centerline pitch); coupling: Secure lock; catalog distinguishes outer and center lock versions; dimensions: 3.75 mm (Catalog housing dimension A); dimensions: 6.25 mm (Catalog housing dimension B). Only GHR-04V-S; no family-wide generalization. [C352E]
Source-scoped identification facts
Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.
| Positions / cavity span | 4 (Claim C352C); 4 (GHR-04V-S)S477 · S477Source-scoped examples are separate; select the exact variant and measured axis. Named housing exterior only; no inferred opposite mating face. GHR-04V-S. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
|---|---|
| Contact rows | 1 (GHR-04V-S)S462Source-scoped examples are separate; select the exact variant and measured axis. GHR-04V-S. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Contact pitch | 1.25 mm Source-described pitch / centerline (Claim C352A); 1.25 mm Contact mating centerline pitch (GHR-04V-S)S462 · S462Source-scoped examples are separate; select the exact variant and measured axis. Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval. GHR-04V-S. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Dimensions / axis | 3.75 mm Catalog housing dimension A (GHR-04V-S); 6.25 mm Catalog housing dimension B (GHR-04V-S)S477Source-scoped examples are separate; select the exact variant and measured axis. GHR-04V-S. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Connector role | Crimp cable housing; counterpart is a separate PCB header (GHR-04V-S)S477Source-scoped examples are separate; select the exact variant and measured axis. GHR-04V-S. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Coupling / latch | Secure lock; catalog distinguishes outer and center lock versions (GHR-04V-S)S462Source-scoped examples are separate; select the exact variant and measured axis. GHR-04V-S. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Keying / polarization | Keyed housing; catalog has separately specified keying patterns (GHR-04V-S)S462Source-scoped examples are separate; select the exact variant and measured axis. GHR-04V-S. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Manufacturer | JST (GHR-04V-S)S462Source-scoped examples are separate; select the exact variant and measured axis. GHR-04V-S. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Series | GH (GHR-04V-S)S462Source-scoped examples are separate; select the exact variant and measured axis. GHR-04V-S. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Exact part / implementation | GHR-04V-S (GHR-04V-S)S462Source-scoped examples are separate; select the exact variant and measured axis. GHR-04V-S. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| View convention | PCB pattern explicitly viewed from connector mounting surface; not a mating-face pin map (JST GH catalog PCB-layout/header-counterpart view)S477Source-scoped examples are separate; select the exact variant and measured axis. Named JST GH catalog series only, not every family part. Connector-mounting-surface PCB-layout view for the separately selected header counterpart; not the loose cable housing mating face or a housing footprint. |
Not recorded: Nominal contacts, Populated contacts, Contact gender / arrangement, Mounting, Shell / form, Recorded markings. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.
Report a correction to these facts →Bounded facts, visible unknowns
Specifications and limits
| JST series nominal pitch | 1.25 mm; manufacturer family descriptor, not a fit approval [C352A] |
|---|---|
| Mechanical dimensions | Only manufacturer-described nominal family/footprint pitch is quoted in sourced text; no measured fabrication/tolerance drawing independently approved. |
| Engineering pinout | Source-checked engineering profile available; independent review pending. Open engineering profile → |
| Verified device list | Not included. Check exact device and accessory documentation. |
A boundary, not an omission to guess around.
Remove device power and inspect without putting stress on the lock or wires. Verify JST GH housing/header numbers, latch style and number of circuits in the manufacturer catalogue. Resolve signal ordering and power polarity from the equipment maker; no GH family-wide wiring rule is provided.
Before you connect
What to check
- Remove device power and inspect without putting stress on the lock or wires.
- Verify JST GH housing/header numbers, latch style and number of circuits in the manufacturer catalogue.
- Resolve signal ordering and power polarity from the equipment maker; no GH family-wide wiring rule is provided.
Important boundary
This reference establishes only the specific manufacturer-documented family and example noted in the sources. It does not verify an arbitrary mating pair, cable orientation, electrical rating or device combination. Stop and consult original documents for the exact products.
