P260 / PC power / Connector
12V-2x6 is a 16-circuit PCIe CEM5 wire-to-board power connector system with 12 power circuits and 4 signal circuits in the documented Molex implementation.
Also called 12V-2x6 PCIe CEM5 12V2x6 12V2x6 16-circuit GPU power
The cited 12V-2x6 example is a board header, not an approval for an arbitrary cable or PSU.
Verify the 12V-2x6 designation rather than assuming every 16-contact GPU-power plug is the earlier 12VHPWR form, and follow the exact PSU/GPU documentation.
Claim inspection dates: 2026-10-06, 2026-10-12 · Independent review pending

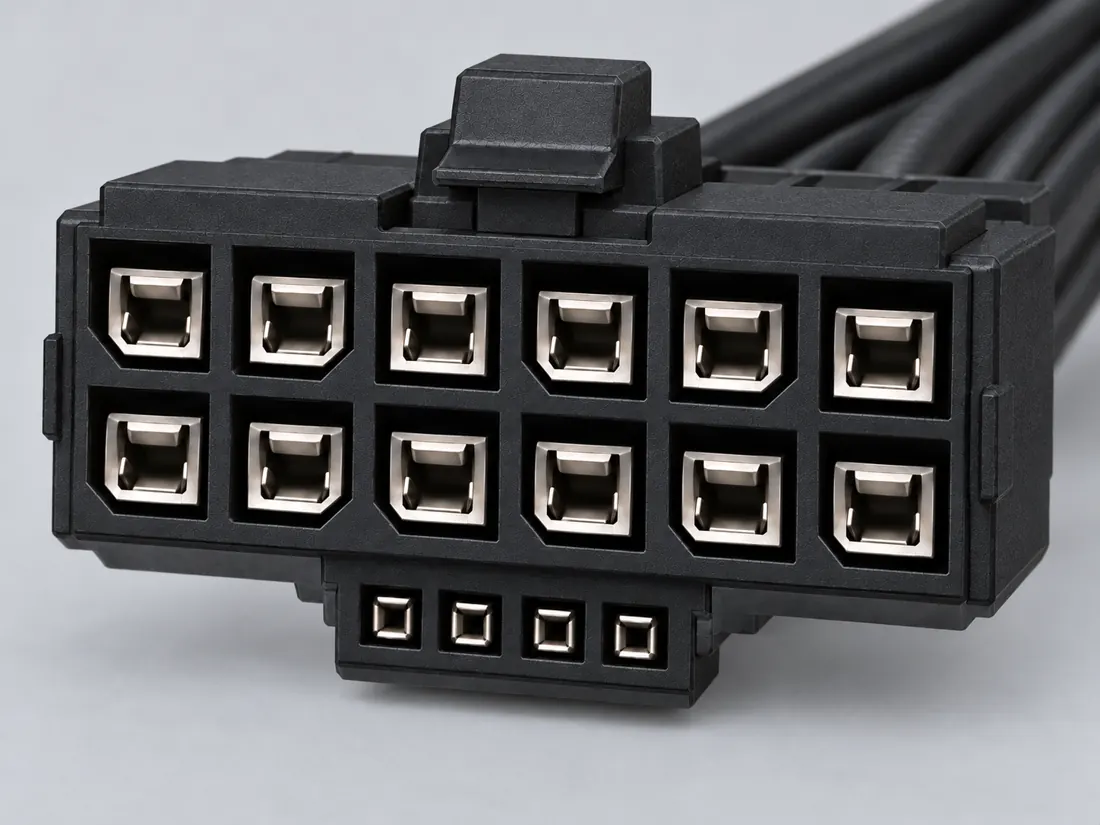

Cable-end housing — three-quarter view Illustrative cable-end housing, not the cited Molex board header. This view does not identify the header revision. Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

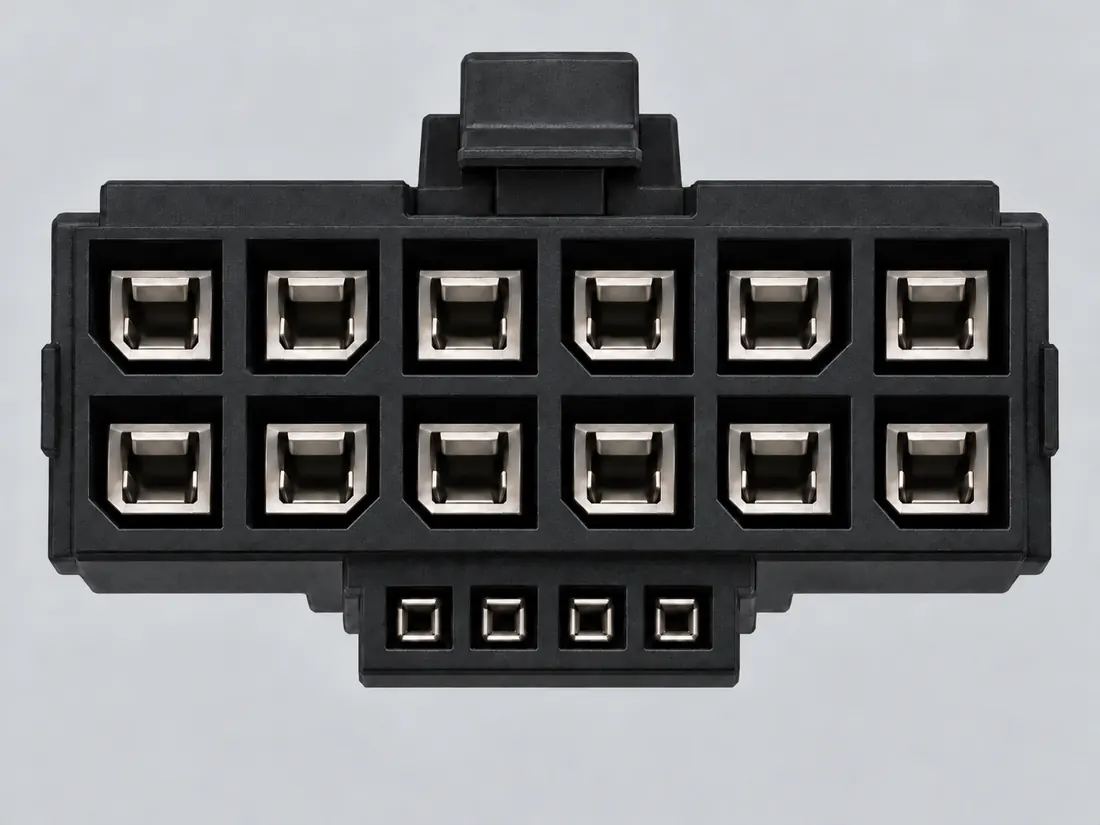

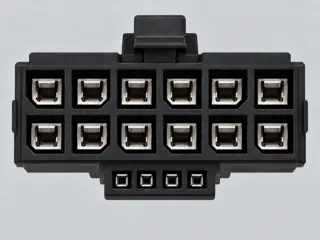

Cable-end housing — mating face Illustrative cable-end housing, not the cited Molex board header. This view does not identify the header revision. Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Recognition drawing Original schematic, not to scale. Drawing review pending.
Image inspection / P260
3 registered views for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.
(private workspace)P260 / Source-observed physical study
Amphenol 10164298 series, GS-20-0704 B
Oblique front and top · Board header
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)
(private workspace)P260 / Source-observed physical study
Amphenol 10161719 series, GS-20-0704 B
Oblique front and latch · Cable housing
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)
(private workspace)P260 / Concept — not physical geometry
Molex 2191161161
12 power + 4 signal; not a mating face · Concept only
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)Matching notes / PC power / P260
No. The cited Molex 2191161161 is a specifically identified 12V-2x6 board header. A generic 16-contact shape is not that product identity.
The exact Molex part description establishes a header with 12 power and 4 signal circuits.
An unmarked cable end is not identified as that board header by counting contacts.
Revision-specific contact geometry and a complete cable/device power result remain unverified.
C260A (private workspace) — Molex identifies part 2191161161 as a PCIe CEM5 12V-2x6 header with 16 circuits, configured as 12 power and 4 signal circuits.
V43 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof. S280
C260B (private workspace) — Molex specifies 2191161161 as a right-angle, male, shrouded three-row 12V-2x6 header with 16 circuits arranged as 12 power plus 4 signal, a 3.00 mm mating pitch, polarization to the mating part and first-mate/last-break behavior.
V44 component-level mechanical/interface boundary only; no 12VHPWR pin-map carryover, safe-power calculation, insertion-depth approval, cable-bend rule or installation approval. S291
C193A (private workspace) — Intel describes the 12VHPWR auxiliary-power connector form as twelve larger power contacts plus four smaller sideband contacts and distinguishes it from legacy 2x3/2x4 PCIe forms.
V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof. S199
Manufacturer evidence is not an independent review, wiring assignment or hardware test.
Visual atlas / Series 02 / P260
What this view supports
A count diagram cannot show the engineering changes, contact engagement or a verified mating pair.
Why V118 used a concept: Exact source drawing/image could not be inspected for the desired header view; contact-length differences stay undrawn.
The next useful check
Match the named header and the manufacturer-specified cable and installation instructions.
Visual inspection 2026-10-11. AI-assisted source inspection; independent drawing and rights reviews pending. These are original qualitative interpretations, not mechanical drawings, pinouts or approved connections.
Independent simplified vector interpretation and original factual paraphrase only. No manufacturer image, PDF, CAD, logo or traced path is redistributed. Independent technical and rights assessment remains pending.
Part details and PCIe CEM5 12V2x6 product specification
Identifies a 16-circuit PCIe CEM5 12V-2x6 header with 12 power and 4 signal circuits. V43 does not generalize current capacity or approve cabling. Identification/reference scope only. V43 does not convert this source into a universal pinout, fabrication drawing, electrical approval, protocol guarantee or end-to-end compatibility verdict.
Part details and product customer drawing 2191160001-SD
Engineering-scoped inspection of Molex 2191161161: 16 circuits arranged as 12 power plus 4 signal, three rows, 3.00 mm mating pitch, right-angle male shrouded header, polarization and first-mate/last-break property. V44 does not copy a 12VHPWR logical pinout onto 12V-2x6, does not calculate safe power, and does not publish insertion-depth, bend-radius or assembly approval.
Canonical evidence is retained separately. Existing claim dates are unchanged; only new V118 claims have a new inspection date. No live electrical, energized probing, forced mating or optical-port inspection is recommended.
No. Intel’s ATX design-guide revision history identifies 12V-2x6 as the successor to the 12VHPWR PCB header, with revised engagement of power and sideband contacts. Intel says the cable-plug side remained compatible with the new header definition. This is not permission to reuse a damaged connector, mix modular PSU leads, or assume a GPU supports a particular sustained power level.
Treating H++ embossing, a 16-contact silhouette or “600 W” marketing as proof of a safe plug, bend radius or PSU cable.
Full technical reading, sources and related identities →Claim-specific evidence remains in the canonical record. Concept diagrams do not show any safe wiring or mechanical mating geometry.
The useful distinction
12V-2x6 is a 16-circuit PCIe CEM5 wire-to-board power connector system with 12 power circuits and 4 signal circuits in the documented Molex implementation. [C260A]
Intel revision 2.11 locates longer power contacts and shorter sideband contacts in the revised 12V-2x6 PCB header. [C260C]
Intel revision 2.11 describes an additional 12V-2x6 PCB header in a modular power supply when using a double-ended 12V-2x6 cable. [C260D]
Molex lists keying to the mating part as No and polarization to the mating part as Yes for 2191161161; those separately named fields should not be collapsed into one physical-keying claim. [C260E]
PC internals · a documented check
The cited Intel revision locates the contact-length changes in the PCB header: longer power contacts and shorter sideband contacts. It distinguishes H++ from the earlier H+ marking. That is not a cable-condition or whole-system approval. C260C · C193C
| Check | Documented distinction | Boundary |
|---|---|---|
| Earlier designation | Intel distinguishes H+ as the previously defined 12VHPWR connector. C193A · C193C | Twelve power contacts plus four sideband contacts alone do not identify the revised header. |
| Revised board header | The 12V-2x6 PCB header changes power and sideband engagement lengths. C260C | Do not relabel a cable plug as the PCB component that contains that change. |
| PSU-side role | The cited guide describes another 12V-2x6 PCB header for a double-ended cable at a modular PSU. C260D | This is a defined configuration, not a claim about every modular supply. |
| Cable provenance | The PSU maker’s cable-type restrictions remain a separate check. C192D | A generation label does not approve an arbitrary modular cable. |
Keep this limit: The source is Intel ATX12VO document 613768 revision 2.11, not a declaration of the newest industry revision. No wiring, bend-radius or wattage prescription is supplied. C260C · C260D
Identify the documented board-header revision without treating cable imagery as header proof.
| Nominal contacts | 16S280Source-backed nominal position/contact count: 16. |
|---|---|
| Positions / cavity span | 16 (Claim C260A); 16 (Claim C260B)S280 · S291Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V43 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof. V44 component-level mechanical/interface boundary only; no 12VHPWR pin-map carryover, safe-power calculation, insertion-depth approval, cable-bend rule or installation approval. |
| Populated contacts | 16 (2191161161)S280Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 2191161161: 12V-2x6 right-angle through-hole male board header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Mixed-contact3rows coexist with two main power rows; do not overwrite every scoped row value. No universal cablecapacity assigned. |
| Connector role | header; header (Molex 2191161161)S280 · S291Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. PCIe CEM5 12V-2x6 add-in-card header interface V44 component-level mechanical/interface boundary only; no 12VHPWR pin-map carryover, safe-power calculation, insertion-depth approval, cable-bend rule or installation approval. |
| Contact rows | 3 (Molex2191161161)S291Qualified exact source facts only; counterpart, mounting-acceptance, cable, port, termination and assembly context remains separately labelled in variant_notes. Exact Molex2191161161 male right-angle12V-2x6 header; manufacturer property only, separate from literal form-name2x6 and12power+4signal arithmetic. Quantity context: Manufacturer Number Of Rows property. |
|---|---|
| Contact pitch | 3 mm Mating-interface pitch (Recorded example component); 3 mm Source-described pitch / centerline (Claim C260B)S291Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. example_component; PCIe CEM5 12V-2x6 add-in-card header interface V44 component-level mechanical/interface boundary only; no 12VHPWR pin-map carryover, safe-power calculation, insertion-depth approval, cable-bend rule or installation approval. |
| Dimensions / axis | 3.18 mm PCB tail length (2191161161)S280Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 2191161161: 12V-2x6 right-angle through-hole male board header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Mixed-contact3rows coexist with two main power rows; do not overwrite every scoped row value. No universal cablecapacity assigned. |
| Coupling / latch | Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations. |
| Keying / polarization | keying: no (Molex 2191161161); polarization: yes (Molex 2191161161)S563Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Exact text fields only, including their naming distinction. Uninspected geometry and mating suitability remain unknown; inherited generation observations are not silently revised. |
| View convention | Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations. |
| Contact gender / arrangement | male (Molex 2191161161)S291Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V44 component-level mechanical/interface boundary only; no 12VHPWR pin-map carryover, safe-power calculation, insertion-depth approval, cable-bend rule or installation approval. |
| Mounting | board (Claim C260C); board (Claim C260D); right-angle through-hole board connector (2191161161)S561 · S561 · S280Separate exact examples; retain each value’s source, role, axis and part scope. Printed page 63, qualitative difference only. No contact lengths, dimensional tolerance, unknown-part classification or seating verdict is supplied. Printed page 63. This described arrangement does not mean every PSU provides that interface or accepts an arbitrary cable. Exact named example 2191161161: 12V-2x6 right-angle through-hole male board header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Mixed-contact3rows coexist with two main power rows; do not overwrite every scoped row value. No universal cablecapacity assigned. |
| Shell / form | Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations. |
| Manufacturer | Molex (2191161161)S291Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V44 component-level mechanical/interface boundary only; no 12VHPWR pin-map carryover, safe-power calculation, insertion-depth approval, cable-bend rule or installation approval. |
| Series | 12V-2x6 (2191161161)S291Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V44 component-level mechanical/interface boundary only; no 12VHPWR pin-map carryover, safe-power calculation, insertion-depth approval, cable-bend rule or installation approval. |
| Exact part / implementation | 2191161161 (2191161161)S291Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V44 component-level mechanical/interface boundary only; no 12VHPWR pin-map carryover, safe-power calculation, insertion-depth approval, cable-bend rule or installation approval. |
| Recorded markings | Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations. |
Keep this limit: The record does not approve an arbitrary cable or PSU arrangement; a double-ended cable has another documented header role to resolve. S561
Use exact PSU/GPU/component documentation and the header designation; no image here is an installation or power-rating approval.
Existing source inspection and AI review remain distinct from independent technical review. A matching form does not establish a safe connection.
Bounded facts, visible unknowns
| Documented identification | 16-position/contact recognition fact in the cited implementation. [C260A] |
|---|---|
| Mechanical dimensions | No independently reviewed mechanical drawing in V43; do not use this page for fabrication, fit testing or tolerance work. |
| Engineering pinout | Source-checked engineering profile available; independent review pending. Open engineering profile → |
| Verified device list | Not included. Check exact device and accessory documentation. |
Use the source-backed form or position count only for identification. Resolve ratings, protocol, direction, wiring, cable construction and exact device support from the relevant equipment and component documentation.
Before you connect
Pins & wiring
Choose the exact wiring. Pin numbers follow its stated view; a schematic does not establish physical positions. Check your exact device before wiring.
This field note does not approve a connection, adapter, cable assembly, rewiring scheme or fabricated part. It intentionally omits unsupported pin assignments and mechanical tolerances.
Your next step
The source trail
AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.
Molex identifies part 2191161161 as a PCIe CEM5 12V-2x6 header with 16 circuits, configured as 12 power and 4 signal circuits.
Molex · Micro-Fit+ PCIe CEM5 12V-2x6 header ↗S280: full source recordInspect review dependencies → (private workspace)Intel revision 2.11 locates longer power contacts and shorter sideband contacts in the revised 12V-2x6 PCB header.
Intel · Intel ATX12VO Design Guide revision 2.11 — role and generation boundaries ↗S561: full source recordInspect review dependencies → (private workspace)Intel revision 2.11 describes an additional 12V-2x6 PCB header in a modular power supply when using a double-ended 12V-2x6 cable.
Intel · Intel ATX12VO Design Guide revision 2.11 — role and generation boundaries ↗S561: full source recordInspect review dependencies → (private workspace)Molex lists keying to the mating part as No and polarization to the mating part as Yes for 2191161161; those separately named fields should not be collapsed into one physical-keying claim.
Molex · Molex 2191161161 — exact part fields and drawing boundary ↗S563: full source recordInspect review dependencies → (private workspace)Follow the connection
The newer 16-contact form is a separate connector family from the older 2x3 and 2x4 PCIe auxiliary connectors.
Open field note
This eight-position PC power form is not interchangeable with every 8-pin CPU-power connector.
Open field note
A PCIe auxiliary-power connector is not a general-purpose keyed DC connector.
Open field noteCompare look-alikes: PCIe 8-pin, 12VHPWR and 12V-2x6 auxiliary power
Candidate selection does not confirm the identity or capabilities of your physical item.
Use this reference
PC power / Several identities remain possible
Separate the historical power-connector designation from the exact named header and cable assembly.
P193 reference · P260 reference · Inspect named view (private workspace)
A generation label does not establish the exact part or an approved cable.
PC power / Unconfirmed candidate
Keep the Amphenol series and header role attached to the view. Consult the complete reference for the unresolved exact Molex request.
P260 reference · Inspect named view (private workspace)
The Amphenol image does not close the requested Molex 2191161161 physical-view gap.
POWER ROLES / COMPONENT & DOCUMENT IDENTITY
Intel ATX12VO Design Guide revision 2.11 — role and generation boundaries ↗
Revision 2.11 / May 2024. Printed pages 17, 58, 59 and 63 visually inspected; page 63 special note compares 12V-2x6 and earlier 12VHPWR.
S561 · canonical observation date 2026-10-12. This specified guide revision only. It separates PCB headers from cable plugs and describes changed PCB-header contact lengths. No pinout, dimensions, sensing circuit, power rating or fit approval is imported.
Observation date is not a document issue date. No hardware, wiring, seating, fit or independent approval.
Observed . C260E
Molex 2191161161 — exact part fields and drawing boundary ↗
Exact part 2191161161: first-mate/last-break, keying, polarization, orientation, circuit configuration and mounting fields. Linked image path ends 2191160161; image bytes and exact drawing remained unavailable.
S563 · canonical observation date 2026-10-12. The part-specific text lists keying and polarization as separate fields. The page alone does not establish an inspected drawing revision or authorize borrowing geometry from a differently numbered image. Earlier canonical source observations are retained, not overwritten.
Observation date is not a document issue date. No hardware, wiring, seating, fit or independent approval.
No new physical view closes this reference’s image request in V137. Concepts are not specimen substitutes.
