P195 / Storage / Connector
Slimline SATA is a distinct compact member of the Serial ATA connector family used in space-constrained devices.
Also called Slimline SATA Slim SATA SATA slimline
A smaller SATA-family outline is not the same connector as standard SATA data plus power.
Identify the exact device connector and cable assembly as Slimline SATA before selecting a replacement.
Claim inspection dates: 2026-10-05, 2026-10-13 · Independent review pending

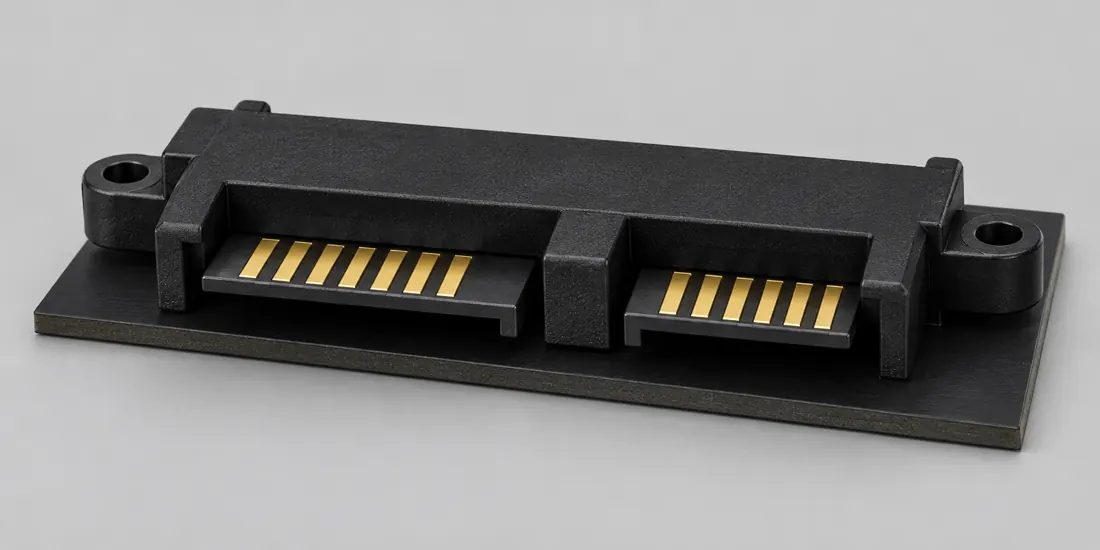

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

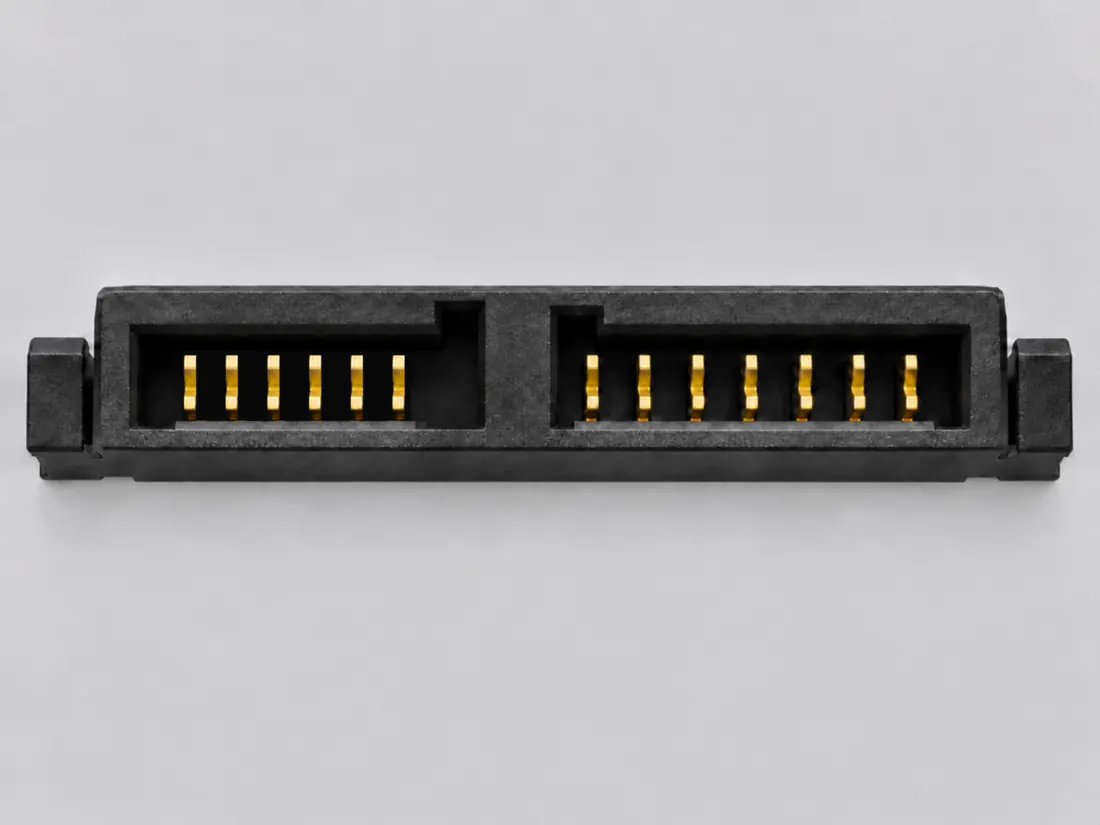

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Recognition drawing Original schematic, not to scale. Drawing review pending.
Image inspection / P195
1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.
(private workspace)P195 / Source-observed physical study
Conn-Link CSAT-M13RS30-Q3 linked drawing A
Contact-bearing component face in the linked drawing · Other declared component
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)No. Molex documents Slimline SATA as a variant within its storage connector ecosystem, not a blanket replacement for a desktop drive’s separate standard data and power connections. Optical-drive or small-device mounting and power arrangements can require a specifically rated matching harness.
Trying to force a full-size SATA power connector into a slimline device or improvising a voltage supply.
Full technical reading, sources and related identities →Claim-specific evidence remains in the canonical record. Concept diagrams do not show any safe wiring or mechanical mating geometry.
Read the view
No mating-face, rear-terminal or installation orientation is declared.
Label-led symbol — not interface geometry. Read the exact designation and written reference; do not identify a physical connector by this generic shape.
About the marks: The dots and outline are placeholders, not interface geometry.
What it cannot establish: The shared generic outline does not distinguish Slimline from Micro SATA or establish the exact variant.
Enlargement changes display size only. It does not reveal measured geometry, a pin assignment or an approved mating combination.
Read the underlying references: S200. Artwork interpretation remains review-pending.
How to read connector illustrations →The useful distinction
Slimline SATA is a distinct compact member of the Serial ATA connector family used in space-constrained devices. [C195A]
Molex PS-47300-001 revision C, dated 2009-02-12, identifies a Slimline Serial ATA optical-disc-drive connector product family and gives a 1.27 mm pitch within that document’s scope. [C195B]
The slimline Molex product specification defers construction and physical dimensions to the applicable sales drawing, so the product specification alone cannot verify a universal mating envelope. [C195C]
Conn-Link describes CSAT-M13RS30-Q3 as a 7+6-position Slimline SATA male, right-angle, surface-mount component. [C195D]
The PDF linked from CSAT-M13RS30-Q3 shows two separated contact groups in a board-mount component; its PCB layout is a different view from the mating interface. [C195E]
The linked legacy drawing names CSAT-M13RS30-Q3 in its body but gives CSAT-M22-0C5 as its footer drawing number; current part equivalence is not resolved by that document alone. [C195F]
Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.
| Positions / cavity span | 6 (Claim C195D)S597Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V143: the named drawing/revision or exact product page only. Recognition and document-role evidence; not a pinout, adapter verdict, dimensioned mating gauge, electrical approval or current installed-device claim. |
|---|---|
| Contact pitch | 1.27 mm Source-described pitch / centerline (Claim C195B); 1.27 mm published Slimline SerialATA connector pitchS581 · S581Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval. 47300. Documented role: backplane connector. This specification gives logo location explicitly; no individual specimen or literal moulded logo transcription claimed.; Product drawing takes precedence per section2.0. No unviewed geometry inferred from stress-test specimen count. |
| Connector role | backplane connectorS581Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 47300. Documented role: backplane connector. This specification gives logo location explicitly; no individual specimen or literal moulded logo transcription claimed.; Product drawing takes precedence per section2.0. No unviewed geometry inferred from stress-test specimen count. |
| Mounting | surface-mount (Claim C195D)S597Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V143: the named drawing/revision or exact product page only. Recognition and document-role evidence; not a pinout, adapter verdict, dimensioned mating gauge, electrical approval or current installed-device claim. |
| Manufacturer | MolexS581Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 47300. Documented role: backplane connector. This specification gives logo location explicitly; no individual specimen or literal moulded logo transcription claimed.; Product drawing takes precedence per section2.0. No unviewed geometry inferred from stress-test specimen count. |
| Series | 47300S581Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 47300. Documented role: backplane connector. This specification gives logo location explicitly; no individual specimen or literal moulded logo transcription claimed.; Product drawing takes precedence per section2.0. No unviewed geometry inferred from stress-test specimen count. |
| Recorded markings | Company logo is documented on top of product; sales drawing controls actual design.S581Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 47300. Documented role: backplane connector. This specification gives logo location explicitly; no individual specimen or literal moulded logo transcription claimed.; Product drawing takes precedence per section2.0. No unviewed geometry inferred from stress-test specimen count. |
Not recorded: Nominal contacts, Populated contacts, Contact rows, Dimensions / axis, Contact gender / arrangement, Coupling / latch, Keying / polarization, Shell / form, Exact part / implementation, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.
Bounded facts, visible unknowns
| Documented identification | Distinct Slimline SATA connector family. [C195A] |
|---|---|
| Source-scoped role and recognition | Keep the part label and legacy drawing warning together. Two separated groups: seven signal contacts and six power contacts. [C195D] [C195E] [C195F] |
| Mechanical dimensions | No independently reviewed mechanical drawing in V36; do not use this page for fabrication, fit testing or tolerance work. |
| Engineering pinout | Source-checked engineering profile available; independent review pending. Open engineering profile → |
| Verified device list | Not included. Check exact device and accessory documentation. |
Use the source-backed form or position count only for identification. Resolve ratings, protocol, direction, wiring, cable construction and exact device support from the relevant equipment and component documentation.
Before you connect
Pins & wiring
Choose the exact wiring. Pin numbers follow its stated view; a schematic does not establish physical positions. Check your exact device before wiring.
This field note does not approve a connection, adapter, cable assembly, rewiring scheme or fabricated part. It intentionally omits unsupported pin assignments and mechanical tolerances.
Confirm the exact drive and cable documents. Resolve the linked drawing identity discrepancy before selecting a replacement part. Current geometry, ratings, material and temperature are unresolved; conflicting values are not promoted. Sources: C195D, C195E, C195F. Original qualitative study; independent technical and rights review pending.
Your next step
The source trail
AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.
Molex lists Slimline SATA as a distinct connector family within its Serial ATA product system.
Molex · Serial ATA and SAS connector system ↗S200: full source recordInspect review dependencies → (private workspace)Molex PS-47300-001 revision C, dated 2009-02-12, identifies a Slimline Serial ATA optical-disc-drive connector product family and gives a 1.27 mm pitch within that document’s scope.
Molex · Molex PS-47300-001 rev C: Slimline Serial ATA ODD connector ↗S581: full source recordInspect review dependencies → (private workspace)The slimline Molex product specification defers construction and physical dimensions to the applicable sales drawing, so the product specification alone cannot verify a universal mating envelope.
Molex · Molex PS-47300-001 rev C: Slimline Serial ATA ODD connector ↗S581: full source recordInspect review dependencies → (private workspace)Conn-Link describes CSAT-M13RS30-Q3 as a 7+6-position Slimline SATA male, right-angle, surface-mount component.
Conn-Link Technology · Conn-Link CSAT-M13RS30-Q3 product page ↗S597: full source recordInspect review dependencies → (private workspace)The PDF linked from CSAT-M13RS30-Q3 shows two separated contact groups in a board-mount component; its PCB layout is a different view from the mating interface.
Conn-Link Technology · Conn-Link CSAT-M13RS30-Q3 linked Slimline SATA drawing, revision A ↗S596: full source recordInspect review dependencies → (private workspace)The linked legacy drawing names CSAT-M13RS30-Q3 in its body but gives CSAT-M22-0C5 as its footer drawing number; current part equivalence is not resolved by that document alone.
Conn-Link Technology · Conn-Link CSAT-M13RS30-Q3 linked Slimline SATA drawing, revision A ↗S596: full source recordConn-Link Technology · Conn-Link CSAT-M13RS30-Q3 product page ↗S597: full source recordInspect review dependencies → (private workspace)Follow the connection
A data connector is not a power connector.
Open field note
SATA data and SATA power are separate interfaces even when combined in one drive-side assembly.
Open field note
The word SATA describes a family; physical variants still require exact identification.
Open field noteCompare look-alikes: SATA, Slimline SATA and Micro SATA
Candidate selection does not confirm the identity or capabilities of your physical item.
