FC fiber connector

FC is a threaded circular fiber-optic connector family; the cited Corning page covers FC-PC connector and adapter products.

Also called FC FC-PC threaded fiber connector

A threaded fiber connector does not identify fiber type, polish, wavelength or link budget.

Look for

Identify the connector family and then verify polish, fiber type, optical specification and cleanliness requirements separately.

Claim inspection dates: 2026-10-05, 2026-10-07, 2026-10-11, 2026-10-22 · Independent review pending

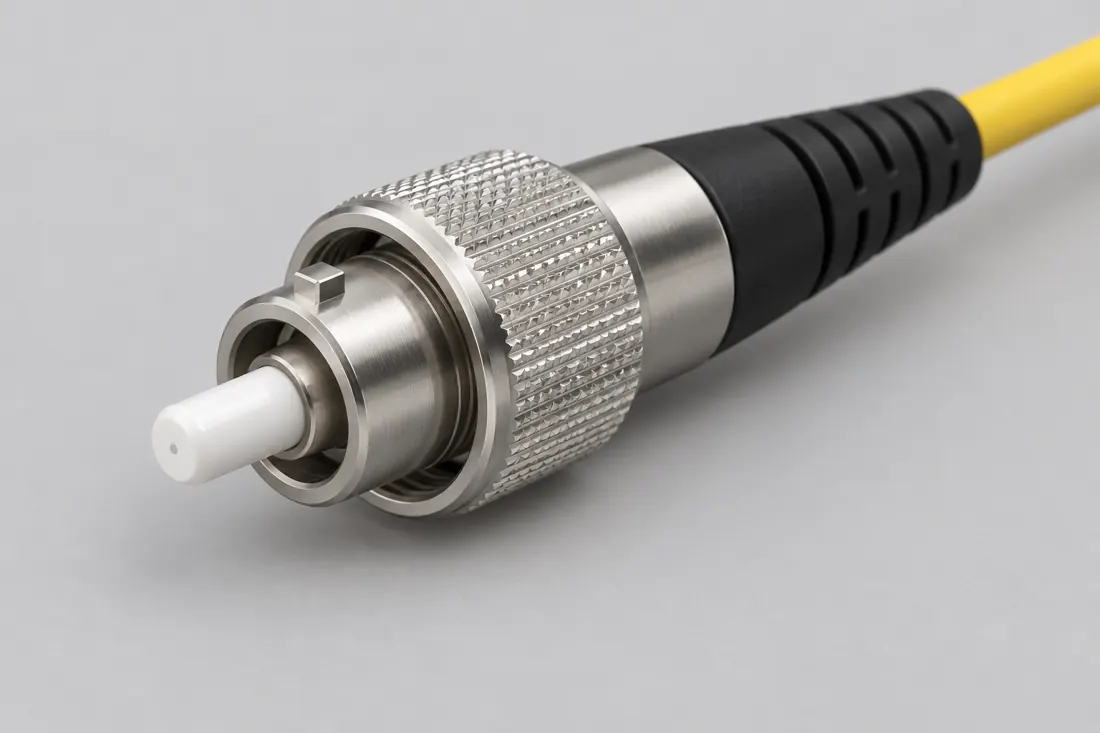

FC fiber connector: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

FC fiber connector: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

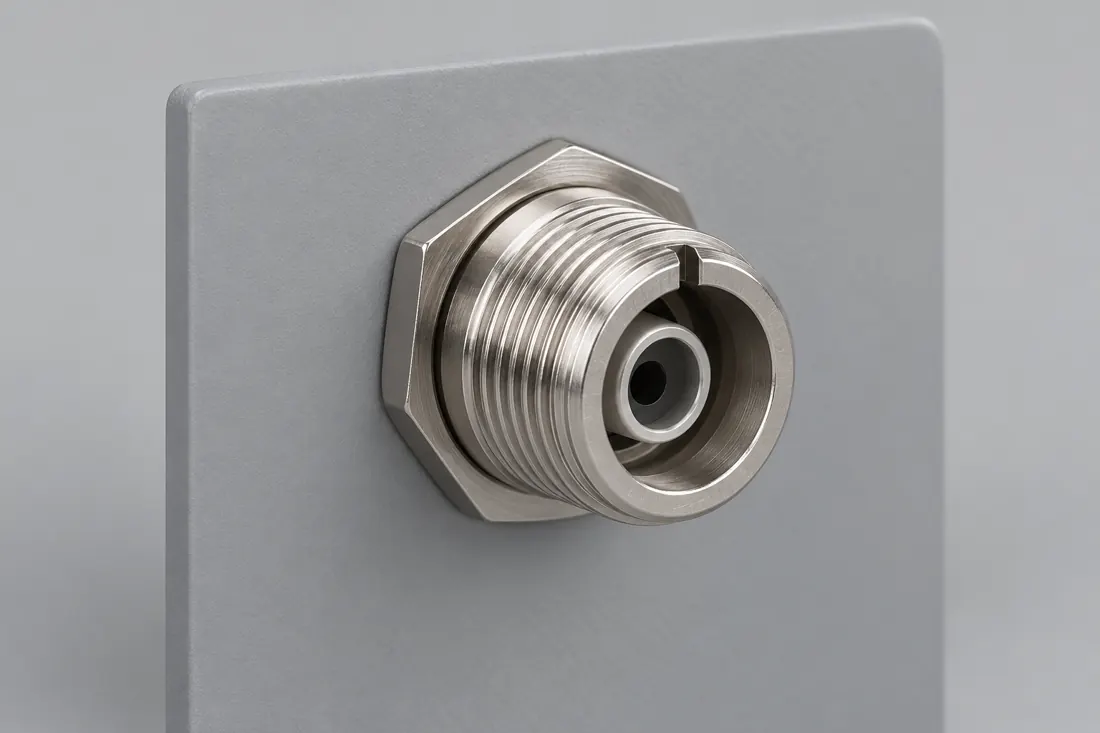

FC fiber connector: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

FC fiber connector: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Image inspection / P203

See the view. Check its scope.

1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.

FC 722 series / cable-plug exterior. Oblique assembled cable plug from the upper-left object of the group photograph; rotated to a left-facing study. Ferrule to the left, coupling body in the middle and boot to the right. No dimensional, wiring or compatibility approval. (private workspace)

P203 / Source-observed physical study

FC 722 series / cable-plug exterior

Corning 722 series / family photograph

Oblique assembled cable plug from the upper-left object of the group photograph; rotated to a left-facing study. · Cable plug / cable end

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)
Inspect the illustrationExterior side view · larger view & look-alikes
FC fiber connector — exterior side view; plug-style exterior; original, not-to-scale identification schematic; drawing review pending
View Exterior side viewDepiction Plug-style exteriorNot to scale · independent drawing review pending

Read the view

FC cable-end body and coupling collar

Cable side is at the left. This is an exterior view; no optical end-face or electrical contact array is depicted.

What it cannot establish: Confirm the exact FC key and adapter documentation rather than judging a face pattern.

Enlargement changes display size only. It does not reveal measured geometry, a pin assignment or an approved mating combination.

Compare a likely look-alike

ST fiber connector →

Read the underlying references: S206 · S420. Artwork interpretation remains review-pending.

How to read connector illustrations →

The useful distinction

Does an FC coupling or hybrid adapter settle the optical path?

No. The cited Corning sheet separates key options, polish vocabulary and adapter arrangements. A listed hybrid adapter documents an arrangement—not that every part or optical link will work. C203B · C203C · C203E

Component or signal: documented distinction and remaining check
CheckDocumented distinctionWhat this does not establish
Key optionThe 722-series description offers fixed and removable keys. C203BNo universal key width or arbitrary counterpart is established.
Polish vocabularyThe sheet distinguishes PC, Super PC and Ultra PC entries. C203EDo not assign a polish from its group photograph or a threaded shell.
Hybrid ordering entryThe 740-series table lists an FC–ST hybrid entry, 740-002N-003. C203CResolve the sleeve-option variable and exact part; the entry does not prove end-to-end compatibility.

Keep this limit: A hybrid sleeve does not make the bare interfaces identical or establish the equipment, polish, loss or complete optical path. C203C

Before choosing the cable or component

  1. Record the exact connector, key option and adapter part at every junction.
  2. Match each end’s documented polish and fiber requirements to its counterpart.
  3. Use the equipment’s safe optical inspection process; never look into a fiber end.
Original source statements and citation return points

FC is a threaded circular fiber-optic connector family; the cited Corning page covers FC-PC connector and adapter products. [C203A]

Corning’s 722-series FC-PC description offers fixed or removable keys and pre-radiused zirconia ferrules. [C203B]

Corning’s 740-series ordering table includes FC-ST hybrid adapters, including 740-002N-003 with metal or ceramic sleeve options. [C203C]

Corning’s May 2020 OEM guide lists 722-81A0-0330B as a single-mode FC connector with a fixed key and APC designation. [C203D]

Corning’s 722-series FC-PC sheet presents separate PC, Super PC and Ultra PC columns and separately offers fixed and removable key options. [C203E]

AFL lists a nominal 2.5 mm ferrule for its FC connector overview. AFL describes threadedmetal coupling nut. [C203F]

Corning OEM-064-AEN lists 732-1021-005-B as: FC single-mode subassembly, fixed key; metal housing, no boot, yellow dust cap. [C203G]

Source check · 14 October 2026. All three pages of the dated CAH-136_AEN sheet were inspected, including table images. The N suffix is an option placeholder; no current availability or numeric performance is claimed.

Source-qualified reference, not a wiring, optical-link or compatibility approval. Each linked claim and source carries its own recorded inspection date and review status. Selected source checks do not constitute independent technical or rights approval.

Existing source trail: S420.

Network, fiber and RF questions · ST fiber connector

Source-scoped identification facts

Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.

Documented examples; not a mating drawing or compatibility approval
Connector roleoptical connector subassembly (ExactCorning 732-1021-005-B)S951Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. ExactCorning 732-1021-005-B
Coupling / latchthreaded metal coupling nut (Named series/reference only, not every family part. AFL FC marketedconnector overview;not universalfamily mechanicaltolerance)S954Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Named series/reference only, not every family part. AFL FC marketedconnector overview;not universalfamily mechanicaltolerance
Keying / polarizationfixed key (ExactCorning 732-1021-005-B)S951Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. ExactCorning 732-1021-005-B
ManufacturerCorning (ExactCorning 732-1021-005-B)S951Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. ExactCorning 732-1021-005-B
Exact part / implementation732-1021-005-B (ExactCorning 732-1021-005-B)S951Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. ExactCorning 732-1021-005-B
View conventionActualAFL linked FC exterioroblique illustration inspected;not scaled andnoexactSKUassigned (Named series/reference only, not every family part. AFL FC marketedconnector overview;not universalfamily mechanicaltolerance)S954Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Named series/reference only, not every family part. AFL FC marketedconnector overview;not universalfamily mechanicaltolerance

Not recorded: Dimensions / axis, Mounting, Shell / form, Series, Recorded markings. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.

Recorded variant and source limits
  • Key width, ferrule dimensions, polish, fiber type and measured loss are not established here.
  • An FC-ST sleeve changes the documented forms at the joint, not the optical signal or endface polish.
Report a correction to these facts →

Bounded facts, visible unknowns

Specifications and limits

FC fiber connector facts and limitations
Documented identificationFC-PC fiber connector family identification. [C203A]
FC source exampleCorning’s 722-series FC-PC description offers fixed or removable keys and pre-radiused zirconia ferrules. [C203B]
FC source exampleCorning’s 740-series ordering table includes FC-ST hybrid adapters, including 740-002N-003 with metal or ceramic sleeve options. [C203C]
Mechanical dimensionsNo independently reviewed mechanical drawing in V36; do not use this page for fabrication, fit testing or tolerance work.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
A boundary, not an omission to guess around.

Use the source-backed form or position count only for identification. Resolve ratings, protocol, direction, wiring, cable construction and exact device support from the relevant equipment and component documentation.

Before you connect

What to check

  1. Identify the exact connector family and variant from the equipment or cable documentation.
  2. Keep shape, contact count, protocol, electrical rating and device support as separate facts.
  3. Do not force, rewire or adapt a connector from this recognition record; resolve the remaining requirements first.
Trace a supported connection class →

Can I connect…

Common connections for this connector

All connection questions →

What is not established

This field note does not approve a connection, adapter, cable assembly, rewiring scheme or fabricated part. It intentionally omits unsupported pin assignments and mechanical tolerances.

Your next step

Move from the form to the requirement.

Read the engineering reference Source-scoped details, orientation and explicit unknowns.Work through a connection Choose your task before deciding on a cable.Explore this evidence trail Inspect the claims and their dependencies. (private workspace)

The source trail

Evidence for this page

AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.

Back to first citation ↑
C203ASource checked · pending review

Corning identifies FC-PC connectors and adapters as a distinct fiber-optic connectivity family.

Corning · FC connectors and adapters ↗

Locator: FC connector and adapter overview
Access: public page. Identification/reference scope only. V36 does not convert this source into a universal pinout, fabrication drawing, electrical approval or end-to-end compatibility verdict.

S206: full source recordInspect review dependencies → (private workspace)

Claim scope: V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof.. Next review due 2027-01-03.

Back to first citation ↑
C203BSource checked · pending review

Corning’s 722-series FC-PC description offers fixed or removable keys and pre-radiused zirconia ferrules.

Corning · Corning FC-PC connectors and adapters — CAH-136_AEN ↗

Locator: Pages 1 and 3: 722-series key and ferrule description; 740-series FC and hybrid FC-ST ordering table.
Access: public pdf text. No universal FC key-width, ferrule-diameter, polish-conversion or loss-budget assertion. Do not use the panel-mount descriptions as mating-interface dimensions.

S420: full source recordInspect review dependencies → (private workspace)

Claim scope: CAH-136_AEN revision 2016-11-29, page 1; no inferred key width or universal ferrule construction.. Next review due 2027-01-05.

Back to first citation ↑
C203CSource checked · pending review

Corning’s 740-series ordering table includes FC-ST hybrid adapters, including 740-002N-003 with metal or ceramic sleeve options.

Corning · Corning FC-PC connectors and adapters — CAH-136_AEN ↗

Locator: Pages 1 and 3: 722-series key and ferrule description; 740-series FC and hybrid FC-ST ordering table.
Access: public pdf text. No universal FC key-width, ferrule-diameter, polish-conversion or loss-budget assertion. Do not use the panel-mount descriptions as mating-interface dimensions.

S420: full source recordInspect review dependencies → (private workspace)

Claim scope: Page 3 of the cited revision; the hybrid connector forms do not establish polish, fiber-type or end-to-end optical compatibility.. Next review due 2027-01-05.

Back to first citation ↑
C203DSource checked · pending review

Corning’s May 2020 OEM guide lists 722-81A0-0330B as a single-mode FC connector with a fixed key and APC designation.

Corning · Fiber Optic OEM Products — component ordering guide OEM-064-AEN ↗

Locator: May 2020; printed p.5 ST/FC rows, p.6 LC table, p.9 MT-RJ row.
Access: public pdf text. Only selected part identifiers, declared form, mode and pin/key descriptions. Dimensional fields and loss ratings are not imported. The SC boot-size typo and unlabeled ferrule-size interpretation are quarantined.

S530: full source recordInspect review dependencies → (private workspace)

Claim scope: Only that ordering row; an FC coupling shell does not establish polish, key specification or interchangeability for another part.. Next review due 2027-01-09.

Back to first citation ↑
C203ESource checked · pending review

Corning’s 722-series FC-PC sheet presents separate PC, Super PC and Ultra PC columns and separately offers fixed and removable key options.

Corning · Corning FC-PC connectors and adapters — CAH-136_AEN ↗

Locator: Pages 1 and 3: 722-series key and ferrule description; 740-series FC and hybrid FC-ST ordering table.
Access: public pdf text. No universal FC key-width, ferrule-diameter, polish-conversion or loss-budget assertion. Do not use the panel-mount descriptions as mating-interface dimensions.

S420: full source recordInspect review dependencies → (private workspace)

Claim scope: Family document vocabulary and options only. Its group photograph is not assigned an exact ordered polish or key variant; dimensional and loss fields are not imported.. Next review due 2027-01-09.

Back to first citation ↑
C203FSource checked · pending review

AFL lists a nominal 2.5 mm ferrule for its FC connector overview. AFL describes threadedmetal coupling nut.

AFL Hyperscale · Adapters and Connectors:Connectors ↗

Locator: Full manufacturer page: LC,SC,ST,FCsections and each directlylinked connector image; all4actual JPEGs downloaded/viewed.
Access: public page. Ferrule dimensions refer to AFL overview context, not universal housing/mating tolerances. Image-only latch/body observations remain labelled manufacturer illustrations; no measurements,partmarkings or performance from pixels.

S954: full source recordInspect review dependencies → (private workspace)

Claim scope: AFL FC marketedconnector overview;not universalfamily mechanicaltolerance;ferrulesize is not outerhousingdimension,contactpitch or sourceimage measurement.. Next review due 2027-01-20.

Back to first citation ↑
C203GSource checked · pending review

Corning OEM-064-AEN lists 732-1021-005-B as: FC single-mode subassembly, fixed key; metal housing, no boot, yellow dust cap.

Corning · AFOP FastShip Connector and Adapter Ordering Guide OEM-064-AEN ↗

Locator: Full18-page PDF text: p.5ST/FC/SC,p.6LCno-logo variants,p.9MT-RJ,p.11ST/FCsubassemblies,p.18revision.
Access: public pdf text. Direct download403 and drawing/photo pixels unavailable. Table126/127micrometre ferrule-size values are not imported as outer ferrule diameters; unspecified SCboot3micrometre transcription is excluded. Table colors are exact-part descriptors, not general family marks.

S951: full source recordInspect review dependencies → (private workspace)

Claim scope: Exact named Corningpart/subassembly inMay2020catalog;no universalfinish,matingdimension or assemblyapproval.. Next review due 2027-01-20.

Suggest a correction to this field note →

Common questions

Questions this record can help resolve

FC vs ST: what should I check before connecting them?Separate connector coupling, ferrule construction and hybrid adapters from polish and optical-path requirements.Can I connect UPC and APC fiber connectors together?Do not confuse a hybrid patch cord or a non-contact test port with direct mating of unlike polished endfaces.Is a hybrid fiber adapter the same as a hybrid patch cord?Separate a documented mechanical coupler from an assembled fiber cable and from an optical compatibility result.

Put this field note to work.

Add to discovery trayRecord an unsaved candidate (private workspace)

Candidate selection does not confirm the identity or capabilities of your physical item.

SOURCE-QUALIFIED FIBER REFERENCE

Identify the end. Keep the path unresolved.

722-series family photograph; 722-81A0-0330B is a separate APC ordering example

Source / component role
Cable-plug series photograph and named component row
Documented distinction
Fixed-key APC is explicit for the listed OEM part; the family sheet also separates PC, Super PC and Ultra PC.
What this establishes
The round coupling alone does not select key or polish. The pictured family example is not labelled as that exact APC part.
Not established
The user’s key details, actual endface, ordered suffix and adapter.
Next check
Check both the exact key specification and the polish; do not infer either from the coupling nut.
Inspect the declared view → (private workspace)
Evidence, observation & limits

Inspected . C203D · C203E

Corning FC-PC connectors and adapters — CAH-136_AEN ↗
V130 observation: CAH-136_AEN, revision 2016-11-29; printed pp.1–2, group photograph and PC/Super PC/Ultra PC and key-option tables. Printed dimensional units are not imported.
Canonical source record S420 dated 2026-10-07. The V130 visit is recorded separately; inherited source dates are unchanged.

Fiber Optic OEM Products — component ordering guide OEM-064-AEN ↗
V130 observation: May 2020; printed p.5 ST/FC rows, p.6 LC table, p.9 MT-RJ row.
Canonical source record S530 dated 2026-10-11. The V130 visit is recorded separately; inherited source dates are unchanged.

No hardware test, independent technical approval or rights clearance is asserted.

Read the illustrated fiber chart and field guide →

Evidence behind this page

Scope first. Source second. Approval separate.

5 linked sources · 7 scoped claims · 0 sources with inspection/access flags.

Page scope: catalogue_expansion_v36

Assessment 2026-10-22 · earliest scheduled source review 2027-01-03. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 5 source scopes, access limits and dates

S206 · FC connectors and adapters

Corning · Manufacturer / product-owner domain · inspected 2026-10-05 · due 2027-01-03

Within inspection window

Scoped support: Identifies FC-PC fiber-optic connector and adapter products as a threaded circular fiber-connector family.

Not established / limitations: Identification/reference scope only. V36 does not convert this source into a universal pinout, fabrication drawing, electrical approval or end-to-end compatibility verdict.

Locator: FC connector and adapter overview

S420 · Corning FC-PC connectors and adapters — CAH-136_AEN

Corning · Manufacturer / product-owner domain · inspected 2026-10-07 · due 2027-01-05

Within inspection window

Scoped support: 722-series connector and 740-series adapter examples in the 2016-11-29 revision.

Not established / limitations: No universal FC key-width, ferrule-diameter, polish-conversion or loss-budget assertion. Do not use the panel-mount descriptions as mating-interface dimensions.

Locator: Pages 1 and 3: 722-series key and ferrule description; 740-series FC and hybrid FC-ST ordering table.

S530 · Fiber Optic OEM Products — component ordering guide OEM-064-AEN

Corning · Manufacturer / product-owner domain · inspected 2026-10-11 · due 2027-01-09

Within inspection window

Scoped support: Only selected part identifiers, declared form, mode and pin/key descriptions. Dimensional fields and loss ratings are not imported. The SC boot-size typo and unlabeled ferrule-size interpretation are quarantined.

Not established / limitations: Only selected part identifiers, declared form, mode and pin/key descriptions. Dimensional fields and loss ratings are not imported. The SC boot-size typo and unlabeled ferrule-size interpretation are quarantined.

Locator: May 2020; printed p.5 ST/FC rows, p.6 LC table, p.9 MT-RJ row.

S951 · AFOP FastShip Connector and Adapter Ordering Guide OEM-064-AEN

Corning · Manufacturer / product-owner domain · inspected 2026-10-22 · due 2027-01-20

Within inspection window

Scoped support: Exact named connector/subassembly construction and named no-logo option; keep each role separate.

Not established / limitations: Direct download403 and drawing/photo pixels unavailable. Table126/127micrometre ferrule-size values are not imported as outer ferrule diameters; unspecified SCboot3micrometre transcription is excluded. Table colors are exact-part descriptors, not general family marks.

Locator: Full18-page PDF text: p.5ST/FC/SC,p.6LCno-logo variants,p.9MT-RJ,p.11ST/FCsubassemblies,p.18revision.

S954 · Adapters and Connectors:Connectors

AFL Hyperscale · Unclassified publisher domain · inspected 2026-10-22 · due 2027-01-20

Within inspection window

Scoped support: AFL marketed connector-series examples: stated ferrule nominal sizes and coupling mechanisms; no exact orderableSKU.

Not established / limitations: Ferrule dimensions refer to AFL overview context, not universal housing/mating tolerances. Image-only latch/body observations remain labelled manufacturer illustrations; no measurements,partmarkings or performance from pixels.

Locator: Full manufacturer page: LC,SC,ST,FCsections and each directlylinked connector image; all4actual JPEGs downloaded/viewed.

Trace 7 claims to their source records

C203A · P203

Corning identifies FC-PC connectors and adapters as a distinct fiber-optic connectivity family.

Claim scope: V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof.

Source links: S206 · Evidence trail → (private workspace)

C203B · P203

Corning’s 722-series FC-PC description offers fixed or removable keys and pre-radiused zirconia ferrules.

Claim scope: CAH-136_AEN revision 2016-11-29, page 1; no inferred key width or universal ferrule construction.

Source links: S420 · Evidence trail → (private workspace)

C203C · P203

Corning’s 740-series ordering table includes FC-ST hybrid adapters, including 740-002N-003 with metal or ceramic sleeve options.

Claim scope: Page 3 of the cited revision; the hybrid connector forms do not establish polish, fiber-type or end-to-end optical compatibility.

Source links: S420 · Evidence trail → (private workspace)

C203D · P203

Corning’s May 2020 OEM guide lists 722-81A0-0330B as a single-mode FC connector with a fixed key and APC designation.

Claim scope: Only that ordering row; an FC coupling shell does not establish polish, key specification or interchangeability for another part.

Source links: S530 · Evidence trail → (private workspace)

C203E · P203

Corning’s 722-series FC-PC sheet presents separate PC, Super PC and Ultra PC columns and separately offers fixed and removable key options.

Claim scope: Family document vocabulary and options only. Its group photograph is not assigned an exact ordered polish or key variant; dimensional and loss fields are not imported.

Source links: S420 · Evidence trail → (private workspace)

C203F · P203

AFL lists a nominal 2.5 mm ferrule for its FC connector overview. AFL describes threadedmetal coupling nut.

Claim scope: AFL FC marketedconnector overview;not universalfamily mechanicaltolerance;ferrulesize is not outerhousingdimension,contactpitch or sourceimage measurement.

Source links: S954 · Evidence trail → (private workspace)

C203G · P203

Corning OEM-064-AEN lists 732-1021-005-B as: FC single-mode subassembly, fixed key; metal housing, no boot, yellow dust cap.

Claim scope: Exact named Corningpart/subassembly inMay2020catalog;no universalfinish,matingdimension or assemblyapproval.

Source links: S951 · Evidence trail → (private workspace)

Prepare this page for review → (private workspace)Read the evidence method →

Recorded evidence only. An inspection date, publisher label, source link or generated packet is not independent technical review, hardware testing, fabrication approval or a compatibility verdict.
