Side by side

SD versus microSD

Compare physical card forms; verify capacity, bus and speed class separately.

Computer-generated illustration, not a photograph. — P061 · ConnectorFull-size SD card form

How they differ

Full-size SD card form Compare the keyed card outline and the reader label. This unnumbered sketch represents a full-size card form, not a specific generation of contacts.
microSD card form Look for a small keyed memory-card outline. Extra contact rows on some variants matter, so the drawing deliberately does not assign numbered contacts.

At a glance

Source-scoped form facts; counts, variants and unknowns are distinct
Field	Full-size SD card form	microSD card form
Type	Connector	Connector
Family	Storage	Storage
Shape	card edge	card edge
Nominal contacts	9S041 · S042 · S041Conventional card contact face, not a receptacle terminal or PCB footprint; nominal engineering count, not automatically positions, population or a device wiring map. Conventional card contact face, not a receptacle terminal or PCB footprint	8S041 · S042 · S041 · S391 · S392Conventional card contact face, not a receptacle terminal or PCB footprint; nominal engineering count, not automatically positions, population or a device wiring map. Conventional card contact face, not a receptacle terminal or PCB footprint
Positions / cavity span	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	1 (Claim C061B)S041 · S042Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. The SD Association lists a nominal full-size SD card envelope of 32 × 24 × 2.1 mm. Conventional single-row cards for Default Speed, High Speed and UHS-I use nine contacts. \| Nominal card identification and conventional first-row contact count only; not a socket footprint, pad drawing, tolerance specification or all-generation pin count.	1 (Claim C062B)S041 · S042Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. The SD Association lists a nominal microSD envelope of 15 × 11 × 1.0 mm (length × width × thickness). Conventional single-row cards for Default Speed, High Speed and UHS-I use eight contacts. \| Nominal microSD card identification and conventional first-row count; no inference about extra contacts, exact host support or fabrication dimensions.
Connector role	socketS041 · S042 · S041Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Conventional card contact face, not a receptacle terminal or PCB footprint	socketS041 · S042 · S041 · S391 · S392Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Conventional card contact face, not a receptacle terminal or PCB footprint
Key distinction	The card shape is one label; capacity and speed are separate labels.	Small form factor does not mean a particular speed.

Full evidence ledger and sources ↓

Illustrations are computer-generated with prior AI visual review; independent technical and rights review pending. A comparison is not a compatibility verdict.

This comparison stays within one evidence layer.

All selected records are Connector records. Similar layer does not mean compatible, interchangeable or safe to mate.

Families represented: Storage

Look here first

Spot the difference.

Read the views →

Not a size comparison. Illustrations fit the same display boxes; their physical dimensions are not shown to a common scale. No mating or compatibility verdict follows.

P061 / Card-outline schematic

Full-size SD card form

Card illustration

Visible clue: Full-size card outline with a clipped upper-right corner

Contact strokes are symbolic; do not count them as the card contacts.

Still check: The illustrated contact strokes do not identify a bus generation, speed class or actual contact population.

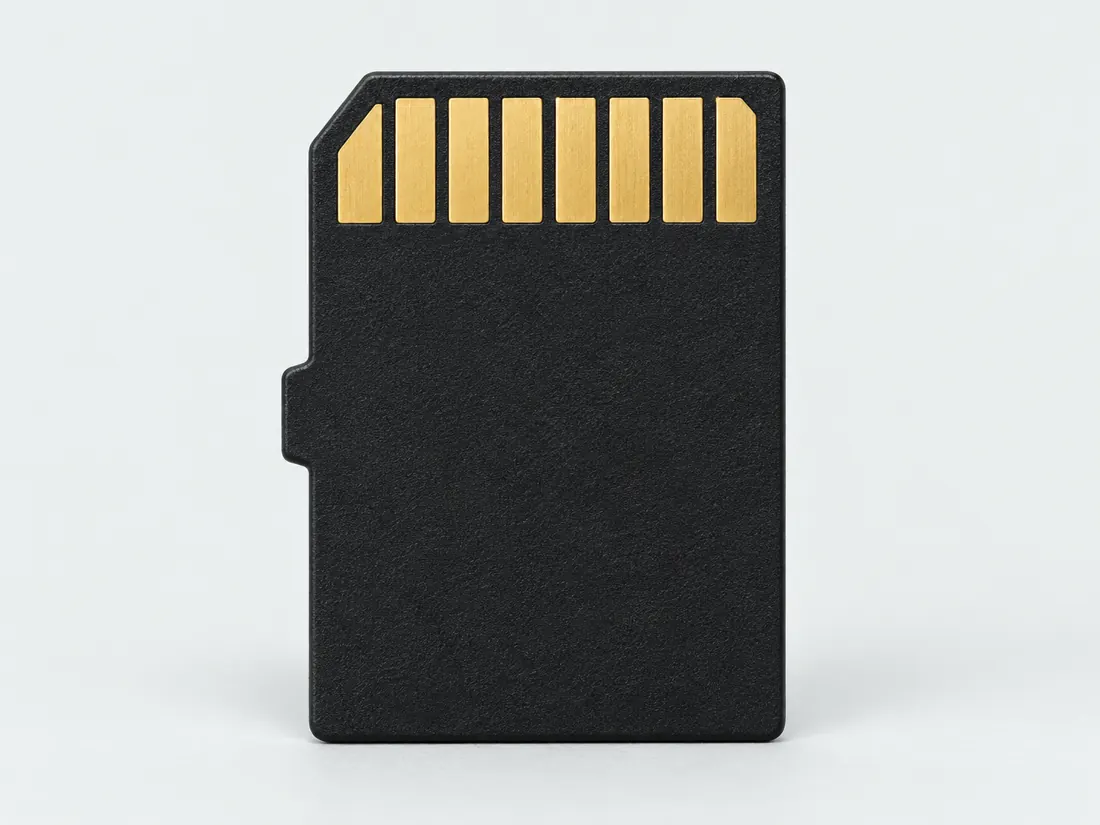

P062 / Card-outline schematic

microSD card form

Card illustration

Visible clue: Small card outline with stepped left edge

Contact strokes are symbolic; this is not a full contact-layout drawing.

Still check: This sketch cannot establish capacity, bus mode, speed class or the presence of extra contact rows.

The reference ledger

Read the same question across.

2 selected records · 17 fields
No score. No compatibility verdict.

On a narrow screen, scroll the table sideways or open the field-by-field reading view below. Illustrations are not a size comparison.

Comparison of selected field notes; source links accompany each documented specification
What you are comparing	P061 / ConnectorFull-size SD card form Identification schematic · not to scale · drawing review pending	P062 / ConnectormicroSD card form Identification schematic · not to scale · drawing review pending
Layer	Connector	Connector
Key distinction	The card shape is one label; capacity and speed are separate labels.	Small form factor does not mean a particular speed.
Nominal contacts	9S041 · S042 · S041Conventional card contact face, not a receptacle terminal or PCB footprint; nominal engineering count, not automatically positions, population or a device wiring map. Conventional card contact face, not a receptacle terminal or PCB footprint	8S041 · S042 · S041 · S391 · S392Conventional card contact face, not a receptacle terminal or PCB footprint; nominal engineering count, not automatically positions, population or a device wiring map. Conventional card contact face, not a receptacle terminal or PCB footprint
Positions / cavity span	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Populated contacts	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	1 (Claim C061B)S041 · S042Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. The SD Association lists a nominal full-size SD card envelope of 32 × 24 × 2.1 mm. Conventional single-row cards for Default Speed, High Speed and UHS-I use nine contacts. \| Nominal card identification and conventional first-row contact count only; not a socket footprint, pad drawing, tolerance specification or all-generation pin count.	1 (Claim C062B)S041 · S042Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. The SD Association lists a nominal microSD envelope of 15 × 11 × 1.0 mm (length × width × thickness). Conventional single-row cards for Default Speed, High Speed and UHS-I use eight contacts. \| Nominal microSD card identification and conventional first-row count; no inference about extra contacts, exact host support or fabrication dimensions.
Contact pitch	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Dimensions / axis	32 mm Nominal card length; 24 mm Nominal card width; 2.1 mm Nominal maximum envelope thicknessS041 · S042Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. nominal_identifier; Conventional card contact face, not a receptacle terminal or PCB footprint	15 mm Nominal card length; 11 mm Nominal card width; 1 mm Nominal maximum envelope thicknessS041 · S042Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. nominal_identifier; Conventional card contact face, not a receptacle terminal or PCB footprint
Connector role	socketS041 · S042 · S041Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Conventional card contact face, not a receptacle terminal or PCB footprint	socketS041 · S042 · S041 · S391 · S392Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Conventional card contact face, not a receptacle terminal or PCB footprint
Coupling / latch	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Keying / polarization	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Record layer	Physical card formC061A	Physical card formC062A
Performance	Not established by physical sizeC061A	Not an equivalent field
Nominal card envelope	32 × 24 × 2.1 mmC061B	15 × 11 × 1.0 mmC062B
Conventional first-row contacts	9; not a universal all-generation countC061B	8; not a universal all-generation countC062B
Express capability	Not an equivalent field	Requires explicit card and host documentationC062A
Evidence	C061A,C061B,C061C → Independent review pending	C062A,C062B,C062C,C062D,C062E → Independent review pending

Read field by field — no sideways scrolling

The same selected records, fields, values and source links as the table. Missing fields remain non-equivalent; no values are merged.

Layer

Full-size SD card formP061 / Connector: Connector
microSD card formP062 / Connector: Connector

Key distinction

Full-size SD card formP061 / Connector: The card shape is one label; capacity and speed are separate labels.
microSD card formP062 / Connector: Small form factor does not mean a particular speed.

Nominal contacts

Full-size SD card formP061 / Connector: 9S041 · S042 · S041Conventional card contact face, not a receptacle terminal or PCB footprint; nominal engineering count, not automatically positions, population or a device wiring map. Conventional card contact face, not a receptacle terminal or PCB footprint
microSD card formP062 / Connector: 8S041 · S042 · S041 · S391 · S392Conventional card contact face, not a receptacle terminal or PCB footprint; nominal engineering count, not automatically positions, population or a device wiring map. Conventional card contact face, not a receptacle terminal or PCB footprint

Positions / cavity span

Full-size SD card formP061 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
microSD card formP062 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Populated contacts

Full-size SD card formP061 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
microSD card formP062 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Contact rows

Full-size SD card formP061 / Connector: 1 (Claim C061B)S041 · S042Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. The SD Association lists a nominal full-size SD card envelope of 32 × 24 × 2.1 mm. Conventional single-row cards for Default Speed, High Speed and UHS-I use nine contacts. | Nominal card identification and conventional first-row contact count only; not a socket footprint, pad drawing, tolerance specification or all-generation pin count.
microSD card formP062 / Connector: 1 (Claim C062B)S041 · S042Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. The SD Association lists a nominal microSD envelope of 15 × 11 × 1.0 mm (length × width × thickness). Conventional single-row cards for Default Speed, High Speed and UHS-I use eight contacts. | Nominal microSD card identification and conventional first-row count; no inference about extra contacts, exact host support or fabrication dimensions.

Contact pitch

Full-size SD card formP061 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
microSD card formP062 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Dimensions / axis

Full-size SD card formP061 / Connector: 32 mm Nominal card length; 24 mm Nominal card width; 2.1 mm Nominal maximum envelope thicknessS041 · S042Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. nominal_identifier; Conventional card contact face, not a receptacle terminal or PCB footprint
microSD card formP062 / Connector: 15 mm Nominal card length; 11 mm Nominal card width; 1 mm Nominal maximum envelope thicknessS041 · S042Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. nominal_identifier; Conventional card contact face, not a receptacle terminal or PCB footprint

Connector role

Full-size SD card formP061 / Connector: socketS041 · S042 · S041Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Conventional card contact face, not a receptacle terminal or PCB footprint
microSD card formP062 / Connector: socketS041 · S042 · S041 · S391 · S392Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Conventional card contact face, not a receptacle terminal or PCB footprint

Coupling / latch

Full-size SD card formP061 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
microSD card formP062 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Keying / polarization

Full-size SD card formP061 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
microSD card formP062 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Record layer

Full-size SD card formP061 / Connector: Physical card formC061A
microSD card formP062 / Connector: Physical card formC062A

Performance

Full-size SD card formP061 / Connector: Not established by physical sizeC061A
microSD card formP062 / Connector: Not an equivalent field

Nominal card envelope

Full-size SD card formP061 / Connector: 32 × 24 × 2.1 mmC061B
microSD card formP062 / Connector: 15 × 11 × 1.0 mmC062B

Conventional first-row contacts

Full-size SD card formP061 / Connector: 9; not a universal all-generation countC061B
microSD card formP062 / Connector: 8; not a universal all-generation countC062B

Express capability

Full-size SD card formP061 / Connector: Not an equivalent field
microSD card formP062 / Connector: Requires explicit card and host documentationC062A

Evidence

Full-size SD card formP061 / Connector: C061A,C061B,C061C →
Independent review pending
microSD card formP062 / Connector: C062A,C062B,C062C,C062D,C062E →
Independent review pending

Your next step

Use the distinction in context.

Open the field notes Read source-linked facts and limitations.Compare another pair Start from a common confusion.Check a connection A comparison is not a compatibility verdict.

Continue the distinction

Compare next

Browse every comparison →

Mini-SAS HD vs OCuLinkMini-SAS HD and OCuLink are different connector families used in high-speed internal links. Physical resemblance is not evidence of mating or protocol compatibility.Mini-SAS HD vs SlimSASMini-SAS HD and SlimSAS are different internal high-density connector families. Match the named SFF form and system documentation, not the general SAS label.SATA data vs SATA powerSATA data and SATA power are separate connectors with different roles and contact counts. Sharing the SATA name does not make them substitutes.CFast versus CFexpress Type BSATA CFast is not PCIe/NVMe CFexpress. Check the full card and reader names before checking performance.CFexpress Type A versus Type BRecord the type letter and supported reader, not just the family name.CompactFlash versus CFastSimilar names refer to different card families.

Adjust this comparison

Add a field note

Evidence behind this page

Scope first. Source second. Approval separate.

5 linked sources · 8 scoped claims · 0 sources with inspection/access flags.

Page scope: Evidence behind the compared records; the editorial comparison still needs separate review.

Assessment 2026-10-22 · earliest scheduled source review 2026-12-30. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 5 source scopes, access limits and dates

S041 · SD Standard Overview

SD Association · Standards-organization domain · inspected 2026-10-07 · due 2027-01-05

Within inspection window

Scoped support: SD/microSD physical-form and generation-specific contact-count distinctions; no numbered assignments or fabrication drawing.

Not established / limitations: Counts are scoped to named modes. The overview does not identify an exact card or host, and extra-row count does not establish implemented protocol.

Locator: Conventional-card paragraph and form-factor table: first-row counts and UHS-II / SD Express count ranges

S042 · Capacity: SD, SDHC, SDXC and SDUC

SD Association · Standards-organization domain · inspected 2026-10-07 · due 2027-01-05

Within inspection window

Scoped support: SD capacity/file-system classes and nominal full-size SD and microSD envelopes; not host capacity approval.

Not established / limitations: Nominal card envelopes are identification aids, not mechanical tolerances, socket footprints, pad positions or formatting instructions.

Locator: Capacity ranges, file-system table and Form Factor Size rows

S045 · SD Express implementation overview

SD Association · Standards-organization domain · inspected 2026-10-01 · due 2026-12-30

Within inspection window

Scoped support: PCIe/NVMe transport and explicit host capability verification.

Not established / limitations: PCIe/NVMe transport and explicit host capability verification.

Locator: Host implementation overview and PCIe-only host distinction

S391 · S-46u Industrial MICRO SD/SDHC Memory Card — Revision 1.00

Swissbit AG (manufacturer document hosted by Farnell) · Unclassified publisher domain · inspected 2026-10-07 · due 2027-01-05

Within inspection window

Scoped support: Exact Swissbit S-46u conventional microSD pin-label example; native SD-mode assignment and orientation.

Not established / limitations: Distributor-hosted manufacturer PDF, not an independently authenticated original. No universal SPI, SD Express or UHS-II pinout; original 19-page document is linked, not redistributed.

Locator: Page 8, Figure 2 bottom view and Table 11 native SD / SPI pad assignments

S392 · SD Express (SD7.x–SD8.0) Host Implementation Guideline, Version 2 — May 2025

SD Association · Standards-organization domain · inspected 2026-10-07 · due 2027-01-05

Within inspection window

Scoped support: Named-version SD Express connector/host context, particularly the different microSD Express and microSD UHS-II second-row geometry.

Not established / limitations: Targeted sections only, not a full licensed specification review. No claim that every legacy, Express or multi-mode host supports another card; no fabrication approval.

Locator: Page 13, sections 4.10.1 and 4.10.2; context in pages 7–8

Trace 8 claims to their source records

C061A · P061

SD and microSD are distinct physical card forms. The form-factor label does not by itself establish capacity class, bus mode or recording performance.

Claim scope: Named standard or manufacturer description only; procedural checks are editorial recommendations, not hardware tests.

Source links: S041 · Evidence trail → (private workspace)

C061B · P061

The SD Association lists a nominal full-size SD card envelope of 32 × 24 × 2.1 mm. Conventional single-row cards for Default Speed, High Speed and UHS-I use nine contacts.

Claim scope: Nominal card identification and conventional first-row contact count only; not a socket footprint, pad drawing, tolerance specification or all-generation pin count.

Source links: S041 · S042 · Evidence trail → (private workspace)

C061C · P061

The SD Association overview distinguishes full-size SD contact counts by interface: High Speed/UHS-I nine, UHS-II seventeen, one-lane SD Express seventeen to nineteen, and two-lane SD Express twenty-five to twenty-seven.

Claim scope: Published overview categories inspected 2026-10-07; count ranges retain implementation variation and do not assign individual pins or identify a host controller.

Source links: S041 · Evidence trail → (private workspace)

C062A · P062

The SD Association treats microSD as a separate, smaller form factor from full-size SD. Capacity, bus interface and speed-class support remain additional distinctions.

Claim scope: Named standard or manufacturer description only; procedural checks are editorial recommendations, not hardware tests.

Source links: S041 · S045 · Evidence trail → (private workspace)

C062B · P062

The SD Association lists a nominal microSD envelope of 15 × 11 × 1.0 mm (length × width × thickness). Conventional single-row cards for Default Speed, High Speed and UHS-I use eight contacts.

Claim scope: Nominal microSD card identification and conventional first-row count; no inference about extra contacts, exact host support or fabrication dimensions.

Source links: S041 · S042 · Evidence trail → (private workspace)

C062C · P062

The SD Association overview distinguishes microSD contact counts by interface: High Speed/UHS-I eight, UHS-II sixteen, and one-lane microSD Express sixteen to seventeen.

Claim scope: Published overview categories inspected 2026-10-07, not an exhaustive identification method; physical contacts do not establish active bus support.

Source links: S041 · Evidence trail → (private workspace)

C062D · P062

Swissbit S-46u Revision 1.00, page 8, gives this native SD-mode assignment in Figure 2 bottom-view numbering: 1 DAT2, 2 CD/DAT3, 3 CMD, 4 VDD, 5 CLK, 6 VSS, 7 DAT0, 8 DAT1. The same table gives different SPI-mode functions on several pads.

Claim scope: Exact manufacturer-documented conventional microSD example; native SD-mode column only. Not a UHS-II/Express extra-row pinout, socket-terminal map, startup sequence or universal SPI wiring guide.

Source links: S391 · Evidence trail → (private workspace)

C062E · P062

The SD Association SD Express Host Implementation Guideline Version 2 (May 2025), section 4.10.2, states that microSD Express needs different connectors because the second-row pad location and size differ from microSD UHS-II.

Claim scope: microSD second-row mechanical distinction in the named guideline; not proof of compatibility or incompatibility of any complete multi-mode host product.

Source links: S392 · Evidence trail → (private workspace)
