Side by side

Mini-SAS HD vs OCuLink

Mini-SAS HD and OCuLink are different connector families used in high-speed internal links. Physical resemblance is not evidence of mating or protocol compatibility.

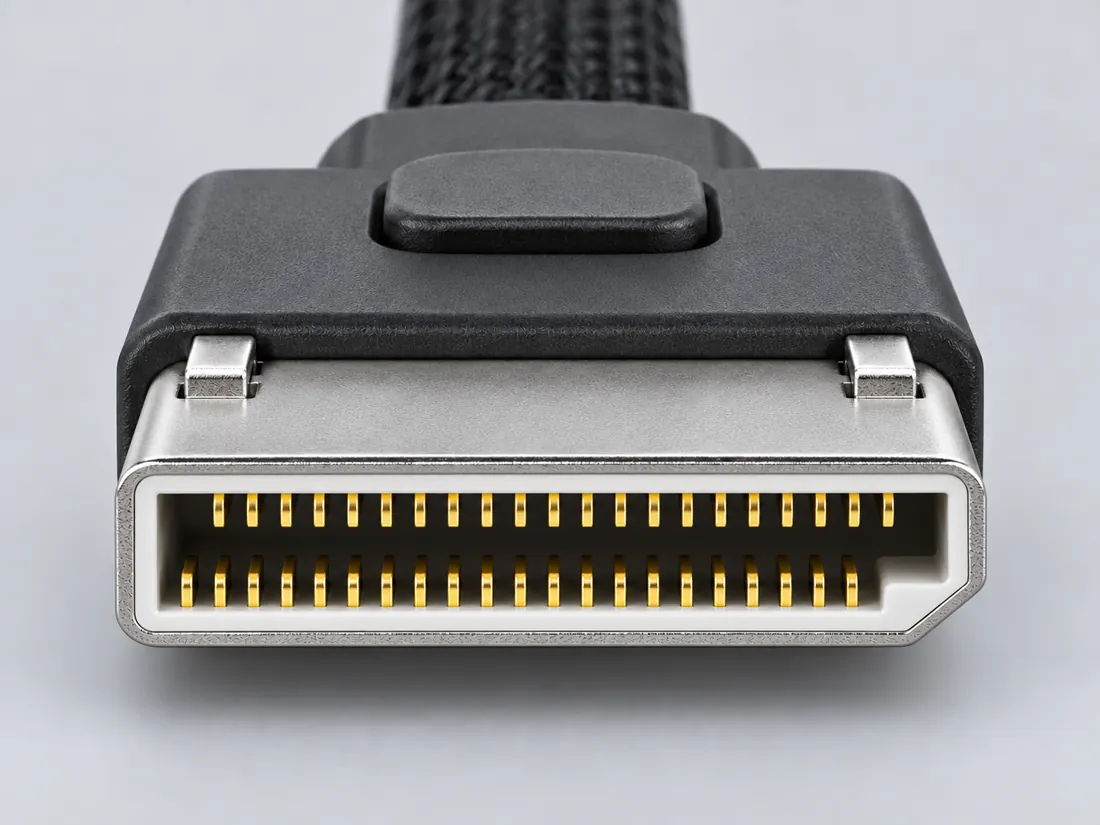

Computer-generated illustration, not a photograph. — P238 · ConnectorMini-SAS HD internal SFF-8643 connector

How they differ

Mini-SAS HD internal SFF-8643 connector Use the smaller high-density internal connector form and SFF-8643 documentation to distinguish it from SFF-8087.
OCuLink SFF-8611 / SFF-8612 connector family Verify the OCuLink/SFF designation on both ends and distinguish it from SlimSAS and Mini-SAS families before selecting a cable.

At a glance

Source-scoped form facts; counts, variants and unknowns are distinct
Field	Mini-SAS HD internal SFF-8643 connector	OCuLink SFF-8611 / SFF-8612 connector family
Type	Connector	Connector
Family	Storage	Storage
Shape	rectangular	rectangular
Nominal contacts	36S241Source-backed nominal position count: 36.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Positions / cavity span	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	Not recordedNo qualified value remains for this contact/body field. Source context is retained in variant_notes; no value inferred from artwork or names.	2S242Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Named series only, not every family part: Molex Nano-Pitch I/O system. Dimensions are family-page configuration example with no exactpart suffix; root should retain that scope and not imply every4/8lane variant has this size.; 12mm mated connector+cable assembly height excluded from standalone geometry. Latch option is not proof of universal mating polarization.
Connector role	socket (G40H3132212HR)S258Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. G40H3132212HR. Documented role: socket. Exact verticalSMT1x1part,36contacts. Tail length is termination geometry, not front-face size.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Key distinction	Mini-SAS HD is a different connector generation/form from legacy Mini-SAS even when both are used for SAS links.	OCuLink identity does not establish PCIe generation, lane count, bifurcation support or device compatibility.

Full evidence ledger and sources ↓

Illustrations are computer-generated with prior AI visual review; independent technical and rights review pending. A comparison is not a compatibility verdict.

This comparison stays within one evidence layer.

All selected records are Connector records. Similar layer does not mean compatible, interchangeable or safe to mate.

Families represented: Storage

The reference ledger

Read the same question across.

2 selected records · 13 fields
No score. No compatibility verdict.

On a narrow screen, scroll the table sideways or open the field-by-field reading view below. Illustrations are not a size comparison.

Comparison of selected field notes; source links accompany each documented specification
What you are comparing	P238 / ConnectorMini-SAS HD internal SFF-8643 connector Identification schematic · not to scale · drawing review pending	P240 / ConnectorOCuLink SFF-8611 / SFF-8612 connector family Identification schematic · not to scale · drawing review pending
Layer	Connector	Connector
Key distinction	Mini-SAS HD is a different connector generation/form from legacy Mini-SAS even when both are used for SAS links.	OCuLink identity does not establish PCIe generation, lane count, bifurcation support or device compatibility.
Nominal contacts	36S241Source-backed nominal position count: 36.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Positions / cavity span	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Populated contacts	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	Not recordedNo qualified value remains for this contact/body field. Source context is retained in variant_notes; no value inferred from artwork or names.	2S242Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Named series only, not every family part: Molex Nano-Pitch I/O system. Dimensions are family-page configuration example with no exactpart suffix; root should retain that scope and not imply every4/8lane variant has this size.; 12mm mated connector+cable assembly height excluded from standalone geometry. Latch option is not proof of universal mating polarization.
Contact pitch	0.75 mm Explicit internal receptacle contact pitch (TE internal Mini-SAS HD series)S937Qualified exact source facts only; counterpart, mounting-acceptance, cable, port, termination and assembly context remains separately labelled in variant_notes. Named TE internal Mini-SAS HD manufacturer series only, not every family part; SFF-8643 internal receptacle/cable system. Page2 is separate from external SFF-8644 page6 and its part variants.	0.5 mm X-direction interstitial contact-grid step, not uniform spacing within a row (Named Molex NanoPitch 173162/171982/171983 families)S989 · S990 · S991Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Named Molex NanoPitch series 173162/171982/171983 only, not every OCuLink part. The 0.50 mm X-direction interstitial contact grid is separate from spacing within a row and from PCB tails.
Dimensions / axis	3.59 mm published tail length (G40H3132212HR)S258Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. G40H3132212HR. Documented role: socket. Exact verticalSMT1x1part,36contacts. Tail length is termination geometry, not front-face size.	5 mm published system connector height; 23 mm published system connector width; 9 mm published system connector depthS242Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Named series only, not every family part: Molex Nano-Pitch I/O system. Dimensions are family-page configuration example with no exactpart suffix; root should retain that scope and not imply every4/8lane variant has this size.; 12mm mated connector+cable assembly height excluded from standalone geometry. Latch option is not proof of universal mating polarization.
Connector role	socket (G40H3132212HR)S258Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. G40H3132212HR. Documented role: socket. Exact verticalSMT1x1part,36contacts. Tail length is termination geometry, not front-face size.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Coupling / latch	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Cable-side passive or active latching optionsS242Not recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations. Named series only, not every family part: Molex Nano-Pitch I/O system. Dimensions are family-page configuration example with no exactpart suffix; root should retain that scope and not imply every4/8lane variant has this size.; 12mm mated connector+cable assembly height excluded from standalone geometry. Latch option is not proof of universal mating polarization.
Keying / polarization	Anti-reverse wall (G40H3132212HR)S258Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. G40H3132212HR. Documented role: socket. Exact verticalSMT1x1part,36contacts. Tail length is termination geometry, not front-face size.	Not recordedPassive/active latch options describe retention, not an actual polarization feature. A mating key remains unestablished.
Documented identification	Internal Mini-SAS HD SFF-8643 connector family.C238A	OCuLink connector-family context for PCIe cabled interconnect applications.C240A
