Side by side

SATA data vs SATA power

SATA data and SATA power are separate connectors with different roles and contact counts. Sharing the SATA name does not make them substitutes.

Computer-generated illustration, not a photograph. — P029 · ConnectorSATA 7-pin data connector

How they differ

SATA 7-pin data connector Look for the narrow, keyed data connection. Read the device service guidance before opening equipment; the atlas provides recognition, not a repair procedure.

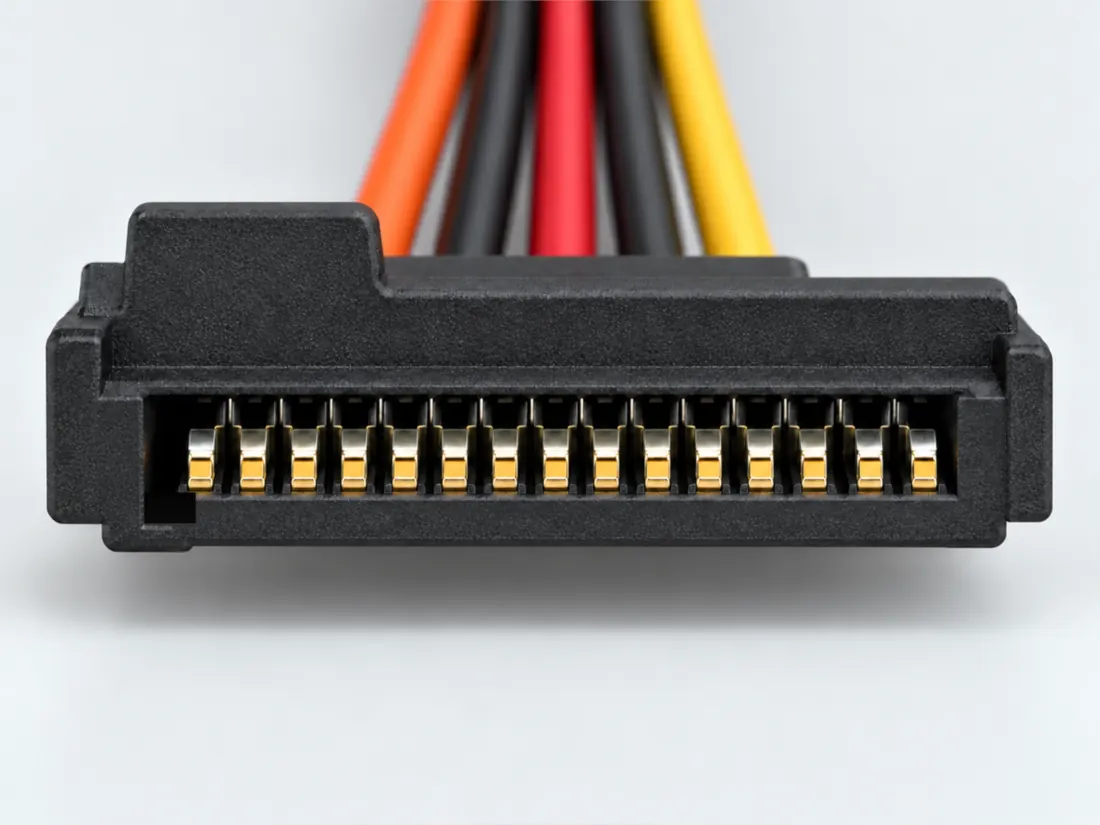

SATA 15-pin power connector Count the wider power section separately from the seven-position data section and read the drive/backplane documentation.

At a glance

Source-scoped form facts; counts, variants and unknowns are distinct
Field	SATA 7-pin data connector	SATA 15-pin power connector
Type	Connector	Connector
Family	Storage	Storage
Shape	keyed	blade
Nominal contacts	7S032 · S193Serial ATA data connector reference; nominal engineering count, not automatically positions, population or a device wiring map. Serial ATA data connector reference	15S200Position count is an identification aid; V36 does not publish the electrical assignment.
Positions / cavity span	7 (Claim C029B)S193Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Named product example only; contact count plus example pitch, excluding full SATA pin assignment and mating tolerances	15 (Claim C194A); 7 (Claim C194B); 15 (Claim C194C)S200 · S583 · S577 · S583Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof. V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.
Contact rows	1 (0678005021)S193Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 0678005021: Seven-circuit Serial ATA PCB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No physical wiring layout is reconstructed from product attributes; manufacturer labels online information limited.	1 (675820000)S910Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 675820000. Documented role: socket. 15positions maximum and5terminal sets per housing. Unloaded housing is not a measured15-contact specimen.; Molex labels limited information; do not replace explicit keying/polarization distinctions with a generic L-key statement.
Connector role	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	socket (675820000)S910Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 675820000. Documented role: socket. 15positions maximum and5terminal sets per housing. Unloaded housing is not a measured15-contact specimen.; Molex labels limited information; do not replace explicit keying/polarization distinctions with a generic L-key statement.
Key distinction	A data connector is not a power connector.	SATA data and SATA power are separate interfaces even when combined in one drive-side assembly.

Full evidence ledger and sources ↓

Illustrations are computer-generated with prior AI visual review; independent technical and rights review pending. A comparison is not a compatibility verdict.

This comparison stays within one evidence layer.

All selected records are Connector records. Similar layer does not mean compatible, interchangeable or safe to mate.

Families represented: Storage

Original recognition plate / Storage

SATA data vs SATA power

Side by side source-bounded representations of SATA 7-pin data connector and SATA 15-pin power connector. Left: Narrow seven-position data family. Right: Wider fifteen-position power family. No pinout, matching size or mating approval. — Drive-facing female cable-plug opening concept; qualitative L-shaped key. Positions are named, not drawn as electrical contacts; sizes and key tolerances are unmeasured. No size comparison or pinout.

Observe

1. Narrow seven-position data family2. Wider fifteen-position power family

Verify before choosing

Both are separately keyed connectors. Confirm drive, cable and power-supply implementation before assembly.

Full visual atlas and sources →Not fabrication art · independent technical review pending

The reference ledger

Read the same question across.

2 selected records · 16 fields
No score. No compatibility verdict.

On a narrow screen, scroll the table sideways or open the field-by-field reading view below. Illustrations are not a size comparison.

Comparison of selected field notes; source links accompany each documented specification
What you are comparing	P029 / ConnectorSATA 7-pin data connector Identification schematic · not to scale · drawing review pending	P194 / ConnectorSATA 15-pin power connector Identification schematic · not to scale · drawing review pending
Layer	Connector	Connector
Key distinction	A data connector is not a power connector.	SATA data and SATA power are separate interfaces even when combined in one drive-side assembly.
Nominal contacts	7S032 · S193Serial ATA data connector reference; nominal engineering count, not automatically positions, population or a device wiring map. Serial ATA data connector reference	15S200Position count is an identification aid; V36 does not publish the electrical assignment.
Positions / cavity span	7 (Claim C029B)S193Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Named product example only; contact count plus example pitch, excluding full SATA pin assignment and mating tolerances	15 (Claim C194A); 7 (Claim C194B); 15 (Claim C194C)S200 · S583 · S577 · S583Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof. V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.
Populated contacts	7 (0678005021)S193Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 0678005021: Seven-circuit Serial ATA PCB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No physical wiring layout is reconstructed from product attributes; manufacturer labels online information limited.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	1 (0678005021)S193Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 0678005021: Seven-circuit Serial ATA PCB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No physical wiring layout is reconstructed from product attributes; manufacturer labels online information limited.	1 (675820000)S910Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 675820000. Documented role: socket. 15positions maximum and5terminal sets per housing. Unloaded housing is not a measured15-contact specimen.; Molex labels limited information; do not replace explicit keying/polarization distinctions with a generic L-key statement.
Contact pitch	1.27 mm Example product pitch (Recorded example component); 1.27 mm Source-described pitch / centerline (Claim C029B)S193Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. example_component; Serial ATA data connector reference Named product example only; contact count plus example pitch, excluding full SATA pin assignment and mating tolerances	1.27 mm mating interface (675820000)S910Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 675820000. Documented role: socket. 15positions maximum and5terminal sets per housing. Unloaded housing is not a measured15-contact specimen.; Molex labels limited information; do not replace explicit keying/polarization distinctions with a generic L-key statement.
Dimensions / axis	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector role	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	socket (675820000)S910Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 675820000. Documented role: socket. 15positions maximum and5terminal sets per housing. Unloaded housing is not a measured15-contact specimen.; Molex labels limited information; do not replace explicit keying/polarization distinctions with a generic L-key statement.
Coupling / latch	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Keying / polarization	manufacturer reports keyed and polarized to mating part (0678005021)S193Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 0678005021: Seven-circuit Serial ATA PCB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No physical wiring layout is reconstructed from product attributes; manufacturer labels online information limited.	Keying to mating part:yes; mating lock:no; polarized-to-mating:no per catalog (675820000)S910Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 675820000. Documented role: socket. 15positions maximum and5terminal sets per housing. Unloaded housing is not a measured15-contact specimen.; Molex labels limited information; do not replace explicit keying/polarization distinctions with a generic L-key statement.
Function covered	SATA data connectorC029A	Not an equivalent field
Contacts	7; no pin assignment providedC029A	Not an equivalent field
Exact-board resource sharing	AC-HES example: populating M.2_2 disables SATA6G_56, not every SATA connector.C029C	Not an equivalent field
Documented identification	Not an equivalent field	15-position Serial ATA power connector form.C194A
Evidence	C029A,C029C,C029D → Independent review pending	C194A,C194B,C194C → Independent review pending

Read field by field — no sideways scrolling

The same selected records, fields, values and source links as the table. Missing fields remain non-equivalent; no values are merged.

Layer

SATA 7-pin data connectorP029 / Connector: Connector
SATA 15-pin power connectorP194 / Connector: Connector

Key distinction

SATA 7-pin data connectorP029 / Connector: A data connector is not a power connector.
SATA 15-pin power connectorP194 / Connector: SATA data and SATA power are separate interfaces even when combined in one drive-side assembly.

Nominal contacts

SATA 7-pin data connectorP029 / Connector: 7S032 · S193Serial ATA data connector reference; nominal engineering count, not automatically positions, population or a device wiring map. Serial ATA data connector reference
SATA 15-pin power connectorP194 / Connector: 15S200Position count is an identification aid; V36 does not publish the electrical assignment.

Positions / cavity span

SATA 7-pin data connectorP029 / Connector: 7 (Claim C029B)S193Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Named product example only; contact count plus example pitch, excluding full SATA pin assignment and mating tolerances
SATA 15-pin power connectorP194 / Connector: 15 (Claim C194A); 7 (Claim C194B); 15 (Claim C194C)S200 · S583 · S577 · S583Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof. V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.

Populated contacts

SATA 7-pin data connectorP029 / Connector: 7 (0678005021)S193Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 0678005021: Seven-circuit Serial ATA PCB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No physical wiring layout is reconstructed from product attributes; manufacturer labels online information limited.
SATA 15-pin power connectorP194 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Contact rows

SATA 7-pin data connectorP029 / Connector: 1 (0678005021)S193Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 0678005021: Seven-circuit Serial ATA PCB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No physical wiring layout is reconstructed from product attributes; manufacturer labels online information limited.
SATA 15-pin power connectorP194 / Connector: 1 (675820000)S910Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 675820000. Documented role: socket. 15positions maximum and5terminal sets per housing. Unloaded housing is not a measured15-contact specimen.; Molex labels limited information; do not replace explicit keying/polarization distinctions with a generic L-key statement.

Contact pitch

SATA 7-pin data connectorP029 / Connector: 1.27 mm Example product pitch (Recorded example component); 1.27 mm Source-described pitch / centerline (Claim C029B)S193Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. example_component; Serial ATA data connector reference Named product example only; contact count plus example pitch, excluding full SATA pin assignment and mating tolerances
SATA 15-pin power connectorP194 / Connector: 1.27 mm mating interface (675820000)S910Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 675820000. Documented role: socket. 15positions maximum and5terminal sets per housing. Unloaded housing is not a measured15-contact specimen.; Molex labels limited information; do not replace explicit keying/polarization distinctions with a generic L-key statement.

Dimensions / axis

SATA 7-pin data connectorP029 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
SATA 15-pin power connectorP194 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Connector role

SATA 7-pin data connectorP029 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
SATA 15-pin power connectorP194 / Connector: socket (675820000)S910Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 675820000. Documented role: socket. 15positions maximum and5terminal sets per housing. Unloaded housing is not a measured15-contact specimen.; Molex labels limited information; do not replace explicit keying/polarization distinctions with a generic L-key statement.

Coupling / latch

SATA 7-pin data connectorP029 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
SATA 15-pin power connectorP194 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Keying / polarization

SATA 7-pin data connectorP029 / Connector: manufacturer reports keyed and polarized to mating part (0678005021)S193Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 0678005021: Seven-circuit Serial ATA PCB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No physical wiring layout is reconstructed from product attributes; manufacturer labels online information limited.
SATA 15-pin power connectorP194 / Connector: Keying to mating part:yes; mating lock:no; polarized-to-mating:no per catalog (675820000)S910Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 675820000. Documented role: socket. 15positions maximum and5terminal sets per housing. Unloaded housing is not a measured15-contact specimen.; Molex labels limited information; do not replace explicit keying/polarization distinctions with a generic L-key statement.

Function covered

SATA 7-pin data connectorP029 / Connector: SATA data connectorC029A
SATA 15-pin power connectorP194 / Connector: Not an equivalent field

Contacts

SATA 7-pin data connectorP029 / Connector: 7; no pin assignment providedC029A
SATA 15-pin power connectorP194 / Connector: Not an equivalent field

Exact-board resource sharing

SATA 7-pin data connectorP029 / Connector: AC-HES example: populating M.2_2 disables SATA6G_56, not every SATA connector.C029C
SATA 15-pin power connectorP194 / Connector: Not an equivalent field

Documented identification

SATA 7-pin data connectorP029 / Connector: Not an equivalent field
SATA 15-pin power connectorP194 / Connector: 15-position Serial ATA power connector form.C194A

Evidence

SATA 7-pin data connectorP029 / Connector: C029A,C029C,C029D →
Independent review pending
SATA 15-pin power connectorP194 / Connector: C194A,C194B,C194C →
Independent review pending

Your next step

Use the distinction in context.

Open the field notes Read source-linked facts and limitations.Compare another pair Start from a common confusion.Check a connection A comparison is not a compatibility verdict.

Continue the distinction

Compare next

Browse every comparison →

Internal SATA data versus eSATAExternal data cabling does not establish the device power arrangement.M.2 card edge vs SATA data connectorM.2 is a keyed module interface, not another name for the seven-pin SATA data connector. An M.2 module may use SATA, but its exact host support and physical connection still differ.SATA, Slimline SATA and Micro SATAWhich physical SATA-family variant does the exact device specify?Mini-SAS HD vs OCuLinkMini-SAS HD and OCuLink are different connector families used in high-speed internal links. Physical resemblance is not evidence of mating or protocol compatibility.Mini-SAS HD vs SlimSASMini-SAS HD and SlimSAS are different internal high-density connector families. Match the named SFF form and system documentation, not the general SAS label.CFast versus CFexpress Type BSATA CFast is not PCIe/NVMe CFexpress. Check the full card and reader names before checking performance.

Adjust this comparison

Add a field note

Evidence behind this page

Scope first. Source second. Approval separate.

6 linked sources · 6 scoped claims · 0 sources with inspection/access flags.

Page scope: Evidence behind the compared records; the editorial comparison still needs separate review.

Assessment 2026-10-22 · earliest scheduled source review 2027-01-03. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 6 source scopes, access limits and dates

S032 · SATA18 data cable

StarTech.com · Manufacturer / product-owner domain · inspected 2026-10-07 · due 2027-01-05

Within inspection window

Scoped support: Seven-contact SATA data connector, not the separate power connector.

Not established / limitations: Exact SATA18 product description only. Seven-contact data receptacles do not establish separate SATA power wiring. No universal rate, length, dimensional or mating guarantee is adopted.

Locator: PDF p. 1: two seven-contact data receptacles; p. 3: Connector(s) table, visually inspected.

S200 · Serial ATA and SAS connector system

Molex · Manufacturer / product-owner domain · inspected 2026-10-05 · due 2027-01-03

Within inspection window

Scoped support: Identifies Serial ATA signal/power, combo, Micro SATA, Slimline SATA, SAS and SlimSAS connector families.

Not established / limitations: Identification/reference scope only. V36 does not convert this source into a universal pinout, fabrication drawing, electrical approval or end-to-end compatibility verdict.

Locator: Product-family overview

S429 · PRIME B550-PLUS AC-HES User’s Manual

ASUS · Manufacturer / product-owner domain · inspected 2026-10-08 · due 2027-01-06

Within inspection window

Scoped support: Selected storage and PCIe slot roles for PRIME B550-PLUS AC-HES only, with CPU, slot population and SATA-sharing conditions.

Not established / limitations: Not the ordinary PRIME B550-PLUS or every B550 motherboard. Selected internal groups only; no current BIOS verification, boot qualification, entire port inventory or hardware test. Manual conditions must not be generalized.

Locator: E18712, First Edition, July 2021; specification summary printed vi–vii and layout 1-2. PDF pages 2, 6, 7 and 12 visually inspected.

S492 · USB3S2SAT3CB USB to SATA adapter datasheet

StarTech.com · Manufacturer / product-owner domain · inspected 2026-10-11 · due 2027-01-09

Within inspection window

Scoped support: Named 2.5-inch SATA adapter and explicit 3.5-inch drive exclusion. SAS support is not established.

Not established / limitations: Named example only. No universal compatibility or publication approval. Raw-byte acquisition status is recorded separately.

Locator: PDF page 2: drive-size exclusion and compatibility paragraphs; visually inspected.

S577 · Intel 336521 2.01: historic peripheral power connector scope

Intel · Manufacturer / product-owner domain · inspected 2026-10-13 · due 2027-01-11

Within inspection window

Scoped support: Dated ATX guide identifies TE example for legacy peripheral power; this is not universal current PSU-cable approval. Newer-version banner visible.

Not established / limitations: Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.

Locator: ATX Version 3.0 Multi Rail, document 336521 version 2.01 dated 2023-02-01; Peripheral Connectors; names AMP 1-480424-0 or equivalent.

S583 · Intel 336521 2.01: Serial ATA PSU connector requirement

Intel · Manufacturer / product-owner domain · inspected 2026-10-13 · due 2027-01-11

Within inspection window

Scoped support: Power-supply design-guide context, not an endorsement of SATA device data wiring, mechanical equivalence, or cables unknown by origin.

Not established / limitations: Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.

Locator: ATX Multi Rail 336521 version 2.01, dated 2023-02-01, Serial ATA Connectors - REQUIRED, dated power-supply design guidance.

Trace 6 claims to their source records

C029A · P029

SATA data cables use a seven-contact connector distinct from the separate power connection.

Claim scope: Consumer identification / documented standard or product class only

Source links: S032 · Evidence trail → (private workspace)

C029C · P029

The PRIME B550-PLUS AC-HES manual states that populating M.2_2 disables the SATA6G_56 ports. Its condition is not limited in that note to installing a SATA-mode M.2 SSD.

Claim scope: E18712 printed vii, exact board, M.2_2 and SATA6G_56 labels; not a rule for other boards or other slots.

Source links: S429 · Evidence trail → (private workspace)

C029D · P029

StarTech USB3S2SAT3CB supports 2.5-inch SATA SSD/HDD use and explicitly excludes 3.5-inch hard drives.

Claim scope: Named USB-to-SATA adapter. Do not generalize this product limitation to every powered SATA dock or infer SAS support.

Source links: S492 · Evidence trail → (private workspace)

C194A · P194

Molex identifies Serial ATA power and signal connector families; the drive-side power section is the 15-position SATA power form.

Claim scope: V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof.

Source links: S200 · Evidence trail → (private workspace)

C194B · P194

Intel ATX 336521 version 2.01 separately documents required Serial ATA power-supply connectors within its dated PSU design-guide scope; a SATA power connection must not be identified by a 7-position data-only lead.

Claim scope: V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.

Source links: S583 · Evidence trail → (private workspace)

C194C · P194

An ATX-era peripheral four-contact housing and a SATA 15-position power connector are documented as different identity families by the same historical design guide; similar PSU origin does not make their termination or mating compatible.

Claim scope: V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.

Source links: S577 · S583 · Evidence trail → (private workspace)
