P119 · ConnectorCompactFlash Type I card interface≠
P120 · ConnectorCFast card interface
How they differ

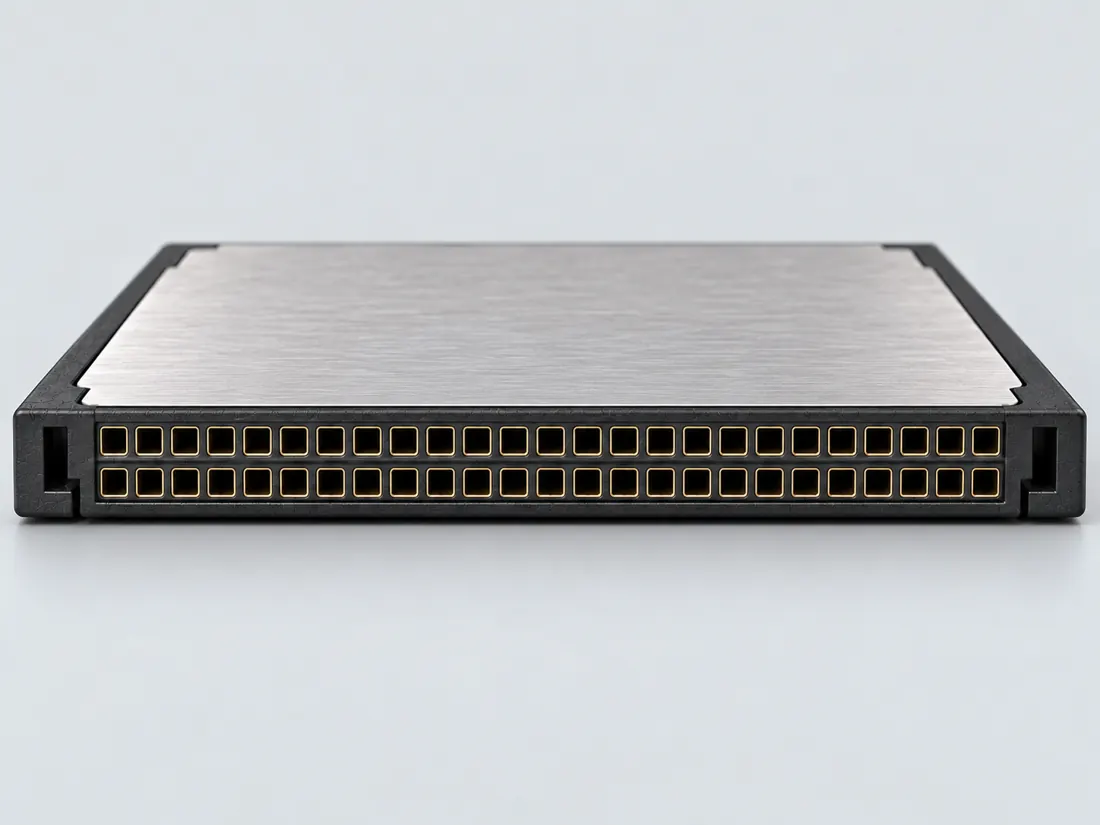

CompactFlash Type I card interface Read the full card label, including Type I where documented, and compare the recessed contact end with the reader specification.

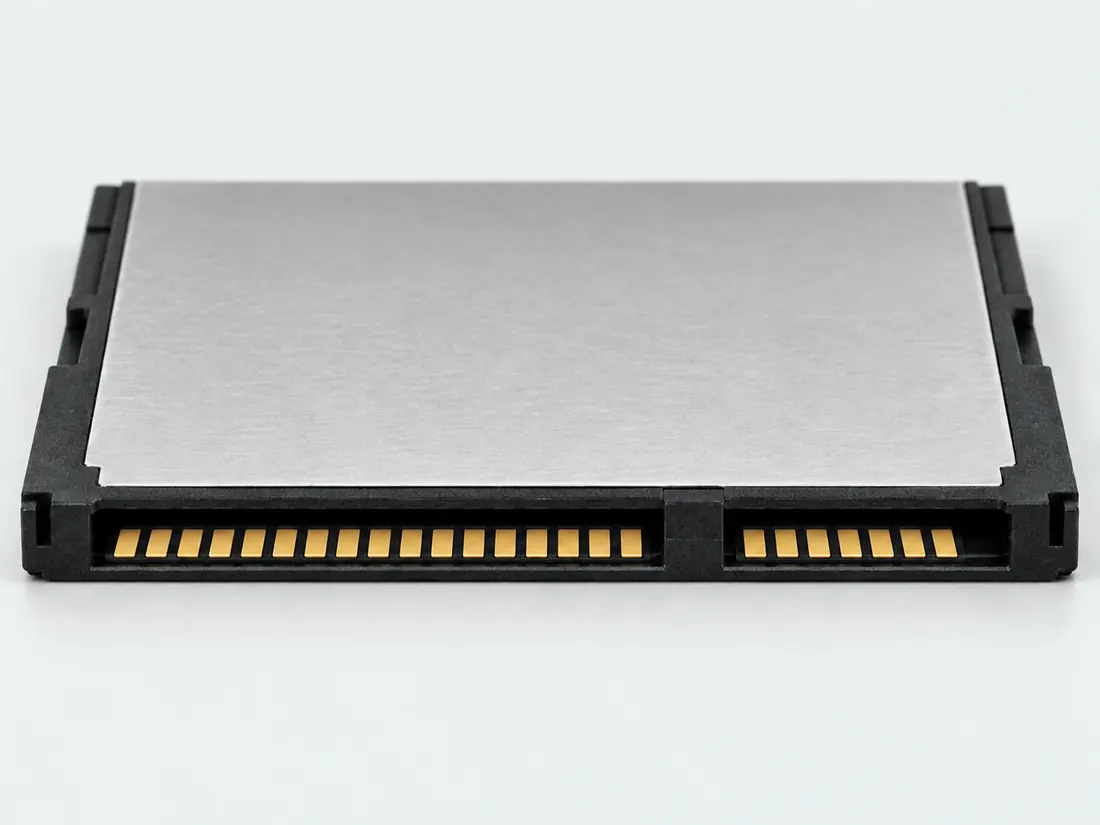

CFast card interface Read CFast on the card and confirm the same family in the camera and reader manuals. Avoid identifying a slot by width alone.
At a glance
Source-scoped form facts; counts, variants and unknowns are distinct
Field
CompactFlash Type I card interface
CFast card interface
Type
Connector
Connector
Family
Storage
Storage
Shape
card edge
card edge
Nominal contacts
50S847Fifty-contact interface; recessed contacts may not be visible without a manufacturer illustration.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Positions / cavity span
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
1 (3M N7G24-A0B2RA-00-0HT)S985Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact 3M N7G24-A0B2RA-00-0HT CFast host plug for Type I/II cards; explicit Number of Contact Rows property only. Quantity context: Manufacturer Number of Contact Rows.
Connector role
card (TS32GCF800)S920Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. TS32GCF800. Documented role: card. Actual full official2page PDF captured and hashed. Dimensions tuple is explicit, but table does not name width/length axes.; CFA legacy mechanical specifications require non-member purchase; no purchase attempted and no extra pitch/key geometry invented.
card (TS32GCFX722I)S921Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. TS32GCFX722I. Documented role: card. Exact CFX722I card family, not CFexpress or CompactFlash despite similar outer envelope.; Current full official PDF captured; filename202404 is not asserted as an internal publication date. No contact pitch inferred.
Key distinction
The word Compact does not identify a card interface.
Illustrations are computer-generated with prior AI visual review; independent technical and rights review pending. A comparison is not a compatibility verdict.
This comparison stays within one evidence layer.
All selected records are Connector records. Similar layer does not mean compatible, interchangeable or safe to mate.
Families represented: Storage
Application comparison / concept only
CompactFlash is not a catch-all name
Do not shorten away the interface distinction.
A CompactFlash reader listing alone does not establish CFast support. Concept only; not physical interface geometry.
