Side by side

DVI-A, DVI-I single-link and DVI-D

The analog/digital distinction comes before an adapter choice.

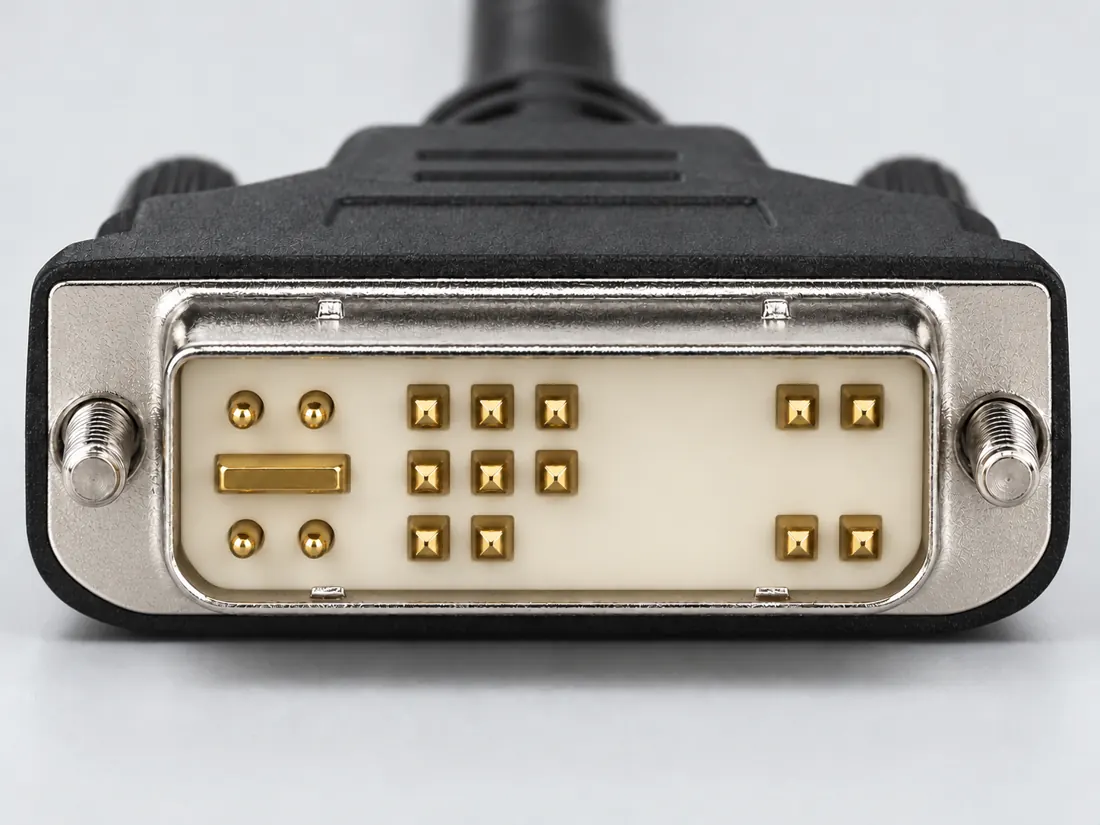

Computer-generated illustration, not a photograph. — P117 · ConnectorDVI-A connector

How they differ

DVI-A connector Read the DVI-A label and compare the documented arrangement. Do not infer signal conversion from a mechanical adapter.

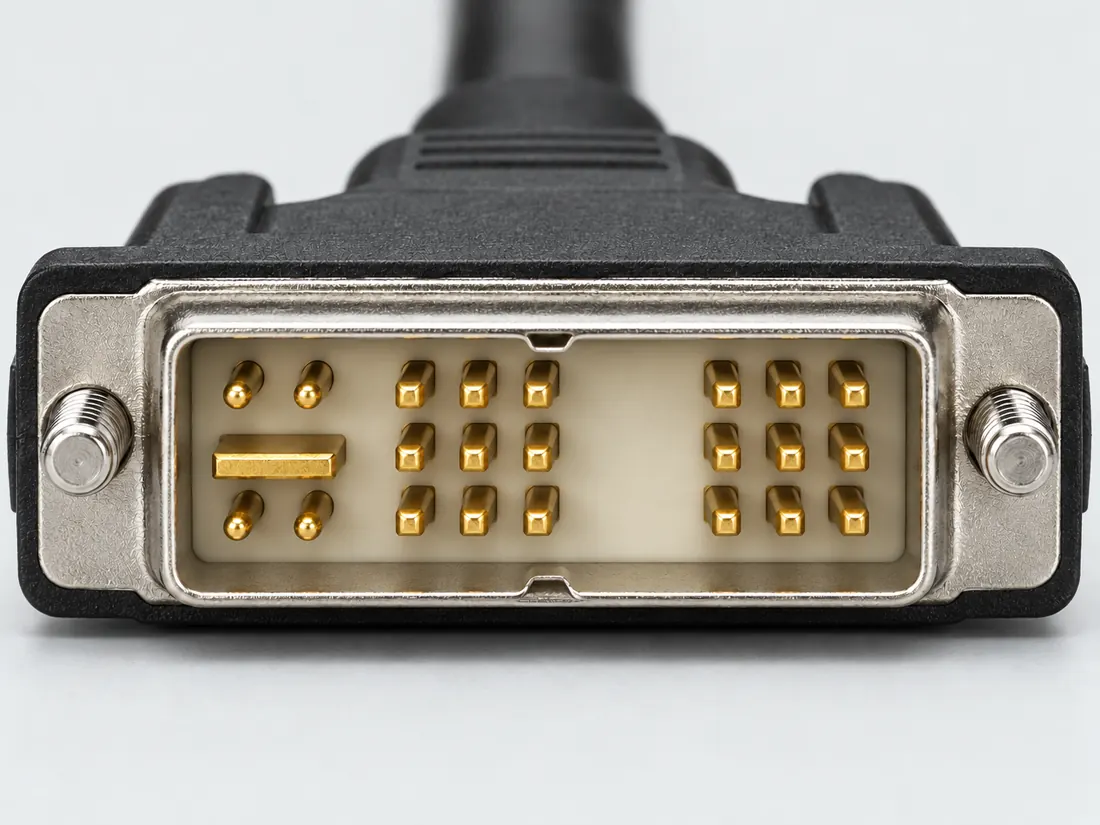

DVI-I single-link connector Compare the documented DVI-I single-link layout, including the blade area. The drawing here is not a pin assignment.

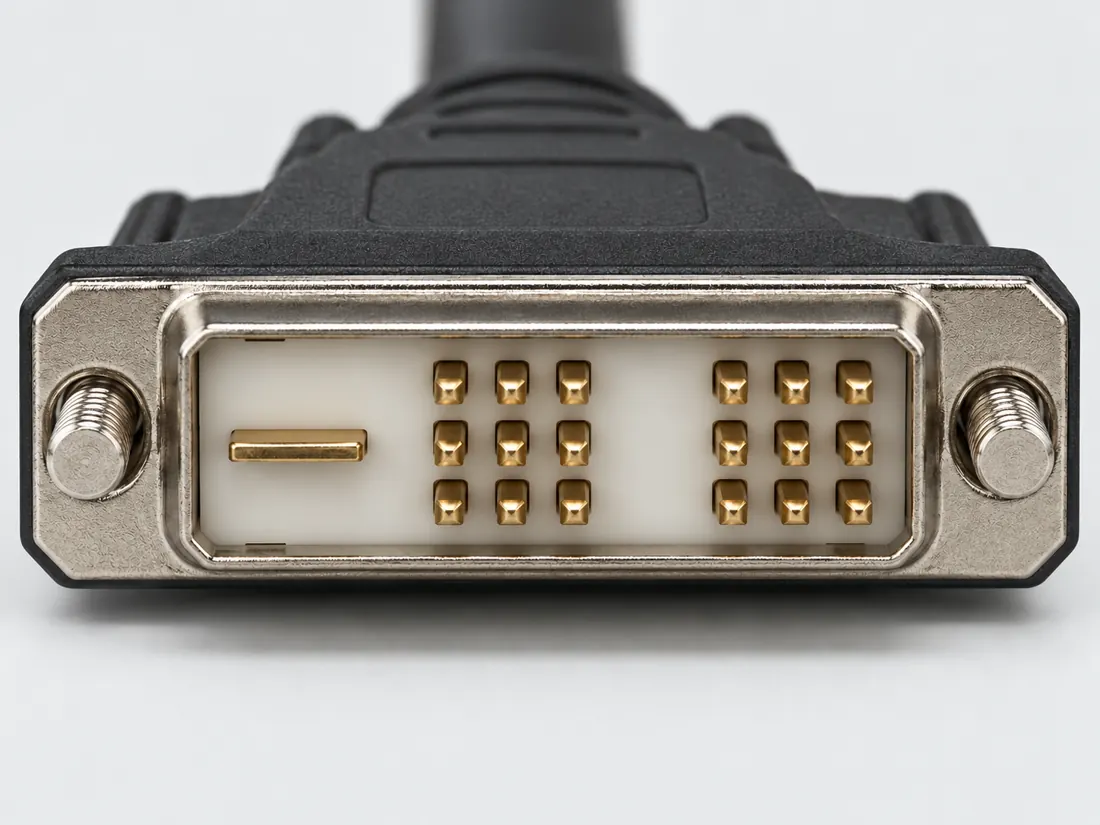

DVI-D single-link connector Inspect the contact pattern rather than the outer housing alone. The schematic is not a wiring diagram and deliberately has no pin numbers.

At a glance

Source-scoped form facts; counts, variants and unknowns are distinct
Field	DVI-A connector	DVI-I single-link connector	DVI-D single-link connector
Type	Connector	Connector	Connector
Family	Video	Video	Video
Shape	d sub	d sub	d sub
Nominal contacts	17S093Source naming counts the blade in the 17-pin total; compare the manufacturer layout.	23S093Source naming counts the blade in the 23-pin total; do not treat the drawing as a pinout.	18S414 · S411 · S412Numbered grid positions only; flat blade excluded from this count.; nominal engineering count, not automatically positions, population or a device wiring map. Numbered grid positions only; flat blade excluded from this count.
Positions / cavity span	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	23 (Claim C116C)S415Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Exact archived component example; not a measured universal connector dimension or electrical capability of an unknown device.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector role	plug (DVIVGAMM1M)S934Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. DVIVGAMM1M. Documented role: plug. Productwidth41mm andheight15mm describe the cable assembly without endpoint-specific axes,so they are not counted as connector dimensions.; No active digital-to-analog conversion. Nickel plating in table and gold-contact wording in features retained as different surfaces without forcing a single finish.	socket (DIS-23PFFP-SL8001)S933Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. DIS-23PFFP-SL8001. Documented role: socket. Manufacturer malformed4inch-40UNC text denotes its published nut-thread vocabulary; no thread dimension derived.; No pitch,contact-row count or outer dimensions transferred from a DVI-I dual-link part.; CatalogPDF access403; exact lineup page successfully read. Cable variants have different -20to80C range; not mixed with receptacle.	plug (DDS-19AMMM-SL7A01)S936Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. DDS-19AMMM-SL7A01. Documented role: plug. 1m cable length,7.3mm cableOD and28AWG wire are not connector envelope or contact pitch.; Full exact primary part page read. Linked2D drawing access failed; contact rows and dimensional axes remain unknown.; Part-specific values differ from older generic LTW brochure40VAC. Do not force brochure voltage onto this exact part.
Key distinction	A DVI-shaped plug does not promise digital video.	Inspect the arrangement; verify the implemented signal.	The gap in the contact grid matters.

Full evidence ledger and sources ↓

Illustrations are computer-generated with prior AI visual review; independent technical and rights review pending. A comparison is not a compatibility verdict.

This comparison stays within one evidence layer.

All selected records are Connector records. Similar layer does not mean compatible, interchangeable or safe to mate.

Families represented: Video

The reference ledger

Read the same question across.

3 selected records · 17 fields
No score. No compatibility verdict.

On a narrow screen, scroll the table sideways or open the field-by-field reading view below. Illustrations are not a size comparison.

Comparison of selected field notes; source links accompany each documented specification
What you are comparing	P117 / ConnectorDVI-A connector Identification schematic · not to scale · drawing review pending	P116 / ConnectorDVI-I single-link connector Identification schematic · not to scale · drawing review pending	P013 / ConnectorDVI-D single-link connector Identification schematic · not to scale · drawing review pending
Layer	Connector	Connector	Connector
Key distinction	A DVI-shaped plug does not promise digital video.	Inspect the arrangement; verify the implemented signal.	The gap in the contact grid matters.
Nominal contacts	17S093Source naming counts the blade in the 17-pin total; compare the manufacturer layout.	23S093Source naming counts the blade in the 23-pin total; do not treat the drawing as a pinout.	18S414 · S411 · S412Numbered grid positions only; flat blade excluded from this count.; nominal engineering count, not automatically positions, population or a device wiring map. Numbered grid positions only; flat blade excluded from this count.
Positions / cavity span	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	23 (Claim C116C)S415Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Exact archived component example; not a measured universal connector dimension or electrical capability of an unknown device.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Populated contacts	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact pitch	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Dimensions / axis	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector role	plug (DVIVGAMM1M)S934Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. DVIVGAMM1M. Documented role: plug. Productwidth41mm andheight15mm describe the cable assembly without endpoint-specific axes,so they are not counted as connector dimensions.; No active digital-to-analog conversion. Nickel plating in table and gold-contact wording in features retained as different surfaces without forcing a single finish.	socket (DIS-23PFFP-SL8001)S933Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. DIS-23PFFP-SL8001. Documented role: socket. Manufacturer malformed4inch-40UNC text denotes its published nut-thread vocabulary; no thread dimension derived.; No pitch,contact-row count or outer dimensions transferred from a DVI-I dual-link part.; CatalogPDF access403; exact lineup page successfully read. Cable variants have different -20to80C range; not mixed with receptacle.	plug (DDS-19AMMM-SL7A01)S936Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. DDS-19AMMM-SL7A01. Documented role: plug. 1m cable length,7.3mm cableOD and28AWG wire are not connector envelope or contact pitch.; Full exact primary part page read. Linked2D drawing access failed; contact rows and dimensional axes remain unknown.; Part-specific values differ from older generic LTW brochure40VAC. Do not force brochure voltage onto this exact part.
Coupling / latch	Moulded cable ends with strain relief; exact DVI-A male to VGA male assembly (DVIVGAMM1M)S934Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. DVIVGAMM1M. Documented role: plug. Productwidth41mm andheight15mm describe the cable assembly without endpoint-specific axes,so they are not counted as connector dimensions.; No active digital-to-analog conversion. Nickel plating in table and gold-contact wording in features retained as different surfaces without forcing a single finish.	Screw thread retention; front-fastened PCB180degree receptacle; manufacturer labels4inch-40UNC nut thread (DIS-23PFFP-SL8001)S933Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. DIS-23PFFP-SL8001. Documented role: socket. Manufacturer malformed4inch-40UNC text denotes its published nut-thread vocabulary; no thread dimension derived.; No pitch,contact-row count or outer dimensions transferred from a DVI-I dual-link part.; CatalogPDF access403; exact lineup page successfully read. Cable variants have different -20to80C range; not mixed with receptacle.	Screw-thread retention; straight overmoulded male cable connector (DDS-19AMMM-SL7A01)S936Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. DDS-19AMMM-SL7A01. Documented role: plug. 1m cable length,7.3mm cableOD and28AWG wire are not connector envelope or contact pitch.; Full exact primary part page read. Linked2D drawing access failed; contact rows and dimensional axes remain unknown.; Part-specific values differ from older generic LTW brochure40VAC. Do not force brochure voltage onto this exact part.
Keying / polarization	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Documented identification	StarTech lists DVI-A as a 17-pin analog-only form.C117A	StarTech lists DVI-I single-link as a 23-pin connector form.C116A	Not an equivalent field
Important distinction	DVI-D is a digital-only type, while DVI-I has a different integrated role.C117B	DVI-I can accommodate analog and digital signals, but actual device support must be checked.C116B	Not an equivalent field
Engineering evidence	Not an equivalent field	Named-source DVI reference; exact device and cable support remain separateC116C · C116D	Named-source DVI reference; exact device and cable support remain separateC013B · C013C
Signal family	Not an equivalent field	Not an equivalent field	Digital DVI; not analog VGAC013A
Contacts	Not an equivalent field	Not an equivalent field	Single-link layout; confirm exact productC013A
Evidence	C117A,C117B,C884A → Independent review pending	C116A,C116B,C116C,C116D → Independent review pending	C013A,C013B,C013C → Independent review pending

Read field by field — no sideways scrolling

The same selected records, fields, values and source links as the table. Missing fields remain non-equivalent; no values are merged.

Layer

DVI-A connectorP117 / Connector: Connector
DVI-I single-link connectorP116 / Connector: Connector
DVI-D single-link connectorP013 / Connector: Connector

Key distinction

DVI-A connectorP117 / Connector: A DVI-shaped plug does not promise digital video.
DVI-I single-link connectorP116 / Connector: Inspect the arrangement; verify the implemented signal.
DVI-D single-link connectorP013 / Connector: The gap in the contact grid matters.

Nominal contacts

DVI-A connectorP117 / Connector: 17S093Source naming counts the blade in the 17-pin total; compare the manufacturer layout.
DVI-I single-link connectorP116 / Connector: 23S093Source naming counts the blade in the 23-pin total; do not treat the drawing as a pinout.
DVI-D single-link connectorP013 / Connector: 18S414 · S411 · S412Numbered grid positions only; flat blade excluded from this count.; nominal engineering count, not automatically positions, population or a device wiring map. Numbered grid positions only; flat blade excluded from this count.

Positions / cavity span

DVI-A connectorP117 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
DVI-I single-link connectorP116 / Connector: 23 (Claim C116C)S415Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Exact archived component example; not a measured universal connector dimension or electrical capability of an unknown device.
DVI-D single-link connectorP013 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Populated contacts

DVI-A connectorP117 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
DVI-I single-link connectorP116 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
DVI-D single-link connectorP013 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Contact rows

DVI-A connectorP117 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
DVI-I single-link connectorP116 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
DVI-D single-link connectorP013 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Contact pitch

DVI-A connectorP117 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
DVI-I single-link connectorP116 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
DVI-D single-link connectorP013 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Dimensions / axis

DVI-A connectorP117 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
DVI-I single-link connectorP116 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
DVI-D single-link connectorP013 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Connector role

DVI-A connectorP117 / Connector: plug (DVIVGAMM1M)S934Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. DVIVGAMM1M. Documented role: plug. Productwidth41mm andheight15mm describe the cable assembly without endpoint-specific axes,so they are not counted as connector dimensions.; No active digital-to-analog conversion. Nickel plating in table and gold-contact wording in features retained as different surfaces without forcing a single finish.
DVI-I single-link connectorP116 / Connector: socket (DIS-23PFFP-SL8001)S933Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. DIS-23PFFP-SL8001. Documented role: socket. Manufacturer malformed4inch-40UNC text denotes its published nut-thread vocabulary; no thread dimension derived.; No pitch,contact-row count or outer dimensions transferred from a DVI-I dual-link part.; CatalogPDF access403; exact lineup page successfully read. Cable variants have different -20to80C range; not mixed with receptacle.
DVI-D single-link connectorP013 / Connector: plug (DDS-19AMMM-SL7A01)S936Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. DDS-19AMMM-SL7A01. Documented role: plug. 1m cable length,7.3mm cableOD and28AWG wire are not connector envelope or contact pitch.; Full exact primary part page read. Linked2D drawing access failed; contact rows and dimensional axes remain unknown.; Part-specific values differ from older generic LTW brochure40VAC. Do not force brochure voltage onto this exact part.

Coupling / latch

DVI-A connectorP117 / Connector: Moulded cable ends with strain relief; exact DVI-A male to VGA male assembly (DVIVGAMM1M)S934Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. DVIVGAMM1M. Documented role: plug. Productwidth41mm andheight15mm describe the cable assembly without endpoint-specific axes,so they are not counted as connector dimensions.; No active digital-to-analog conversion. Nickel plating in table and gold-contact wording in features retained as different surfaces without forcing a single finish.
DVI-I single-link connectorP116 / Connector: Screw thread retention; front-fastened PCB180degree receptacle; manufacturer labels4inch-40UNC nut thread (DIS-23PFFP-SL8001)S933Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. DIS-23PFFP-SL8001. Documented role: socket. Manufacturer malformed4inch-40UNC text denotes its published nut-thread vocabulary; no thread dimension derived.; No pitch,contact-row count or outer dimensions transferred from a DVI-I dual-link part.; CatalogPDF access403; exact lineup page successfully read. Cable variants have different -20to80C range; not mixed with receptacle.
DVI-D single-link connectorP013 / Connector: Screw-thread retention; straight overmoulded male cable connector (DDS-19AMMM-SL7A01)S936Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. DDS-19AMMM-SL7A01. Documented role: plug. 1m cable length,7.3mm cableOD and28AWG wire are not connector envelope or contact pitch.; Full exact primary part page read. Linked2D drawing access failed; contact rows and dimensional axes remain unknown.; Part-specific values differ from older generic LTW brochure40VAC. Do not force brochure voltage onto this exact part.

Keying / polarization

DVI-A connectorP117 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
DVI-I single-link connectorP116 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
DVI-D single-link connectorP013 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Documented identification

DVI-A connectorP117 / Connector: StarTech lists DVI-A as a 17-pin analog-only form.C117A
DVI-I single-link connectorP116 / Connector: StarTech lists DVI-I single-link as a 23-pin connector form.C116A
DVI-D single-link connectorP013 / Connector: Not an equivalent field

Important distinction

DVI-A connectorP117 / Connector: DVI-D is a digital-only type, while DVI-I has a different integrated role.C117B
DVI-I single-link connectorP116 / Connector: DVI-I can accommodate analog and digital signals, but actual device support must be checked.C116B
DVI-D single-link connectorP013 / Connector: Not an equivalent field

Engineering evidence

DVI-A connectorP117 / Connector: Not an equivalent field
DVI-I single-link connectorP116 / Connector: Named-source DVI reference; exact device and cable support remain separateC116C · C116D
DVI-D single-link connectorP013 / Connector: Named-source DVI reference; exact device and cable support remain separateC013B · C013C

Signal family

DVI-A connectorP117 / Connector: Not an equivalent field
DVI-I single-link connectorP116 / Connector: Not an equivalent field
DVI-D single-link connectorP013 / Connector: Digital DVI; not analog VGAC013A

Contacts

DVI-A connectorP117 / Connector: Not an equivalent field
DVI-I single-link connectorP116 / Connector: Not an equivalent field
DVI-D single-link connectorP013 / Connector: Single-link layout; confirm exact productC013A

Evidence

DVI-A connectorP117 / Connector: C117A,C117B,C884A →
Independent review pending
DVI-I single-link connectorP116 / Connector: C116A,C116B,C116C,C116D →
Independent review pending
DVI-D single-link connectorP013 / Connector: C013A,C013B,C013C →
Independent review pending

Your next step

Use the distinction in context.

Open the field notes Read source-linked facts and limitations.Compare another pair Start from a common confusion.Check a connection A comparison is not a compatibility verdict.

Continue the distinction

Compare next

Browse every comparison →

DVI-D single-link vs DVI-D dual-linkBoth are DVI-D forms, but their contact patterns differ. Inspect the complete pin field instead of relying on the DVI label alone.DisplayPort connector vs DisplayPort 2.1The full-size DisplayPort connector does not identify the implemented DisplayPort generation, link rate or optional features.DisplayPort vs Mini DisplayPortFull-size DisplayPort and Mini DisplayPort are different physical forms. Mini DisplayPort shape also appeared on Thunderbolt 1/2 products, so function still needs device evidence.DVI-D dual-link vs DVI-I dual-linkDVI-D and DVI-I use related shells but have different contact arrangements. The analog-contact area is a key physical distinction.HDMI connector vs HDMI 2.1HDMI Type-A describes a connector form; HDMI 2.1 describes a technology family. The connector shape alone cannot establish the implemented HDMI feature set.HDMI Type-A vs DisplayPort connectorHDMI and DisplayPort are different connector families. Choose the physical form first, then verify the device capabilities and direction separately.

Resolve the DVI question behind this comparison

Contact count, connector loading and implemented signal support are different evidence questions.

Counting conventionsFull grid, actual implementationAdapter requirementsRead the source view

Adjust this comparison

Add a field note

Evidence behind this page

Scope first. Source second. Approval separate.

7 linked sources · 10 scoped claims · 0 sources with inspection/access flags.

Page scope: Evidence behind the compared records; the editorial comparison still needs separate review.

Assessment 2026-10-22 · earliest scheduled source review 2027-01-01. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 7 source scopes, access limits and dates

S093 · DVI identification FAQ in DVIVGAMF documentation

StarTech.com · Manufacturer / product-owner domain · inspected 2026-10-03 · due 2027-01-01

Within inspection window

Scoped support: DVI-I single-link is listed as 23-pin; DVI-A as 17-pin; digital/analog roles differ.

Not established / limitations: The adapter-specific product claims and typical resolution examples are not generalized to all DVI equipment.

Locator: How can I identify which DVI connector type I have or need?

S411 · Digital Visual Interface, Revision 1.0 (02 April 1999)

Digital Display Working Group (DDWG) · Unclassified publisher domain · inspected 2026-10-07 · due 2027-01-05

Within inspection window

Scoped support: Primary DDWG specification authored in 1999, read from an explicitly third-party document mirror. Digital-only and combined assignments, interface grouping and numbered receptacle/plug views.

Not established / limitations: Mirror hosting is not an official live DDWG publication channel. No independent authentication, fabrication approval, current product conformance, universal PCB layout or timing guarantee.

Locator: Printed/PDF pp. 43–47; Tables 5-1 and 5-2; Figures 5-1, 5-3 and 5-5.

S412 · MicroCross DVI Connector System — signal interface and cable assemblies

Molex · Unclassified publisher domain · inspected 2026-10-07 · due 2027-01-05

Within inspection window

Scoped support: Primary manufacturer brochure hosted by Mouser. Numbered DVI-I front view and named cable-family distinctions.

Not established / limitations: Archived brochure, not evidence of current availability. Plug contacts may be partially loaded for a signal set. Do not transfer full receptacle assignments to unspecified cables or PCB terminals.

Locator: PDF p. 2: DVI-I Receptacle Connector Front View and signal roles; p. 3: single/dual-link and analog cable families; partially loaded plug note.

S414 · Video Display and Multiple Video Display General Information — DVI questions

Dell · Manufacturer / product-owner domain · inspected 2026-10-07 · due 2027-01-05

Within inspection window

Scoped support: Bounded use: 18 versus 24 grid positions; source/cable/display requirements; named E-Port single-link wiring despite accepting dual-link-shaped cables; active versus passive circuitry.

Not established / limitations: General article includes simplified descriptions and a broad conversion chart; those are not adopted as universal compatibility rules. E-Port wording is not an inventory of every dock revision.

Locator: Article 000052929, version 13; modified 17 April 2026. First FAQ on dual link, E-Port dock note, and active/passive adapter definitions.

S415 · MicroCross DVI 0743232031 generated part sheet (26 June 2015)

Molex · Unclassified publisher domain · inspected 2026-10-07 · due 2027-01-05

Within inspection window

Scoped support: Exact archived digital/analog single-link component example with 23 circuits; corroborates the represented DVI-I single-link contact group.

Not established / limitations: Distributor-hosted primary manufacturer sheet. Not a current lifecycle statement, assembly drawing, universal mating tolerance or evidence of analog output from any chosen computer.

Locator: PDF p. 1: part number, digital/analog single-link description, 23 circuits.

S843 · 18/24/24+5 pin DVI-D, DVI-I, Single/Dual Link Female

Hatteland Technology · Unclassified publisher domain · inspected 2026-10-21 · due 2027-01-19

Within inspection window

Scoped support: The manufacturer distinguishes18/24 digital-interface contacts from24+5 integrated analog/digital arrangements and identifies analog-only additions. Its pictured dual-link connector does not guarantee that a named product implements dual-link.

Not established / limitations: Named manufacturer interface sheet; not current normative conformance or universal device capability. C013A also retains the existing DDWG specification S411. No new electrical contact assignments, dimensions or fabrication map imported. Sheet's pin21 color wording and resolution-specific statement are not generalized or reproduced.

Locator: Page1, title, user-POV note, DVI-I-only C1-C4 note and analog versus digital signal labels.

S884 · Goobay 69971 DVI-A/VGA Monitor Adapter product drawing

Wentronic GmbH / Goobay · Unclassified publisher domain · inspected 2026-10-22 · due 2027-01-20

Within inspection window

Scoped support: Only explicitly listed continuity mappings of named 69971 DVI-A male12+5 to VGA female15 adapter.

Not established / limitations: Eleven numberedDVI designators plus SHIELD are mapped; remaining advertised 12+5 positions are not established as wired/NC/absent. No generic DVI-A population, voltage, power capability, video capability or physical contact geometry inferred.

Locator: Sheet 1, upper-left Pinbelegung/Pin Out DVI→VGA wiring table; upper-middle numberedDVI outline; lower title block

Trace 10 claims to their source records

C013A · P013

DVI-D single-link uses a digital-only contact layout distinct from dual-link and DVI-I.

Claim scope: Consumer identification / documented standard or product class only

Source links: S411 · S843 · Evidence trail → (private workspace)

C013B · P013

Dell distinguishes 18 grid contacts in single-link DVI cables from 24 in dual-link cables. The flat blade is a separate visual feature and is not included in this numbered-grid count.

Claim scope: Grid-count convention; not the total of all visible metal, connected conductors or PCB terminals.

Source links: S414 · S411 · Evidence trail → (private workspace)

C013C · P013

Molex distinguishes digital single-link, digital dual-link and analog cable families and states that plug contacts may be partially loaded according to the signal set.

Claim scope: Manufacturer cable-family scope. No complete single-link terminal assignment is supplied here.

Source links: S412 · Evidence trail → (private workspace)

C116A · P116

StarTech lists DVI-I single-link as a 23-pin connector form.

Claim scope: Identification and explicitly scoped documentation only; not an end-to-end connection approval

Source links: S093 · Evidence trail → (private workspace)

C116B · P116

DVI-I can accommodate analog and digital signals, but actual device support must be checked.

Claim scope: Identification and explicitly scoped documentation only; not an end-to-end connection approval

Source links: S093 · Evidence trail → (private workspace)

C116C · P116

Molex’s 26 June 2015 sheet identifies 0743232031 as a digital/analog single-link DVI component with 23 circuits.

Claim scope: Exact archived component example; not a measured universal connector dimension or electrical capability of an unknown device.

Source links: S415 · Evidence trail → (private workspace)

C116D · P116

Molex separately illustrates a digital/analog single-link cable family and notes that contact loading depends on the signal set. A single-link combined form is distinct from digital-only DVI and from a fully populated dual-link interface.

Claim scope: Cable-family distinction and partial-loading caveat; no inferred assembly pin mapping.

Source links: S412 · Evidence trail → (private workspace)

C117A · P117

StarTech lists DVI-A as a 17-pin analog-only form.

Claim scope: Identification and explicitly scoped documentation only; not an end-to-end connection approval

Source links: S093 · Evidence trail → (private workspace)

C117B · P117

DVI-D is a digital-only type, while DVI-I has a different integrated role.

Claim scope: Identification and explicitly scoped documentation only; not an end-to-end connection approval

Source links: S093 · Evidence trail → (private workspace)

C884A · P117

Goobay 69971 DVI-A male to VGA female adapter, listedDVI-side continuity: exact numbered manufacturer contact normalization. Device-specific source-backed research only; see per-contact source and scope.

Claim scope: Only the named implementation and explicit numbered rows; no universal family claim, independent confirmation, hardware verification or fabrication approval.

Source links: S884 · Evidence trail → (private workspace)

Prepare this page for review →Read the evidence method →

Recorded evidence only. An inspection date, publisher label, source link or generated packet is not independent technical review, hardware testing, fabrication approval or a compatibility verdict.
