XQD card interface

XQD is a named memory-card family with a form factor shared by CFexpress Type B; supported formats still require model documentation.

Also called XQD memory card XQD G series

A shared form factor does not approve a replacement card.

Look for

Read the XQD marking and the exact reader and camera descriptions. Keep model-specific firmware notes attached to that model.

Claim inspection dates: 2026-10-03, 2026-10-11, 2026-10-22 · Independent review pending

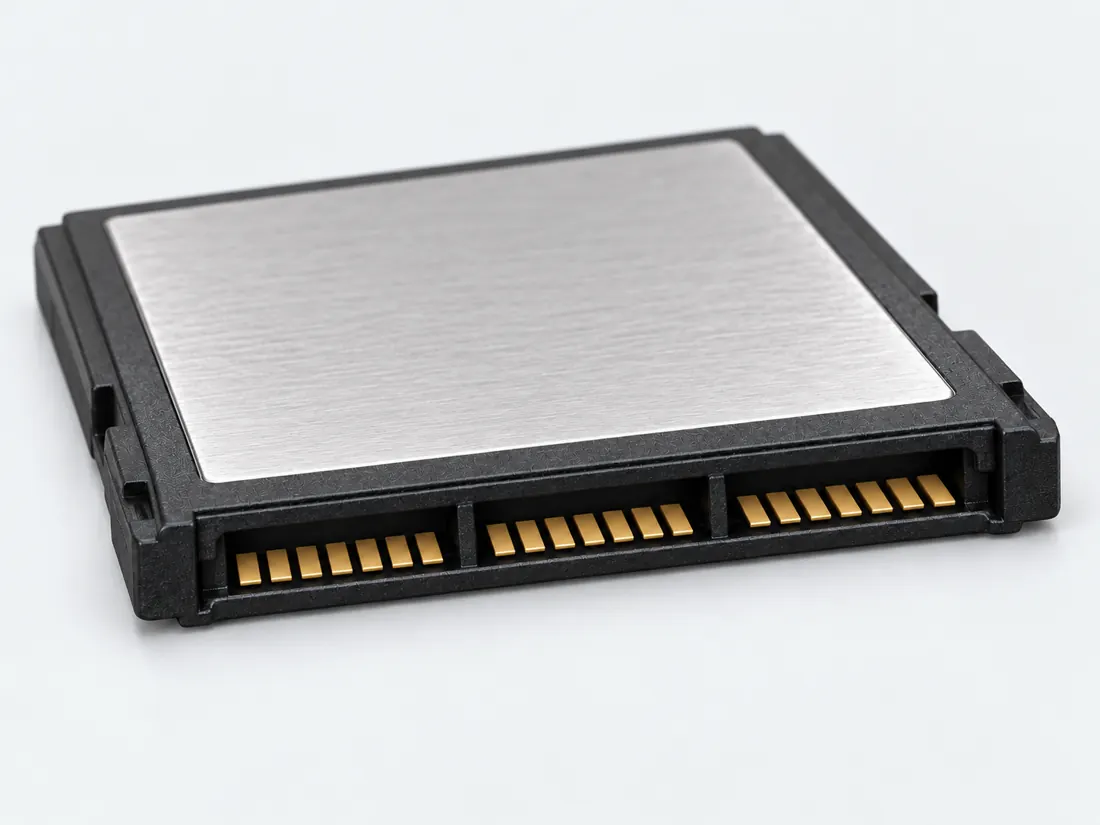

XQD card interface: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

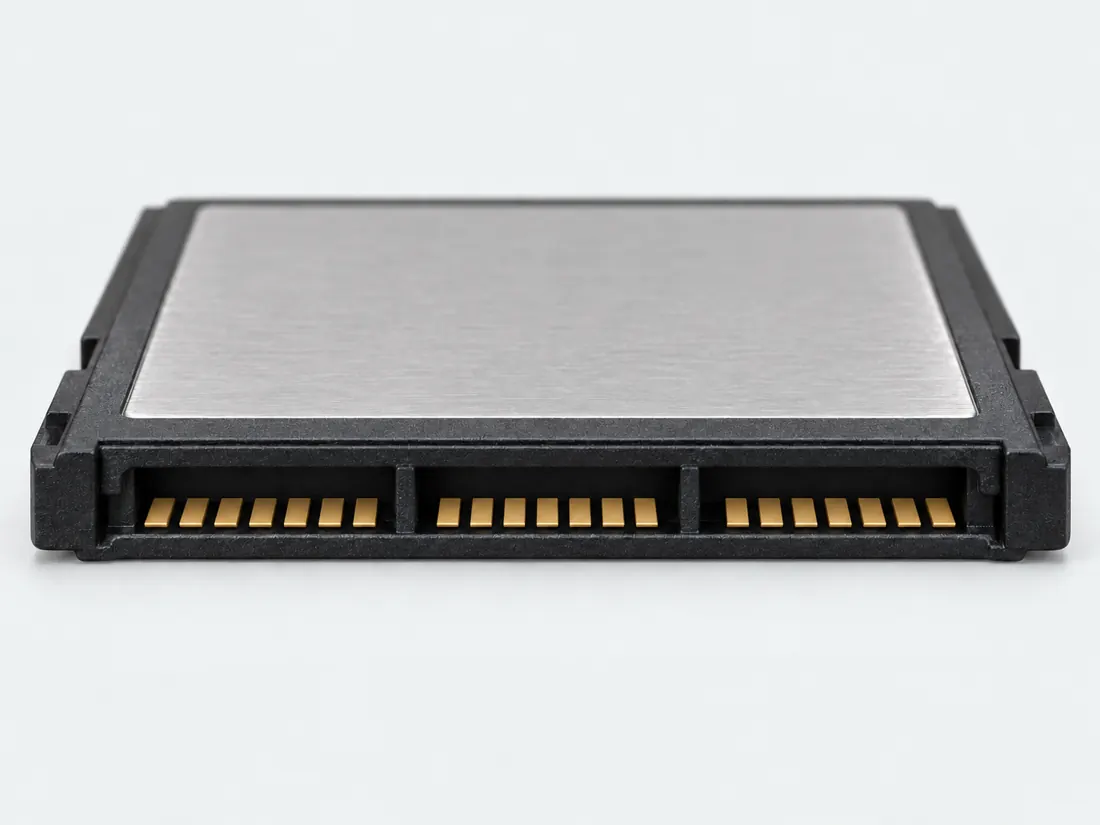

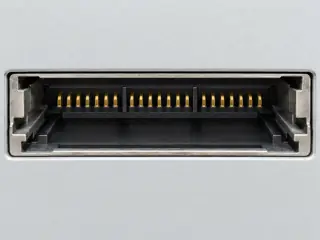

XQD card interface: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

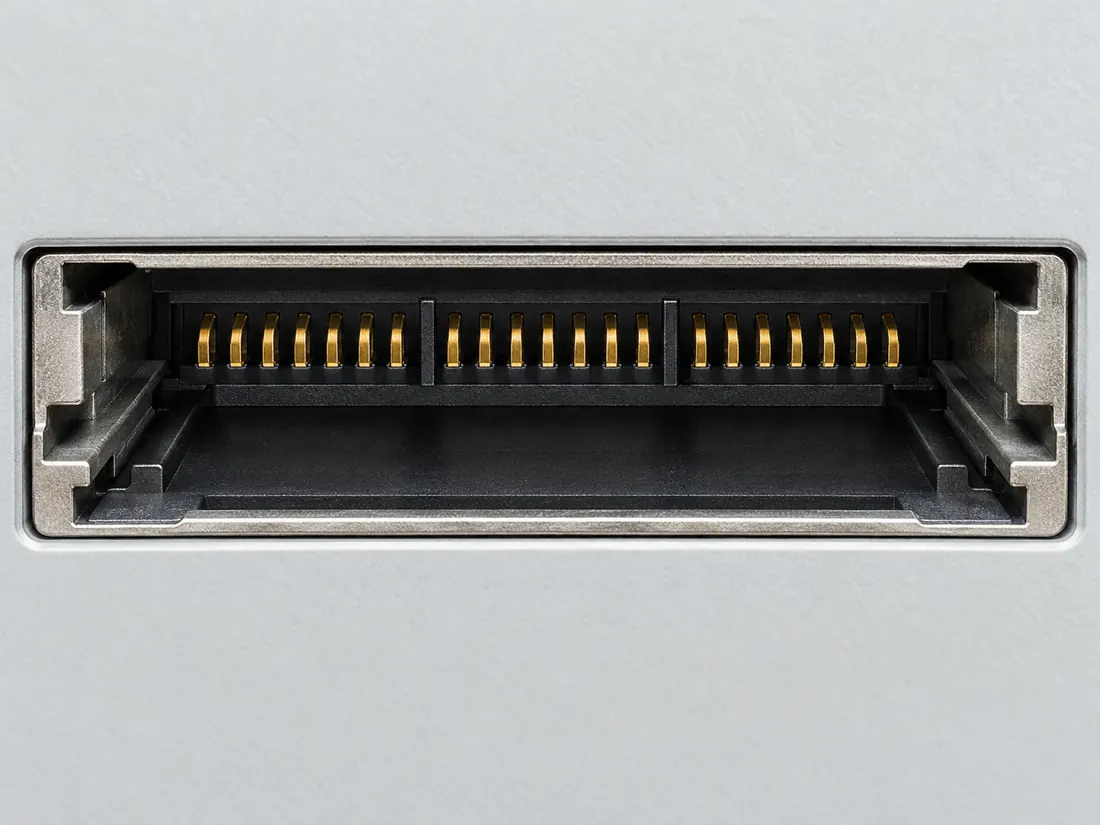

XQD card interface: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

XQD card interface: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Application notes / Camera media / P123

Which evidence is enough for an XQD reader match?

FIELD NOTES 04

Use a named card and reader pairing. Sony explicitly lists XQD G and M series for MRW-G1; the shared Type B form does not create a universal reader rule.

Identify first

Read the part and the device.

Distinguish XQD markings from CFexpress Type B markings before selecting a reader.

Still unresolved

Keep this requirement open.

Support for other card series, brands or reader models is not established here.

Documented support · named example only

Are Sony CFexpress Type B and XQD G/M series listed?

Yes, those card families are explicitly listed for MRW-G1.

Boundary. Only the named reader and card families; not every XQD reader or camera.

Next check. Confirm the exact card series and the reader label.

S495 · C122D (private workspace) · C123C (private workspace)

Before choosing an adapter or reader

  1. Copy the card’s complete series name.
  2. Check the reader’s card support list.
  3. Do not substitute a camera firmware claim for a reader claim.
Read the evidence and its scope · 3 observations

C123A (private workspace) — Sony G-series examples are explicitly XQD cards using a PCI Express interface.

Identification and explicitly scoped documentation only; not an end-to-end connection approval

S097

C123C (private workspace) — Sony lists XQD G-series and M-series memory cards for the MRW-G1 reader.

Sony MRW-G1 and these named Sony XQD series only; a shared slot outline does not transfer this support to another reader.

S495

C122C (private workspace) — CFA describes CFexpress Type B as using two PCIe lanes and retaining the same dimensions and connector as XQD. It separately makes camera support conditional on implementation or a manufacturer update.

Card Types public text: form-factor footnote and A/B FAQ; no dimensions or speed table transcribed.

S096

Source interpretation is not independent engineering review, hardware testing, wiring advice or a public-release approval.

Visual reference / P123

See the envelope. Confirm the label.

Published card dimensions reveal proportion, not an approved mating drawing. Contact/key geometry is deliberately omitted.

NOMINAL / 01
XQD: original nominal width by height envelope study, 29.6 by 38.5 mm, 3.8 mm nominal depth. Not a contact or key drawing; no host compatibility approval.
XQD · source-supported nominal two-dimensional envelope. The outer rectangle is a size comparator only, not an exact perimeter, face layout, contact geometry or manufacturing gauge.
Nominal W × H29.6 × 38.5 mm
Nominal depth3.8 mm
Family label to checkXQD

What can be recognized

Matches Type B in stated physical dimensions. An XQD designation and exact camera/reader documentation are necessary.

Compare the three independently named standards in the common-scale envelope study. The two-dimensional proportional outline excludes card corners, ramps, pins and insertion direction.

Still unverified

Shared envelope and connector family with Type B does not establish protocol support, firmware support, reader recognition or recording compatibility.

Never use this outline for trial insertion, mechanical design, repair, wiring or buying a reader.

Source, geometry and image-rights boundaries

First-party reference reading 9 October 2026. This is newly authored original vector artwork derived only from nominal published W/H values. It contains no borrowed logo, product image, copyrighted engineering drawing or detailed contact geometry. Manufacturer dimensions are facts, not image reuse grants. Independent engineering, source-rights and publication approvals are still required.

See existing canonical evidence: S096 · S097. This visual inspection is separate from the claim review history; source review dates were not changed.

The useful distinction

Recognize it. Then verify it.

XQD is a named memory-card family with a form factor shared by CFexpress Type B; supported formats still require model documentation. [C123A]

The CompactFlash Association describes the shared XQD / CFexpress Type B form factor without guaranteeing universal compatibility. [C123B]

Sony lists XQD G-series and M-series memory cards for the MRW-G1 reader. [C123C]

Sony lists its named G-series XQD cards at approximately 29.6 mm width, 38.5 mm length and 3.8 mm thickness, with the table explicitly ordered W/L/T. [C123D]

Sony lists QD-G120F as a 120 GB G-series XQD card and names PCI Express 3.0 and USB 3.1 Gen 1 in the interface row. [C123E]

Source-scoped identification facts

Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.

Documented examples; not a mating drawing or compatibility approval
Dimensions / axis29.6 mm whole-card width W (SonyQD-G120F G-series XQD card in current product table); 38.5 mm whole-card length L (SonyQD-G120F G-series XQD card in current product table); 3.8 mm whole-card thickness T (SonyQD-G120F G-series XQD card in current product table)S949Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. SonyQD-G120F G-series XQD card in current product table; approximately
Connector roleXQD removable memory card (SonyQD-G120F G-series XQD card in current product table)S949Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. SonyQD-G120F G-series XQD card in current product table
ManufacturerSony (SonyQD-G120F G-series XQD card in current product table)S949Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. SonyQD-G120F G-series XQD card in current product table
SeriesG-series XQD (SonyQD-G120F G-series XQD card in current product table)S949Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. SonyQD-G120F G-series XQD card in current product table
Exact part / implementationQD-G120F (SonyQD-G120F G-series XQD card in current product table)S949Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. SonyQD-G120F G-series XQD card in current product table

Not recorded: Nominal contacts, Positions / cavity span, Populated contacts, Contact rows, Contact pitch, Contact gender / arrangement, Mounting, Coupling / latch, Keying / polarization, Shell / form, Recorded markings, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.

Report a correction to these facts →

Bounded facts, visible unknowns

Specifications and limits

XQD card interface facts and limitations
Documented identificationSony G-series examples are explicitly XQD cards using a PCI Express interface. [C123A]
Important distinctionThe CompactFlash Association describes the shared XQD / CFexpress Type B form factor without guaranteeing universal compatibility. [C123B]
Mechanical dimensionsNo independently approved mechanical dimensions. Do not use this record for fabrication or fit testing.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
A boundary, not an omission to guess around.

Record the exact device model and the label beside the port. Obtain its manual and the accessory documentation. Keep unknown properties unknown instead of filling them from a visually similar item.

Before you connect

What to check

  1. Confirm whether the camera lists XQD, CFexpress Type B, or both.
  2. Confirm the reader supported-media list independently.
  3. Keep card capacity and recording-mode requirements in the selection notes.
Trace a supported connection class →

What is not established

This field note does not approve a connection, publish a pinout or provide a measured template. Use the linked source scope and the checklist as a documentation starting point.

Your next step

Move from the form to the requirement.

Read the engineering reference Source-scoped details, orientation and explicit unknowns.Work through a connection Choose your task before deciding on a cable.Explore this evidence trail Inspect the claims and their dependencies. (private workspace)

The source trail

Evidence for this page

AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.

Back to first citation ↑
C123ASource checked · pending review

Sony G-series examples are explicitly XQD cards using a PCI Express interface.

Sony · XQD G-series product support — interface identity ↗

Locator: G-series product information and interface rows
Access: public page. Japanese primary text inspected. Device-family rows are not a universal XQD speed, voltage or firmware guarantee.

S097: full source recordInspect review dependencies → (private workspace)

Claim scope: Identification and explicitly scoped documentation only; not an end-to-end connection approval. Next review due 2027-01-01.

Back to first citation ↑
C123BSource checked · pending review

The CompactFlash Association describes the shared XQD / CFexpress Type B form factor without guaranteeing universal compatibility.

CompactFlash Association · Card types and form-factor distinctions ↗

Locator: CFexpress Form Factors; Type A versus Type B; Legacy Standards
Access: public page. No copied tables, logos, numeric throughput promises, exhaustive market status or licensed normative specification. Text-only scope.

S096: full source recordInspect review dependencies → (private workspace)

Claim scope: Identification and explicitly scoped documentation only; not an end-to-end connection approval. Next review due 2027-01-01.

Back to first citation ↑
C123CSource checked · pending review

Sony lists XQD G-series and M-series memory cards for the MRW-G1 reader.

Sony · MRW-G1 CFexpress Type B / XQD reader supported cards ↗

Locator: Product description and FAQ: supported Sony CFexpress Type B and Sony XQD G/M series cards.
Access: public page. Named example only. No universal compatibility or publication approval. Raw-byte acquisition status is recorded separately.

S495: full source recordInspect review dependencies → (private workspace)

Claim scope: Sony MRW-G1 and these named Sony XQD series only; a shared slot outline does not transfer this support to another reader.. Next review due 2027-01-09.

Back to first citation ↑
C123DSource checked · pending review

Sony lists its named G-series XQD cards at approximately 29.6 mm width, 38.5 mm length and 3.8 mm thickness, with the table explicitly ordered W/L/T.

Sony · XQD memory card G-series product information and support ↗

Locator: CurrentQD-G240F/QD-G120F/QD-G64F/QD-G32E table: interface,outerdimensions(WxLxT),capacity; separate discontinued model table.
Access: public page. Japanese table explicitly labels W/L/T and approximate values. No card contact count,pitch,slot fit,CFexpress interchangeability,reader support or data rate inferred from shared size. Product photo not treated as a labelled exact card model view.

S949: full source recordInspect review dependencies → (private workspace)

Claim scope: SonyQD-G120F G-series XQD card in current product table;approximate whole-card envelope only,not cardcontact/slot dimensions.. Next review due 2027-01-20.

Back to first citation ↑
C123ESource checked · pending review

Sony lists QD-G120F as a 120 GB G-series XQD card and names PCI Express 3.0 and USB 3.1 Gen 1 in the interface row.

Sony · XQD memory card G-series product information and support ↗

Locator: CurrentQD-G240F/QD-G120F/QD-G64F/QD-G32E table: interface,outerdimensions(WxLxT),capacity; separate discontinued model table.
Access: public page. Japanese table explicitly labels W/L/T and approximate values. No card contact count,pitch,slot fit,CFexpress interchangeability,reader support or data rate inferred from shared size. Product photo not treated as a labelled exact card model view.

S949: full source recordInspect review dependencies → (private workspace)

Claim scope: SonyQD-G120F G-series XQD card in current product table only;no arbitraryreader support,negotiated rate or CFexpress interchangeability.. Next review due 2027-01-20.

Suggest a correction to this field note →
