RP-SMA changes the center-contact arrangement relative to ordinary SMA while retaining the same threaded interface. The RP prefix is not a claim that a signal is electrically inverted.
Also called RP-SMA RPSMA reverse polarity SMA
The outer thread alone cannot settle SMA versus RP-SMA.
Inspect the center contact and the shell together. The paired sketches illustrate the contact distinction, not dimensions, torque or an engineering mating specification.
Claim inspection dates: 2026-10-01, 2026-10-12 · Independent review pending

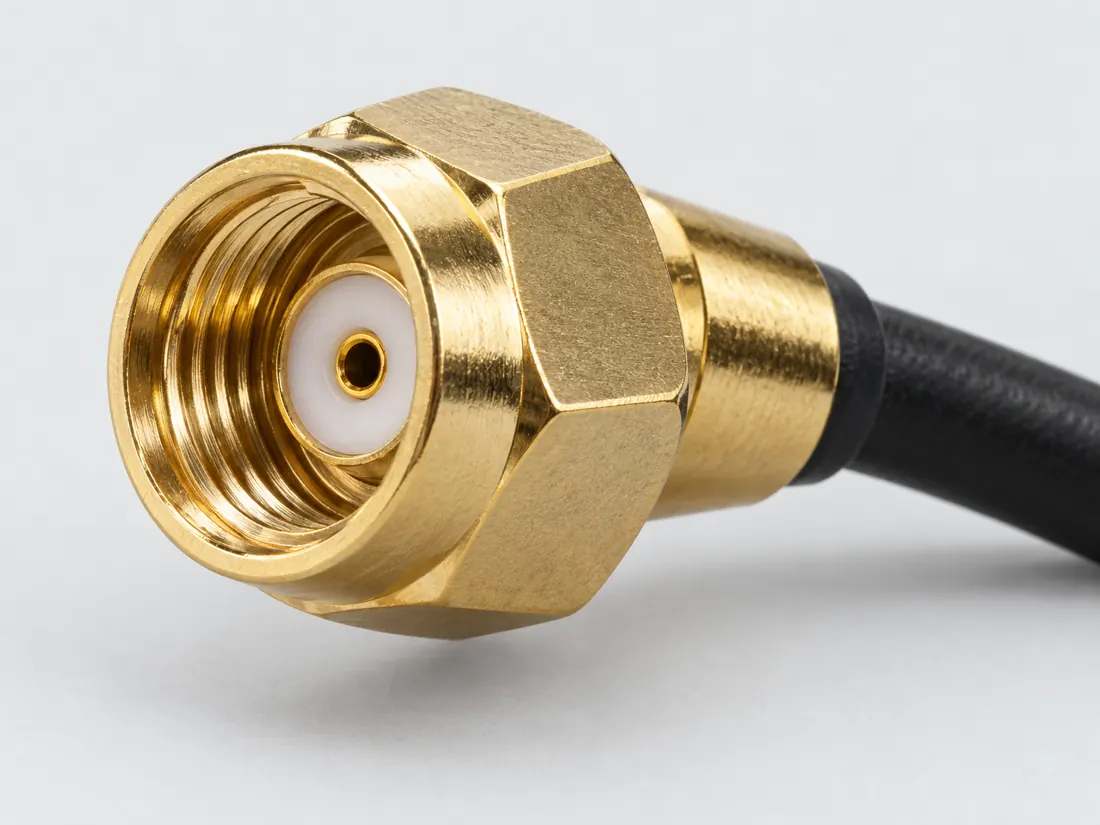

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

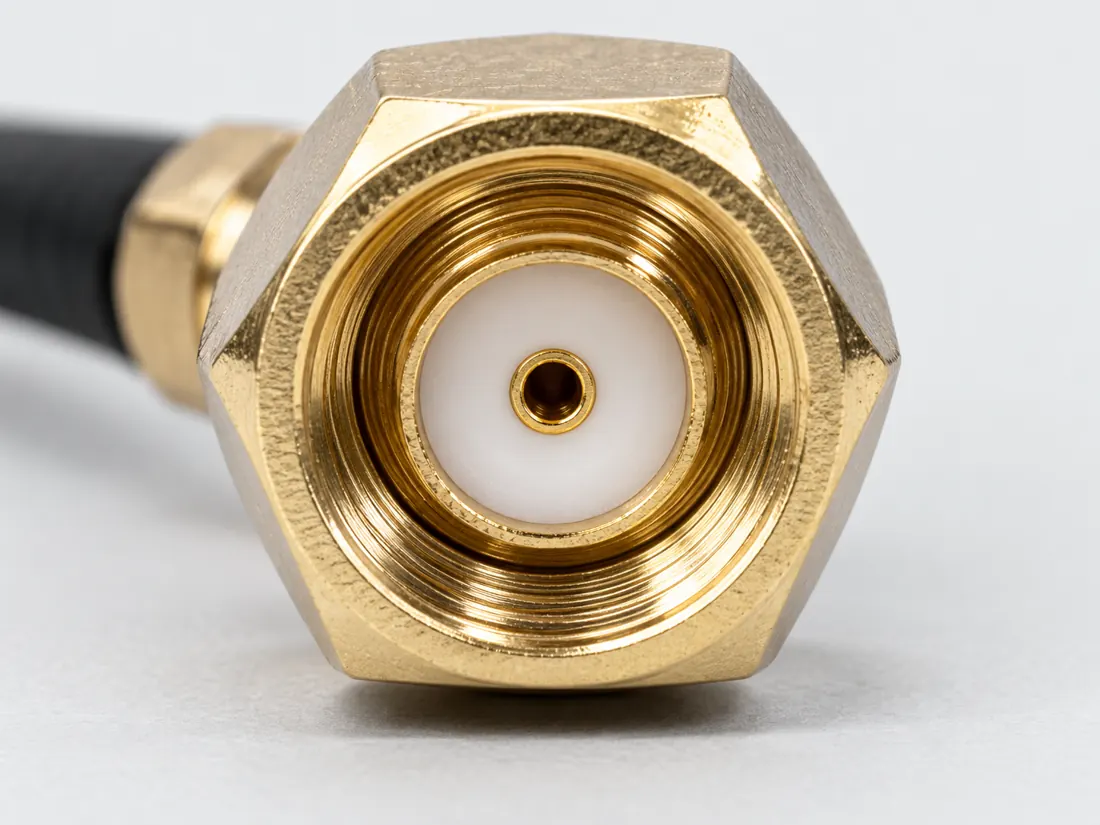

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

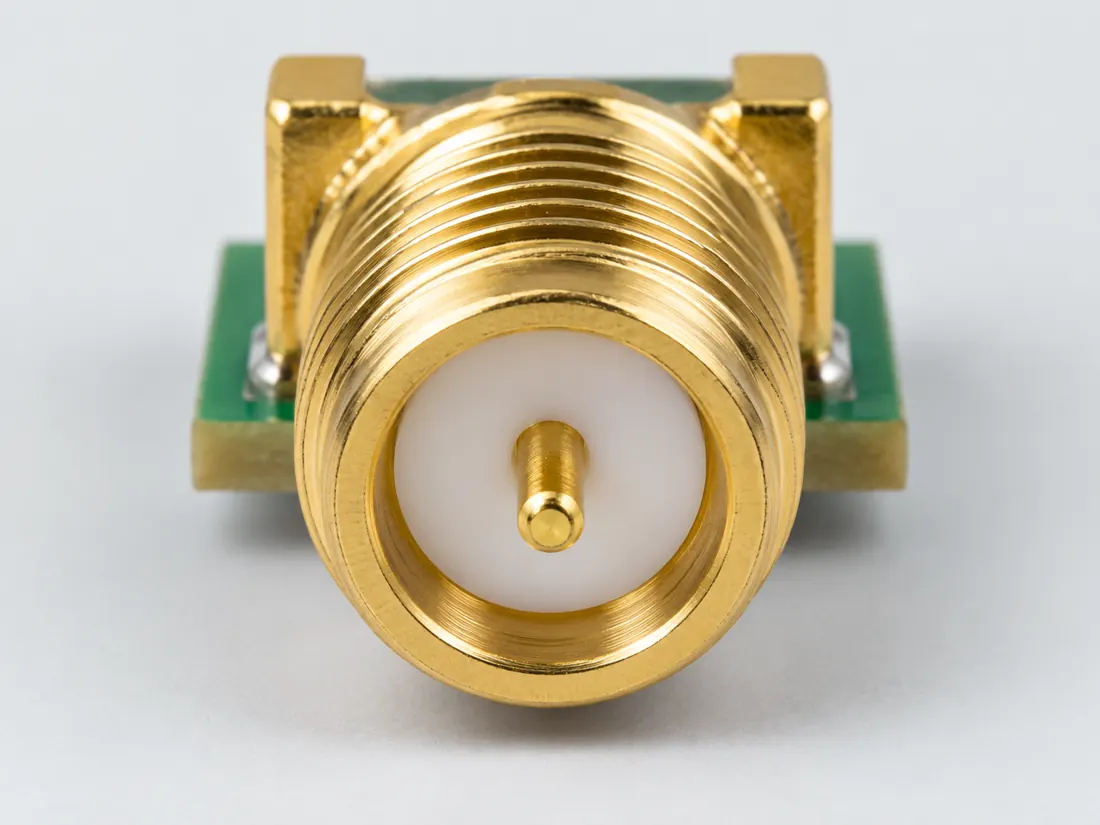

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Recognition drawing Original schematic, not to scale. Drawing review pending.
Image inspection / P064
4 registered views for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.
(private workspace)P064 / Source-observed physical study
Amphenol RF 132113RP-10
Orthographic side profile · Cable plug / cable end
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)
(private workspace)P064 / Concept — not physical geometry
Conceptual four-case vocabulary, not a depicted part
Symbolic cross-reference, not a mating view · Concept only
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)
(private workspace)P064 / Concept — not physical geometry
132134RP source-field concept; no physical geometry
Conceptual arrangement of four source fields; no physical viewpoint · Concept only
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)
(private workspace)P064 / Inherited recognition study
RP-SMA coaxial connector
Example threaded plug-side front concept; contact convention, not a mating gauge · Cable plug / cable end
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)Network notes / RF / coax / P064
The center-contact convention is reversed relative to ordinary SMA while the outer threaded interface is retained. “Reverse polarity” here is not a statement that the RF signal is inverted, nor permission to connect any two matching shells.
Identify first
Record outer coupling and center-contact role separately. Vendor plug/jack naming without the actual contact description can be misleading.
Still unresolved
The exact pair’s mating approval, cable match and electrical performance are not established by the RP-SMA name.
Not established · named example only
The outer thread does not establish compatible center-contact roles.
Boundary. No exact pair or manufacturer mating approval has been supplied.
Next check. Read both part drawings and center-contact descriptions.
S046 · S047 · C063A (private workspace) · C064A (private workspace)
C064A (private workspace) — RP-SMA changes the center-contact arrangement relative to ordinary SMA while retaining the same threaded interface. The RP prefix is not a claim that a signal is electrically inverted.
Named standard or manufacturer description only; procedural checks are editorial recommendations, not hardware tests.
C063A (private workspace) — SMA is a threaded RF connector family. Amphenol distinguishes SMA from RP-SMA by the center-contact arrangement even though the threaded interface is retained.
Named standard or manufacturer description only; procedural checks are editorial recommendations, not hardware tests.
Source interpretation is not independent engineering review, hardware testing, wiring advice or a public-release approval.
Amphenol distinguishes SMA from RP-SMA by the center-contact arrangement. Similar outer threading does not prove that both contacts will engage correctly.
Three checks and exact source trail ↗Editorial decision guidance only. A connector identity or nominal pitch does not establish approved mating, safe wiring or a supported device combination.
Visual atlas / P064 / 2026
What to look for
Reverse-polarity contact convention
Small center circles depict the contact-convention distinction only; thread pitch and gender assignments are not specified.
Reverse-polarity concerns the center-contact convention, not signal polarity; inspect exact male/female part sheets.
No fabrication dimensions, conductor routing, guaranteed fit or device approval. For electrical, power and optical interfaces, follow the original equipment instructions.
Uses previously recorded V112 manufacturer claim/source inspections; October 2026 supplementary public-source spot checks are documented separately, not treated as a refreshed approval.
Original Port & Cable interpretive vector, no third-party photo, copied CAD, logo or vendor drawing. Third-party product photos, logos and source drawings are not redistributed. No independent technical or rights certification is claimed.
Original claim identifiers: C064A (private workspace). Legacy evidence dates and rights assessments remain as recorded.
The useful distinction
RP-SMA changes the center-contact arrangement relative to ordinary SMA while retaining the same threaded interface. The RP prefix is not a claim that a signal is electrically inverted. [C064A]
Amphenol RF identifies 132134RP as a straight 50-ohm RP-SMA jack with PCB through-hole termination and soldered contact termination. [C064C]
The 132134RP specification page describes the coupling as threaded and the thread direction as Standard. [C064D]
TE’s cross-reference guide describes the Amphenol 132134RP entry as a jack with a male center pin. [C064E]
TE states that its cross-reference guide is for assessment and does not establish exact equivalence of competing products. [C064F]
Identify RP-SMA from shell and center-contact role, not the RP prefix alone.
