JST XH wire-to-board connector family
JST XH is a nominal 2.5 mm pitch, single-row wire-to-board series with shrouded headers and friction-lock mating parts.
Also called JST XH XHP housing XH series 2.5mm 2.5 mm XH connector
Use the exact XHP designation. Ordinary XH and specially spaced, reduced-population variants must not be conflated.
Look for
Search the maker’s part number (for example an XHP housing series) and verify the shroud, mating direction and position count.
Claim inspection dates: 2026-10-09, 2026-10-11, 2026-10-22 · Independent review pending

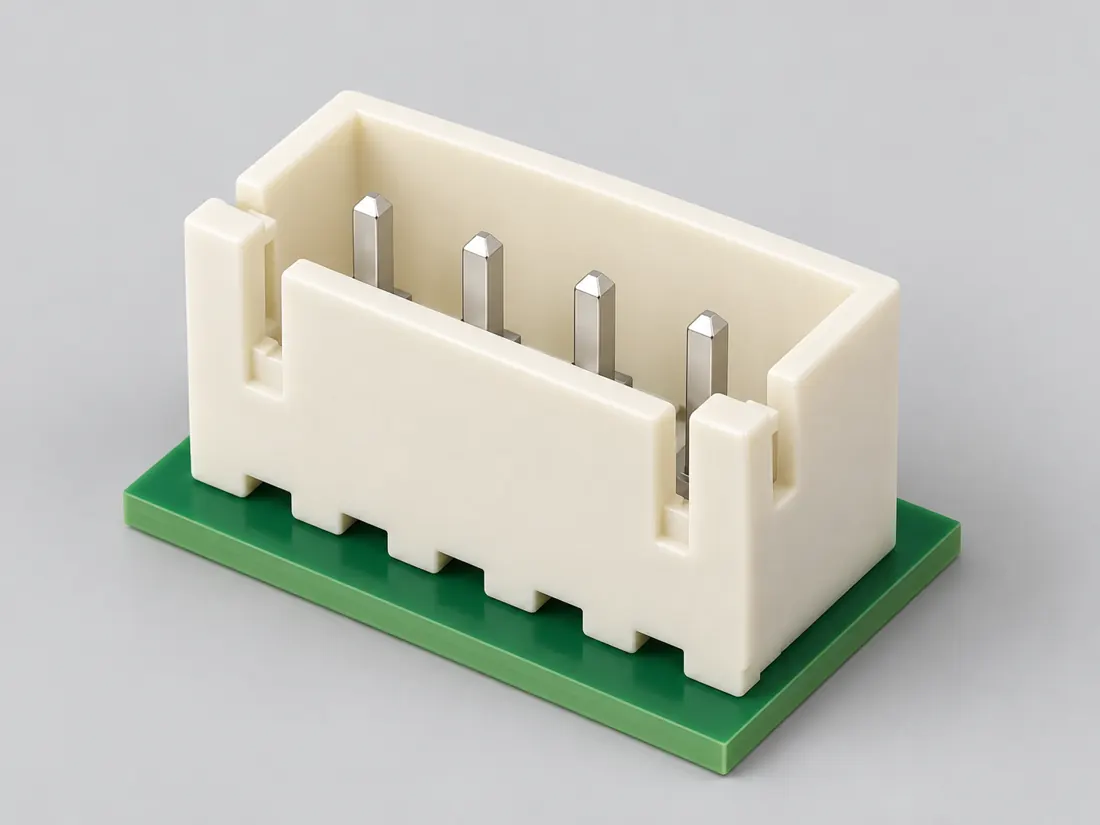

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

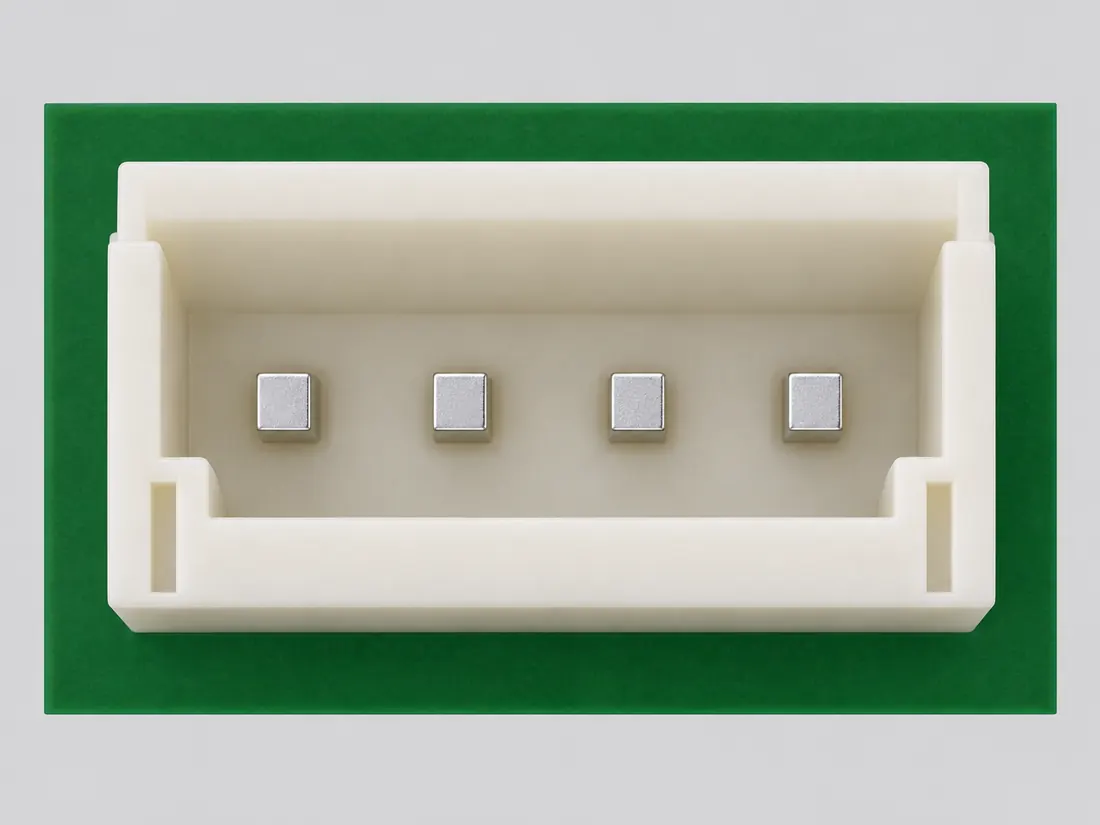

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

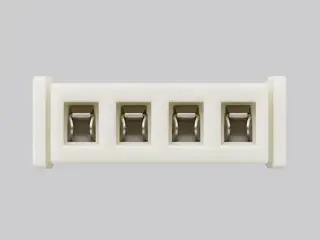

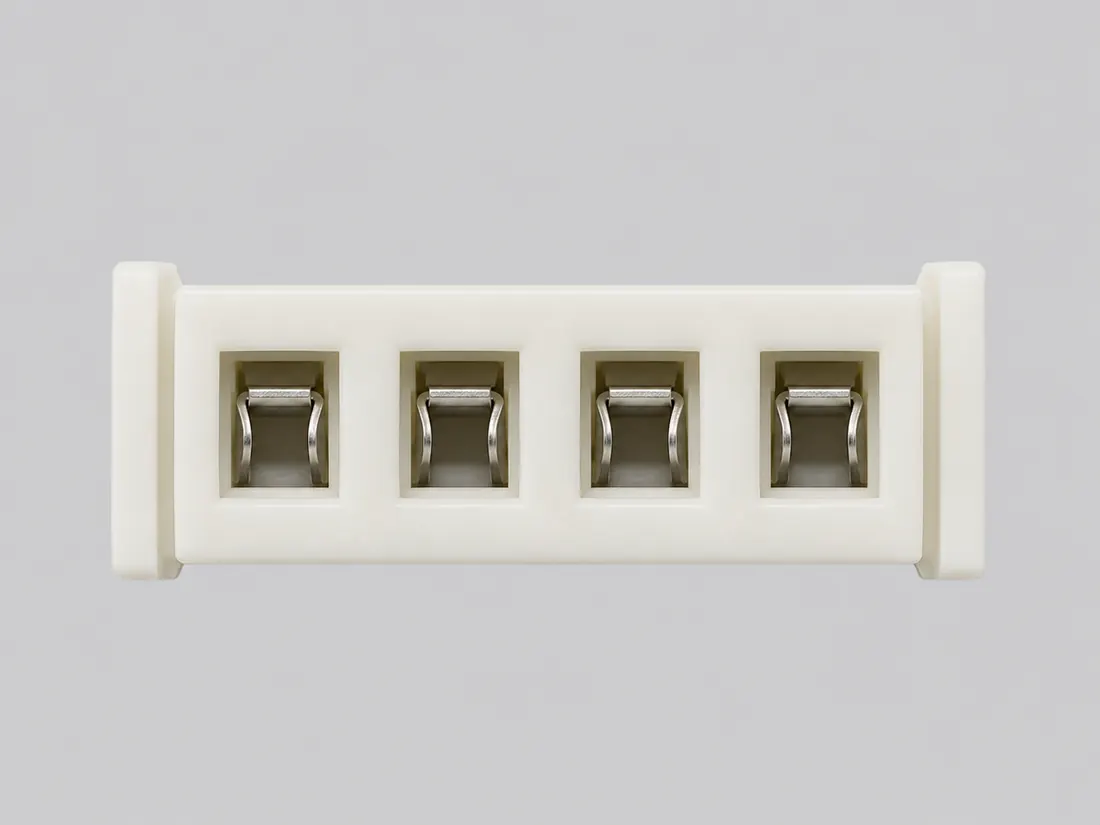

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Recognition drawing Original schematic, not to scale. Drawing review pending.
Image inspection / P350
See the view. Check its scope.
1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.
(private workspace)Matching notes / Miniature repair / P350
Does every XH part use the ordinary populated spacing?
No. XH has a nominal 2.5 mm family pitch, but the catalog also identifies reduced-population XHP-2(10.0)-U and XHP-6(5.0)-U variants. The full designation and occupied-position arrangement matter, not just the family nickname. C350A · C350D
| Check | Documented distinction | Boundary |
|---|---|---|
| Ordinary family description | JST describes the XH family as nominal 2.5 mm and single row. C350A | Keep the manufacturer’s value; a generic seller label is not a substitute for the exact catalog row. |
| Named four-circuit housing | XHP-4 is listed as a four-circuit cable housing. C350C | Its housing drawing is not the board-header footprint. |
| Named reduced-population variants | XHP-2(10.0)-U and XHP-6(5.0)-U are documented at 10.0 mm and 5.0 mm respectively. C350D | These values belong to those specifically named exceptions, not every XH housing. |
| The opposite component | The XH family includes top/side entry and through-hole/SMT header choices. C350B · C350D | Occupied positions, entry direction, header identity and device wiring remain separate checks. |
- What the evidence supports
- XHP-4 is a documented four-circuit housing; the catalog separately identifies special XHP variants.
- What not to conclude
- A family nickname alone does not establish populated positions or a device cable’s wiring.
- Keep this check open
- Exact header, circuit population and board footprint are unresolved until the part is identified.
Keep this limit: Do not stretch the ordinary family description over the reduced-population examples. Matching the number of wires is not evidence of matching positions, header geometry or wiring. C350C · C350D
Before you choose a part
- Write the full housing suffix rather than just “XH”.
- Read the circuit-count and reduced-population row when relevant.
- Confirm the exact mating header and contacts.
Source recheck · 14 October 2026. The XH housing table and the two reduced-population elevations were checked on printed page 4. The table is used for its named examples, not as an inferred universal pinout.
Source-qualified reference, not a mating, wiring or repair approval. Each linked claim and source carries its own recorded inspection date and review status; selected reobservations are not independent technical or rights approval.
