Side by side

SATA, Slimline SATA and Micro SATA

Which physical SATA-family variant does the exact device specify?

Computer-generated illustration, not a photograph. — P029 · ConnectorSATA 7-pin data connector

How they differ

SATA 7-pin data connector Look for the narrow, keyed data connection. Read the device service guidance before opening equipment; the atlas provides recognition, not a repair procedure.
Slimline SATA connector Identify the exact device connector and cable assembly as Slimline SATA before selecting a replacement.
Micro SATA connector Check the device and cable documentation for Micro SATA specifically rather than choosing by a similar L-shaped edge.

At a glance

Source-scoped form facts; counts, variants and unknowns are distinct
Field	SATA 7-pin data connector	Slimline SATA connector	Micro SATA connector
Type	Connector	Connector	Connector
Family	Storage	Storage	Storage
Shape	keyed	blade	blade
Nominal contacts	7S032 · S193Serial ATA data connector reference; nominal engineering count, not automatically positions, population or a device wiring map. Serial ATA data connector reference	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Positions / cavity span	7 (Claim C029B)S193Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Named product example only; contact count plus example pitch, excluding full SATA pin assignment and mating tolerances	6 (Claim C195D)S597Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V143: the named drawing/revision or exact product page only. Recognition and document-role evidence; not a pinout, adapter verdict, dimensioned mating gauge, electrical approval or current installed-device claim.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	1 (0678005021)S193Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 0678005021: Seven-circuit Serial ATA PCB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No physical wiring layout is reconstructed from product attributes; manufacturer labels online information limited.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	1 (Molex 78109-0001)S983 · S582Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 78109-0001 right-angle mid-mount Micro SATA receptacle, 16-circuit example; no transfer to an alternate plug or family part. Quantity context: Manufacturer Number Of Rows.
Connector role	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	backplane connectorS581Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 47300. Documented role: backplane connector. This specification gives logo location explicitly; no individual specimen or literal moulded logo transcription claimed.; Product drawing takes precedence per section2.0. No unviewed geometry inferred from stress-test specimen count.	socket (78500-0001)S582Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 78500-0001. Documented role: socket. Device-plug power segment key is specifically78103 and is not transferred to78500.; PCB thickness1mm and peg-distance accommodation are not outer dimensions or contact pitch.
Key distinction	A data connector is not a power connector.	A smaller SATA-family outline is not the same connector as standard SATA data plus power.	The word SATA describes a family; physical variants still require exact identification.

Full evidence ledger and sources ↓

Illustrations are computer-generated with prior AI visual review; independent technical and rights review pending. A comparison is not a compatibility verdict.

This comparison stays within one evidence layer.

All selected records are Connector records. Similar layer does not mean compatible, interchangeable or safe to mate.

Families represented: Storage

Look here first

Spot the difference.

Read the views →

Not a size comparison. Illustrations fit the same display boxes; their physical dimensions are not shown to a common scale. No mating or compatibility verdict follows.

P029 / Front-oriented outline

SATA 7-pin data connector

Role not specified

Visible clue: Narrow keyed opening, not the separate power section

Copper-colored marks are illustrative, not numbered contacts.

Still check: The sketch does not show the complete drive-side data-and-power assembly.

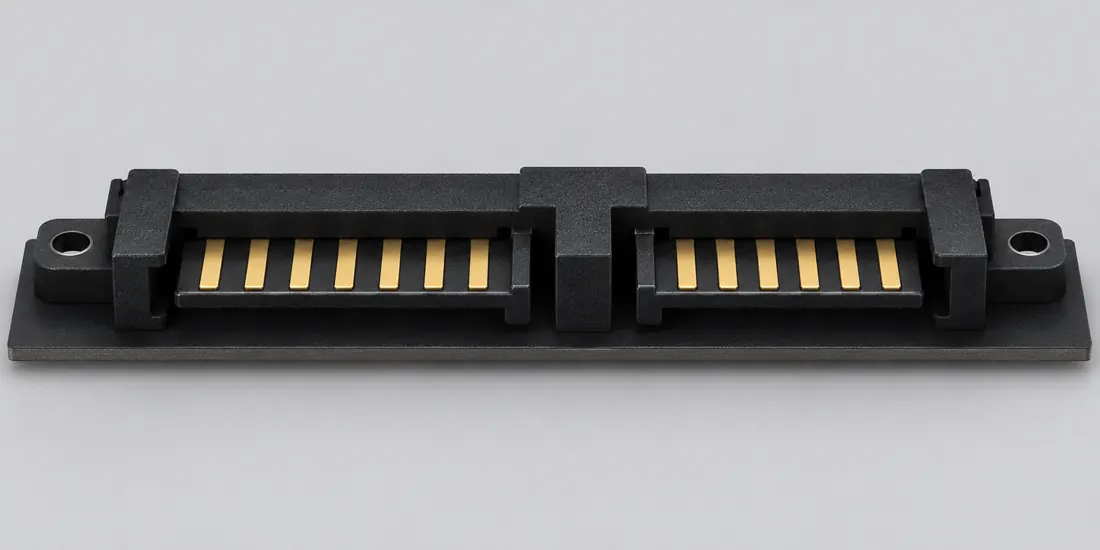

P195 / Generic family symbol

Slimline SATA connector

Role not specified

Label-led symbol — not interface geometry. Read the exact designation and written reference; do not identify a physical connector by this generic shape.

Label cue: Read Slimline SATA rather than choosing by the symbol

The dots and outline are placeholders, not interface geometry.

Still check: The shared generic outline does not distinguish Slimline from Micro SATA or establish the exact variant.

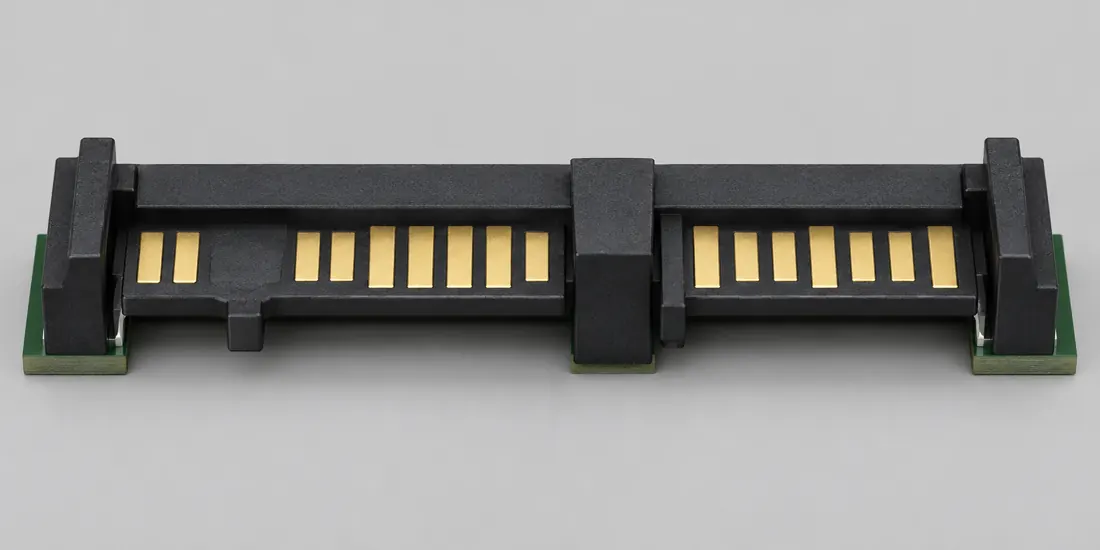

P199 / Generic family symbol

Micro SATA connector

Role not specified

Label-led symbol — not interface geometry. Read the exact designation and written reference; do not identify a physical connector by this generic shape.

Label cue: Read Micro SATA in the written reference

Illustrative dots and the chamfer do not establish connector geometry.

Still check: The identical generic outline cannot distinguish Micro SATA from Slimline SATA or establish fit.

The reference ledger

Read the same question across.

3 selected records · 17 fields
No score. No compatibility verdict.

On a narrow screen, scroll the table sideways or open the field-by-field reading view below. Illustrations are not a size comparison.

Comparison of selected field notes; source links accompany each documented specification
What you are comparing	P029 / ConnectorSATA 7-pin data connector Identification schematic · not to scale · drawing review pending	P195 / ConnectorSlimline SATA connector Identification schematic · not to scale · drawing review pending	P199 / ConnectorMicro SATA connector Identification schematic · not to scale · drawing review pending
Layer	Connector	Connector	Connector
Key distinction	A data connector is not a power connector.	A smaller SATA-family outline is not the same connector as standard SATA data plus power.	The word SATA describes a family; physical variants still require exact identification.
Nominal contacts	7S032 · S193Serial ATA data connector reference; nominal engineering count, not automatically positions, population or a device wiring map. Serial ATA data connector reference	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Positions / cavity span	7 (Claim C029B)S193Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Named product example only; contact count plus example pitch, excluding full SATA pin assignment and mating tolerances	6 (Claim C195D)S597Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V143: the named drawing/revision or exact product page only. Recognition and document-role evidence; not a pinout, adapter verdict, dimensioned mating gauge, electrical approval or current installed-device claim.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Populated contacts	7 (0678005021)S193Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 0678005021: Seven-circuit Serial ATA PCB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No physical wiring layout is reconstructed from product attributes; manufacturer labels online information limited.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	1 (0678005021)S193Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 0678005021: Seven-circuit Serial ATA PCB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No physical wiring layout is reconstructed from product attributes; manufacturer labels online information limited.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	1 (Molex 78109-0001)S983 · S582Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 78109-0001 right-angle mid-mount Micro SATA receptacle, 16-circuit example; no transfer to an alternate plug or family part. Quantity context: Manufacturer Number Of Rows.
Contact pitch	1.27 mm Example product pitch (Recorded example component); 1.27 mm Source-described pitch / centerline (Claim C029B)S193Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. example_component; Serial ATA data connector reference Named product example only; contact count plus example pitch, excluding full SATA pin assignment and mating tolerances	1.27 mm Source-described pitch / centerline (Claim C195B); 1.27 mm published Slimline SerialATA connector pitchS581 · S581Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval. 47300. Documented role: backplane connector. This specification gives logo location explicitly; no individual specimen or literal moulded logo transcription claimed.; Product drawing takes precedence per section2.0. No unviewed geometry inferred from stress-test specimen count.	1.27 mm Manufacturer Pitch Mating Interface (Molex 78109-0001)S983 · S582Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 78109-0001 right-angle mid-mount Micro SATA receptacle, 16-circuit example; no transfer to an alternate plug or family part.
Dimensions / axis	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	4.15 mm connector width, straight base per ordering table (78500-0001)S582Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 78500-0001. Documented role: socket. Device-plug power segment key is specifically78103 and is not transferred to78500.; PCB thickness1mm and peg-distance accommodation are not outer dimensions or contact pitch.
Connector role	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	backplane connectorS581Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 47300. Documented role: backplane connector. This specification gives logo location explicitly; no individual specimen or literal moulded logo transcription claimed.; Product drawing takes precedence per section2.0. No unviewed geometry inferred from stress-test specimen count.	socket (78500-0001)S582Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 78500-0001. Documented role: socket. Device-plug power segment key is specifically78103 and is not transferred to78500.; PCB thickness1mm and peg-distance accommodation are not outer dimensions or contact pitch.
Coupling / latch	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Keying / polarization	manufacturer reports keyed and polarized to mating part (0678005021)S193Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 0678005021: Seven-circuit Serial ATA PCB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No physical wiring layout is reconstructed from product attributes; manufacturer labels online information limited.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedGuideposts, pockets, friction locks and PCB seating pegs are retained as construction/alignment context; no source-qualified asymmetric mating key or polarization fact is normalized.
Function covered	SATA data connectorC029A	Not an equivalent field	Not an equivalent field
Contacts	7; no pin assignment providedC029A	Not an equivalent field	Not an equivalent field
Exact-board resource sharing	AC-HES example: populating M.2_2 disables SATA6G_56, not every SATA connector.C029C	Not an equivalent field	Not an equivalent field
Documented identification	Not an equivalent field	Distinct Slimline SATA connector family.C195A	Distinct Micro SATA connector family.C199A
Source-scoped role and recognition	Not an equivalent field	Keep the part label and legacy drawing warning together. Two separated groups: seven signal contacts and six power contacts.C195D · C195E · C195F	Not an equivalent field
Evidence	C029A,C029C,C029D → Independent review pending	C195A,C195B,C195C,C195D,C195E,C195F → Independent review pending	C199A,C199B,C199C,C199W → Independent review pending

Read field by field — no sideways scrolling

The same selected records, fields, values and source links as the table. Missing fields remain non-equivalent; no values are merged.

Layer

SATA 7-pin data connectorP029 / Connector: Connector
Slimline SATA connectorP195 / Connector: Connector
Micro SATA connectorP199 / Connector: Connector

Key distinction

SATA 7-pin data connectorP029 / Connector: A data connector is not a power connector.
Slimline SATA connectorP195 / Connector: A smaller SATA-family outline is not the same connector as standard SATA data plus power.
Micro SATA connectorP199 / Connector: The word SATA describes a family; physical variants still require exact identification.

Nominal contacts

SATA 7-pin data connectorP029 / Connector: 7S032 · S193Serial ATA data connector reference; nominal engineering count, not automatically positions, population or a device wiring map. Serial ATA data connector reference
Slimline SATA connectorP195 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Micro SATA connectorP199 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Positions / cavity span

SATA 7-pin data connectorP029 / Connector: 7 (Claim C029B)S193Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Named product example only; contact count plus example pitch, excluding full SATA pin assignment and mating tolerances
Slimline SATA connectorP195 / Connector: 6 (Claim C195D)S597Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V143: the named drawing/revision or exact product page only. Recognition and document-role evidence; not a pinout, adapter verdict, dimensioned mating gauge, electrical approval or current installed-device claim.
Micro SATA connectorP199 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Populated contacts

SATA 7-pin data connectorP029 / Connector: 7 (0678005021)S193Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 0678005021: Seven-circuit Serial ATA PCB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No physical wiring layout is reconstructed from product attributes; manufacturer labels online information limited.
Slimline SATA connectorP195 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Micro SATA connectorP199 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Contact rows

SATA 7-pin data connectorP029 / Connector: 1 (0678005021)S193Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 0678005021: Seven-circuit Serial ATA PCB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No physical wiring layout is reconstructed from product attributes; manufacturer labels online information limited.
Slimline SATA connectorP195 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Micro SATA connectorP199 / Connector: 1 (Molex 78109-0001)S983 · S582Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 78109-0001 right-angle mid-mount Micro SATA receptacle, 16-circuit example; no transfer to an alternate plug or family part. Quantity context: Manufacturer Number Of Rows.

Contact pitch

SATA 7-pin data connectorP029 / Connector: 1.27 mm Example product pitch (Recorded example component); 1.27 mm Source-described pitch / centerline (Claim C029B)S193Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. example_component; Serial ATA data connector reference Named product example only; contact count plus example pitch, excluding full SATA pin assignment and mating tolerances
Slimline SATA connectorP195 / Connector: 1.27 mm Source-described pitch / centerline (Claim C195B); 1.27 mm published Slimline SerialATA connector pitchS581 · S581Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval. 47300. Documented role: backplane connector. This specification gives logo location explicitly; no individual specimen or literal moulded logo transcription claimed.; Product drawing takes precedence per section2.0. No unviewed geometry inferred from stress-test specimen count.
Micro SATA connectorP199 / Connector: 1.27 mm Manufacturer Pitch Mating Interface (Molex 78109-0001)S983 · S582Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 78109-0001 right-angle mid-mount Micro SATA receptacle, 16-circuit example; no transfer to an alternate plug or family part.

Dimensions / axis

SATA 7-pin data connectorP029 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Slimline SATA connectorP195 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Micro SATA connectorP199 / Connector: 4.15 mm connector width, straight base per ordering table (78500-0001)S582Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 78500-0001. Documented role: socket. Device-plug power segment key is specifically78103 and is not transferred to78500.; PCB thickness1mm and peg-distance accommodation are not outer dimensions or contact pitch.

Connector role

SATA 7-pin data connectorP029 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Slimline SATA connectorP195 / Connector: backplane connectorS581Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 47300. Documented role: backplane connector. This specification gives logo location explicitly; no individual specimen or literal moulded logo transcription claimed.; Product drawing takes precedence per section2.0. No unviewed geometry inferred from stress-test specimen count.
Micro SATA connectorP199 / Connector: socket (78500-0001)S582Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 78500-0001. Documented role: socket. Device-plug power segment key is specifically78103 and is not transferred to78500.; PCB thickness1mm and peg-distance accommodation are not outer dimensions or contact pitch.

Coupling / latch

SATA 7-pin data connectorP029 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Slimline SATA connectorP195 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Micro SATA connectorP199 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Keying / polarization

SATA 7-pin data connectorP029 / Connector: manufacturer reports keyed and polarized to mating part (0678005021)S193Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 0678005021: Seven-circuit Serial ATA PCB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No physical wiring layout is reconstructed from product attributes; manufacturer labels online information limited.
Slimline SATA connectorP195 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Micro SATA connectorP199 / Connector: Not recordedGuideposts, pockets, friction locks and PCB seating pegs are retained as construction/alignment context; no source-qualified asymmetric mating key or polarization fact is normalized.

Function covered

SATA 7-pin data connectorP029 / Connector: SATA data connectorC029A
Slimline SATA connectorP195 / Connector: Not an equivalent field
Micro SATA connectorP199 / Connector: Not an equivalent field

Contacts

SATA 7-pin data connectorP029 / Connector: 7; no pin assignment providedC029A
Slimline SATA connectorP195 / Connector: Not an equivalent field
Micro SATA connectorP199 / Connector: Not an equivalent field

Exact-board resource sharing

SATA 7-pin data connectorP029 / Connector: AC-HES example: populating M.2_2 disables SATA6G_56, not every SATA connector.C029C
Slimline SATA connectorP195 / Connector: Not an equivalent field
Micro SATA connectorP199 / Connector: Not an equivalent field

Documented identification

SATA 7-pin data connectorP029 / Connector: Not an equivalent field
Slimline SATA connectorP195 / Connector: Distinct Slimline SATA connector family.C195A
Micro SATA connectorP199 / Connector: Distinct Micro SATA connector family.C199A

Source-scoped role and recognition

SATA 7-pin data connectorP029 / Connector: Not an equivalent field
Slimline SATA connectorP195 / Connector: Keep the part label and legacy drawing warning together. Two separated groups: seven signal contacts and six power contacts.C195D · C195E · C195F
Micro SATA connectorP199 / Connector: Not an equivalent field

Evidence

SATA 7-pin data connectorP029 / Connector: C029A,C029C,C029D →
Independent review pending
Slimline SATA connectorP195 / Connector: C195A,C195B,C195C,C195D,C195E,C195F →
Independent review pending
Micro SATA connectorP199 / Connector: C199A,C199B,C199C,C199W →
Independent review pending

Your next step

Use the distinction in context.

Open the field notes Read source-linked facts and limitations.Compare another pair Start from a common confusion.Check a connection A comparison is not a compatibility verdict.

Continue the distinction

Compare next

Browse every comparison →

SATA data vs SATA powerSATA data and SATA power are separate connectors with different roles and contact counts. Sharing the SATA name does not make them substitutes.Internal SATA data versus eSATAExternal data cabling does not establish the device power arrangement.M.2 card edge vs SATA data connectorM.2 is a keyed module interface, not another name for the seven-pin SATA data connector. An M.2 module may use SATA, but its exact host support and physical connection still differ.Mini-SAS HD vs OCuLinkMini-SAS HD and OCuLink are different connector families used in high-speed internal links. Physical resemblance is not evidence of mating or protocol compatibility.Mini-SAS HD vs SlimSASMini-SAS HD and SlimSAS are different internal high-density connector families. Match the named SFF form and system documentation, not the general SAS label.CFast versus CFexpress Type BSATA CFast is not PCIe/NVMe CFexpress. Check the full card and reader names before checking performance.

Adjust this comparison

Add a field note

Evidence behind this page

Scope first. Source second. Approval separate.

9 linked sources · 13 scoped claims · 0 sources with inspection/access flags.

Page scope: Evidence behind the compared records; the editorial comparison still needs separate review.

Assessment 2026-10-22 · earliest scheduled source review 2027-01-03. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 9 source scopes, access limits and dates

S032 · SATA18 data cable

StarTech.com · Manufacturer / product-owner domain · inspected 2026-10-07 · due 2027-01-05

Within inspection window

Scoped support: Seven-contact SATA data connector, not the separate power connector.

Not established / limitations: Exact SATA18 product description only. Seven-contact data receptacles do not establish separate SATA power wiring. No universal rate, length, dimensional or mating guarantee is adopted.

Locator: PDF p. 1: two seven-contact data receptacles; p. 3: Connector(s) table, visually inspected.

S200 · Serial ATA and SAS connector system

Molex · Manufacturer / product-owner domain · inspected 2026-10-05 · due 2027-01-03

Within inspection window

Scoped support: Identifies Serial ATA signal/power, combo, Micro SATA, Slimline SATA, SAS and SlimSAS connector families.

Not established / limitations: Identification/reference scope only. V36 does not convert this source into a universal pinout, fabrication drawing, electrical approval or end-to-end compatibility verdict.

Locator: Product-family overview

S429 · PRIME B550-PLUS AC-HES User’s Manual

ASUS · Manufacturer / product-owner domain · inspected 2026-10-08 · due 2027-01-06

Within inspection window

Scoped support: Selected storage and PCIe slot roles for PRIME B550-PLUS AC-HES only, with CPU, slot population and SATA-sharing conditions.

Not established / limitations: Not the ordinary PRIME B550-PLUS or every B550 motherboard. Selected internal groups only; no current BIOS verification, boot qualification, entire port inventory or hardware test. Manual conditions must not be generalized.

Locator: E18712, First Edition, July 2021; specification summary printed vi–vii and layout 1-2. PDF pages 2, 6, 7 and 12 visually inspected.

S492 · USB3S2SAT3CB USB to SATA adapter datasheet

StarTech.com · Manufacturer / product-owner domain · inspected 2026-10-11 · due 2027-01-09

Within inspection window

Scoped support: Named 2.5-inch SATA adapter and explicit 3.5-inch drive exclusion. SAS support is not established.

Not established / limitations: Named example only. No universal compatibility or publication approval. Raw-byte acquisition status is recorded separately.

Locator: PDF page 2: drive-size exclusion and compatibility paragraphs; visually inspected.

S581 · Molex PS-47300-001 rev C: Slimline Serial ATA ODD connector

Molex · Manufacturer / product-owner domain · inspected 2026-10-13 · due 2027-01-11

Within inspection window

Scoped support: Historical part-series-specific design/specification for slimline optical disc-drive connector, not general SATA power or blanket rating of all modern slimline forms.

Not established / limitations: Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.

Locator: 8-page product specification PS-47300-001 revision C 2009-02-12, cover: SLIMLINE SERIAL ATA OF ODD CONNECTOR / 1.27mm PITCH; page 1 inspected visually.

S582 · Molex 987650-4211: historical Micro SATA product family

Molex · Manufacturer / product-owner domain · inspected 2026-10-13 · due 2027-01-11

Within inspection window

Scoped support: Text-acquired family evidence for 1.8-inch SSD and variant role/orientation. NO source-image geometry study claimed: PDF screenshot request failed.

Not established / limitations: Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.

Locator: 4-page Micro Serial ATA manufacturer product brochure dated 2010-03: page 1 series 78103/78283/78285 plugs and 78109/78320/78492/78500 receptacles; visually fetching PDF page returned HTTP 400.

S596 · Conn-Link CSAT-M13RS30-Q3 linked Slimline SATA drawing, revision A

Conn-Link Technology · Unclassified publisher domain · inspected 2026-10-13 · due 2027-01-11

Within inspection window

Scoped support: Qualitative views linked from the named CSAT-M13RS30-Q3 product page only.

Not established / limitations: Footer identity mismatch retained. The drawing and product page also disagree on contact material and lower operating-temperature limit; no material, temperature, rating, dimensions or current-part equivalence promoted.

Locator: Single PDF sheet visually inspected; revision A, 03/14/11. Body names CSAT-M13RS30-Q3 and describes 7+6P male right-angle SMT. Footer drawing number reads CSAT-M22-0C5.

S597 · Conn-Link CSAT-M13RS30-Q3 product page

Conn-Link Technology · Unclassified publisher domain · inspected 2026-10-13 · due 2027-01-11

Within inspection window

Scoped support: Named manufacturer part description and link provenance for the inspected legacy drawing.

Not established / limitations: Page is undated. Material/temperature conflicts with linked drawing are unresolved and excluded from new claims.

Locator: Description and linked PDF checked 2026-10-13; 7+6P, male, right-angle, standard type, SMD.

S983 · Molex 78109-0001 physical specifications

Molex · Manufacturer / product-owner domain · inspected 2026-10-22 · due 2027-01-20

Within inspection window

Scoped support: Exact78109-0001 MicroSATA board receptacle only.

Not established / limitations: Optional manufacturing positions and other MicroSATA parts differ. No generic device-plug geometry or wiring transferred. Live part page says Limited Information Available.

Locator: Physical Specifications:16loaded circuits,Number Of Rows1,Pitch Mating Interface1.27 mm; Keywords78109-0001. ExistingS582 full four-page MicroSATA brochure pp1,2,4 identifies78109 as right-angle mid-mount receptacle and exact78109-0001 in16 circuit table.

Trace 13 claims to their source records

C029A · P029

SATA data cables use a seven-contact connector distinct from the separate power connection.

Claim scope: Consumer identification / documented standard or product class only

Source links: S032 · Evidence trail → (private workspace)

C029C · P029

The PRIME B550-PLUS AC-HES manual states that populating M.2_2 disables the SATA6G_56 ports. Its condition is not limited in that note to installing a SATA-mode M.2 SSD.

Claim scope: E18712 printed vii, exact board, M.2_2 and SATA6G_56 labels; not a rule for other boards or other slots.

Source links: S429 · Evidence trail → (private workspace)

C029D · P029

StarTech USB3S2SAT3CB supports 2.5-inch SATA SSD/HDD use and explicitly excludes 3.5-inch hard drives.

Claim scope: Named USB-to-SATA adapter. Do not generalize this product limitation to every powered SATA dock or infer SAS support.

Source links: S492 · Evidence trail → (private workspace)

C195A · P195

Molex lists Slimline SATA as a distinct connector family within its Serial ATA product system.

Claim scope: V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof.

Source links: S200 · Evidence trail → (private workspace)

C195B · P195

Molex PS-47300-001 revision C, dated 2009-02-12, identifies a Slimline Serial ATA optical-disc-drive connector product family and gives a 1.27 mm pitch within that document’s scope.

Claim scope: V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.

Source links: S581 · Evidence trail → (private workspace)

C195C · P195

The slimline Molex product specification defers construction and physical dimensions to the applicable sales drawing, so the product specification alone cannot verify a universal mating envelope.

Claim scope: V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.

Source links: S581 · Evidence trail → (private workspace)

C195D · P195

Conn-Link describes CSAT-M13RS30-Q3 as a 7+6-position Slimline SATA male, right-angle, surface-mount component.

Claim scope: V143: the named drawing/revision or exact product page only. Recognition and document-role evidence; not a pinout, adapter verdict, dimensioned mating gauge, electrical approval or current installed-device claim.

Source links: S597 · Evidence trail → (private workspace)

C195E · P195

The PDF linked from CSAT-M13RS30-Q3 shows two separated contact groups in a board-mount component; its PCB layout is a different view from the mating interface.

Source links: S596 · Evidence trail → (private workspace)

C195F · P195

The linked legacy drawing names CSAT-M13RS30-Q3 in its body but gives CSAT-M22-0C5 as its footer drawing number; current part equivalence is not resolved by that document alone.

Source links: S596 · S597 · Evidence trail → (private workspace)

C199A · P199

Molex lists Micro SATA as a distinct connector form within its Serial ATA connector system.

Claim scope: V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof.

Source links: S200 · Evidence trail → (private workspace)

C199B · P199

Molex’s March 2010 Micro SATA brochure presents products intended for 1.8-inch SSD/mobile applications and distinguishes right-angle device plugs from right-angle or vertical backplane receptacles.

Claim scope: V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.

Source links: S582 · Evidence trail → (private workspace)

C199C · P199

The Molex Micro SATA brochure lists with-flange 78103 versus unflanged 78283/78285 plug variants and multiple receptacle series; variant names must not be collapsed into one exact mechanical configuration.

Claim scope: V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.

Source links: S582 · Evidence trail → (private workspace)

C199W · P199

Molex 78109-0001 is a right-angle mid-mount Micro SATA receptacle in the manufacturer brochure. Its exact specification lists one row and 1.27 mm mating-interface pitch.

Claim scope: Exact Molex 78109-0001 right-angle mid-mount Micro SATA receptacle, 16-circuit example; no transfer to an alternate plug or family part.

Source links: S983 · S582 · Evidence trail → (private workspace)

Prepare this page for review →Read the evidence method →

Recorded evidence only. An inspection date, publisher label, source link or generated packet is not independent technical review, hardware testing, fabrication approval or a compatibility verdict.
