ASUS PRIME B550-PLUS AC-HES — selected storage and PCIe slots

An exact motherboard example: two M-key slots have CPU/chipset-dependent modes; M.2_2 shares resources with SATA6G_56, and physical x16 does not guarantee sixteen wired lanes.

Explore this device’s exact port groups →

Exact scope

PRIME B550-PLUS AC-HES only; E18712 First Edition July 2021, selected internal groups

Four selected internal port groups from E18712, printed vi–vii and layout 1-2; not a complete motherboard inventory.

Source checked · human review pending

Checked 2026-10-08 · Review due 2027-01-06
Sources S429

Inspect the evidence → (private workspace)

Same connector form, different documented roles

P030: M.2_1 (Key M) — CPU-dependent PCIe x4 or SATA · M.2_2 (Key M) — Chipset PCIe 3.0 x4 or SATA

Do not transfer a capability from one location to another merely because the connector outline matches.

Location and role matter

Selected port groups

4 groups · not an exhaustive parts diagram

Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

M.2 card edge interface — original, not-to-scale identification schematic; drawing review pending× 1
CPU dependent PCIe x4 or SATA

M.2_1 (Key M)

The manual lists 2242/2260/2280/22110. Named Ryzen 5000/3000 desktop families use PCIe 4.0 x4; named 5000 G-Series/4000 G-Series families use PCIe 3.0 x4; SATA mode is also listed. Verify the exact CPU and firmware.

Sources S429 · Connector field note

Identification only. This port group cannot launch the scoped planner.

M.2 card edge interface — original, not-to-scale identification schematic; drawing review pending× 1
Chipset PCIe 3.0 x4 or SATA

M.2_2 (Key M)

The manual lists 2242/2260/2280/22110 and PCIe 3.0 x4/SATA. Populating M.2_2 disables SATA6G_56; the note is not restricted to SATA-mode modules.

Sources S429 · Connector field note

Identification only. This port group cannot launch the scoped planner.

× 1
Physical x16, x4 mode with a population condition

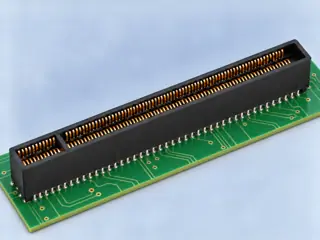

PCIEX16_4 / PCIe 3.0 x16_4

The specification summary lists x4 mode, falling to x1 if any of x16_2, x16_3 or x16_5 is occupied. The layout uses PCIEX16_4. This is not the CPU-connected x16 slot.

Sources S429 · Connector field note

Identification only. This port group cannot launch the scoped planner.

× 2
SATA; unavailable when M.2_2 is populated

SATA6G_56 (ports 5 and 6)

Only this selected pair is documented here. The exact manual says the pair is disabled when M.2_2 is populated; this is not a universal SATA or M.2 rule.

Sources S429 · Connector field note

Identification only. This port group cannot launch the scoped planner.

Read before using the profile

  • This profile is not the similarly named PRIME B550-PLUS without the AC-HES suffix.
  • Selected internal groups only: other PCIe slots, SATA ports, power, USB, display, audio and network connectors are not inventoried here.
  • The manual’s processor-family conditions are retained; no current BIOS, boot qualification, actual throughput, compatibility approval or hardware testing is claimed.
  • Storage groups are informational and do not prefill a USB/display planner. Power off and follow the exact motherboard and drive service instructions.

Exact-model source trail

Sources behind this profile

These are the profile’s existing source records, with their original scope and access limitations. No new inspection or approval is implied.

S429Full source record →

ASUS · PRIME B550-PLUS AC-HES User’s Manual

Selected storage and PCIe slot roles for PRIME B550-PLUS AC-HES only, with CPU, slot population and SATA-sharing conditions.

Open source ↗

Locator: E18712, First Edition, July 2021; specification summary printed vi–vii and layout 1-2. PDF pages 2, 6, 7 and 12 visually inspected.
Access: public pdf text. Not the ordinary PRIME B550-PLUS or every B550 motherboard. Selected internal groups only; no current BIOS verification, boot qualification, entire port inventory or hardware test. Manual conditions must not be generalized.
