Miniature four-position floppy-drive power housing

The miniature floppy-drive connector uses a distinct four-position housing; TE 171822-4 is a named wire-to-board receptacle housing and Intel marks the floppy-drive power section historical.

Also called mini floppy drive power Berg-style 4-pin floppy power small 4-pin floppy power AMP 171822-4 example

Equal counts of four contacts do not establish a safe mechanical mate, cable wiring or interchangeable equipment power connection.

Look for

Compare the miniature four-cavity housing, retention feature, and specific part label; a similarly counted full-size peripheral plug is a different system.

Claim inspection dates: 2026-10-13 · Independent review pending

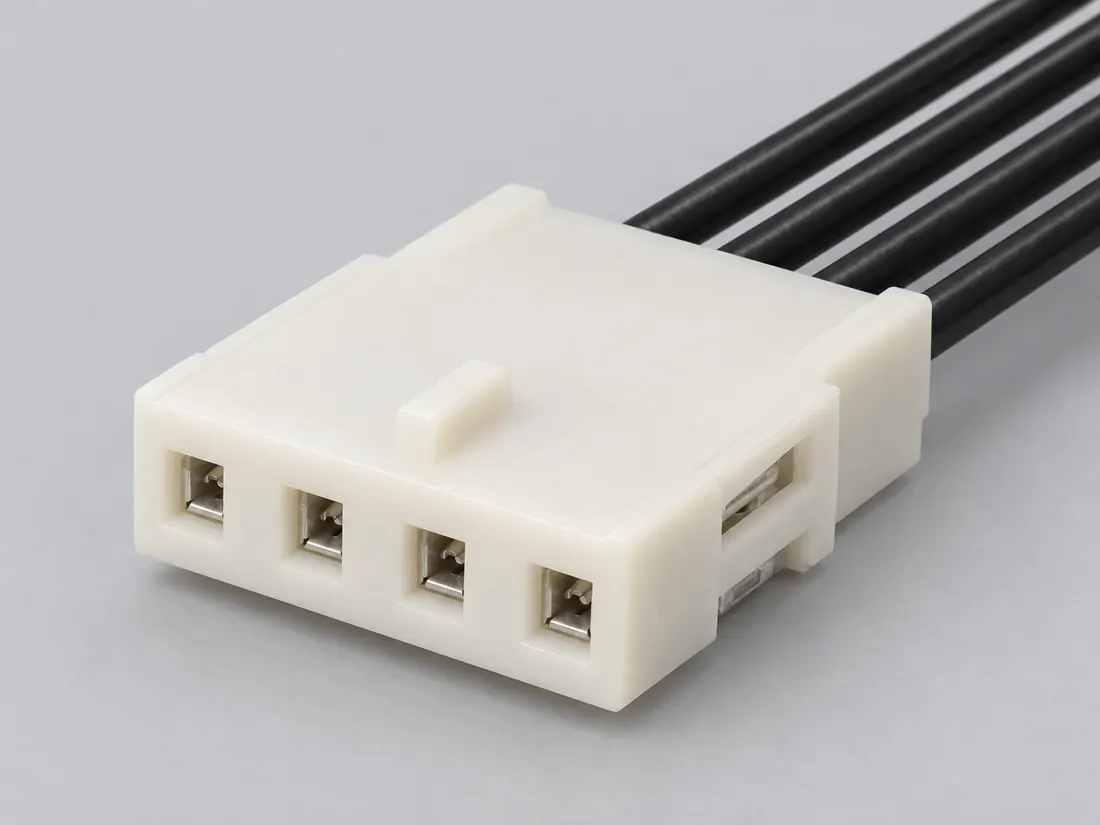

Miniature four-position floppy-drive power housing: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

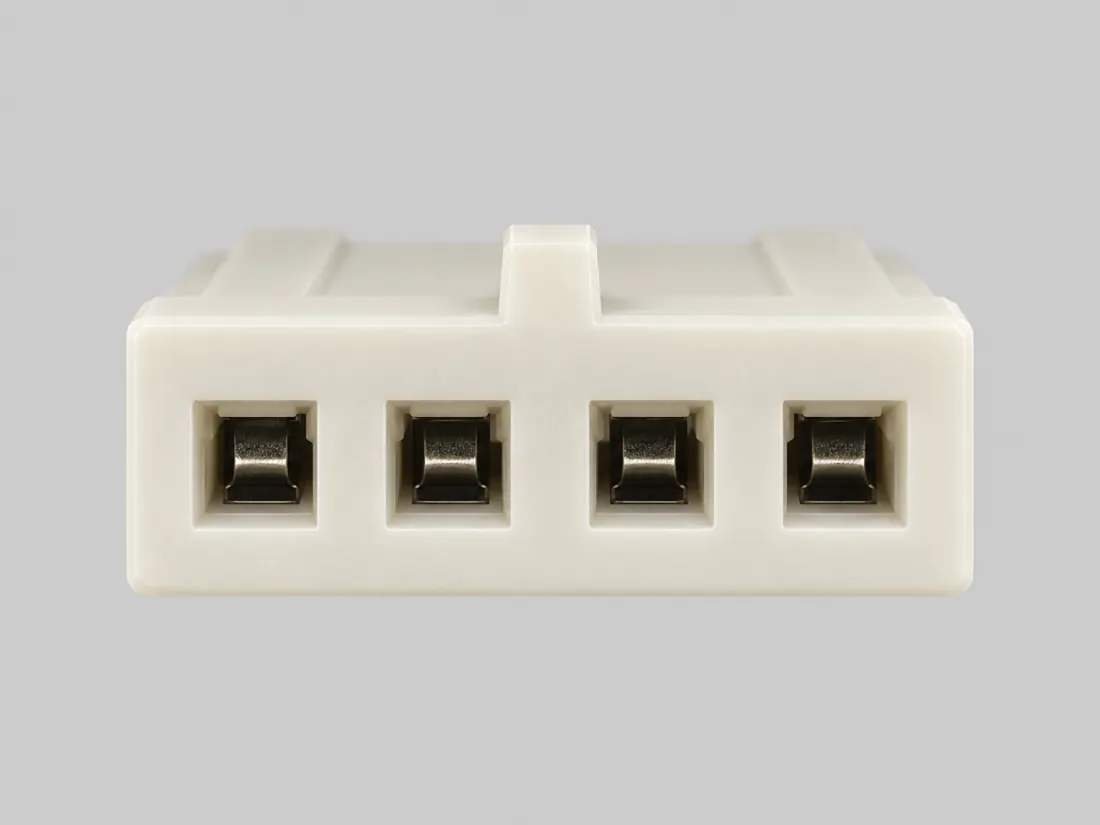

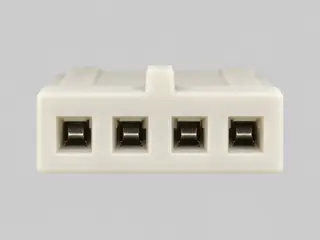

Miniature four-position floppy-drive power housing: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

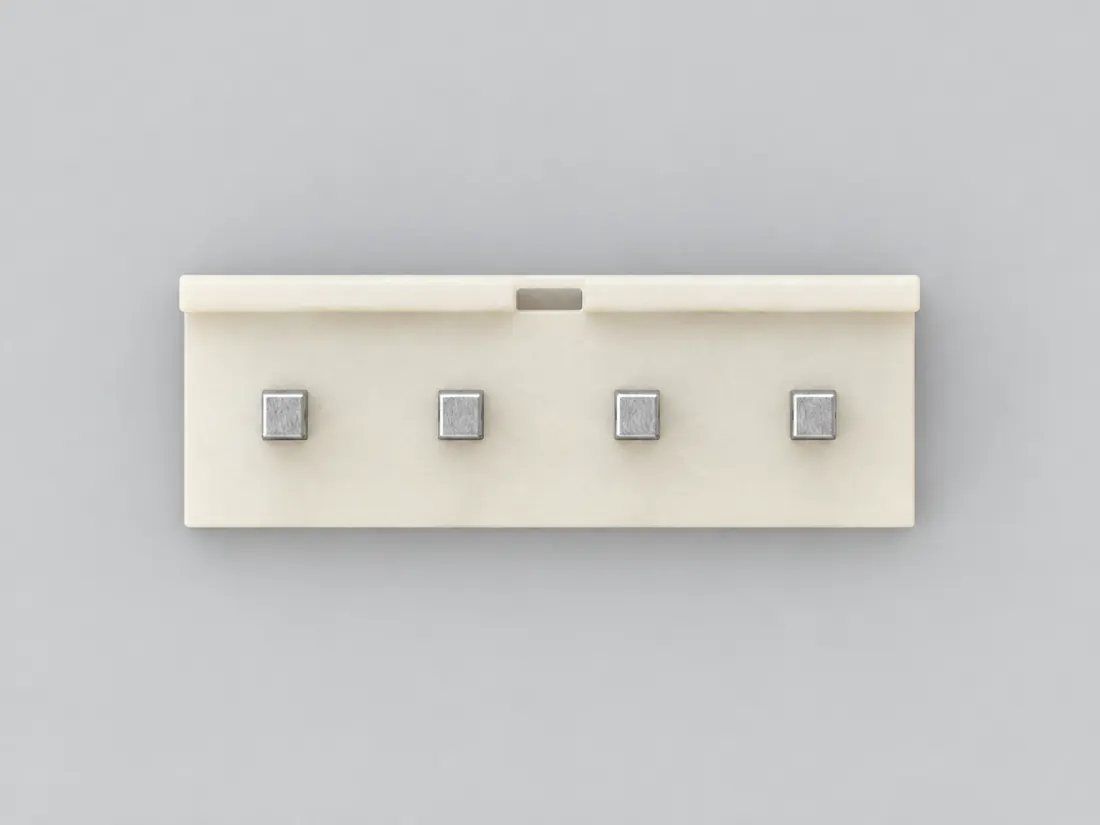

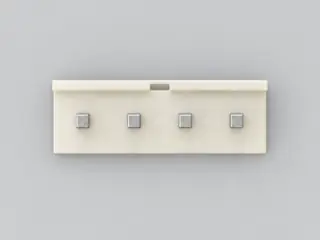

Miniature four-position floppy-drive power housing: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

Miniature four-position floppy-drive power housing: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Image inspection / P368

See the view. Check its scope.

1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.

TE 171822-4 bare AMP EI four-position receptacle housing. Only named TE 171822-4; Intel historical floppy identity; not universal miniature power connector geometry. Not to scale; no wiring or mating approval. (private workspace)

P368 / Source-observed physical study

Miniature example · 171822-4

TE 171822-4 bare AMP EI four-position receptacle housing

qualitative mating-face study · Cable housing

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

The useful distinction

Recognize it. Then verify it.

The miniature floppy-drive connector uses a distinct four-position housing; TE 171822-4 is a named wire-to-board receptacle housing and Intel marks the floppy-drive power section historical. [C368A]

TE identifies a 2.5 mm centerline for 171822-4 rather than the 5.08 mm value on 1-480424-0; matching position count is not a mateability verdict. [C368B]

TE drawing 171822 revision L5 shows a narrow housing with four small rectangular face openings and a central retention feature; the study does not provide contact positions or fitting dimensions. [C368C]

Intel ATX 336521 version 2.01 names AMP 171822-4 in the explicitly historical floppy-drive power-connector subsection headed Do Not Include. This does not impose a current-PSU connector requirement. [C368D]

Source-scoped identification facts

Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.

Documented examples; not a mating drawing or compatibility approval
Positions / cavity span4 (Claim C368A)S578Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.
Contact rows1 (Claim C368A); 1 (171822-4)S578 · S578Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. TE 171822-4 is a four-position, single-row receptacle housing for wire-to-board crimp termination in its AMP EI series, not the same four-position housing as TE 1-480424-0. | V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval. 171822-4. Documented role: socket. Housing has one row, distinct from5.08mm MATE-N-LOK form. Voltage/current are manufacturer part attributes, not floppy harness approval.
Contact pitch2.5 mm Source-described pitch / centerline (Claim C368B); 2.5 mm published contact centerline (171822-4)S575 · S578 · S578Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval. 171822-4. Documented role: socket. Housing has one row, distinct from5.08mm MATE-N-LOK form. Voltage/current are manufacturer part attributes, not floppy harness approval.
Dimensions / axis14 mm connector length (171822-4); 5.75 mm connector height (171822-4)S578Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 171822-4. Documented role: socket. Housing has one row, distinct from5.08mm MATE-N-LOK form. Voltage/current are manufacturer part attributes, not floppy harness approval.
Connector rolesocket (171822-4)S578Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 171822-4. Documented role: socket. Housing has one row, distinct from5.08mm MATE-N-LOK form. Voltage/current are manufacturer part attributes, not floppy harness approval.
Coupling / latchLocking mating retention; free-hanging inline housing (171822-4)S578Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 171822-4. Documented role: socket. Housing has one row, distinct from5.08mm MATE-N-LOK form. Voltage/current are manufacturer part attributes, not floppy harness approval.
ManufacturerTE Connectivity (171822-4)S578Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.
SeriesAMP EI (171822-4)S578Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.
Exact part / implementation171822-4 (171822-4)S578Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.

Not recorded: Nominal contacts, Populated contacts, Contact gender / arrangement, Mounting, Keying / polarization, Shell / form, Recorded markings, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.

Recorded variant and source limits
  • Check the exact device manual before wiring or applying power.
  • Intel ATX v3 floppy connector (historical reference only): Per Table 5-3.
  • SSI 2008 PSDG floppy power connector: Per Table 8.
  • Intel rev 2.1a historical floppy cable: Numbered assignments only. The retrieved Intel section supplies a table but no numbered mating-face or wire-side drawing; spatial orientation is UNVERIFIED. Do not mirror these numbers onto an unidentified cable end.
Report a correction to these facts →

Bounded facts, visible unknowns

Specifications and limits

Miniature four-position floppy-drive power housing facts and limitations
Source-specific exampleReceptacle housing, wire-to-board crimp; 2.5 mm (TE 171822-4 only). A housing is not a terminated power cable. [C368A] [C368B]
Mechanical dimensionsExact-part manufacturer listing supplies centerline as a descriptor; dimensions_mm remains unset and cannot authorize fit, fabrication or tolerance.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
A boundary, not an omission to guess around.

The evidence establishes a named housing only. Contacts, wires, cable assembly, PSU-side arrangement and equipment-specific safety remain unverified.

Before you connect

What to check

  1. Identify the exact connector family and variant from the equipment or cable documentation.
  2. Keep shape, contact count, protocol, electrical rating and device support as separate facts.
  3. Do not force, rewire or adapt a connector from this recognition record; resolve the remaining requirements first.
Trace a supported connection class →

Pins & wiring

Pinout

Choose the exact wiring. Pin numbers follow its stated view; a schematic does not establish physical positions. Check your exact device before wiring.

What the status labels mean
Confirmed
Recorded research passes agree within this variant; this is not independent human review or hardware validation.
Single source
Only one underlying document, or one pass, supports this assignment.
Device-specific
Supported for the named equipment or wiring only. Check your device’s manual.
Unverified
Missing or conflicting evidence. Do not wire from this row.
Not connected
The source explicitly says NC, no contact or no pin for this wiring.
Wiring variant

Intel ATX v3 floppy connector (historical reference only)

View and evidence limits

Per Table 5-3.

  • P368 floppy power — **Agree**: 1 +5 V, 2/3 return, 4 +12 V — Same Intel historical-reference table in both; SSI adds evidence in A only. Contact order differs from LP4. Numbered housing-face orientation remains unverified.
  • The AMP/TE housing drawing was not retrieved; contact-number placement on the housing is not verified here.
Miniature four-position floppy-drive power (Berg) engineering referencePer Table 5-3.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: +5V DC (confirmed)12: COM (confirmed)23: COM (confirmed)34: +12V1 DC (confirmed)4powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
Intel ATX v3 floppy connector (historical reference only) — source-scoped contact map
PinSignalWhat it doesStatus
1+5V DCPower connection (+5V DC). Check the specified supply.Confirmed
Sources
2COMGround reference and return.Confirmed
Sources
3COMGround reference and return.Confirmed
Sources
4+12V1 DCPower connection (+12V1 DC). Check the specified supply.Confirmed
Sources
Sources (2)

SSI 2008 PSDG floppy power connector

View and evidence limits

Per Table 8.

  • P368 floppy power — **Agree**: 1 +5 V, 2/3 return, 4 +12 V — Same Intel historical-reference table in both; SSI adds evidence in A only. Contact order differs from LP4. Numbered housing-face orientation remains unverified.
  • The AMP/TE housing drawing was not retrieved; contact-number placement on the housing is not verified here.
Miniature four-position floppy-drive power (Berg) engineering referencePer Table 8.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: +5 VDC (confirmed)12: COM (confirmed)23: COM (confirmed)34: +12 V4 (single_source)4powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
SSI 2008 PSDG floppy power connector — source-scoped contact map
PinSignalWhat it doesStatus
1+5 VDCPower connection (+5 VDC). Check the specified supply.Confirmed
Sources
2COMGround reference and return.Confirmed
Sources
3COMGround reference and return.Confirmed
Sources
4+12 V4Power connection (+12 V4). Check the specified supply.Single source
Sources
Sources (2)

Intel rev 2.1a historical floppy cable

View and evidence limits

Numbered assignments only. The retrieved Intel section supplies a table but no numbered mating-face or wire-side drawing; spatial orientation is UNVERIFIED. Do not mirror these numbers onto an unidentified cable end.

  • P368 floppy power — **Agree**: 1 +5 V, 2/3 return, 4 +12 V — Same Intel historical-reference table in both; SSI adds evidence in A only. Contact order differs from LP4. Numbered housing-face orientation remains unverified.
  • Intel names AMP 171822-4 (or equivalent); numbered color order is red/black/black/yellow. The guide explicitly labels this historical and Do Not Include.
  • The table establishes numeric cable assignment but no numbered spatial face. A bare housing does not identify installed wiring or the viewed side.
Miniature four-position floppy-drive power (Berg) engineering referenceNumbered assignments only. The retrieved Intel section supplies a table but no numbered mating-face or wire-side drawing; spatial orientation is UNVERIFIED. Do not mirror these numbers onto an unidentified cable end.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: +5V DC (confirmed)12: COM (confirmed)23: COM (confirmed)34: +12V1 DC (confirmed)4powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
Intel rev 2.1a historical floppy cable — source-scoped contact map
PinSignalWhat it doesStatus
1+5V DCPower connection (+5V DC). Check the specified supply.Confirmed
Sources
2COMGround reference and return.Confirmed
Sources
3COMGround reference and return.Confirmed
Sources
4+12V1 DCPower connection (+12V1 DC). Check the specified supply.Confirmed
Sources
Sources (3)

Source and next action

Read the exact TE part page and dated Intel design guide; verify the device manual and model of the full power-supply assembly before considering use.

Your next step

Move from the form to the requirement.

Read the engineering reference Source-scoped details, orientation and explicit unknowns.Work through a connection Choose your task before deciding on a cable.Explore this evidence trail Inspect the claims and their dependencies. (private workspace)

The source trail

Evidence for this page

AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.

Back to first citation ↑
C368ASource checked · pending review

TE 171822-4 is a four-position, single-row receptacle housing for wire-to-board crimp termination in its AMP EI series, not the same four-position housing as TE 1-480424-0.

TE Connectivity · TE 171822-4: exact four-position AMP EI receptacle housing ↗

Locator: Product summary, Product Features, and HOUSING AMP EI SERIES CONNECTOR drawing link; 4 positions, 2.5 mm centerline, crimp, wire-to-board, receptacle housing.
Access: public page. Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.
