LP4 four-contact peripheral power housing

Legacy desktop peripheral-power cable ends can use a four-position inline housing; the TE 1-480424-0 bare plug-housing example is distinct from a complete terminated PSU lead.

Also called LP4 peripheral power Molex-style 4-pin peripheral power legacy hard-drive power connector AMP 1-480424-0 example

Equal counts of four contacts do not establish a safe mechanical mate, cable wiring or interchangeable equipment power connection.

Look for

Confirm four inline cavities and the part/family marking, then identify the complete PSU cable and peripheral from their manuals. Do not identify wires by color or shape.

Claim inspection dates: 2026-10-13 · Independent review pending

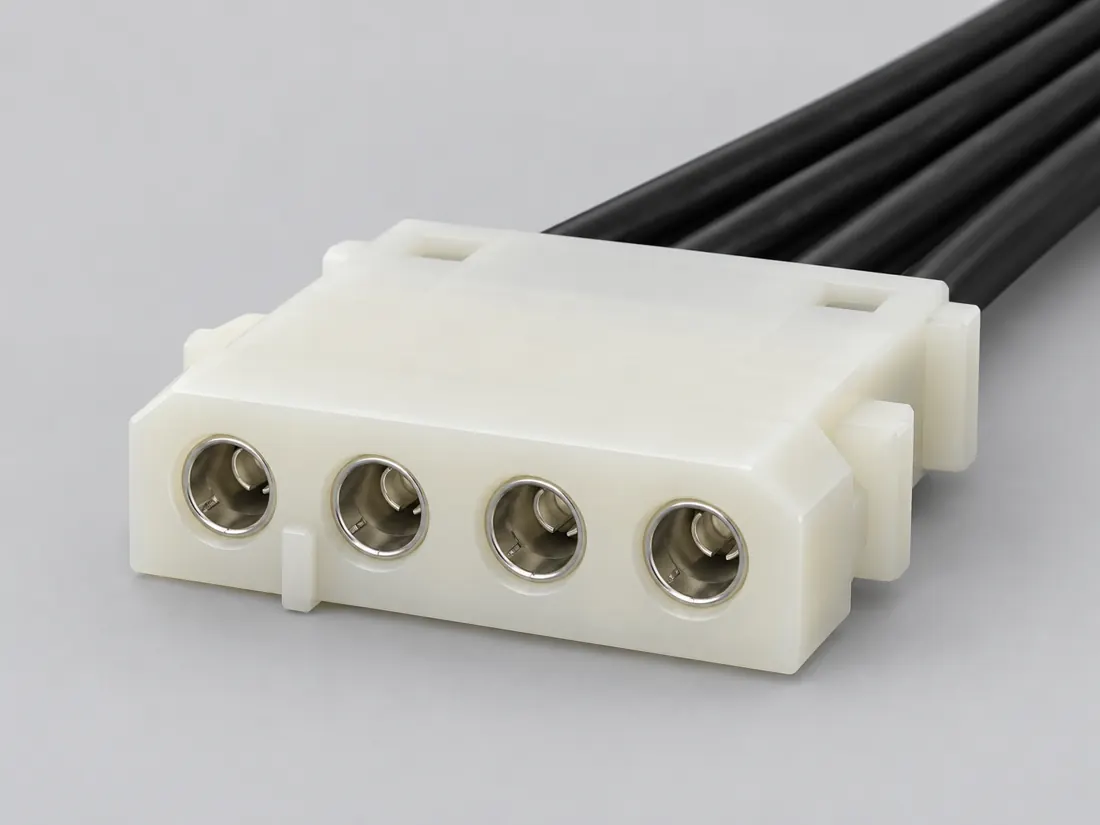

LP4 four-contact peripheral power housing: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

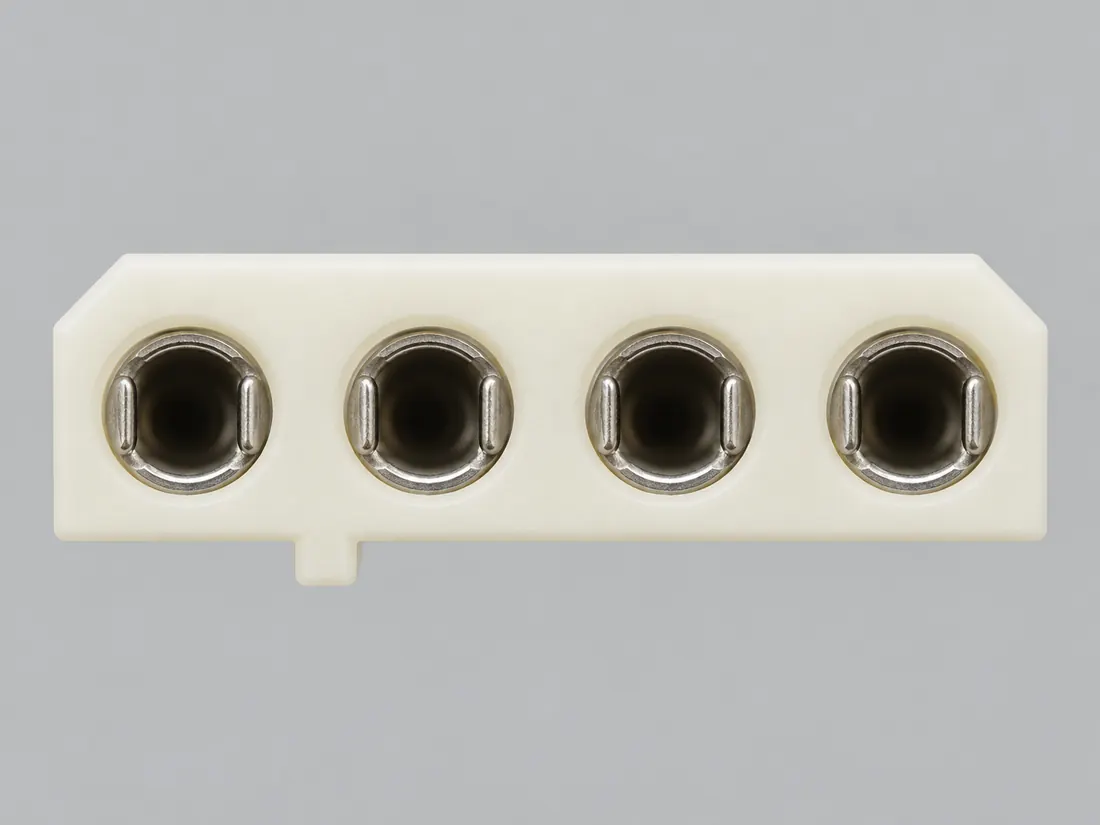

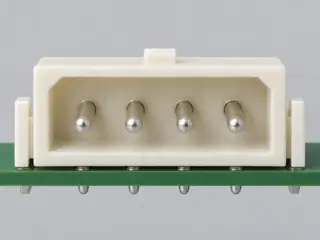

LP4 four-contact peripheral power housing: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

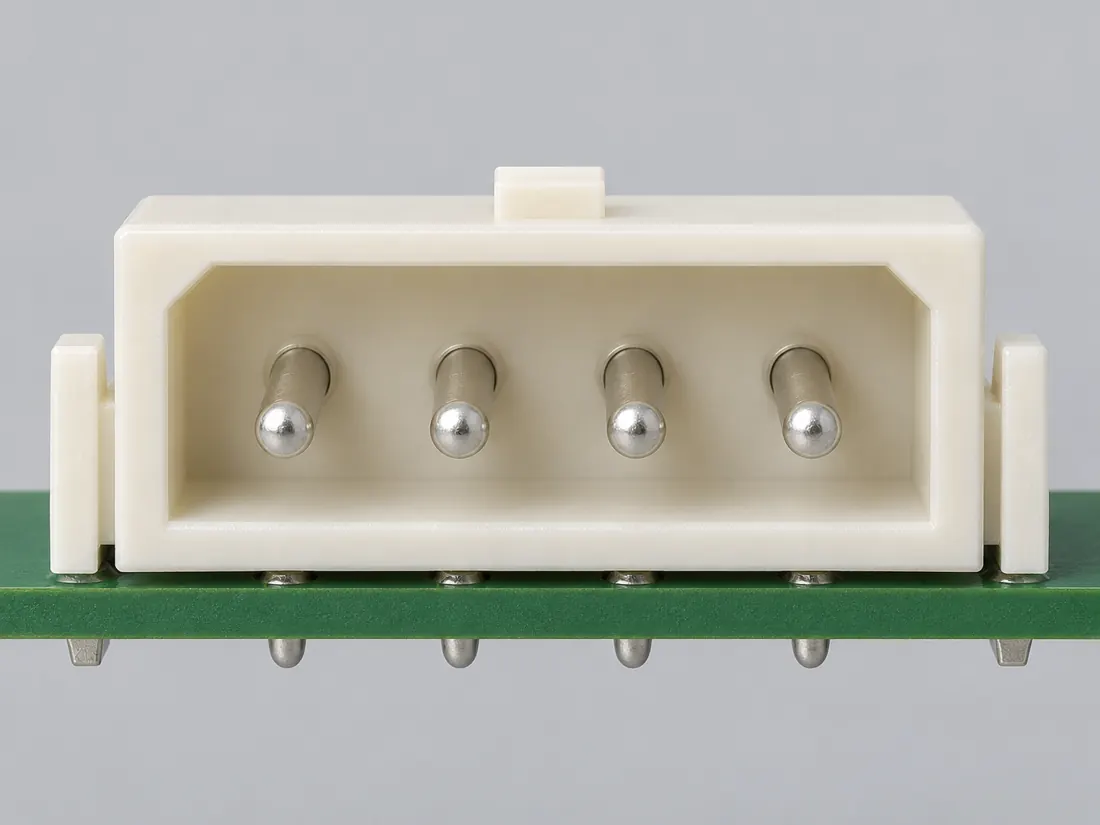

LP4 four-contact peripheral power housing: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

LP4 four-contact peripheral power housing: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Image inspection / P367

See the view. Check its scope.

2 registered views for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.

TE 1-480424-0 bare commercial MATE-N-LOK plug housing. Only named TE commercial MATE-N-LOK housing. No complete power cable or universal mating claim. Not to scale; no wiring or mating approval. (private workspace)

P367 / Source-observed physical study

LP4 example · 1-480424-0

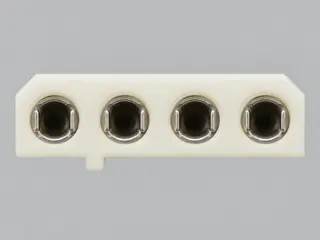

TE 1-480424-0 bare commercial MATE-N-LOK plug housing

qualitative mating-face study · Cable housing

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)
Two manufacturer-scoped historic power-housing examples; no equivalence claim. A count of four does not establish compatibility. This plate contains no contact plan, adapter or wiring instructions. Not to scale; no wiring or mating approval. (private workspace)

P367 / Concept — not physical geometry

Four contacts ≠ one connector

Two manufacturer-scoped historic power-housing examples; no equivalence claim

editorial identity comparison · Concept only

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

The useful distinction

Recognize it. Then verify it.

Legacy desktop peripheral-power cable ends can use a four-position inline housing; the TE 1-480424-0 bare plug-housing example is distinct from a complete terminated PSU lead. [C367A]

The named TE housing has a 5.08 mm centerline in its manufacturer listing; this is a part-specific distinguishing identifier, not a plug-and-play or safe-mating tolerance. [C367B]

TE drawing 480424 revision N1 shows a four-cavity inline shell with rounded cavity openings; this observation concerns only the named bare housing and excludes terminal or cable arrangement. [C367C]

Intel ATX design-guide 336521 version 2.01 names AMP 1-480424-0 or equivalent under peripheral connectors; the document is dated 2023 and has a newer-version notice. [C367D]

Source-scoped identification facts

Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.

Documented examples; not a mating drawing or compatibility approval
Positions / cavity span4 (Claim C367A)S575Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.
Contact rows1 (Claim C367A); 1 (1-480424-0)S575 · S575Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. TE 1-480424-0 is an exact four-position, single-row commercial MATE-N-LOK plug housing, listed as wire-to-wire and crimp, not a complete peripheral power harness. | V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval. 1-480424-0. Documented role: plug. Currentpage lacks detailed dimensions. Existing S576drawing observation stays separate.; Housing-only role and separately required contacts retained; no LP4 harness pinout inferred from manufacturer housing nomenclature.
Contact pitch5.08 mm Source-described pitch / centerline (Claim C367B); 5.08 mm published contact centerline (1-480424-0)S575 · S575Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval. 1-480424-0. Documented role: plug. Currentpage lacks detailed dimensions. Existing S576drawing observation stays separate.; Housing-only role and separately required contacts retained; no LP4 harness pinout inferred from manufacturer housing nomenclature.
Connector roleplug (1-480424-0)S575Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 1-480424-0. Documented role: plug. Currentpage lacks detailed dimensions. Existing S576drawing observation stays separate.; Housing-only role and separately required contacts retained; no LP4 harness pinout inferred from manufacturer housing nomenclature.
ManufacturerTE Connectivity (1-480424-0)S575Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.
SeriesMATE-N-LOK (1-480424-0); Commercial MATE-N-LOK (1-480424-0)S575 · S575Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval. 1-480424-0. Documented role: plug. Currentpage lacks detailed dimensions. Existing S576drawing observation stays separate.; Housing-only role and separately required contacts retained; no LP4 harness pinout inferred from manufacturer housing nomenclature.
Exact part / implementation1-480424-0 (1-480424-0)S575Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V140 / Source-scoped historical or exact-part identity only. No wiring, pinout, universal fit, cable/terminal assembly, device rating, fabrication or publication approval.

Not recorded: Nominal contacts, Populated contacts, Dimensions / axis, Contact gender / arrangement, Mounting, Coupling / latch, Keying / polarization, Shell / form, Recorded markings, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.

Recorded variant and source limits
  • Check the exact device manual before wiring or applying power.
  • Intel ATX v3 PSU peripheral connector (optional): Per Table 5-2.
  • SSI 2008 PSDG peripheral power connector: Per Table 7.
  • Intel rev 2.1a peripheral cable: Numbered assignments only. The retrieved Intel section supplies a table but no numbered mating-face or wire-side drawing; spatial orientation is UNVERIFIED. Do not mirror these numbers onto an unidentified cable end.
Report a correction to these facts →

Bounded facts, visible unknowns

Specifications and limits

LP4 four-contact peripheral power housing facts and limitations
Source-specific examplePlug housing, wire-to-wire crimp; 5.08 mm (TE 1-480424-0 only). A housing is not a terminated power cable. [C367A] [C367B]
Mechanical dimensionsExact-part manufacturer listing supplies centerline as a descriptor; dimensions_mm remains unset and cannot authorize fit, fabrication or tolerance.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
A boundary, not an omission to guess around.

The evidence establishes a named housing only. Contacts, wires, cable assembly, PSU-side arrangement and equipment-specific safety remain unverified.

Before you connect

What to check

  1. Identify the exact connector family and variant from the equipment or cable documentation.
  2. Keep shape, contact count, protocol, electrical rating and device support as separate facts.
  3. Do not force, rewire or adapt a connector from this recognition record; resolve the remaining requirements first.
Trace a supported connection class →

Pins & wiring

Pinout

Choose the exact wiring. Pin numbers follow its stated view; a schematic does not establish physical positions. Check your exact device before wiring.

What the status labels mean
Confirmed
Recorded research passes agree within this variant; this is not independent human review or hardware validation.
Single source
Only one underlying document, or one pass, supports this assignment.
Device-specific
Supported for the named equipment or wiring only. Check your device’s manual.
Unverified
Missing or conflicting evidence. Do not wire from this row.
Not connected
The source explicitly says NC, no contact or no pin for this wiring.
Wiring variant

Intel ATX v3 PSU peripheral connector (optional)

View and evidence limits

Per Table 5-2.

  • P367 LP4 — **Agree**: 1 +12 V, 2/3 return, 4 +5 V — Both use the same Intel rev 2.1a table. SSI is an additional issuer in A only. Housing identity alone does not verify a particular cable or drive-side view.
  • No Molex 8981-series drawing or datasheet was retrieved; the Molex part cited by Intel is 15-24-4048. Device-side (drive) numbering was not checked.
LP4 four-contact peripheral power (Molex 8981 style) engineering referencePer Table 5-2.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: +12V1 DC (confirmed)12: COM (confirmed)23: COM (confirmed)34: +5 VDC (confirmed)4powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
Intel ATX v3 PSU peripheral connector (optional) — source-scoped contact map
PinSignalWhat it doesStatus
1+12V1 DCPower connection (+12V1 DC). Check the specified supply.Confirmed
Sources
2COMGround reference and return.Confirmed
Sources
3COMGround reference and return.Confirmed
Sources
4+5 VDCPower connection (+5 VDC). Check the specified supply.Confirmed
Sources
Sources (2)

SSI 2008 PSDG peripheral power connector

View and evidence limits

Per Table 7.

  • P367 LP4 — **Agree**: 1 +12 V, 2/3 return, 4 +5 V — Both use the same Intel rev 2.1a table. SSI is an additional issuer in A only. Housing identity alone does not verify a particular cable or drive-side view.
  • No Molex 8981-series drawing or datasheet was retrieved; the Molex part cited by Intel is 15-24-4048. Device-side (drive) numbering was not checked.
LP4 four-contact peripheral power (Molex 8981 style) engineering referencePer Table 7.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: +12 V4 (single_source)12: COM (confirmed)23: COM (confirmed)34: +5 VDC (confirmed)4powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
SSI 2008 PSDG peripheral power connector — source-scoped contact map
PinSignalWhat it doesStatus
1+12 V4Power connection (+12 V4). Check the specified supply.Single source
Sources
2COMGround reference and return.Confirmed
Sources
3COMGround reference and return.Confirmed
Sources
4+5 VDCPower connection (+5 VDC). Check the specified supply.Confirmed
Sources
Sources (2)

Intel rev 2.1a peripheral cable

View and evidence limits

Numbered assignments only. The retrieved Intel section supplies a table but no numbered mating-face or wire-side drawing; spatial orientation is UNVERIFIED. Do not mirror these numbers onto an unidentified cable end.

  • P367 LP4 — **Agree**: 1 +12 V, 2/3 return, 4 +5 V — Both use the same Intel rev 2.1a table. SSI is an additional issuer in A only. Housing identity alone does not verify a particular cable or drive-side view.
  • Intel names AMP 1-480424-0 or Molex 15-24-4048 (or equivalent); cable color order by number is yellow/black/black/red.
  • The table establishes numeric cable assignment but no numbered spatial face. A bare housing does not identify installed wiring or the viewed side.
LP4 four-contact peripheral power (Molex 8981 style) engineering referenceNumbered assignments only. The retrieved Intel section supplies a table but no numbered mating-face or wire-side drawing; spatial orientation is UNVERIFIED. Do not mirror these numbers onto an unidentified cable end.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: +12V1 DC (confirmed)12: COM (confirmed)23: COM (confirmed)34: +5 VDC (confirmed)4powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
Intel rev 2.1a peripheral cable — source-scoped contact map
PinSignalWhat it doesStatus
1+12V1 DCPower connection (+12V1 DC). Check the specified supply.Confirmed
Sources
2COMGround reference and return.Confirmed
Sources
3COMGround reference and return.Confirmed
Sources
4+5 VDCPower connection (+5 VDC). Check the specified supply.Confirmed
Sources
Sources (3)

Source and next action

Read the exact TE part page and dated Intel design guide; verify the device manual and model of the full power-supply assembly before considering use.

Your next step

Move from the form to the requirement.

Read the engineering reference Source-scoped details, orientation and explicit unknowns.Work through a connection Choose your task before deciding on a cable.Explore this evidence trail Inspect the claims and their dependencies. (private workspace)

The source trail

Evidence for this page

AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.

Back to first citation ↑
