P009 / Video / Connector

Mini HDMI Type-C

Mini HDMI is HDMI Type-C; it is physically different from Micro HDMI Type-D.

Also called Mini HDMI HDMI mini HDMI Type C

Mini HDMI and USB Type-C are unrelated connector names.

Look for

Use both the HDMI family name and the Type-C suffix when checking a manual. A smaller HDMI connector is not necessarily Micro HDMI.

Claim inspection dates: 2026-10-01, 2026-10-06, 2026-10-13 · Independent review pending

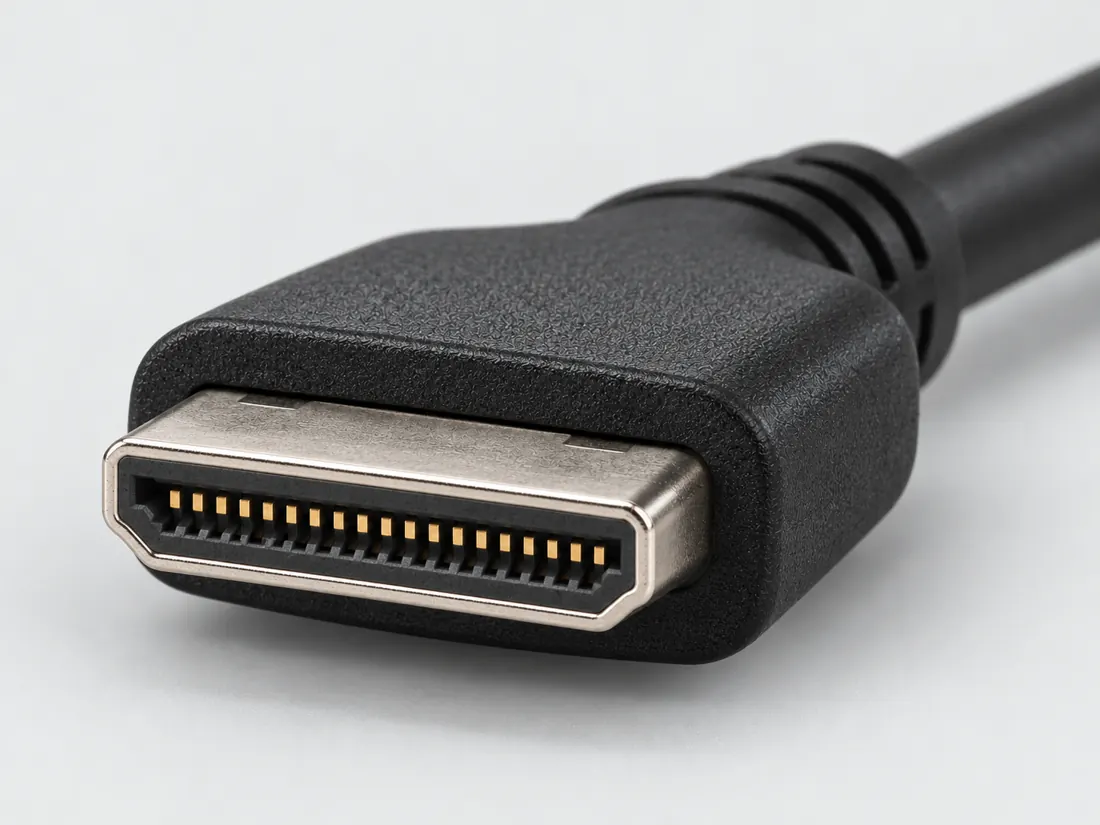

Mini HDMI Type-C: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

Mini HDMI Type-C: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

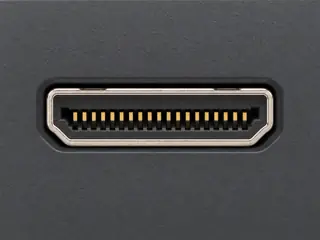

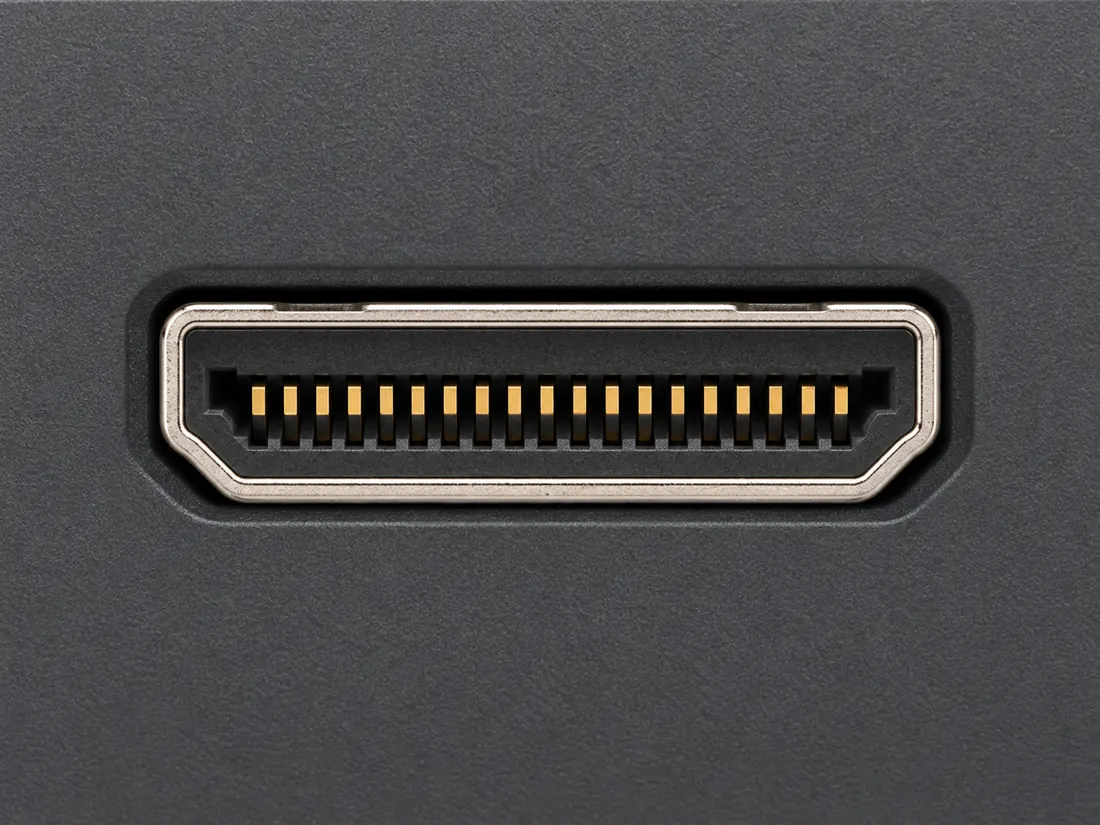

Mini HDMI Type-C: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

Mini HDMI Type-C: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Field answer / P009 · Source-checked, human review pending

Mini HDMI or Micro HDMI — which smaller HDMI port is this?

First answerMini HDMI is HDMI Type-C; it is physically different from Micro HDMI Type-D.

Next observation: Identify the HDMI Type-C label, the actual plug/receptacle view and the cable end before considering the video mode.

Original qualitative identification schematic for Mini HDMI Type-C; not a precision mating or wiring drawing
Original identification schematic; not to scale. Contact marks are illustrative, unnumbered, and not a wiring or manufacturing drawing.

What this does not establish

Mini HDMI Type-C is not Micro HDMI Type-D, and “Type-C” here does not mean USB Type-C. A manufacturer drawing of one receptacle is not a universal drawing or evidence of a supported video mode.

Verify before choosing a cable or part

  1. Compare the exact opening with the Micro HDMI record.
  2. Check which end must connect to the display.
  3. Verify the cable or adapter’s supported mode in product documentation.

Compare the likely look-alikes

Inspect the 3 inherited evidence claims and source limits

These are the existing, individually scoped observations—not fresh source inspections, a universal pinout, approved geometry or a device-specific compatibility verdict.

  1. C009A / canonical evidence anchor — Mini HDMI is HDMI Type-C; it is physically different from Micro HDMI Type-D.

    S038 · StarTech.com

    Consumer identification / documented standard or product class only · source checked; independent sign-off pending.

  2. C009B / canonical evidence anchor — TE's cited Mini HDMI Type-C receptacle is a 19-position connector example, supporting a 19-contact engineering count for the Mini HDMI form without implying HDMI version or video capability.

    S366 · TE Connectivity

    Connector-form contact count supported by one manufacturer example; protocol/version capability explicitly excluded. · source checked; independent sign-off pending.

  3. C009C / canonical evidence anchor — Sheet 2 of TE drawing C-2013978 B1 identifies the 2013978-2 Mini HDMI board receptacle; its front view and reference PCB layout describe different sides of the component.

    S607 · TE Connectivity

    V146: Exact -2 drawing selection; not the -1 form on sheet 1. No USB Type-C equivalence, cable counterpart or dimensional mating approval. · source checked; independent sign-off pending.

Shape, plug/socket view, contact roles and exact model capability must be checked separately. Review source authority and publication status ↓

Image inspection / P009

See the view. Check its scope.

2 registered views for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.

Mini HDMI Type-C. Mating face / selected -2 receptacle. Shallow keyed mouth; central contact region. Qualitative source study, not an exact mating drawing or pinout. (private workspace)

P009 / Source-observed physical study

Mini HDMI Type-C

TE 2013978-2 / C-2013978 B1, sheet 2

Mating face / selected -2 receptacle · Device receptacle

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)
Mini HDMI Type-C: cable-end plug, exterior side study. Shaped metal shell on the cable end; exterior housing behind the plug. Not to scale; no pinout. (private workspace)

P009 / Inherited recognition study

Mini HDMI Type-C

Mini HDMI Type-C / previously depicted manufacturer example

Exterior side study · Cable plug / cable end

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

Visual reference / P009

A smaller HDMI form is still distinct.

PLUG EXTERIOR

Recognition, not measurement. Each drawing is fitted independently: equal boxes do not mean equal sizes. Contact detail is deliberately omitted.

01 / Cable-end plugExterior side study
Mini HDMI Type-C: cable-end plug, exterior side study. Shaped metal shell on the cable end; exterior housing behind the plug. Not to scale; no pinout.

Cable extends to the right; exterior only.

Qualitative recognition study interpreted from the pictured manufacturer example. Inner contacts, exact dimensions and hidden surfaces are omitted.

Two things to notice

  1. Shaped metal shell on the cable end
  2. Exterior housing behind the plug

What the picture cannot tell you

The picture is not a scale comparison with Type A or Type D. A product designation is still needed when these shapes are uncertain.

No receptacle drawn: a sufficiently clear, role-specific opening was not visually inspected for this pilot. Do not infer it by mirroring the plug.

Sources, drawing scope & rights

Visual references checked 2026-10-09. These are new, source-scoped recognition studies, not approved mechanical drawings, pinouts or compatibility verdicts. Independent drawing review remains pending.

Original Port & Cable vector study. Third-party reference photographs are linked, not copied or bundled.

C2G / Legrand — Digital video connector guide
HDMI, HDMI Mini, HDMI Micro, DisplayPort and Mini DisplayPort photographs. Identity and exterior of the pictured cable plugs only. Performance and protocol prose was not adopted.

Source image: Cable-end plug →

This inspection does not refresh any canonical claim, source-review date or publication approval.

Look twiceCompare HDMI Type-A →Compare Micro HDMI Type-D →

The useful distinction

Recognize it. Then verify it.

Mini HDMI is HDMI Type-C; it is physically different from Micro HDMI Type-D. [C009A]

TE's cited Mini HDMI Type-C receptacle is a 19-position connector example, supporting a 19-contact engineering count for the Mini HDMI form without implying HDMI version or video capability. [C009B]

Sheet 2 of TE drawing C-2013978 B1 identifies the 2013978-2 Mini HDMI board receptacle; its front view and reference PCB layout describe different sides of the component. [C009C]

Identify the documented form

Use the exact Mini HDMI designation when identifying a small camera/display port.

  1. Mini HDMI is Type-C in the HDMI family; it is distinct from Micro HDMI Type-D. S038
  2. TE’s cited Mini board-receptacle front view and its reference PCB layout are different views of the component. S607
  3. The source-backed nominal contact count is shared with the Micro example, so a matching count is not a size or form discriminator. S366 · S367
Documented identity facts; exact part and variant scope remains with each value
Nominal contacts19S038 · S366plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
Positions / cavity span19 (Claim C009B); 19 (TE Connectivity 2013978-2)S366 · S366Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Connector-form contact count supported by one manufacturer example; protocol/version capability explicitly excluded. TE Connectivity 2013978-2 exact board receptacle. Product page fields are not a universal Mini HDMI mating envelope or PCB footprint.
Populated contactsNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector roleplug; socket; socket (TE Connectivity 2013978-2); socket (685119136923)S038 · S366 · S366 · S669Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface TE Connectivity 2013978-2 exact board receptacle. Product page fields are not a universal Mini HDMI mating envelope or PCB footprint. Exact named example 685119136923: Mini HDMI Type-C board receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Current document status is PCN; no equivalence to existing TE2013978-2 example or inferred drawing envelope.
Rows, pitch, dimensions, keying and view limits
Additional scoped facts; not a fabrication drawing or a mating approval
Contact rowsNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact pitch0.4 mm Manufacturer product field: Centerline (Pitch) (TE Connectivity 2013978-2)S366Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. TE Connectivity 2013978-2 exact board receptacle. Product page fields are not a universal Mini HDMI mating envelope or PCB footprint.
Dimensions / axisNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Coupling / latchNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Keying / polarizationNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
View conventionNot recordedNo qualified positive source view convention is normalized. Prior negative/schematic-only context is retained in variant_notes.
Contact gender / arrangementNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Mountingboard (Claim C009C); surface-mount (TE Connectivity 2013978-2); horizontal SMT (685119136923)S607 · S366 · S669Separate exact examples; retain each value’s source, role, axis and part scope. V146: Exact -2 drawing selection; not the -1 form on sheet 1. No USB Type-C equivalence, cable counterpart or dimensional mating approval. TE Connectivity 2013978-2 exact board receptacle. Product page fields are not a universal Mini HDMI mating envelope or PCB footprint. Exact named example 685119136923: Mini HDMI Type-C board receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Current document status is PCN; no equivalence to existing TE2013978-2 example or inferred drawing envelope.
Shell / formNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
ManufacturerTE Connectivity (2013978-2); Würth Elektronik (685119136923)S607 · S669Separate exact examples; retain each value’s source, role, axis and part scope. V146: Exact -2 drawing selection; not the -1 form on sheet 1. No USB Type-C equivalence, cable counterpart or dimensional mating approval. Exact named example 685119136923: Mini HDMI Type-C board receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Current document status is PCN; no equivalence to existing TE2013978-2 example or inferred drawing envelope.
SeriesMini HDMI (2013978-2); WR-COM Mini HDMI (685119136923)S607 · S669Separate exact examples; retain each value’s source, role, axis and part scope. V146: Exact -2 drawing selection; not the -1 form on sheet 1. No USB Type-C equivalence, cable counterpart or dimensional mating approval. Exact named example 685119136923: Mini HDMI Type-C board receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Current document status is PCN; no equivalence to existing TE2013978-2 example or inferred drawing envelope.
Exact part / implementation2013978-2 (2013978-2); 685119136923 (685119136923)S607 · S669Separate exact examples; retain each value’s source, role, axis and part scope. V146: Exact -2 drawing selection; not the -1 form on sheet 1. No USB Type-C equivalence, cable counterpart or dimensional mating approval. Exact named example 685119136923: Mini HDMI Type-C board receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Current document status is PCN; no equivalence to existing TE2013978-2 example or inferred drawing envelope.
Recorded markingsNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Keep this limit: The named receptacle count does not establish HDMI revision or supported video features. S366

Make the next check

Read the exact device’s Type-C Mini HDMI designation, then compare its disconnected connector with the source’s mating view.

Existing source inspection and AI review remain distinct from independent technical review. A matching form does not establish a safe connection.

Recorded variant and source limits
  • HDMI version and supported video/audio features remain product-specific.
  • No universal fabrication dimensions or product-specific signal capability are published in this profile.
  • Wurth Elektronik WR-COM Mini HDMI receptacle 685119136923 (connector maker): Contact numbers per the manufacturer table.
  • Raspberry Pi Zero J6 mini HDMI output (device-specific): Schematic symbol pin numbers; no physical view.
  • HDMI 1.3a Type C connector pin assignment: Contact numbers per HDMI 1.3a Table 4-3; face layout not recorded.
  • Raspberry Pi Zero / Zero 2 W mini HDMI output J6 (source device): Schematic symbol only; contact numbers.
  • Prior view context (not a source-view value): Contact count only; no numbered mating-face layout or fabrication geometry is reproduced.
Report a correction to this identification or view →

Bounded facts, visible unknowns

Specifications and limits

Mini HDMI Type-C facts and limitations
Formal typeHDMI Type-C [C009A]
Not the same asUSB Type-C [C009A]
Source-scoped recognitionThe study follows the -2 receptacle on sheet 2, not the -1 variant on sheet 1. Keep the family name and the component role together when comparing a cable with a board socket. [C009A] [C009B] [C009C]
Mechanical dimensionsNo independently reviewed mechanical drawing in this release; do not use this page for fabrication.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
A boundary, not an omission to guess around.

This record is an identification starting point. It does not provide measured mating tolerances, electrical approval, or a list of verified device models. Use the original device and accessory documentation to resolve the remaining requirements.

Before you connect

What to check

  1. Compare the exact opening with the Micro HDMI record.
  2. Check which end must connect to the display.
  3. Verify the cable or adapter’s supported mode in product documentation.
Trace a supported connection class →

Can I connect…

Common connections for this connector

All connection questions →

Pins & wiring

Pinout

Choose the exact wiring. Pin numbers follow its stated view; a schematic does not establish physical positions. Check your exact device before wiring.

What the status labels mean
Confirmed
Recorded research passes agree within this variant; this is not independent human review or hardware validation.
Single source
Only one underlying document, or one pass, supports this assignment.
Device-specific
Supported for the named equipment or wiring only. Check your device’s manual.
Unverified
Missing or conflicting evidence. Do not wire from this row.
Not connected
The source explicitly says NC, no contact or no pin for this wiring.
Wiring variant

Wurth Elektronik WR-COM Mini HDMI receptacle 685119136923 (connector maker)

View and evidence limits

Contact numbers per the manufacturer table.

  • P009 Mini HDMI Type C — **Agree** on all 19 pins (1–3 TMDS Data2 shield/+/−, 4–6 Data1, 7–9 Data0, 10–12 clock, 13 DDC/CEC ground, 14 CEC, 15 SCL, 16 SDA, 17 reserved, 18 +5 V, 19 HPD) — B used the official HDMI 1.3a Table 4-3; A used Würth's datasheet. Würth names 17 "HEC−" and 19 "Hot Plug/HEC+", which is HDMI 1.4 naming for the same contacts. Both used the Raspberry Pi Zero schematic.
  • Datasheet lists HDMI 1.4b under kind properties; pins 17 and 19 carry HEC names.
  • The HDMI Specification (Type C connector definition) is distributed to HDMI Adopters under licence and was not available; rows rely on the connector maker and a device schematic.
  • On the reduced schematic, pin 17 (Reserved) has a stub wire with no junction dot on the ground bus; whether it is connected to anything could not be established from the drawing.
Mini HDMI Type-C engineering referenceContact numbers per the manufacturer table.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: TMDS 2 Shield (single_source)12: TMDS 2+ (single_source)23: TMDS 2- (single_source)34: TMDS 1 Shield (single_source)45: TMDS 1 + (single_source)56: TMDS 1- (single_source)67: TMDS 0 Shield (single_source)78: TMDS 0 + (single_source)89: TMDS 0- (single_source)910: TMDS Clock Shield (single_source)1011: TMDS Clock + (single_source)1112: TMDS Clock - (single_source)1213: Ground (single_source)1314: CEC (single_source)1415: SCL (single_source)1516: SDA (single_source)1617: HEC - (single_source)1718: Power (single_source)1819: Hot Plug/HEC+ (single_source)19Shell: Shield (single_source)ShellpowergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
Wurth Elektronik WR-COM Mini HDMI receptacle 685119136923 (connector maker) — source-scoped contact map
PinSignalWhat it doesStatus
1TMDS 2 ShieldCable screen or shield connection; check the named equipment.Single source
Sources
2TMDS 2+Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
3TMDS 2-Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
4TMDS 1 ShieldCable screen or shield connection; check the named equipment.Single source
Sources
5TMDS 1 +Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
6TMDS 1-Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
7TMDS 0 ShieldCable screen or shield connection; check the named equipment.Single source
Sources
8TMDS 0 +Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
9TMDS 0-Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
10TMDS Clock ShieldCable screen or shield connection; check the named equipment.Single source
Sources
11TMDS Clock +Clock or clock-control connection, as named by this source.Single source
Sources
12TMDS Clock -Clock or clock-control connection, as named by this source.Single source
Sources
13GroundGround reference and return.Single source
Sources
14CECControl, detection or configuration connection; check the source and device.Single source
Sources
15SCLControl, detection or configuration connection; check the source and device.Single source
Sources
16SDAControl, detection or configuration connection; check the source and device.Single source
Sources
17HEC -Control, detection or configuration connection; check the source and device.Single source
Sources
18PowerControl, detection or configuration connection; check the source and device.Single source
Sources
19Hot Plug/HEC+Control, detection or configuration connection; check the source and device.Single source
Sources
ShellShieldCable screen or shield connection; check the named equipment.Single source
Sources
Sources (1)

Raspberry Pi Zero J6 mini HDMI output (device-specific)

Device-specific wiring. Check your device’s manual before connecting or applying power.

View and evidence limits

Schematic symbol pin numbers; no physical view.

  • P009 Mini HDMI Type C — **Agree** on all 19 pins (1–3 TMDS Data2 shield/+/−, 4–6 Data1, 7–9 Data0, 10–12 clock, 13 DDC/CEC ground, 14 CEC, 15 SCL, 16 SDA, 17 reserved, 18 +5 V, 19 HPD) — B used the official HDMI 1.3a Table 4-3; A used Würth's datasheet. Würth names 17 "HEC−" and 19 "Hot Plug/HEC+", which is HDMI 1.4 naming for the same contacts. Both used the Raspberry Pi Zero schematic.
  • Device-specific; pins 20-23 are the connector's shell tabs (SH1-SH4) as numbered on this schematic.
  • The HDMI Specification (Type C connector definition) is distributed to HDMI Adopters under licence and was not available; rows rely on the connector maker and a device schematic.
  • On the reduced schematic, pin 17 (Reserved) has a stub wire with no junction dot on the ground bus; whether it is connected to anything could not be established from the drawing.
Mini HDMI Type-C engineering referenceSchematic symbol pin numbers; no physical view.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: D2_SH (device_specific)12: D2+ (device_specific)23: D2- (device_specific)34: D1_SH (device_specific)45: D1+ (device_specific)56: D1- (device_specific)67: D0_SH (device_specific)78: D0+ (device_specific)89: D0- (device_specific)910: CLK_SH (device_specific)1011: CLK+ (device_specific)1112: CLK- (device_specific)1213: CEC_GND (device_specific)1314: CEC (device_specific)1415: SCL (device_specific)1516: SDA (device_specific)1617: Reserved (device_specific)1718: +5V (device_specific)1819: HPD (device_specific)1920: SH1 (device_specific)2021: SH2 (device_specific)2122: SH3 (device_specific)2223: SH4 (device_specific)23powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
Raspberry Pi Zero J6 mini HDMI output (device-specific) — source-scoped contact map
PinSignalWhat it doesStatus
1D2_SHControl, detection or configuration connection; check the source and device.Device-specific
Sources
2D2+Control, detection or configuration connection; check the source and device.Device-specific
Sources
3D2-Control, detection or configuration connection; check the source and device.Device-specific
Sources
4D1_SHControl, detection or configuration connection; check the source and device.Device-specific
Sources
5D1+Control, detection or configuration connection; check the source and device.Device-specific
Sources
6D1-Control, detection or configuration connection; check the source and device.Device-specific
Sources
7D0_SHControl, detection or configuration connection; check the source and device.Device-specific
Sources
8D0+Control, detection or configuration connection; check the source and device.Device-specific
Sources
9D0-Control, detection or configuration connection; check the source and device.Device-specific
Sources
10CLK_SHClock or clock-control connection, as named by this source.Device-specific
Sources
11CLK+Clock or clock-control connection, as named by this source.Device-specific
Sources
12CLK-Clock or clock-control connection, as named by this source.Device-specific
Sources
13CEC_GNDControl, detection or configuration connection; check the source and device.Device-specific
Sources
14CECControl, detection or configuration connection; check the source and device.Device-specific
Sources
15SCLControl, detection or configuration connection; check the source and device.Device-specific
Sources
16SDAControl, detection or configuration connection; check the source and device.Device-specific
Sources
17ReservedReserved; no general-purpose wiring is established.Device-specific
Sources
18+5VPower connection (+5V). Check the specified supply.Device-specific
Sources
19HPDControl, detection or configuration connection; check the source and device.Device-specific
Sources
20SH1Control, detection or configuration connection; check the source and device.Device-specific
Sources
21SH2Control, detection or configuration connection; check the source and device.Device-specific
Sources
22SH3Control, detection or configuration connection; check the source and device.Device-specific
Sources
23SH4Control, detection or configuration connection; check the source and device.Device-specific
Sources
Sources (1)

HDMI 1.3a Type C connector pin assignment

View and evidence limits

Contact numbers per HDMI 1.3a Table 4-3; face layout not recorded.

  • P009 Mini HDMI Type C — **Agree** on all 19 pins (1–3 TMDS Data2 shield/+/−, 4–6 Data1, 7–9 Data0, 10–12 clock, 13 DDC/CEC ground, 14 CEC, 15 SCL, 16 SDA, 17 reserved, 18 +5 V, 19 HPD) — B used the official HDMI 1.3a Table 4-3; A used Würth's datasheet. Würth names 17 "HEC−" and 19 "Hot Plug/HEC+", which is HDMI 1.4 naming for the same contacts. Both used the Raspberry Pi Zero schematic.
  • HDMI 1.4 and later are licensed documents that were not obtained. Any utility/HEAC assignment on Type C pin 17 is unverified here.
Mini HDMI Type-C engineering referenceContact numbers per HDMI 1.3a Table 4-3; face layout not recorded.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: TMDS Data2 Shield (single_source)12: TMDS Data2+ (single_source)23: TMDS Data2- (single_source)34: TMDS Data1 Shield (single_source)45: TMDS Data1+ (single_source)56: TMDS Data1- (single_source)67: TMDS Data0 Shield (single_source)78: TMDS Data0+ (single_source)89: TMDS Data0- (single_source)910: TMDS Clock Shield (single_source)1011: TMDS Clock+ (single_source)1112: TMDS Clock- (single_source)1213: DDC/CEC Ground (single_source)1314: CEC (single_source)1415: SCL (single_source)1516: SDA (single_source)1617: Reserved (single_source)1718: +5V Power (single_source)1819: Hot Plug Detect (single_source)19powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
HDMI 1.3a Type C connector pin assignment — source-scoped contact map
PinSignalWhat it doesStatus
1TMDS Data2 ShieldCable screen or shield connection; check the named equipment.Single source
Sources
2TMDS Data2+Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
3TMDS Data2-Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
4TMDS Data1 ShieldCable screen or shield connection; check the named equipment.Single source
Sources
5TMDS Data1+Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
6TMDS Data1-Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
7TMDS Data0 ShieldCable screen or shield connection; check the named equipment.Single source
Sources
8TMDS Data0+Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
9TMDS Data0-Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
10TMDS Clock ShieldCable screen or shield connection; check the named equipment.Single source
Sources
11TMDS Clock+Clock or clock-control connection, as named by this source.Single source
Sources
12TMDS Clock-Clock or clock-control connection, as named by this source.Single source
Sources
13DDC/CEC GroundControl, detection or configuration connection; check the source and device.Single source
Sources
14CECControl, detection or configuration connection; check the source and device.Single source
Sources
15SCLControl, detection or configuration connection; check the source and device.Single source
Sources
16SDAControl, detection or configuration connection; check the source and device.Single source
Sources
17ReservedReserved; no general-purpose wiring is established.Single source
Sources
18+5V PowerPower connection (+5V Power). Check the specified supply.Single source
Sources
19Hot Plug DetectControl, detection or configuration connection; check the source and device.Single source
Sources
Sources (1)

Raspberry Pi Zero / Zero 2 W mini HDMI output J6 (source device)

View and evidence limits

Schematic symbol only; contact numbers.

  • P009 Mini HDMI Type C — **Agree** on all 19 pins (1–3 TMDS Data2 shield/+/−, 4–6 Data1, 7–9 Data0, 10–12 clock, 13 DDC/CEC ground, 14 CEC, 15 SCL, 16 SDA, 17 reserved, 18 +5 V, 19 HPD) — B used the official HDMI 1.3a Table 4-3; A used Würth's datasheet. Würth names 17 "HEC−" and 19 "Hot Plug/HEC+", which is HDMI 1.4 naming for the same contacts. Both used the Raspberry Pi Zero schematic.
  • Shell pins SH1-SH4 (symbol pins 20-23) go to ground.
  • HDMI 1.4 and later are licensed documents that were not obtained. Any utility/HEAC assignment on Type C pin 17 is unverified here.
Mini HDMI Type-C engineering referenceSchematic symbol only; contact numbers.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: D2_SH (single_source)12: D2+ (single_source)23: D2- (single_source)34: D1_SH (single_source)45: D1+ (single_source)56: D1- (single_source)67: D0_SH (single_source)78: D0+ (single_source)89: D0- (single_source)910: CLK_SH (single_source)1011: CLK+ (single_source)1112: CLK- (single_source)1213: CEC_GND (single_source)1314: CEC (single_source)1415: SCL (single_source)1516: SDA (single_source)1617: Reserved (not_connected)1718: +5V (single_source)1819: HPD (single_source)19powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
Raspberry Pi Zero / Zero 2 W mini HDMI output J6 (source device) — source-scoped contact map
PinSignalWhat it doesStatus
1D2_SHControl, detection or configuration connection; check the source and device.Single source
Sources
2D2+Control, detection or configuration connection; check the source and device.Single source
Sources
3D2-Control, detection or configuration connection; check the source and device.Single source
Sources
4D1_SHControl, detection or configuration connection; check the source and device.Single source
Sources
5D1+Control, detection or configuration connection; check the source and device.Single source
Sources
6D1-Control, detection or configuration connection; check the source and device.Single source
Sources
7D0_SHControl, detection or configuration connection; check the source and device.Single source
Sources
8D0+Control, detection or configuration connection; check the source and device.Single source
Sources
9D0-Control, detection or configuration connection; check the source and device.Single source
Sources
10CLK_SHClock or clock-control connection, as named by this source.Single source
Sources
11CLK+Clock or clock-control connection, as named by this source.Single source
Sources
12CLK-Clock or clock-control connection, as named by this source.Single source
Sources
13CEC_GNDControl, detection or configuration connection; check the source and device.Single source
Sources
14CECControl, detection or configuration connection; check the source and device.Single source
Sources
15SCLControl, detection or configuration connection; check the source and device.Single source
Sources
16SDAControl, detection or configuration connection; check the source and device.Single source
Sources
17ReservedNot connected or absent in this named wiring.Not connected
Sources
18+5VPower connection (+5V). Check the specified supply.Single source
Sources
19HPDControl, detection or configuration connection; check the source and device.Single source
Sources
Sources (3)

V146 — Mini HDMI is Type-C, not USB-C.

The study follows the -2 receptacle on sheet 2, not the -1 variant on sheet 1. Keep the family name and the component role together when comparing a cable with a board socket.
