Type-C Mini and Type-D Micro are distinct HDMI connector forms.
P009 · ConnectorMini HDMI Type-C≠
P010 · ConnectorMicro HDMI Type-D
How they differ
Mini HDMI Type-C and Micro HDMI Type-D are different physical forms. Their source-backed contact counts agree, so count alone does not identify which shell you have.
Use Type-C in its HDMI context for Mini, and Type-D for Micro. Micro HDMI is also distinct from Micro-USB. S038 · S038
The named TE Mini and Würth Micro drawings separate the component/front view from PCB mounting information. Use the mating view; do not measure the independently fitted illustrations. S607 · S608
What this comparison does not establish: The cited counts do not identify HDMI version, optional features or a universal fabrication envelope. S366 · S367
Choose the next check
Read the exact device port designation and cable-end specification; retain part-specific geometry with its drawing.
Source-scoped form facts; counts, variants and unknowns are distinct
Field
Mini HDMI Type-C
Micro HDMI Type-D
Type
Connector
Connector
Family
Video
Video
Shape
trapezoid
low profile
Nominal contacts
19S038 · S366plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
19S038 · S367plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
Positions / cavity span
19 (Claim C009B); 19 (TE Connectivity 2013978-2)S366 · S366Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Connector-form contact count supported by one manufacturer example; protocol/version capability explicitly excluded. TE Connectivity 2013978-2 exact board receptacle. Product page fields are not a universal Mini HDMI mating envelope or PCB footprint.
19 (Claim C010B); 19 (Würth 685119248123)S367 · S608Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Connector-form contact count supported by one manufacturer example; protocol/version capability explicitly excluded. Würth 685119248123 exact Micro HDMI horizontal SMT component; electrical contacts excluding shell. No generic Micro HDMI dimension inferred.
Contact rows
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
2 (Molex 467650001)S975Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 467650001, female right-angle Micro HDMI receptacle; manufacturer mating-interface/row fields only, not a universal family value. Quantity context: Manufacturer Number of Rows property.
Connector role
plug; socket; socket (TE Connectivity 2013978-2); socket (685119136923)S038 · S366 · S366 · S669Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface TE Connectivity 2013978-2 exact board receptacle. Product page fields are not a universal Mini HDMI mating envelope or PCB footprint. Exact named example 685119136923: Mini HDMI Type-C board receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Current document status is PCN; no equivalence to existing TE2013978-2 example or inferred drawing envelope.
plug; socket; socket (685119248123)S038 · S367 · S608Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface Exact named example 685119248123: Micro HDMI Type-D board receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Existing maker/part coverage is retained; no newly qualified mating pitch from a PCB land-pattern distance.
Key distinction
Mini HDMI and USB Type-C are unrelated connector names.
A tiny video port still needs exact identification.
Illustrations are computer-generated with prior AI visual review; independent technical and rights review pending. A comparison is not a compatibility verdict.
This comparison stays within one evidence layer.
All selected records are Connector records. Similar layer does not mean compatible, interchangeable or safe to mate.
Families represented: Video
Two forms / One distinction
Similar names are not interchangeable physical forms.
Display · V99
Cable-end exterior side silhouettes. Independently fitted; no relative dimensions asserted by the boxes. Original interpretive drawing; independent technical review pending.
Where the difference lies

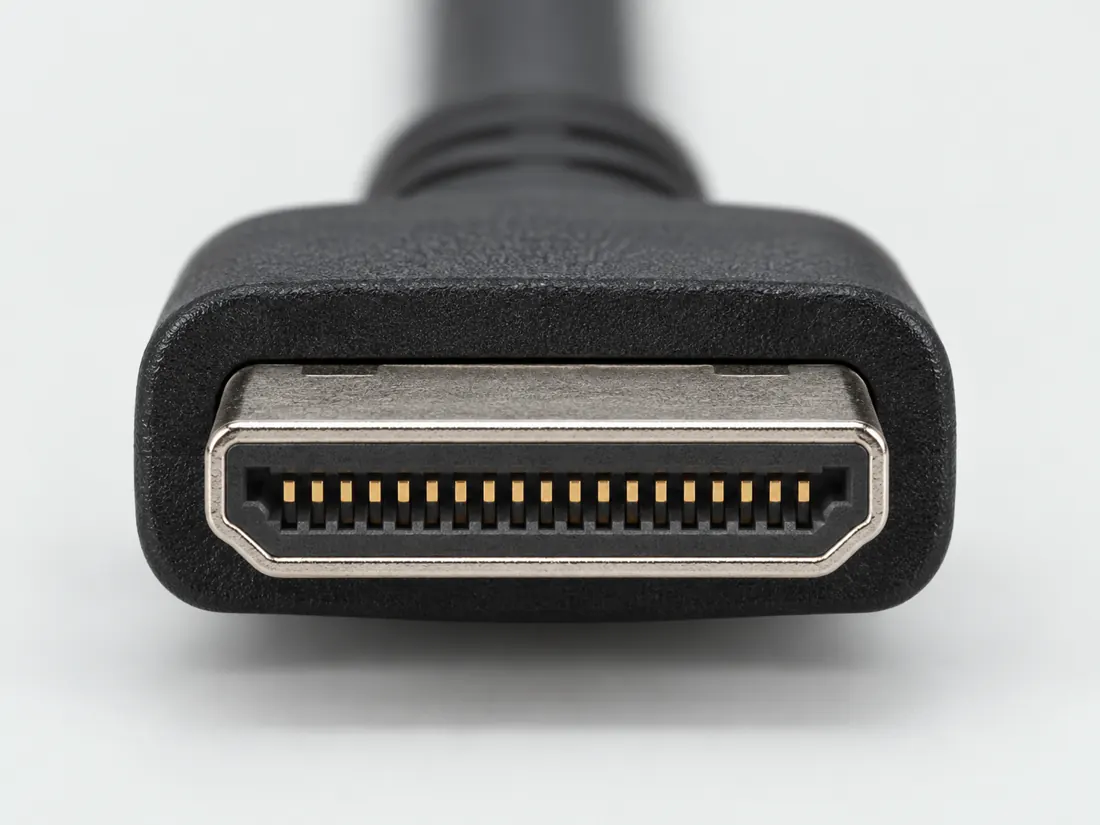

Mini HDMI Type C
Mini-HDMI plug family—larger metal shell in the documented pair.
Micro HDMI Type D
Micro-HDMI plug family—more compact metal shell.
What to verify next
Type C and D name different HDMI shell designs. The visual is a generic side profile, not a gauge.
Verify Type C or Type D from the camera or equipment manual, not just the word “small HDMI.”
Inspect the figure-level references and rights
Inspected 2026-10-09. Original Port & Cable vector diagram; first-party sources linked for inspection only, no third-party graphics bundled. No manufacturer image, CFA logo or licensed photograph is copied into this package. No approval for fabrication, mating, wiring or publication is implied.
C2G / Legrand · Digital video connectorsHDMI mini and micro, HDMI Type A, DisplayPort and Mini DisplayPort manufacturer example photographs. External shell outline, distinct forms and labeled roles; not dimensions, speed or cable capability.
Canonical claim evidence, source-review dates and inherited figure approvals are unaffected.
The reference ledger
Read the same question across.
2 selected records · 15 fields No score. No compatibility verdict.
Identification schematic · not to scale · drawing review pending
Layer
Connector
Connector
Key distinction
Mini HDMI and USB Type-C are unrelated connector names.
A tiny video port still needs exact identification.
Nominal contacts
19S038 · S366plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
19S038 · S367plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
Positions / cavity span
19 (Claim C009B); 19 (TE Connectivity 2013978-2)S366 · S366Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Connector-form contact count supported by one manufacturer example; protocol/version capability explicitly excluded. TE Connectivity 2013978-2 exact board receptacle. Product page fields are not a universal Mini HDMI mating envelope or PCB footprint.
19 (Claim C010B); 19 (Würth 685119248123)S367 · S608Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Connector-form contact count supported by one manufacturer example; protocol/version capability explicitly excluded. Würth 685119248123 exact Micro HDMI horizontal SMT component; electrical contacts excluding shell. No generic Micro HDMI dimension inferred.
Populated contacts
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
2 (Molex 467650001)S975Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 467650001, female right-angle Micro HDMI receptacle; manufacturer mating-interface/row fields only, not a universal family value. Quantity context: Manufacturer Number of Rows property.
Contact pitch
0.4 mm Manufacturer product field: Centerline (Pitch) (TE Connectivity 2013978-2)S366Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. TE Connectivity 2013978-2 exact board receptacle. Product page fields are not a universal Mini HDMI mating envelope or PCB footprint.
0.4 mm Manufacturer Pitch - Mating Interface; internal gap order and physical projection not further dimensioned (Molex 467650001)S975Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 467650001, female right-angle Micro HDMI receptacle; manufacturer mating-interface/row fields only, not a universal family value.
Dimensions / axis
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector role
plug; socket; socket (TE Connectivity 2013978-2); socket (685119136923)S038 · S366 · S366 · S669Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface TE Connectivity 2013978-2 exact board receptacle. Product page fields are not a universal Mini HDMI mating envelope or PCB footprint. Exact named example 685119136923: Mini HDMI Type-C board receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Current document status is PCN; no equivalence to existing TE2013978-2 example or inferred drawing envelope.
plug; socket; socket (685119248123)S038 · S367 · S608Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface Exact named example 685119248123: Micro HDMI Type-D board receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Existing maker/part coverage is retained; no newly qualified mating pitch from a PCB land-pattern distance.
Coupling / latch
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Keying / polarization
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
The study follows the -2 receptacle on sheet 2, not the -1 variant on sheet 1. Keep the family name and the component role together when comparing a cable with a board socket.C009A · C009B · C009C
This Würth component is a second, named example. It does not replace the existing TE entry or establish exact interchangeability. A land pattern is the board side, not a socket opening.C010A · C010B · C010C
19S038 · S366plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
19S038 · S367plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
19 (Claim C009B); 19 (TE Connectivity 2013978-2)S366 · S366Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Connector-form contact count supported by one manufacturer example; protocol/version capability explicitly excluded. TE Connectivity 2013978-2 exact board receptacle. Product page fields are not a universal Mini HDMI mating envelope or PCB footprint.
2 (Molex 467650001)S975Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 467650001, female right-angle Micro HDMI receptacle; manufacturer mating-interface/row fields only, not a universal family value. Quantity context: Manufacturer Number of Rows property.
0.4 mm Manufacturer product field: Centerline (Pitch) (TE Connectivity 2013978-2)S366Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. TE Connectivity 2013978-2 exact board receptacle. Product page fields are not a universal Mini HDMI mating envelope or PCB footprint.
0.4 mm Manufacturer Pitch - Mating Interface; internal gap order and physical projection not further dimensioned (Molex 467650001)S975Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 467650001, female right-angle Micro HDMI receptacle; manufacturer mating-interface/row fields only, not a universal family value.
plug; socket; socket (TE Connectivity 2013978-2); socket (685119136923)S038 · S366 · S366 · S669Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface TE Connectivity 2013978-2 exact board receptacle. Product page fields are not a universal Mini HDMI mating envelope or PCB footprint. Exact named example 685119136923: Mini HDMI Type-C board receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Current document status is PCN; no equivalence to existing TE2013978-2 example or inferred drawing envelope.
plug; socket; socket (685119248123)S038 · S367 · S608Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface Exact named example 685119248123: Micro HDMI Type-D board receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Existing maker/part coverage is retained; no newly qualified mating pitch from a PCB land-pattern distance.
The study follows the -2 receptacle on sheet 2, not the -1 variant on sheet 1. Keep the family name and the component role together when comparing a cable with a board socket.C009A · C009B · C009C
This Würth component is a second, named example. It does not replace the existing TE entry or establish exact interchangeability. A land pattern is the board side, not a socket opening.C010A · C010B · C010C
Page scope: Evidence behind the compared records; the editorial comparison still needs separate review.
Assessment 2026-10-22 · earliest scheduled source review 2027-01-04. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.
Scoped support: Separate Type-C Mini and Type-D Micro HDMI forms.
Not established / limitations: The same manufacturer product is an example of three distinct HDMI forms. Product imagery is not a dimensioned drawing or pinout. Published zero width/height fields are unusable and were not adopted. No speed or device compatibility claim is added.
Locator: PDF p. 1: product description identifies Type A female, Mini Type C male and Micro Type D male; p. 1 product photograph inspected.
TE Connectivity · Manufacturer / product-owner domain · inspected 2026-10-06 · due 2027-01-04
Within inspection window
Scoped support: Manufacturer example supporting the 19-position contact count and Type-C/Mini profile for the Mini HDMI connector form.
Not established / limitations: A manufacturer component example supports connector-form contact count only; it does not establish HDMI version, video mode, cable capability or universal fabrication dimensions.
Locator: Configuration features and drawing description: Mini HDMI / Type C receptacle; 19 positions
TE Connectivity · Manufacturer / product-owner domain · inspected 2026-10-06 · due 2027-01-04
Within inspection window
Scoped support: Manufacturer example supporting the 19-position contact count and Type-D/Micro profile for the Micro HDMI connector form.
Not established / limitations: A manufacturer component example supports connector-form contact count only; it does not establish HDMI version, video mode, cable capability or universal fabrication dimensions.
Locator: Configuration features and internal description: Micro HDMI / HDMI Type D; 19 positions
TE Connectivity · Manufacturer / product-owner domain · inspected 2026-10-13 · due 2027-01-11
Within inspection window
Scoped support: Named 2013978-2 board receptacle, mating-face versus mounting-layout distinction. No inference of maximum HDMI revision or adapter direction.
Not established / limitations: Not a hardware inspection, certification, pinout, dimensional mating check or blanket product-compatibility statement.
Locator: Rev B1, 11 March 2011; sheets 1 and 2 visually inspected. Sheet 2 explicitly shows 2013978-2; sheet 1 is a different suffix.
Würth Elektronik · Unclassified publisher domain · inspected 2026-10-13 · due 2027-01-11
Within inspection window
Scoped support: A Type-D board receptacle example from Würth, not equivalence to the TE part in inherited claim C010B. Recognition view only; contact assignments and component ratings are not transcribed.
Not established / limitations: Not a hardware inspection, certification, pinout, dimensional mating check or blanket product-compatibility statement.
Locator: Revision 002.000, 21 December 2023; pages 1 and 2 visually inspected. Page 1 drawing and recommended land pattern; page 2 part-specific characteristics.
Not established / limitations: Alternate exact Molex example, distinct from existing Wurth/TE parts; no dimensions transferred between products. Product detail page says Limited Information Available; chart fields retained without measured/toleranced drawing.
Locator: Full Export Spreadsheet table, exact 467650001 row: Web Description, Gender, Circuits Loaded, Number of Rows, Pitch - Mating Interface and separate Pitch - Termination Interface columns. Full official chart read; no PDF drawing pixels acquired.
Trace 7 claims to their source records
C009A · P009
Mini HDMI is HDMI Type-C; it is physically different from Micro HDMI Type-D.
Claim scope: Consumer identification / documented standard or product class only
TE's cited Mini HDMI Type-C receptacle is a 19-position connector example, supporting a 19-contact engineering count for the Mini HDMI form without implying HDMI version or video capability.
Claim scope: Connector-form contact count supported by one manufacturer example; protocol/version capability explicitly excluded.
Sheet 2 of TE drawing C-2013978 B1 identifies the 2013978-2 Mini HDMI board receptacle; its front view and reference PCB layout describe different sides of the component.
Claim scope: V146: Exact -2 drawing selection; not the -1 form on sheet 1. No USB Type-C equivalence, cable counterpart or dimensional mating approval.
TE's cited Micro HDMI Type-D receptacle is a 19-position connector example, supporting a 19-contact engineering count for the Micro HDMI form without implying HDMI version or video capability.
Claim scope: Connector-form contact count supported by one manufacturer example; protocol/version capability explicitly excluded.
Würth’s 685119248123 datasheet identifies a Micro HDMI Type-D horizontal SMT component and separates its connector drawing from the recommended land pattern.
Claim scope: V146: Named Würth component; not a replacement or equivalent for the TE example in C010B. No HDMI bandwidth or live-device conclusion.
Recorded evidence only. An inspection date, publisher label, source link or generated packet is not independent technical review, hardware testing, fabrication approval or a compatibility verdict.
