Micro HDMI Type-D

Micro HDMI is HDMI Type-D, distinct from both Mini HDMI and Micro-USB.

Also called Micro HDMI HDMI micro HDMI Type D

A tiny video port still needs exact identification.

Look for

Compare the whole silhouette and the device’s labeling. Size alone is not a reliable way to choose between small HDMI and USB connectors.

Claim inspection dates: 2026-10-01, 2026-10-06, 2026-10-13, 2026-10-22 · Independent review pending

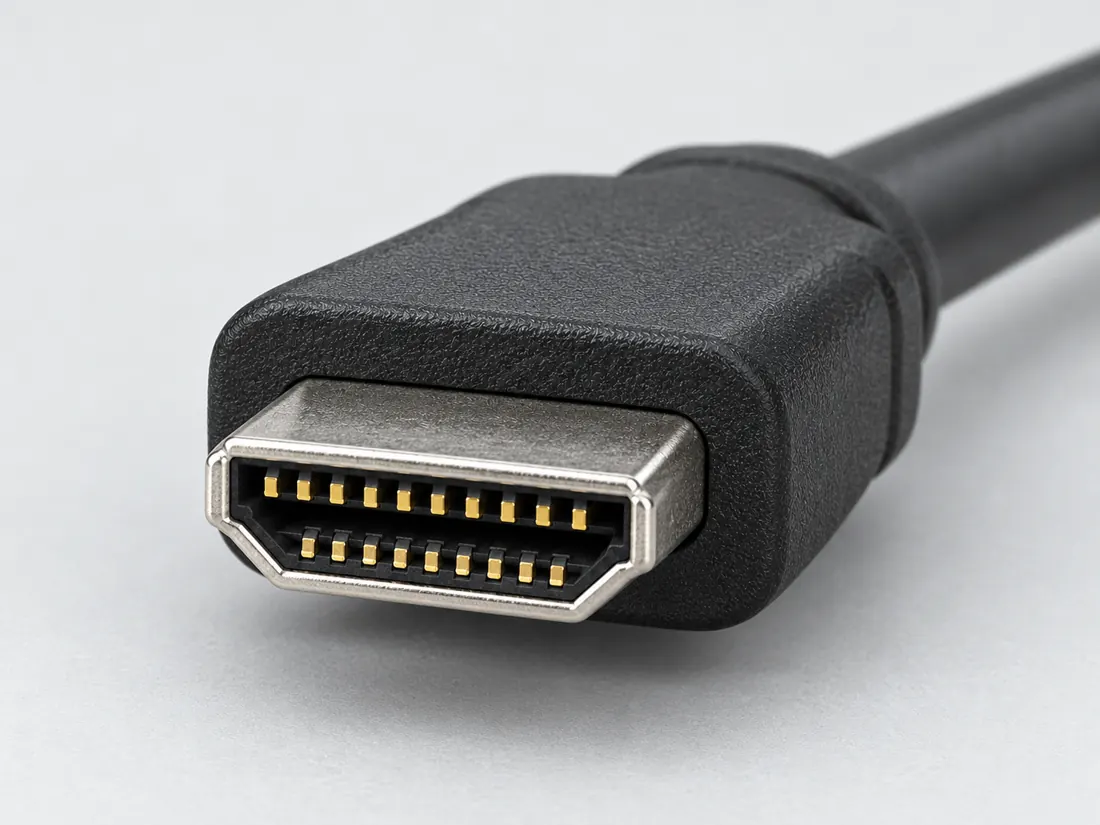

Micro HDMI Type-D: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

Micro HDMI Type-D: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

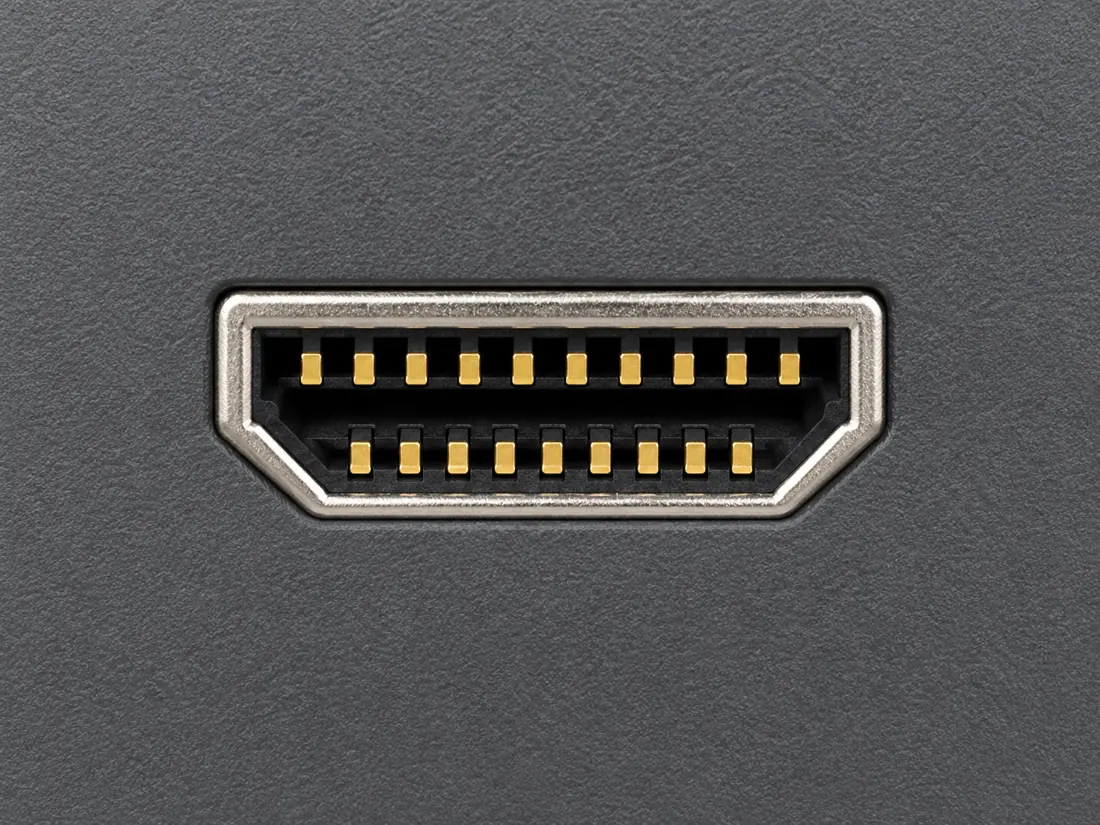

Micro HDMI Type-D: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

Micro HDMI Type-D: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Field answer / P010 · Source-checked, human review pending

Is that Micro HDMI, Mini HDMI, or Micro-USB?

First answerMicro HDMI is HDMI Type-D, distinct from both Mini HDMI and Micro-USB.

Next observation: Read the device manual for the HDMI Type-D designation. A similarly sized connector is not a safe trial fit.

Original qualitative identification schematic for Micro HDMI Type-D; not a precision mating or wiring drawing
Original identification schematic; not to scale. Contact marks are illustrative, unnumbered, and not a wiring or manufacturing drawing.

What this does not establish

Micro HDMI Type-D is a distinct physical HDMI form. A comparable size or 19-position component drawing does not establish USB identity, a common board footprint or an exact display capability.

Verify before choosing a cable or part

  1. Confirm Type-D in the device manual.
  2. Avoid forcing a Mini HDMI or Micro-USB plug.
  3. Specify the required video mode when selecting a cable.

Compare the likely look-alikes

Inspect the 3 inherited evidence claims and source limits

These are the existing, individually scoped observations—not fresh source inspections, a universal pinout, approved geometry or a device-specific compatibility verdict.

  1. C010A / canonical evidence anchor — Micro HDMI is HDMI Type-D, distinct from both Mini HDMI and Micro-USB.

    S038 · StarTech.com

    Consumer identification / documented standard or product class only · source checked; independent sign-off pending.

  2. C010B / canonical evidence anchor — TE's cited Micro HDMI Type-D receptacle is a 19-position connector example, supporting a 19-contact engineering count for the Micro HDMI form without implying HDMI version or video capability.

    S367 · TE Connectivity

    Connector-form contact count supported by one manufacturer example; protocol/version capability explicitly excluded. · source checked; independent sign-off pending.

  3. C010C / canonical evidence anchor — Würth’s 685119248123 datasheet identifies a Micro HDMI Type-D horizontal SMT component and separates its connector drawing from the recommended land pattern.

    S608 · Würth Elektronik

    V146: Named Würth component; not a replacement or equivalent for the TE example in C010B. No HDMI bandwidth or live-device conclusion. · source checked; independent sign-off pending.

Shape, plug/socket view, contact roles and exact model capability must be checked separately. Review source authority and publication status ↓

Image inspection / P010

See the view. Check its scope.

2 registered views for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.

Micro HDMI Type-D. Mating face / named SMT receptacle. Small stepped opening with lower shoulders. Qualitative source study, not an exact mating drawing or pinout. (private workspace)

P010 / Source-observed physical study

Micro HDMI Type-D

Würth 685119248123 / revision 002.000, page 1

Mating face / named SMT receptacle · Device receptacle

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)
Micro HDMI Type-D: cable-end plug, exterior side study. Small, shaped hdmi plug shell; cable housing behind the shell. Not to scale; no pinout. (private workspace)

P010 / Inherited recognition study

Micro HDMI Type-D

Micro HDMI Type-D / previously depicted manufacturer example

Exterior side study · Cable plug / cable end

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

Visual reference / P010

Keep Micro HDMI and Micro USB apart.

PLUG EXTERIOR

Recognition, not measurement. Each drawing is fitted independently: equal boxes do not mean equal sizes. Contact detail is deliberately omitted.

01 / Cable-end plugExterior side study
Micro HDMI Type-D: cable-end plug, exterior side study. Small, shaped hdmi plug shell; cable housing behind the shell. Not to scale; no pinout.

Cable extends to the right; exterior only.

Qualitative recognition study interpreted from the pictured manufacturer example. Inner contacts, exact dimensions and hidden surfaces are omitted.

Two things to notice

  1. Small, shaped HDMI plug shell
  2. Cable housing behind the shell

What the picture cannot tell you

Do not infer HDMI versus USB from an enlarged outline alone. Check the exact device port label and product documentation.

No receptacle drawn: a sufficiently clear, role-specific opening was not visually inspected for this pilot. Do not infer it by mirroring the plug.

Sources, drawing scope & rights

Visual references checked 2026-10-09. These are new, source-scoped recognition studies, not approved mechanical drawings, pinouts or compatibility verdicts. Independent drawing review remains pending.

Original Port & Cable vector study. Third-party reference photographs are linked, not copied or bundled.

C2G / Legrand — Digital video connector guide
HDMI, HDMI Mini, HDMI Micro, DisplayPort and Mini DisplayPort photographs. Identity and exterior of the pictured cable plugs only. Performance and protocol prose was not adopted.

Source image: Cable-end plug →

This inspection does not refresh any canonical claim, source-review date or publication approval.

Look twiceCompare Mini HDMI Type-C →Compare Micro-USB Type-B →

The useful distinction

Recognize it. Then verify it.

Micro HDMI is HDMI Type-D, distinct from both Mini HDMI and Micro-USB. [C010A]

TE's cited Micro HDMI Type-D receptacle is a 19-position connector example, supporting a 19-contact engineering count for the Micro HDMI form without implying HDMI version or video capability. [C010B]

Würth’s 685119248123 datasheet identifies a Micro HDMI Type-D horizontal SMT component and separates its connector drawing from the recommended land pattern. [C010C]

Molex specifies 467650001 as a Micro HDMI receptacle, 19 loaded circuits and 2 row(s), with mating-interface pitch 0.40mm. [C010W]

Identify the documented form

Separate Micro HDMI Type-D from Mini HDMI and Micro-USB.

  1. Micro HDMI is Type-D, not Mini HDMI Type-C and not Micro-USB. Check the whole form and the manual designation. S038
  2. Würth’s cited horizontal SMT Micro HDMI component drawing and recommended land pattern describe different sides/uses of the component. S608
  3. Its nominal count agrees with the Mini example; that agreement does not make the housings interchangeable. S366 · S367
Documented identity facts; exact part and variant scope remains with each value
Nominal contacts19S038 · S367plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
Positions / cavity span19 (Claim C010B); 19 (Würth 685119248123)S367 · S608Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Connector-form contact count supported by one manufacturer example; protocol/version capability explicitly excluded. Würth 685119248123 exact Micro HDMI horizontal SMT component; electrical contacts excluding shell. No generic Micro HDMI dimension inferred.
Populated contactsNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector roleplug; socket; socket (685119248123)S038 · S367 · S608Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface Exact named example 685119248123: Micro HDMI Type-D board receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Existing maker/part coverage is retained; no newly qualified mating pitch from a PCB land-pattern distance.
Rows, pitch, dimensions, keying and view limits
Additional scoped facts; not a fabrication drawing or a mating approval
Contact rows2 (Molex 467650001)S975Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 467650001, female right-angle Micro HDMI receptacle; manufacturer mating-interface/row fields only, not a universal family value. Quantity context: Manufacturer Number of Rows property.
Contact pitch0.4 mm Manufacturer Pitch - Mating Interface; internal gap order and physical projection not further dimensioned (Molex 467650001)S975Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 467650001, female right-angle Micro HDMI receptacle; manufacturer mating-interface/row fields only, not a universal family value.
Dimensions / axisNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Coupling / latchNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Keying / polarizationNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
View conventionNot recordedNo qualified positive source view convention is normalized. Prior negative/schematic-only context is retained in variant_notes.
Contact gender / arrangementNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Mountingsurface-mount (Claim C010C); horizontal SMT (685119248123)S608 · S608Separate exact examples; retain each value’s source, role, axis and part scope. V146: Named Würth component; not a replacement or equivalent for the TE example in C010B. No HDMI bandwidth or live-device conclusion. Exact named example 685119248123: Micro HDMI Type-D board receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Existing maker/part coverage is retained; no newly qualified mating pitch from a PCB land-pattern distance.
Shell / formtin-plated brass shielding (685119248123)S608Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 685119248123: Micro HDMI Type-D board receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Existing maker/part coverage is retained; no newly qualified mating pitch from a PCB land-pattern distance.
ManufacturerWürth Elektronik (685119248123)S608Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V146: Named Würth component; not a replacement or equivalent for the TE example in C010B. No HDMI bandwidth or live-device conclusion.
SeriesWR-COM Micro HDMI (685119248123)S608Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V146: Named Würth component; not a replacement or equivalent for the TE example in C010B. No HDMI bandwidth or live-device conclusion.
Exact part / implementation685119248123 (685119248123)S608Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V146: Named Würth component; not a replacement or equivalent for the TE example in C010B. No HDMI bandwidth or live-device conclusion.
Recorded markingsNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Keep this limit: The cited component count does not establish HDMI version or endpoint capability. S367

Make the next check

Resolve the device’s Type-D connector designation and exact cable ends without trial fitting.

Existing source inspection and AI review remain distinct from independent technical review. A matching form does not establish a safe connection.

Recorded variant and source limits
  • HDMI version and supported video/audio features remain product-specific.
  • No universal fabrication dimensions or product-specific signal capability are published in this profile.
  • Wurth Elektronik WR-COM Micro HDMI receptacle 685119248123 (connector maker): Contact numbers per the manufacturer table.
  • Raspberry Pi 4 Model B J13/J6 micro HDMI outputs (device-specific): Schematic symbol pin numbers; no physical view.
  • Raspberry Pi 4 Model B micro HDMI output J6 (HDMI0) (source device): Schematic symbol only; contact numbers.
  • BeagleBone Black micro HDMI output P6 (source device): Schematic symbol only; contact numbers.
  • Prior view context (not a source-view value): Contact count only; no numbered mating-face layout or fabrication geometry is reproduced.
Report a correction to this identification or view →

Bounded facts, visible unknowns

Specifications and limits

Micro HDMI Type-D facts and limitations
Formal typeHDMI Type-D [C010A]
Source-scoped recognitionThis Würth component is a second, named example. It does not replace the existing TE entry or establish exact interchangeability. A land pattern is the board side, not a socket opening. [C010A] [C010B] [C010C]
Mechanical dimensionsNo independently reviewed mechanical drawing in this release; do not use this page for fabrication.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
A boundary, not an omission to guess around.

This record is an identification starting point. It does not provide measured mating tolerances, electrical approval, or a list of verified device models. Use the original device and accessory documentation to resolve the remaining requirements.

Before you connect

What to check

  1. Confirm Type-D in the device manual.
  2. Avoid forcing a Mini HDMI or Micro-USB plug.
  3. Specify the required video mode when selecting a cable.
Trace a supported connection class →

Can I connect…

Common connections for this connector

All connection questions →

Pins & wiring

Pinout

Choose the exact wiring. Pin numbers follow its stated view; a schematic does not establish physical positions. Check your exact device before wiring.

What the status labels mean
Confirmed
Recorded research passes agree within this variant; this is not independent human review or hardware validation.
Single source
Only one underlying document, or one pass, supports this assignment.
Device-specific
Supported for the named equipment or wiring only. Check your device’s manual.
Unverified
Missing or conflicting evidence. Do not wire from this row.
Not connected
The source explicitly says NC, no contact or no pin for this wiring.
Wiring variant

Wurth Elektronik WR-COM Micro HDMI receptacle 685119248123 (connector maker)

View and evidence limits

Contact numbers per the manufacturer table.

  • P010 Micro HDMI Type D — **Agree** on all 19 pins (1 HPD, 2 utility/reserved, 3–5 Data2, 6–8 Data1, 9–11 Data0, 12–14 clock, 15 CEC, 16 ground, 17 SCL, 18 SDA, 19 +5 V) — No official table is available (HDMI 1.4+ is licensed). A: Würth and Raspberry Pi 4. B: Raspberry Pi 4 and BeagleBone Black. Three independent documents agree.
  • The HDMI Specification (Type D connector definition) is licensed to HDMI Adopters and was not available.
Micro HDMI Type-D engineering referenceContact numbers per the manufacturer table.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: Hot Plug Detect/HEAC- (single_source)12: Reserved/Utility/HEAC+ (single_source)23: TMDS 2+ (single_source)34: TMDS 2 Shield (single_source)45: TMDS 2- (single_source)56: TMDS 1+ (single_source)67: TMDS 1 Shield (single_source)78: TMDS 1- (single_source)89: TMDS 0+ (single_source)910: TMDS 0 Shield (single_source)1011: TMDS 0- (single_source)1112: TMDS Clock + (single_source)1213: TMDS Clock Shield (single_source)1314: TMDS Clock - (single_source)1415: CEC (single_source)1516: DDC/HEAC/CEC Ground (single_source)1617: SCL (single_source)1718: SDA (single_source)1819: Power (single_source)19Shell: Shield (single_source)ShellpowergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
Wurth Elektronik WR-COM Micro HDMI receptacle 685119248123 (connector maker) — source-scoped contact map
PinSignalWhat it doesStatus
1Hot Plug Detect/HEAC-Control, detection or configuration connection; check the source and device.Single source
Sources
2Reserved/Utility/HEAC+Reserved; no general-purpose wiring is established.Single source
Sources
3TMDS 2+Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
4TMDS 2 ShieldCable screen or shield connection; check the named equipment.Single source
Sources
5TMDS 2-Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
6TMDS 1+Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
7TMDS 1 ShieldCable screen or shield connection; check the named equipment.Single source
Sources
8TMDS 1-Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
9TMDS 0+Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
10TMDS 0 ShieldCable screen or shield connection; check the named equipment.Single source
Sources
11TMDS 0-Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
12TMDS Clock +Clock or clock-control connection, as named by this source.Single source
Sources
13TMDS Clock ShieldCable screen or shield connection; check the named equipment.Single source
Sources
14TMDS Clock -Clock or clock-control connection, as named by this source.Single source
Sources
15CECControl, detection or configuration connection; check the source and device.Single source
Sources
16DDC/HEAC/CEC GroundControl, detection or configuration connection; check the source and device.Single source
Sources
17SCLControl, detection or configuration connection; check the source and device.Single source
Sources
18SDAControl, detection or configuration connection; check the source and device.Single source
Sources
19PowerControl, detection or configuration connection; check the source and device.Single source
Sources
ShellShieldCable screen or shield connection; check the named equipment.Single source
Sources
Sources (1)

Raspberry Pi 4 Model B J13/J6 micro HDMI outputs (device-specific)

Device-specific wiring. Check your device’s manual before connecting or applying power.

View and evidence limits

Schematic symbol pin numbers; no physical view.

  • P010 Micro HDMI Type D — **Agree** on all 19 pins (1 HPD, 2 utility/reserved, 3–5 Data2, 6–8 Data1, 9–11 Data0, 12–14 clock, 15 CEC, 16 ground, 17 SCL, 18 SDA, 19 +5 V) — No official table is available (HDMI 1.4+ is licensed). A: Würth and Raspberry Pi 4. B: Raspberry Pi 4 and BeagleBone Black. Three independent documents agree.
  • Device-specific: 'x' in net names is 0 for J6 (HDMI0) and 1 for J13 (HDMI1). Pin 2 (Utility) is unconnected on this board.
  • The HDMI Specification (Type D connector definition) is licensed to HDMI Adopters and was not available.
Micro HDMI Type-D engineering referenceSchematic symbol pin numbers; no physical view.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: HPD (device_specific)12: UTILITY (not_connected)23: D2+ (device_specific)34: D2_SH (device_specific)45: D2- (device_specific)56: D1+ (device_specific)67: D1_SH (device_specific)78: D1- (device_specific)89: D0+ (device_specific)910: D0_SH (device_specific)1011: D0- (device_specific)1112: CLK+ (device_specific)1213: CLK_SH (device_specific)1314: CLK- (device_specific)1415: CEC (device_specific)1516: GND (device_specific)1617: SCL (device_specific)1718: SDA (device_specific)1819: +5V (device_specific)1920: SH1 (device_specific)2021: SH2 (device_specific)2122: SH3 (device_specific)2223: SH4 (device_specific)23powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
Raspberry Pi 4 Model B J13/J6 micro HDMI outputs (device-specific) — source-scoped contact map
PinSignalWhat it doesStatus
1HPDControl, detection or configuration connection; check the source and device.Device-specific
Sources
2UTILITYNot connected or absent in this named wiring.Not connected
Sources
3D2+Control, detection or configuration connection; check the source and device.Device-specific
Sources
4D2_SHControl, detection or configuration connection; check the source and device.Device-specific
Sources
5D2-Control, detection or configuration connection; check the source and device.Device-specific
Sources
6D1+Control, detection or configuration connection; check the source and device.Device-specific
Sources
7D1_SHControl, detection or configuration connection; check the source and device.Device-specific
Sources
8D1-Control, detection or configuration connection; check the source and device.Device-specific
Sources
9D0+Control, detection or configuration connection; check the source and device.Device-specific
Sources
10D0_SHControl, detection or configuration connection; check the source and device.Device-specific
Sources
11D0-Control, detection or configuration connection; check the source and device.Device-specific
Sources
12CLK+Clock or clock-control connection, as named by this source.Device-specific
Sources
13CLK_SHClock or clock-control connection, as named by this source.Device-specific
Sources
14CLK-Clock or clock-control connection, as named by this source.Device-specific
Sources
15CECControl, detection or configuration connection; check the source and device.Device-specific
Sources
16GNDGround reference and return.Device-specific
Sources
17SCLControl, detection or configuration connection; check the source and device.Device-specific
Sources
18SDAControl, detection or configuration connection; check the source and device.Device-specific
Sources
19+5VPower connection (+5V). Check the specified supply.Device-specific
Sources
20SH1Control, detection or configuration connection; check the source and device.Device-specific
Sources
21SH2Control, detection or configuration connection; check the source and device.Device-specific
Sources
22SH3Control, detection or configuration connection; check the source and device.Device-specific
Sources
23SH4Control, detection or configuration connection; check the source and device.Device-specific
Sources
Sources (1)

Raspberry Pi 4 Model B micro HDMI output J6 (HDMI0) (source device)

View and evidence limits

Schematic symbol only; contact numbers.

  • P010 Micro HDMI Type D — **Agree** on all 19 pins (1 HPD, 2 utility/reserved, 3–5 Data2, 6–8 Data1, 9–11 Data0, 12–14 clock, 15 CEC, 16 ground, 17 SCL, 18 SDA, 19 +5 V) — No official table is available (HDMI 1.4+ is licensed). A: Würth and Raspberry Pi 4. B: Raspberry Pi 4 and BeagleBone Black. Three independent documents agree.
  • Shield pins SH1-SH4 (22, 23 shown) and pin 16 go to ground.
  • Type D is defined in HDMI 1.4 and later, which are licensed to adopters only. No official HDMI table was read. The rows rest on two independent manufacturer schematics (Raspberry Pi Ltd and BeagleBoard.org), which agree on all 19 contacts.
  • Raspberry Pi labels pin 2 'UTILITY' and BeagleBoard labels it 'NC'. Neither board connects it. Any HDMI-spec function (e.g., HEAC/utility) is not established here.
Micro HDMI Type-D engineering referenceSchematic symbol only; contact numbers.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: HPD (single_source)12: UTILITY (not_connected)23: D2+ (single_source)34: D2_SH (single_source)45: D2- (single_source)56: D1+ (single_source)67: D1_SH (single_source)78: D1- (single_source)89: D0+ (single_source)910: D0_SH (single_source)1011: D0- (single_source)1112: CLK+ (single_source)1213: CLK_SH (single_source)1314: CLK- (single_source)1415: CEC (single_source)1516: GND (single_source)1617: SCL (single_source)1718: SDA (single_source)1819: +5V (single_source)19powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
Raspberry Pi 4 Model B micro HDMI output J6 (HDMI0) (source device) — source-scoped contact map
PinSignalWhat it doesStatus
1HPDControl, detection or configuration connection; check the source and device.Single source
Sources
2UTILITYNot connected or absent in this named wiring.Not connected
Sources
3D2+Control, detection or configuration connection; check the source and device.Single source
Sources
4D2_SHControl, detection or configuration connection; check the source and device.Single source
Sources
5D2-Control, detection or configuration connection; check the source and device.Single source
Sources
6D1+Control, detection or configuration connection; check the source and device.Single source
Sources
7D1_SHControl, detection or configuration connection; check the source and device.Single source
Sources
8D1-Control, detection or configuration connection; check the source and device.Single source
Sources
9D0+Control, detection or configuration connection; check the source and device.Single source
Sources
10D0_SHControl, detection or configuration connection; check the source and device.Single source
Sources
11D0-Control, detection or configuration connection; check the source and device.Single source
Sources
12CLK+Clock or clock-control connection, as named by this source.Single source
Sources
13CLK_SHClock or clock-control connection, as named by this source.Single source
Sources
14CLK-Clock or clock-control connection, as named by this source.Single source
Sources
15CECControl, detection or configuration connection; check the source and device.Single source
Sources
16GNDGround reference and return.Single source
Sources
17SCLControl, detection or configuration connection; check the source and device.Single source
Sources
18SDAControl, detection or configuration connection; check the source and device.Single source
Sources
19+5VPower connection (+5V). Check the specified supply.Single source
Sources
Sources (2)

BeagleBone Black micro HDMI output P6 (source device)

View and evidence limits

Schematic symbol only; contact numbers.

  • P010 Micro HDMI Type D — **Agree** on all 19 pins (1 HPD, 2 utility/reserved, 3–5 Data2, 6–8 Data1, 9–11 Data0, 12–14 clock, 15 CEC, 16 ground, 17 SCL, 18 SDA, 19 +5 V) — No official table is available (HDMI 1.4+ is licensed). A: Würth and Raspberry Pi 4. B: Raspberry Pi 4 and BeagleBone Black. Three independent documents agree.
  • Mounting tabs MTG1-MTG4 (20-23) go to ground. Connector part Amphenol FCI 10118241-001RLF.
  • Type D is defined in HDMI 1.4 and later, which are licensed to adopters only. No official HDMI table was read. The rows rest on two independent manufacturer schematics (Raspberry Pi Ltd and BeagleBoard.org), which agree on all 19 contacts.
  • Raspberry Pi labels pin 2 'UTILITY' and BeagleBoard labels it 'NC'. Neither board connects it. Any HDMI-spec function (e.g., HEAC/utility) is not established here.
Micro HDMI Type-D engineering referenceSchematic symbol only; contact numbers.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: HPLG (single_source)12: NC (not_connected)23: DAT2+ (single_source)34: DAT2_S (single_source)45: DAT2- (single_source)56: DAT1+ (single_source)67: DAT1_S (single_source)78: DAT1- (single_source)89: DAT0+ (single_source)910: DAT0_S (single_source)1011: DAT0- (single_source)1112: CLK+ (single_source)1213: CLK_S (single_source)1314: CLK- (single_source)1415: CEC (single_source)1516: DDC/CEC GND (single_source)1617: SCL (single_source)1718: SDA (single_source)1819: +5V (single_source)19powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
BeagleBone Black micro HDMI output P6 (source device) — source-scoped contact map
PinSignalWhat it doesStatus
1HPLGControl, detection or configuration connection; check the source and device.Single source
Sources
2NCNot connected or absent in this named wiring.Not connected
Sources
3DAT2+Control, detection or configuration connection; check the source and device.Single source
Sources
4DAT2_SControl, detection or configuration connection; check the source and device.Single source
Sources
5DAT2-Control, detection or configuration connection; check the source and device.Single source
Sources
6DAT1+Control, detection or configuration connection; check the source and device.Single source
Sources
7DAT1_SControl, detection or configuration connection; check the source and device.Single source
Sources
8DAT1-Control, detection or configuration connection; check the source and device.Single source
Sources
9DAT0+Control, detection or configuration connection; check the source and device.Single source
Sources
10DAT0_SControl, detection or configuration connection; check the source and device.Single source
Sources
11DAT0-Control, detection or configuration connection; check the source and device.Single source
Sources
12CLK+Clock or clock-control connection, as named by this source.Single source
Sources
13CLK_SClock or clock-control connection, as named by this source.Single source
Sources
14CLK-Clock or clock-control connection, as named by this source.Single source
Sources
15CECControl, detection or configuration connection; check the source and device.Single source
Sources
16DDC/CEC GNDControl, detection or configuration connection; check the source and device.Single source
Sources
17SCLControl, detection or configuration connection; check the source and device.Single source
Sources
18SDAControl, detection or configuration connection; check the source and device.Single source
Sources
19+5VPower connection (+5V). Check the specified supply.Single source
Sources
Sources (2)

V146 — Micro HDMI is a separate Type-D form.

This Würth component is a second, named example. It does not replace the existing TE entry or establish exact interchangeability. A land pattern is the board side, not a socket opening.
