M12 X-coded Ethernet connector

M12 X-coded Ethernet uses an 8-position keyed M12 interface in the documented Phoenix Contact implementation.

Also called M12 X-coded M12 X code X-coded M12 Ethernet

M12 X-coded and D-coded forms differ in coding and position layout even though both use an M12 shell.

Look for

Verify the X coding and 8-position pattern in the exact product documentation.

Claim inspection dates: 2026-10-05, 2026-10-11, 2026-10-15 · Independent review pending

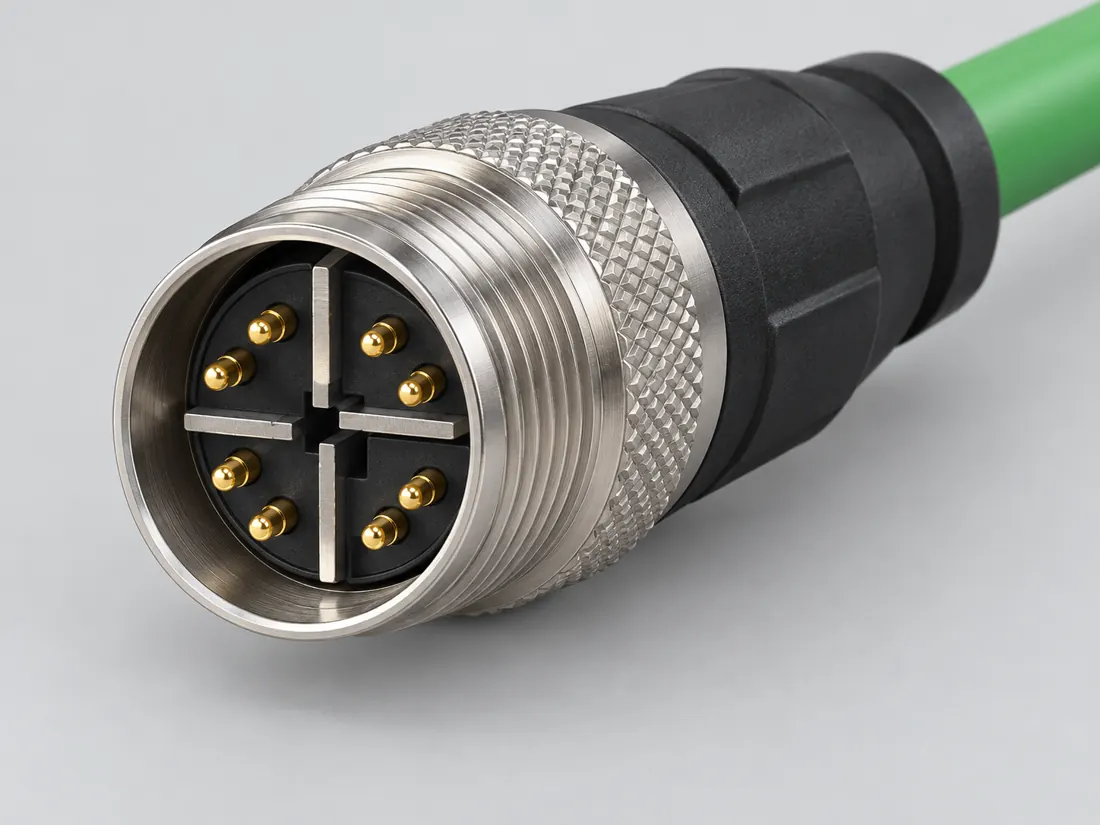

M12 X-coded Ethernet connector: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

M12 X-coded Ethernet connector: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

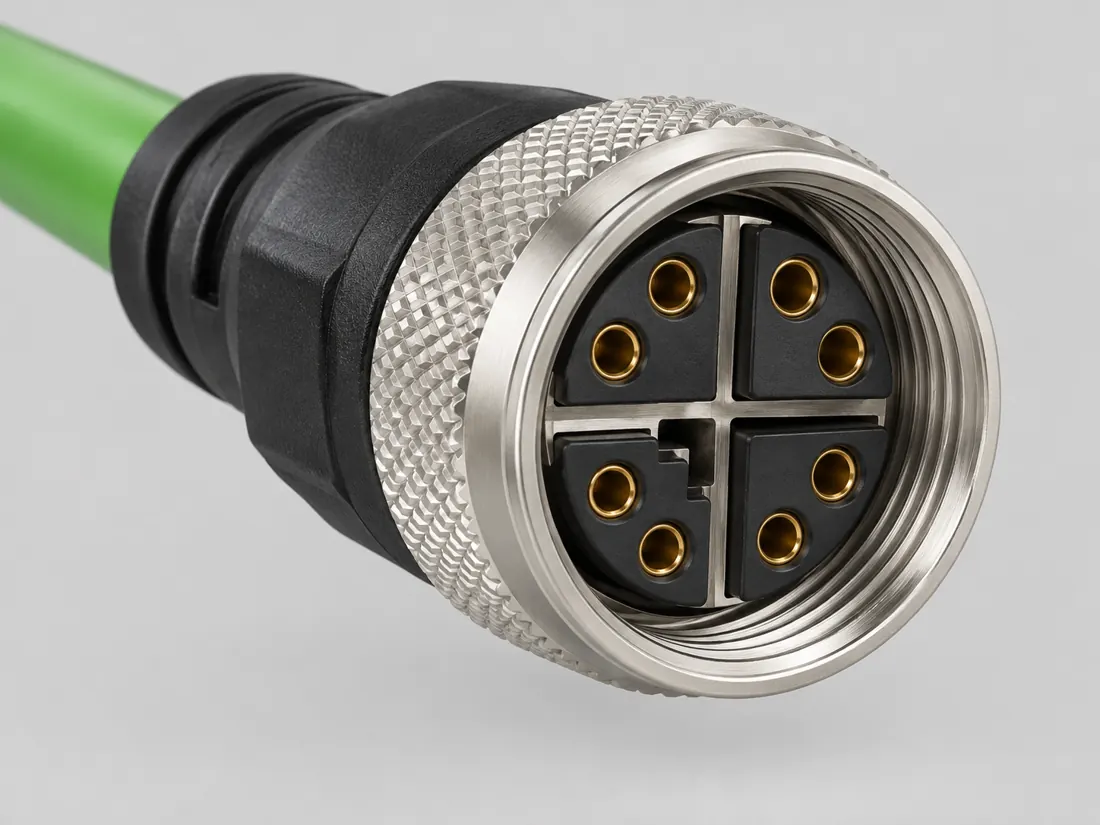

M12 X-coded Ethernet connector: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

M12 X-coded Ethernet connector: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Image inspection / P234

See the view. Check its scope.

1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.

Qualitative oblique exterior study of Phoenix Contact 1851772, M12 X-coded male cable end. Named component role only; not to scale and not a wiring diagram. (private workspace)

P234 / Source-observed physical study

Phoenix Contact 1851772

Phoenix Contact 1851772

Oblique exterior, connection end at left; simplified contact features · Cable plug / cable end

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

Network notes / Industrial / P234

Does X coding prove that the complete link runs at 10 Gbps?

FIELD NOTES 05

No. The cited 1851772 cable is an eight-position M12 X-coded male-to-female example listed for Ethernet CAT6A / 10 Gbps. A cable capability is not a host capability or an achieved link rate.

Identify first

Read the part and the device.

Distinguish the named male plug from the female socket. Use X coding and the exact assembly identity rather than a round shell or a green jacket.

Still unresolved

Keep this requirement open.

Installed host mode, peer support, full channel quality, negotiated rate and PoE support are not established by the cable catalogue.

Documented support · named example only

Is 1851772 a documented X-coded male-to-female example?

Yes; the listed assembly has eight-position X-coded ends and Ethernet CAT6A / 10 Gbps specification.

Boundary. No guarantee of negotiated rate or installed endpoint support.

Next check. Check the device port modes and full channel requirements.

S501 · C234C (private workspace)

Before choosing the cable or component

  1. Read both endpoint manuals and the full cable part number.
  2. Match the specified coded ends and channel requirements.
  3. Treat speed and power support as separate equipment checks.
Read the evidence and its scope · 2 observations

C234A (private workspace) — Phoenix Contact documents an M12 X-coded Ethernet plug with 8 positions in an Ethernet application.

V39 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof.

S238

C234C (private workspace) — Phoenix Contact cable 1851772 has an eight-position M12 X-coded male end and X-coded female end, with Ethernet CAT6A / 10 Gbps listed for the named assembly. Host interoperability and power delivery are not established by that cable listing.

V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.

S501

Source interpretation is not independent engineering review, hardware testing, wiring advice or a public-release approval.

Inspect the named exterior · Phoenix Contact 1851772
Qualitative oblique exterior study of Phoenix Contact 1851772, M12 X-coded male cable end. Named component role only; not to scale and not a wiring diagram.
Not to scale. Simplified exterior and contact features; no pin numbering, wire assignments, tolerances, mating clearance or manufacturing dimensions. Qualitative exterior; not to scale.

M12 X-coded male cable end; Oblique exterior, connection end at left; simplified contact features. Manufacturer product photograph 1232024 inspected 11 October 2026. Original interpretation of the named exterior; not a measured drawing or a copied photograph.

Original source-scoped paraphrase and qualitative vector interpretation; no manufacturer raster artwork republished. Independent technical and rights review remains pending.

S501 · Read the network notes →

The useful distinction

Recognize it. Then verify it.

M12 X-coded Ethernet uses an 8-position keyed M12 interface in the documented Phoenix Contact implementation. [C234A]

Phoenix Contact cable 1851772 has an eight-position M12 X-coded male end and X-coded female end, with Ethernet CAT6A / 10 Gbps listed for the named assembly. Host interoperability and power delivery are not established by that cable listing. [C234C]

HARTING lists an eight-contact X-coded M12 cable connector for industrial Ethernet up to 10 Gbit/s. This is an exact product capability listing and does not ensure a 10 Gbit/s end-to-end network. [C234D]

Source-scoped identification facts

Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.

Documented examples; not a mating drawing or compatibility approval
Nominal contacts8S238Source-backed nominal position count: 8.
Positions / cavity span8 (Claim C234A); 8 (Claim C234B); 8 (Claim C234C); 8 (Phoenix Contact 1851772 / connection 1); 8 (Phoenix Contact 1851772 / connection 2)S238 · S256 · S501 · S501Source-scoped examples are separate; select the exact variant and measured axis. V39 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof. V40 engineering-reference fact only; independent human review remains pending. This claim does not approve fabrication, rewiring, substitution, electrical safety, protocol support or end-to-end compatibility. V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee. Phoenix Contact 1851772 / connection 1. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. Phoenix Contact 1851772 / connection 2. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
Connector roleStraight M12 cable plug (Phoenix Contact 1851772 / connection 1); Straight M12 cable socket (Phoenix Contact 1851772 / connection 2)S501Source-scoped examples are separate; select the exact variant and measured axis. Phoenix Contact 1851772 / connection 1. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. Phoenix Contact 1851772 / connection 2. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
Contact gender / arrangementmale (Phoenix Contact 1851772 / connection 1); female (Phoenix Contact 1851772 / connection 2)S501Source-scoped examples are separate; select the exact variant and measured axis. Phoenix Contact 1851772 / connection 1. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. Phoenix Contact 1851772 / connection 2. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
Mountingcable (Claim C234D); cable (Phoenix Contact 1851772 / connection 1); cable (Phoenix Contact 1851772 / connection 2)S647 · S649 · S501Source-scoped examples are separate; select the exact variant and measured axis. V178 Exact HARTING connector plus class-level X-coding distinction; no generic performance or mating certification. Original bounded manufacturer paraphrase; publication and technical review pending. Phoenix Contact 1851772 / connection 1. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. Phoenix Contact 1851772 / connection 2. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
Keying / polarizationX coding (Phoenix Contact 1851772 / connection 1); X coding (Phoenix Contact 1851772 / connection 2)S501Source-scoped examples are separate; select the exact variant and measured axis. Phoenix Contact 1851772 / connection 1. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. Phoenix Contact 1851772 / connection 2. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
Shell / formshielded (Phoenix Contact 1851772 / connection 1); shielded (Phoenix Contact 1851772 / connection 2)S501Source-scoped examples are separate; select the exact variant and measured axis. Phoenix Contact 1851772 / connection 1. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. Phoenix Contact 1851772 / connection 2. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
ManufacturerPhoenix Contact (Phoenix Contact 1851772 / connection 1); Phoenix Contact (Phoenix Contact 1851772 / connection 2)S501Source-scoped examples are separate; select the exact variant and measured axis. Phoenix Contact 1851772 / connection 1. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. Phoenix Contact 1851772 / connection 2. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
Exact part / implementationPhoenix Contact 1851772 / connection 1 (Phoenix Contact 1851772 / connection 1); Phoenix Contact 1851772 / connection 2 (Phoenix Contact 1851772 / connection 2)S501Source-scoped examples are separate; select the exact variant and measured axis. Phoenix Contact 1851772 / connection 1. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. Phoenix Contact 1851772 / connection 2. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
View conventionManufacturer caption: pin side (Phoenix Contact 1851772 / connection 1); Manufacturer caption: socket side (Phoenix Contact 1851772 / connection 2)S501Source-scoped examples are separate; select the exact variant and measured axis. Phoenix Contact 1851772 / connection 1. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. Phoenix Contact 1851772 / connection 2. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.

Not recorded: Populated contacts, Contact rows, Contact pitch, Dimensions / axis, Coupling / latch, Series, Recorded markings. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.

Recorded variant and source limits
  • Position/contact count and any example-component pitch do not establish a universal pinout, cable construction or protocol capability.
  • No fabrication dimensions or face-view pin locator is published unless explicitly stated.
  • Phoenix Contact 8-contact X-coded Ethernet: Phoenix catalog p.40 female X-coded insert drawing as printed: 1/2 lower left, 3/4 upper left, 5/6 upper right, 7/8 lower right. No male or termination-side mirror is asserted.
  • Phoenix Contact 8-position X-coded Ethernet assignment: Phoenix Contact numbered 8-position X-coded interface; female outline on p. 40 and electrical table on p. 41. No host/cable/rear-view mirroring inferred.
Report a correction to these facts →

Bounded facts, visible unknowns

Specifications and limits

M12 X-coded Ethernet connector facts and limitations
Documented identificationM12 X-coded Ethernet connector; 8 positions in the documented product. [C234A]
Mechanical dimensionsNo independently reviewed mechanical drawing in V39; do not use this page for fabrication, fit testing or tolerance work.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
A boundary, not an omission to guess around.

Use the source-backed form or position count only for identification. Resolve ratings, protocol, direction, wiring, cable construction and exact device support from the relevant equipment and component documentation.

Before you connect

What to check

  1. Identify the exact connector family and variant from the equipment or cable documentation.
  2. Keep shape, contact count, protocol, electrical rating and device support as separate facts.
  3. Do not force, rewire or adapt a connector from this recognition record; resolve the remaining requirements first.
Trace a supported connection class →

Pins & wiring

Pinout

Choose the exact wiring. Pin numbers follow its stated view; a schematic does not establish physical positions. Check your exact device before wiring.

What the status labels mean
Confirmed
Recorded research passes agree within this variant; this is not independent human review or hardware validation.
Single source
Only one underlying document, or one pass, supports this assignment.
Device-specific
Supported for the named equipment or wiring only. Check your device’s manual.
Unverified
Missing or conflicting evidence. Do not wire from this row.
Not connected
The source explicitly says NC, no contact or no pin for this wiring.
Wiring variant

Phoenix Contact 8-contact X-coded Ethernet

View and evidence limits

Phoenix catalog p.40 female X-coded insert drawing as printed: 1/2 lower left, 3/4 upper left, 5/6 upper right, 7/8 lower right. No male or termination-side mirror is asserted.

  • P234 M12 X-coded Ethernet — **Agree**, but **same source** — Both read Phoenix Contact's 2026 data-connector catalog, with the same URL and SHA-256. This is independent transcription, not independent authority. In that table 1/2 are D1 +/-, 3/4 D2 +/-, 5/6 D4 +/-, and **7 D3-, 8 D3+**. Review visually confirmed the table and female insert drawing; the conductor colors and pair numbers must stay attached to that source.
  • No male rear-view geometry, PoE voltage/polarity or supported link rate is inferred.
M12 X-coded Ethernet connector engineering boundaryPhoenix catalog p.40 female X-coded insert drawing as printed: 1/2 lower left, 3/4 upper left, 5/6 upper right, 7/8 lower right. No male or termination-side mirror is asserted.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: D1+ (single_source)12: D1- (single_source)23: D2+ (single_source)34: D2- (single_source)45: D4+ (single_source)56: D4- (single_source)67: D3- (single_source)78: D3+ (single_source)8powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
Phoenix Contact 8-contact X-coded Ethernet — source-scoped contact map
PinSignalWhat it doesStatus
1D1+Control, detection or configuration connection; check the source and device.Single source
Sources
2D1-Control, detection or configuration connection; check the source and device.Single source
Sources
3D2+Control, detection or configuration connection; check the source and device.Single source
Sources
4D2-Control, detection or configuration connection; check the source and device.Single source
Sources
5D4+Control, detection or configuration connection; check the source and device.Single source
Sources
6D4-Control, detection or configuration connection; check the source and device.Single source
Sources
7D3-Control, detection or configuration connection; check the source and device.Single source
Sources
8D3+Control, detection or configuration connection; check the source and device.Single source
Sources
Sources (1)
  • S801 · Phoenix Contact · Data connectors — Product overview 2026

    2026 edition; document 52004990; no separate revision observed | MNR 1803315/2026-01-15/14; 3012793056 · p.41, Assignment: Ethernet, 8-pos. X-coded table; p.40 Female, 8-pos., X-coded diagram; p. 41, M12 pin assignments and wire colors, Assignment: Ethernet, 8-pos. X-coded Signal table; female drawing p. 40

Phoenix Contact 8-position X-coded Ethernet assignment

View and evidence limits

Phoenix Contact numbered 8-position X-coded interface; female outline on p. 40 and electrical table on p. 41. No host/cable/rear-view mirroring inferred.

  • P234 M12 X-coded Ethernet — **Agree**, but **same source** — Both read Phoenix Contact's 2026 data-connector catalog, with the same URL and SHA-256. This is independent transcription, not independent authority. In that table 1/2 are D1 +/-, 3/4 D2 +/-, 5/6 D4 +/-, and **7 D3-, 8 D3+**. Review visually confirmed the table and female insert drawing; the conductor colors and pair numbers must stay attached to that source.
  • The catalog labels male/female drawings but does not explicitly state mating side versus termination side in the inspected figure. Only numbered assignments are claimed.
M12 X-coded Ethernet connector engineering boundaryPhoenix Contact numbered 8-position X-coded interface; female outline on p. 40 and electrical table on p. 41. No host/cable/rear-view mirroring inferred.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: D1+ (single_source)12: D1- (single_source)23: D2+ (single_source)34: D2- (single_source)45: D4+ (single_source)56: D4- (single_source)67: D3- (single_source)78: D3+ (single_source)8powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
Phoenix Contact 8-position X-coded Ethernet assignment — source-scoped contact map
PinSignalWhat it doesStatus
1D1+Control, detection or configuration connection; check the source and device.Single source
Sources
2D1-Control, detection or configuration connection; check the source and device.Single source
Sources
3D2+Control, detection or configuration connection; check the source and device.Single source
Sources
4D2-Control, detection or configuration connection; check the source and device.Single source
Sources
5D4+Control, detection or configuration connection; check the source and device.Single source
Sources
6D4-Control, detection or configuration connection; check the source and device.Single source
Sources
7D3-Control, detection or configuration connection; check the source and device.Single source
Sources
8D3+Control, detection or configuration connection; check the source and device.Single source
Sources
Sources (1)
  • S801 · Phoenix Contact · Data connectors — Product overview 2026

    2026 edition; document 52004990; no separate revision observed | MNR 1803315/2026-01-15/14; 3012793056 · p. 41, M12 pin assignments and wire colors, Assignment: Ethernet, 8-pos. X-coded Signal table; female drawing p. 40; p.41, Assignment: Ethernet, 8-pos. X-coded table; p.40 Female, 8-pos., X-coded diagram

What is not established

This field note does not approve a connection, adapter, cable assembly, rewiring scheme or fabricated part. It intentionally omits unsupported pin assignments and mechanical tolerances.

Your next step

Move from the form to the requirement.

Read the engineering reference Source-scoped details, orientation and explicit unknowns.Work through a connection Choose your task before deciding on a cable.Explore this evidence trail Inspect the claims and their dependencies. (private workspace)

The source trail

Evidence for this page

AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.

Back to first citation ↑
C234ASource checked · pending review

Phoenix Contact documents an M12 X-coded Ethernet plug with 8 positions in an Ethernet application.

Phoenix Contact · M12 X-coded Ethernet cable product ↗

Locator: M12 connection fields and standards
Access: public page. Identification/reference scope only. V39 does not convert this source into a universal pinout, fabrication drawing, electrical approval, protocol guarantee or end-to-end compatibility verdict.

S238: full source recordInspect review dependencies → (private workspace)

Claim scope: V39 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof.. Next review due 2027-01-03.

Back to first citation ↑
C234CSource checked · pending review

Phoenix Contact cable 1851772 has an eight-position M12 X-coded male end and X-coded female end, with Ethernet CAT6A / 10 Gbps listed for the named assembly. Host interoperability and power delivery are not established by that cable listing.

Phoenix Contact · Phoenix Contact 1851772 — X-coded cable example ↗

Locator: Product description; Connector / male and female ends; photograph 1232024 and male-side drawing 149068
Access: public page. Named 1851772 eight-position M12 X-coded cable; component rating is not host, network or PoE approval. No raw HTML or manufacturer image archive is represented as retained.

S501: full source recordInspect review dependencies → (private workspace)

Claim scope: V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.. Next review due 2027-01-09.

Back to first citation ↑
C234DSource checked · pending review

HARTING lists an eight-contact X-coded M12 cable connector for industrial Ethernet up to 10 Gbit/s. This is an exact product capability listing and does not ensure a 10 Gbit/s end-to-end network.

HARTING Technology Group · HARTING circular connector coding and application distinctions ↗

Locator: Circular coding: A-coded, D-coded, K-coded, S-coded, X-coded, Y-coded sections
Access: public page. Visible manufacturer facts are source-scoped and may change; confirm the exact component/revision and documented applicability; no independent technical certification is claimed.

S647: full source recordHARTING Technology Group · HARTING M12 X-coded 8-contact cable connector, article 21 03 881 3805 ↗

Locator: Version: 8 contacts, X-coding; details and supported Ethernet data-rate listing
Access: public page. Visible manufacturer facts are source-scoped and may change; confirm the exact component/revision and documented applicability; no independent technical certification is claimed.

S649: full source recordInspect review dependencies → (private workspace)

Claim scope: V178 Exact HARTING connector plus class-level X-coding distinction; no generic performance or mating certification. Original bounded manufacturer paraphrase; publication and technical review pending.. Next review due 2027-01-13.

Suggest a correction to this field note →

Put this field note to work.

Add to discovery trayRecord an unsaved candidate (private workspace)

Compare look-alikes: M12 D-coded versus X-coded Ethernet · M12 D-, X- and Y-coded data/hybrid forms

Candidate selection does not confirm the identity or capabilities of your physical item.

NETWORK & INDUSTRIAL / COMPONENT → VARIANT → SERVICE

Name the part. Then the connection.

Compare source-observed component roles, keep exact mating exclusions visible, and distinguish connector identity from equipment service and protection conditions.

Read the network component reference →

Evidence behind this page

Scope first. Source second. Approval separate.

4 linked sources · 3 scoped claims · 0 sources with inspection/access flags.

Page scope: catalogue_expansion_v39

Assessment 2026-10-22 · earliest scheduled source review 2027-01-03. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 4 source scopes, access limits and dates

S238 · M12 X-coded Ethernet cable product

Phoenix Contact · Manufacturer / product-owner domain · inspected 2026-10-05 · due 2027-01-03

Within inspection window

Scoped support: Documents an M12 X-coded Ethernet plug with 8 positions and Ethernet signaling context.

Not established / limitations: Identification/reference scope only. V39 does not convert this source into a universal pinout, fabrication drawing, electrical approval, protocol guarantee or end-to-end compatibility verdict.

Locator: M12 connection fields and standards

S501 · Phoenix Contact 1851772 — X-coded cable example

Phoenix Contact · Manufacturer / product-owner domain · inspected 2026-10-11 · due 2027-01-09

Within inspection window

Scoped support: Named 1851772 eight-position M12 X-coded cable; component rating is not host, network or PoE approval.

Not established / limitations: Named 1851772 eight-position M12 X-coded cable; component rating is not host, network or PoE approval. No raw HTML or manufacturer image archive is represented as retained.

Locator: Product description; Connector / male and female ends; photograph 1232024 and male-side drawing 149068

S647 · HARTING circular connector coding and application distinctions

HARTING Technology Group · Unclassified publisher domain · inspected 2026-10-15 · due 2027-01-13

Within inspection window

Scoped support: Manufacturer-authored class-level application/coding comparisons; not exact mating, terminal assignments or power ratings for arbitrary parts

Not established / limitations: Visible manufacturer facts are source-scoped and may change; confirm the exact component/revision and documented applicability; no independent technical certification is claimed.

Locator: Circular coding: A-coded, D-coded, K-coded, S-coded, X-coded, Y-coded sections

S649 · HARTING M12 X-coded 8-contact cable connector, article 21 03 881 3805

HARTING Technology Group · Unclassified publisher domain · inspected 2026-10-15 · due 2027-01-13

Within inspection window

Scoped support: One specific cable connector product, not a guarantee of overall network speed or inter-brand mating

Not established / limitations: Visible manufacturer facts are source-scoped and may change; confirm the exact component/revision and documented applicability; no independent technical certification is claimed.

Locator: Version: 8 contacts, X-coding; details and supported Ethernet data-rate listing

Trace 3 claims to their source records

C234A · P234

Phoenix Contact documents an M12 X-coded Ethernet plug with 8 positions in an Ethernet application.

Claim scope: V39 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof.

Source links: S238 · Evidence trail → (private workspace)

C234C · P234

Phoenix Contact cable 1851772 has an eight-position M12 X-coded male end and X-coded female end, with Ethernet CAT6A / 10 Gbps listed for the named assembly. Host interoperability and power delivery are not established by that cable listing.

Claim scope: V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.

Source links: S501 · Evidence trail → (private workspace)

C234D · P234

HARTING lists an eight-contact X-coded M12 cable connector for industrial Ethernet up to 10 Gbit/s. This is an exact product capability listing and does not ensure a 10 Gbit/s end-to-end network.

Claim scope: V178 Exact HARTING connector plus class-level X-coding distinction; no generic performance or mating certification. Original bounded manufacturer paraphrase; publication and technical review pending.

Source links: S647 · S649 · Evidence trail → (private workspace)

Prepare this page for review → (private workspace)Read the evidence method →

Recorded evidence only. An inspection date, publisher label, source link or generated packet is not independent technical review, hardware testing, fabrication approval or a compatibility verdict.

Industrial coding field check · M12 X · data

Does an eight-contact M12 X-coded plug guarantee 10 Gbit/s?

Short answer No. A manufacturer lists up to 10 Gbit/s for a specific X-coded part, not for every device-to-device link.

Verify next

Verify the exact host and switch ports, the particular cable assembly, and required industrial Ethernet mode.

Not yet established

No unknown cable assembly, mixed-vendor mate, PoE supply or device capability is certified by this reference.

Show source-checked observations (not independently approved)

Symbolic reference, not connector gauging, manufacturing dimensions, wiring, approved mating, hardware test or publication approval.

Compare all eight industrial coding questions →
