ix Industrial is a compact industrial communication connector family documented by Hirose as IEC 61076-3-124 compliant and suitable for Ethernet and other transmissions.
Also called ix Industrial Hirose ix IEC 61076-3-124 connector
ix Industrial is a connector family, not a guarantee of a specific Ethernet mode on an arbitrary device.
Use the compact keyed rectangular form and explicit ix/IEC 61076-3-124 documentation to distinguish it from modular 8P8C and M12 interfaces.
Claim inspection dates: 2026-10-05, 2026-10-13, 2026-10-22 · Independent review pending

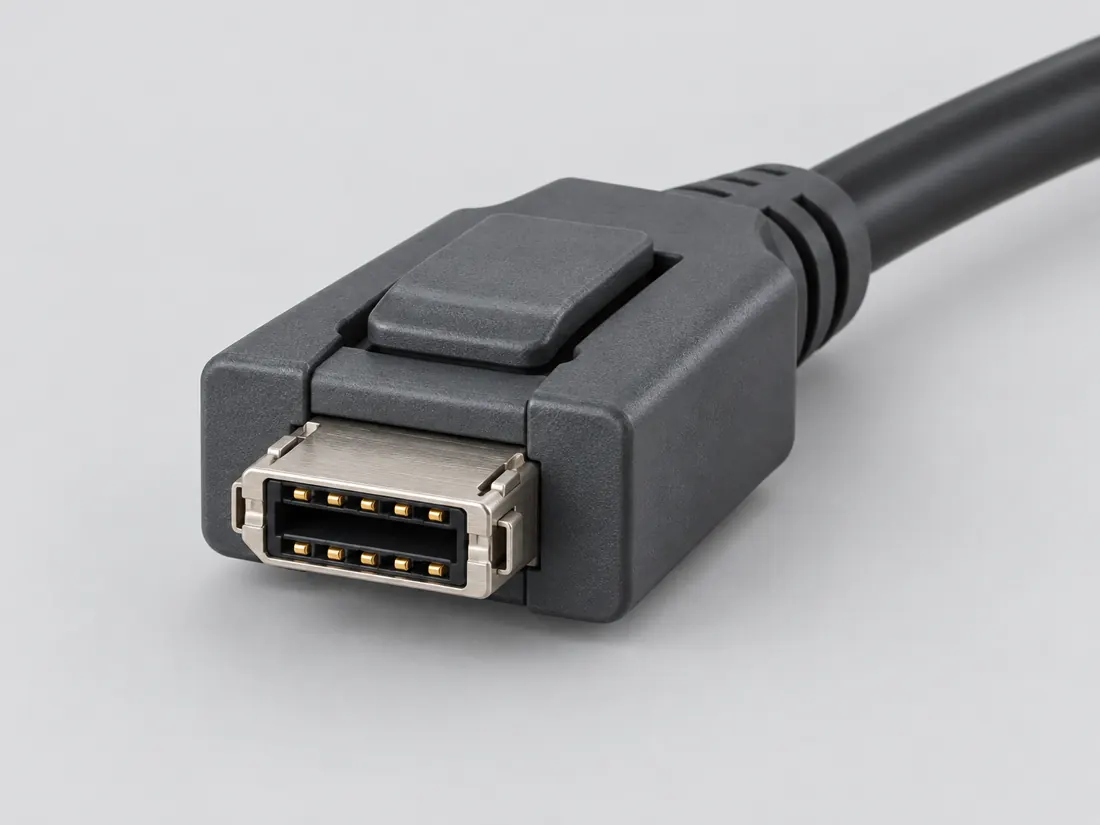

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

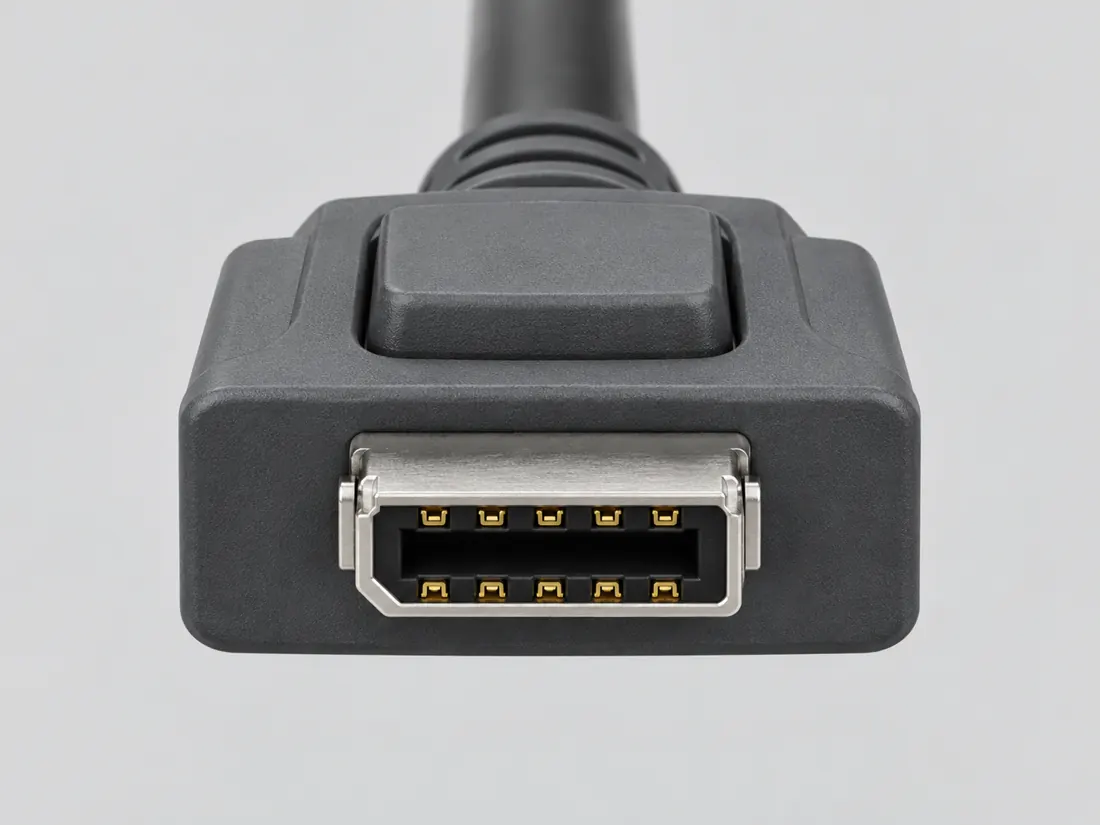

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

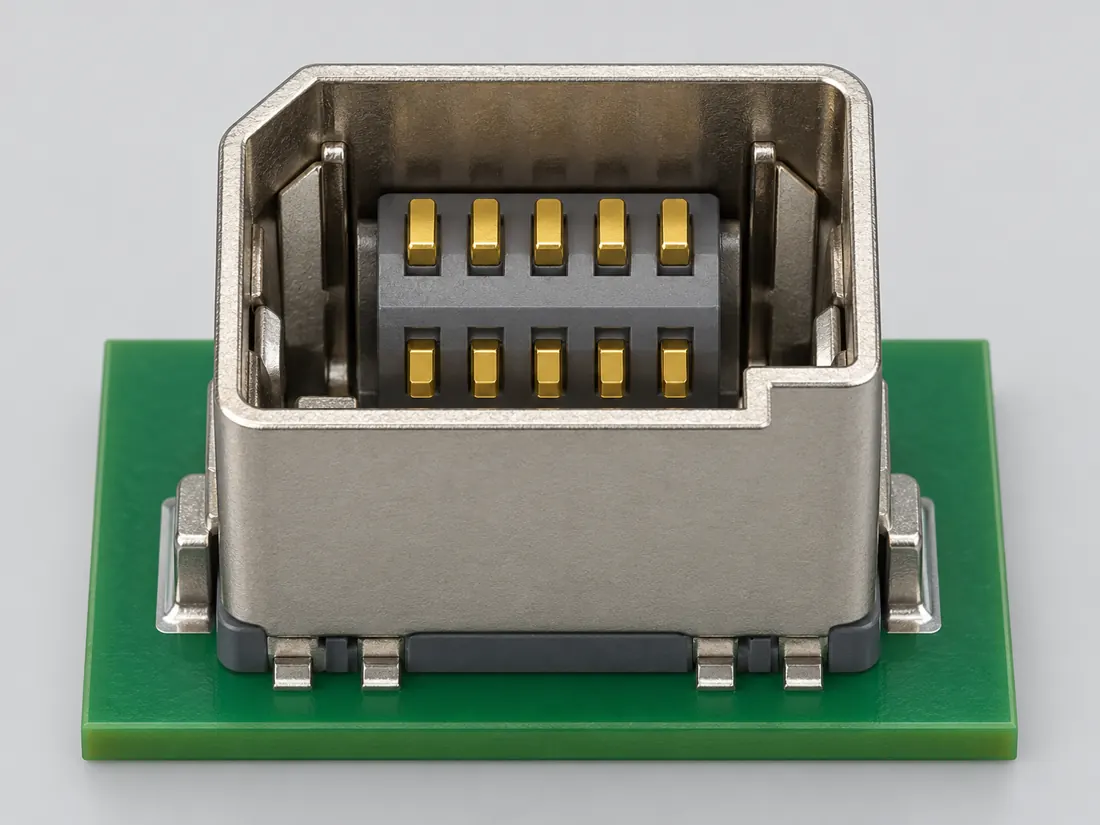

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Recognition drawing Original schematic, not to scale. Drawing review pending.
Image inspection / P235
1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.
(private workspace)P235 / Source-observed physical study
Hirose IX80G-A-10P / catalogue page 14

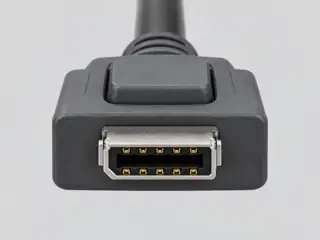

Mating face / Type A receptacle · Device receptacle
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)The useful distinction
ix Industrial is a compact industrial communication connector family documented by Hirose as IEC 61076-3-124 compliant and suitable for Ethernet and other transmissions. [C235A]
Hirose’s IX catalogue lists IX80G-A-10P and IX80G-B-10P as vertical receptacle variants and shows distinct Type A and Type B mating-key designs. [C235B]
The vertical IX80G receptacle drawing identifies contacts 1 through 10 and shows the mating-face and board-side component views separately. [C235C]
Exact source example IX31G-A-10S-CV(7.0): contacts: 10. construction: IDC straight cable plug with female contacts. termination: IDC24-25AWG per31code. rated voltage: 50VAC /60VDC. rated current: All pins1.5A/pin; pins1,2,6,7 up to3A/pin under catalog conditions. 10mm parallel mounting pitch is connector-to-connector spacing, excluded from contact pitch. No generic marking or pinout reconstructed. No physical compatibility, pin map or hardware validation is established. [C235D]
Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.
| Connector role | plug (IX31G-A-10S-CV(7.0))S611Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. IX31G-A-10S-CV(7.0). Documented role: plug. 10mm parallel mounting pitch is connector-to-connector spacing, excluded from contact pitch. No generic marking or pinout reconstructed. |
|---|---|
| Keying / polarization | Type A mating key; use same key for plug and receptacle (IX31G-A-10S-CV(7.0))S611Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. IX31G-A-10S-CV(7.0). Documented role: plug. 10mm parallel mounting pitch is connector-to-connector spacing, excluded from contact pitch. No generic marking or pinout reconstructed. |
| Manufacturer | Hirose Electric (IX31G-A-10S-CV(7.0))S611Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. IX31G-A-10S-CV(7.0). Documented role: plug. 10mm parallel mounting pitch is connector-to-connector spacing, excluded from contact pitch. No generic marking or pinout reconstructed. |
| Series | IX (IX31G-A-10S-CV(7.0))S611Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. IX31G-A-10S-CV(7.0). Documented role: plug. 10mm parallel mounting pitch is connector-to-connector spacing, excluded from contact pitch. No generic marking or pinout reconstructed. |
| Exact part / implementation | IX31G-A-10S-CV(7.0) (IX31G-A-10S-CV(7.0))S611Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. IX31G-A-10S-CV(7.0). Documented role: plug. 10mm parallel mounting pitch is connector-to-connector spacing, excluded from contact pitch. No generic marking or pinout reconstructed. |
Not recorded: Nominal contacts, Positions / cavity span, Populated contacts, Contact rows, Contact pitch, Dimensions / axis, Contact gender / arrangement, Mounting, Coupling / latch, Shell / form, Recorded markings, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.
Report a correction to these facts →Bounded facts, visible unknowns
| Documented identification | ix Industrial compact industrial communication connector family. [C235A] |
|---|---|
| Source-scoped component distinction | Hirose’s IX catalogue lists IX80G-A-10P and IX80G-B-10P as vertical receptacle variants and shows distinct Type A and Type B mating-key designs. [C235B] [C235C] |
| Mechanical dimensions | No independently reviewed mechanical drawing in V39; do not use this page for fabrication, fit testing or tolerance work. |
| Engineering pinout | Source-checked engineering profile available; independent review pending. Open engineering profile → |
| Verified device list | Not included. Check exact device and accessory documentation. |
Use the source-backed form or position count only for identification. Resolve ratings, protocol, direction, wiring, cable construction and exact device support from the relevant equipment and component documentation.
Before you connect
This field note does not approve a connection, adapter, cable assembly, rewiring scheme or fabricated part. It intentionally omits unsupported pin assignments and mechanical tolerances.
The study follows the Type A vertical receptacle. The catalogue distinguishes Type B; the board-side view is not the mating face. Ten positions do not provide a universal signal map.
The source-linked wired-network reference separates component identity, coding, equipment service and protection conditions. Original qualitative studies are not exact mating drawings or independently approved wiring instructions. Evidence: C235A, C235B, C235C.
Your next step
The source trail
AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.
Hirose identifies ix Industrial as an IEC 61076-3-124-compliant compact industrial communication connector family.
Hirose Electric · ix Industrial connector series ↗S239: full source recordInspect review dependencies → (private workspace)Hirose’s IX catalogue lists IX80G-A-10P and IX80G-B-10P as vertical receptacle variants and shows distinct Type A and Type B mating-key designs.
Hirose Electric · IX series catalogue — vertical receptacle and mating keys ↗S611: full source recordInspect review dependencies → (private workspace)The vertical IX80G receptacle drawing identifies contacts 1 through 10 and shows the mating-face and board-side component views separately.
Hirose Electric · IX series catalogue — vertical receptacle and mating keys ↗S611: full source recordInspect review dependencies → (private workspace)Exact source example IX31G-A-10S-CV(7.0): contacts: 10. construction: IDC straight cable plug with female contacts. termination: IDC24-25AWG per31code. rated voltage: 50VAC /60VDC. rated current: All pins1.5A/pin; pins1,2,6,7 up to3A/pin under catalog conditions. 10mm parallel mounting pitch is connector-to-connector spacing, excluded from contact pitch. No generic marking or pinout reconstructed. No physical compatibility, pin map or hardware validation is established.
