P216 / Power / Connector
IEC 60320 C18 is the equipment-side inlet that mates with a C17 cord connector.
Also called C18 IEC C18
An IEC 60320 inlet designation must be matched to the product documentation, not guessed from silhouette.
Confirm the C18 inlet designation and equipment rating before choosing a cord-side connector.
Claim inspection dates: 2026-10-05, 2026-10-13, 2026-10-22 · Independent review pending

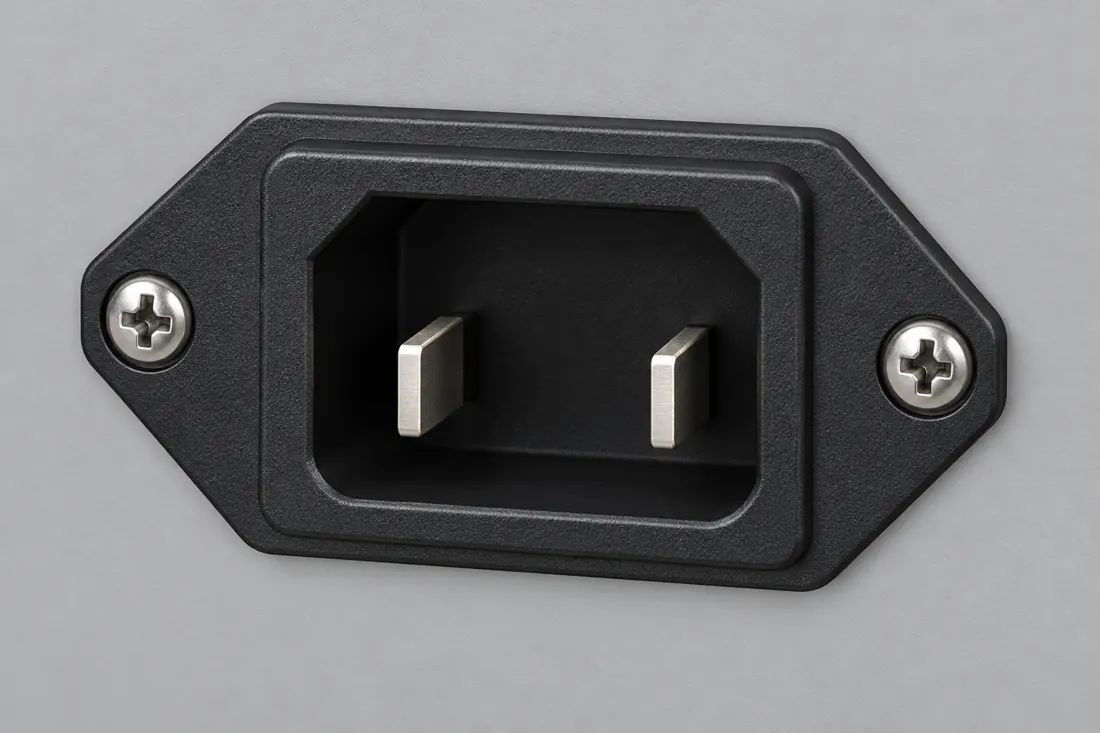

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

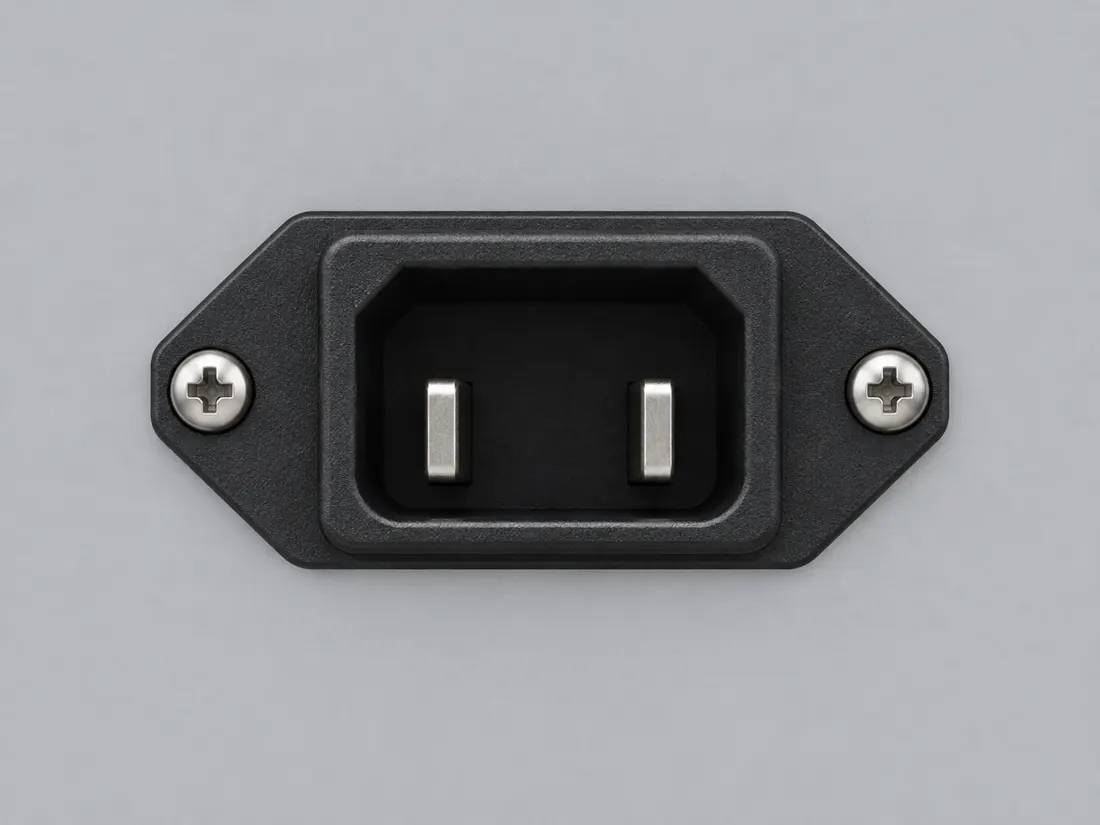

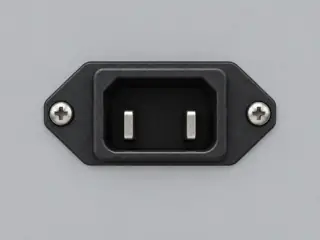

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

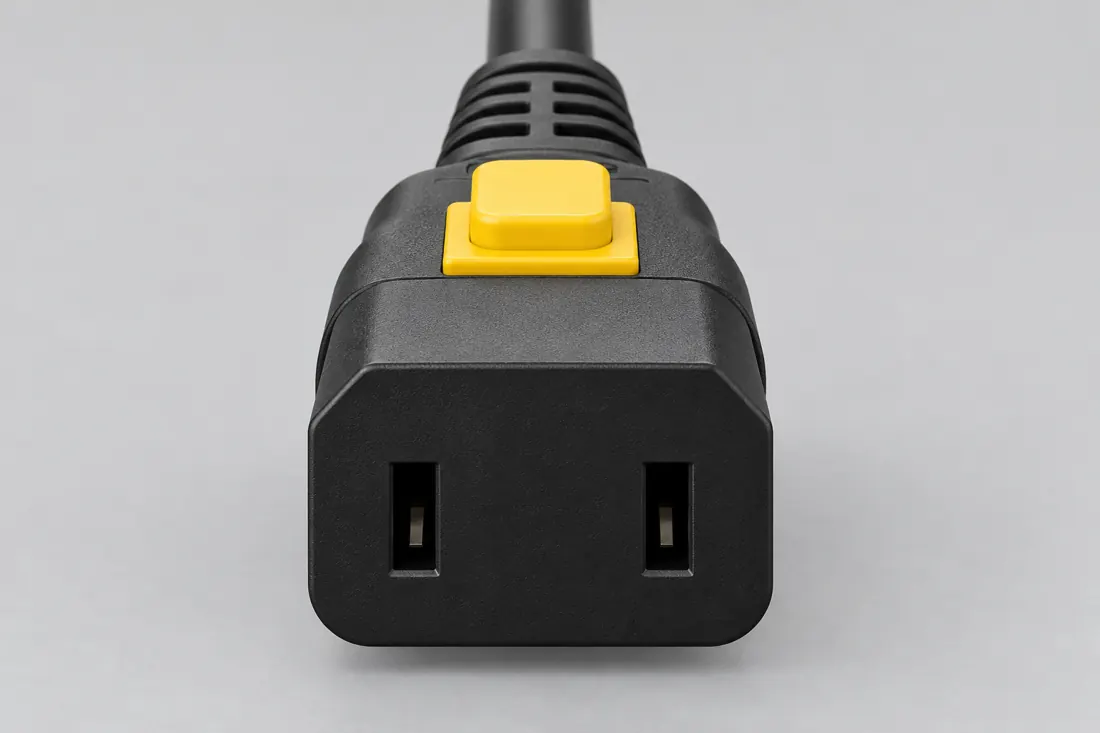

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Recognition drawing Original schematic, not to scale. Drawing review pending.
Image inspection / P216
1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.
(private workspace)P216 / Source-observed physical study
SCHURTER 6102.3200 / 6102-3 series drawing
Left contact-facing drawing / rear view excluded · Other declared component
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)The useful distinction
IEC 60320 C18 is the equipment-side inlet that mates with a C17 cord connector. [C216A]
Interpower identifies C17/C18 as a Class II pair for applications not requiring a ground path; V40 normalizes that as a two-pole, no-protective-earth boundary. [C216B]
SCHURTER lists 6102.3200 as a screw-mounted, protection-class-II C18 inlet variant with quick-connect terminals; 6102.3100 is separately listed with solder terminals. [C216C]
The left contact-facing drawing on page 2 of the 6102-3 datasheet shows two blade contacts within the inlet opening and a mounting hole on each side; profile, rear and panel-cutout views are separate. [C216D]
The 6102-3 datasheet states IEC 10 A / 250 VAC at 50 Hz and UL/CSA 15 A / 250 VAC at 60 Hz, and identifies the C18 inlet as protection class II with a 70 °C pin-temperature classification. [C216E]
Exact source example 6102.3200: construction: C18 front/rear screw-on panel inlet;4.8x0.8mm quick-connect terminals;protection class II. rating: IEC10A250VAC50Hz;UL/CSA15A250VAC60Hz. pin temperature c: 70. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product. No physical compatibility, pin map or hardware validation is established. [C216F]
Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.
| Nominal contacts | 2S244 · S245IEC 60320 C18 non-grounded appliance inlet; nominal engineering count, not automatically positions, population or a device wiring map. IEC 60320 C18 non-grounded appliance inlet |
|---|---|
| Connector role | plug (6102.3200)S928Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 6102.3200. Documented role: plug. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product. |
| Mounting | panel (Claim C216C)S632 · S633Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Exact variant distinction inside the 6102-3 series. It is not a replacement, termination, sealing or wiring instruction; matching front appearance does not erase variant differences. |
| Manufacturer | SCHURTER (6102.3200)S928Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 6102.3200. Documented role: plug. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product. |
| Series | 6102-3 (6102.3200)S928Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 6102.3200. Documented role: plug. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product. |
| Exact part / implementation | 6102.3200 (6102.3200)S928Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 6102.3200. Documented role: plug. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product. |
Not recorded: Positions / cavity span, Populated contacts, Contact rows, Contact pitch, Dimensions / axis, Contact gender / arrangement, Coupling / latch, Keying / polarization, Shell / form, Recorded markings, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.
Bounded facts, visible unknowns
| Documented identification | C18 inlet in the non-grounded C17/C18 pair. [C216A] |
|---|---|
| Exact inlet variant | SCHURTER lists 6102.3200 as a screw-mounted, protection-class-II C18 inlet variant with quick-connect terminals; 6102.3100 is separately listed with solder terminals. [C216C] |
| Source-scoped rating; not a system rating | The 6102-3 datasheet states IEC 10 A / 250 VAC at 50 Hz and UL/CSA 15 A / 250 VAC at 60 Hz, and identifies the C18 inlet as protection class II with a 70 °C pin-temperature classification. [C216E] |
| Mechanical dimensions | No independently reviewed mechanical drawing in V39; do not use this page for fabrication, fit testing or tolerance work. |
| Engineering pinout | Source-checked engineering profile available; independent review pending. Open engineering profile → |
| Verified device list | Not included. Check exact device and accessory documentation. |
Use the source-backed form or position count only for identification. Resolve ratings, protocol, direction, wiring, cable construction and exact device support from the relevant equipment and component documentation.
Before you connect
This field note does not approve a connection, adapter, cable assembly, rewiring scheme or fabricated part. It intentionally omits unsupported pin assignments and mechanical tolerances.
The 6102-3 study follows the contact-facing series drawing associated with 6102.3200. Its front outline does not identify rear terminals, a gasket, an equipment model or a compatible retaining mechanism. The separate variant row is part of the identification.
Use /field-sheets/c17-c18-power-recognition/ for the illustrated comparison. Keep connector role, exact variant, retaining system and cord-set rating separate. Neither artwork nor a passing reference check approves live testing, rewiring, substitution or installation.
Your next step
The source trail
AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.
Interpower identifies C18 appliance inlet within the documented non-grounded C17/C18 IEC 60320 appliance-coupler pair.
Interpower · Designing with specific IEC 60320 connectors and inlets ↗S221: full source recordInspect review dependencies → (private workspace)Interpower identifies C17/C18 as a Class II pair for applications not requiring a ground path; V40 normalizes that as a two-pole, no-protective-earth boundary.
Interpower · IEC 60320 C17/C18 engineering facts ↗S244: full source recordSCHURTER · IEC 60320 appliance coupler overview ↗S245: full source recordInspect review dependencies → (private workspace)SCHURTER lists 6102.3200 as a screw-mounted, protection-class-II C18 inlet variant with quick-connect terminals; 6102.3100 is separately listed with solder terminals.
SCHURTER · 6102-3 C18 inlet / 6102.3200 variant ↗S632: full source recordSCHURTER · 6102-3 C18 inlet datasheet / 1 October 2025 ↗S633: full source recordInspect review dependencies → (private workspace)The left contact-facing drawing on page 2 of the 6102-3 datasheet shows two blade contacts within the inlet opening and a mounting hole on each side; profile, rear and panel-cutout views are separate.
SCHURTER · 6102-3 C18 inlet datasheet / 1 October 2025 ↗S633: full source recordInspect review dependencies → (private workspace)The 6102-3 datasheet states IEC 10 A / 250 VAC at 50 Hz and UL/CSA 15 A / 250 VAC at 60 Hz, and identifies the C18 inlet as protection class II with a 70 °C pin-temperature classification.
SCHURTER · 6102-3 C18 inlet / 6102.3200 variant ↗S632: full source recordSCHURTER · 6102-3 C18 inlet datasheet / 1 October 2025 ↗S633: full source recordInspect review dependencies → (private workspace)Exact source example 6102.3200: construction: C18 front/rear screw-on panel inlet;4.8x0.8mm quick-connect terminals;protection class II. rating: IEC10A250VAC50Hz;UL/CSA15A250VAC60Hz. pin temperature c: 70. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product. No physical compatibility, pin map or hardware validation is established.
SCHURTER · 6102-3 C18 appliance inlets datasheet ↗S928: full source recordInspect review dependencies → (private workspace)Follow the connection
Do not substitute C17/C18 merely because another IEC coupler looks similar.
Open field note
An inlet outline does not establish the connected equipment rating or approved cord set.
Open field note
The two-contact outline is an identification clue, not electrical approval.
Open field noteCandidate selection does not confirm the identity or capabilities of your physical item.
SOURCE-OBSERVED APPLIANCE POWER
The 6102-3 study follows the contact-facing series drawing associated with 6102.3200. Its front outline does not identify rear terminals, a gasket, an equipment model or a compatible retaining mechanism. The separate variant row is part of the identification.
Interpower identifies C17/C18 as a Class II pair for applications not requiring a ground path; V40 normalizes that as a two-pole, no-protective-earth boundary. C216B
V40 engineering-reference fact only; independent human review remains pending. This claim does not approve fabrication, rewiring, substitution, electrical safety, protocol support or end-to-end compatibility.
SCHURTER lists 6102.3200 as a screw-mounted, protection-class-II C18 inlet variant with quick-connect terminals; 6102.3100 is separately listed with solder terminals. C216C
Exact variant distinction inside the 6102-3 series. It is not a replacement, termination, sealing or wiring instruction; matching front appearance does not erase variant differences.
The left contact-facing drawing on page 2 of the 6102-3 datasheet shows two blade contacts within the inlet opening and a mounting hole on each side; profile, rear and panel-cutout views are separate. C216D
Qualitative source-facing series drawing for recognition. Rear terminals and cutouts are not reused as the mating face. No dimensions, pin labels, cord-latch notch or installation approval are supplied.
The 6102-3 datasheet states IEC 10 A / 250 VAC at 50 Hz and UL/CSA 15 A / 250 VAC at 60 Hz, and identifies the C18 inlet as protection class II with a 70 °C pin-temperature classification. C216E
Source-specific inlet and approval categories only; not an assembled cord rating, ambient-temperature guarantee or permission to substitute equipment requiring protective earth.
