IEC 60320 C17 cord connector

IEC 60320 C17 is a non-grounded cord-side appliance-coupler connector paired with a C18 inlet.

Also called C17 IEC C17

Do not substitute C17/C18 merely because another IEC coupler looks similar.

Look for

Use the keying and documented C17 designation to distinguish this non-grounded pair from nearby IEC 60320 families.

Claim inspection dates: 2026-10-05, 2026-10-13, 2026-10-22 · Independent review pending

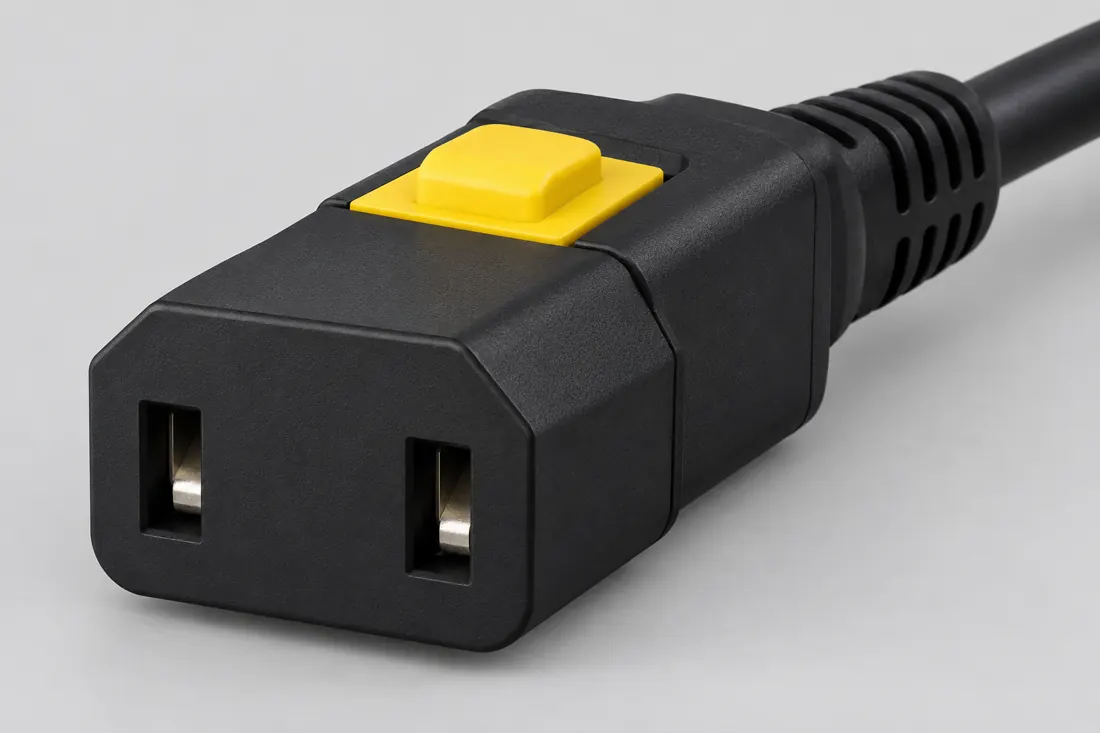

IEC 60320 C17 cord connector: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

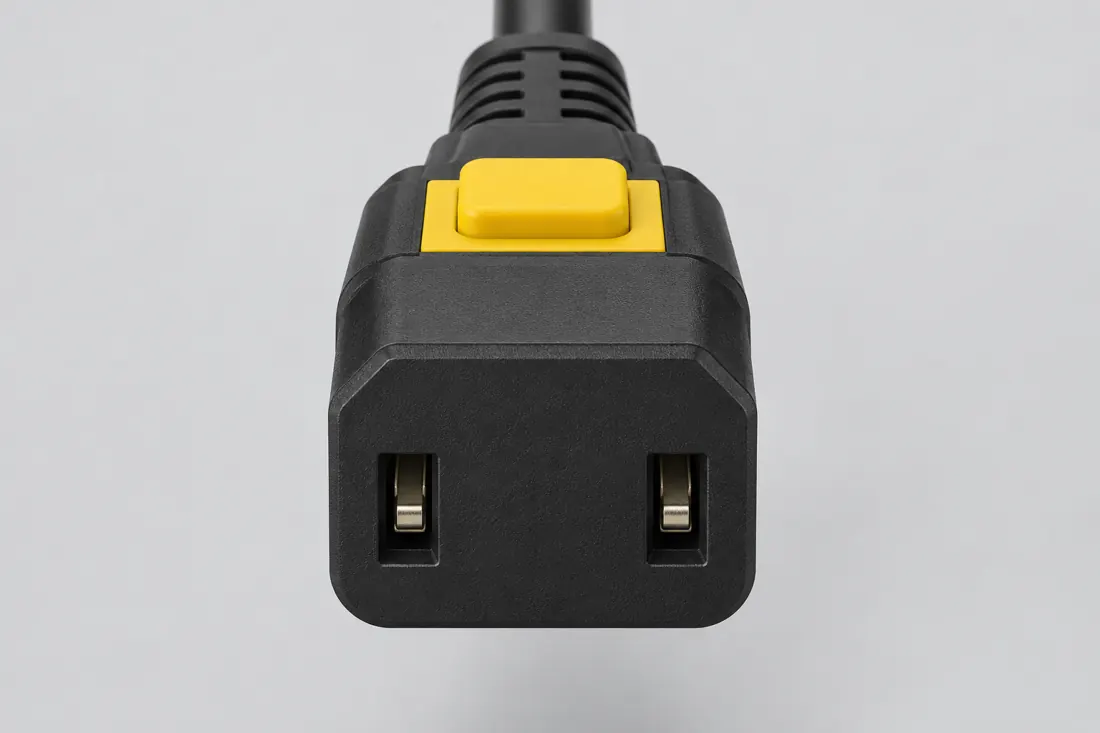

IEC 60320 C17 cord connector: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

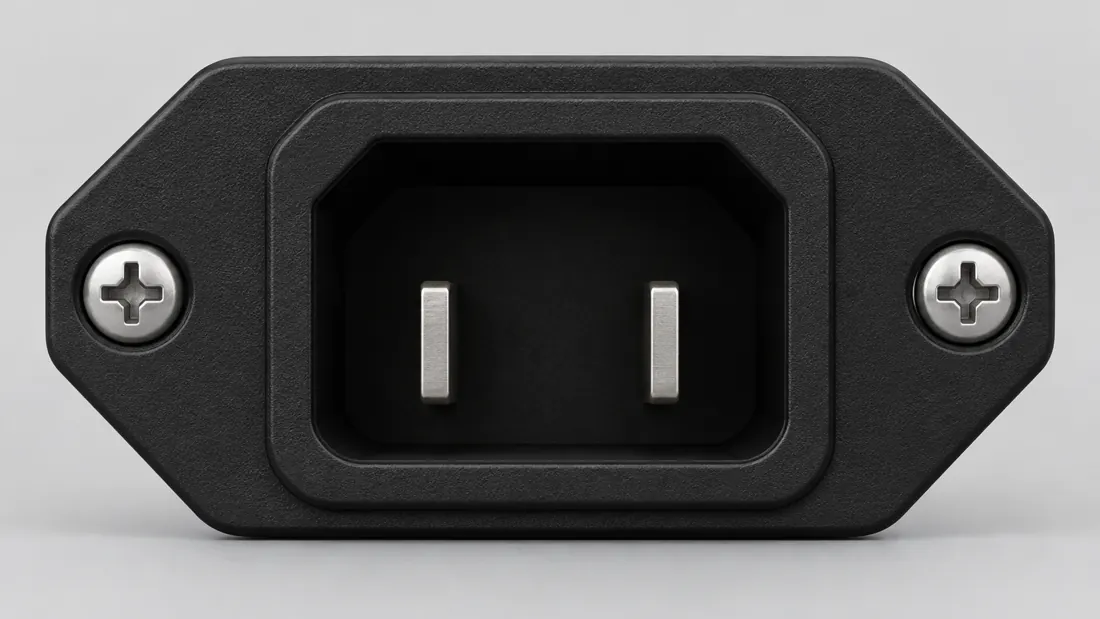

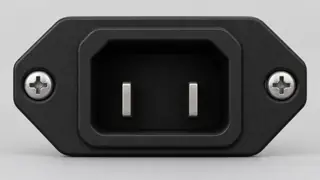

IEC 60320 C17 cord connector: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

IEC 60320 C17 cord connector: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Image inspection / P215

See the view. Check its scope.

1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.

C17 / the cord connector. Oblique photograph study / visible side only. Two openings; visible release control; Named assembly, not a bare connector or universal housing; No hidden latch or straight-on geometry inferred. Original qualitative source study; not a pinout. (private workspace)

P215 / Source-observed physical study

C17 / the cord connector

SCHURTER 3-101-794 / named cord-set photograph

Oblique photograph study / visible side only · Other declared component

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

The useful distinction

Recognize it. Then verify it.

IEC 60320 C17 is a non-grounded cord-side appliance-coupler connector paired with a C18 inlet. [C215A]

Interpower identifies C17/C18 as a Class II pair for applications not requiring a ground path; V40 normalizes that as a two-pole, no-protective-earth boundary. [C215B]

SCHURTER identifies 3-101-794 as a molded C17 V-Lock cord set with a North American NEMA 1-15 plug, 3.0 m black SJT 2x18 AWG cable. [C215C]

The 3-101-794 technical-data row states a UL/CSA rating of 10 A / 125 VAC at 50/60 Hz. [C215D]

The 3-101-794 datasheet photograph shows two recessed openings on the C17 cord end and a visible top release control; its V-Lock note requires a matching retention combination. [C215E]

Exact source example 3-101-794: construction: Cordset C17 moulded connector;V-Lock retention;protection class II;black PVC housing. rating: UL/CSA10A125VAC50/60Hz. pin temperature c: 70. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product. No physical compatibility, pin map or hardware validation is established. [C215F]

Source-scoped identification facts

Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.

Documented examples; not a mating drawing or compatibility approval
Nominal contacts2S244 · S245IEC 60320 C17 non-grounded cord connector; nominal engineering count, not automatically positions, population or a device wiring map. IEC 60320 C17 non-grounded cord connector
Connector rolesocket (3-101-794)S927Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 3-101-794. Documented role: socket. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product.
Mountingcable (Claim C215A)S221Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V39 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof.
Coupling / latchV-Lock cord retaining system;matching connector notch for latch (3-101-794)S927Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 3-101-794. Documented role: socket. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product.
ManufacturerSCHURTER (3-101-794)S927Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 3-101-794. Documented role: socket. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product.
SeriesVAC17KS (3-101-794)S927Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 3-101-794. Documented role: socket. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product.
Exact part / implementation3-101-794 (3-101-794)S927Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 3-101-794. Documented role: socket. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product.

Not recorded: Positions / cavity span, Populated contacts, Contact rows, Contact pitch, Dimensions / axis, Contact gender / arrangement, Keying / polarization, Shell / form, Recorded markings, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.

Recorded variant and source limits
  • Contact/pole count does not establish terminal placement, conductor colors, voltage compatibility or safe substitution.
  • No fabrication dimensions, live-work procedure or device-level electrical approval is published.
  • Retained rows context (excluded from normalized contact/body field): 2. Exact 3-101-794 assembly identification only; not all C17 cables, a bare connector, a rewireable kit or an adapter recommendation. Sources: S630: Named part identification, technical data and exact variant row; page dated 01.09.2025.; S631: Page 1: oblique C17-end photograph and ratings; page 2: exact 3-101-794 variant and V-Lock note; page 3: issue date. All three pages visually inspected.
Report a correction to these facts →

Bounded facts, visible unknowns

Specifications and limits

IEC 60320 C17 cord connector facts and limitations
Documented identificationC17 cord connector in the non-grounded C17/C18 pair. [C215A]
Exact cord assemblySCHURTER identifies 3-101-794 as a molded C17 V-Lock cord set with a North American NEMA 1-15 plug, 3.0 m black SJT 2x18 AWG cable. [C215C]
Source-scoped rating; not a system ratingThe 3-101-794 technical-data row states a UL/CSA rating of 10 A / 125 VAC at 50/60 Hz. [C215D]
Mechanical dimensionsNo independently reviewed mechanical drawing in V39; do not use this page for fabrication, fit testing or tolerance work.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
No electrical replacement approval.

Use the source-backed form or position count only for identification. Resolve ratings, protocol, direction, wiring, cable construction and exact device support from the relevant equipment and component documentation.

Before you connect

What to check

  1. Identify the exact connector family and variant from the equipment or cable documentation.
  2. Keep shape, contact count, protocol, electrical rating and device support as separate facts.
  3. Do not force, rewire or adapt a connector from this recognition record; resolve the remaining requirements first.
Trace a supported connection class →

What is not established

This field note does not approve a connection, adapter, cable assembly, rewiring scheme or fabricated part. It intentionally omits unsupported pin assignments and mechanical tolerances.

C17 is the cord end, not the complete power decision.

The named 3-101-794 example is an assembled North American power cord. Its oblique-photo study shows the C17 end and visible release control, not a universal C17 housing or a certified matching latch. Read the assembly rating separately from the inlet classification.

Read the source before selecting a connection

Use /field-sheets/c17-c18-power-recognition/ for the illustrated comparison. Keep connector role, exact variant, retaining system and cord-set rating separate. Neither artwork nor a passing reference check approves live testing, rewiring, substitution or installation.

Your next step

Move from the form to the requirement.

Read the engineering reference Source-scoped details, orientation and explicit unknowns.Work through a connection Choose your task before deciding on a cable.Explore this evidence trail Inspect the claims and their dependencies. (private workspace)
