IEC 60320 C7 is a non-grounded cord-side appliance-coupler connector paired with a C8 inlet.
Also called C7 IEC C7 figure-8 power connector
A C7/C8 fit does not establish equipment class, voltage, current or cord approval.
Identify the two-contact figure-8-style cord connector and confirm the C7/C8 designation in documentation.
Claim inspection dates: 2026-10-05, 2026-10-13, 2026-10-22 · Independent review pending

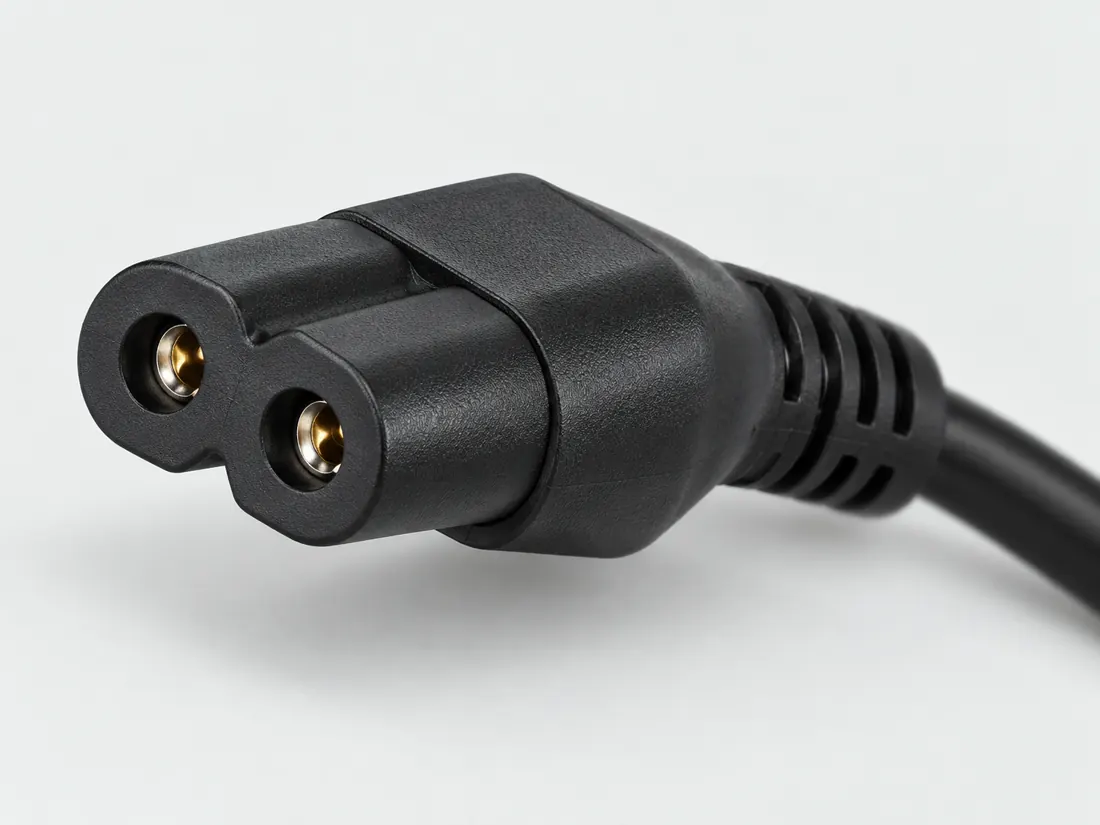

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

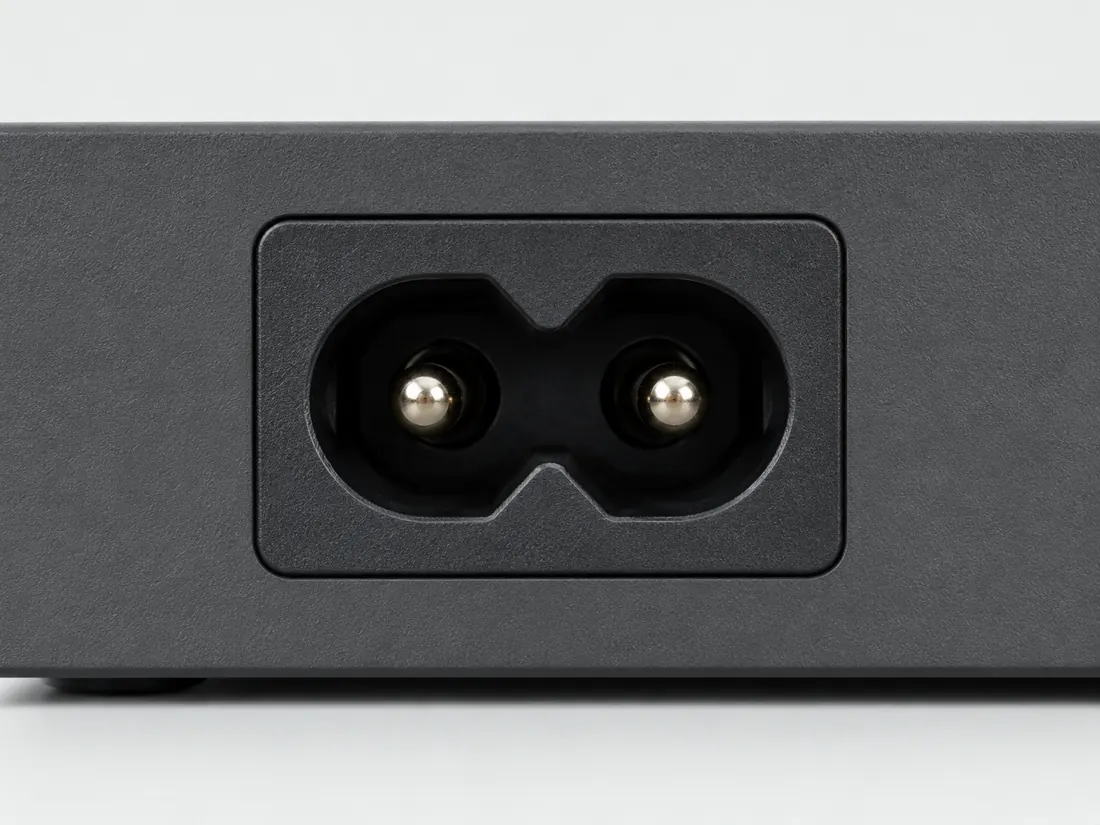

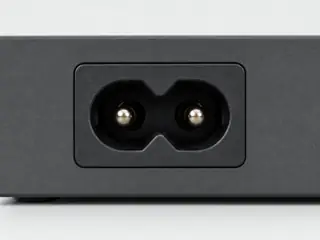

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Recognition drawing Original schematic, not to scale. Drawing review pending.
Image inspection / P213
1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.
(private workspace)P213 / Source-observed physical study
SCHURTER 6013.0474
Source-declared qualitative mating-face study; manufacturer-photo-study · Cable housing
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)The useful distinction
IEC 60320 C7 is a non-grounded cord-side appliance-coupler connector paired with a C8 inlet. [C213A]
Interpower identifies C7/C8 as the non-grounded Class II pair; V40 normalizes that as a two-pole, no-protective-earth engineering boundary. [C213B]
SCHURTER 6013.0474 is a straight C7 cord-set example; its photograph and symbol show a two-round-lobe connector, not a squared-side variant. [C213C]
For 6013.0474, SCHURTER lists IEC 2.5 A at 250 VAC, 50 Hz. This describes the named cord set, not the input range of an appliance. [C213D]
The 6013.0474 sheet lists protection class II and 70 °C pin temperature, separately from an operating-temperature range of −25 °C to 70 °C. [C213E]
The 6013.0474 sheet identifies an EN 50075 plug at the other end and lists 2572 among its C8 mating-inlet families. It does not identify a particular appliance. [C213F]
Exact source example 6013.0474: construction: Cordset C7 connector;black PVC moulded housing;protection class II. rating: IEC2.5A250VAC50Hz. pin temperature c: 70. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product. No physical compatibility, pin map or hardware validation is established. [C213G]
Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.
| Nominal contacts | 2S220Source-backed nominal position count: 2. |
|---|---|
| Connector role | socket (6013.0474)S603Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 6013.0474. Documented role: socket. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product. |
| Mounting | cable (Claim C213A)S220Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V39 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof. |
| Manufacturer | SCHURTER (6013.0474)S603Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 6013.0474. Documented role: socket. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product. |
| Series | 6013.0474 (6013.0474)S603Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 6013.0474. Documented role: socket. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product. |
| Exact part / implementation | 6013.0474 (6013.0474)S603Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 6013.0474. Documented role: socket. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product. |
Not recorded: Positions / cavity span, Populated contacts, Contact rows, Contact pitch, Dimensions / axis, Contact gender / arrangement, Coupling / latch, Keying / polarization, Shell / form, Recorded markings, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.
Bounded facts, visible unknowns
| Documented identification | C7 non-grounded cord connector paired with C8 inlet. [C213A] |
|---|---|
| Named-product role and recognition | SCHURTER 6013.0474: Two round lobes with recessed openings on the cord end. This study is the two-round-lobe example. [C213C] [C213D] [C213E] [C213F] |
| Mechanical dimensions | No independently reviewed mechanical drawing in V39; do not use this page for fabrication, fit testing or tolerance work. |
| Engineering pinout | Source-checked engineering profile available; independent review pending. Open engineering profile → |
| Verified device list | Not included. Check exact device and accessory documentation. |
Use the source-backed form or position count only for identification. Resolve ratings, protocol, direction, wiring, cable construction and exact device support from the relevant equipment and component documentation.
Before you connect
This field note does not approve a connection, adapter, cable assembly, rewiring scheme or fabricated part. It intentionally omits unsupported pin assignments and mechanical tolerances.
Check the exact inlet shape and equipment-approved cord. Do not assume that a differently keyed or squared-side variant is covered by this study. No polarized-variant equivalence, appliance input-voltage conversion, terminal mapping or replacement-cord approval. Sources: C213C, C213D, C213E, C213F. The original study is qualitative; independent technical and rights review remains pending.
