FIELD GUIDESource-led reference
Port & Cable

Transcend / D080

Transcend RDF8 (TS-RDF8K2 / TS-RDF8W2)

Selected CompactFlash, SD and microSD slots with UDMA/UHS scope and an explicit concurrent-operation documentation conflict.

Explore this device’s exact port groups →

Exact scope

RDF8 TS-RDF8K2 / TS-RDF8W2 as named in the cited sheets; hardware revision correspondence unresolved.

Three selected media slot groups only. No typed USB connector, full chassis inventory, measured performance or independent hardware qualification.

Source checked · human review pending

Checked 2026-10-08 · Review due 2027-01-06
Sources S439 · S440

Inspect the evidence → (private workspace)

Location and role matter

Selected port groups

3 groups · not an exhaustive parts diagram

Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

× 1
Removable media slot

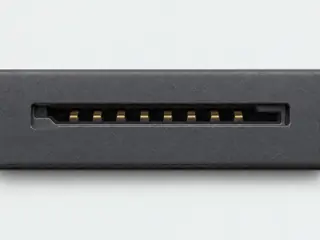

SD / SDHC / SDXC slot

SDHC/SDXC UHS-I. The three listed slots do not establish concurrent operation.

Sources S439 · S440 · Connector field note

Identification only. This port group cannot launch the scoped planner.

× 1
Removable media slot

microSD slot

microSDHC/microSDXC UHS-I. The three listed slots do not establish concurrent operation.

Sources S439 · S440 · Connector field note

Identification only. This port group cannot launch the scoped planner.

× 1
Removable media slot

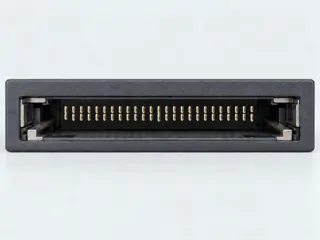

CompactFlash slot

CompactFlash UDMA7; no Type I/II thickness assignment adopted. The three listed slots do not establish concurrent operation.

Sources S439 · S440 · Connector field note

Identification only. This port group cannot launch the scoped planner.

Read before using the profile

  • The two sheets identify TS-RDF8K2 / TS-RDF8W2 and the selected media families. No capabilities are inherited from RDF9, RDF2 or other entries in a comparison chart.
  • Simultaneous operation is unresolved: the sheets disagree about two-card/three-card insertion and include a contrary no-two-card note. Do not infer parallel read/write or aggregate throughput.
  • The USB interface is documented as USB 3.1 Gen 1, but the new profile deliberately omits a typed USB endpoint because the text calls it only micro USB. This omission is not a claim that the device lacks USB.
  • Exact card capacity, operating-system support, physical specimen and sustained transfer still require checking.

Exact-model source trail

Sources behind this profile

These are the profile’s existing source records, with their original scope and access limitations. No new inspection or approval is implied.

S439Full source record →

Transcend · RDF8 product sheet — Transcend-RDF8.pdf

TS-RDF8K2 / TS-RDF8W2 selected media slots, CompactFlash UDMA7, SD/microSD UHS-I, USB 3.1 Gen 1 description.

Open source ↗

Locator: PDF pages 1–2 visually inspected; card slots, Compatibility, Performance, Ordering Information and three-card insertion wording. No printed revision identifier.
Access: public pdf text. Concurrent-operation wording is compared with S440 and remains unresolved. Document age or hardware revision is not inferred from a filename. No measured aggregate transfer, exact-card or OS certification.

S440Full source record →

Transcend · RDF8 product sheet — EN_RDF8_PS_1905.pdf

TS-RDF8K2 / TS-RDF8W2 UHS-II cards at UHS-I speeds and contradictory simultaneous-insertion wording.

Open source ↗

Locator: PDF pages 1–2 visually inspected: page 1 Additional Features, page 2 Operating Environment Note and Compatibility. Page 3 multi-product comparison not adopted.
Access: public pdf text. Page 1 allows two-card insertion while page 2 says it is unsupported. Kept as an unresolved documentation conflict, not a chosen device capability. Filename is not treated as a verified revision date.

Related field notes

CompactFlash Type I card interfaceThe word Compact does not identify a card interface. →Full-size SD card formThe card shape is one label; capacity and speed are separate labels. →microSD card formSmall form factor does not mean a particular speed. →Choose a card reader without guessing from its shapeA reader with the same exterior connector can support a different set of media. →Read a camera card-slot map correctlyAlternative families in one slot do not create extra slots. →
Compare this deviceChoose a task playbook →

Exact-model evidence map

What this release can actually tell you about Transcend RDF8 (TS-RDF8K2 / TS-RDF8W2).

2 of 6 task domains contain some exact-model evidence. The others stay explicitly undocumented.

Open the full model map →
Displays & docksNot documented here

No displays & docks-specific evidence for this exact model is represented in this release.

Plan next step →Topology →
USB dataNot documented here

No usb data-specific evidence for this exact model is represented in this release.

Plan next step →Topology →
Memory cards & readersDomain profile

This release contains a dedicated memory cards & readers profile for this exact device.

Plan next step →Topology →
Ethernet & PoENot documented here

No ethernet & poe-specific evidence for this exact model is represented in this release.

Plan next step →Topology →
AudioNot documented here

No audio-specific evidence for this exact model is represented in this release.

Plan next step →Topology →
Charging & powerSelected-port evidence

The base device profile contains 3 selected port groups relevant to this domain, but no dedicated domain profile.

Plan next step →Topology →

Derived from the existing device profile and domain catalogs. This layer adds no new hardware fact and does not infer compatibility from a missing or present cell.

Media support and slot scope

Transcend / reader

Transcend RDF8 (TS-RDF8K2 / TS-RDF8W2)

Reader-specific limit

RDF8 documentation disagrees about simultaneous insertion: EN_RDF8_PS_1905 allows two cards on page 1 but says simultaneous two-card insertion is unsupported on page 2; Transcend-RDF8 describes three on page 1. This reference leaves concurrent operation unresolved.

Read the supporting evidence → (private workspace)

SD / SDHC / SDXC slot

Full-size SD card form

1 physical slot. S439 · S440

microSD slot

microSD card form

1 physical slot. S439 · S440

CompactFlash slot

CompactFlash Type I card interface

1 physical slot. S439 · S440

Model scope, caveats and source dates

RDF8 TS-RDF8K2 / TS-RDF8W2 as named in the cited sheets; hardware revision correspondence unresolved.

  • The two sheets identify TS-RDF8K2 / TS-RDF8W2 and the selected media families. No capabilities are inherited from RDF9, RDF2 or other entries in a comparison chart.
  • Simultaneous operation is unresolved: the sheets disagree about two-card/three-card insertion and include a contrary no-two-card note. Do not infer parallel read/write or aggregate throughput.
  • The USB interface is documented as USB 3.1 Gen 1, but the new profile deliberately omits a typed USB endpoint because the text calls it only micro USB. This omission is not a claim that the device lacks USB.
  • Exact card capacity, operating-system support, physical specimen and sustained transfer still require checking.

No typed USB endpoint is supplied for this profile. Use the reader’s exact USB/cable documentation separately; no automated USB-data worksheet is populated.

Profile inspected 2026-10-08 · review due 2027-01-06 · independent review pending.

S439 · S440

Use in an unsaved worksheet →

Evidence behind this page

Scope first. Source second. Approval separate.

2 linked sources · 0 scoped claims · 0 sources with inspection/access flags.

Page scope: RDF8 TS-RDF8K2 / TS-RDF8W2 as named in the cited sheets; hardware revision correspondence unresolved.

Assessment 2026-10-22 · earliest scheduled source review 2027-01-06. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 2 source scopes, access limits and dates

S439 · RDF8 product sheet — Transcend-RDF8.pdf

Transcend · Manufacturer / product-owner domain · inspected 2026-10-08 · due 2027-01-06

Within inspection window

Scoped support: TS-RDF8K2 / TS-RDF8W2 selected media slots, CompactFlash UDMA7, SD/microSD UHS-I, USB 3.1 Gen 1 description.

Not established / limitations: Concurrent-operation wording is compared with S440 and remains unresolved. Document age or hardware revision is not inferred from a filename. No measured aggregate transfer, exact-card or OS certification.

Locator: PDF pages 1–2 visually inspected; card slots, Compatibility, Performance, Ordering Information and three-card insertion wording. No printed revision identifier.

S440 · RDF8 product sheet — EN_RDF8_PS_1905.pdf

Transcend · Manufacturer / product-owner domain · inspected 2026-10-08 · due 2027-01-06

Within inspection window

Scoped support: TS-RDF8K2 / TS-RDF8W2 UHS-II cards at UHS-I speeds and contradictory simultaneous-insertion wording.

Not established / limitations: Page 1 allows two-card insertion while page 2 says it is unsupported. Kept as an unresolved documentation conflict, not a chosen device capability. Filename is not treated as a verified revision date.

Locator: PDF pages 1–2 visually inspected: page 1 Additional Features, page 2 Operating Environment Note and Compatibility. Page 3 multi-product comparison not adopted.

Trace 0 claims to their source records

No central claims on this surface. Exact-device assertions and explicit source links remain in the original profile above and in the reviewer packet.

Prepare this page for review → (private workspace)Read the evidence method →

Recorded evidence only. An inspection date, publisher label, source link or generated packet is not independent technical review, hardware testing, fabrication approval or a compatibility verdict.
