Port & Cable

P005 / USB / Connector

Mini-USB Type-B

Mini-USB Type-B is a distinct legacy connector, not a synonym for Micro-USB.

Also called Mini USB Mini-B Mini USB B

Mini and Micro are not interchangeable labels.

Look for

Compare the outline with Micro-B rather than choosing by approximate size alone. The record covers the standard five-contact Mini-B form, not proprietary small camera connectors.

Claim inspection dates: 2026-10-01, 2026-10-22 · Independent review pending

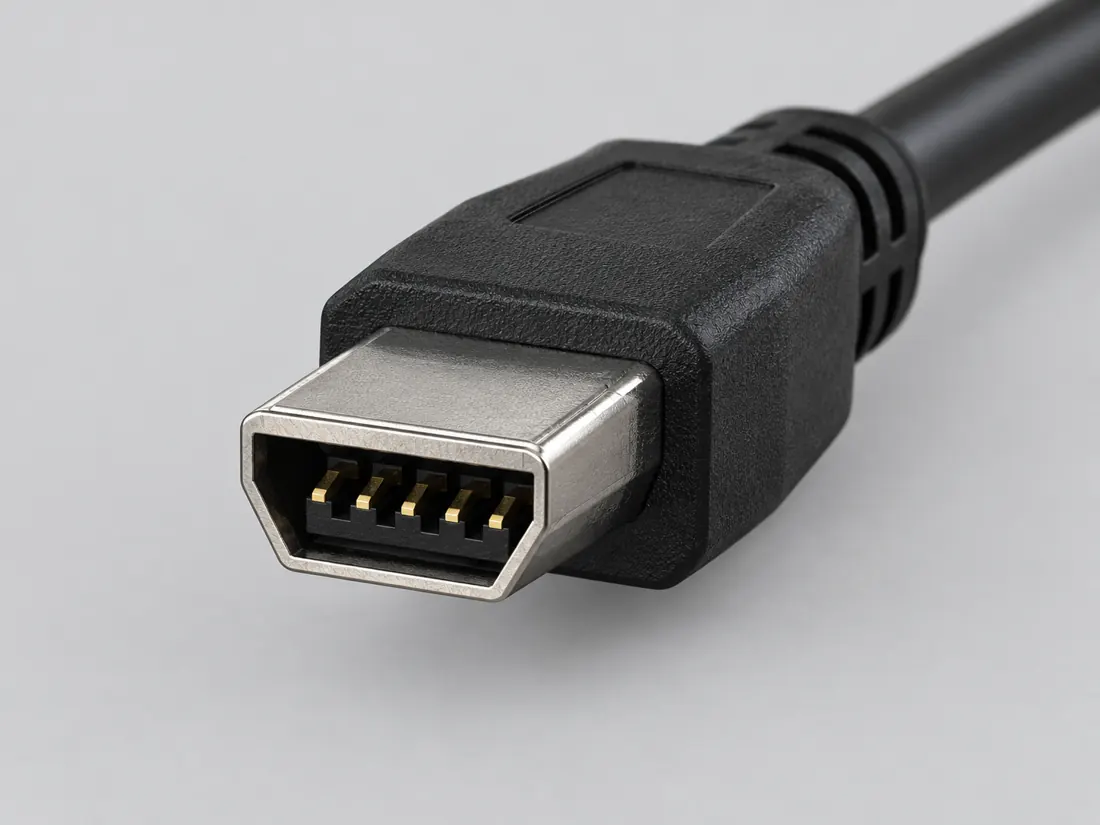

Mini-USB Type-B: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

Mini-USB Type-B: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

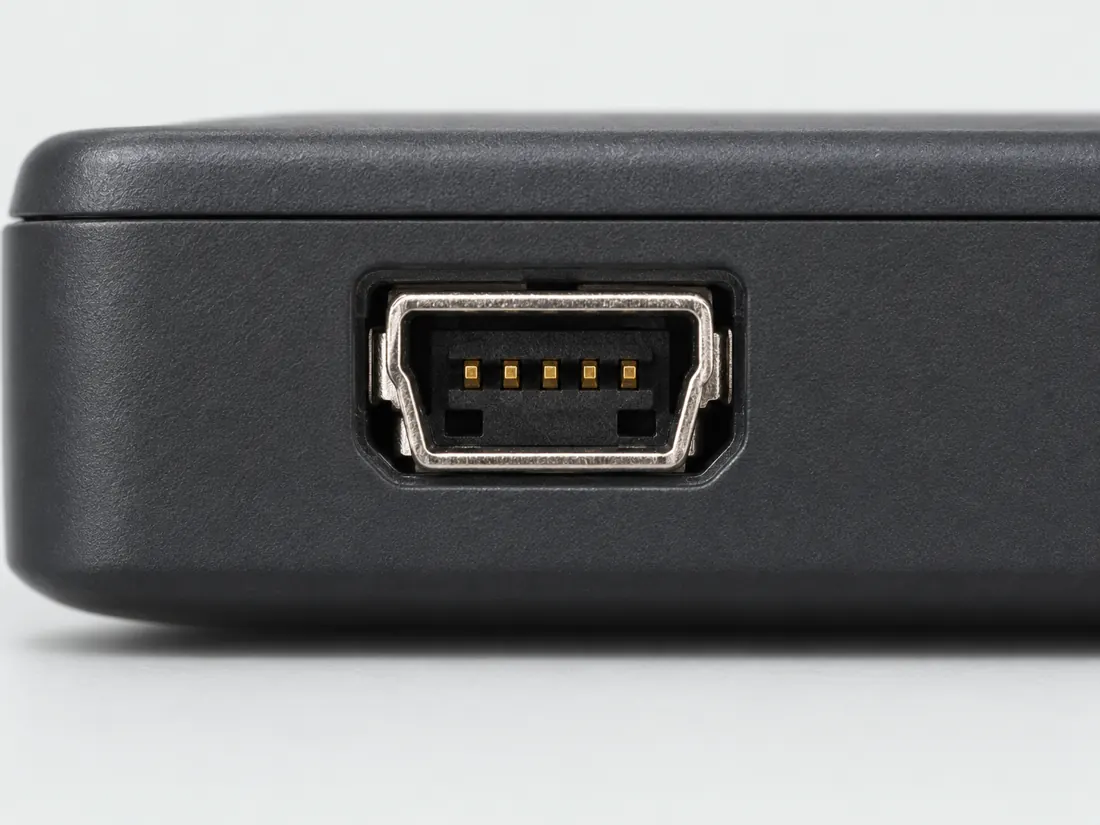

Mini-USB Type-B: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

Mini-USB Type-B: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Pins & wiring

Pinout

Choose the exact wiring. Pin numbers follow its stated view; a schematic does not establish physical positions. Check your exact device before wiring.

What the status labels mean
Confirmed
Recorded research passes agree within this variant; this is not independent human review or hardware validation.
Single source
Only one underlying document, or one pass, supports this assignment.
Device-specific
Supported for the named equipment or wiring only. Check your device’s manual.
Unverified
Missing or conflicting evidence. Do not wire from this row.
Not connected
The source explicitly says NC, no contact or no pin for this wiring.
Wiring variant

USB 2.0 Series mini-B (ECN #1)

View and evidence limits

Receptacle face, wide side up: 1 left to 5 right (Figure 6-11 callouts).

  • P005 Mini-USB Type-B — **Agree** (4 = ID, 5 = GND) — Mini-B ECN #1, Table 6-2.
  • OTG Mini-AB definitions were not inspected; only the Series mini-B ECN is used.
Mini-USB Type-B engineering referenceReceptacle face, wide side up: 1 left to 5 right (Figure 6-11 callouts).SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: VBUS (single_source)12: D- (single_source)23: D+ (single_source)34: ID (single_source)45: GND (single_source)5Shell: Shield (single_source)ShellpowergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
USB 2.0 Series mini-B (ECN #1) — source-scoped contact map
PinSignalWhat it doesStatus
1VBUSUSB bus power; voltage and current depend on the device.Single source
Sources
2D-USB 2.0 data, negative side of the pair.Single source
Sources
3D+USB 2.0 data, positive side of the pair.Single source
Sources
4IDControl, detection or configuration connection; check the source and device.Single source
Sources
5GNDGround reference and return.Single source
Sources
ShellShieldCable screen or shield connection; check the named equipment.Single source
Sources
Sources (3)

USB 2.0 Mini-B receptacle/plug

View and evidence limits

Contact-number convention of ECN #1 Table 6-2.

  • P005 Mini-USB Type-B — **Agree** (4 = ID, 5 = GND) — Mini-B ECN #1, Table 6-2.
  • Mini-A and Mini-AB (later deprecated) ID usage and OTG-supplement terminations were not researched; only Mini-B is covered.
  • Spatial order across the Mini-B face was not extracted from the ECN drawings.
Mini-USB Type-B engineering referenceContact-number convention of ECN #1 Table 6-2.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: VBUS (single_source)12: D- (single_source)23: D+ (single_source)34: ID (single_source)45: GND (single_source)5Shell: Shield (single_source)ShellpowergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
USB 2.0 Mini-B receptacle/plug — source-scoped contact map
PinSignalWhat it doesStatus
1VBUSUSB bus power; voltage and current depend on the device.Single source
Sources
2D-USB 2.0 data, negative side of the pair.Single source
Sources
3D+USB 2.0 data, positive side of the pair.Single source
Sources
4IDControl, detection or configuration connection; check the source and device.Single source
Sources
5GNDGround reference and return.Single source
Sources
ShellShieldCable screen or shield connection; check the named equipment.Single source
Sources
Sources (3)

Image inspection / P005

See the view. Check its scope.

1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.

Mini-USB Type-B: cable-end plug, exterior side study. Compact, shaped metal shell; wider housing behind the exposed plug. Not to scale; no pinout. (private workspace)

P005 / Inherited recognition study

Mini-USB Type-B

Mini-USB Type-B / previously depicted manufacturer example

Exterior side study · Cable plug / cable end

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

Visual reference / P005

Read the small shell, not the cable.

PLUG EXTERIOR

Recognition, not measurement. Each drawing is fitted independently: equal boxes do not mean equal sizes. Contact detail is deliberately omitted.

01 / Cable-end plugExterior side study
Mini-USB Type-B: cable-end plug, exterior side study. Compact, shaped metal shell; wider housing behind the exposed plug. Not to scale; no pinout.

Cable extends to the right; exterior only.

Qualitative recognition study interpreted from the pictured manufacturer example. Inner contacts, exact dimensions and hidden surfaces are omitted.

Two things to notice

  1. Compact, shaped metal shell
  2. Wider housing behind the exposed plug

What the picture cannot tell you

Mini-B and Micro-B are different forms. This interpretive exterior is not a size template or a five-contact wiring diagram.

No receptacle drawn: a sufficiently clear, role-specific opening was not visually inspected for this pilot. Do not infer it by mirroring the plug.

Sources, drawing scope & rights

Visual references checked 2026-10-09. These are new, source-scoped recognition studies, not approved mechanical drawings, pinouts or compatibility verdicts. Independent drawing review remains pending.

Original Port & Cable vector study. Third-party reference photographs are linked, not copied or bundled.

C2G / Legrand — USB connector guide
Manufacturer cable-end photographs: Type A, Type C, Mini-B 5-pin, Micro-B and USB 3.0 Micro-B. Identity and visible exterior of the pictured cable plugs only. Performance prose was not adopted.

Source image: Cable-end plug →

This inspection does not refresh any canonical claim, source-review date or publication approval.

Look twiceCompare Micro-USB Type-B →Compare SuperSpeed Micro-USB Type-B →

The useful distinction

Recognize it. Then verify it.

Mini-USB Type-B is a distinct legacy connector, not a synonym for Micro-USB. [C005A]

Molex specifies 548190589 as a Mini USB-B receptacle, 5 loaded circuits and 1 row(s), with mating-interface pitch 0.80mm. [C005W]

Identify the documented form

Distinguish standard Mini-B from Micro-B and proprietary small camera connections.

  1. Use the complete Mini-USB Type-B designation. Mini-B is not another name for Micro-B. S001
  2. Compare its full outline with the documented compact, low-profile Micro-B form; approximate size and a shared contact count are insufficient. S001 · S001
Documented identity facts; exact part and variant scope remains with each value
Nominal contacts5S001 · S363plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
Positions / cavity spanNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Populated contactsNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector roleplug; socket; socket (65100516121)S001 · S363 · S863Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface Exact named example 65100516121: Mini-B receptacle, horizontal SMT. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No interpretation of unlabeled extracted drawing distances.
Rows, pitch, dimensions, keying and view limits
Additional scoped facts; not a fabrication drawing or a mating approval
Contact rows1 (Molex 548190589)S973Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 548190589, female right-angle Mini USB-B receptacle; manufacturer mating-interface/row fields only, not a universal family value. Quantity context: Manufacturer Number of Rows property.
Contact pitch0.8 mm Manufacturer Pitch - Mating Interface; internal gap order and physical projection not further dimensioned (Molex 548190589)S973Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 548190589, female right-angle Mini USB-B receptacle; manufacturer mating-interface/row fields only, not a universal family value.
Dimensions / axisNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Coupling / latchNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Keying / polarizationNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
View conventionNot recordedNo qualified positive source view convention is normalized. Prior negative/schematic-only context is retained in variant_notes.
Contact gender / arrangementNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Mountinghorizontal SMT with pads and pegs (65100516121)S863Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 65100516121: Mini-B receptacle, horizontal SMT. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No interpretation of unlabeled extracted drawing distances.
Shell / formNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
ManufacturerWürth Elektronik (65100516121)S863Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 65100516121: Mini-B receptacle, horizontal SMT. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No interpretation of unlabeled extracted drawing distances.
SeriesWR-COM Mini USB 2.0 (65100516121)S863Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 65100516121: Mini-B receptacle, horizontal SMT. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No interpretation of unlabeled extracted drawing distances.
Exact part / implementation65100516121 (65100516121)S863Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 65100516121: Mini-B receptacle, horizontal SMT. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No interpretation of unlabeled extracted drawing distances.
Recorded markingsNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Keep this limit: This standard-form reference does not identify an arbitrary small camera connector. S001

Make the next check

Find the connector designation in the exact camera or peripheral manual; compare both ends of its specified cable.

Existing source inspection and AI review remain distinct from independent technical review. A matching form does not establish a safe connection.

Recorded variant and source limits
  • No V54 contact numbering or electrical assignment map is published.
  • Certification status is not an interoperability verdict for existing devices or cables.
  • USB 2.0 Series mini-B (ECN #1): Receptacle face, wide side up: 1 left to 5 right (Figure 6-11 callouts).
  • USB 2.0 Mini-B receptacle/plug: Contact-number convention of ECN #1 Table 6-2.
  • Prior view context (not a source-view value): Contact count only in V54; no numbered mating-face map is reproduced.
Report a correction to this identification or view →

Bounded facts, visible unknowns

Specifications and limits

Mini-USB Type-B facts and limitations
Form coveredMini-USB Type-B, five-contact form [C005A]
Mechanical dimensionsNo independently reviewed mechanical drawing in this release; do not use this page for fabrication.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
A boundary, not an omission to guess around.

This record is an identification starting point. It does not provide measured mating tolerances, electrical approval, or a list of verified device models. Use the original device and accessory documentation to resolve the remaining requirements.

Before you connect

What to check

  1. Use the product manual’s full connector name.
  2. Compare against both Micro-B and Mini HDMI; names alone are easy to confuse.
  3. Do not assume an old camera’s small port is standard USB.
Trace a supported connection class →

Your next step

Move from the form to the requirement.

Read the engineering reference Source-scoped details, orientation and explicit unknowns.Work through a connection Choose your task before deciding on a cable.Explore this evidence trail Inspect the claims and their dependencies. (private workspace)

The source trail

Evidence for this page

AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.

Back to first citation ↑
C005ASource checked · pending review

Mini-USB Type-B is a distinct legacy connector, not a synonym for Micro-USB.

C2G / Legrand · USB connector guide ↗

Locator: USB A-Type; B-Type; Mini-B; Micro-B; USB 3.0 B-Type and Micro-B sections
Access: public page. Older capability descriptions elsewhere on this page are not used as current universal limits.

S001: full source recordInspect review dependencies → (private workspace)

Claim scope: Consumer identification / documented standard or product class only. Next review due 2026-12-30.

Back to first citation ↑
C005WSource checked · pending review

Molex specifies 548190589 as a Mini USB-B receptacle, 5 loaded circuits and 1 row(s), with mating-interface pitch 0.80mm.

Molex · Molex 54819 series chart, exact 548190589 Mini USB-B receptacle ↗

Locator: Full Export Spreadsheet table, exact 548190589 row: Web Description, Gender, Circuits Loaded, Number of Rows, Pitch - Mating Interface and separate Pitch - Termination Interface columns. Full official chart read; no PDF drawing pixels acquired.
Access: public page. Exact suffix0589 only: other series members leave Number of Rows blank; do not borrow their row value. Product detail page says Limited Information Available; chart fields retained without measured/toleranced drawing.

S973: full source recordInspect review dependencies → (private workspace)

Claim scope: Exact Molex 548190589, female right-angle Mini USB-B receptacle; manufacturer mating-interface/row fields only, not a universal family value.. Next review due 2027-01-20.
