Source-scoped form facts; counts, variants and unknowns are distinct
Field
Mini-USB Type-B
Micro-USB Type-B
Type
Connector
Connector
Family
USB
USB
Shape
trapezoid
low profile
Nominal contacts
5S001 · S363plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
5S001 · S363plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
Positions / cavity span
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows
1 (Molex 548190589)S973Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 548190589, female right-angle Mini USB-B receptacle; manufacturer mating-interface/row fields only, not a universal family value. Quantity context: Manufacturer Number of Rows property.
1 (Molex 1051640001)S974Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 1051640001, female right-angle Micro USB-B USB2 receptacle; manufacturer mating-interface/row fields only, not a universal family value. Quantity context: Manufacturer Number of Rows property.
Connector role
plug; socket; socket (65100516121)S001 · S363 · S863Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface Exact named example 65100516121: Mini-B receptacle, horizontal SMT. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No interpretation of unlabeled extracted drawing distances.
plug; socket; socket (629105150521)S001 · S363 · S864Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface Exact named example 629105150521: Micro-B receptacle, horizontal SMT. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Named high-current variant only; no universal family current rating or capability inferred.
Key distinction
Mini and Micro are not interchangeable labels.
Check for the extra section before calling a connector Micro-B.
Illustrations are computer-generated with prior AI visual review; independent technical and rights review pending. A comparison is not a compatibility verdict.
This comparison stays within one evidence layer.
All selected records are Connector records. Similar layer does not mean compatible, interchangeable or safe to mate.
Families represented: USB
Two forms / One distinction
Inspect the cable-end metal shell, not the plastic housing.
USB · V99
Side exterior studies; cable exits right. Both independently fitted; their displayed size is not a physical measurement. Original interpretive drawing; independent technical review pending.
Where the difference lies

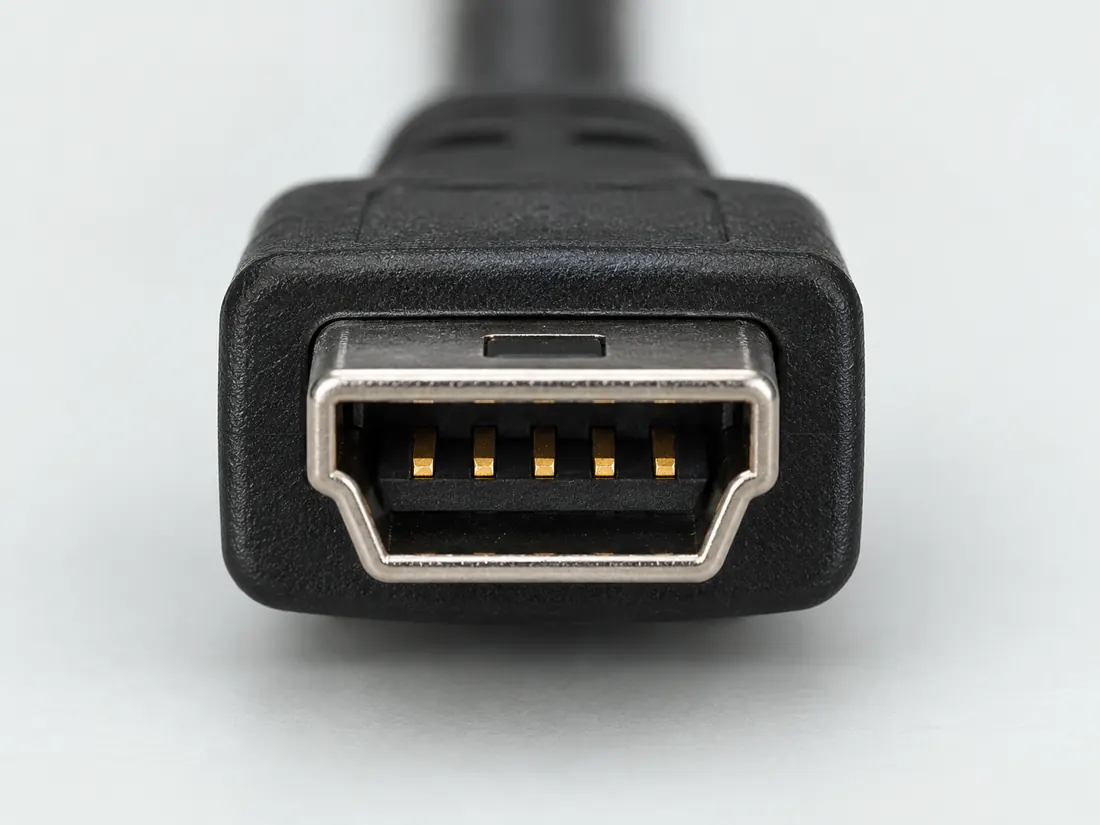

Mini USB-B
A deeper-profile miniature plug nose.

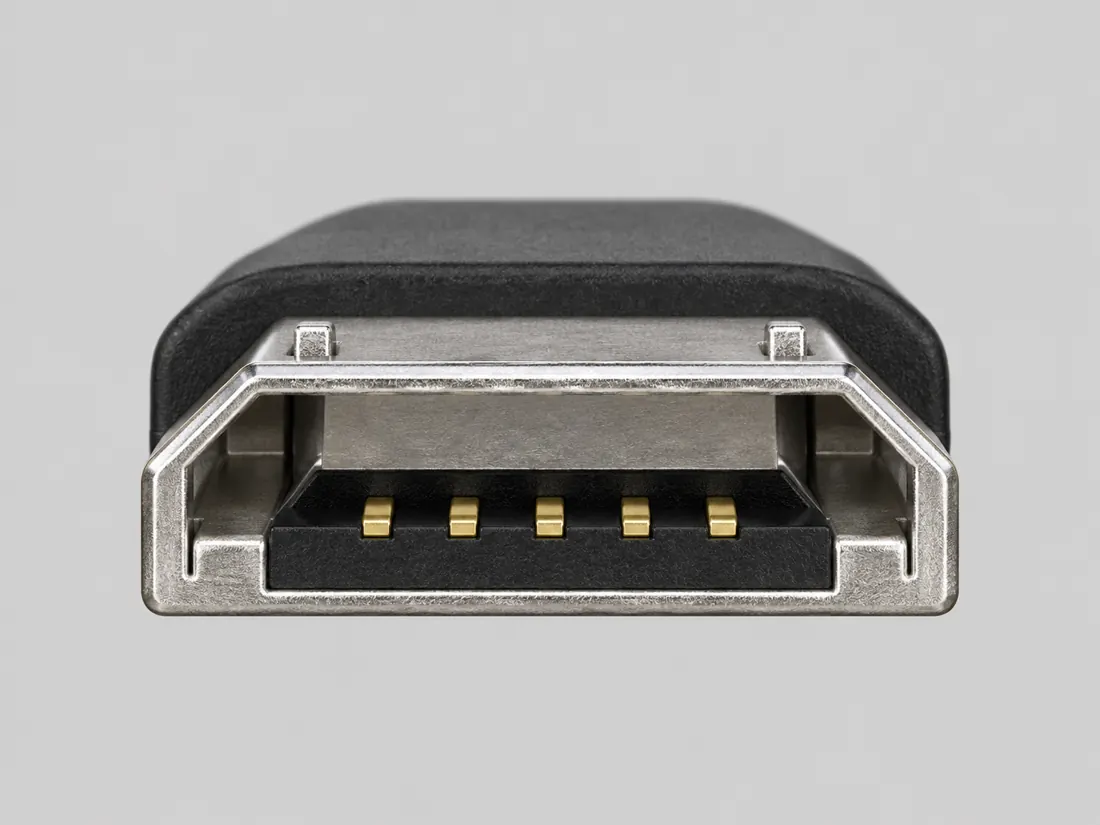

Micro USB-B
A shallower-profile micro plug nose.
What to verify next
Shell profile is the observation. Both shown from the cable exterior side.
Read the exact port name in the device documentation. Do not trial-fit or treat the housings as a scale comparison.
Inspect the figure-level references and rights
Inspected 2026-10-09. Original Port & Cable vector diagram; first-party sources linked for inspection only, no third-party graphics bundled. No manufacturer image, CFA logo or licensed photograph is copied into this package. No approval for fabrication, mating, wiring or publication is implied.
C2G / Legrand · USB connector identification guideMini-B, Micro-B, and SuperSpeed Micro-B manufacturer cable-end reference photographs. Recognizable exterior form and the additional adjoining SuperSpeed Micro-B section; not contact mapping.
Canonical claim evidence, source-review dates and inherited figure approvals are unaffected.
The reference ledger
Read the same question across.
2 selected records · 15 fields No score. No compatibility verdict.
Identification schematic · not to scale · drawing review pending
Layer
Connector
Connector
Key distinction
Mini and Micro are not interchangeable labels.
Check for the extra section before calling a connector Micro-B.
Nominal contacts
5S001 · S363plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
5S001 · S363plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
Positions / cavity span
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Populated contacts
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows
1 (Molex 548190589)S973Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 548190589, female right-angle Mini USB-B receptacle; manufacturer mating-interface/row fields only, not a universal family value. Quantity context: Manufacturer Number of Rows property.
1 (Molex 1051640001)S974Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 1051640001, female right-angle Micro USB-B USB2 receptacle; manufacturer mating-interface/row fields only, not a universal family value. Quantity context: Manufacturer Number of Rows property.
Contact pitch
0.8 mm Manufacturer Pitch - Mating Interface; internal gap order and physical projection not further dimensioned (Molex 548190589)S973Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 548190589, female right-angle Mini USB-B receptacle; manufacturer mating-interface/row fields only, not a universal family value.
0.65 mm Manufacturer Pitch - Mating Interface; internal gap order and physical projection not further dimensioned (Molex 1051640001)S974Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 1051640001, female right-angle Micro USB-B USB2 receptacle; manufacturer mating-interface/row fields only, not a universal family value.
Dimensions / axis
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector role
plug; socket; socket (65100516121)S001 · S363 · S863Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface Exact named example 65100516121: Mini-B receptacle, horizontal SMT. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No interpretation of unlabeled extracted drawing distances.
plug; socket; socket (629105150521)S001 · S363 · S864Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface Exact named example 629105150521: Micro-B receptacle, horizontal SMT. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Named high-current variant only; no universal family current rating or capability inferred.
Coupling / latch
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Keying / polarization
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
5S001 · S363plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
5S001 · S363plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
1 (Molex 548190589)S973Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 548190589, female right-angle Mini USB-B receptacle; manufacturer mating-interface/row fields only, not a universal family value. Quantity context: Manufacturer Number of Rows property.
1 (Molex 1051640001)S974Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 1051640001, female right-angle Micro USB-B USB2 receptacle; manufacturer mating-interface/row fields only, not a universal family value. Quantity context: Manufacturer Number of Rows property.
0.8 mm Manufacturer Pitch - Mating Interface; internal gap order and physical projection not further dimensioned (Molex 548190589)S973Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 548190589, female right-angle Mini USB-B receptacle; manufacturer mating-interface/row fields only, not a universal family value.
0.65 mm Manufacturer Pitch - Mating Interface; internal gap order and physical projection not further dimensioned (Molex 1051640001)S974Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 1051640001, female right-angle Micro USB-B USB2 receptacle; manufacturer mating-interface/row fields only, not a universal family value.
plug; socket; socket (65100516121)S001 · S363 · S863Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface Exact named example 65100516121: Mini-B receptacle, horizontal SMT. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No interpretation of unlabeled extracted drawing distances.
plug; socket; socket (629105150521)S001 · S363 · S864Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface Exact named example 629105150521: Micro-B receptacle, horizontal SMT. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. Named high-current variant only; no universal family current rating or capability inferred.
Page scope: Evidence behind the compared records; the editorial comparison still needs separate review.
Assessment 2026-10-22 · earliest scheduled source review 2026-12-30. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.
USB Implementers Forum (USB-IF) · Standards-organization domain · inspected 2026-10-06 · due 2027-01-04
Within inspection window
Scoped support: USB 2.0 Standard-A/Standard-B exact four-contact requirement, Mini-B and Micro-B exact five-contact requirement, plus current USB-IF certification-status context for legacy connector families.
Not established / limitations: Compliance and certification status does not establish the data rate, power behavior or supported protocol of a particular device or cable.
Locator: USB Connector Construction; Mini Connectors Antiquated; USB 3.x Micro-B Connector Certifications
Not established / limitations: Exact suffix0589 only: other series members leave Number of Rows blank; do not borrow their row value. Product detail page says Limited Information Available; chart fields retained without measured/toleranced drawing.
Locator: Full Export Spreadsheet table, exact 548190589 row: Web Description, Gender, Circuits Loaded, Number of Rows, Pitch - Mating Interface and separate Pitch - Termination Interface columns. Full official chart read; no PDF drawing pixels acquired.
Not established / limitations: Five-contact USB2 example only, not ten-contact SuperSpeed Micro-B. Product detail page says Limited Information Available; chart fields retained without measured/toleranced drawing.
Locator: Full Export Spreadsheet table, exact 1051640001 row: Web Description, Gender, Circuits Loaded, Number of Rows, Pitch - Mating Interface and separate Pitch - Termination Interface columns. Full official chart read; no PDF drawing pixels acquired.
Trace 5 claims to their source records
C005A · P005
Mini-USB Type-B is a distinct legacy connector, not a synonym for Micro-USB.
Claim scope: Consumer identification / documented standard or product class only
Molex specifies 548190589 as a Mini USB-B receptacle, 5 loaded circuits and 1 row(s), with mating-interface pitch 0.80mm.
Claim scope: Exact Molex 548190589, female right-angle Mini USB-B receptacle; manufacturer mating-interface/row fields only, not a universal family value.
USB-IF compliance guidance specifies five contacts for Micro-B connectors; the contact count does not establish charger behavior, USB generation or cable quality.
