Port & Cable

P002 / USB / Connector

USB Type-B

USB Type-B is the roughly square legacy peripheral connector with beveled upper corners.

Also called USB-B printer USB Type B

Identify the device-side socket before ordering a printer cable.

Look for

Compare the socket outline with the taller SuperSpeed Type-B form. Inspecting both ends of an existing cable helps separate the connector name from the host connection.

Claim inspection dates: 2026-10-01, 2026-10-06, 2026-10-13, 2026-10-22 · Independent review pending

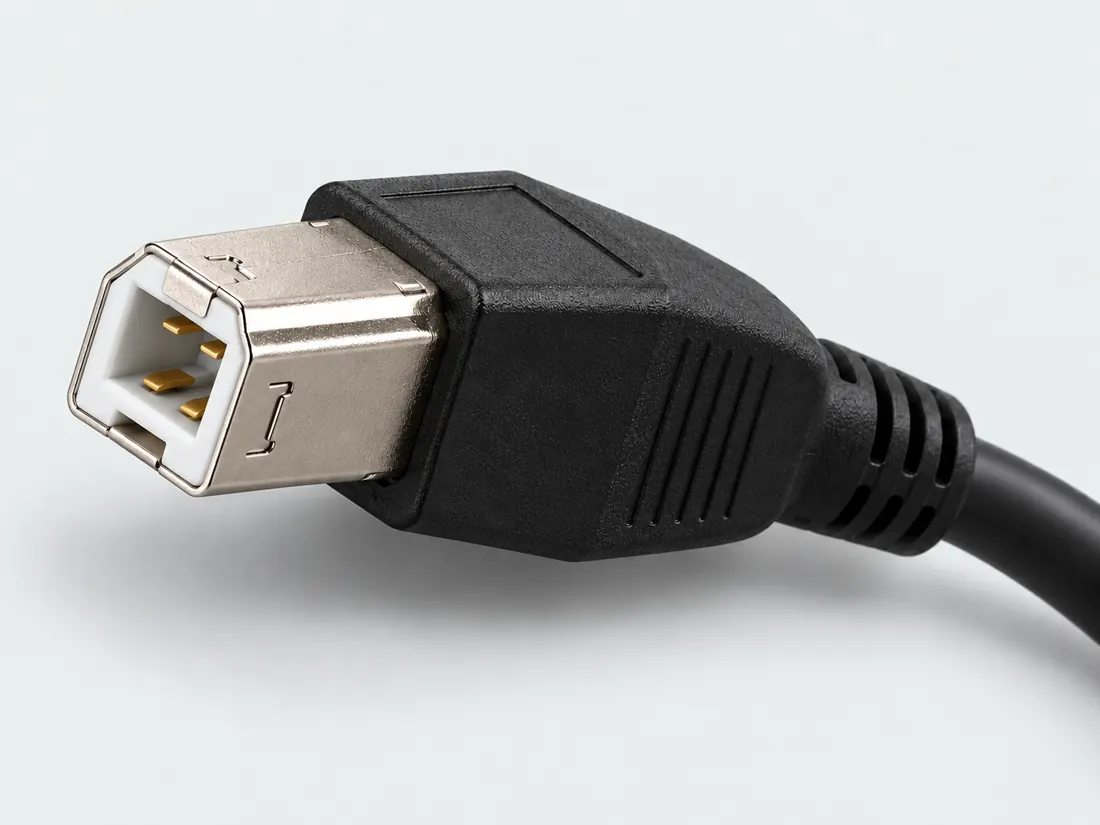

USB Type-B: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

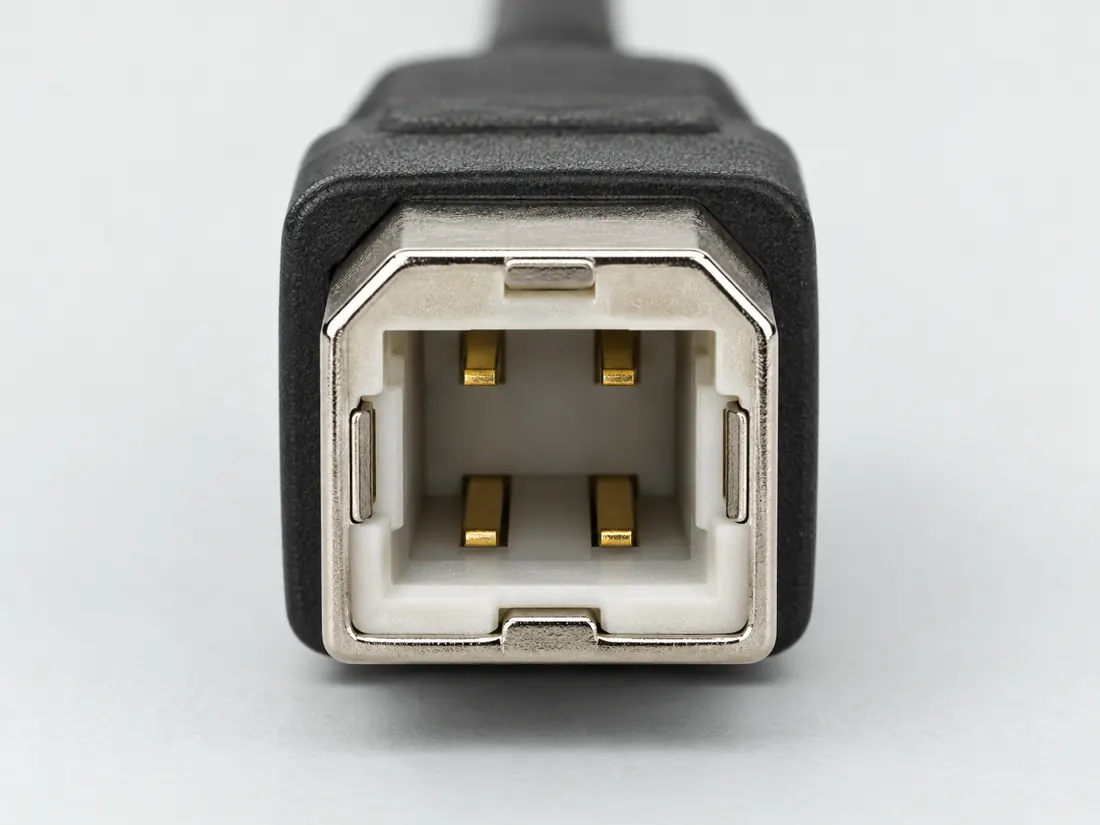

USB Type-B: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

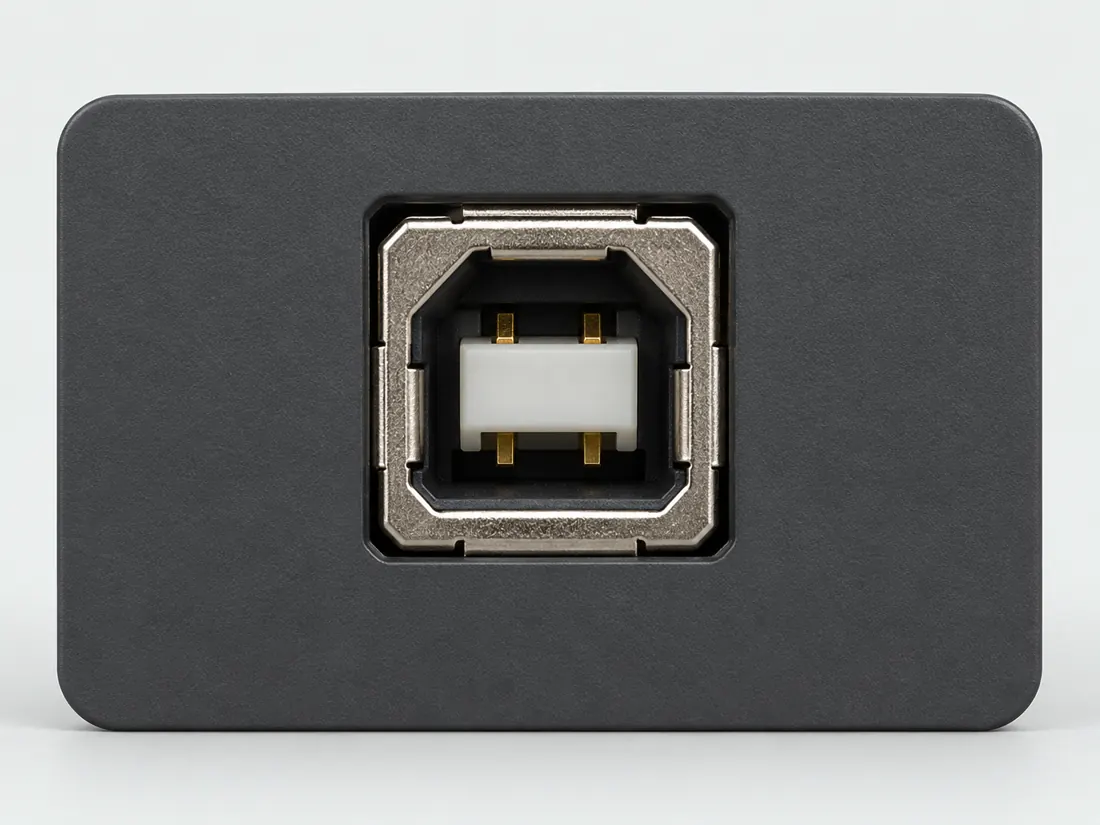

USB Type-B: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

USB Type-B: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Image inspection / P002

See the view. Check its scope.

2 registered views for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.

USB-B / legacy cable end. Bevelled, near-square shell. One Type-B cable end, not a device socket. Exact contacts and tolerances are omitted. No dimensions are plotted. Not to scale. (private workspace)

P002 / Source-observed physical study

USB-B / legacy cable end

StarTech USB2HAB6 / Type-B end

Observed oblique plug view · Cable plug / cable end

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

Other scoped views

Keep their component sides and part examples separate.

USB Type-B: Squarish shell, upper corners beveled. Front-facing cable plug opening; feature-only envelope. Qualitative source-linked recognition study, not a pinout or a dimensional guide. (private workspace)

P002 / Inherited recognition study

USB Type-B

USB Type-B

Front-facing cable plug opening; feature-only envelope · Cable plug / cable end

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

Visual atlas / P002 / 2026

Recognize the right physical clue.

FIGURE · REVIEW PENDING
USB Type-B: Squarish shell, upper corners beveled. Front-facing cable plug opening; feature-only envelope. Qualitative source-linked recognition study, not a pinout or a dimensional guide.
Cable-end plug. Front-facing cable plug opening; feature-only envelope.

What to look for

Squarish shell, upper corners beveled

What the drawing does not prove

The difference shown is a manufacturer-described external shape, not a contact map.

The extra section changes plug-to-receptacle fit. Compare the actual device port before selecting a cable.

No fabrication dimensions, conductor routing, guaranteed fit or device approval. For electrical, power and optical interfaces, follow the original equipment instructions.

Figure evidence, orientation & usage rights

Uses previously recorded V112 manufacturer claim/source inspections; October 2026 supplementary public-source spot checks are documented separately, not treated as a refreshed approval.

Original Port & Cable interpretive vector, no third-party photo, copied CAD, logo or vendor drawing. Third-party product photos, logos and source drawings are not redistributed. No independent technical or rights certification is claimed.

Original claim identifiers: C002A (private workspace). Legacy evidence dates and rights assessments remain as recorded.

The useful distinction

Recognize it. Then verify it.

USB Type-B is the roughly square legacy peripheral connector with beveled upper corners. [C002A]

Legrand describes USB 3.0 Type-B device receptacles as accepting earlier USB 2.0/1.1 cabling; the taller USB 3.0 Type-B plug does not fit the earlier device receptacle. [C002C]

USB-IF compliance guidance requires Standard B-series connectors to use exactly four contacts; this count does not establish the USB generation or peripheral capability. [C002B]

Molex specifies 670688000 as a USB-B receptacle, 4 loaded circuits and 2 row(s), with mating-interface pitch 2.50mm. [C002W]

Identify the documented form

Separate legacy Standard-B from the taller SuperSpeed Type-B form.

  1. Look at the roughly square outline and beveled upper corners, then compare the complete opening with the taller SuperSpeed counterpart. S001 · S001
  2. Earlier cabling accepted by a documented newer receptacle does not make the taller newer plug fit an earlier receptacle. Keep plug and receptacle roles separate. S001
Documented identity facts; exact part and variant scope remains with each value
Nominal contacts4S001 · S363plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
Positions / cavity spanNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Populated contactsNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector roleplug; socket; socket (61400413321)S001 · S363 · S861Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface Exact named example 61400413321: USB 2.0 Standard-B PCB receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. PCB thickness is mounting context, not connector envelope; no guessed drawing axes.
Rows, pitch, dimensions, keying and view limits
Additional scoped facts; not a fabrication drawing or a mating approval
Contact rows2 (Molex 670688000)S971Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 670688000, female right-angle USB-B receptacle; manufacturer mating-interface/row fields only, not a universal family value. Quantity context: Manufacturer Number of Rows property.
Contact pitch2.5 mm Manufacturer Pitch - Mating Interface; internal gap order and physical projection not further dimensioned (Molex 670688000)S971Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact Molex 670688000, female right-angle USB-B receptacle; manufacturer mating-interface/row fields only, not a universal family value.
Dimensions / axisNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Coupling / latchNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Keying / polarizationNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
View conventionNot recordedNo qualified positive source view convention is normalized. Prior negative/schematic-only context is retained in variant_notes.
Contact gender / arrangementNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Mountingvertical THT (61400413321)S861Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 61400413321: USB 2.0 Standard-B PCB receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. PCB thickness is mounting context, not connector envelope; no guessed drawing axes.
Shell / formNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
ManufacturerWürth Elektronik (61400413321)S861Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 61400413321: USB 2.0 Standard-B PCB receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. PCB thickness is mounting context, not connector envelope; no guessed drawing axes.
SeriesWR-COM USB 2.0 (61400413321)S861Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 61400413321: USB 2.0 Standard-B PCB receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. PCB thickness is mounting context, not connector envelope; no guessed drawing axes.
Exact part / implementation61400413321 (61400413321)S861Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 61400413321: USB 2.0 Standard-B PCB receptacle. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. PCB thickness is mounting context, not connector envelope; no guessed drawing axes.
Recorded markingsNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Keep this limit: The Standard-B contact count does not establish transfer mode or peripheral capability. S363

Make the next check

Read the peripheral manual for its exact Standard-B or SuperSpeed Standard-B connector.

Existing source inspection and AI review remain distinct from independent technical review. A matching form does not establish a safe connection.

Recorded variant and source limits
  • No V54 contact numbering or electrical assignment map is published.
  • Peripheral function, transfer rate and power behavior remain device-specific.
  • USB 2.0 Series "B" receptacle/plug: Receptacle face per Figure 6-8: 2 upper-left, 1 upper-right, 3 lower-left, 4 lower-right.
  • USB 2.0 Standard-B (Series B) receptacle/plug: Contact-number convention of USB 2.0 Table 6-1; physical layout per USB 2.0 Figures 6-7/6-8 (not re-read for spatial claims here).
  • Prior view context (not a source-view value): Contact count only in V54; no numbered mating-face map is reproduced.
Report a correction to this identification or view →

Bounded facts, visible unknowns

Specifications and limits

USB Type-B facts and limitations
Typical contextPeripheral-side USB connection [C002A]
Rate / charging powerImplementation-specific [C002A]
Scoped referenceRead the direction of the Type-B comparison. [C002C] [C002B]
Mechanical dimensionsNo independently reviewed mechanical drawing in this release; do not use this page for fabrication.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
A boundary, not an omission to guess around.

This record is an identification starting point. It does not provide measured mating tolerances, electrical approval, or a list of verified device models. Use the original device and accessory documentation to resolve the remaining requirements.

Before you connect

What to check

  1. Confirm the socket is legacy Type-B, not SuperSpeed Type-B.
  2. Record the other end: Type-A and Type-C are different choices.
  3. Check device documentation for its USB mode.
Trace a supported connection class →

Can I connect…

Common connections for this connector

All connection questions →

Pins & wiring

Pinout

Choose the exact wiring. Pin numbers follow its stated view; a schematic does not establish physical positions. Check your exact device before wiring.

What the status labels mean
Confirmed
Recorded research passes agree within this variant; this is not independent human review or hardware validation.
Single source
Only one underlying document, or one pass, supports this assignment.
Device-specific
Supported for the named equipment or wiring only. Check your device’s manual.
Unverified
Missing or conflicting evidence. Do not wire from this row.
Not connected
The source explicitly says NC, no contact or no pin for this wiring.
Wiring variant

USB 2.0 Series "B" receptacle/plug

View and evidence limits

Receptacle face per Figure 6-8: 2 upper-left, 1 upper-right, 3 lower-left, 4 lower-right.

  • P002 USB Type-B — **Agree** (1 VBUS, 2 D−, 3 D+, 4 GND, shell shield) — USB 2.0 spec, Table 6-1, in both passes.
  • Figure 6-10 (Series B plug interface drawing, PDF p.128) was not inspected for contact numbering; only the receptacle face (Figure 6-8) is used for positions.
USB Type-B engineering referenceReceptacle face per Figure 6-8: 2 upper-left, 1 upper-right, 3 lower-left, 4 lower-right.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: VBUS (single_source)12: D- (single_source)23: D+ (single_source)34: GND (single_source)4Shell: Shield (single_source)ShellpowergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
USB 2.0 Series "B" receptacle/plug — source-scoped contact map
PinSignalWhat it doesStatus
1VBUSUSB bus power; voltage and current depend on the device.Single source
Sources
2D-USB 2.0 data, negative side of the pair.Single source
Sources
3D+USB 2.0 data, positive side of the pair.Single source
Sources
4GNDGround reference and return.Single source
Sources
ShellShieldCable screen or shield connection; check the named equipment.Single source
Sources
Sources (4)

USB 2.0 Standard-B (Series B) receptacle/plug

View and evidence limits

Contact-number convention of USB 2.0 Table 6-1; physical layout per USB 2.0 Figures 6-7/6-8 (not re-read for spatial claims here).

  • P002 USB Type-B — **Agree** (1 VBUS, 2 D−, 3 D+, 4 GND, shell shield) — USB 2.0 spec, Table 6-1, in both passes.
  • Left/right and upper/lower position of contacts on the Standard-B face was not extracted from the specification drawings in this pass.
USB Type-B engineering referenceContact-number convention of USB 2.0 Table 6-1; physical layout per USB 2.0 Figures 6-7/6-8 (not re-read for spatial claims here).SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: VBUS (single_source)12: D- (single_source)23: D+ (single_source)34: GND (single_source)4Shell: Shield (single_source)ShellpowergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
USB 2.0 Standard-B (Series B) receptacle/plug — source-scoped contact map
PinSignalWhat it doesStatus
1VBUSUSB bus power; voltage and current depend on the device.Single source
Sources
2D-USB 2.0 data, negative side of the pair.Single source
Sources
3D+USB 2.0 data, positive side of the pair.Single source
Sources
4GNDGround reference and return.Single source
Sources
ShellShieldCable screen or shield connection; check the named equipment.Single source
Sources
Sources (4)

Read the direction of the Type-B comparison.

The four-contact statement on this legacy record is scoped to USB 2.0. Earlier Type-B cabling may be accepted by the later USB 3.0 receptacle, but the raised USB 3.0 plug is not interchangeable in the reverse direction.

Your next step

Move from the form to the requirement.

Read the engineering reference Source-scoped details, orientation and explicit unknowns.Work through a connection Choose your task before deciding on a cable.Explore this evidence trail Inspect the claims and their dependencies. (private workspace)

The source trail

Evidence for this page

AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.

Back to first citation ↑
C002ASource checked · pending review

USB Type-B is the roughly square legacy peripheral connector with beveled upper corners.

C2G / Legrand · USB connector guide ↗

Locator: USB A-Type; B-Type; Mini-B; Micro-B; USB 3.0 B-Type and Micro-B sections
Access: public page. Older capability descriptions elsewhere on this page are not used as current universal limits.

S001: full source recordInspect review dependencies → (private workspace)

Claim scope: Consumer identification / documented standard or product class only. Next review due 2026-12-30.

Back to first citation ↑
C002CSource checked · pending review

Legrand describes USB 3.0 Type-B device receptacles as accepting earlier USB 2.0/1.1 cabling; the taller USB 3.0 Type-B plug does not fit the earlier device receptacle.

C2G / Legrand · USB connector guide ↗

Locator: USB A-Type; B-Type; Mini-B; Micro-B; USB 3.0 B-Type and Micro-B sections
Access: public page. Older capability descriptions elsewhere on this page are not used as current universal limits.

S001: full source recordInspect review dependencies → (private workspace)

Claim scope: V145: Directional physical mating distinction, not an achieved transfer-rate or complete-system compatibility guarantee.. Next review due 2027-01-11.

Back to first citation ↑
C002BSource checked · pending review

USB-IF compliance guidance requires Standard B-series connectors to use exactly four contacts; this count does not establish the USB generation or peripheral capability.

USB Implementers Forum (USB-IF) · USB-IF Compliance Updates — Cables and Connectors ↗

Locator: USB Connector Construction; Mini Connectors Antiquated; USB 3.x Micro-B Connector Certifications
Access: public page. Compliance and certification status does not establish the data rate, power behavior or supported protocol of a particular device or cable.

S363: full source recordInspect review dependencies → (private workspace)

Claim scope: Standard-B contact-count engineering context only.. Next review due 2027-01-04.

Back to first citation ↑
C002WSource checked · pending review

Molex specifies 670688000 as a USB-B receptacle, 4 loaded circuits and 2 row(s), with mating-interface pitch 2.50mm.

Molex · Molex 67068 series chart, exact 670688000 USB-B receptacle ↗

Locator: Full Export Spreadsheet table, exact 670688000 row: Web Description, Gender, Circuits Loaded, Number of Rows, Pitch - Mating Interface and separate Pitch - Termination Interface columns. Full official chart read; no PDF drawing pixels acquired.
Access: public page. Contact row property is separate from single-port count; no PCB pitch used. Product detail page says Limited Information Available; chart fields retained without measured/toleranced drawing.

S971: full source recordInspect review dependencies → (private workspace)

Claim scope: Exact Molex 670688000, female right-angle USB-B receptacle; manufacturer mating-interface/row fields only, not a universal family value.. Next review due 2027-01-20.

Suggest a correction to this field note →

Put this field note to work.

Add to discovery trayRecord an unsaved candidate (private workspace)

Candidate selection does not confirm the identity or capabilities of your physical item.

Evidence behind this page

Scope first. Source second. Approval separate.

3 linked sources · 4 scoped claims · 0 sources with inspection/access flags.

Page scope: consumer_pilot

Assessment 2026-10-22 · earliest scheduled source review 2026-12-30. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 3 source scopes, access limits and dates

S001 · USB connector guide

C2G / Legrand · Manufacturer / product-owner domain · inspected 2026-10-01 · due 2026-12-30

Within inspection window

Scoped support: Connector identification and legacy mating distinctions only.

Not established / limitations: Older capability descriptions elsewhere on this page are not used as current universal limits.

Locator: USB A-Type; B-Type; Mini-B; Micro-B; USB 3.0 B-Type and Micro-B sections

S363 · USB-IF Compliance Updates — Cables and Connectors

USB Implementers Forum (USB-IF) · Standards-organization domain · inspected 2026-10-06 · due 2027-01-04

Within inspection window

Scoped support: USB 2.0 Standard-A/Standard-B exact four-contact requirement, Mini-B and Micro-B exact five-contact requirement, plus current USB-IF certification-status context for legacy connector families.

Not established / limitations: Compliance and certification status does not establish the data rate, power behavior or supported protocol of a particular device or cable.

Locator: USB Connector Construction; Mini Connectors Antiquated; USB 3.x Micro-B Connector Certifications

S971 · Molex 67068 series chart, exact 670688000 USB-B receptacle

Molex · Manufacturer / product-owner domain · inspected 2026-10-22 · due 2027-01-20

Within inspection window

Scoped support: Exact 670688000 specification row only.

Not established / limitations: Contact row property is separate from single-port count; no PCB pitch used. Product detail page says Limited Information Available; chart fields retained without measured/toleranced drawing.

Locator: Full Export Spreadsheet table, exact 670688000 row: Web Description, Gender, Circuits Loaded, Number of Rows, Pitch - Mating Interface and separate Pitch - Termination Interface columns. Full official chart read; no PDF drawing pixels acquired.

Trace 4 claims to their source records

C002A · P002

USB Type-B is the roughly square legacy peripheral connector with beveled upper corners.

Claim scope: Consumer identification / documented standard or product class only

Source links: S001 · Evidence trail → (private workspace)

C002B · P002

USB-IF compliance guidance requires Standard B-series connectors to use exactly four contacts; this count does not establish the USB generation or peripheral capability.

Claim scope: Standard-B contact-count engineering context only.

Source links: S363 · Evidence trail → (private workspace)

C002C · P002

Legrand describes USB 3.0 Type-B device receptacles as accepting earlier USB 2.0/1.1 cabling; the taller USB 3.0 Type-B plug does not fit the earlier device receptacle.

Claim scope: V145: Directional physical mating distinction, not an achieved transfer-rate or complete-system compatibility guarantee.

Source links: S001 · Evidence trail → (private workspace)

C002W · P002

Molex specifies 670688000 as a USB-B receptacle, 4 loaded circuits and 2 row(s), with mating-interface pitch 2.50mm.

Claim scope: Exact Molex 670688000, female right-angle USB-B receptacle; manufacturer mating-interface/row fields only, not a universal family value.

Source links: S971 · Evidence trail → (private workspace)

Prepare this page for review → (private workspace)Read the evidence method →

Recorded evidence only. An inspection date, publisher label, source link or generated packet is not independent technical review, hardware testing, fabrication approval or a compatibility verdict.
