SuperSpeed Micro-USB Type-B

SuperSpeed Micro-USB Type-B has an extended, two-part profile distinct from legacy Micro-B.

Also called USB 3 Micro B wide Micro USB SuperSpeed Micro-B

The full connector is wider than the legacy Micro-B portion.

Look for

Look for two adjacent sections, not a single narrow Micro-B opening. Use the housing as an identification aid, never as a substitute for the exact device specification.

Claim inspection dates: 2026-10-01, 2026-10-06, 2026-10-13, 2026-10-22 · Independent review pending

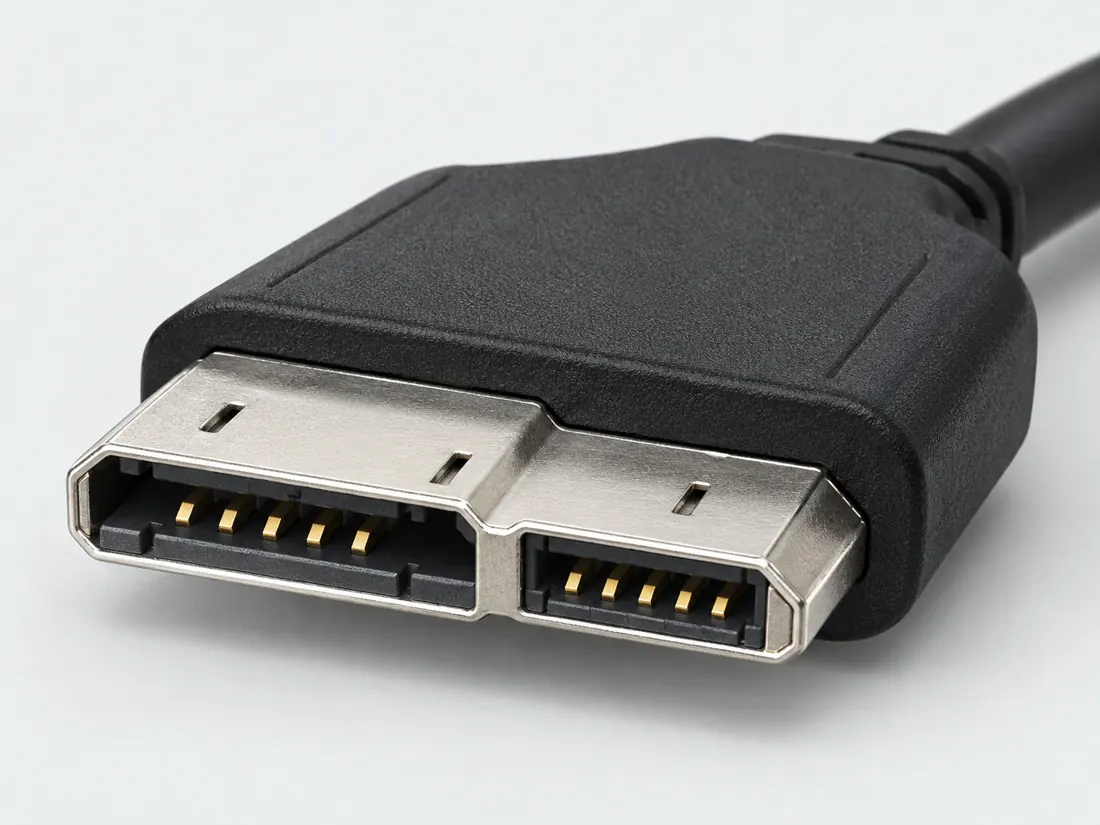

SuperSpeed Micro-USB Type-B: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

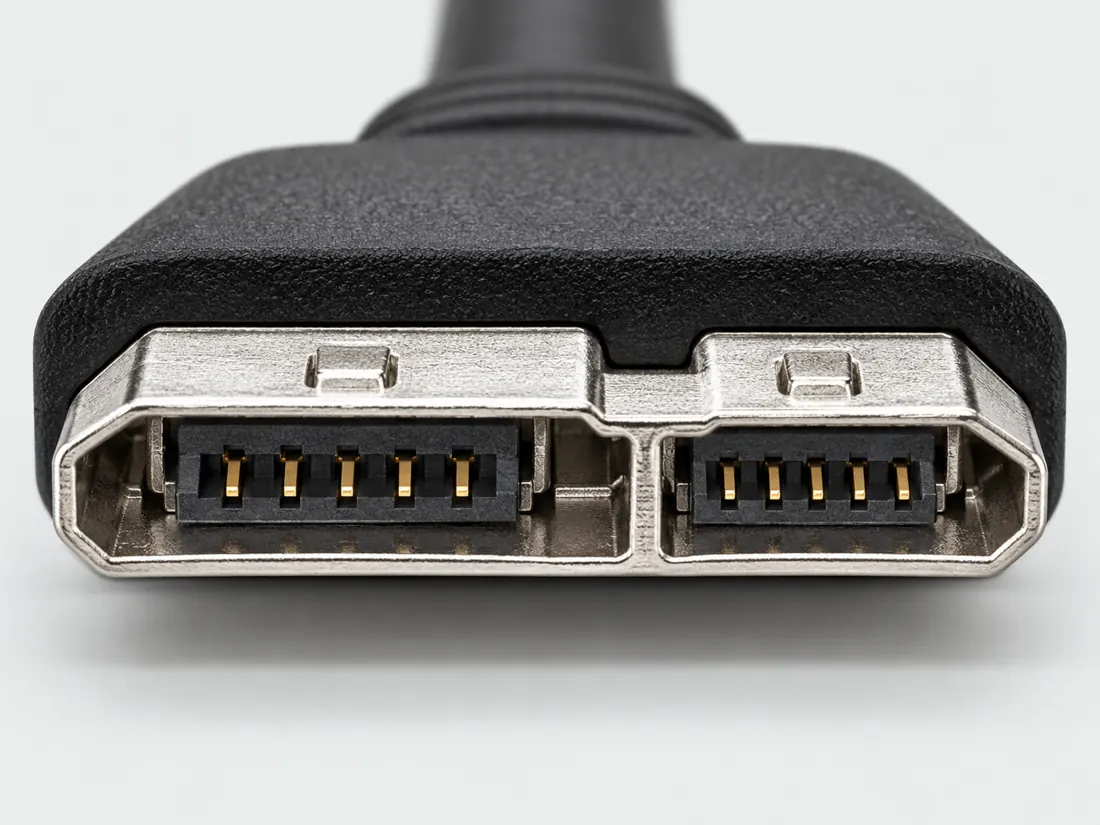

SuperSpeed Micro-USB Type-B: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

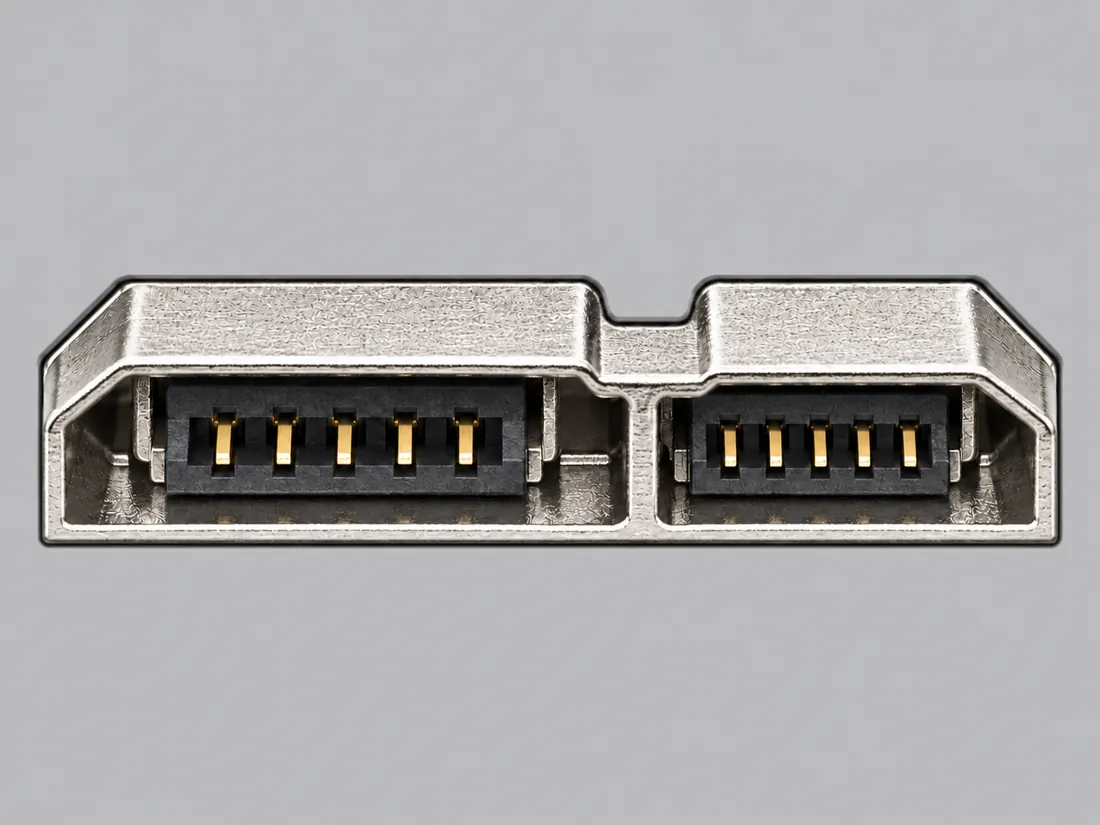

SuperSpeed Micro-USB Type-B: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

SuperSpeed Micro-USB Type-B: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Image inspection / P007

See the view. Check its scope.

1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.

SuperSpeed Micro-USB Type-B: cable-end plug, mating-face outline. Two adjacent, joined shell sections; main shaped section on the right in this study. Not to scale; no pinout. (private workspace)

P007 / Inherited recognition study

SuperSpeed Micro-USB Type-B

SuperSpeed Micro-USB Type-B / previously depicted manufacturer example

Mating-face outline · Cable plug / cable end

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

Visual reference / P007

Look for two adjacent sections.

PLUG EXTERIOR

Recognition, not measurement. Each drawing is fitted independently: equal boxes do not mean equal sizes. Contact detail is deliberately omitted.

01 / Cable-end plugMating-face outline
SuperSpeed Micro-USB Type-B: cable-end plug, mating-face outline. Two adjacent, joined shell sections; main shaped section on the right in this study. Not to scale; no pinout.

Looking toward the plug opening; not the wire or solder side.

Qualitative recognition study interpreted from the pictured manufacturer example. Inner contacts, exact dimensions and hidden surfaces are omitted.

Two things to notice

  1. Main Micro-B-shaped section
  2. Additional side-by-side section

What the picture cannot tell you

The extra width is a qualitative clue, not a dimensional gauge. The drawing gives no cable capability or pin assignment.

No receptacle drawn: a sufficiently clear, role-specific opening was not visually inspected for this pilot. Do not infer it by mirroring the plug.

Sources, drawing scope & rights

Visual references checked 2026-10-09. These are new, source-scoped recognition studies, not approved mechanical drawings, pinouts or compatibility verdicts. Independent drawing review remains pending.

Original Port & Cable vector study. Third-party reference photographs are linked, not copied or bundled.

C2G / Legrand — USB connector guide
Manufacturer cable-end photographs: Type A, Type C, Mini-B 5-pin, Micro-B and USB 3.0 Micro-B. Identity and visible exterior of the pictured cable plugs only. Performance prose was not adopted.

Source image: Cable-end plug →

This inspection does not refresh any canonical claim, source-review date or publication approval.

Look twiceCompare Micro-USB Type-B →Compare Mini-USB Type-B →

The useful distinction

Recognize it. Then verify it.

SuperSpeed Micro-USB Type-B has an extended, two-part profile distinct from legacy Micro-B. [C007A]

USB-IF ended USB 3.x Micro-B and Micro-AB connector certifications after 28 February 2021. This statement concerns its certification program, not a recall or a verdict on an installed device. [C007C]

The cited USB-IF legacy mapping enumerates ten USB 3.1 Micro-B contacts, retaining the Micro-USB legacy contacts and adding SuperSpeed transmit/receive and drain contacts. [C007B]

SMK identifies CSS5310-7H01F as a ten-pin USB3.1 Micro-B receptacle. The front drawing shows one contact row interrupted between two adjacent keyed sections; its contact pitch is undimensioned. [C007W]

Identify the documented form

Recognize the wider compound SuperSpeed Micro-B form.

  1. Look for the extended two-part profile instead of a single narrow Micro-B opening. S001
  2. The source mapping separates the retained legacy contacts from added SuperSpeed contacts; the shared portion does not make every cable endpoint equivalent. S364
Documented identity facts; exact part and variant scope remains with each value
Nominal contacts10S001 · S364plug and receptacle interface; nominal engineering count, not automatically positions, population or a device wiring map. plug and receptacle interface
Positions / cavity spanNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Populated contactsNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector roleplug; socket; socket (692622030100)S001 · S364 · S865Separate exact examples; retain each value’s source, role, axis and part scope. plug and receptacle interface Exact named example 692622030100: SuperSpeed Micro-B receptacle, horizontal SMT. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No claim that an unidentified device supports SuperSpeed from its shape alone.
Rows, pitch, dimensions, keying and view limits
Additional scoped facts; not a fabrication drawing or a mating approval
Contact rows1 (SMK CSS5310-7H01F)S978Current primary-source scoped values; named examples remain separate and unknowns are not inferred from illustrations. Exact SMK CSS5310-7H01F normal on-board ten-pin receptacle; catalog front drawing only. Quantity context: Mating-front contact row interrupted between two keyed sections.
Contact pitchNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Dimensions / axisNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Coupling / latchNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Keying / polarizationNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
View conventionNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact gender / arrangementNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Mountinghorizontal SMT with pads (692622030100)S865Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 692622030100: SuperSpeed Micro-B receptacle, horizontal SMT. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No claim that an unidentified device supports SuperSpeed from its shape alone.
Shell / formNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
ManufacturerWürth Elektronik (692622030100)S865Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 692622030100: SuperSpeed Micro-B receptacle, horizontal SMT. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No claim that an unidentified device supports SuperSpeed from its shape alone.
SeriesWR-COM Micro USB 3.0 (692622030100)S865Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 692622030100: SuperSpeed Micro-B receptacle, horizontal SMT. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No claim that an unidentified device supports SuperSpeed from its shape alone.
Exact part / implementation692622030100 (692622030100)S865Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example 692622030100: SuperSpeed Micro-B receptacle, horizontal SMT. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No claim that an unidentified device supports SuperSpeed from its shape alone.
Recorded markingsNot recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Keep this limit: The end of a USB-IF connector certification program is not a recall or a verdict on an installed device. S363

Make the next check

Confirm the exact host, peripheral and cable endpoints and their documented mode.

Existing source inspection and AI review remain distinct from independent technical review. A matching form does not establish a safe connection.

Recorded variant and source limits
  • Mechanical mating tolerances and fabrication dimensions are not published.
  • USB generation, cable loss, negotiated speed and product capability remain separate questions.
  • USB 3.1 Micro-B receptacle/plug (10 contacts): Contact numbers only; spatial order unverified.
  • USB 3.1 Micro-B receptacle/plug: Contact-number convention of USB 3.1 Legacy Table 5-4.
Report a correction to this identification or view →

Bounded facts, visible unknowns

Specifications and limits

SuperSpeed Micro-USB Type-B facts and limitations
Distinctive featureWide, two-part profile [C007A]
Scoped referenceA wide legacy connector and a certification program are different questions. [C007A] [C007B] [C007C]
Mechanical dimensionsNo independently reviewed mechanical drawing in this release; do not use this page for fabrication.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
A boundary, not an omission to guess around.

This record is an identification starting point. It does not provide measured mating tolerances, electrical approval, or a list of verified device models. Use the original device and accessory documentation to resolve the remaining requirements.

Before you connect

What to check

  1. Match the complete device opening.
  2. Identify the host-end connector separately.
  3. Verify cable and device data modes before assuming SuperSpeed operation.
Trace a supported connection class →

Pins & wiring

Pinout

Choose the exact wiring. Pin numbers follow its stated view; a schematic does not establish physical positions. Check your exact device before wiring.

What the status labels mean
Confirmed
Recorded research passes agree within this variant; this is not independent human review or hardware validation.
Single source
Only one underlying document, or one pass, supports this assignment.
Device-specific
Supported for the named equipment or wiring only. Check your device’s manual.
Unverified
Missing or conflicting evidence. Do not wire from this row.
Not connected
The source explicitly says NC, no contact or no pin for this wiring.
Wiring variant

USB 3.1 Micro-B receptacle/plug (10 contacts)

View and evidence limits

Contact numbers only; spatial order unverified.

  • P007 SuperSpeed Micro-USB Type-B — **Agree** on all 10 contacts — USB 3.1 Legacy spec, Table 5-4.
  • Tx/Rx defined from the device perspective (Table 5-4 note).
  • Figure 5-12 (PDF p.42) does not label contact numbers; which section carries 1-5 versus 6-10 is not stated in the inspected pages.
  • Not transcribed; outside P007 scope.
SuperSpeed Micro-USB Type-B engineering referenceContact numbers only; spatial order unverified.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: VBUS (single_source)12: D− (single_source)23: D+ (single_source)34: ID (single_source)45: GND (single_source)56: MicB_SSTX− (single_source)67: MicB_SSTX+ (single_source)78: GND_DRAIN (single_source)89: MicB_SSRX− (single_source)910: MicB_SSRX+ (single_source)10Shell: Shield (single_source)ShellpowergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
USB 3.1 Micro-B receptacle/plug (10 contacts) — source-scoped contact map
PinSignalWhat it doesStatus
1VBUSUSB bus power; voltage and current depend on the device.Single source
Sources
2D−Control, detection or configuration connection; check the source and device.Single source
Sources
3D+USB 2.0 data, positive side of the pair.Single source
Sources
4IDControl, detection or configuration connection; check the source and device.Single source
Sources
5GNDGround reference and return.Single source
Sources
6MicB_SSTX−Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
7MicB_SSTX+Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
8GND_DRAINControl, detection or configuration connection; check the source and device.Single source
Sources
9MicB_SSRX−Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
10MicB_SSRX+Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
ShellShieldCable screen or shield connection; check the named equipment.Single source
Sources
Sources (2)

USB 3.1 Micro-B receptacle/plug

View and evidence limits

Contact-number convention of USB 3.1 Legacy Table 5-4.

  • P007 SuperSpeed Micro-USB Type-B — **Agree** on all 10 contacts — USB 3.1 Legacy spec, Table 5-4.
  • Table 5-5 (MicA_ signals, Tx/Rx defined from an OTG device acting as host) exists but is out of scope for P007 and is not mapped as pins.
  • Which contacts sit in the USB 2.0 section versus the SuperSpeed section of the face was not transcribed from Figures 5-12 to 5-14.
SuperSpeed Micro-USB Type-B engineering referenceContact-number convention of USB 3.1 Legacy Table 5-4.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: VBUS (single_source)12: D- (single_source)23: D+ (single_source)34: ID (single_source)45: GND (single_source)56: MicB_SSTX- (single_source)67: MicB_SSTX+ (single_source)78: GND_DRAIN (single_source)89: MicB_SSRX- (single_source)910: MicB_SSRX+ (single_source)10Shell: Shield (single_source)ShellpowergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
USB 3.1 Micro-B receptacle/plug — source-scoped contact map
PinSignalWhat it doesStatus
1VBUSUSB bus power; voltage and current depend on the device.Single source
Sources
2D-USB 2.0 data, negative side of the pair.Single source
Sources
3D+USB 2.0 data, positive side of the pair.Single source
Sources
4IDControl, detection or configuration connection; check the source and device.Single source
Sources
5GNDGround reference and return.Single source
Sources
6MicB_SSTX-Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
7MicB_SSTX+Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
8GND_DRAINControl, detection or configuration connection; check the source and device.Single source
Sources
9MicB_SSRX-Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
10MicB_SSRX+Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
ShellShieldCable screen or shield connection; check the named equipment.Single source
Sources
Sources (2)

A wide legacy connector and a certification program are different questions.

Keep the ten-contact SuperSpeed Micro-B form distinct from the narrower USB 2.0 form. The inherited contact mapping is not a new specimen inspection; the certification end date is not a recall or replacement instruction.

Your next step

Move from the form to the requirement.

Read the engineering reference Source-scoped details, orientation and explicit unknowns.Work through a connection Choose your task before deciding on a cable.Explore this evidence trail Inspect the claims and their dependencies. (private workspace)

The source trail

Evidence for this page

AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.

Back to first citation ↑
C007ASource checked · pending review

SuperSpeed Micro-USB Type-B has an extended, two-part profile distinct from legacy Micro-B.

C2G / Legrand · USB connector guide ↗

Locator: USB A-Type; B-Type; Mini-B; Micro-B; USB 3.0 B-Type and Micro-B sections
Access: public page. Older capability descriptions elsewhere on this page are not used as current universal limits.

S001: full source recordInspect review dependencies → (private workspace)

Claim scope: Consumer identification / documented standard or product class only. Next review due 2026-12-30.

Back to first citation ↑
C007CSource checked · pending review

USB-IF ended USB 3.x Micro-B and Micro-AB connector certifications after 28 February 2021. This statement concerns its certification program, not a recall or a verdict on an installed device.

USB Implementers Forum (USB-IF) · USB-IF Compliance Updates — Cables and Connectors ↗

Locator: USB Connector Construction; Mini Connectors Antiquated; USB 3.x Micro-B Connector Certifications
Access: public page. Compliance and certification status does not establish the data rate, power behavior or supported protocol of a particular device or cable.

S363: full source recordInspect review dependencies → (private workspace)

Claim scope: V145: USB-IF compliance update ID 128, connector certification scope only; no implication that existing compliant devices must be replaced.. Next review due 2027-01-11.

Back to first citation ↑
C007BSource checked · pending review

The cited USB-IF legacy mapping enumerates ten USB 3.1 Micro-B contacts, retaining the Micro-USB legacy contacts and adding SuperSpeed transmit/receive and drain contacts.

USB Implementers Forum (USB-IF) · USB Type-C Cable and Connector Specification Release 2.0 ↗

Locator: Legacy cable mapping tables for USB 3.1 Standard-B and USB 3.1 Micro-B contact designations
Access: public pdf text. The legacy contact map does not establish a product's negotiated speed, power capability, cable quality, USB generation marketing label or interoperability.

S364: full source recordInspect review dependencies → (private workspace)

Claim scope: USB 3.1 Micro-B connector-side contact designation only; negotiated speed and product capability are not inferred.. Next review due 2027-01-04.

Back to first citation ↑
C007WSource checked · pending review

SMK identifies CSS5310-7H01F as a ten-pin USB3.1 Micro-B receptacle. The front drawing shows one contact row interrupted between two adjacent keyed sections; its contact pitch is undimensioned.

SMK · SMK USB3.1 Micro-B catalog, CSS5310-7H01F ↗

Locator: Single-page USB3.1 Micro-B Connector catalog, CSS5310-7H01F front drawing labelled Pin No.1 / Pin No.10; actual saved PDF text and150dpi page pixels inspected.
Access: public pdf text. Major catalog dimensions only; individual detailed drawings/specifications available on request. No contact-pitch dimension or tolerance in PDF.

S978: full source recordInspect review dependencies → (private workspace)

Claim scope: Exact SMK CSS5310-7H01F normal on-board ten-pin receptacle; catalog front drawing only.. Next review due 2027-01-20.

Suggest a correction to this field note →

Put this field note to work.

Add to discovery trayRecord an unsaved candidate (private workspace)

Candidate selection does not confirm the identity or capabilities of your physical item.

Evidence behind this page

Scope first. Source second. Approval separate.

4 linked sources · 4 scoped claims · 0 sources with inspection/access flags.

Page scope: consumer_pilot

Assessment 2026-10-22 · earliest scheduled source review 2026-12-30. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 4 source scopes, access limits and dates

S001 · USB connector guide

C2G / Legrand · Manufacturer / product-owner domain · inspected 2026-10-01 · due 2026-12-30

Within inspection window

Scoped support: Connector identification and legacy mating distinctions only.

Not established / limitations: Older capability descriptions elsewhere on this page are not used as current universal limits.

Locator: USB A-Type; B-Type; Mini-B; Micro-B; USB 3.0 B-Type and Micro-B sections

S363 · USB-IF Compliance Updates — Cables and Connectors

USB Implementers Forum (USB-IF) · Standards-organization domain · inspected 2026-10-06 · due 2027-01-04

Within inspection window

Scoped support: USB 2.0 Standard-A/Standard-B exact four-contact requirement, Mini-B and Micro-B exact five-contact requirement, plus current USB-IF certification-status context for legacy connector families.

Not established / limitations: Compliance and certification status does not establish the data rate, power behavior or supported protocol of a particular device or cable.

Locator: USB Connector Construction; Mini Connectors Antiquated; USB 3.x Micro-B Connector Certifications

S364 · USB Type-C Cable and Connector Specification Release 2.0

USB Implementers Forum (USB-IF) · Standards-organization domain · inspected 2026-10-06 · due 2027-01-04

Within inspection window

Scoped support: Legacy USB 3.1 Standard-B nine-contact and Micro-B ten-contact signal designations used only to bound connector-side engineering references.

Not established / limitations: The legacy contact map does not establish a product's negotiated speed, power capability, cable quality, USB generation marketing label or interoperability.

Locator: Legacy cable mapping tables for USB 3.1 Standard-B and USB 3.1 Micro-B contact designations

S978 · SMK USB3.1 Micro-B catalog, CSS5310-7H01F

SMK · Unclassified publisher domain · inspected 2026-10-22 · due 2027-01-20

Within inspection window

Scoped support: Exact CSS5310-7H01F ten-pin receptacle recognition layout.

Not established / limitations: Major catalog dimensions only; individual detailed drawings/specifications available on request. No contact-pitch dimension or tolerance in PDF.

Locator: Single-page USB3.1 Micro-B Connector catalog, CSS5310-7H01F front drawing labelled Pin No.1 / Pin No.10; actual saved PDF text and150dpi page pixels inspected.

Trace 4 claims to their source records

C007A · P007

SuperSpeed Micro-USB Type-B has an extended, two-part profile distinct from legacy Micro-B.

Claim scope: Consumer identification / documented standard or product class only

Source links: S001 · Evidence trail → (private workspace)

C007B · P007

The cited USB-IF legacy mapping enumerates ten USB 3.1 Micro-B contacts, retaining the Micro-USB legacy contacts and adding SuperSpeed transmit/receive and drain contacts.

Claim scope: USB 3.1 Micro-B connector-side contact designation only; negotiated speed and product capability are not inferred.

Source links: S364 · Evidence trail → (private workspace)

C007C · P007

USB-IF ended USB 3.x Micro-B and Micro-AB connector certifications after 28 February 2021. This statement concerns its certification program, not a recall or a verdict on an installed device.

Claim scope: V145: USB-IF compliance update ID 128, connector certification scope only; no implication that existing compliant devices must be replaced.

Source links: S363 · Evidence trail → (private workspace)

C007W · P007

SMK identifies CSS5310-7H01F as a ten-pin USB3.1 Micro-B receptacle. The front drawing shows one contact row interrupted between two adjacent keyed sections; its contact pitch is undimensioned.

Claim scope: Exact SMK CSS5310-7H01F normal on-board ten-pin receptacle; catalog front drawing only.

Source links: S978 · Evidence trail → (private workspace)

Prepare this page for review → (private workspace)Read the evidence method →

Recorded evidence only. An inspection date, publisher label, source link or generated packet is not independent technical review, hardware testing, fabrication approval or a compatibility verdict.
