M12 T-coded 4-position DC power connector

M12 T coding is a keyed industrial power form; the shared M12 shell and four-position count do not make it the same connector as S-coded or other M12 variants.

Also called M12 T-coded M12 T code 4-position M12 T power

A familiar shell, blade or coding family does not establish voltage, current, wiring, grounding, mating or safe operation.

Look for

Identify the T-coded keying and four-position insert from the exact component documentation before assigning a power role.

Claim inspection dates: 2026-10-06, 2026-10-12 · Independent review pending

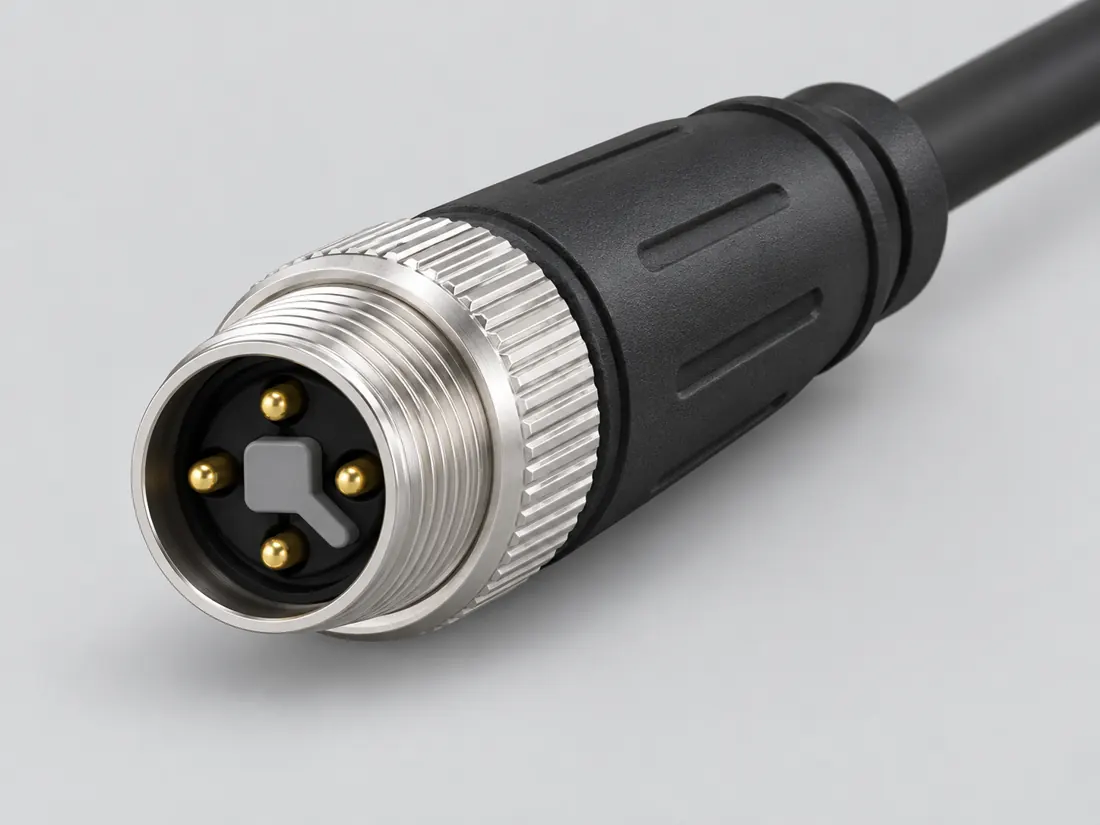

M12 T-coded 4-position DC power connector: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

M12 T-coded 4-position DC power connector: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

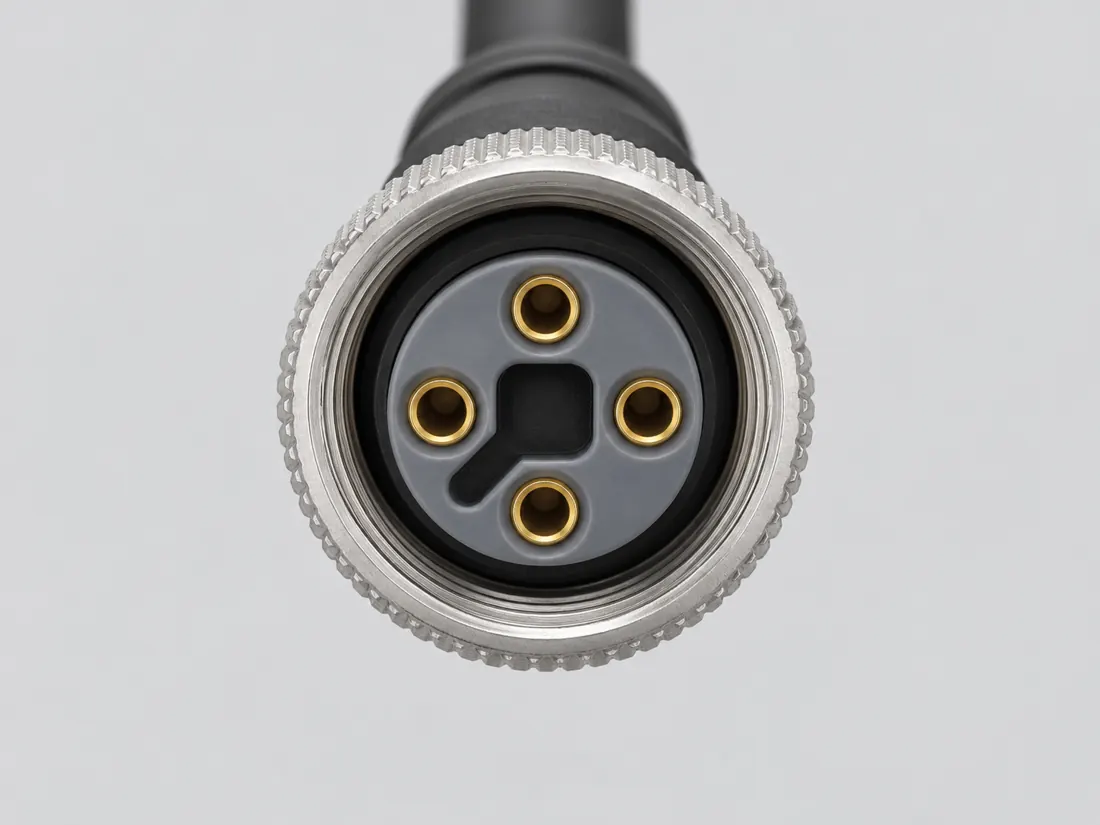

M12 T-coded 4-position DC power connector: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

M12 T-coded 4-position DC power connector: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Image inspection / P267

See the view. Check its scope.

3 registered views for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.

M12 T-coded straight plug end. Connector end left; cable right; qualitative side view. Original recognition study; no contact layout, exact dimensions or safe-mating verdict. (private workspace)

P267 / Source-observed physical study

M12 T-coded straight plug end

Phoenix Contact 1276619 configurable assembly / straight plug end

side exterior · Cable plug / cable end

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)
M12 T-coded straight socket end. Cable left; connector end right; qualitative side view. Cable socket, not a device receptacle. Original recognition study; no contact layout, exact dimensions or safe-mating verdict. (private workspace)

P267 / Source-observed physical study

M12 T-coded straight socket end

Phoenix Contact 1276619 configurable assembly / straight socket end

side exterior · Other declared component

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)
Assembly rating and cable-material rating. Text-field relationship only; no connector geometry. Original recognition study; no contact layout, exact dimensions or safe-mating verdict. (private workspace)

P267 / Concept — not physical geometry

Assembly rating and cable-material rating

Named M12 assembly fields / separate cable-material fields

specification levels · Concept only

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

The useful distinction

Recognize it. Then verify it.

M12 T coding is a keyed industrial power form; the shared M12 shell and four-position count do not make it the same connector as S-coded or other M12 variants. [C267A]

The two side drawings linked from 1276619 depict different straight plug and socket ends; the plug drawing places the connector end at left and the socket drawing places it at right. [C267C]

For configurable assembly 1276619, Phoenix Contact lists nominal voltage 63 V DC and nominal current 12 A for 1.5 mm² conductors or 16 A for 2.5 mm² conductors. [C267D]

The 1276619 cable-material blocks list nominal cable voltage separately from the assembled product nominal-voltage field; a material-level voltage value is not the product’s assembly voltage specification. [C267E]

The 1276619 description leaves cable type and cable length selectable even though its two ends are identified as straight M12 T-coded plug and straight M12 T-coded socket. [C267F]

Source-scoped identification facts

Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.

Documented examples; not a mating drawing or compatibility approval
Nominal contacts4S296Source-backed nominal position/contact/conductor count for identification: 4. Not a wiring diagram or installation instruction.
Positions / cavity span4 (Claim C267A); 4 (Claim C267B); 4 (Phoenix Contact 1276619)S296 · S328 · S852Source-scoped examples are separate; select the exact variant and measured axis. V47 identification fact only; the cited product establishes the named connector/configuration and narrow position/conductor context, not universal wiring, mating, installation safety or interchangeability. V48 product-specific coding and mating-role reference only; not a universal M12 T wiring, energized-work or installation statement. Phoenix Contact 1276619. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
Connector roleAssembly: straight M12 plug at connection 1; straight M12 socket at connection 2 (Phoenix Contact 1276619)S852Source-scoped examples are separate; select the exact variant and measured axis. Phoenix Contact 1276619. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
Mountingcable (Phoenix Contact 1276619)S852Source-scoped examples are separate; select the exact variant and measured axis. Phoenix Contact 1276619. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
Keying / polarizationT coding (Phoenix Contact 1276619)S852Source-scoped examples are separate; select the exact variant and measured axis. Phoenix Contact 1276619. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
ManufacturerPhoenix Contact (Phoenix Contact 1276619)S852Source-scoped examples are separate; select the exact variant and measured axis. Phoenix Contact 1276619. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
Exact part / implementationPhoenix Contact 1276619 (Phoenix Contact 1276619)S852Source-scoped examples are separate; select the exact variant and measured axis. Phoenix Contact 1276619. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.

Not recorded: Populated contacts, Contact rows, Contact pitch, Dimensions / axis, Contact gender / arrangement, Coupling / latch, Shell / form, Series, Recorded markings, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.

Recorded variant and source limits
  • No universal M12 T-coded wiring assignment, conductor function or energized-work procedure is inferred from this product example.
  • Coding and position count do not by themselves establish safe voltage/current use, equipment compatibility, installation approval or fabrication dimensions.
Report a correction to these facts →

Bounded facts, visible unknowns

Specifications and limits

M12 T-coded 4-position DC power connector facts and limitations
Documented identification4-position/contact/conductor recognition fact in the cited implementation. [C267A]
Mechanical dimensionsNo independently reviewed mechanical drawing in V47; do not use this page for fabrication, fit testing, receptacle selection or tolerance work.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
No electrical replacement approval.

Use the source-backed connector name and position/contact count only for identification. Resolve circuit or system requirements, wiring, grounding, protocol, ratings, device support and installation requirements from the exact equipment and component documentation.

Before you connect

What to check

  1. Identify the exact connector family and variant from equipment, component or cable documentation.
  2. Keep physical form, contact count, electrical rating, wiring and device support as separate facts.
  3. Do not force, rewire, adapt or energize a connector from this recognition record; resolve the remaining requirements with qualified documentation first.
Trace a supported connection class →

What is not established

This field note does not approve a connection, adapter, cable assembly, rewiring scheme, energized test, installation or fabricated part. It intentionally omits unsupported wiring assignments and mechanical tolerances.

Your next step

Move from the form to the requirement.

Read the engineering reference Source-scoped details, orientation and explicit unknowns.Work through a connection Choose your task before deciding on a cable.Explore this evidence trail Inspect the claims and their dependencies. (private workspace)

The source trail

Evidence for this page

AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.

Back to first citation ↑
C267ASource checked · pending review

Phoenix Contact identifies product 1276619 as a 4-position M12 T-coded power cable for direct-current energy supply.

Phoenix Contact · SAC-4P-M12MST-M12FST power cable 1276619 ↗

Locator: Product description and Product properties
Access: public page. Identification/reference scope only. V47 does not turn this source into a universal wiring map, installation approval, safe-use recommendation, fabrication drawing or end-to-end compatibility verdict.

S296: full source recordInspect review dependencies → (private workspace)

Claim scope: V47 identification fact only; the cited product establishes the named connector/configuration and narrow position/conductor context, not universal wiring, mating, installation safety or interchangeability.. Next review due 2027-01-04.

Back to first citation ↑
C267CSource checked · pending review

The two side drawings linked from 1276619 depict different straight plug and socket ends; the plug drawing places the connector end at left and the socket drawing places it at right.

Phoenix Contact · 1276619 linked straight-plug outline — media 160342 ↗

Locator: Manufacturer product 1276619 gallery: straight male cable-end side drawing, connector end at left and cable at right; visually inspected.
Access: public page. Configurable product example only, not an exact selected cable order or a separately ordered bare connector. No wiring map, approved mating, engineering dimensions, installation instruction or universal rating is established.

S567: full source recordPhoenix Contact · 1276619 linked straight-socket outline — media 154804 ↗

Locator: Manufacturer product 1276619 gallery: straight female cable-end side drawing, cable at left and connector end at right; visually inspected.
Access: public page. Configurable product example only, not an exact selected cable order or a separately ordered bare connector. No wiring map, approved mating, engineering dimensions, installation instruction or universal rating is established.

S568: full source recordInspect review dependencies → (private workspace)

Claim scope: V138 source-qualified recognition of the named configurable assembly only; no universal rating, unknown-equipment compatibility, wiring, dimensions, energized work or independent approval.. Next review due 2027-01-10.

Back to first citation ↑
C267DSource checked · pending review

For configurable assembly 1276619, Phoenix Contact lists nominal voltage 63 V DC and nominal current 12 A for 1.5 mm² conductors or 16 A for 2.5 mm² conductors.

Phoenix Contact · 1276619 — T-coded cable assembly and conductor-dependent fields ↗

Locator: Product description; Electrical properties; Connector / Connection 1 and 2; Cable/line material options and nominal cable voltage.
Access: public page. Configurable product example only, not an exact selected cable order or a separately ordered bare connector. No wiring map, approved mating, engineering dimensions, installation instruction or universal rating is established.

S566: full source recordInspect review dependencies → (private workspace)

Claim scope: V138 source-qualified recognition of the named configurable assembly only; no universal rating, unknown-equipment compatibility, wiring, dimensions, energized work or independent approval.. Next review due 2027-01-10.

Back to first citation ↑
C267ESource checked · pending review

The 1276619 cable-material blocks list nominal cable voltage separately from the assembled product nominal-voltage field; a material-level voltage value is not the product’s assembly voltage specification.

Phoenix Contact · 1276619 — T-coded cable assembly and conductor-dependent fields ↗

Locator: Product description; Electrical properties; Connector / Connection 1 and 2; Cable/line material options and nominal cable voltage.
Access: public page. Configurable product example only, not an exact selected cable order or a separately ordered bare connector. No wiring map, approved mating, engineering dimensions, installation instruction or universal rating is established.

S566: full source recordInspect review dependencies → (private workspace)

Claim scope: V138 source-qualified recognition of the named configurable assembly only; no universal rating, unknown-equipment compatibility, wiring, dimensions, energized work or independent approval.. Next review due 2027-01-10.

Back to first citation ↑
C267FSource checked · pending review

The 1276619 description leaves cable type and cable length selectable even though its two ends are identified as straight M12 T-coded plug and straight M12 T-coded socket.

Phoenix Contact · 1276619 — T-coded cable assembly and conductor-dependent fields ↗

Locator: Product description; Electrical properties; Connector / Connection 1 and 2; Cable/line material options and nominal cable voltage.
Access: public page. Configurable product example only, not an exact selected cable order or a separately ordered bare connector. No wiring map, approved mating, engineering dimensions, installation instruction or universal rating is established.

S566: full source recordInspect review dependencies → (private workspace)

Claim scope: V138 source-qualified recognition of the named configurable assembly only; no universal rating, unknown-equipment compatibility, wiring, dimensions, energized work or independent approval.. Next review due 2027-01-10.

Suggest a correction to this field note →

Put this field note to work.

Add to discovery trayRecord an unsaved candidate (private workspace)

Compare look-alikes: M12 S-coded versus T-coded power

Candidate selection does not confirm the identity or capabilities of your physical item.

M12 POWER / COMPONENT ROLE & CONFIGURATION

Read the end and its source together.

1276619 / straight plug end

Role
Plug end of a configurable cable assembly.
Distinction
In this source view the connector end is on the left.
Established
The projected nose and coupling behind it distinguish this depicted end from the companion socket outline.
Not established
The internal contact layout, exact order and bare connector identity.
Next check
Compare like viewpoints and preserve plug versus socket roles.
Inspect this assembly-end view → (private workspace)
Evidence, component scope & limits

Observed . C267C

1276619 linked straight-plug outline — media 160342 ↗
Manufacturer product 1276619 gallery: straight male cable-end side drawing, connector end at left and cable at right; visually inspected.
S567 · observation date 2026-10-12. The outline supports a straight plug-side exterior study of the configurable assembly. It does not identify a bare connector part number, internal pin layout, assembly length or current production revision.

1276619 linked straight-socket outline — media 154804 ↗
Manufacturer product 1276619 gallery: straight female cable-end side drawing, cable at left and connector end at right; visually inspected.
S568 · observation date 2026-10-12. The female assembly-end outline is distinct from the companion plug outline. It supports only a qualitative side profile; dimensions, contact layout and mating approval are omitted.

The observation date is not a drawing revision. No wiring, fit or installation approval.

1276619 / straight socket end

Role
Cable socket end, not a device-mounted receptacle.
Distinction
In this source view the connector end is on the right.
Established
The opposite drawing direction is retained. It must not be read as a cable wiring reversal.
Not established
Pin-to-wire assignment and compatibility with an unknown device.
Next check
Identify the component role before comparing the outline.
Inspect this assembly-end view → (private workspace)
Evidence, component scope & limits

Observed . C267C

1276619 linked straight-plug outline — media 160342 ↗
Manufacturer product 1276619 gallery: straight male cable-end side drawing, connector end at left and cable at right; visually inspected.
S567 · observation date 2026-10-12. The outline supports a straight plug-side exterior study of the configurable assembly. It does not identify a bare connector part number, internal pin layout, assembly length or current production revision.

1276619 linked straight-socket outline — media 154804 ↗
Manufacturer product 1276619 gallery: straight female cable-end side drawing, cable at left and connector end at right; visually inspected.
S568 · observation date 2026-10-12. The female assembly-end outline is distinct from the companion plug outline. It supports only a qualitative side profile; dimensions, contact layout and mating approval are omitted.

The observation date is not a drawing revision. No wiring, fit or installation approval.

1276619 / product electrical fields

Role
Product-specific fields, not universal M12 T ratings.
Distinction
63 V DC; 12 A at 1.5 mm² or 16 A at 2.5 mm².
Established
The page keeps conductor size beside current and leaves cable type and length selectable.
Not established
The ordered option, equipment load, approvals and operating conditions.
Next check
Check the exact assembled cable specification rather than retaining the largest number.

Source-field reference; no physical view assigned to this row.

Evidence, component scope & limits

Observed . C267D · C267F

1276619 — T-coded cable assembly and conductor-dependent fields ↗
Product description; Electrical properties; Connector / Connection 1 and 2; Cable/line material options and nominal cable voltage.
S566 · observation date 2026-10-12. The configurable T-coded assembly has straight plug and socket ends. Nominal 63 V DC and 12 A for 1.5 mm² or 16 A for 2.5 mm² are shown separately from cable-material voltage fields; no actual cable selection or load is approved.

The observation date is not a drawing revision. No wiring, fit or installation approval.

Supplementary assembly-end studies; no selected cable order or bare connector identity is inferred.
