M12 L-coded is a five-position power-oriented keyed form; its electrical limits depend on the exact component and cable assembly.
Also called M12 L-coded M12 L code 5-pin M12 power M12 power L-coded
Power connector identity is not authorization to mate two devices. Voltage, current, conductor size, protection and equipment requirements must all be checked independently.
Confirm L-coding and the five-position form, then use the exact component and equipment documentation for every electrical decision.
Claim inspection dates: 2026-10-06, 2026-10-12 · Independent review pending

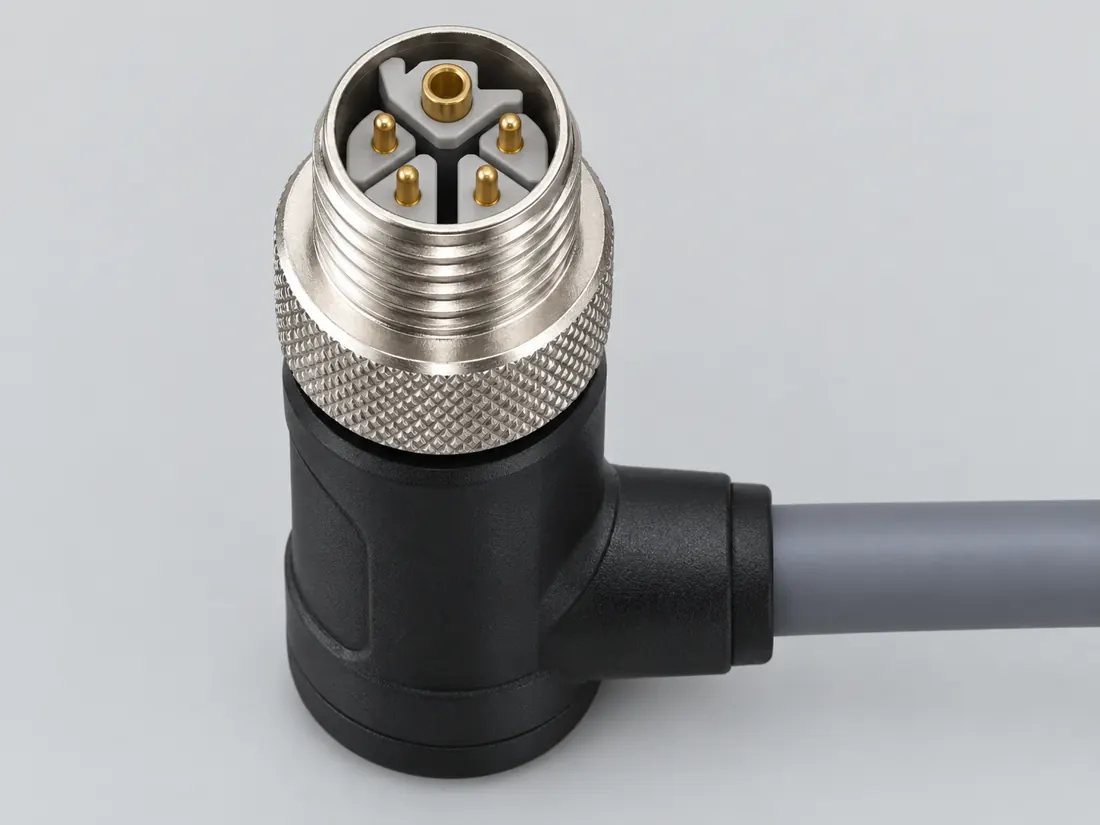

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

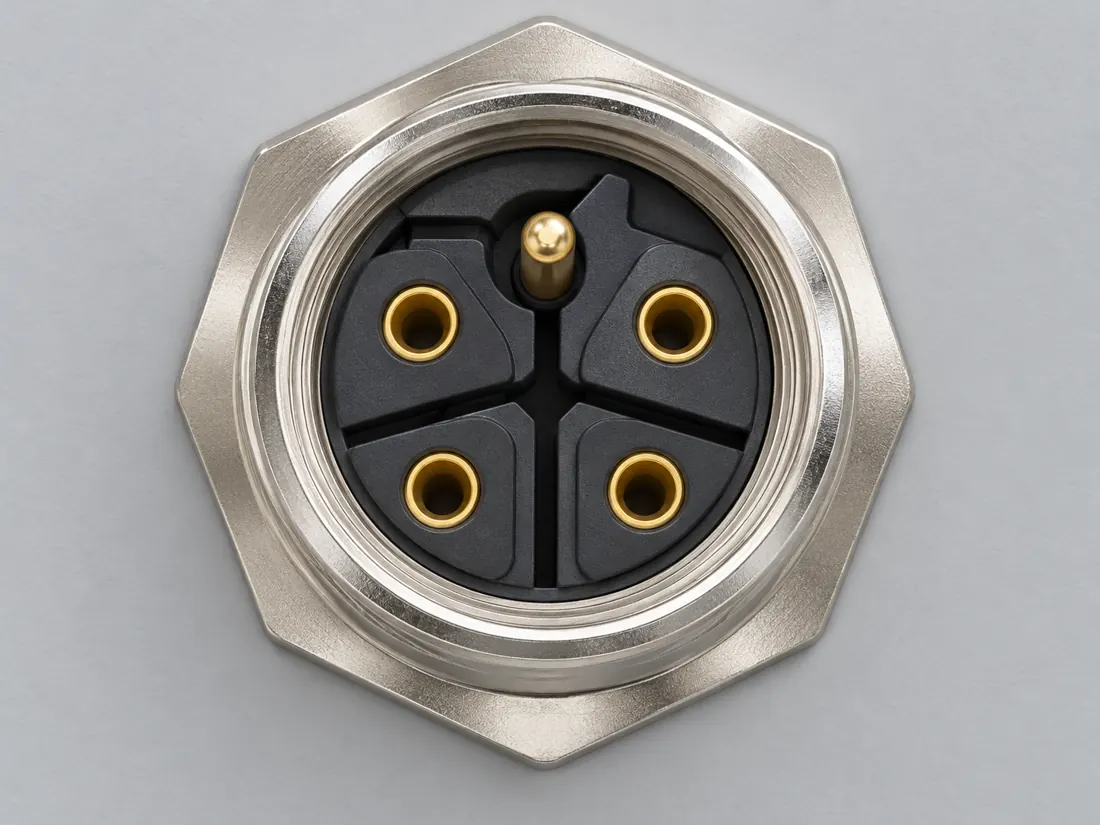

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.
Recognition drawing Original schematic, not to scale. Drawing review pending.
Image inspection / P253
1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.
(private workspace)P253 / Source-observed physical study
Phoenix Contact 1276587 configurable assembly / angled plug end
side exterior · Cable plug / cable end
Not to scale. Technical and rights review pending.
Inspect view & provenance (private workspace)The useful distinction
M12 L-coded is a five-position power-oriented keyed form; its electrical limits depend on the exact component and cable assembly. [C253A]
Phoenix Contact 1276587 is a configurable cable assembly with an angled M12 L-coded plug and a free cable end; its description leaves cable type and length as selectable order properties. [C253C]
The exterior drawing linked from product 1276587 shows the coupling above an angled molded body and the cable leaving through the side; this is a cable-end outline, not a separate bare connector identity. [C253D]
The face-label drawing linked from 1276587 marks four positions 1–4 and a separate FE position; those labels are not supplied here as a wiring diagram or a protective-earth assignment. [C253E]
On the 1276587 page, the assembly nominal-voltage field is 63 V DC while the listed cable-material options have separate nominal-cable-voltage fields up to 300 V AC; these fields describe different specification levels. [C253F]
Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.
| Nominal contacts | 5S273Source-backed nominal position/contact count: 5. |
|---|---|
| Positions / cavity span | 5 (Claim C253A); 5 (Claim C253B); 4 (Claim C253E); 5 (Phoenix Contact 1276587 / connection 1)S273 · S290 · S569 · S564Source-scoped examples are separate; select the exact variant and measured axis. V43 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof. V44 product-specific electrical boundary only. Values are not generalized to every M12 L-coded connector, cable, installation or load. V138 source-qualified recognition of the named configurable assembly only; no universal rating, unknown-equipment compatibility, wiring, dimensions, energized work or independent approval. Phoenix Contact 1276587 / connection 1. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Connector role | plug; Angled M12 power cable plug; other end free cable (Phoenix Contact 1276587 / connection 1)S273 · S290 · S564Source-scoped examples are separate; select the exact variant and measured axis. M12 L-coded power-cable plug Phoenix Contact 1276587 / connection 1. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Contact gender / arrangement | male (Phoenix Contact 1276587 / connection 1)S564Source-scoped examples are separate; select the exact variant and measured axis. Phoenix Contact 1276587 / connection 1. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Mounting | cable (Claim C253A); cable (Phoenix Contact 1276587 / connection 1)S273 · S564Source-scoped examples are separate; select the exact variant and measured axis. V43 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof. Phoenix Contact 1276587 / connection 1. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Keying / polarization | L coding (Phoenix Contact 1276587 / connection 1)S564Source-scoped examples are separate; select the exact variant and measured axis. Phoenix Contact 1276587 / connection 1. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Manufacturer | Phoenix Contact (Phoenix Contact 1276587 / connection 1)S564Source-scoped examples are separate; select the exact variant and measured axis. Phoenix Contact 1276587 / connection 1. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
| Exact part / implementation | Phoenix Contact 1276587 / connection 1 (Phoenix Contact 1276587 / connection 1)S564Source-scoped examples are separate; select the exact variant and measured axis. Phoenix Contact 1276587 / connection 1. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use. |
Not recorded: Populated contacts, Contact rows, Contact pitch, Dimensions / axis, Coupling / latch, Shell / form, Series, Recorded markings, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.
Bounded facts, visible unknowns
| Documented identification | 5-position/contact recognition fact in the cited implementation. [C253A] |
|---|---|
| Mechanical dimensions | No independently reviewed mechanical drawing in V43; do not use this page for fabrication, fit testing or tolerance work. |
| Engineering pinout | Source-checked engineering profile available; independent review pending. Open engineering profile → |
| Verified device list | Not included. Check exact device and accessory documentation. |
Use the source-backed form or position count only for identification. Resolve ratings, protocol, direction, wiring, cable construction and exact device support from the relevant equipment and component documentation.
Before you connect
This field note does not approve a connection, adapter, cable assembly, rewiring scheme or fabricated part. It intentionally omits unsupported pin assignments and mechanical tolerances.
Your next step
The source trail
AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.
Phoenix Contact identifies part 1276587 as a five-position M12 power cable connector with L-coding.
Phoenix Contact · M12 L-coded 5-position power cable ↗S273: full source recordInspect review dependencies → (private workspace)Phoenix Contact 1276587 is a configurable cable assembly with an angled M12 L-coded plug and a free cable end; its description leaves cable type and length as selectable order properties.
Phoenix Contact · 1276587 — configurable L-coded cable and specification levels ↗S564: full source recordInspect review dependencies → (private workspace)The exterior drawing linked from product 1276587 shows the coupling above an angled molded body and the cable leaving through the side; this is a cable-end outline, not a separate bare connector identity.
Phoenix Contact · 1276587 linked angled-plug outline — media 162042 ↗S565: full source recordInspect review dependencies → (private workspace)The face-label drawing linked from 1276587 marks four positions 1–4 and a separate FE position; those labels are not supplied here as a wiring diagram or a protective-earth assignment.
Phoenix Contact · 1276587 linked face-label diagram — media 141284 ↗S569: full source recordInspect review dependencies → (private workspace)On the 1276587 page, the assembly nominal-voltage field is 63 V DC while the listed cable-material options have separate nominal-cable-voltage fields up to 300 V AC; these fields describe different specification levels.
Phoenix Contact · 1276587 — configurable L-coded cable and specification levels ↗S564: full source recordInspect review dependencies → (private workspace)Follow the connection
An M12 threaded shell is only the outer family; coding and position pattern must be verified before any signal or power assumption.
Open field note
M12 coding is part of the mechanical identity; a matching shell diameter does not imply mating or protocol equivalence.
Open field note
An M12 shell does not identify the coding; D-coded and X-coded Ethernet interfaces are different keyed forms.
Open field noteCompare look-alikes: M12 A-coded versus B-coded versus L-coded · M12 K-, L- and M-coded power
Candidate selection does not confirm the identity or capabilities of your physical item.
M12 POWER / COMPONENT ROLE & CONFIGURATION
1276587 — configurable L-coded cable and specification levels ↗
Product description, Connector / Connection 1 and 2, Electrical properties and Cable/line option blocks.
S564 · observation date 2026-10-12. The item describes an angled L-coded plug on a free cable end. Cable type and length are selectable; the cable-material voltage fields are separate from the assembly nominal-voltage field.
1276587 linked angled-plug outline — media 162042 ↗
Manufacturer product 1276587, second linked gallery image: visually inspected side outline of the angled cable end, coupling region, molded body and cable exit.
S565 · observation date 2026-10-12. The manufacturer-linked outline supports a qualitative side study of the configured-product family end only. No drawing revision or selected cable option is identified; dimensions and logos are omitted.
The observation date is not a drawing revision. No wiring, fit or installation approval.
Source-field reference; no physical view assigned to this row.
Observed . C253E
1276587 linked face-label diagram — media 141284 ↗
Manufacturer product 1276587 gallery: front label drawing with positions 1, 2, 3, 4 and FE; visually inspected.
S569 · observation date 2026-10-12. This particular label diagram distinguishes FE from positions 1–4. V138 uses the labels as source-scoped recognition evidence, not a reproduced contact map, PE substitution or installation instruction.
The observation date is not a drawing revision. No wiring, fit or installation approval.
Source-field reference; no physical view assigned to this row.
Observed . C253F
1276587 — configurable L-coded cable and specification levels ↗
Product description, Connector / Connection 1 and 2, Electrical properties and Cable/line option blocks.
S564 · observation date 2026-10-12. The item describes an angled L-coded plug on a free cable end. Cable type and length are selectable; the cable-material voltage fields are separate from the assembly nominal-voltage field.
The observation date is not a drawing revision. No wiring, fit or installation approval.
Supplementary assembly-end studies; no selected cable order or bare connector identity is inferred.
Read the M12 cable-end reference →
