5.5 x 2.5 mm barrel connector: identification only

A 5.5 x 2.5 mm barrel identifier specifies two nominal diameters, not polarity, voltage or an approved replacement adapter.

Also called 5.5 2.5 5525 5.5mm 2.5mm DC plug 2.5 mm barrel bore

The same outside diameter can hide a different bore. Establish the complete device requirement before choosing power.

Look for

Use the documented 55-00050 assembly-type plug as an example, not a visual sizing gauge or a replacement recommendation.

Claim inspection dates: 2026-10-11, 2026-10-22 · Independent review pending

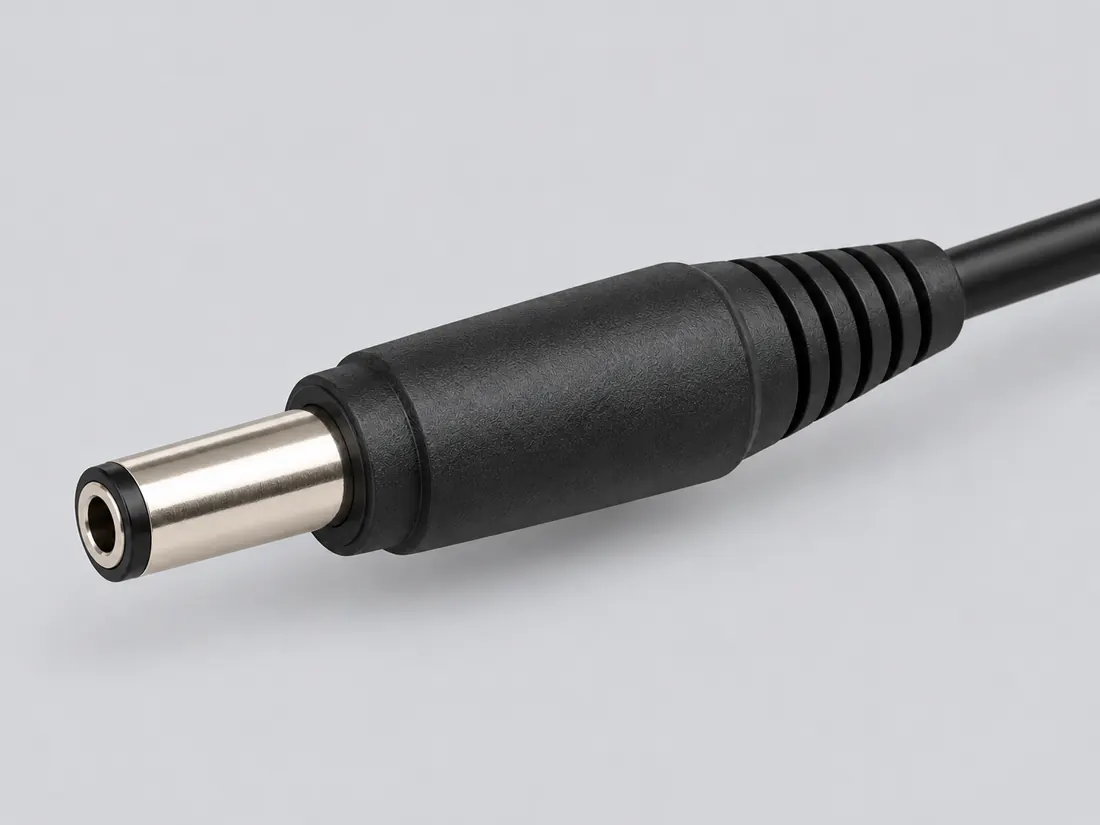

5.5 x 2.5 mm barrel connector: identification only: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

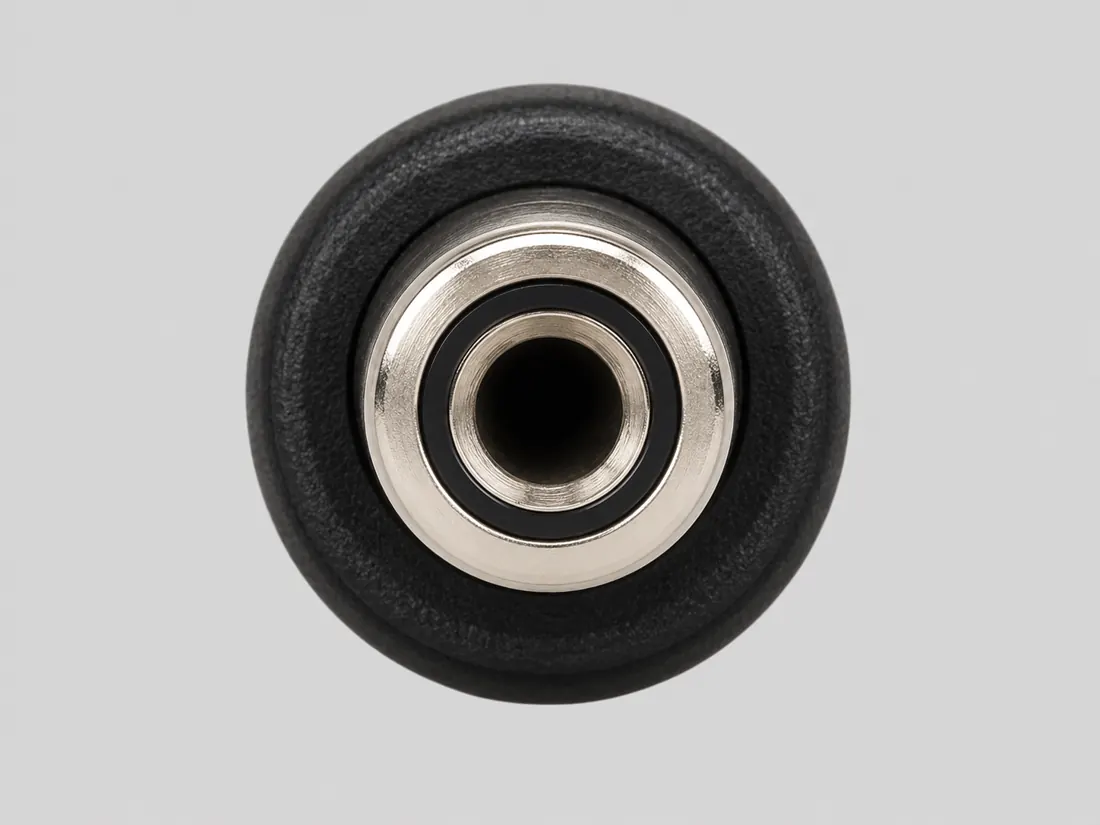

5.5 x 2.5 mm barrel connector: identification only: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

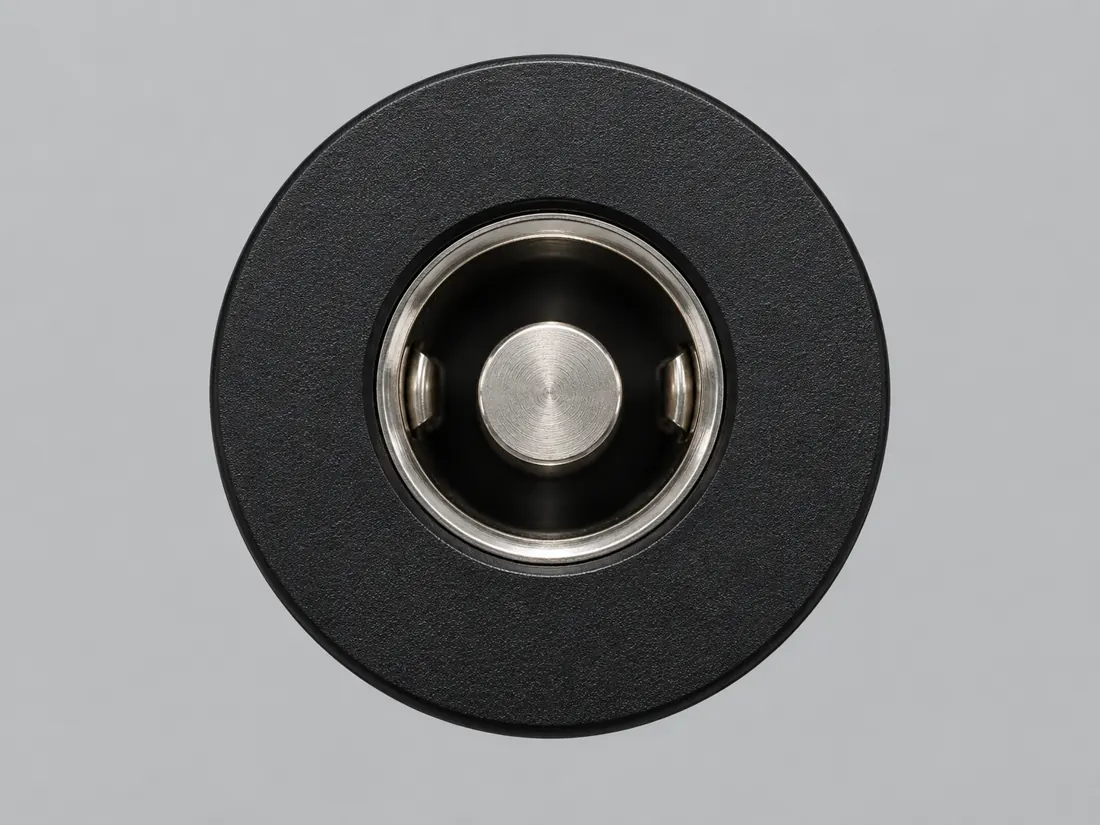

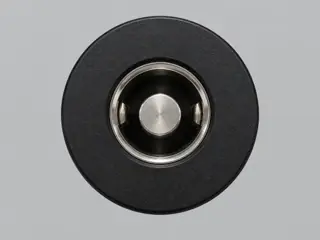

5.5 x 2.5 mm barrel connector: identification only: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

5.5 x 2.5 mm barrel connector: identification only: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Image inspection / P363

See the view. Check its scope.

1 registered view for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.

Tensility 55-00050 qualitative plug exterior: exposed barrel, straight sleeve body, tapered strain relief and isolated bore inset. No wiring or scale. (private workspace)

P363 / Source-observed physical study

5.5 × 2.5 barrel

Tensility 55-00050

Side exterior and isolated end-view inset · Cable plug / cable end

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

Matching notes / DC input / P363

What does 5525 actually identify?

FIELD NOTES 03

The new reference covers a 5.5 mm outside diameter and 2.5 mm bore. Tensility 55-00050 supplies one documented 12 mm exposed-barrel example.

SOURCE-SUPPORTED LEAD

What the evidence supports

The complete 55-00050 drawing supports a named mechanical example. It does not nominate a device or charger.

INSUFFICIENT MATCHING EVIDENCE

What not to conclude

Treating the 2.1 mm and 2.5 mm bore labels as identical loses a required measurement.

NOT ESTABLISHED

Keep this check open

Polarity, voltage and suitability for an unknown device are not established.
