12 V RGB vs 5 V ARGB motherboard lighting headers

On MSI’s documented boards, JRGB is 12 V/4-pin and JRAINBOW is 5 V/3-pin. Connecting a 5 V strip to the 12 V header can cause hardware damage.

Computer-generated illustration, not a photograph. — P347 · Connector12 V four-pin motherboard RGB header (MSI JRGB)

How they differ

MSI’s JRGB and JRAINBOW are different lighting families with different documented voltage and contact conventions.

The cited MSI JRGB is non-addressable lighting; JRAINBOW is the addressable-lighting connection. S458 · S458

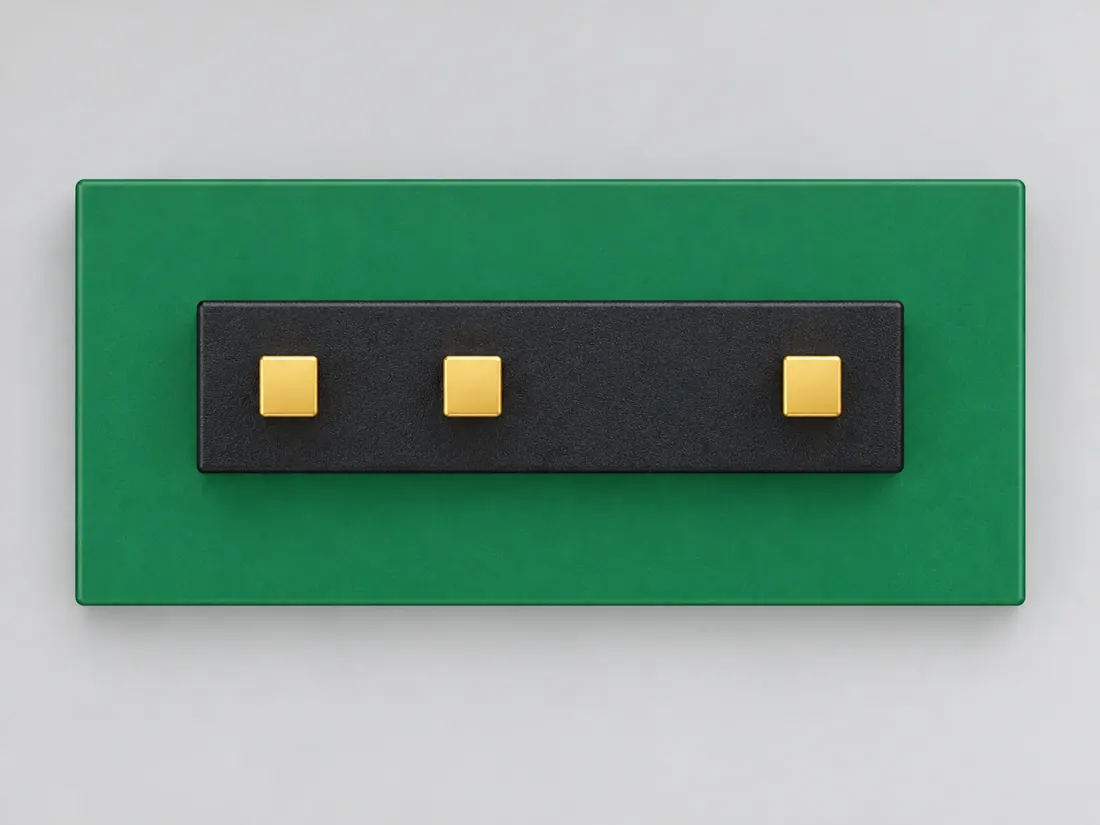

The JRAINBOW diagram intentionally leaves a position absent in its span. Read the manual’s alignment rather than forcing a superficially similar plug. S591
Lighting leads are distinct from the system-fan connection in MSI’s diagram. S591

What this comparison does not establish: MSI warns of damage from connecting the lower-voltage strip to JRGB and requires shutdown/disconnection before changes. S458 · S591

Choose the next check

Match exact board labels and accessory voltage/role, then follow the board maker’s handling instructions.

Report a comparison correction →

At a glance

Source-scoped form facts; counts, variants and unknowns are distinct
Field	12 V four-pin motherboard RGB header (MSI JRGB)	5 V addressable RGB header (MSI JRAINBOW)
Type	Connector	Connector
Family	PC internal	PC internal
Shape	led header	led header
Nominal contacts	4 (MSI JRGB)S458Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval.	3 (MSI JRAINBOW)S458Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval.
Positions / cavity span	4 (Claim C347C); 4 (MSI B550-A PRO JRGB1)S591 · S757Separate exact examples; retain each value’s source, role, axis and part scope. V142: named MSI B550-A PRO manual version 6.0 (2024/02) or explicitly identified Noctua family only. Role/recognition evidence, not generic wiring, safe mating, pinout approval, dimensions or installed-device certification.	4 (Claim C348D); 4 (MSI B550-A PRO four-position span, position 3 absent); 4 (MSI B550-A PRO JRAINBOW1–2)S591 · S757Separate exact examples; retain each value’s source, role, axis and part scope. V142: named MSI B550-A PRO manual version 6.0 (2024/02) or explicitly identified Noctua family only. Role/recognition evidence, not generic wiring, safe mating, pinout approval, dimensions or installed-device certification. Exact named example MSI B550-A PRO JRAINBOW1–2: Device-specific5V addressable RGB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No universalARGBpitch, wire-sideview or specimenmarkings inferred.
Contact rows	1 (MSI B550-A PRO JRGB1)S757Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example MSI B550-A PRO JRGB1: Device-specific12V RGB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No2.54mmpitch inferred. Reference designator in diagram is not evidence of physical specimen markings.	1 (MSI B550-A PRO JRAINBOW1–2)S757Separate exact examples; retain each value’s source, role, axis and part scope. Exact named example MSI B550-A PRO JRAINBOW1–2: Device-specific5V addressable RGB header. Exact example only; no universal geometry, electrical compatibility, fabrication approval or wiring instruction. No universalARGBpitch, wire-sideview or specimenmarkings inferred.
Connector role	header (MSI JRGB)S458Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval.	header (MSI JRAINBOW)S458Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval.
Key distinction	Connecting a five-volt addressable LED accessory to a twelve-volt RGB header can damage the accessory.	Voltage and signaling class are more important than a superficial resemblance between small lighting headers.
