Side by side

Internal USB 2.0 vs HD Audio front-panel headers

Intel’s Thin Mini-ITX examples use different absent-key positions (9 versus 8); a different NUC audio implementation also has another pitch. Never force a 2×5 plug by silhouette.

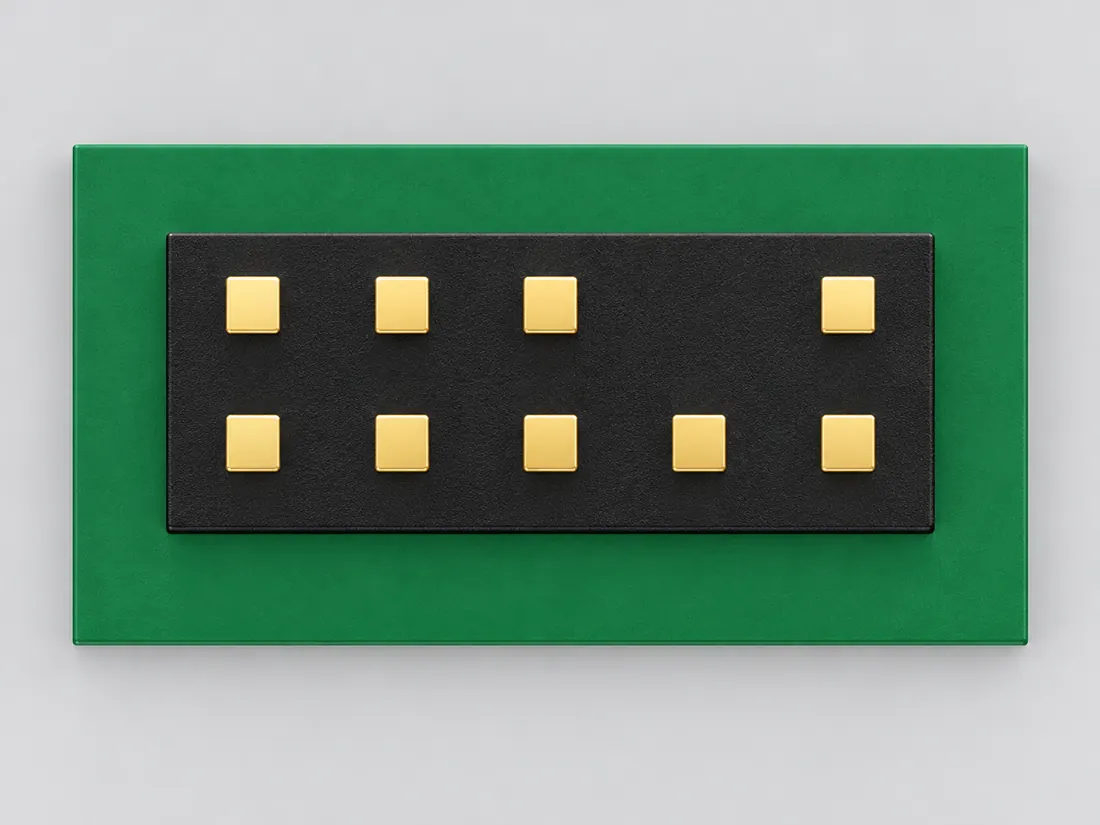

Computer-generated illustration, not a photograph. — P345 · ConnectorInternal USB 2.0 dual-port header — keyed 2×5, pin 9

How they differ

Internal USB 2.0 dual-port header — keyed 2×5, pin 9 Identify the missing key position using the exact board diagram; distinguish this front-panel header from USB 3.0 19-pin and USB Type-C Key-A headers.
HD Audio front-panel header — keyed 2×5 (Intel example) Look for HD_AUDIO or front-audio marking and the motherboard manual’s key location; confirm connector width and pitch rather than guessing.

At a glance

Source-scoped form facts; counts, variants and unknowns are distinct
Field	Internal USB 2.0 dual-port header — keyed 2×5, pin 9	HD Audio front-panel header — keyed 2×5 (Intel example)
Type	Connector	Connector
Family	PC internal	PC internal
Shape	two row header	two row header
Nominal contacts	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Positions / cavity span	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	2 (Source-described array; C345A); 2 (B550-A PRO:JUSB1/JUSB2)S456 · S757Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval. B550-A PRO:JUSB1/JUSB2. Documented role: PCB header. IntelThinMiniITXRev1.2p.24USB2.0separately states2.54mmpitch;thatoldnominalscopeisretained,notremeasuredhere.; No board label,partmanufacturerorUSB/audiointerchangeabilityinferredfromsame2x5outline.	2 (Source-described array; C346A); 2 (Source-described array; C346B); 2 (B550-A PRO:JAUD1)S456 · S457 · S757Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval. B550-A PRO:JAUD1. Documented role: PCB header. IntelThinMiniITXRev1.2p.21frontaudioseparately states2.54mmpitch;thatoldnominalscopeisretained,notremeasuredhere.; No board label,partmanufacturerorUSB/audiointerchangeabilityinferredfromsame2x5outline.
Connector role	PCB header (B550-A PRO:JUSB1/JUSB2)S757Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. B550-A PRO:JUSB1/JUSB2. Documented role: PCB header. IntelThinMiniITXRev1.2p.24USB2.0separately states2.54mmpitch;thatoldnominalscopeisretained,notremeasuredhere.; No board label,partmanufacturerorUSB/audiointerchangeabilityinferredfromsame2x5outline.	PCB header (B550-A PRO:JAUD1)S757Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. B550-A PRO:JAUD1. Documented role: PCB header. IntelThinMiniITXRev1.2p.21frontaudioseparately states2.54mmpitch;thatoldnominalscopeisretained,notremeasuredhere.; No board label,partmanufacturerorUSB/audiointerchangeabilityinferredfromsame2x5outline.
Key distinction	A keyed header silhouette is not enough: Intel also documents a separate internal variant keyed at two positions.	Do not identify an audio header by a 2×5 outline alone; even similarly keyed HD-audio implementations can use different pitches.

Full evidence ledger and sources ↓

Illustrations are computer-generated with prior AI visual review; independent technical and rights review pending. A comparison is not a compatibility verdict.

This comparison stays within one evidence layer.

All selected records are Connector records. Similar layer does not mean compatible, interchangeable or safe to mate.

Families represented: PC internal

The reference ledger

Read the same question across.

2 selected records · 16 fields
No score. No compatibility verdict.

On a narrow screen, scroll the table sideways or open the field-by-field reading view below. Illustrations are not a size comparison.

Read field by field — no sideways scrolling

The same selected records, fields, values and source links as the table. Missing fields remain non-equivalent; no values are merged.

Layer

Internal USB 2.0 dual-port header — keyed 2×5, pin 9P345 / Connector: Connector
HD Audio front-panel header — keyed 2×5 (Intel example)P346 / Connector: Connector

Key distinction

Internal USB 2.0 dual-port header — keyed 2×5, pin 9P345 / Connector: A keyed header silhouette is not enough: Intel also documents a separate internal variant keyed at two positions.
HD Audio front-panel header — keyed 2×5 (Intel example)P346 / Connector: Do not identify an audio header by a 2×5 outline alone; even similarly keyed HD-audio implementations can use different pitches.

Nominal contacts

Internal USB 2.0 dual-port header — keyed 2×5, pin 9P345 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
HD Audio front-panel header — keyed 2×5 (Intel example)P346 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Positions / cavity span

Internal USB 2.0 dual-port header — keyed 2×5, pin 9P345 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
HD Audio front-panel header — keyed 2×5 (Intel example)P346 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Populated contacts

Internal USB 2.0 dual-port header — keyed 2×5, pin 9P345 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
HD Audio front-panel header — keyed 2×5 (Intel example)P346 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Contact rows

Internal USB 2.0 dual-port header — keyed 2×5, pin 9P345 / Connector: 2 (Source-described array; C345A); 2 (B550-A PRO:JUSB1/JUSB2)S456 · S757Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval. B550-A PRO:JUSB1/JUSB2. Documented role: PCB header. IntelThinMiniITXRev1.2p.24USB2.0separately states2.54mmpitch;thatoldnominalscopeisretained,notremeasuredhere.; No board label,partmanufacturerorUSB/audiointerchangeabilityinferredfromsame2x5outline.
HD Audio front-panel header — keyed 2×5 (Intel example)P346 / Connector: 2 (Source-described array; C346A); 2 (Source-described array; C346B); 2 (B550-A PRO:JAUD1)S456 · S457 · S757Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval. B550-A PRO:JAUD1. Documented role: PCB header. IntelThinMiniITXRev1.2p.21frontaudioseparately states2.54mmpitch;thatoldnominalscopeisretained,notremeasuredhere.; No board label,partmanufacturerorUSB/audiointerchangeabilityinferredfromsame2x5outline.

Contact pitch

Internal USB 2.0 dual-port header — keyed 2×5, pin 9P345 / Connector: 2.54 mm Source-described pitch / centerline (Claim C345A)S456Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval.
HD Audio front-panel header — keyed 2×5 (Intel example)P346 / Connector: 2 mm Source-described pitch / centerline (Claim C346B)S457Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval.

Dimensions / axis

Internal USB 2.0 dual-port header — keyed 2×5, pin 9P345 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
HD Audio front-panel header — keyed 2×5 (Intel example)P346 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Connector role

Internal USB 2.0 dual-port header — keyed 2×5, pin 9P345 / Connector: PCB header (B550-A PRO:JUSB1/JUSB2)S757Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. B550-A PRO:JUSB1/JUSB2. Documented role: PCB header. IntelThinMiniITXRev1.2p.24USB2.0separately states2.54mmpitch;thatoldnominalscopeisretained,notremeasuredhere.; No board label,partmanufacturerorUSB/audiointerchangeabilityinferredfromsame2x5outline.
HD Audio front-panel header — keyed 2×5 (Intel example)P346 / Connector: PCB header (B550-A PRO:JAUD1)S757Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. B550-A PRO:JAUD1. Documented role: PCB header. IntelThinMiniITXRev1.2p.21frontaudioseparately states2.54mmpitch;thatoldnominalscopeisretained,notremeasuredhere.; No board label,partmanufacturerorUSB/audiointerchangeabilityinferredfromsame2x5outline.

Coupling / latch

Internal USB 2.0 dual-port header — keyed 2×5, pin 9P345 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
HD Audio front-panel header — keyed 2×5 (Intel example)P346 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Keying / polarization

Internal USB 2.0 dual-port header — keyed 2×5, pin 9P345 / Connector: 10positionoutlinewithpin9absent;pin10NCnotmissing (B550-A PRO:JUSB1/JUSB2)S757Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. B550-A PRO:JUSB1/JUSB2. Documented role: PCB header. IntelThinMiniITXRev1.2p.24USB2.0separately states2.54mmpitch;thatoldnominalscopeisretained,notremeasuredhere.; No board label,partmanufacturerorUSB/audiointerchangeabilityinferredfromsame2x5outline.
HD Audio front-panel header — keyed 2×5 (Intel example)P346 / Connector: 10positionoutlinewithpin8absent;9loadedpositions (B550-A PRO:JAUD1)S757Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. B550-A PRO:JAUD1. Documented role: PCB header. IntelThinMiniITXRev1.2p.21frontaudioseparately states2.54mmpitch;thatoldnominalscopeisretained,notremeasuredhere.; No board label,partmanufacturerorUSB/audiointerchangeabilityinferredfromsame2x5outline.

Source-scoped example

Internal USB 2.0 dual-port header — keyed 2×5, pin 9P345 / Connector: 2×5 footprint, one absent key at pin 9, nominal 2.54 mm (Intel Thin Mini-ITX)C345A
HD Audio front-panel header — keyed 2×5 (Intel example)P346 / Connector: Not an equivalent field

Role and recognition scope

Internal USB 2.0 dual-port header — keyed 2×5, pin 9P345 / Connector: Board header — MSI B550-A PRO JUSB1–2. Original qualitative study only; no wiring or fit approval.C345C · C345D · C345E
HD Audio front-panel header — keyed 2×5 (Intel example)P346 / Connector: Board header — MSI B550-A PRO JAUD1. Original qualitative study only; no wiring or fit approval.C346C · C346D · C346E

Intel Thin Mini-ITX reference

Internal USB 2.0 dual-port header — keyed 2×5, pin 9P345 / Connector: Not an equivalent field
HD Audio front-panel header — keyed 2×5 (Intel example)P346 / Connector: 2×5, key at position 8, 2.54 mm nominal pitch in that design guideC346A

NUC counterexample

Internal USB 2.0 dual-port header — keyed 2×5, pin 9P345 / Connector: Not an equivalent field
HD Audio front-panel header — keyed 2×5 (Intel example)P346 / Connector: 2×5, key at position 8, 2.0 mm nominal pitch in an Intel NUC 9 documentC346B

Evidence

Internal USB 2.0 dual-port header — keyed 2×5, pin 9P345 / Connector: C345A,C345B,C345C,C345D,C345E →
Independent review pending
HD Audio front-panel header — keyed 2×5 (Intel example)P346 / Connector: C346A,C346B,C346C,C346D,C346E →
Independent review pending

Your next step

Use the distinction in context.

Open the field notes Read source-linked facts and limitations.Compare another pair Start from a common confusion.Check a connection A comparison is not a compatibility verdict.

Continue the distinction

Compare next

Browse every comparison →

12 V RGB vs 5 V ARGB motherboard lighting headersOn MSI’s documented boards, JRGB is 12 V/4-pin and JRAINBOW is 5 V/3-pin. Connecting a 5 V strip to the 12 V header can cause hardware damage.3-pin vs 4-pin PC fan connectorsThe fourth contact is normally PWM control on the documented fan type, but header modes differ. Verify the exact fan, board rating and fan-control mode; do not infer automatic speed regulation.BNC vs TNC coaxial connectorsBNC uses bayonet coupling while TNC uses threaded coupling. Connector family, impedance and application still need to be verified independently.DisplayPort connector vs DisplayPort 2.1The full-size DisplayPort connector does not identify the implemented DisplayPort generation, link rate or optional features.DisplayPort vs Mini DisplayPortFull-size DisplayPort and Mini DisplayPort are different physical forms. Mini DisplayPort shape also appeared on Thunderbolt 1/2 products, so function still needs device evidence.DVI-D dual-link vs DVI-I dual-linkDVI-D and DVI-I use related shells but have different contact arrangements. The analog-contact area is a key physical distinction.

Adjust this comparison

Add a field note

Evidence behind this page

Scope first. Source second. Approval separate.

3 linked sources · 10 scoped claims · 0 sources with inspection/access flags.

Page scope: Evidence behind the compared records; the editorial comparison still needs separate review.

Assessment 2026-10-22 · earliest scheduled source review 2027-01-07. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 3 source scopes, access limits and dates

S456 · Thin Mini-ITX Based PC System Design Guide, Revision 1.2

Intel · Manufacturer / product-owner domain · inspected 2026-10-09 · due 2027-01-07

Within inspection window

Scoped support: Explicit Intel Thin Mini-ITX examples, both documented as nominal 2.54 mm headers; not universal to all motherboards.

Not established / limitations: Original paraphrase of figures inspected visually. No Intel diagrams, pinout tables or copyrighted screenshots redistributed.

Locator: PDF page 21, §2.3.1 Fig 2-5 HD Audio 2x5 key at pin 8; page 24, §2.5.1 Fig 2-8 dual USB 2x5 key at pin 9; p25 alternate double-key variant

S457 · Intel NUC 9 Extreme/Pro Technical Product Specification

Intel · Manufacturer / product-owner domain · inspected 2026-10-09 · due 2027-01-07

Within inspection window

Scoped support: Counterexample: similar HD-audio keyed header can differ in nominal pitch by device family.

Not established / limitations: NUC 9 specific; not a basis for wiring arbitrary HD Audio headers or merging footprint types.

Locator: PDF page 28, §2.15.1 A — 2x5 audio header, 2.0mm pitch, pin 8 key

S591 · MSI B550-A PRO User Guide, version 6.0 (2024/02)

MSI · Unclassified publisher domain · inspected 2026-10-13 · due 2027-01-11

Within inspection window

Scoped support: Named B550-A PRO board header identities, diagram-level contact/key arrangements, control modes and RGB mismatch warnings.

Not established / limitations: Observed document is not a real-hardware inspection, installed-device approval, wiring guide, current revision guarantee or manufacturing specification.

Locator: PDF pp.33, 36–38, 40–41; p.59 / printed ix revision history. Source diagrams visually inspected at zero-based pages 32,35,36,37,39,40,58.

Trace 10 claims to their source records

C345A · P345

Intel’s Thin Mini-ITX design guide specifies a front-panel dual USB 2.0 2×5 header at 2.54 mm pitch, keyed by absent pin 9.

Claim scope: Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval.

Source links: S456 · Evidence trail → (private workspace)

C345B · P345

The same guide separately documents a dual internal USB 2.0 variant keyed at both positions 9 and 10; the keying must be identified explicitly.

Claim scope: Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval.

Source links: S456 · Evidence trail → (private workspace)

C345C · P345

B550-A PRO assigns JUSB1–2 to front-panel USB 2.0 ports, separately from JUSB3 and JUSB4.

Claim scope: V142: named MSI B550-A PRO manual version 6.0 (2024/02) or explicitly identified Noctua family only. Role/recognition evidence, not generic wiring, safe mating, pinout approval, dimensions or installed-device certification.

Source links: S591 · Evidence trail → (private workspace)

C345D · P345

Its JUSB1–2 table distinguishes absent position 9 from present but unconnected position 10.

Source links: S591 · Evidence trail → (private workspace)

C345E · P345

MSI warns that incorrect USB-header power/ground connections can damage equipment.

Source links: S591 · Evidence trail → (private workspace)

C346A · P346

Intel’s Thin Mini-ITX front-panel audio figure documents a 2×5, 2.54 mm header with position 8 absent.

Claim scope: Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval.

Source links: S456 · Evidence trail → (private workspace)

C346B · P346

Intel NUC 9 documentation separately specifies a similar 2×5 audio header with the same position 8 absent but a 2.0 mm pitch: the exact platform matters.

Claim scope: Manufacturer-specific family/physical identification only. No inferred device wiring, mating verification or installation approval.

Source links: S457 · Evidence trail → (private workspace)

C346C · P346

B550-A PRO identifies JAUD1 as the front-panel audio-jack connector.

Source links: S591 · Evidence trail → (private workspace)

C346D · P346

JAUD1’s table distinguishes absent position 8 from unconnected position 4.

Source links: S591 · Evidence trail → (private workspace)

C346E · P346

The JAUD1 table includes microphone/headphone detection functions; it is not a USB signal table.

Source links: S591 · Evidence trail → (private workspace)
