Side by side

OSFP versus QSFP-DD host forms

Which pluggable-I/O host form does the equipment documentation identify?

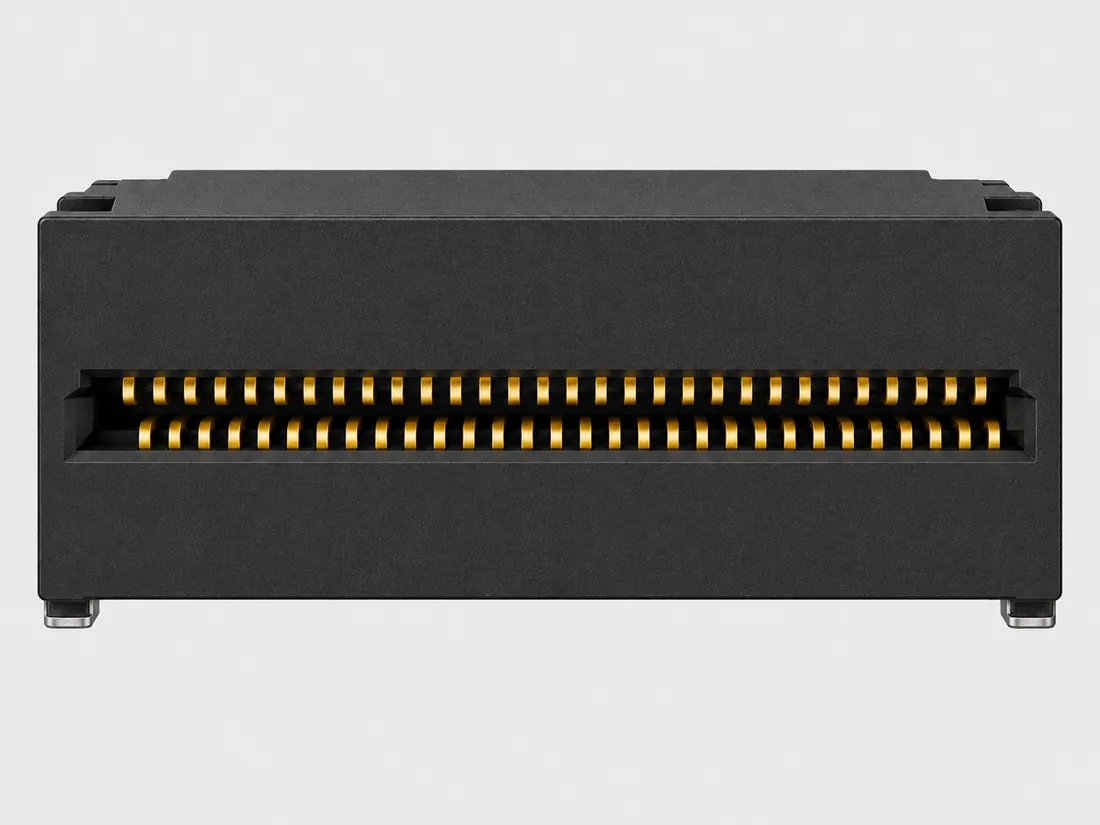

Computer-generated illustration, not a photograph. — P221 · ConnectorOSFP host connector form

QSFP-DD host connector / cage form: original recognition drawing, not to scale — P202 · ConnectorQSFP-DD host connector / cage form

How they differ

OSFP host connector form Use cage width, module labeling and host documentation to distinguish OSFP from QSFP-family cages.
QSFP-DD host connector / cage form Confirm the exact host cage, module standard, firmware/vendor support and media before treating a module as compatible.

Then askWhich pluggable-I/O host form does the equipment documentation identify?

At a glance

Source-scoped form facts; counts, variants and unknowns are distinct
Field	OSFP host connector form	QSFP-DD host connector / cage form
Type	Connector	Connector
Family	Pluggable I/O	Pluggable I/O
Shape	rectangular	card edge
Nominal contacts	60S226Source-backed nominal position count: 60.	76S205 · S219QSFP-DD host receptacle; nominal engineering count, not automatically positions, population or a device wiring map. QSFP-DD host receptacle
Positions / cavity span	60 (Claim C221A); 60 (Claim C221B)S226 · S246Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V39 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof. V40 engineering-reference fact only; independent human review remains pending. This claim does not approve fabrication, rewiring, substitution, electrical safety, protocol support or end-to-end compatibility.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	1 (Molex2139120022)S992Qualified exact source facts only; counterpart, mounting-acceptance, cable, port, termination and assembly context remains separately labelled in variant_notes. Exact Molex2139120022 OSFP female right-angle SMT connector; not a cage port matrix, genericOSFP assignment or reconstructed face. Quantity context: Manufacturer Number Of Rows property.	1 (Molex2027180103)S219Qualified exact source facts only; counterpart, mounting-acceptance, cable, port, termination and assembly context remains separately labelled in variant_notes. Exact Molex2027180103 QSFP-DD host connector; manufacturer row metadata only, not the2x1 Amphenol cage/port matrix or a reconstructed face layout. Quantity context: Manufacturer Number Of Rows property.
Connector role	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	socket; socket (2027180103)S205 · S219 · S219Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. QSFP-DD host receptacle 2027180103. Documented role: socket. Manufacturer page lists1row for exact part, while existing form representation uses2rows. Do not overwrite row semantics without drawing comparison.; 76loaded circuits; right-angle SMT.
Key distinction	OSFP is a host/module form factor; the installed module and system documentation determine the actual network technology and rate.	A QSFP-DD cage outline is not a guarantee that any given module, link rate or breakout mode is supported.

Full evidence ledger and sources ↓

Illustrations are computer-generated with prior AI visual review; independent technical and rights review pending. A comparison is not a compatibility verdict.

This comparison stays within one evidence layer.

All selected records are Connector records. Similar layer does not mean compatible, interchangeable or safe to mate.

Families represented: Pluggable I/O

The reference ledger

Read the same question across.

2 selected records · 13 fields
No score. No compatibility verdict.

On a narrow screen, scroll the table sideways or open the field-by-field reading view below. Illustrations are not a size comparison.

Comparison of selected field notes; source links accompany each documented specification
What you are comparing	P221 / ConnectorOSFP host connector form Identification schematic · not to scale · drawing review pending	P202 / ConnectorQSFP-DD host connector / cage form Identification schematic · not to scale · drawing review pending
Layer	Connector	Connector
Key distinction	OSFP is a host/module form factor; the installed module and system documentation determine the actual network technology and rate.	A QSFP-DD cage outline is not a guarantee that any given module, link rate or breakout mode is supported.
Nominal contacts	60S226Source-backed nominal position count: 60.	76S205 · S219QSFP-DD host receptacle; nominal engineering count, not automatically positions, population or a device wiring map. QSFP-DD host receptacle
Positions / cavity span	60 (Claim C221A); 60 (Claim C221B)S226 · S246Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V39 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof. V40 engineering-reference fact only; independent human review remains pending. This claim does not approve fabrication, rewiring, substitution, electrical safety, protocol support or end-to-end compatibility.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Populated contacts	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	1 (Molex2139120022)S992Qualified exact source facts only; counterpart, mounting-acceptance, cable, port, termination and assembly context remains separately labelled in variant_notes. Exact Molex2139120022 OSFP female right-angle SMT connector; not a cage port matrix, genericOSFP assignment or reconstructed face. Quantity context: Manufacturer Number Of Rows property.	1 (Molex2027180103)S219Qualified exact source facts only; counterpart, mounting-acceptance, cable, port, termination and assembly context remains separately labelled in variant_notes. Exact Molex2027180103 QSFP-DD host connector; manufacturer row metadata only, not the2x1 Amphenol cage/port matrix or a reconstructed face layout. Quantity context: Manufacturer Number Of Rows property.
Contact pitch	0.6 mm Example connector centerline / pitch (Recorded example component); 0.6 mm Source-described pitch / centerline (Claim C221B); 0.6 mm centerline (2324869-1)S246 · S246Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. example_component; OSFP host connector example V40 engineering-reference fact only; independent human review remains pending. This claim does not approve fabrication, rewiring, substitution, electrical safety, protocol support or end-to-end compatibility. 2324869-1. Documented role: socket. Page establishes SMT host connector and60positions; no new row count, face dimension or keying shape inferred. Existing profile is retained.	0.8 mm Example mating-interface pitch (Recorded example component); 0.8 mm mating interface (2027180103)S219 · S219Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. example_component; QSFP-DD host receptacle 2027180103. Documented role: socket. Manufacturer page lists1row for exact part, while existing form representation uses2rows. Do not overwrite row semantics without drawing comparison.; 76loaded circuits; right-angle SMT.
Dimensions / axis	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector role	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	socket; socket (2027180103)S205 · S219 · S219Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. QSFP-DD host receptacle 2027180103. Documented role: socket. Manufacturer page lists1row for exact part, while existing form representation uses2rows. Do not overwrite row semantics without drawing comparison.; 76loaded circuits; right-angle SMT.
Coupling / latch	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Keying / polarization	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Polarized to mating part and PCB; keying and mating lock:no per catalog (2027180103)S219Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 2027180103. Documented role: socket. Manufacturer page lists1row for exact part, while existing form representation uses2rows. Do not overwrite row semantics without drawing comparison.; 76loaded circuits; right-angle SMT.
Documented identification	OSFP 60-position host interconnect form.C221A	QSFP-DD form-factor identification only; no performance claim.C202A
Evidence	C221A,C221W → Independent review pending	C202A,C202C,C202W → Independent review pending

Read field by field — no sideways scrolling

The same selected records, fields, values and source links as the table. Missing fields remain non-equivalent; no values are merged.

Layer

OSFP host connector formP221 / Connector: Connector
QSFP-DD host connector / cage formP202 / Connector: Connector

Key distinction

OSFP host connector formP221 / Connector: OSFP is a host/module form factor; the installed module and system documentation determine the actual network technology and rate.
QSFP-DD host connector / cage formP202 / Connector: A QSFP-DD cage outline is not a guarantee that any given module, link rate or breakout mode is supported.

Nominal contacts

OSFP host connector formP221 / Connector: 60S226Source-backed nominal position count: 60.
QSFP-DD host connector / cage formP202 / Connector: 76S205 · S219QSFP-DD host receptacle; nominal engineering count, not automatically positions, population or a device wiring map. QSFP-DD host receptacle

Positions / cavity span

OSFP host connector formP221 / Connector: 60 (Claim C221A); 60 (Claim C221B)S226 · S246Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V39 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof. V40 engineering-reference fact only; independent human review remains pending. This claim does not approve fabrication, rewiring, substitution, electrical safety, protocol support or end-to-end compatibility.
QSFP-DD host connector / cage formP202 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Populated contacts

OSFP host connector formP221 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
QSFP-DD host connector / cage formP202 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Contact rows

OSFP host connector formP221 / Connector: 1 (Molex2139120022)S992Qualified exact source facts only; counterpart, mounting-acceptance, cable, port, termination and assembly context remains separately labelled in variant_notes. Exact Molex2139120022 OSFP female right-angle SMT connector; not a cage port matrix, genericOSFP assignment or reconstructed face. Quantity context: Manufacturer Number Of Rows property.
QSFP-DD host connector / cage formP202 / Connector: 1 (Molex2027180103)S219Qualified exact source facts only; counterpart, mounting-acceptance, cable, port, termination and assembly context remains separately labelled in variant_notes. Exact Molex2027180103 QSFP-DD host connector; manufacturer row metadata only, not the2x1 Amphenol cage/port matrix or a reconstructed face layout. Quantity context: Manufacturer Number Of Rows property.

Contact pitch

OSFP host connector formP221 / Connector: 0.6 mm Example connector centerline / pitch (Recorded example component); 0.6 mm Source-described pitch / centerline (Claim C221B); 0.6 mm centerline (2324869-1)S246 · S246Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. example_component; OSFP host connector example V40 engineering-reference fact only; independent human review remains pending. This claim does not approve fabrication, rewiring, substitution, electrical safety, protocol support or end-to-end compatibility. 2324869-1. Documented role: socket. Page establishes SMT host connector and60positions; no new row count, face dimension or keying shape inferred. Existing profile is retained.
QSFP-DD host connector / cage formP202 / Connector: 0.8 mm Example mating-interface pitch (Recorded example component); 0.8 mm mating interface (2027180103)S219 · S219Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. example_component; QSFP-DD host receptacle 2027180103. Documented role: socket. Manufacturer page lists1row for exact part, while existing form representation uses2rows. Do not overwrite row semantics without drawing comparison.; 76loaded circuits; right-angle SMT.

Dimensions / axis

OSFP host connector formP221 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
QSFP-DD host connector / cage formP202 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Connector role

OSFP host connector formP221 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
QSFP-DD host connector / cage formP202 / Connector: socket; socket (2027180103)S205 · S219 · S219Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. QSFP-DD host receptacle 2027180103. Documented role: socket. Manufacturer page lists1row for exact part, while existing form representation uses2rows. Do not overwrite row semantics without drawing comparison.; 76loaded circuits; right-angle SMT.

Coupling / latch

OSFP host connector formP221 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
QSFP-DD host connector / cage formP202 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Keying / polarization

OSFP host connector formP221 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
QSFP-DD host connector / cage formP202 / Connector: Polarized to mating part and PCB; keying and mating lock:no per catalog (2027180103)S219Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 2027180103. Documented role: socket. Manufacturer page lists1row for exact part, while existing form representation uses2rows. Do not overwrite row semantics without drawing comparison.; 76loaded circuits; right-angle SMT.

Documented identification

OSFP host connector formP221 / Connector: OSFP 60-position host interconnect form.C221A
QSFP-DD host connector / cage formP202 / Connector: QSFP-DD form-factor identification only; no performance claim.C202A

Evidence

OSFP host connector formP221 / Connector: C221A,C221W →
Independent review pending
QSFP-DD host connector / cage formP202 / Connector: C202A,C202C,C202W →
Independent review pending

Your next step

Use the distinction in context.

Open the field notes Read source-linked facts and limitations.Compare another pair Start from a common confusion.Check a connection A comparison is not a compatibility verdict.

Continue the distinction

Compare next

Browse every comparison →

SFP versus QSFP-family pluggable I/OWhich host cage and module family is documented? Form factor does not establish link capability.CFP2 versus CFP4 host formsIs the pluggable host connector the 104-position CFP2 form or the 56-position CFP4 form? Connector-family identity is only the first layer; implementation-specific electrical and protocol requirements still need exact documentation.BNC vs TNC coaxial connectorsBNC uses bayonet coupling while TNC uses threaded coupling. Connector family, impedance and application still need to be verified independently.DisplayPort connector vs DisplayPort 2.1The full-size DisplayPort connector does not identify the implemented DisplayPort generation, link rate or optional features.DisplayPort vs Mini DisplayPortFull-size DisplayPort and Mini DisplayPort are different physical forms. Mini DisplayPort shape also appeared on Thunderbolt 1/2 products, so function still needs device evidence.DVI-D dual-link vs DVI-I dual-linkDVI-D and DVI-I use related shells but have different contact arrangements. The analog-contact area is a key physical distinction.

Adjust this comparison

Add a field note

Evidence behind this page

Scope first. Source second. Approval separate.

5 linked sources · 5 scoped claims · 0 sources with inspection/access flags.

Page scope: Evidence behind the compared records; the editorial comparison still needs separate review.

Assessment 2026-10-22 · earliest scheduled source review 2027-01-03. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 5 source scopes, access limits and dates

S205 · ExtremePort QSFP-DD 112G product

Amphenol Communications Solutions · Manufacturer / product-owner domain · inspected 2026-10-05 · due 2027-01-03

Within inspection window

Scoped support: Identifies a QSFP-DD host connector/cage product family; V36 uses the page only to establish the form-factor family, not channel performance.

Not established / limitations: Identification/reference scope only. V36 does not convert this source into a universal pinout, fabrication drawing, electrical approval or end-to-end compatibility verdict.

Locator: QSFP-DD product identification

S219 · 2027180103 QSFP-DD 76-circuit host connector

Molex · Manufacturer / product-owner domain · inspected 2026-10-05 · due 2027-01-03

Within inspection window

Scoped support: Example-component engineering source documenting a QSFP-DD host receptacle with 76 circuits and 0.80 mm mating-interface pitch.

Not established / limitations: Example-component geometry only. V37 does not infer the full QSFP-DD pad assignment, lane map or fabrication tolerances from this product page.

Locator: Product description and physical fields

S226 · High Speed I/O connector selector — OSFP

Amphenol Communications Solutions · Manufacturer / product-owner domain · inspected 2026-10-05 · due 2027-01-03

Within inspection window

Scoped support: Identifies the OSFP host interconnect as a 60-position, 0.6 mm-pitch form with eight high-speed channels; V39 uses only form-factor identity and position count.

Not established / limitations: Identification/reference scope only. V39 does not convert this source into a universal pinout, fabrication drawing, electrical approval, protocol guarantee or end-to-end compatibility verdict.

Locator: OSFP sections

S509 · Amphenol V36-BAZ17-205E11A — specific QSFP-DD cage assembly

Amphenol Communications Solutions · Manufacturer / product-owner domain · inspected 2026-10-11 · due 2027-01-09

Within inspection window

Scoped support: Exact cage assembly description, not a complete optical transceiver or supported host/module list. Page image may not depict exact part; no physical study is derived from it.

Not established / limitations: Exact cage assembly description, not a complete optical transceiver or supported host/module list. Page image may not depict exact part; no physical study is derived from it. No raw HTML or manufacturer image archive is represented as retained.

Locator: Part title and product description: 2x1 long cage for anchor-pin SMT connector, light pipes and heatsink

S992 · 2139120022 OSFP connector full physical specifications and213912 series chart

Molex · Manufacturer / product-owner domain · inspected 2026-10-22 · due 2027-01-20

Within inspection window

Scoped support: Exact2139120022 female right-angle SMT OSFP host connector only. NumberOfRows is manufacturer metadata, not a reconstructed numbered mating-face map.

Not established / limitations: Exact-part page warns limited information/not formally published to online part catalog. No exact drawing pixels, dimensions, pin assignments or universal OSFP performance established.

Locator: Full ExportSpreadsheet, exact2139120022 row; official exactpart page https://www.molex.com/en-us/products/part-detail/2139120022 PhysicalSpecifications.

Trace 5 claims to their source records

C202A · P202

Amphenol identifies the cited ExtremePort product as a QSFP-DD host connector/cage form.

Claim scope: V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof.

Source links: S205 · Evidence trail → (private workspace)

C202C · P202

Amphenol identifies V36-BAZ17-205E11A as a QSFP-DD 2x1 long cage assembly for an anchor-pin SMT connector, with light pipes and a heatsink. The cited part is not a complete optical transceiver or proof of host support.

Claim scope: V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.

Source links: S509 · Evidence trail → (private workspace)

C202W · P202

Molex2027180103 lists76loadedcircuits, manufacturer NumberOfRows1,0.80mm mating pitch, right-angle surface mounting, copper-alloy contacts and high-temperature thermoplastic housing. The one-row property belongs to this connector, separate from cage port counts.

Claim scope: Exact named manufacturer QSFP-DD connector only; limited-information notice retained. No face layout, signal map, installed-system capability or universal row convention inferred.

Source links: S219 · Evidence trail → (private workspace)

C221A · P221

Amphenol identifies OSFP as a 60-position host interconnect form in its high-speed I/O portfolio.

Claim scope: V39 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof.

Source links: S226 · Evidence trail → (private workspace)

C221W · P221

Molex2139120022 is an OSFP female right-angle surface-mount connector with60loadedcircuits, manufacturer NumberOfRows1,0.60mm mating pitch, copper-alloy contacts with gold mating plating and a high-temperature thermoplastic housing.

Claim scope: Exact named manufacturer component; property metadata does not establish numbered face layout, device support or a universal OSFP specification.

Source links: S992 · Evidence trail → (private workspace)

Prepare this page for review →Read the evidence method →

Recorded evidence only. An inspection date, publisher label, source link or generated packet is not independent technical review, hardware testing, fabrication approval or a compatibility verdict.
