Side by side

SFP versus QSFP-family pluggable I/O

Which host cage and module family is documented? Form factor does not establish link capability.

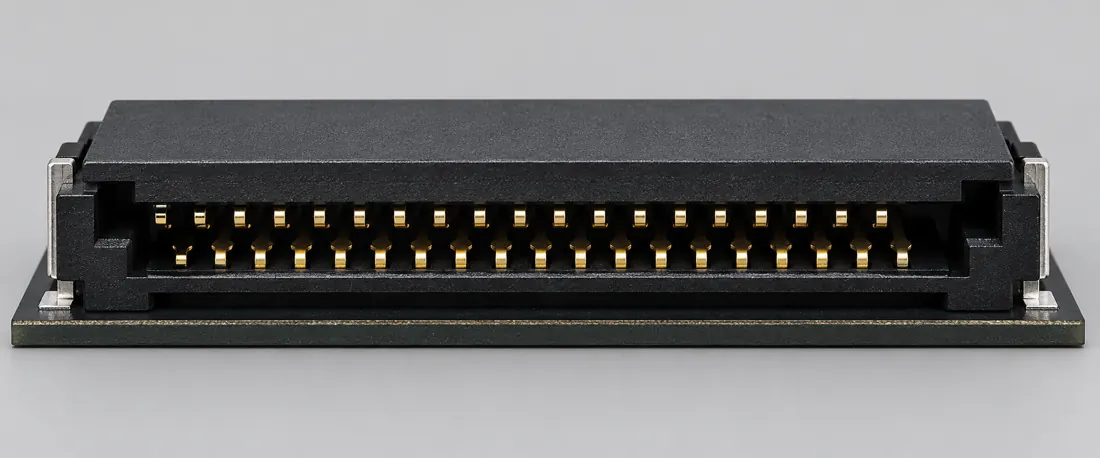

Computer-generated illustration, not a photograph. — P200 · ConnectorSFP / SFP+ / SFP28 host connector form

QSFP-DD host connector / cage form: original recognition drawing, not to scale — P202 · ConnectorQSFP-DD host connector / cage form

How they differ

SFP / SFP+ / SFP28 host connector form Identify the host cage and exact module standard separately, including speed, media and vendor/device support.
QSFP+ host connector form Read the exact host and transceiver specifications; use the connector form only as the first identification step.
QSFP-DD host connector / cage form Confirm the exact host cage, module standard, firmware/vendor support and media before treating a module as compatible.

At a glance

Source-scoped form facts; counts, variants and unknowns are distinct
Field	SFP / SFP+ / SFP28 host connector form	QSFP+ host connector form	QSFP-DD host connector / cage form
Type	Connector	Connector	Connector
Family	Pluggable I/O	Pluggable I/O	Pluggable I/O
Shape	card edge	card edge	card edge
Nominal contacts	20S203Source-backed host-connector position count; module electrical assignments are outside V36.	38S204Source-backed host-connector position count; no V36 channel or pin assignment.	76S205 · S219QSFP-DD host receptacle; nominal engineering count, not automatically positions, population or a device wiring map. QSFP-DD host receptacle
Positions / cavity span	20 (Claim C200A); 20 (Claim C200C)S203 · S507Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof. V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.	38 (Claim C201A); 38 (Claim C201B); 38 (Claim C201C)S204 · S218 · S508Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof. V37 engineering-depth sidecar fact; source-checked but not independently human-approved, not a fabrication drawing, and not a safe-substitution or repair instruction. V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	2 (Claim C200B); 2 (0744410010)S217 · S217Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Molex product 744410010 documents an SFP/SFP+ host receptacle with 20 loaded circuits, two rows, right-angle orientation and 0.80 mm mating-interface pitch. \| V37 engineering-depth sidecar fact; source-checked but not independently human-approved, not a fabrication drawing, and not a safe-substitution or repair instruction. 0744410010. Documented role: socket. 20loaded contacts; exact right-angle SMT part. No shape-based throughput approval.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	1 (Molex2027180103)S219Qualified exact source facts only; counterpart, mounting-acceptance, cable, port, termination and assembly context remains separately labelled in variant_notes. Exact Molex2027180103 QSFP-DD host connector; manufacturer row metadata only, not the2x1 Amphenol cage/port matrix or a reconstructed face layout. Quantity context: Manufacturer Number Of Rows property.
Connector role	socket; socket (0744410010)S203 · S217 · S217Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. SFP/SFP+/SFP28 host receptacle 0744410010. Documented role: socket. 20loaded contacts; exact right-angle SMT part. No shape-based throughput approval.	socket (1761987-9)S218Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 1761987-9. Documented role: socket. 38positions,SMT; recommendedPCB1.45mm is not connector geometry. Row count not present.	socket; socket (2027180103)S205 · S219 · S219Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. QSFP-DD host receptacle 2027180103. Documented role: socket. Manufacturer page lists1row for exact part, while existing form representation uses2rows. Do not overwrite row semantics without drawing comparison.; 76loaded circuits; right-angle SMT.
Key distinction	The same physical module family can carry different electrical/optical standards; form factor alone does not establish link capability.	A QSFP-family cage does not by itself establish Ethernet generation, optics, copper reach or module support.	A QSFP-DD cage outline is not a guarantee that any given module, link rate or breakout mode is supported.

Full evidence ledger and sources ↓

Illustrations are computer-generated with prior AI visual review; independent technical and rights review pending. A comparison is not a compatibility verdict.

This comparison stays within one evidence layer.

All selected records are Connector records. Similar layer does not mean compatible, interchangeable or safe to mate.

Families represented: Pluggable I/O

The reference ledger

Read the same question across.

3 selected records · 13 fields
No score. No compatibility verdict.

On a narrow screen, scroll the table sideways or open the field-by-field reading view below. Illustrations are not a size comparison.

Comparison of selected field notes; source links accompany each documented specification
What you are comparing	P200 / ConnectorSFP / SFP+ / SFP28 host connector form Identification schematic · not to scale · drawing review pending	P201 / ConnectorQSFP+ host connector form Identification schematic · not to scale · drawing review pending	P202 / ConnectorQSFP-DD host connector / cage form Identification schematic · not to scale · drawing review pending
Layer	Connector	Connector	Connector
Key distinction	The same physical module family can carry different electrical/optical standards; form factor alone does not establish link capability.	A QSFP-family cage does not by itself establish Ethernet generation, optics, copper reach or module support.	A QSFP-DD cage outline is not a guarantee that any given module, link rate or breakout mode is supported.
Nominal contacts	20S203Source-backed host-connector position count; module electrical assignments are outside V36.	38S204Source-backed host-connector position count; no V36 channel or pin assignment.	76S205 · S219QSFP-DD host receptacle; nominal engineering count, not automatically positions, population or a device wiring map. QSFP-DD host receptacle
Positions / cavity span	20 (Claim C200A); 20 (Claim C200C)S203 · S507Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof. V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.	38 (Claim C201A); 38 (Claim C201B); 38 (Claim C201C)S204 · S218 · S508Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof. V37 engineering-depth sidecar fact; source-checked but not independently human-approved, not a fabrication drawing, and not a safe-substitution or repair instruction. V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Populated contacts	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	2 (Claim C200B); 2 (0744410010)S217 · S217Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Molex product 744410010 documents an SFP/SFP+ host receptacle with 20 loaded circuits, two rows, right-angle orientation and 0.80 mm mating-interface pitch. \| V37 engineering-depth sidecar fact; source-checked but not independently human-approved, not a fabrication drawing, and not a safe-substitution or repair instruction. 0744410010. Documented role: socket. 20loaded contacts; exact right-angle SMT part. No shape-based throughput approval.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	1 (Molex2027180103)S219Qualified exact source facts only; counterpart, mounting-acceptance, cable, port, termination and assembly context remains separately labelled in variant_notes. Exact Molex2027180103 QSFP-DD host connector; manufacturer row metadata only, not the2x1 Amphenol cage/port matrix or a reconstructed face layout. Quantity context: Manufacturer Number Of Rows property.
Contact pitch	0.8 mm Example mating-interface pitch (Recorded example component); 0.8 mm mating interface (0744410010)S217 · S217Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. example_component; SFP/SFP+/SFP28 host receptacle 0744410010. Documented role: socket. 20loaded contacts; exact right-angle SMT part. No shape-based throughput approval.	0.8 mm Example connector centerline / pitch (Recorded example component); 0.8 mm Source-described pitch / centerline (Claim C201B); 0.8 mm centerline (1761987-9)S218 · S218Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. example_component; QSFP+ host connector V37 engineering-depth sidecar fact; source-checked but not independently human-approved, not a fabrication drawing, and not a safe-substitution or repair instruction. 1761987-9. Documented role: socket. 38positions,SMT; recommendedPCB1.45mm is not connector geometry. Row count not present.	0.8 mm Example mating-interface pitch (Recorded example component); 0.8 mm mating interface (2027180103)S219 · S219Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. example_component; QSFP-DD host receptacle 2027180103. Documented role: socket. Manufacturer page lists1row for exact part, while existing form representation uses2rows. Do not overwrite row semantics without drawing comparison.; 76loaded circuits; right-angle SMT.
Dimensions / axis	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector role	socket; socket (0744410010)S203 · S217 · S217Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. SFP/SFP+/SFP28 host receptacle 0744410010. Documented role: socket. 20loaded contacts; exact right-angle SMT part. No shape-based throughput approval.	socket (1761987-9)S218Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 1761987-9. Documented role: socket. 38positions,SMT; recommendedPCB1.45mm is not connector geometry. Row count not present.	socket; socket (2027180103)S205 · S219 · S219Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. QSFP-DD host receptacle 2027180103. Documented role: socket. Manufacturer page lists1row for exact part, while existing form representation uses2rows. Do not overwrite row semantics without drawing comparison.; 76loaded circuits; right-angle SMT.
Coupling / latch	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Keying / polarization	Keyed/polarized/locked to mating part; PCB locator and retention (0744410010)S217Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 0744410010. Documented role: socket. 20loaded contacts; exact right-angle SMT part. No shape-based throughput approval.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Polarized to mating part and PCB; keying and mating lock:no per catalog (2027180103)S219Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 2027180103. Documented role: socket. Manufacturer page lists1row for exact part, while existing form representation uses2rows. Do not overwrite row semantics without drawing comparison.; 76loaded circuits; right-angle SMT.
Documented identification	20-position SFP-family host connector form.C200A	38-position QSFP+ host connector form.C201A	QSFP-DD form-factor identification only; no performance claim.C202A
Evidence	C200A,C200C,C200D → Independent review pending	C201A,C201C → Independent review pending	C202A,C202C,C202W → Independent review pending

Read field by field — no sideways scrolling

The same selected records, fields, values and source links as the table. Missing fields remain non-equivalent; no values are merged.

Layer

SFP / SFP+ / SFP28 host connector formP200 / Connector: Connector
QSFP+ host connector formP201 / Connector: Connector
QSFP-DD host connector / cage formP202 / Connector: Connector

Key distinction

SFP / SFP+ / SFP28 host connector formP200 / Connector: The same physical module family can carry different electrical/optical standards; form factor alone does not establish link capability.
QSFP+ host connector formP201 / Connector: A QSFP-family cage does not by itself establish Ethernet generation, optics, copper reach or module support.
QSFP-DD host connector / cage formP202 / Connector: A QSFP-DD cage outline is not a guarantee that any given module, link rate or breakout mode is supported.

Nominal contacts

SFP / SFP+ / SFP28 host connector formP200 / Connector: 20S203Source-backed host-connector position count; module electrical assignments are outside V36.
QSFP+ host connector formP201 / Connector: 38S204Source-backed host-connector position count; no V36 channel or pin assignment.
QSFP-DD host connector / cage formP202 / Connector: 76S205 · S219QSFP-DD host receptacle; nominal engineering count, not automatically positions, population or a device wiring map. QSFP-DD host receptacle

Positions / cavity span

SFP / SFP+ / SFP28 host connector formP200 / Connector: 20 (Claim C200A); 20 (Claim C200C)S203 · S507Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof. V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.
QSFP+ host connector formP201 / Connector: 38 (Claim C201A); 38 (Claim C201B); 38 (Claim C201C)S204 · S218 · S508Recorded source-scoped values; named examples do not describe every family variant or establish compatibility. V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof. V37 engineering-depth sidecar fact; source-checked but not independently human-approved, not a fabrication drawing, and not a safe-substitution or repair instruction. V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.
QSFP-DD host connector / cage formP202 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Populated contacts

SFP / SFP+ / SFP28 host connector formP200 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
QSFP+ host connector formP201 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
QSFP-DD host connector / cage formP202 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Contact rows

SFP / SFP+ / SFP28 host connector formP200 / Connector: 2 (Claim C200B); 2 (0744410010)S217 · S217Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Molex product 744410010 documents an SFP/SFP+ host receptacle with 20 loaded circuits, two rows, right-angle orientation and 0.80 mm mating-interface pitch. | V37 engineering-depth sidecar fact; source-checked but not independently human-approved, not a fabrication drawing, and not a safe-substitution or repair instruction. 0744410010. Documented role: socket. 20loaded contacts; exact right-angle SMT part. No shape-based throughput approval.
QSFP+ host connector formP201 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
QSFP-DD host connector / cage formP202 / Connector: 1 (Molex2027180103)S219Qualified exact source facts only; counterpart, mounting-acceptance, cable, port, termination and assembly context remains separately labelled in variant_notes. Exact Molex2027180103 QSFP-DD host connector; manufacturer row metadata only, not the2x1 Amphenol cage/port matrix or a reconstructed face layout. Quantity context: Manufacturer Number Of Rows property.

Contact pitch

SFP / SFP+ / SFP28 host connector formP200 / Connector: 0.8 mm Example mating-interface pitch (Recorded example component); 0.8 mm mating interface (0744410010)S217 · S217Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. example_component; SFP/SFP+/SFP28 host receptacle 0744410010. Documented role: socket. 20loaded contacts; exact right-angle SMT part. No shape-based throughput approval.
QSFP+ host connector formP201 / Connector: 0.8 mm Example connector centerline / pitch (Recorded example component); 0.8 mm Source-described pitch / centerline (Claim C201B); 0.8 mm centerline (1761987-9)S218 · S218Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. example_component; QSFP+ host connector V37 engineering-depth sidecar fact; source-checked but not independently human-approved, not a fabrication drawing, and not a safe-substitution or repair instruction. 1761987-9. Documented role: socket. 38positions,SMT; recommendedPCB1.45mm is not connector geometry. Row count not present.
QSFP-DD host connector / cage formP202 / Connector: 0.8 mm Example mating-interface pitch (Recorded example component); 0.8 mm mating interface (2027180103)S219 · S219Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. example_component; QSFP-DD host receptacle 2027180103. Documented role: socket. Manufacturer page lists1row for exact part, while existing form representation uses2rows. Do not overwrite row semantics without drawing comparison.; 76loaded circuits; right-angle SMT.

Dimensions / axis

SFP / SFP+ / SFP28 host connector formP200 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
QSFP+ host connector formP201 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
QSFP-DD host connector / cage formP202 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Connector role

SFP / SFP+ / SFP28 host connector formP200 / Connector: socket; socket (0744410010)S203 · S217 · S217Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. SFP/SFP+/SFP28 host receptacle 0744410010. Documented role: socket. 20loaded contacts; exact right-angle SMT part. No shape-based throughput approval.
QSFP+ host connector formP201 / Connector: socket (1761987-9)S218Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 1761987-9. Documented role: socket. 38positions,SMT; recommendedPCB1.45mm is not connector geometry. Row count not present.
QSFP-DD host connector / cage formP202 / Connector: socket; socket (2027180103)S205 · S219 · S219Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. QSFP-DD host receptacle 2027180103. Documented role: socket. Manufacturer page lists1row for exact part, while existing form representation uses2rows. Do not overwrite row semantics without drawing comparison.; 76loaded circuits; right-angle SMT.

Coupling / latch

SFP / SFP+ / SFP28 host connector formP200 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
QSFP+ host connector formP201 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
QSFP-DD host connector / cage formP202 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Keying / polarization

SFP / SFP+ / SFP28 host connector formP200 / Connector: Keyed/polarized/locked to mating part; PCB locator and retention (0744410010)S217Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 0744410010. Documented role: socket. 20loaded contacts; exact right-angle SMT part. No shape-based throughput approval.
QSFP+ host connector formP201 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
QSFP-DD host connector / cage formP202 / Connector: Polarized to mating part and PCB; keying and mating lock:no per catalog (2027180103)S219Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 2027180103. Documented role: socket. Manufacturer page lists1row for exact part, while existing form representation uses2rows. Do not overwrite row semantics without drawing comparison.; 76loaded circuits; right-angle SMT.

Documented identification

SFP / SFP+ / SFP28 host connector formP200 / Connector: 20-position SFP-family host connector form.C200A
QSFP+ host connector formP201 / Connector: 38-position QSFP+ host connector form.C201A
QSFP-DD host connector / cage formP202 / Connector: QSFP-DD form-factor identification only; no performance claim.C202A

Evidence

SFP / SFP+ / SFP28 host connector formP200 / Connector: C200A,C200C,C200D →
Independent review pending
QSFP+ host connector formP201 / Connector: C201A,C201C →
Independent review pending
QSFP-DD host connector / cage formP202 / Connector: C202A,C202C,C202W →
Independent review pending

Your next step

Use the distinction in context.

Open the field notes Read source-linked facts and limitations.Compare another pair Start from a common confusion.Check a connection A comparison is not a compatibility verdict.

Continue the distinction

Compare next

Browse every comparison →

OSFP versus QSFP-DD host formsWhich pluggable-I/O host form does the equipment documentation identify? Connector-family identity is only the first layer; implementation-specific electrical and protocol requirements still need exact documentation.CFP2 versus CFP4 host formsIs the pluggable host connector the 104-position CFP2 form or the 56-position CFP4 form? Connector-family identity is only the first layer; implementation-specific electrical and protocol requirements still need exact documentation.BNC vs TNC coaxial connectorsBNC uses bayonet coupling while TNC uses threaded coupling. Connector family, impedance and application still need to be verified independently.DisplayPort connector vs DisplayPort 2.1The full-size DisplayPort connector does not identify the implemented DisplayPort generation, link rate or optional features.DisplayPort vs Mini DisplayPortFull-size DisplayPort and Mini DisplayPort are different physical forms. Mini DisplayPort shape also appeared on Thunderbolt 1/2 products, so function still needs device evidence.DVI-D dual-link vs DVI-I dual-linkDVI-D and DVI-I use related shells but have different contact arrangements. The analog-contact area is a key physical distinction.

Adjust this comparison

Add a field note

Evidence behind this page

Scope first. Source second. Approval separate.

8 linked sources · 8 scoped claims · 0 sources with inspection/access flags.

Page scope: Evidence behind the compared records; the editorial comparison still needs separate review.

Assessment 2026-10-22 · earliest scheduled source review 2027-01-03. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 8 source scopes, access limits and dates

S203 · UltraPort SFP connector series

Amphenol Communications Solutions · Manufacturer / product-owner domain · inspected 2026-10-05 · due 2027-01-03

Within inspection window

Scoped support: Identifies the hot-swappable SFP-family host interface as a 20-position connector form used for SFP+ / SFP28 applications.

Not established / limitations: Identification/reference scope only. V36 does not convert this source into a universal pinout, fabrication drawing, electrical approval or end-to-end compatibility verdict.

Locator: SFP series overview

S204 · ExpressPort QSFP connector series

Amphenol Communications Solutions · Manufacturer / product-owner domain · inspected 2026-10-05 · due 2027-01-03

Within inspection window

Scoped support: Identifies a QSFP+ host connector form with 38 positions.

Locator: QSFP series overview

S205 · ExtremePort QSFP-DD 112G product

Amphenol Communications Solutions · Manufacturer / product-owner domain · inspected 2026-10-05 · due 2027-01-03

Within inspection window

Scoped support: Identifies a QSFP-DD host connector/cage product family; V36 uses the page only to establish the form-factor family, not channel performance.

Locator: QSFP-DD product identification

S219 · 2027180103 QSFP-DD 76-circuit host connector

Molex · Manufacturer / product-owner domain · inspected 2026-10-05 · due 2027-01-03

Within inspection window

Scoped support: Example-component engineering source documenting a QSFP-DD host receptacle with 76 circuits and 0.80 mm mating-interface pitch.

Not established / limitations: Example-component geometry only. V37 does not infer the full QSFP-DD pad assignment, lane map or fabrication tolerances from this product page.

Locator: Product description and physical fields

S506 · Cisco — SFP host role and optical/copper network faces

Cisco · Manufacturer / product-owner domain · inspected 2026-10-11 · due 2027-01-09

Within inspection window

Scoped support: Manufacturer examples of removable transceivers and network-facing connections; exact host-supported modules remain a separate requirement.

Not established / limitations: Manufacturer examples of removable transceivers and network-facing connections; exact host-supported modules remain a separate requirement. No raw HTML or manufacturer image archive is represented as retained.

Locator: Overview; Figure 1 optical SFP with LC; Figure 2 1000BASE-T SFP with RJ45; Figure 3 SFP+

S507 · Amphenol UltraPort SFP — connector and metal cage roles

Amphenol Communications Solutions · Manufacturer / product-owner domain · inspected 2026-10-11 · due 2027-01-09

Within inspection window

Scoped support: Product-family host construction only; no inference of a given transceiver or switch operating mode.

Not established / limitations: Product-family host construction only; no inference of a given transceiver or switch operating mode. No raw HTML or manufacturer image archive is represented as retained.

Locator: Description: 20-position hot-swappable I/O connector enclosed in metal cage on host PCB

S508 · Amphenol ExpressPort QSFP — connector versus cage assembly

Amphenol Communications Solutions · Manufacturer / product-owner domain · inspected 2026-10-11 · due 2027-01-09

Within inspection window

Scoped support: Mechanical component roles only. Mixed generation/rate marketing on this page is not used as interoperability or speed evidence.

Not established / limitations: Mechanical component roles only. Mixed generation/rate marketing on this page is not used as interoperability or speed evidence. No raw HTML or manufacturer image archive is represented as retained.

Locator: Description: 38-position SMT connector and press-fit cage; single, ganged and stacked configurations

S509 · Amphenol V36-BAZ17-205E11A — specific QSFP-DD cage assembly

Amphenol Communications Solutions · Manufacturer / product-owner domain · inspected 2026-10-11 · due 2027-01-09

Within inspection window

Scoped support: Exact cage assembly description, not a complete optical transceiver or supported host/module list. Page image may not depict exact part; no physical study is derived from it.

Not established / limitations: Exact cage assembly description, not a complete optical transceiver or supported host/module list. Page image may not depict exact part; no physical study is derived from it. No raw HTML or manufacturer image archive is represented as retained.

Locator: Part title and product description: 2x1 long cage for anchor-pin SMT connector, light pipes and heatsink

Trace 8 claims to their source records

C200A · P200

Amphenol identifies an UltraPort SFP-family host connector as a 20-position hot-swappable I/O form used for SFP+ and SFP28 applications.

Claim scope: V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof.

Source links: S203 · Evidence trail → (private workspace)

C200C · P200

Amphenol describes UltraPort SFP as a 20-position hot-swappable I/O connector enclosed within a metal cage mounted on a host PCB. The host connector and cage are not the removable network transceiver itself.

Claim scope: V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.

Source links: S507 · Evidence trail → (private workspace)

C200D · P200

Cisco depicts optical SFP modules with LC network connections and a 1000BASE-T SFP module with an RJ45 network connection. The SFP host-side form does not by itself identify the network-facing connector, medium or supported host/module combination.

Claim scope: V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.

Source links: S506 · Evidence trail → (private workspace)

C201A · P201

Amphenol identifies its ExpressPort QSFP+ connector as a 38-position host interface.

Claim scope: V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof.

Source links: S204 · Evidence trail → (private workspace)

C201C · P201

Amphenol describes its ExpressPort QSFP construction as a 38-position surface-mount connector and a press-fit cage, with several cage configurations. These are host-side components, not an optical link specification.

Claim scope: V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.

Source links: S508 · Evidence trail → (private workspace)

C202A · P202

Amphenol identifies the cited ExtremePort product as a QSFP-DD host connector/cage form.

Claim scope: V36 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction or end-to-end compatibility proof.

Source links: S205 · Evidence trail → (private workspace)

C202C · P202

Amphenol identifies V36-BAZ17-205E11A as a QSFP-DD 2x1 long cage assembly for an anchor-pin SMT connector, with light pipes and a heatsink. The cited part is not a complete optical transceiver or proof of host support.

Claim scope: V121 named-product or explicitly scoped manufacturer distinction only; no wiring instruction, independent engineering approval or end-to-end compatibility guarantee.

Source links: S509 · Evidence trail → (private workspace)

C202W · P202

Molex2027180103 lists76loadedcircuits, manufacturer NumberOfRows1,0.80mm mating pitch, right-angle surface mounting, copper-alloy contacts and high-temperature thermoplastic housing. The one-row property belongs to this connector, separate from cage port counts.

Claim scope: Exact named manufacturer QSFP-DD connector only; limited-information notice retained. No face layout, signal map, installed-system capability or universal row convention inferred.

Source links: S219 · Evidence trail → (private workspace)
