P239 · ConnectorMini-SAS HD external SFF-8644 connector
How they differ
Mini-SAS external SFF-8088 connector Confirm the shielded external connector and SFF-8088 designation before choosing an external SAS cable.

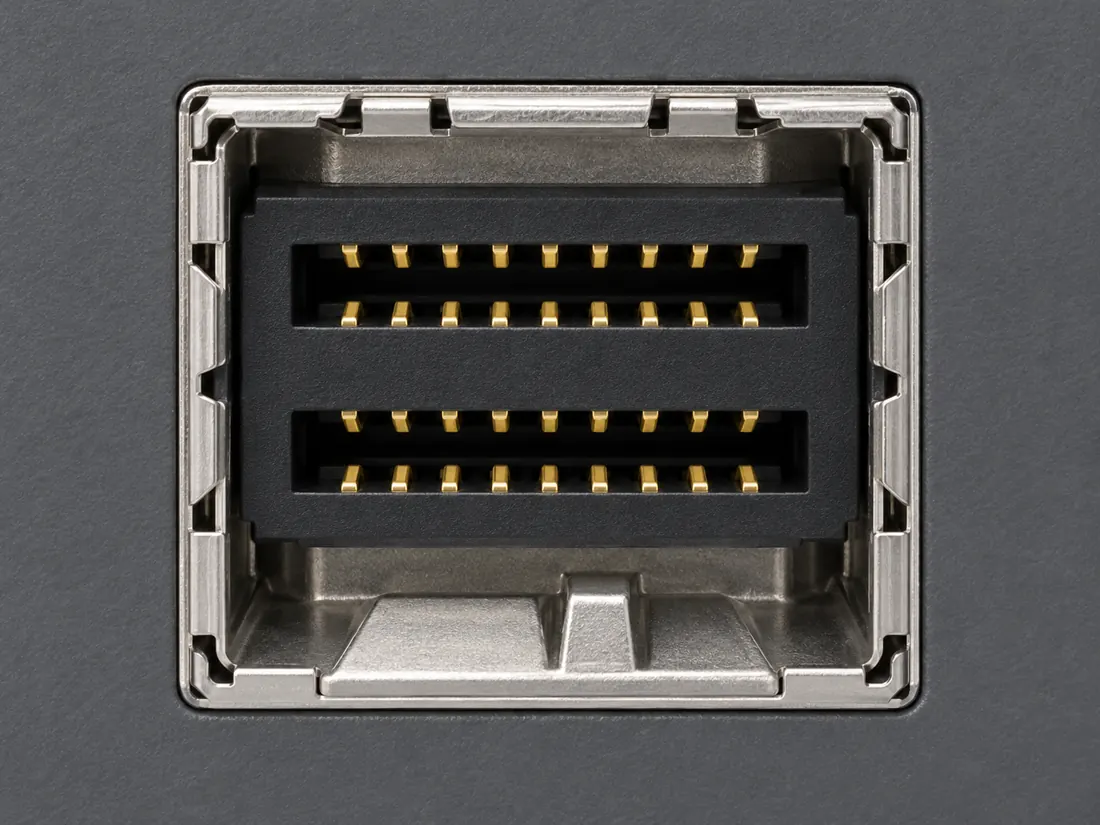

Mini-SAS HD external SFF-8644 connector Confirm the external high-density connector and SFF-8644 designation in the host and cable documentation.
Then askIs the external storage connector SFF-8088 or the higher-density SFF-8644 form?
At a glance
Source-scoped form facts; counts, variants and unknowns are distinct
Field
Mini-SAS external SFF-8088 connector
Mini-SAS HD external SFF-8644 connector
Type
Connector
Connector
Family
Storage
Storage
Shape
rectangular
rectangular
Nominal contacts
26S259Mini-SAS SFF-8088 external interface; nominal engineering count, not automatically positions, population or a device wiring map. Mini-SAS SFF-8088 external interface
36S259Mini-SAS HD SFF-8644 external interface; nominal engineering count, not automatically positions, population or a device wiring map. Mini-SAS HD SFF-8644 external interface
Positions / cavity span
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector role
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
socket (2149027-1)S937Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 2149027-1. Documented role: socket. The1x1/1x2/1x4 values mean portmatrix,notcontactrows.; SeparateTE2149027-1pagewasread:publishedpitch.03mm[.75in]hasgrossunitconflict;bothwithhelduntildrawingcomparison.; Amphenol11mm/19.01mmport-to-port density is not contactpitch. No external8644pitch borrowed from internal8643section.
Key distinction
External Mini-SAS uses a different mechanical interface from the internal SFF-8087 form.
External Mini-SAS HD must be distinguished from both internal SFF-8643 and legacy external SFF-8088.
Illustrations are computer-generated with prior AI visual review; independent technical and rights review pending. A comparison is not a compatibility verdict.
This comparison stays within one evidence layer.
All selected records are Connector records. Similar layer does not mean compatible, interchangeable or safe to mate.
Families represented: Storage
The reference ledger
Read the same question across.
2 selected records · 13 fields No score. No compatibility verdict.
Identification schematic · not to scale · drawing review pending
Layer
Connector
Connector
Key distinction
External Mini-SAS uses a different mechanical interface from the internal SFF-8087 form.
External Mini-SAS HD must be distinguished from both internal SFF-8643 and legacy external SFF-8088.
Nominal contacts
26S259Mini-SAS SFF-8088 external interface; nominal engineering count, not automatically positions, population or a device wiring map. Mini-SAS SFF-8088 external interface
36S259Mini-SAS HD SFF-8644 external interface; nominal engineering count, not automatically positions, population or a device wiring map. Mini-SAS HD SFF-8644 external interface
Positions / cavity span
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Populated contacts
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact pitch
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Dimensions / axis
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector role
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
socket (2149027-1)S937Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 2149027-1. Documented role: socket. The1x1/1x2/1x4 values mean portmatrix,notcontactrows.; SeparateTE2149027-1pagewasread:publishedpitch.03mm[.75in]hasgrossunitconflict;bothwithhelduntildrawingcomparison.; Amphenol11mm/19.01mmport-to-port density is not contactpitch. No external8644pitch borrowed from internal8643section.
Coupling / latch
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Keying / polarization
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
26S259Mini-SAS SFF-8088 external interface; nominal engineering count, not automatically positions, population or a device wiring map. Mini-SAS SFF-8088 external interface
36S259Mini-SAS HD SFF-8644 external interface; nominal engineering count, not automatically positions, population or a device wiring map. Mini-SAS HD SFF-8644 external interface
socket (2149027-1)S937Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 2149027-1. Documented role: socket. The1x1/1x2/1x4 values mean portmatrix,notcontactrows.; SeparateTE2149027-1pagewasread:publishedpitch.03mm[.75in]hasgrossunitconflict;bothwithhelduntildrawingcomparison.; Amphenol11mm/19.01mmport-to-port density is not contactpitch. No external8644pitch borrowed from internal8643section.
Page scope: Evidence behind the compared records; the editorial comparison still needs separate review.
Assessment 2026-10-22 · earliest scheduled source review 2027-01-03. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.
TE Connectivity · Manufacturer / product-owner domain · inspected 2026-10-05 · due 2027-01-03
Within inspection window
Scoped support: Identifies internal and external Mini-SAS connector families aligned with SFF-8087 and SFF-8088 among the documented interfaces.
Not established / limitations: Identification/reference scope only. V39 does not convert this source into a universal pinout, fabrication drawing, electrical approval, protocol guarantee or end-to-end compatibility verdict.
Scoped support: Identifies Mini-SAS HD internal SFF-8643 and external SFF-8644 interface families.
Not established / limitations: Identification/reference scope only. V39 does not convert this source into a universal pinout, fabrication drawing, electrical approval, protocol guarantee or end-to-end compatibility verdict.
TE Connectivity · Manufacturer / product-owner domain · inspected 2026-10-22 · due 2027-01-20
Within inspection window
Scoped support: Current primary-document research for named TE internal Mini-SAS HD SFF-8643 family P238 (pp.2–3) and external P239 /2149027-1 (p.6). Each normalized fact retains its exact part/family, role and document scope; no internal/external property transfer.
Not established / limitations: No independent technical review, hardware validation, specimen measurement or general interoperability approval. Exact scopes and unresolved fields remain controlling.
TE Connectivity · Manufacturer / product-owner domain · inspected 2026-10-22 · due 2027-01-20
Within inspection window
Scoped support: Only receptacle1761987-7, separate from shield accessory1888321-1. External application association is supplied by1773447-2 EVERCLEAR brochure p.2, not inferred from26positions.
Not established / limitations: Exact named component/document scope only; no independent technical review, hardware validation, universal interoperability or fabrication approval. No image-derived geometry or pin mapping.
Locator: Exact part header and Features: Configuration, Contact, Termination, Mechanical Attachment and Housing Features (retrieved text lines223-287).
Tyco Electronics / TE Connectivity · Manufacturer / product-owner domain · inspected 2026-10-22 · due 2027-01-20
Within inspection window
Scoped support: External product-application association for exact receptacle1761987-7 only. Shield properties are separate. P.1 industry-standards bullet labels8088 Internal, inconsistent with the explicit external p.2 table; that bullet is not adopted.
Not established / limitations: Exact named component/document scope only; no independent technical review, hardware validation, universal interoperability or fabrication approval. No image-derived geometry or pin mapping. The document is historical12/08, currently linked by the live manufacturer part page; no present availability or latest-standard claim.
Locator: p.2 Product Application: External Mini-SAS,SATA ordering table,26-position receptacle1761987-7 separate from universal-key4 shield1888321-1; p.6 printed revision.
Trace 5 claims to their source records
C237A · P237
TE Connectivity identifies SFF-8088 within its external Mini-SAS connector family.
Exact exampleTE1761987-7 only: the manufacturer EVERCLEAR brochure p.2 explicitly places this receptacle in External Mini-SAS/SATA applications. Its live product page lists right-angle surface-mount PCB termination, an LCP housing, phosphor-bronze contacts with gold mating plating and tin PCB-termination plating. This receptacle is supplied without a shell;1888321-1 is a separate shield accessory. These are component-scoped construction and mounting facts, with no pin map or universal cable capability asserted.
Claim scope: Only named TE Connectivity 1761987-7 component example. TE1761987-7 is an exact external Mini-SAS receptacle example. Do not transfer1888321-1 shield keying, screw-retention or one-row metadata to its contact arrangement. Brochure p.1 has an inconsistent Internal8088 bullet; the explicit p.2 external table controls only the application association. No face-view or numbered contacts are added.
Exact exampleTE2149027-1 is the1x1 receptacle assembly in the brochure p.6 external Mini-SAS HD family;1x1 describes ports. That external section specifies an LCP receptacle housing, nickel-silver shield, copper-alloy contacts and a preassembled one-piece PCB interconnect. It describes a cable latch and EMI skirt and publishes250-cycle durability for this external connector family. Internal SFF-8643 properties are excluded; this is source documentation, not hardware certification.
Claim scope: Only named TE Connectivity 2149027-1 component example. The2149027-1 example remains separate from internal P238/SFF-8643. Its1x1 value is a port matrix, not contact rows. The separate product page pitch.03mm[.75in] is inconsistent and remains withheld; no external pitch is borrowed from the internal section. Published family durability is not hardware validation.
Recorded evidence only. An inspection date, publisher label, source link or generated packet is not independent technical review, hardware testing, fabrication approval or a compatibility verdict.
