Side by side

SFF-TA-1002 1C versus 2C connectors

Is the documented SFF-TA-1002 variation 1C/56-contact or 2C/84-contact? Contact count distinguishes these forms but does not establish device protocol or host support.

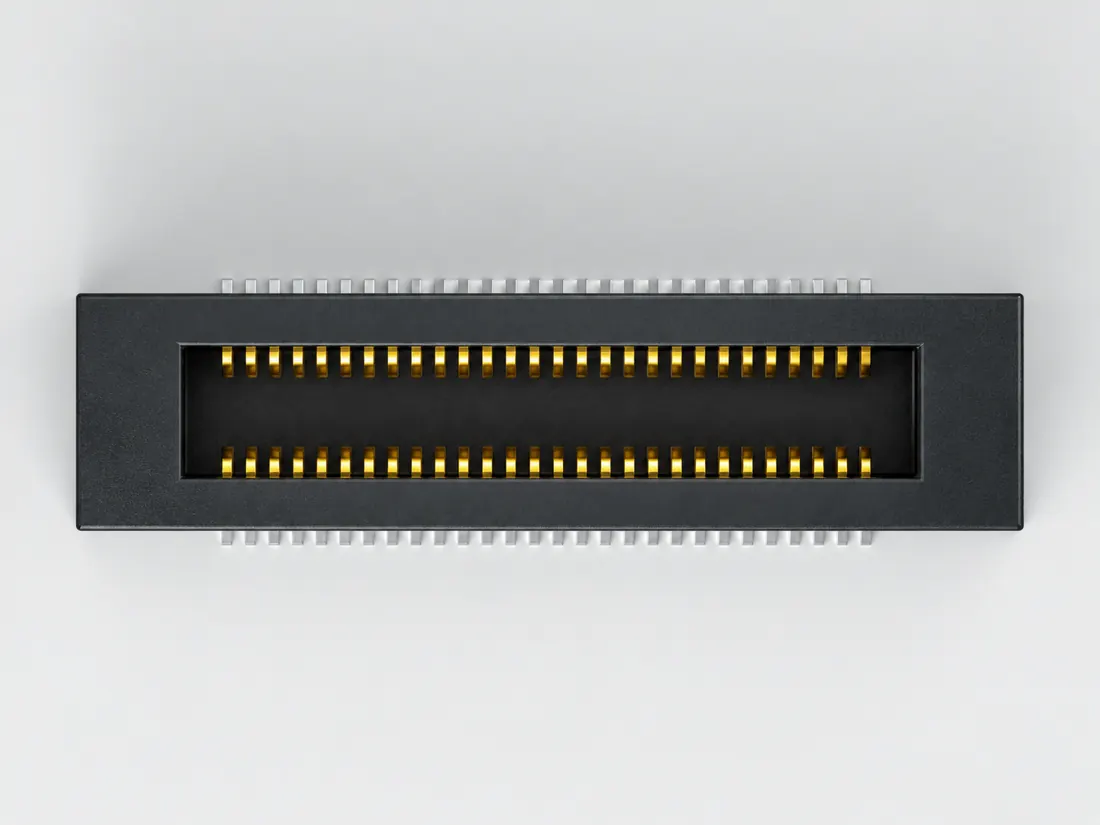

Computer-generated illustration, not a photograph. — P291 · ConnectorSFF-TA-1002 1C 56-contact connector

How they differ

SFF-TA-1002 1C 56-contact connector Confirm the SFF-TA-1002 1C variant and 56-contact identity from the system or component documentation before inferring an EDSFF application.

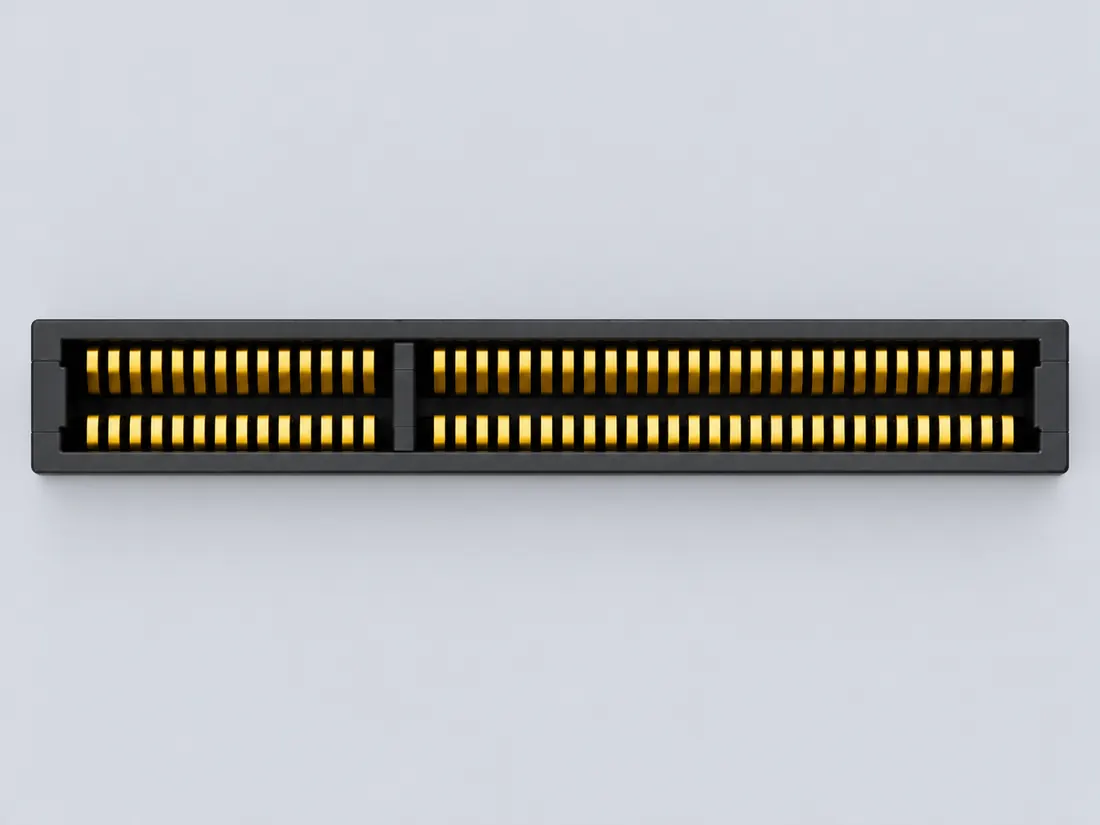

SFF-TA-1002 2C 84-contact connector Confirm the SFF-TA-1002 2C variant and 84-contact identity from the system or component documentation before inferring an EDSFF application.

At a glance

Source-scoped form facts; counts, variants and unknowns are distinct
Field	SFF-TA-1002 1C 56-contact connector	SFF-TA-1002 2C 84-contact connector
Type	Connector	Connector
Family	Storage	Storage
Shape	card edge	card edge
Nominal contacts	56S332Source-backed nominal position/contact count for identification: 56. Not a pinout or manufacturing drawing.	84S333Source-backed nominal position/contact count for identification: 84. Not a pinout or manufacturing drawing.
Positions / cavity span	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	2S912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Rev1.6a 1C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.	2S912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Rev1.6a 2C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.
Connector role	card-edge; socketS332 · S356 · S912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. SFF-TA-1002 card-edge connector variation Rev1.6a 1C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.	card-edge; socketS333 · S356 · S912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. SFF-TA-1002 card-edge connector variation Rev1.6a 2C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.
Key distinction	The 1C mechanical/contact form does not by itself establish an EDSFF device size, protocol generation, lane use or system compatibility.	The 2C mechanical/contact form does not by itself establish an EDSFF device size, protocol generation, lane use or system compatibility.

Full evidence ledger and sources ↓

Illustrations are computer-generated with prior AI visual review; independent technical and rights review pending. A comparison is not a compatibility verdict.

This comparison stays within one evidence layer.

All selected records are Connector records. Similar layer does not mean compatible, interchangeable or safe to mate.

Families represented: Storage

The reference ledger

Read the same question across.

2 selected records · 13 fields
No score. No compatibility verdict.

On a narrow screen, scroll the table sideways or open the field-by-field reading view below. Illustrations are not a size comparison.

Comparison of selected field notes; source links accompany each documented specification
What you are comparing	P291 / ConnectorSFF-TA-1002 1C 56-contact connector Identification schematic · not to scale · drawing review pending	P292 / ConnectorSFF-TA-1002 2C 84-contact connector Identification schematic · not to scale · drawing review pending
Layer	Connector	Connector
Key distinction	The 1C mechanical/contact form does not by itself establish an EDSFF device size, protocol generation, lane use or system compatibility.	The 2C mechanical/contact form does not by itself establish an EDSFF device size, protocol generation, lane use or system compatibility.
Nominal contacts	56S332Source-backed nominal position/contact count for identification: 56. Not a pinout or manufacturing drawing.	84S333Source-backed nominal position/contact count for identification: 84. Not a pinout or manufacturing drawing.
Positions / cavity span	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Populated contacts	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	2S912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Rev1.6a 1C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.	2S912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Rev1.6a 2C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.
Contact pitch	0.6 mm longitudinal adjacent mating contact/pad centersS912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Rev1.6a 1C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.	0.6 mm longitudinal adjacent mating contact/pad centersS912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Rev1.6a 2C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.
Dimensions / axis	24.03 mm maximum overall longitudinal span; 6.15 mm maximum transverse body depth; 9.25 mm maximum height from SMT lead plane to housing topS912 · S912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Rev1.6a 1C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.	35.75 mm maximum overall longitudinal span; 6.15 mm maximum transverse body depth; 9.25 mm maximum height from SMT lead plane to housing topS912 · S912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Rev1.6a 2C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.
Connector role	card-edge; socketS332 · S356 · S912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. SFF-TA-1002 card-edge connector variation Rev1.6a 1C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.	card-edge; socketS333 · S356 · S912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. SFF-TA-1002 card-edge connector variation Rev1.6a 2C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.
Coupling / latch	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Keying / polarization	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	One off-center slot-divider keyS912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Rev1.6a 2C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.
Documented identification	SNIA REF-TA-1012 identifies the SFF-TA-1002 1C connector variation as a 56-contact connector with up to 18 differential pairs of data signals.C291A	SNIA REF-TA-1012 identifies the SFF-TA-1002 2C connector variation as an 84-contact connector with up to 26 differential pairs of data signals.C292A
Evidence	C291A → Independent review pending	C292A → Independent review pending

Read field by field — no sideways scrolling

The same selected records, fields, values and source links as the table. Missing fields remain non-equivalent; no values are merged.

Layer

SFF-TA-1002 1C 56-contact connectorP291 / Connector: Connector
SFF-TA-1002 2C 84-contact connectorP292 / Connector: Connector

Key distinction

SFF-TA-1002 1C 56-contact connectorP291 / Connector: The 1C mechanical/contact form does not by itself establish an EDSFF device size, protocol generation, lane use or system compatibility.
SFF-TA-1002 2C 84-contact connectorP292 / Connector: The 2C mechanical/contact form does not by itself establish an EDSFF device size, protocol generation, lane use or system compatibility.

Nominal contacts

SFF-TA-1002 1C 56-contact connectorP291 / Connector: 56S332Source-backed nominal position/contact count for identification: 56. Not a pinout or manufacturing drawing.
SFF-TA-1002 2C 84-contact connectorP292 / Connector: 84S333Source-backed nominal position/contact count for identification: 84. Not a pinout or manufacturing drawing.

Positions / cavity span

SFF-TA-1002 1C 56-contact connectorP291 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
SFF-TA-1002 2C 84-contact connectorP292 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Populated contacts

SFF-TA-1002 1C 56-contact connectorP291 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
SFF-TA-1002 2C 84-contact connectorP292 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Contact rows

SFF-TA-1002 1C 56-contact connectorP291 / Connector: 2S912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Rev1.6a 1C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.
SFF-TA-1002 2C 84-contact connectorP292 / Connector: 2S912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Rev1.6a 2C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.

Contact pitch

SFF-TA-1002 1C 56-contact connectorP291 / Connector: 0.6 mm longitudinal adjacent mating contact/pad centersS912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Rev1.6a 1C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.
SFF-TA-1002 2C 84-contact connectorP292 / Connector: 0.6 mm longitudinal adjacent mating contact/pad centersS912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Rev1.6a 2C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.

Dimensions / axis

SFF-TA-1002 1C 56-contact connectorP291 / Connector: 24.03 mm maximum overall longitudinal span; 6.15 mm maximum transverse body depth; 9.25 mm maximum height from SMT lead plane to housing topS912 · S912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Rev1.6a 1C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.
SFF-TA-1002 2C 84-contact connectorP292 / Connector: 35.75 mm maximum overall longitudinal span; 6.15 mm maximum transverse body depth; 9.25 mm maximum height from SMT lead plane to housing topS912 · S912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Rev1.6a 2C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.

Connector role

SFF-TA-1002 1C 56-contact connectorP291 / Connector: card-edge; socketS332 · S356 · S912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. SFF-TA-1002 card-edge connector variation Rev1.6a 1C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.
SFF-TA-1002 2C 84-contact connectorP292 / Connector: card-edge; socketS333 · S356 · S912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. SFF-TA-1002 card-edge connector variation Rev1.6a 2C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.

Coupling / latch

SFF-TA-1002 1C 56-contact connectorP291 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
SFF-TA-1002 2C 84-contact connectorP292 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Keying / polarization

SFF-TA-1002 1C 56-contact connectorP291 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
SFF-TA-1002 2C 84-contact connectorP292 / Connector: One off-center slot-divider keyS912Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Rev1.6a 2C straight fixed receptacle; not right-angle/straddle variants. Documented role: socket. Standard drawing limits, not a measured specimen or exact manufacturer part.; A1 indicator shape is not transcribed as literal lettering. Manufacturer logo/series/part markings remain unknown.; Preserve existing application pinout records; mechanical drawing does not establish electrical usage.

Documented identification

SFF-TA-1002 1C 56-contact connectorP291 / Connector: SNIA REF-TA-1012 identifies the SFF-TA-1002 1C connector variation as a 56-contact connector with up to 18 differential pairs of data signals.C291A
SFF-TA-1002 2C 84-contact connectorP292 / Connector: SNIA REF-TA-1012 identifies the SFF-TA-1002 2C connector variation as an 84-contact connector with up to 26 differential pairs of data signals.C292A

Evidence

SFF-TA-1002 1C 56-contact connectorP291 / Connector: C291A →
Independent review pending
SFF-TA-1002 2C 84-contact connectorP292 / Connector: C292A →
Independent review pending

Your next step

Use the distinction in context.

Open the field notes Read source-linked facts and limitations.Compare another pair Start from a common confusion.Check a connection A comparison is not a compatibility verdict.

Continue the distinction

Compare next

Browse every comparison →

Mini-SAS HD vs OCuLinkMini-SAS HD and OCuLink are different connector families used in high-speed internal links. Physical resemblance is not evidence of mating or protocol compatibility.Mini-SAS HD vs SlimSASMini-SAS HD and SlimSAS are different internal high-density connector families. Match the named SFF form and system documentation, not the general SAS label.SATA data vs SATA powerSATA data and SATA power are separate connectors with different roles and contact counts. Sharing the SATA name does not make them substitutes.CFast versus CFexpress Type BSATA CFast is not PCIe/NVMe CFexpress. Check the full card and reader names before checking performance.CFexpress Type A versus Type BRecord the type letter and supported reader, not just the family name.CompactFlash versus CFastSimilar names refer to different card families.

Adjust this comparison

Add a field note

Evidence behind this page

Scope first. Source second. Approval separate.

2 linked sources · 2 scoped claims · 0 sources with inspection/access flags.

Page scope: Evidence behind the compared records; the editorial comparison still needs separate review.

Assessment 2026-10-22 · earliest scheduled source review 2027-01-04. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 2 source scopes, access limits and dates

S332 · SNIA REF-TA-1012 SFF-TA-1002 connector variations — 1C

SNIA · Standards-organization domain · inspected 2026-10-06 · due 2027-01-04

Within inspection window

Scoped support: Draft REF-TA-1012 Rev 0.0.2 identification reference for the SFF-TA-1002 1C connector variation; used only for the stated contact-count/form fact.

Not established / limitations: Source-backed identification does not establish universal wiring, protocol generation, device compatibility, safe installation or fabrication approval.

Locator: Section 3.1 overview, 1C connector variation

S333 · SNIA REF-TA-1012 SFF-TA-1002 connector variations — 2C

SNIA · Standards-organization domain · inspected 2026-10-06 · due 2027-01-04

Within inspection window

Scoped support: Draft REF-TA-1012 Rev 0.0.2 identification reference for the SFF-TA-1002 2C connector variation; used only for the stated contact-count/form fact.

Not established / limitations: Source-backed identification does not establish universal wiring, protocol generation, device compatibility, safe installation or fabrication approval.

Locator: Section 3.1 overview, 2C connector variation

Trace 2 claims to their source records

C291A · P291

SNIA REF-TA-1012 identifies the SFF-TA-1002 1C connector variation as a 56-contact connector with up to 18 differential pairs of data signals.

Claim scope: V50 identification fact only; no wiring, protocol compatibility, installation or fabrication approval is inferred.

Source links: S332 · Evidence trail → (private workspace)

C292A · P292

SNIA REF-TA-1012 identifies the SFF-TA-1002 2C connector variation as an 84-contact connector with up to 26 differential pairs of data signals.

Claim scope: V50 identification fact only; no wiring, protocol compatibility, installation or fabrication approval is inferred.

Source links: S333 · Evidence trail → (private workspace)
