FAKRA keyed coaxial connector family

FAKRA combines a coaxial interface with mechanically coded housings; a housing color is not a vehicle wiring diagram.

Also called FAKRA FAKRA connector FAKRA housing FAKRA color codes

Read component role, complete ordering code and mechanical coding before equipment function.

Look for

The illustrated Rosenberger 59S20X-400T5-y row is a right-angle board plug including housing. The -y coding suffix remains unselected.

Claim inspection dates: 2026-10-12, 2026-10-22 · Independent review pending

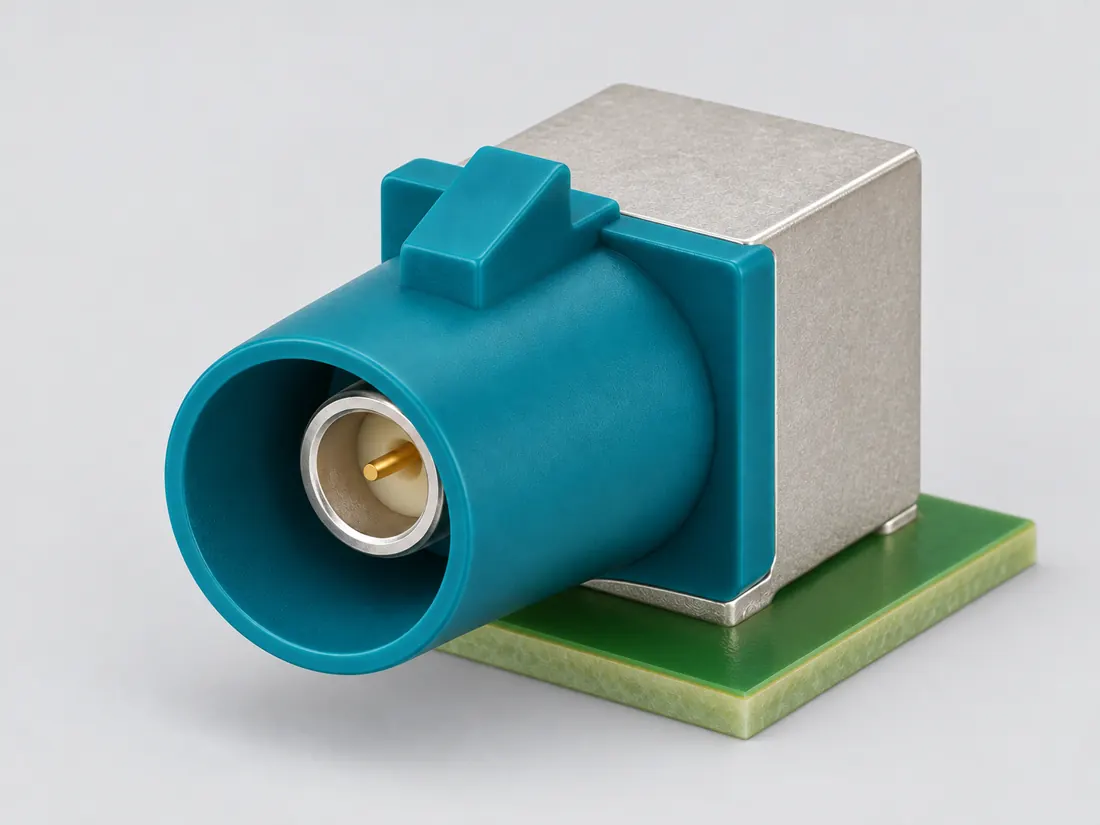

FAKRA keyed coaxial connector family: three-quarter view. Computer-generated illustration, not a photograph.

Three-quarter view Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

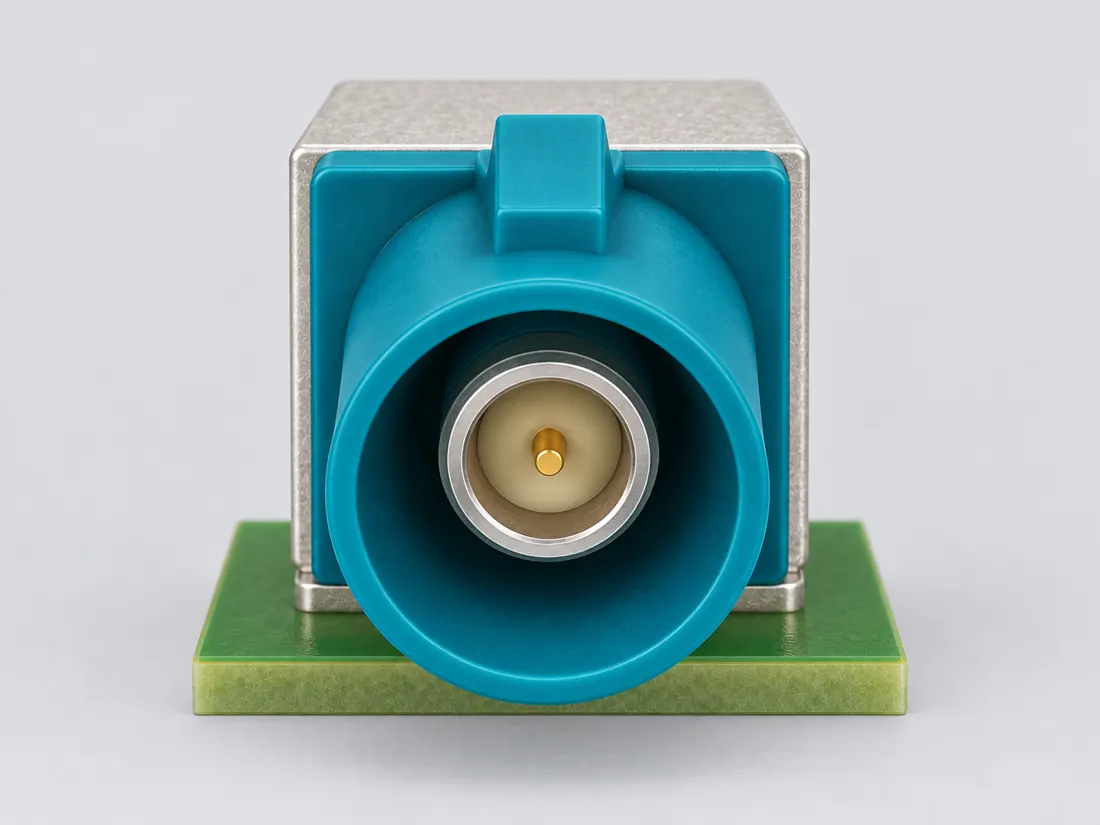

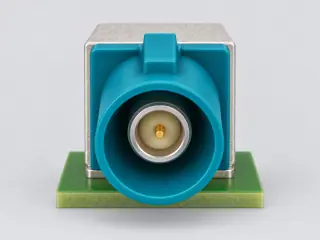

FAKRA keyed coaxial connector family: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

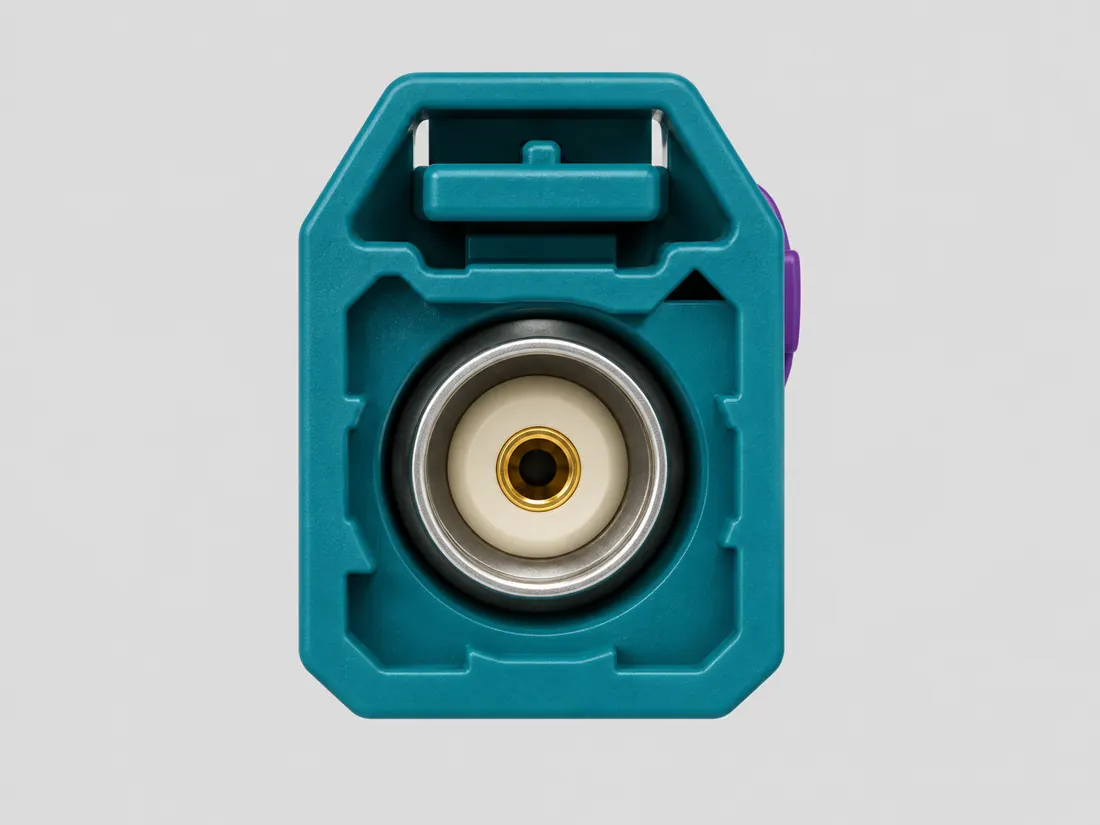

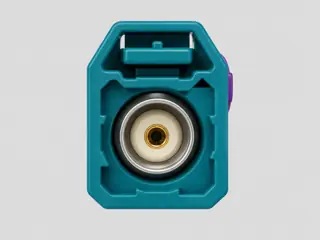

FAKRA keyed coaxial connector family: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

FAKRA keyed coaxial connector family: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

Image inspection / P366

See the view. Check its scope.

2 registered views for this reference. Different part examples are not automatically mates; all remain not to scale and independently unapproved.

FAKRA / right-angle board-plug row. Coding suffix -y is unresolved. Neutral illustration tone is not a selected color code; terminals omitted. (private workspace)

P366 / Source-observed physical study

FAKRA / right-angle board-plug row

Rosenberger 59S20X-400T5-y catalogue row

Oblique exterior; interface left, board-side body right · Board header

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)
Code, component and equipment circuit. Separate the housing code, complete component identity and documented equipment circuit. (private workspace)

P366 / Concept — not physical geometry

Code, component and equipment circuit

Manufacturer code-reading concept

Three independent text fields · Concept only

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

The useful distinction

Recognize it. Then verify it.

FAKRA combines a coaxial interface with mechanically coded housings; a housing color is not a vehicle wiring diagram. [C366A]

Rosenberger lists cable, PCB and panel connectors, separate housings and cable assemblies within its FAKRA portfolio. [C366B]

Rosenberger lists 59S20X-400T5-y as a single right-angle PCB plug including housing; -y must be replaced by the requested coding. [C366C]

The Rosenberger coding table lists A, B, C, D, E, F, G, H, I, K, L, M, N and Z with corresponding color names. [C366D]

The Rosenberger code table notes that specific codings are available on request and that manufacturing may cause minor color differences. [C366E]

Rosenberger uses K for female/jack, S for male/plug and Z for plastic housings/accessories in its FAKRA number-code explanation. [C366F]

Rosenberger FAKRA manufacturer family: keying: Color-coded plastic housings with 13 distinct mechanical/color codes plus one neutral coding; coupling: Primary and secondary locks; impedance: 50 ohms, manufacturer-family feature; rf range: DC up to 6 GHz, manufacturer-family feature. Only the Rosenberger FAKRA manufacturer family feature table; no exact individual part properties or mating approval are established. [C366G]

Source-scoped identification facts

Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.

Documented examples; not a mating drawing or compatibility approval
Connector roleManufacturer portfolio distinguishes cable, PCB and panel connector variants (Rosenberger FAKRA product family)S548Source-scoped examples are separate; select the exact variant and measured axis. Rosenberger FAKRA product family. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
Coupling / latchPrimary and secondary locks (Rosenberger FAKRA product family)S548Source-scoped examples are separate; select the exact variant and measured axis. Rosenberger FAKRA product family. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
Keying / polarization13 mechanical/color codings A-I and K-N, plus neutral Z (Rosenberger FAKRA coding table)S550Source-scoped examples are separate; select the exact variant and measured axis. Code and housing must be selected for the actual part; color differences may occur and availability is upon request. No unselected -y ordering pattern is a concrete part. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
ManufacturerRosenberger (Rosenberger FAKRA product family)S548Source-scoped examples are separate; select the exact variant and measured axis. Rosenberger FAKRA product family. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.
SeriesFAKRA / Rosenberger series 59 (Rosenberger FAKRA product family)S548Source-scoped examples are separate; select the exact variant and measured axis. Rosenberger FAKRA product family. Named primary-source example only. Identification facts do not certify mating, electrical compatibility, fabrication or powered use.

Not recorded: Nominal contacts, Positions / cavity span, Populated contacts, Contact rows, Contact pitch, Dimensions / axis, Contact gender / arrangement, Mounting, Shell / form, Exact part / implementation, Recorded markings, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.

Report a correction to these facts →

Bounded facts, visible unknowns

Specifications and limits

FAKRA keyed coaxial connector family facts and limitations
Source-scoped identityRosenberger describes FAKRA plastic housings using thirteen mechanical/color codes and an additional neutral coding. [C366A]
Exact applicationNot established by family identity or color [C366A]
Mechanical dimensionsNo independently reviewed manufacturing dimensions entered in this release34.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
A boundary, not an omission to guess around.

The table retains manufacturer code letters and color names without assigning radio, GPS, camera or other equipment functions to an unknown vehicle.

Before you connect

What to check

  1. Identify the exact manufacturer, component role and ordering code.
  2. Check the required cable, interface, coding and equipment documentation independently.
  3. Do not trial-fit, rewire or infer a working connection from an illustration.
Trace a supported connection class →

A placeholder is not an exact part

In 59S20X-400T5-y, the final placeholder requires a coding choice. The catalogue-row drawing is not an exact ordered-code illustration or an approved PCB layout.

Your next step

Move from the form to the requirement.

Read the engineering reference Source-scoped details, orientation and explicit unknowns.Work through a connection Choose your task before deciding on a cable.Explore this evidence trail Inspect the claims and their dependencies. (private workspace)

The source trail

Evidence for this page

AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.

Back to first citation ↑
C366ASource checked · pending review

Rosenberger describes FAKRA plastic housings using thirteen mechanical/color codes and an additional neutral coding.

Rosenberger · Rosenberger FAKRA — housing identity and component roles ↗

Locator: Opening identity paragraph, Product Portfolio and Features; linked catalogue and Codes & Codings resources.
Access: public page. Source-bounded recognition only; no exact equipment compatibility, wiring, fabrication or universal performance approval.

S548: full source recordInspect review dependencies → (private workspace)

Claim scope: Family identification, not a vehicle-specific signal assignment.. Next review due 2027-01-10.

Back to first citation ↑
C366BSource checked · pending review

Rosenberger lists cable, PCB and panel connectors, separate housings and cable assemblies within its FAKRA portfolio.

Rosenberger · Rosenberger FAKRA — housing identity and component roles ↗

Locator: Opening identity paragraph, Product Portfolio and Features; linked catalogue and Codes & Codings resources.
Access: public page. Source-bounded recognition only; no exact equipment compatibility, wiring, fabrication or universal performance approval.

S548: full source recordInspect review dependencies → (private workspace)

Claim scope: Component roles remain separate; the portfolio does not make every item interchangeable.. Next review due 2027-01-10.

Back to first citation ↑
C366CSource checked · pending review

Rosenberger lists 59S20X-400T5-y as a single right-angle PCB plug including housing; -y must be replaced by the requested coding.

Rosenberger · Rosenberger FAKRA catalogue — named PCB row with unselected coding ↗

Locator: Printed/PDF p.20: Right Angle Plug PCB incl. Housing, Single, 59S20X-400T5-y. Row and photo visually inspected. Printed/PDF p.32 coding table also visually inspected.
Access: public pdf text. Source-bounded recognition only; no exact equipment compatibility, wiring, fabrication or universal performance approval.

S549: full source recordRosenberger · Rosenberger FAKRA codes — ordering placeholder and color names ↗

Locator: PDF p.1 / printed p.30: -y coding placeholder. PDF p.3 / printed p.32: complete A–N (without J), Z coding/color table and availability/color caveats; visually inspected.
Access: public pdf text. Source-bounded recognition only; no exact equipment compatibility, wiring, fabrication or universal performance approval.

S550: full source recordInspect review dependencies → (private workspace)

Claim scope: Named catalogue row with unresolved ordering suffix; no exact color, footprint or fabrication approval.. Next review due 2027-01-10.

Back to first citation ↑
C366DSource checked · pending review

The Rosenberger coding table lists A, B, C, D, E, F, G, H, I, K, L, M, N and Z with corresponding color names.

Rosenberger · Rosenberger FAKRA codes — ordering placeholder and color names ↗

Locator: PDF p.1 / printed p.30: -y coding placeholder. PDF p.3 / printed p.32: complete A–N (without J), Z coding/color table and availability/color caveats; visually inspected.
Access: public pdf text. Source-bounded recognition only; no exact equipment compatibility, wiring, fabrication or universal performance approval.

S550: full source recordInspect review dependencies → (private workspace)

Claim scope: Fourteen listed codes. No J row is present. Color reproduction and mechanical key profiles are outside this reference.. Next review due 2027-01-10.

Back to first citation ↑
C366ESource checked · pending review

The Rosenberger code table notes that specific codings are available on request and that manufacturing may cause minor color differences.

Rosenberger · Rosenberger FAKRA codes — ordering placeholder and color names ↗

Locator: PDF p.1 / printed p.30: -y coding placeholder. PDF p.3 / printed p.32: complete A–N (without J), Z coding/color table and availability/color caveats; visually inspected.
Access: public pdf text. Source-bounded recognition only; no exact equipment compatibility, wiring, fabrication or universal performance approval.

S550: full source recordInspect review dependencies → (private workspace)

Claim scope: A photograph or color name alone does not select an orderable assembly.. Next review due 2027-01-10.

Back to first citation ↑
C366FSource checked · pending review

Rosenberger uses K for female/jack, S for male/plug and Z for plastic housings/accessories in its FAKRA number-code explanation.

Rosenberger · Rosenberger FAKRA codes — ordering placeholder and color names ↗

Locator: PDF p.1 / printed p.30: -y coding placeholder. PDF p.3 / printed p.32: complete A–N (without J), Z coding/color table and availability/color caveats; visually inspected.
Access: public pdf text. Source-bounded recognition only; no exact equipment compatibility, wiring, fabrication or universal performance approval.

S550: full source recordInspect review dependencies → (private workspace)

Claim scope: Manufacturer ordering vocabulary only. Do not infer an unknown vehicle circuit, pin assignment or a completed connector from a housing.. Next review due 2027-01-10.

Back to first citation ↑
C366GSource checked · pending review

Rosenberger FAKRA manufacturer family: keying: Color-coded plastic housings with 13 distinct mechanical/color codes plus one neutral coding; coupling: Primary and secondary locks; impedance: 50 ohms, manufacturer-family feature; rf range: DC up to 6 GHz, manufacturer-family feature. Only the Rosenberger FAKRA manufacturer family feature table; no exact individual part properties or mating approval are established.

Rosenberger · Rosenberger FAKRA — housing identity and component roles ↗

Locator: Opening identity paragraph, Product Portfolio and Features; linked catalogue and Codes & Codings resources.
Access: public page. Source-bounded recognition only; no exact equipment compatibility, wiring, fabrication or universal performance approval.

S548: full source recordInspect review dependencies → (private workspace)

Claim scope: Only the Rosenberger FAKRA manufacturer family feature table; no exact individual part properties or mating approval are established.. Next review due 2027-01-20.

Suggest a correction to this field note →

Put this field note to work.

Add to discovery trayRecord an unsaved candidate (private workspace)

Candidate selection does not confirm the identity or capabilities of your physical item.

SOURCE-QUALIFIED ANTENNA REFERENCE

The suffix and the equipment role remain unresolved.

FAKRA / right-angle board-plug row. Coding suffix -y is unresolved. Neutral illustration tone is not a selected color code; terminals omitted. (private workspace)

P366 / Source-observed physical study

FAKRA / right-angle board-plug row

Rosenberger 59S20X-400T5-y catalogue row

Oblique exterior; interface left, board-side body right · Board header

Coding suffix -y is unresolved. Neutral illustration tone is not a selected color code; terminals omitted.

Not to scale. Technical and rights review pending.

Inspect view & provenance (private workspace)

MANUFACTURER TABLE / CODE LETTER + COLOR NAME

Fourteen codes.
Not fourteen vehicle functions.

Manufacturer code letters and color names only. No vehicle-function map, key-geometry copy or precise screen-color reproduction. The source lists no J code. Z is the neutral coding, not a promise that an unknown cable or vehicle circuit is compatible.

Rosenberger Codes & Codings, PDF page 3 / printed page 32. Inspected 12 October 2026.
CodeManufacturer color name
ABlack
BWhite
CBlue
DBordeauxviolet
EGreen
FBrown
GGrey
HViolet
IBeige
KCurry
LCarmine red
MPastel orange
NPastel green
ZWaterblue

Specific-code availability requires confirmation. Manufacturing may cause minor color differences. This table intentionally does not reproduce RAL swatches, keyed mating profiles or vehicle-specific assignments.

Read the identity checks, source scope and code reference →

Evidence behind this page

Scope first. Source second. Approval separate.

3 linked sources · 7 scoped claims · 0 sources with inspection/access flags.

Page scope: v134_new_form_identity

Assessment 2026-10-22 · earliest scheduled source review 2027-01-10. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 3 source scopes, access limits and dates

S548 · Rosenberger FAKRA — housing identity and component roles

Rosenberger · Unclassified publisher domain · inspected 2026-10-12 · due 2027-01-10

Within inspection window

Scoped support: Thirteen mechanical/color codes plus neutral coding. Component portfolio is not a complete vehicle-specific wiring or compatibility map.

Not established / limitations: Source-bounded recognition only; no exact equipment compatibility, wiring, fabrication or universal performance approval.

Locator: Opening identity paragraph, Product Portfolio and Features; linked catalogue and Codes & Codings resources.

S549 · Rosenberger FAKRA catalogue — named PCB row with unselected coding

Rosenberger · Unclassified publisher domain · inspected 2026-10-12 · due 2027-01-10

Within inspection window

Scoped support: Catalogue-row scope: -y remains a required coding placeholder, not an ordered suffix. No PCB footprint or dimension transferred.

Not established / limitations: Source-bounded recognition only; no exact equipment compatibility, wiring, fabrication or universal performance approval.

Locator: Printed/PDF p.20: Right Angle Plug PCB incl. Housing, Single, 59S20X-400T5-y. Row and photo visually inspected. Printed/PDF p.32 coding table also visually inspected.

S550 · Rosenberger FAKRA codes — ordering placeholder and color names

Rosenberger · Unclassified publisher domain · inspected 2026-10-12 · due 2027-01-10

Within inspection window

Scoped support: Ordering-code and color-name reference. Key geometry and RAL colors are not reproduced; no vehicle function inferred from a color.

Not established / limitations: Source-bounded recognition only; no exact equipment compatibility, wiring, fabrication or universal performance approval.

Locator: PDF p.1 / printed p.30: -y coding placeholder. PDF p.3 / printed p.32: complete A–N (without J), Z coding/color table and availability/color caveats; visually inspected.

Trace 7 claims to their source records

C366A · P366

Rosenberger describes FAKRA plastic housings using thirteen mechanical/color codes and an additional neutral coding.

Claim scope: Family identification, not a vehicle-specific signal assignment.

Source links: S548 · Evidence trail → (private workspace)

C366B · P366

Rosenberger lists cable, PCB and panel connectors, separate housings and cable assemblies within its FAKRA portfolio.

Claim scope: Component roles remain separate; the portfolio does not make every item interchangeable.

Source links: S548 · Evidence trail → (private workspace)

C366C · P366

Rosenberger lists 59S20X-400T5-y as a single right-angle PCB plug including housing; -y must be replaced by the requested coding.

Claim scope: Named catalogue row with unresolved ordering suffix; no exact color, footprint or fabrication approval.

Source links: S549 · S550 · Evidence trail → (private workspace)

C366D · P366

The Rosenberger coding table lists A, B, C, D, E, F, G, H, I, K, L, M, N and Z with corresponding color names.

Claim scope: Fourteen listed codes. No J row is present. Color reproduction and mechanical key profiles are outside this reference.

Source links: S550 · Evidence trail → (private workspace)

C366E · P366

The Rosenberger code table notes that specific codings are available on request and that manufacturing may cause minor color differences.

Claim scope: A photograph or color name alone does not select an orderable assembly.

Source links: S550 · Evidence trail → (private workspace)

C366F · P366

Rosenberger uses K for female/jack, S for male/plug and Z for plastic housings/accessories in its FAKRA number-code explanation.

Claim scope: Manufacturer ordering vocabulary only. Do not infer an unknown vehicle circuit, pin assignment or a completed connector from a housing.

Source links: S550 · Evidence trail → (private workspace)

C366G · P366

Rosenberger FAKRA manufacturer family: keying: Color-coded plastic housings with 13 distinct mechanical/color codes plus one neutral coding; coupling: Primary and secondary locks; impedance: 50 ohms, manufacturer-family feature; rf range: DC up to 6 GHz, manufacturer-family feature. Only the Rosenberger FAKRA manufacturer family feature table; no exact individual part properties or mating approval are established.

Claim scope: Only the Rosenberger FAKRA manufacturer family feature table; no exact individual part properties or mating approval are established.

Source links: S548 · Evidence trail → (private workspace)

Prepare this page for review → (private workspace)Read the evidence method →

Recorded evidence only. An inspection date, publisher label, source link or generated packet is not independent technical review, hardware testing, fabrication approval or a compatibility verdict.
